Old 11-24-2014, 12:45 PM   #481
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Turning a new page in the car project. Its been a hard decision but after picking up a new DD i think its time. Hopefully i'll be ready for the 2015 season. Adding a cage and gutting the interior. Open to other suggestions / advice on this build as well. This community has always been a big help!

Challenges:
-Removing dynomat / weight reduction
-Bare bones dash design
-Traction
-Fuel system updates / e85

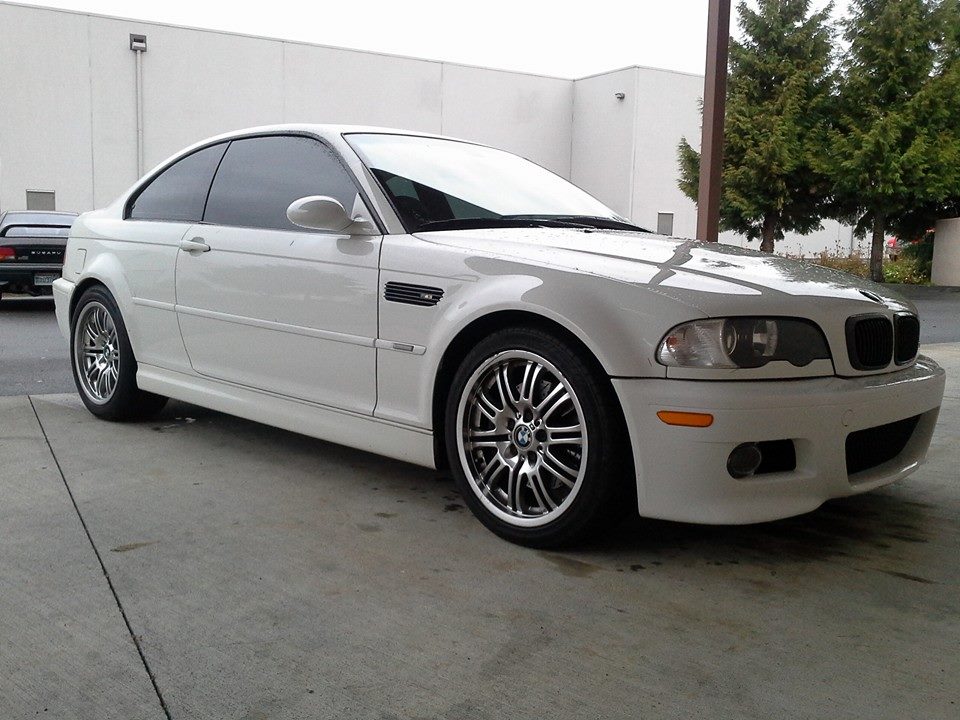

New daily: 2004 BMW M3 40,000mi

Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-10660091_10101684740274192_3166707862858490379_n_zps59dcdc3e.jpg
yank is offline   Reply With Quote
Old 11-24-2014, 01:42 PM   #482
Senior Member
iTrader: (2)

dc2696's Avatar

Join Date: May 2005
Location: Edmonton Ab, Canada
Posts: 1,176
Total Cats: 13
Default

Quote:
Originally Posted by yank View Post
Yes it was super thin. If i had to do it again i'd make a bolt in brace that would be connected to the frame rails. that way if you bail on the project you can always go back to the 1.6 stuff. DC2696 has the right idea. He was able to swap back to the 1.6L setup in <12 hours after he popped his FE3 at Laguna seca.
Swapped in a 99 motor, in the parking lot lol
dc2696 is offline   Reply With Quote
Old 02-04-2015, 01:45 AM   #483
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

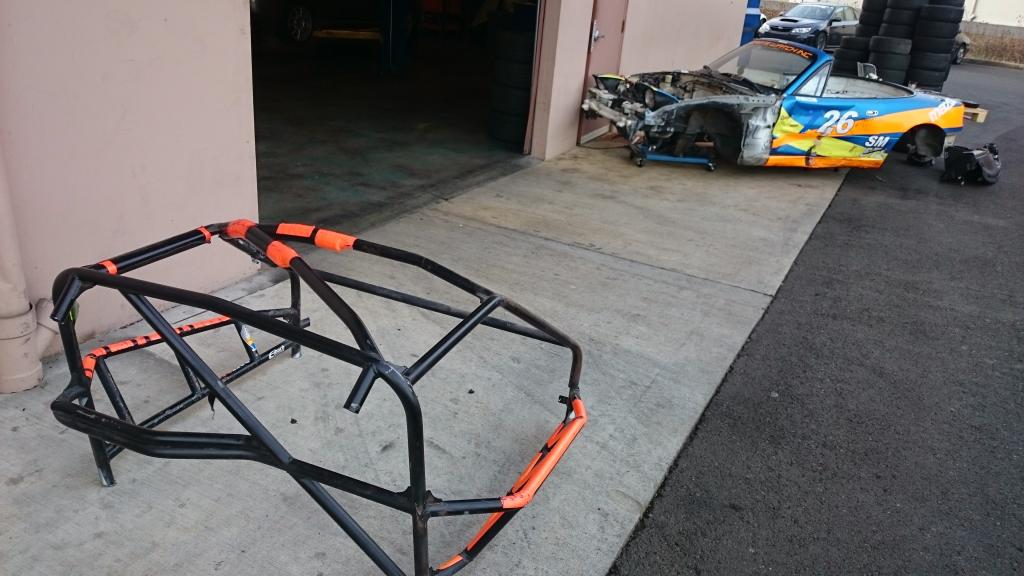

Picked up a spec cage from a friend. Pulled it this last weekend. Next plan is to gut the interior again, simi hardcore weight reduction, change some wiring, cut / modify the dash, weld in the cage, Install gutless interior, new clutchmasters 6 puck HD pressure plate install, potential gear slam videos.



Is there any reason to keep the OE seatbelt columns or can i cut them out? I'll keep the hard top latch location of course.

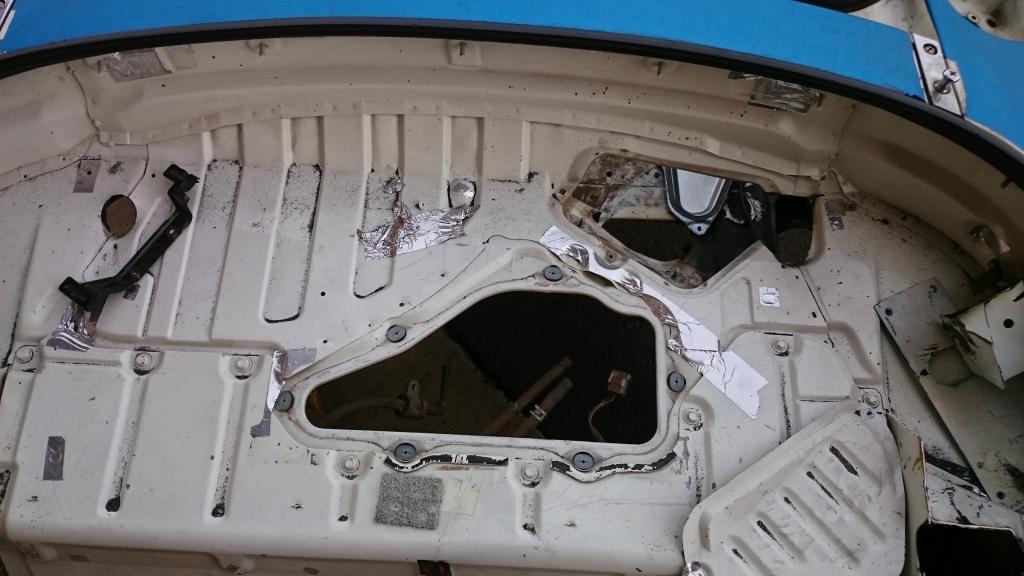

Does anyone know of someone that has dropped the tank, cut out the tank hump as seen from the trunk, and installed a fuel cell in its place? I'd weld the interior of the car so the cabin would be closed and the tank would be fillable from the trunk. I figure i can drop 15-20 pounds by doing this.

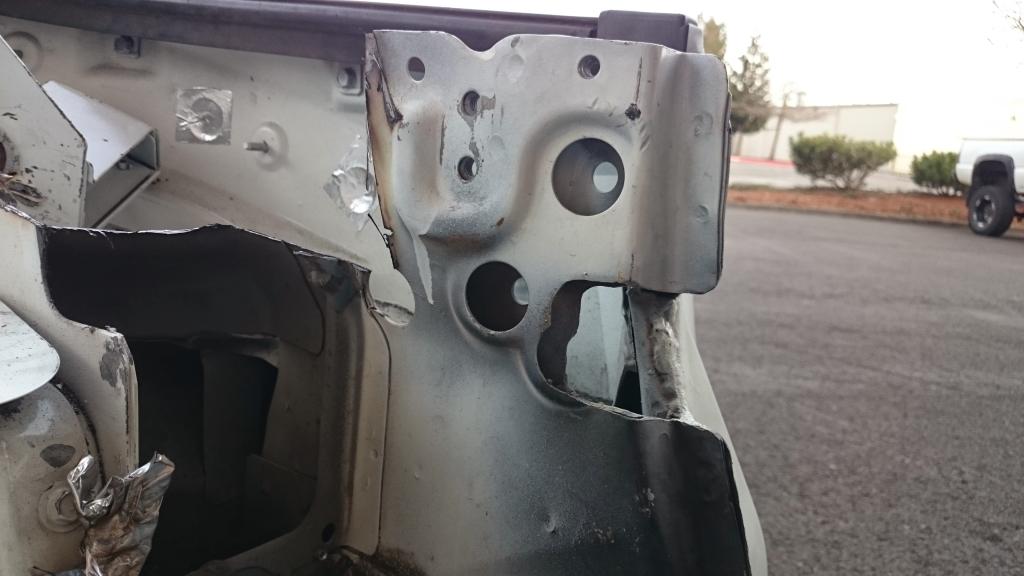

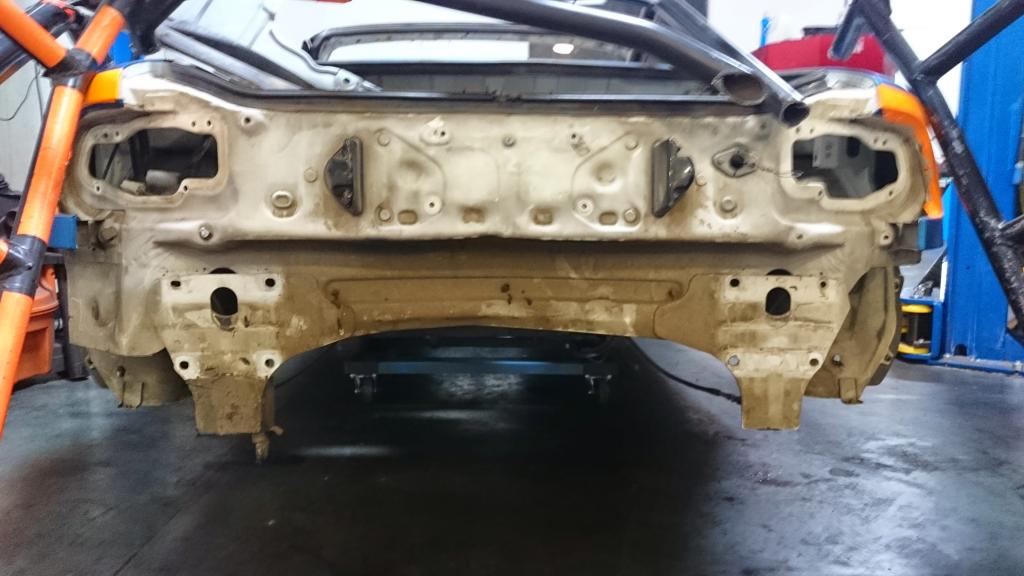

What about these 2 low hanging sections of the rear of the car that the hitch usually attaches to? Cut them out or keep them? I might be able to get more aggressive with a rear diffuser if they are gone.

Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0103_zpscm6hprpr.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0106_zpsdxetfk9n.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0107_zpsezpjgaor.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0114_zpsxope6t4w.jpg
yank is offline   Reply With Quote
Old 02-04-2015, 01:12 PM   #484
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Are you still in Portland yank? I read a few pages back you were moving here.
aidandj is offline   Reply With Quote
Old 02-04-2015, 06:41 PM   #485
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by aidandj View Post
Are you still in Portland yank? I read a few pages back you were moving here.
Yes. Working at and building the car at PREracing up on Airport Way. Stop in sometime if you'd like to check out the build and discuss.
yank is offline   Reply With Quote
Old 02-05-2015, 09:59 AM   #486
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,246
Total Cats: 291
Default

No reason to keep seatbelt posts if you're installing a cage. Main hoop to improve any structure they may have added. Those two rear pieces that hang down from the tub channels were for the tow hooks used to tie the car down in transport. Chop 'em in box 'em.

There are tons of builds that remove that sheet metal cap and put a fuel cell there (or in the trunk). FM:
Flyin' Miata : Projects: Track V8

seat belt posts-
Project Mazda Miata Time Attack Part 1 - Sport Compact Car
m2cupcar is online now   Reply With Quote
Old 02-07-2015, 05:20 AM   #487
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

Crazy updates. Suuuper jelly of the M3 daily.

I'll have to swing by the shop sometime soon to check it out.
turbofan is offline   Reply With Quote
Old 02-08-2015, 04:54 AM   #488
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by turbofan View Post
Crazy updates. Suuuper jelly of the M3 daily.

I'll have to swing by the shop sometime soon to check it out.
Pulled the dash and everything behind it again today. So much easier the second time around. I'm excited to get the scale out to see how much weight i'm dropping. I'm back and forth on removing all of the dynomat. Its going to be such a pain in the *** to remove for not so much weight loss. If there's a quick easy way i'll go for it.

I'm going to try to find a solution to wire in a VSS somewhere. No reed switch off the trans with the 3" exhaust so it'll have to be something that looks at driveshaft or axle speed. Open for suggestions.
yank is offline   Reply With Quote
Old 02-08-2015, 12:04 PM   #489
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

ABS hubs?
aidandj is offline   Reply With Quote
Old 08-18-2015, 01:23 AM   #490
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Dear diary,
Its been a while...
yank is offline   Reply With Quote
Old 08-18-2015, 01:24 AM   #491
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Understatement of the year.</p>
aidandj is offline   Reply With Quote
Old 08-18-2015, 01:28 AM   #492
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

with all the awesome things people have been saying, you need to post a million pics and vids


....like yesterday
18psi is offline   Reply With Quote
Old 08-18-2015, 01:30 AM   #493
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Seriously.</p><p>dry sump, cage, corn hole juice, just general epicness needs to be documented.</p><p>We're going to try flex fuel tuning soon too.</p>
aidandj is offline   Reply With Quote
Old 08-18-2015, 01:32 AM   #494
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Seriously get on it.</p><p>High comp custom long rod motor, corn hole juice, cage, dry sump, the works. Show your **** off.</p><p>And lets tune flex fuel soon. I'm running out of money but need to play with e85.</p>
aidandj is offline   Reply With Quote
Old 08-18-2015, 01:33 AM   #495
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

<p>Double post oops.</p><p>&nbsp;</p>
aidandj is offline   Reply With Quote
Old 08-18-2015, 01:47 AM   #496
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

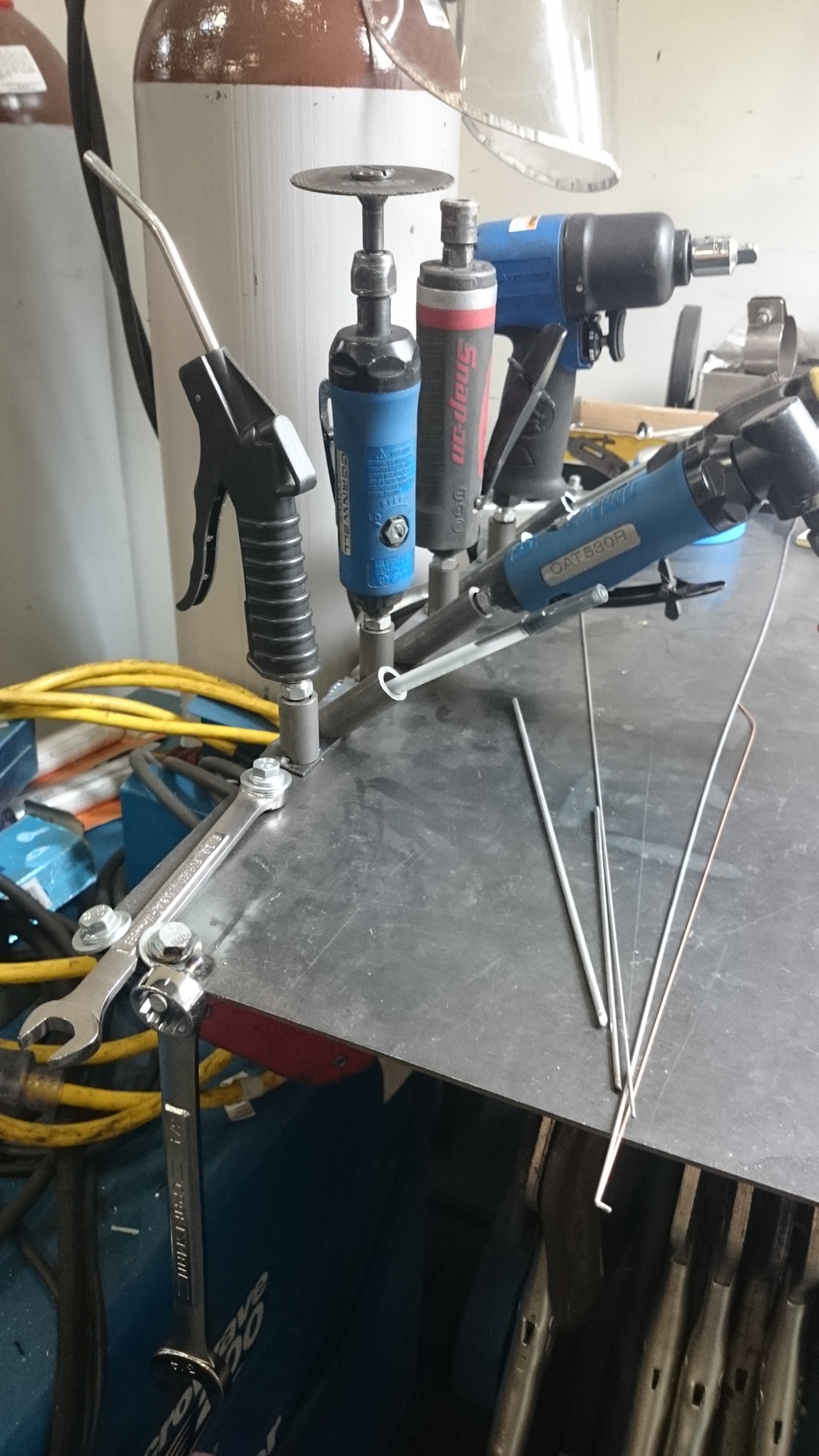

Tools that get the fab job done. I've been doing all the fabrication for PREracing lately and haven't stopped working on my project. I've acquired these and they are awesome. Just fyi.

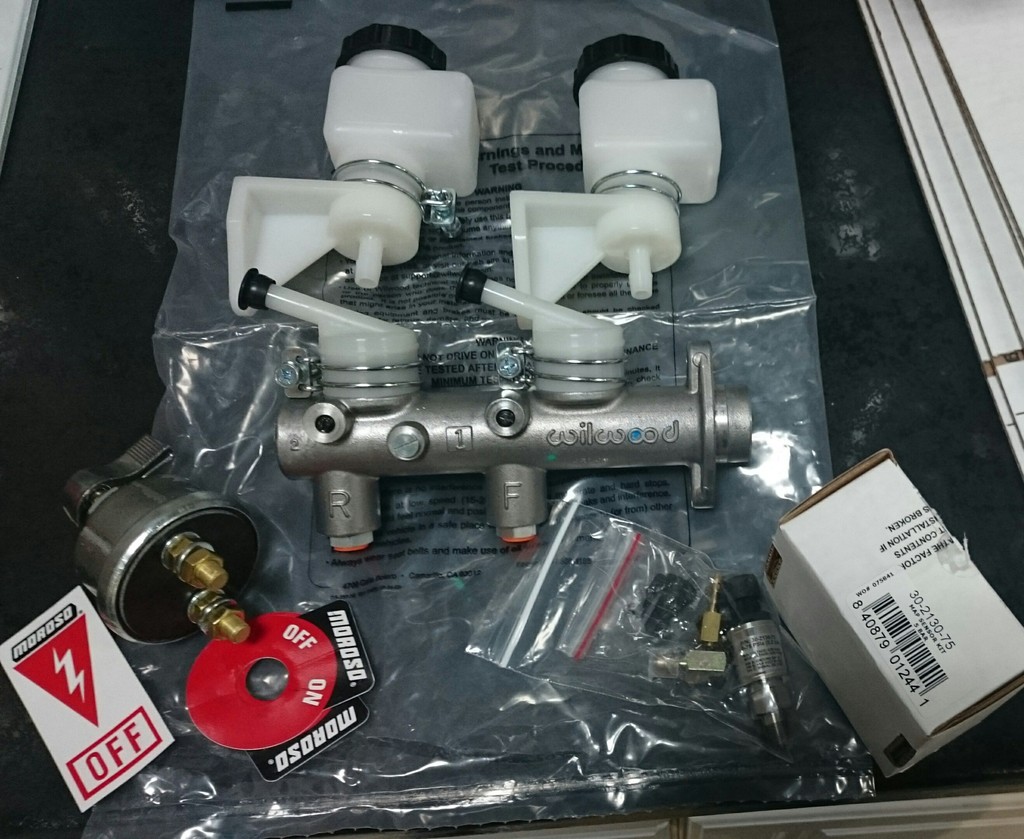

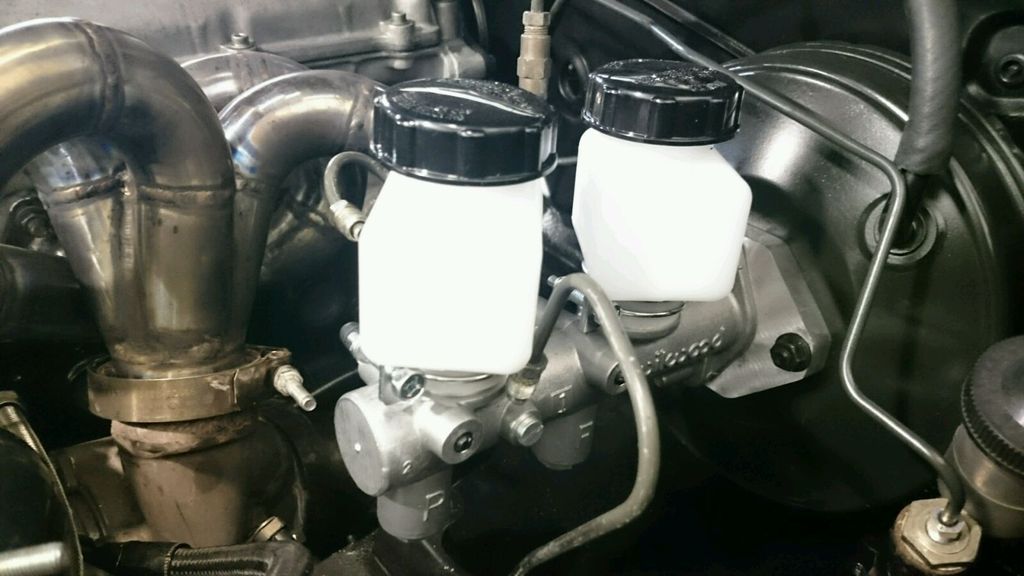

Willwood dual master with some DIY adapter plate that bolts to the master.

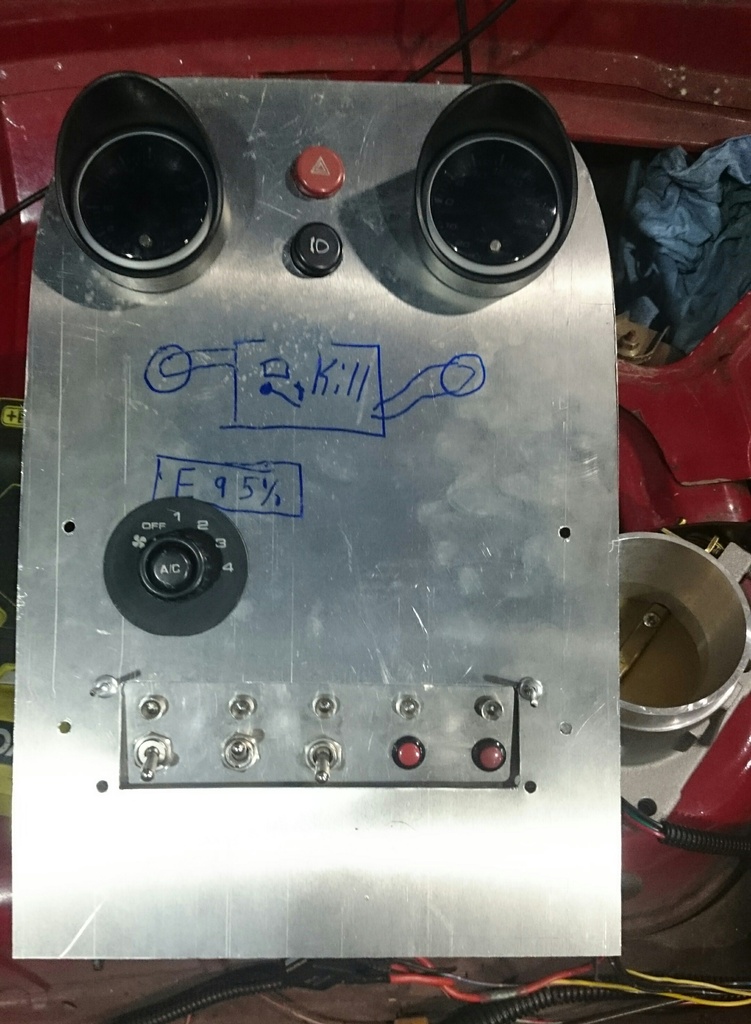

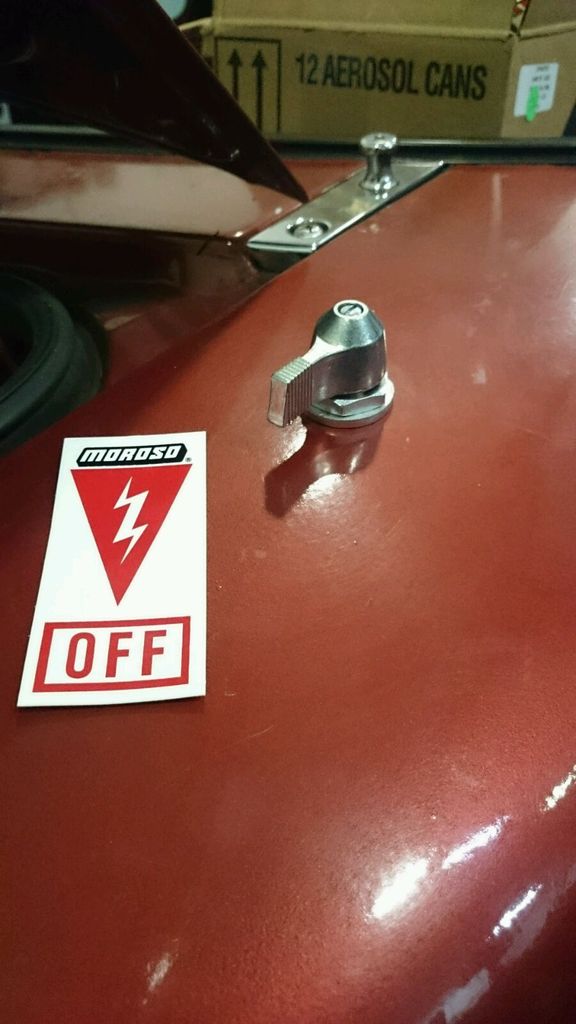

Kill switch... Engage.

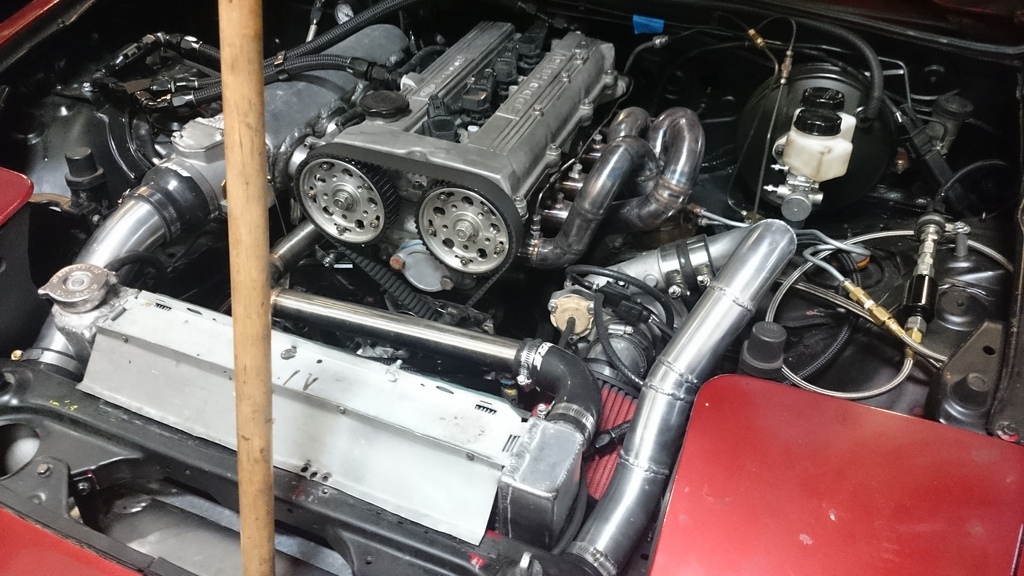

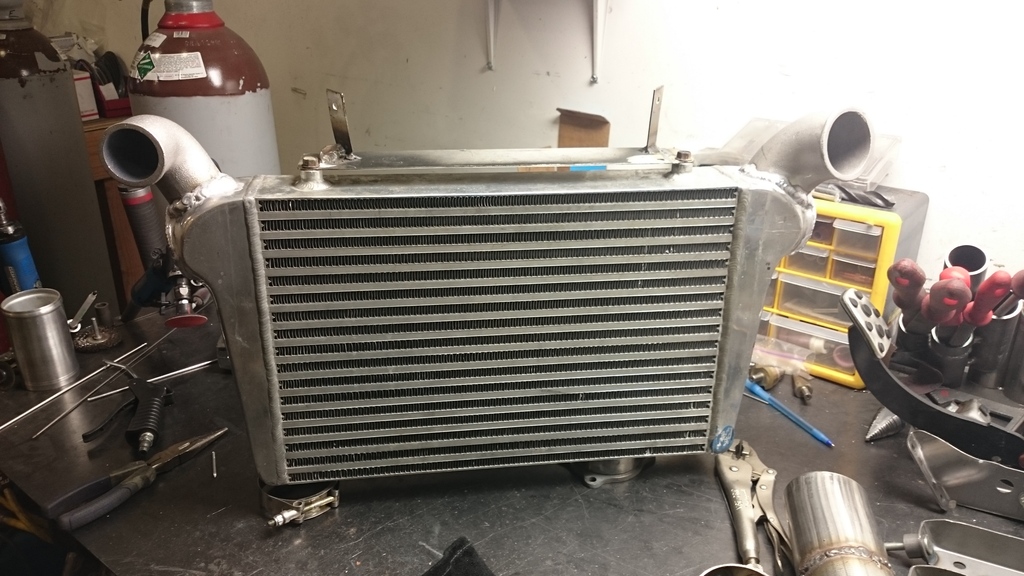

Changed my intake piping around. Probably half the volume this way. "the back door" straddles the circle track dual pass PRC radiator. An added benefit to doing this is that there is a perfect opening in the corners of the wisdom body kit front bumper for brake ducts now.

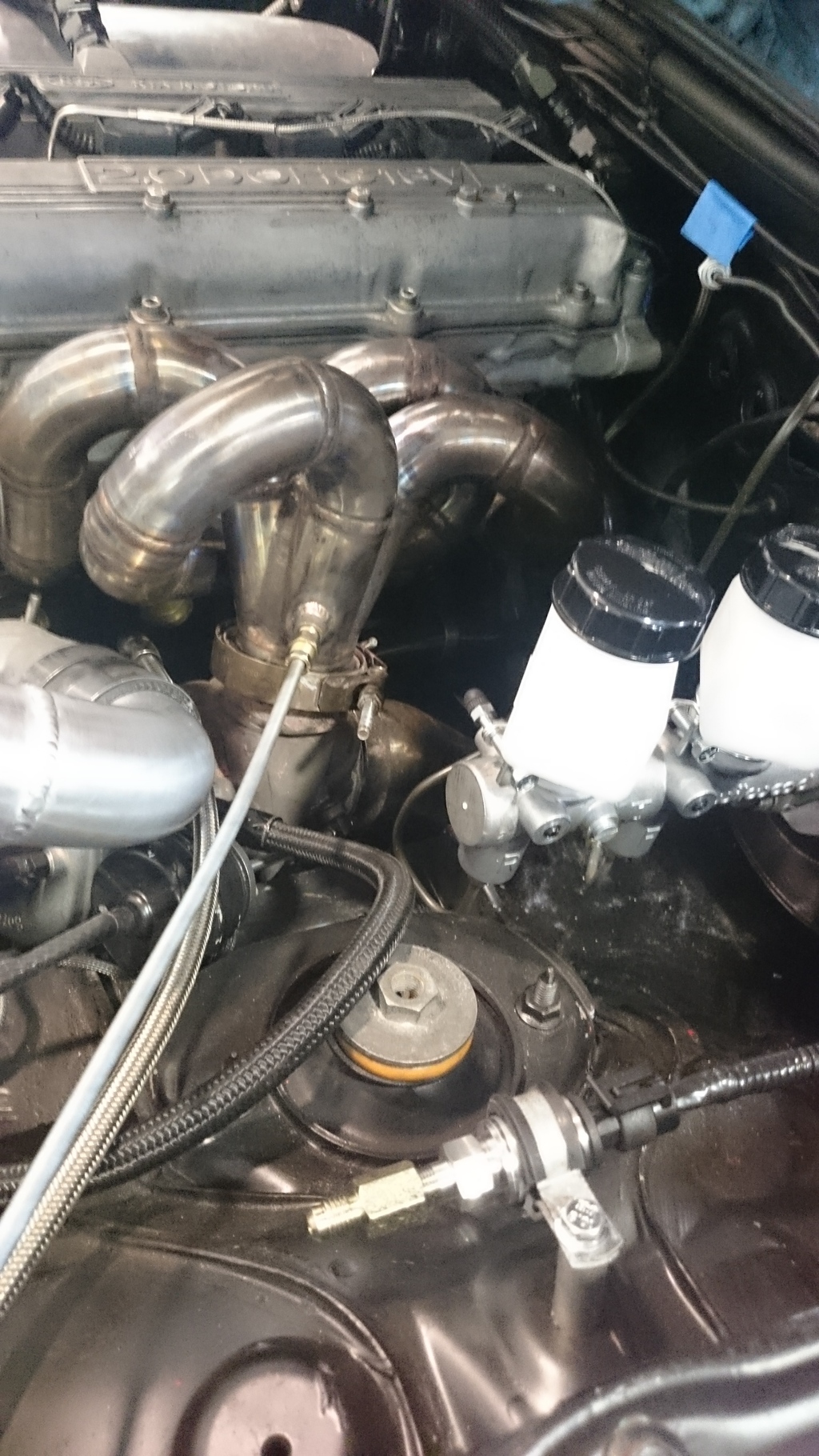

Also see new Ford throttle body and drive pressure sensor setup.

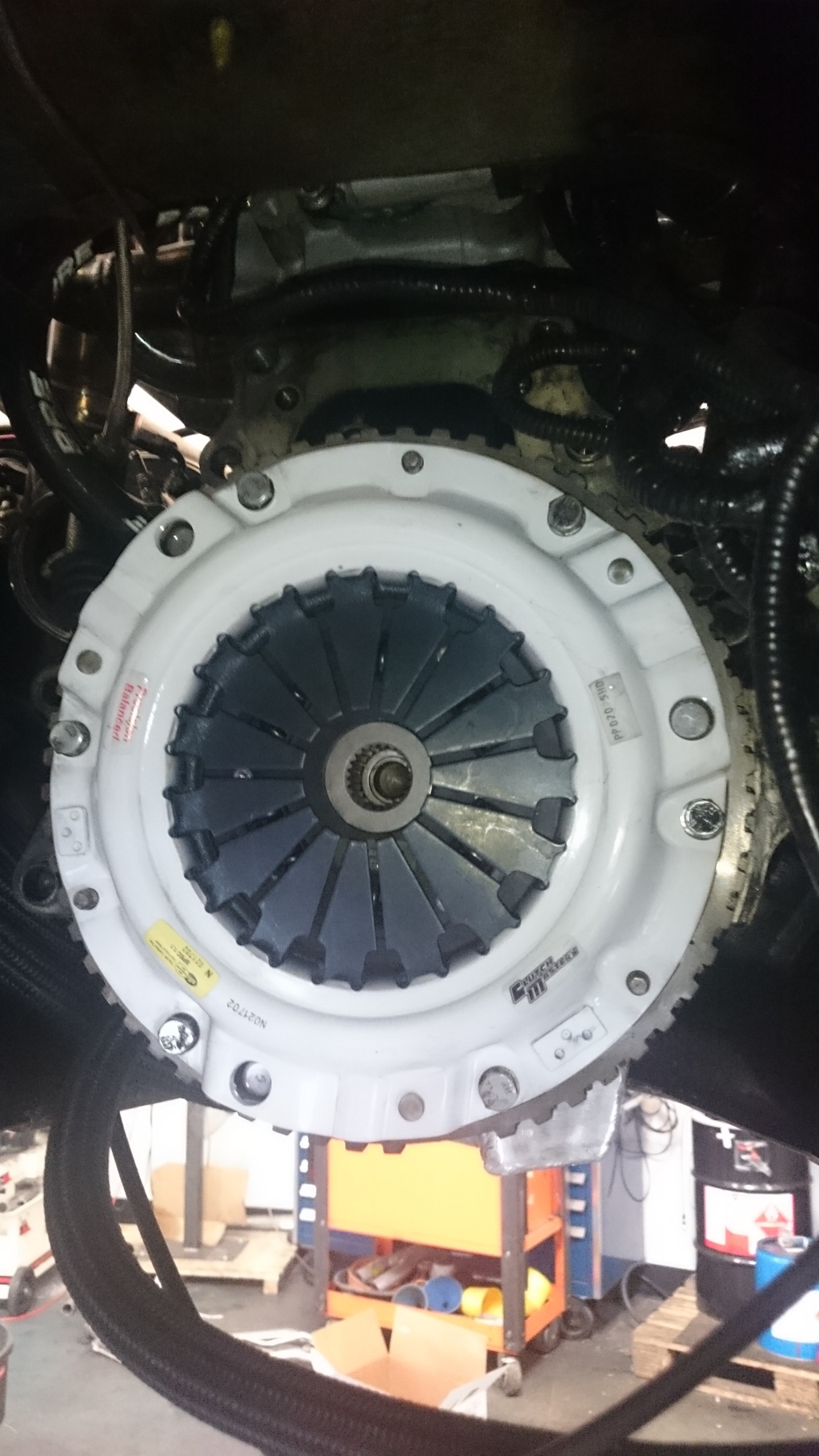

New Clutchmasters Clutch. I've struggled with getting my ACT clutch adjusted / engaging correctly since I've gotten this thing running but it was the clutch setup all along. Since I've swapped to the Clutchmasters clutch its been silky smooth engagement at the correct pedal height.



AEM 5 bar drive pressure sensor for kicks and giggles. I'm hoping to learn things from this data acquisition.

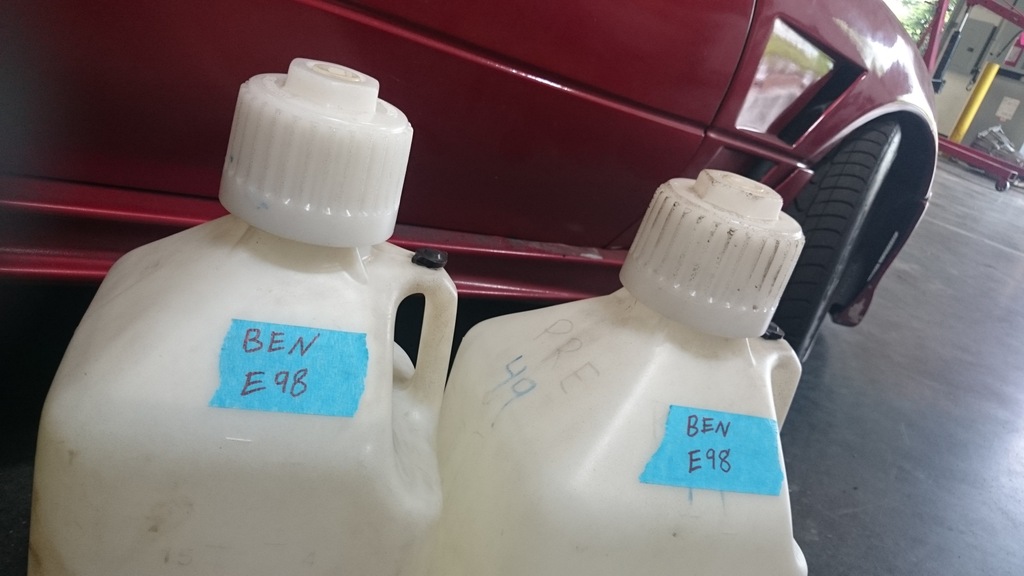

Anddddddd>>> Ethanol.

Name:  DSC_0547_zps2x0pqg9f.jpg
Views: 24
Size:  125.2 KB
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_20150219_211514_zpspxmmygzy.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0206_zpstgkmwika.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_02542_zpsa0xguxbi.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-4121_zpsjdw0nmd1.jpeg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-4111_zps8vuiu54f.jpeg

Build Thread (FE3, RX7 TII, EFR 6258, MS3)-fb_img_1432013923759_zpshkmolgh7.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0293_zpstoutze4w.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0396_zpsrikzwlrl.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-dsc_0346_zpsbvqxodku.jpg
yank is offline   Reply With Quote
Old 08-18-2015, 01:51 AM   #497
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

...............
18psi is offline   Reply With Quote
Old 08-18-2015, 01:52 AM   #498
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

How bout the muthafukin dry sump?
aidandj is offline   Reply With Quote
Old 08-18-2015, 01:56 AM   #499
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Flex fuel is up and running. Some people have commented on having signal issues with mixed fuel but i haven't been seeing any.

Added another 5-6 psi tonight. Logs show 14-15 psi on E85. This thing is a rocket ship.
yank is offline   Reply With Quote
Old 08-18-2015, 01:58 AM   #500
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Needs more psi. Also get some det cans and let's play flex fuel games.
aidandj is offline   Reply With Quote
