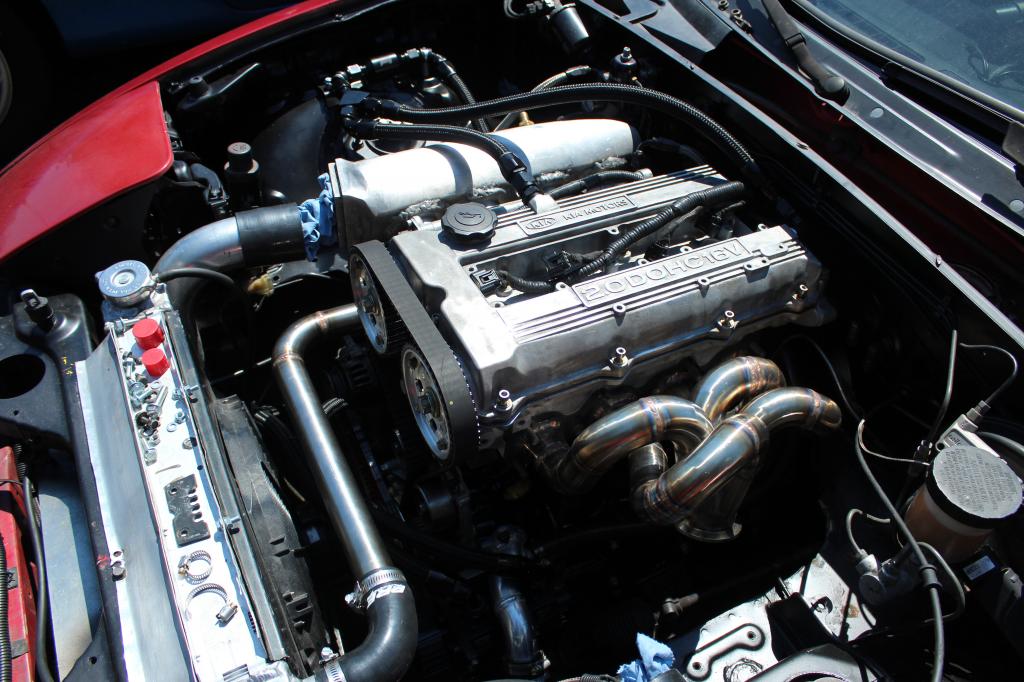

Exhaust manifold Complete. Minus EGT Bungs.

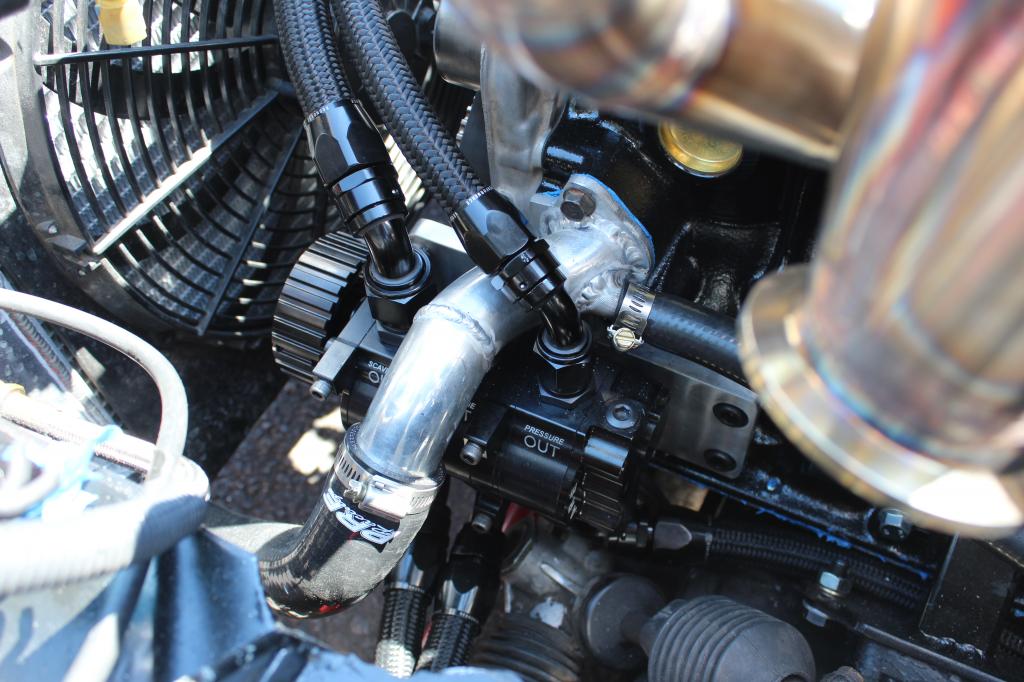

Hoses to and from the pump complete. Under car pics to come as soon as i get it all mounted in place.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6303_zpsa63b4537.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6304_zpsc1f07a53.jpg
yank is offline   Reply With Quote
Old 07-14-2014, 08:19 PM   #442
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

Looks incredible, nice work.
turbofan is offline   Reply With Quote
Old 07-14-2014, 09:24 PM   #443
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

its so much fun to see a build go from nice to absolutely bonkers hahaha

keep up the good work
18psi is offline   Reply With Quote
Old 07-14-2014, 10:43 PM   #444
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by 18psi View Post
its so much fun to see a build go from nice to absolutely bonkers hahaha

keep up the good work
It was far from nice. It had nice things, moments, ... but all of the problems.

Just hoping its better this time around.

I think its starting to set in that it may no longer be a DD at this point. If that's the case, expect more ridiculousness.
yank is offline   Reply With Quote
Old 07-16-2014, 11:51 AM   #445
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

What did you use to finish the elbows and pipe for the manifold?

Looks great!
shlammed is offline   Reply With Quote
Old 07-16-2014, 12:52 PM   #446
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

Nice not having school in the way of your build. Great progress!
m2cupcar is online now   Reply With Quote
Old 07-17-2014, 12:53 PM   #447
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by shlammed View Post
What did you use to finish the elbows and pipe for the manifold?

Looks great!
Are you talking about where the elbows meet the collector? Backpurge, aluminum foil dams, higher torch gas pressure and a mile of stickout. Definitely not pretty but hella functional. Should flow.
yank is offline   Reply With Quote
Old 07-17-2014, 12:54 PM   #448
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by m2cupcar View Post
Nice not having school in the way of your build. Great progress!
True story. But there's always something. To have a social life or not... The struggle is real.
yank is offline   Reply With Quote
Old 07-17-2014, 02:25 PM   #449
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Quote:
Originally Posted by yank View Post
Are you talking about where the elbows meet the collector? Backpurge, aluminum foil dams, higher torch gas pressure and a mile of stickout. Definitely not pretty but hella functional. Should flow.
I mean what process did you use to remove the scale and polish the pipes?
shlammed is offline   Reply With Quote
Old 07-17-2014, 03:32 PM   #450
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by shlammed View Post
I mean what process did you use to remove the scale and polish the pipes?
Out of respect of our previous fabricator bro's "trade secrets" I'll keep this one on the low down. He got bent when i told him i knew what it was so i guess it was pretty important to him. I'm sure it's out there on the internet somewhere. I will tell you it took less than an hour to do all the bends and pipe you see though..
yank is offline   Reply With Quote
Old 07-18-2014, 02:11 AM   #451
Newb

Join Date: Feb 2011
Posts: 36
Total Cats: -3
Default

in person it looks better than these photos. Now lets see this & my 1.6 Ecocet make some laps together. I think I can get some back to back double gopro open track time. Both cars will be one week finished at next event.... Would make for epic weekend 100+ miles of autocross to break them in.
mrvwcastner is offline   Reply With Quote
Old 07-21-2014, 04:24 AM   #452
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Cart ahead of the horse but here ya go. Progress was made. More pics to come.

yank is offline   Reply With Quote
Old 07-21-2014, 10:49 AM   #453
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,245
Total Cats: 291
Default

Wow, you made that look easy. Like start to finish in a dozen posts. Very cool.
m2cupcar is online now   Reply With Quote
Old 07-21-2014, 05:34 PM   #454
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,930
Total Cats: 526
Default

Props. looks awesome.

pull videos NAO.
turbofan is offline   Reply With Quote
Old 07-21-2014, 07:12 PM   #455
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

got a chubby from that clip.
so awesome
18psi is offline   Reply With Quote
Old 07-21-2014, 07:29 PM   #456
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,704
Total Cats: 237
Default

Wow man. "cool" indeed, I'm very impressed.
Fireindc is offline   Reply With Quote
Old 07-22-2014, 10:33 PM   #457
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

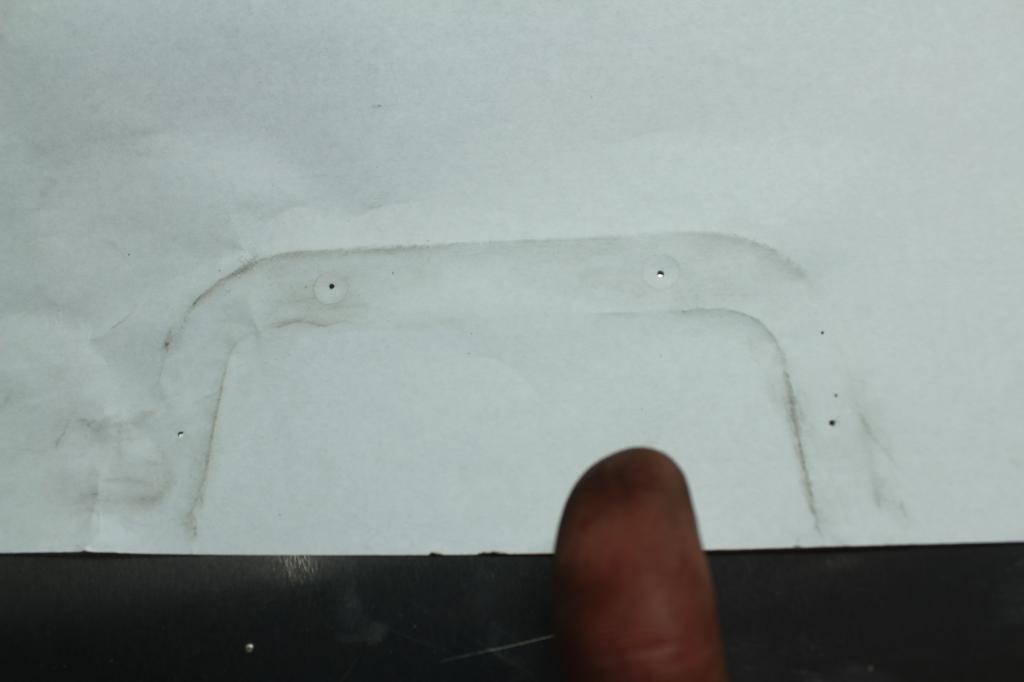

Tip: to make a template, Blank sheet of paper plus dirty finger tips. Rub over surface that you want to copy. Done. I've been using this alot on this build to make plates that need to mount onto things that already have holes drilled and tapped. ex. motor mount plates, dry sump pump mounting plate, bottom of bell housing plate.

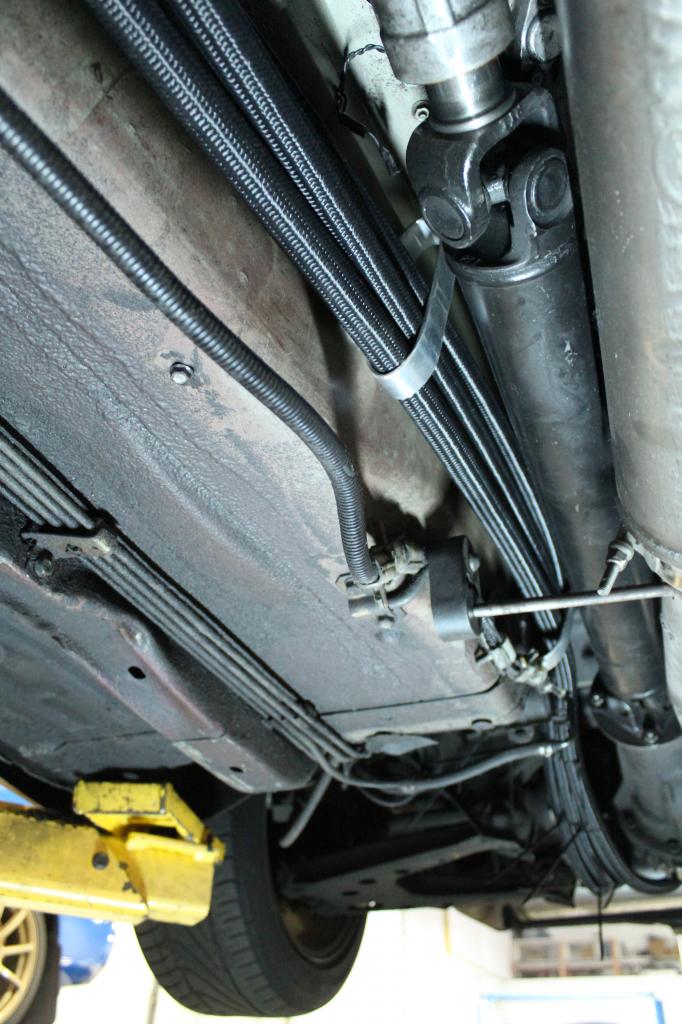

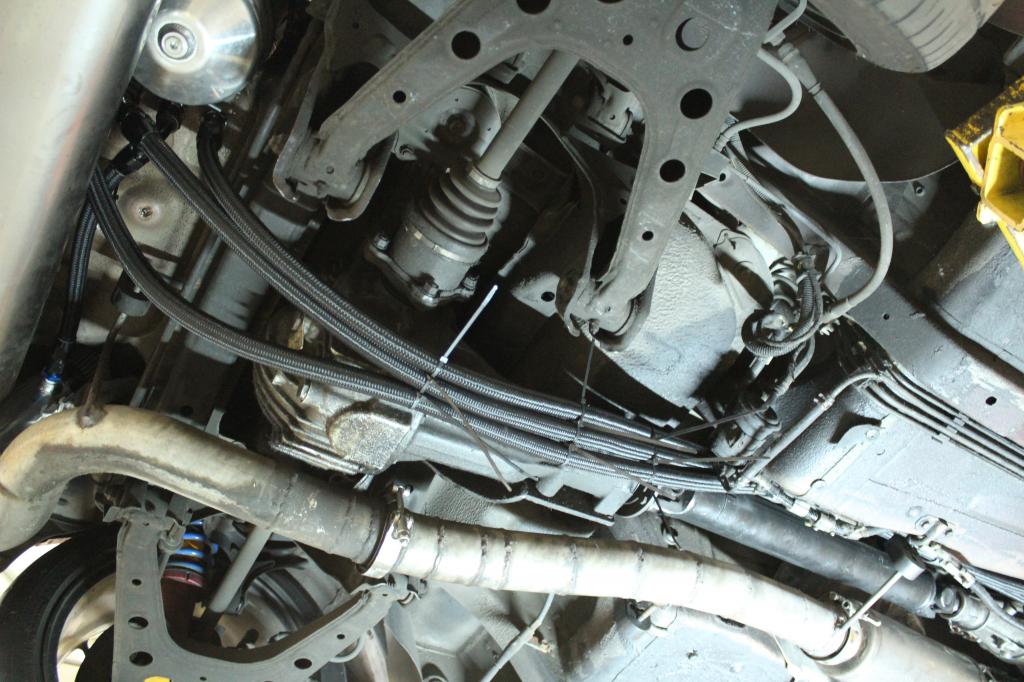

Zip tie trick for multiple hoses. Works good. Pretty self explanatory.
I'll be adding a lower subframe brace and a shield to protect these hoses in the near future.



Heavy gauge 4" aluminum tubing cut and crushed for hose management in the trans tunnel. Room for future -6AN fuel lines for when i run corn juice.

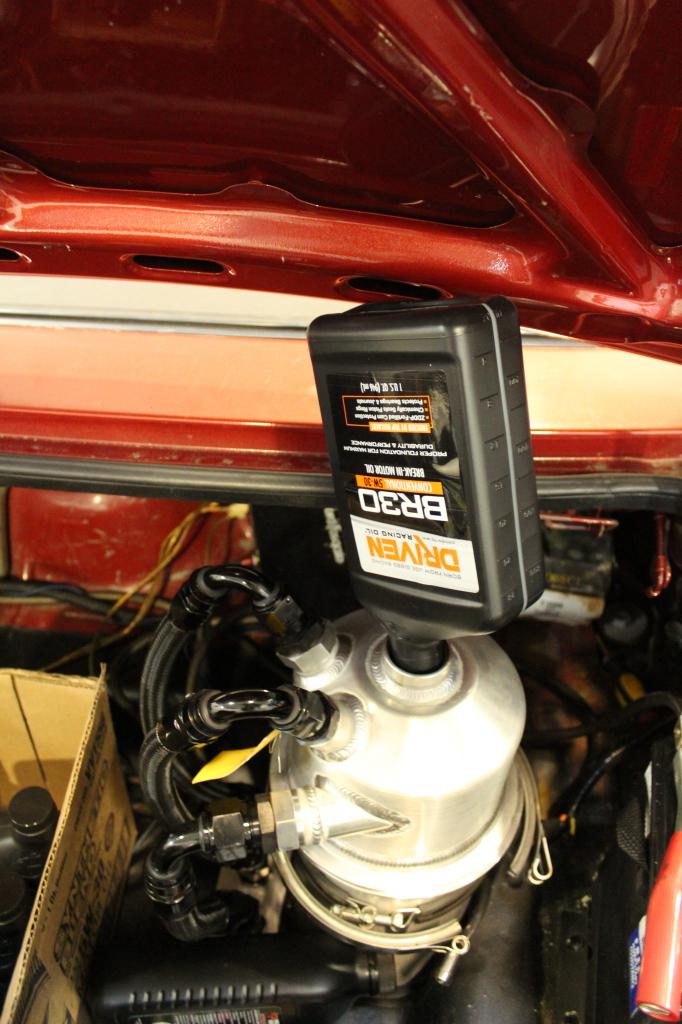

Breaking it in. Felt bad draining out all that clean looking oil.

Need to install a new timing belt tension and idler pulley tomorrow along with some fresh plugs. Going to adjust the oil pump gear position and address an exhaust leak at the manifold V-band tonight and hopefully be ready to tune by Thursday or Friday. Pull videos to follow.

Throwing around the idea of making it down for the MRLS event in September. If funds and work schedules align i'll try to make it happen. I'd be nice to trailer the car down there just in case but access to a ride is kinda in the air right now.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6336_zps87f58dd2.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6340_zps4596ef8d.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6341_zpsa6dce976.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_6344_zps72d3f24b.jpg
yank is offline   Reply With Quote
Old 08-24-2014, 02:10 AM   #458
Newb

Join Date: Jun 2013
Location: Topeka, Kansas
Posts: 28
Total Cats: 0
Default

Took me about hour to read entire thread. Keep up the good work!
Dhruvil is offline   Reply With Quote
Old 08-25-2014, 03:36 PM   #459
Junior Member

Join Date: Feb 2009
Location: Madison, WI
Posts: 78
Total Cats: 0
Default

yank,

do you have any pictures of the V band welding to the EFR turbo you did??
id really like to see this.

thanks
bpt323 is offline   Reply With Quote
Old 08-25-2014, 03:58 PM   #460
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 784
Default

I need to go back and read this thread again... i have an F2 block with FE3 crank, B2600 rods, and F2 pistons chucked together in the name of science sitting on my garage floor.

Any thoughts from driving it so far as to how the change in rod:stroke ratio is showing itself in driving characteristics? This should be close to 2:1, right? 1.9xx?
concealer404 is offline   Reply With Quote
