Old 08-01-2013, 11:01 AM   #381
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

Aren't all OE cantilevered IMs braced? Word has it the Miata's IM is braced to reduce stress to the head/studs- so the load/vibration stress is present. Curious to hear a professional welder's opinion too since the cracks are in the center of the welds vs. at the edge in the tube.
m2cupcar is offline   Reply With Quote
Old 08-01-2013, 11:04 AM   #382
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by m2cupcar View Post
Aren't all OE cantilevered IMs braced? Word has it the Miata's IM is braced to reduce stress to the head/studs- so the load/vibration stress is present. Curious to hear a professional welder's opinion too since the cracks are in the center of the welds vs. at the edge in the tube.
Every Miata one is. I had an OE manifold on my last car that had an air to water intercooler built in and had a blower on it that wasnt braced. That was like 40 pounds of weight at least + the belt tension. Of course it was on a significantly smoother 4 banger than the miata.
Leafy is offline   Reply With Quote
Old 08-02-2013, 02:29 PM   #383
Senior Member
iTrader: (8)

Join Date: Jan 2012
Location: Azusa, CA
Posts: 1,376
Total Cats: 80
Default

amazing build thread sir. That was an enjoyable read. Keep it up!
cyotani is offline   Reply With Quote
Old 01-26-2014, 01:11 AM   #384
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

I ended up FINALLY getting a Job at PREracing as the new product development engineer!

For those who are doing or have done the FE3 swap please contact me. I'm planning on making a run of dry sump pans and turbo/NA manifolds. Might be down for going after other ideas if you have them.

Update on my personal build. Passed emissions with a V-band Cat and denatured alcohol in the tank. I'm back to catless and running strong. Now that i'm at PREracing i'm in the planning stages of a high compression rebuild with a new turbo exhaust manifold, dry sump, intercooler, A/C delete, methanol build. No ETA yet but i'm getting excited about the project ahead.
yank is offline   Reply With Quote
Old 01-27-2014, 10:18 PM   #385
Newb

Join Date: Feb 2011
Posts: 36
Total Cats: -3
Default

I will have Exocet by mid February, I already have bare v8 roadster engine cradle, next question is what do I swap? Let me know if you want to use my cradle for mockup.
mrvwcastner is offline   Reply With Quote
Old 01-27-2014, 10:34 PM   #386
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

PRE huh... Did you guys ever re calibrate the dyno so it doesn't read so damn high.
greddygalant is offline   Reply With Quote
Old 01-27-2014, 11:08 PM   #387
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by greddygalant View Post
PRE huh... Did you guys ever re calibrate the dyno so it doesn't read so damn high.
It reads about 30 hp lower than English's from what I've heard.. I'll ask around and see when the last time it was calibrated.
yank is offline   Reply With Quote
Old 01-28-2014, 12:19 AM   #388
Senior Member
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Lower or higher? Josh (curly) made 30 more on the PRE dyno than he did on the English dyno.
greddygalant is offline   Reply With Quote
Old 01-28-2014, 01:27 AM   #389
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

They have no RPM sync. It's...weird.

They use a random gear to get to a certain RPM, then tell the dyno, "this is 3000rpm" or whatever. Then its "sync'd".

Do not like.

Seemed like a lot of nice guys though, hope you enjoy it!
curly is offline   Reply With Quote
Old 01-28-2014, 09:31 AM   #390
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

Quote:
Originally Posted by curly View Post
They have no RPM sync. It's...weird.

They use a random gear to get to a certain RPM, then tell the dyno, "this is 3000rpm" or whatever. Then its "sync'd".

Do not like.

Seemed like a lot of nice guys though, hope you enjoy it!
Weird. I've done that before on a dyno, even with an inductive pickup, or obdII. It really pisses off the dyno guy at a club dyno day when you want to log through the obdII port and force them to use the inductive pickup on your subaru.
Leafy is offline   Reply With Quote
Old 01-28-2014, 12:24 PM   #391
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,791
Total Cats: 71
Default

Nice. Will be cool to see what you do for the hotside parts.


I am underway with an FE3 Miata turbo kit (one off) that I posted a pic of the manifold in my pic thread on the fab subforums.

Keep the pics up brotha.
shlammed is offline   Reply With Quote
Old 01-30-2014, 05:22 PM   #392
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by Leafy View Post
Weird. I've done that before on a dyno, even with an inductive pickup, or obdII. It really pisses off the dyno guy at a club dyno day when you want to log through the obdII port and force them to use the inductive pickup on your subaru.
They typically don't use the inductive pickup on COP cars. Used it the other day on a Honda that came through the shop and it synced up perfectly according to our new tuner from what i overheard.
yank is offline   Reply With Quote
Old 03-08-2014, 09:07 PM   #393
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Here we go again!

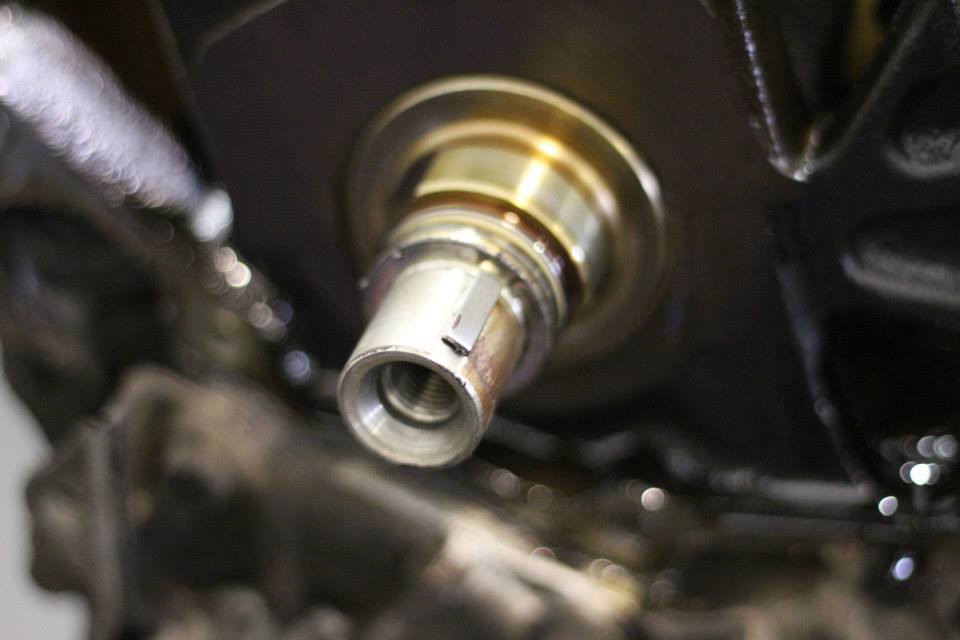

Picked up another block from the junkyard. The crank keyway looks much than the first one i pulled.





Going with a 3 stage ARE dry sump part number 3120.
1/2" plate has been sent off to the machine shop to get cut on the waterjet.
3/16" aluminum plate ordered for the rest of the dry sump pan.
Custom crank pulley designed to run an alternator and has mounting locations for a 3 bolt mandrel for mounting my dry sump drive gears. (should be more low profile than the OE pulley and allow me to move my swaybar back ~1/2" to the OE mounting locations.
88mm H22 high compression pistons part number SC7133. **EDIT - Changed mind - SC7132**
My calculations put me at 11:1 compression ratio with a 155mm custom rod. Valve angles and diameters match up but i'm afraid the exhaust valve reliefs may be a bit out of position. Its a super close call based on the initial piston/head/valve/modeling clay test. Game plan is to go ahead and bore it to 88mm and then test again after assembled. If they are interference then i'll send the pistons to the machine shop to remove another 1mm from the relief and have the pistons re-balanced.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-1970461_10101284832692192_1718667080_n_zps069cd408.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_0467_zps59430fa9.jpg

Last edited by yank; 05-06-2014 at 02:48 AM.
yank is offline   Reply With Quote
Old 03-08-2014, 09:46 PM   #394
Junior Member

Join Date: Feb 2009
Location: Madison, WI
Posts: 78
Total Cats: 0
Default

If your going so far as to tear out the crank. have it machined with a 2nd keyway 180 out, that will greatly reduce the stress load on the pulley.
bpt323 is offline   Reply With Quote
Old 05-06-2014, 02:46 AM   #395
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default How Not to Build A Turbo FE3 Miata

Chickened out. Going with the 87mm H22 high comp pistons instead of the 88mm. This should leave a bit more meat in the cylinder sleeves to handle the higher cylinder pressures. After receiving the custom 155mm Pauter rods, checking rod/block clearances, and making the dry sump oil pan the block is off to the machine shop. (M&B Cylinder Head of Portland OR. Much more reputable than the last shop i chose.)

Anyone had experience with King Bearings? ACL doesn't make a race bearing for a Kia Sportage.. (who would have thought...) but king makes a street bearing for the FE3. From what I've seen its either this or OE. Might be another option out there though.

FYI, PREracing is now a dealer for Redhorse fittings. Myself and another shop car (Project Heavy Weapon) needed a TON of AN fittings and hoses so we talked the boss man into it.

I've been thinking about how i'm going to put the power down recently so I've been hunting for fender flares, body mods, wheel tire combos that will all jive. I've also been thinking about wrapping the car instead of re-painting this time. I havent settled on the exhaust manifold design yet but i know it'll be utilizing a GT30 flange. I've had enough of the leaky T25 flange. It seems like the longest I've been able to get out of it before leaking has been about 4000 miles. (Best results after using a vice grip to hold 1 corner down after stripping out one of the M8 tapped holes in the flange. Haha? )

This means i'll also be modifying the exhaust housing on the EFR6258. It hurts to think about doing this but i love everything else about this turbo. Any welder Bros have any advice (besides not doing it or waiting for treadstone to get their **** together) on which filler to use / tips and tricks for welding cast stainless to a Stainless GT30 flange?

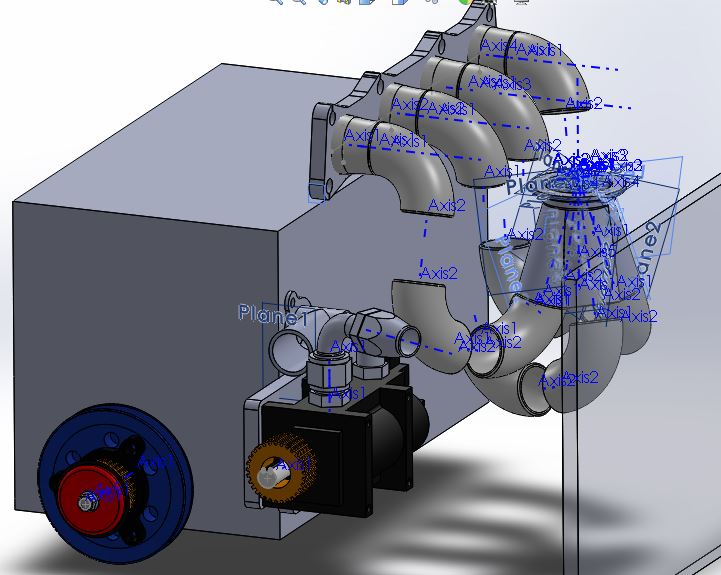

FYI the new exhaust manifold will be reduced to 1.25" runners instead of 1.5" in order to more tightly package the manifold and to keep the exhaust gas velocity up.


Confirming fitment.

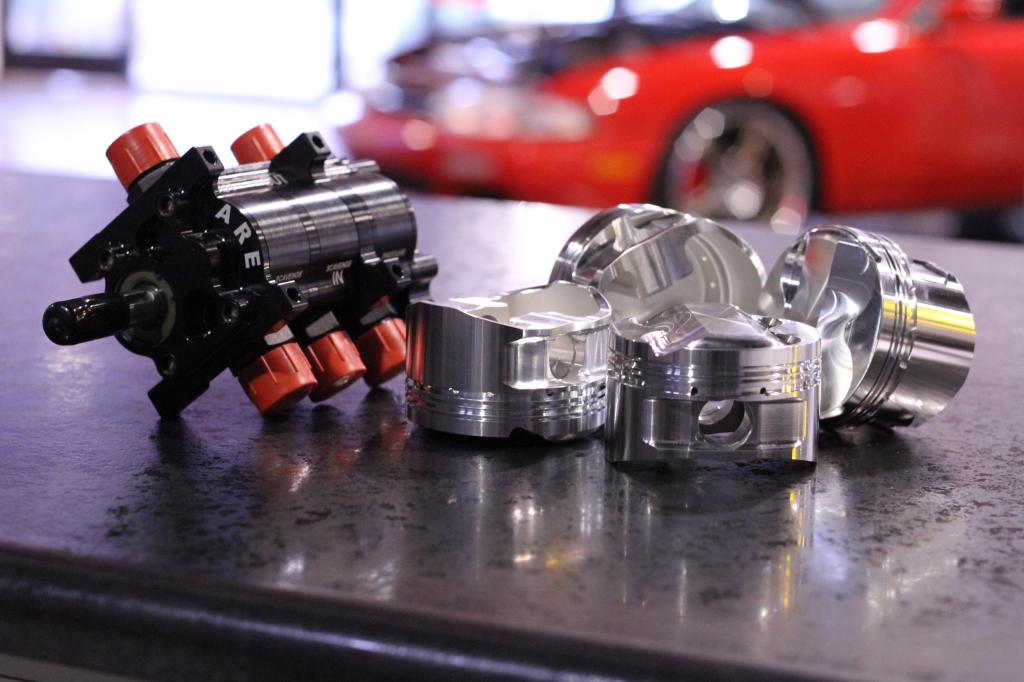

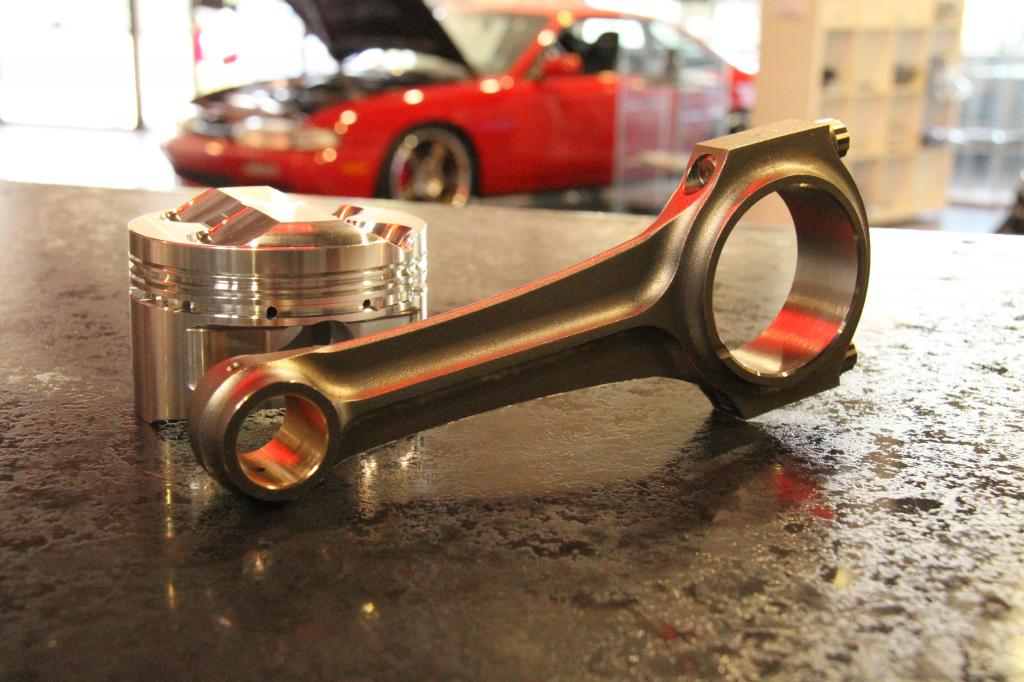

High comp H22 CP pistons (SC7132) with Custom 155mm C-C rods.

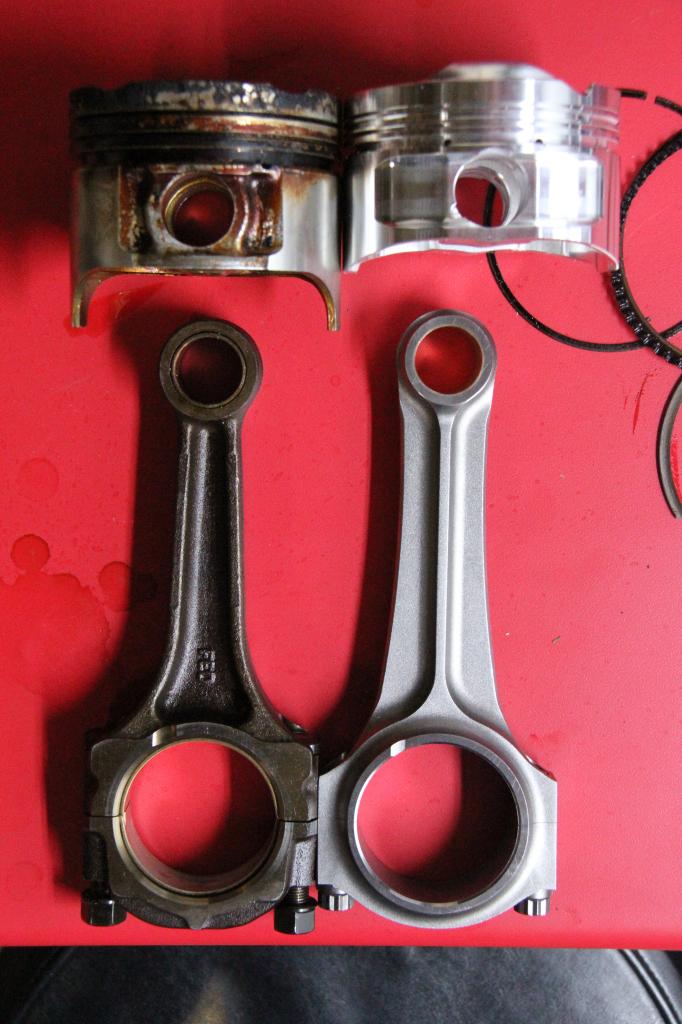

Rod and piston comparison.

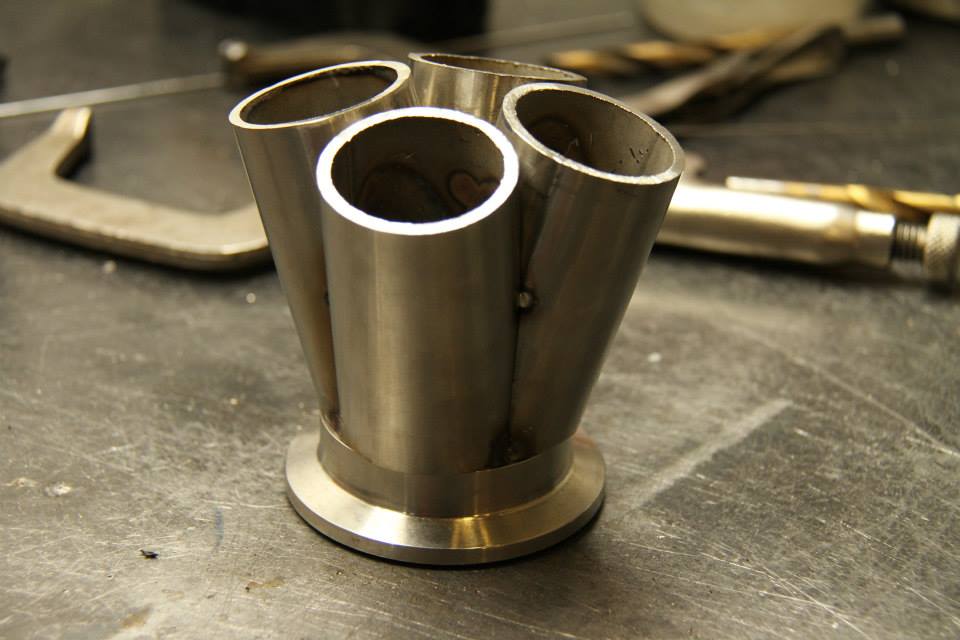

collector in progress.

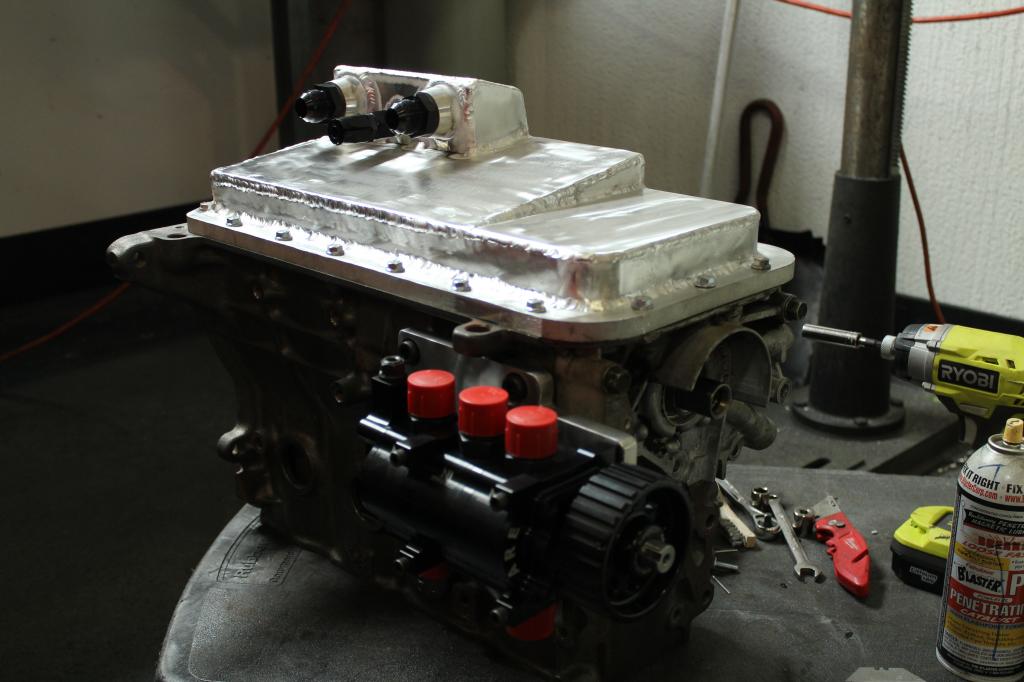

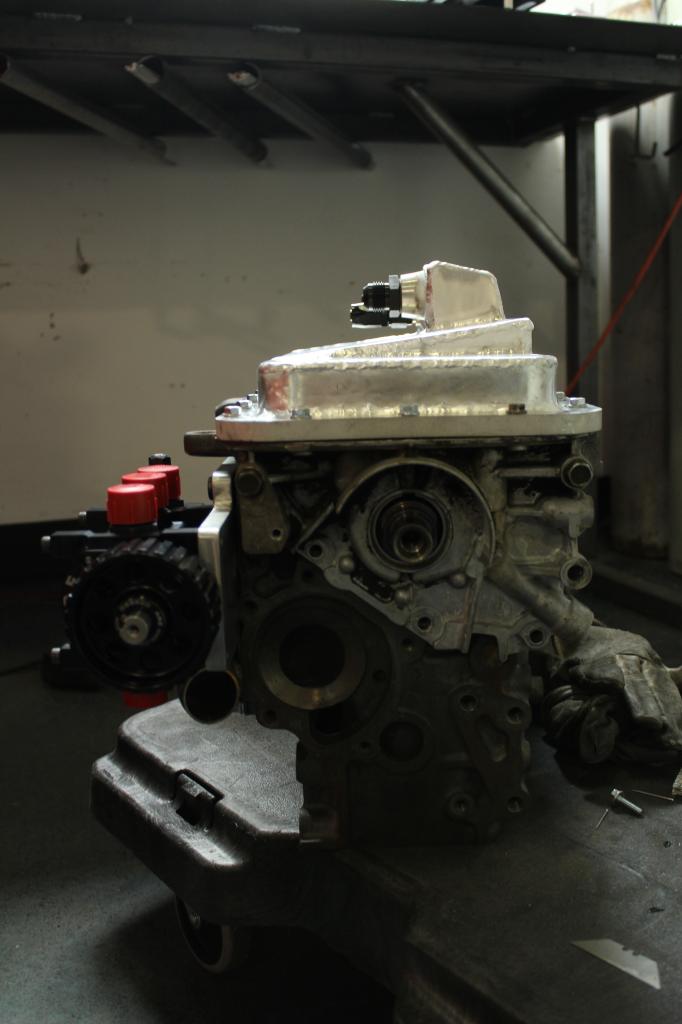

FE3 Dry sump oil pan. 1/2" flange will get re-surfaced to remove any warping after welding. Bungs and fittings by ARE dry sump. I did the welding myself so of course its not perfect but i'm confident i'll be functional.


FE3 Dry sump oil pan front view.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-progress_zps0d3198f3.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_0814_zps81c0397b.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_0834_zps47edebd9.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-10153248_10101384111880902_6827512929073090524_n_zps326c498a.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-post_zpsa7d75564.jpg

Build Thread (FE3, RX7 TII, EFR 6258, MS3)-post2_zps66e4aeb7.jpg
yank is offline   Reply With Quote
Old 05-06-2014, 08:03 AM   #396
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,092
Total Cats: 90
Default

You should ask the F2T captain of the board if F2T bearings fit an FE3.
Leafy is offline   Reply With Quote
Old 05-06-2014, 10:36 AM   #397
Newb

Join Date: Feb 2011
Posts: 36
Total Cats: -3
Default

I'm getting rid of one set 9" 6ULs today, might get rid of the other set later this week. I think the guy who bought my Miata body with the flares still has it all, but I would put more agresive flares if I were you. The work looks good! My Exocet will be here this week or early next big build weekend 17/18 want to come out to the shop?
mrvwcastner is offline   Reply With Quote
Old 05-06-2014, 11:35 PM   #398
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by Leafy View Post
You should ask the F2T captain of the board if F2T bearings fit an FE3.
Ended up getting a set of Clevite bearings. Part #'s CB-1455AL and MS-1803AL at the request of Brian at M&B.

Yeah i'll try to make it down to check out the build mrvw. Assuming my car can at least make it to Beaverton before running out of fluids.

I plan on working on the car this weekend. I'll be able to make some hoses and get some of the bulk head AN's placed. The method for this swap is going to be to get as much work done up front as possible and then only be out a car for a week or so instead of months.
yank is offline   Reply With Quote
Old 05-07-2014, 09:47 AM   #399
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,241
Total Cats: 290
Default

Nice parts and progress. Looking forward to this coming together- could it be "kia four cylinder power record"? You may already own that.
m2cupcar is offline   Reply With Quote
Old 05-11-2014, 07:12 PM   #400
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

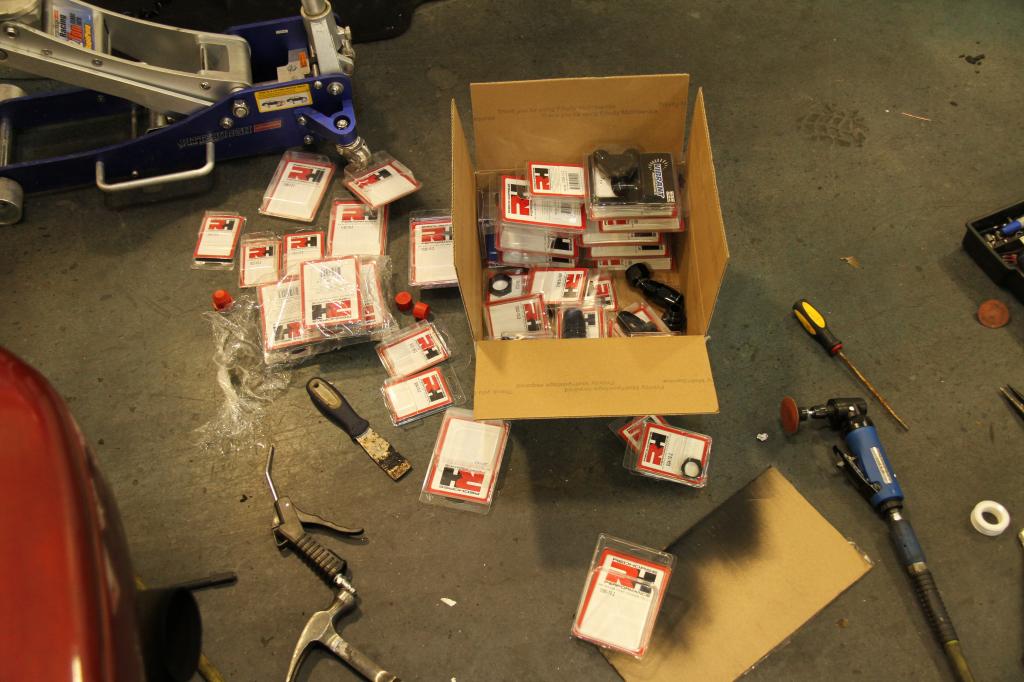

All of the fittings!

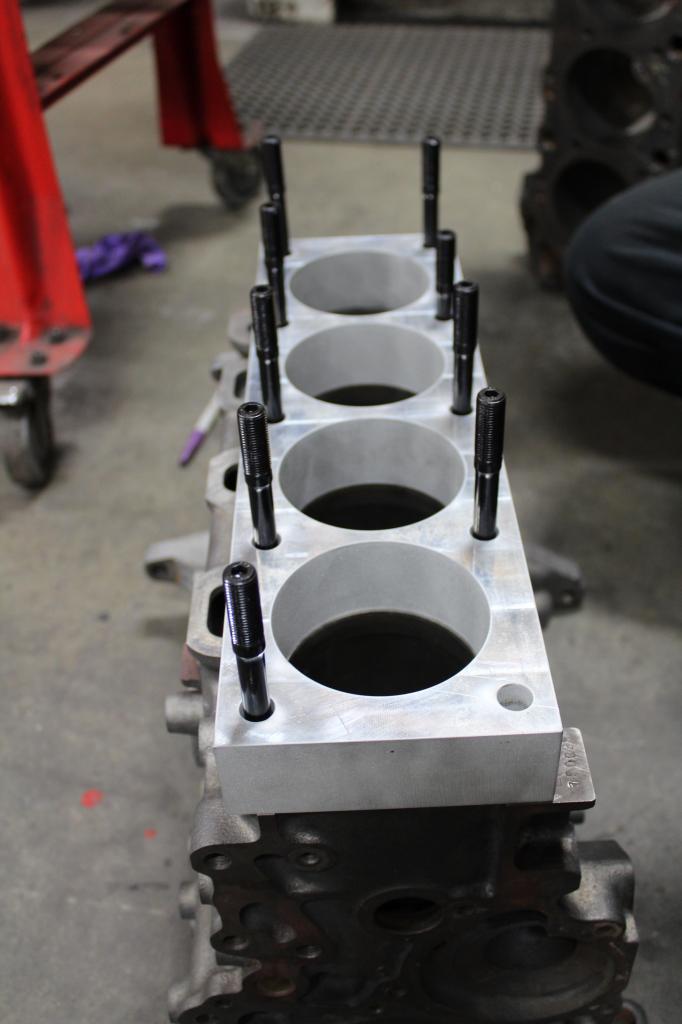

Torque Plate. The machine shop has everything they need to finish the job now. They get started first thing Monday!

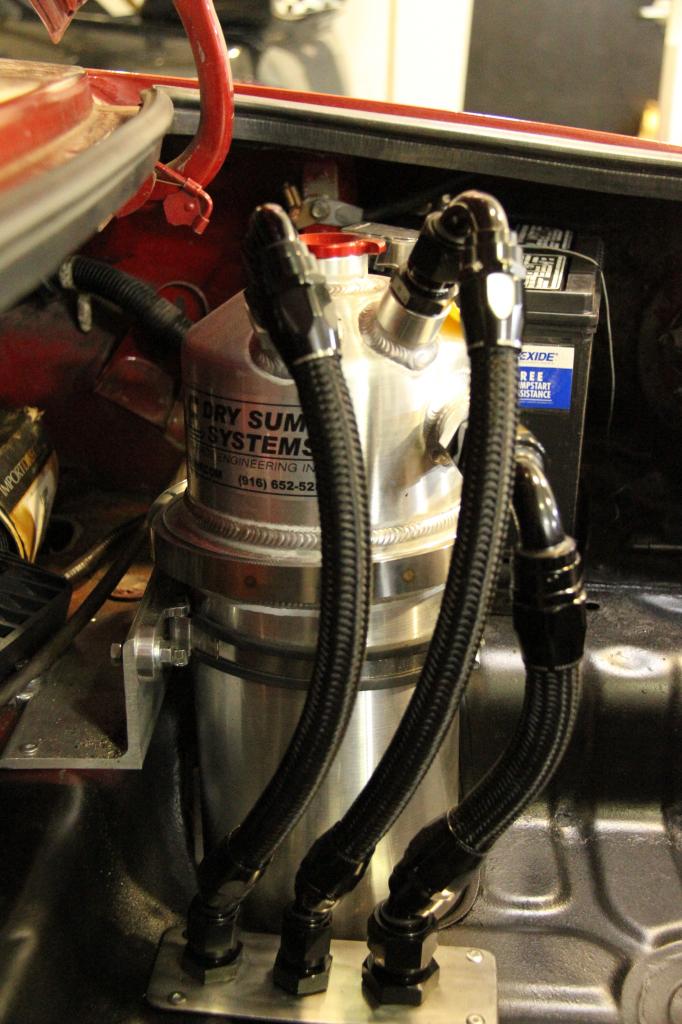

Tank Mounted.

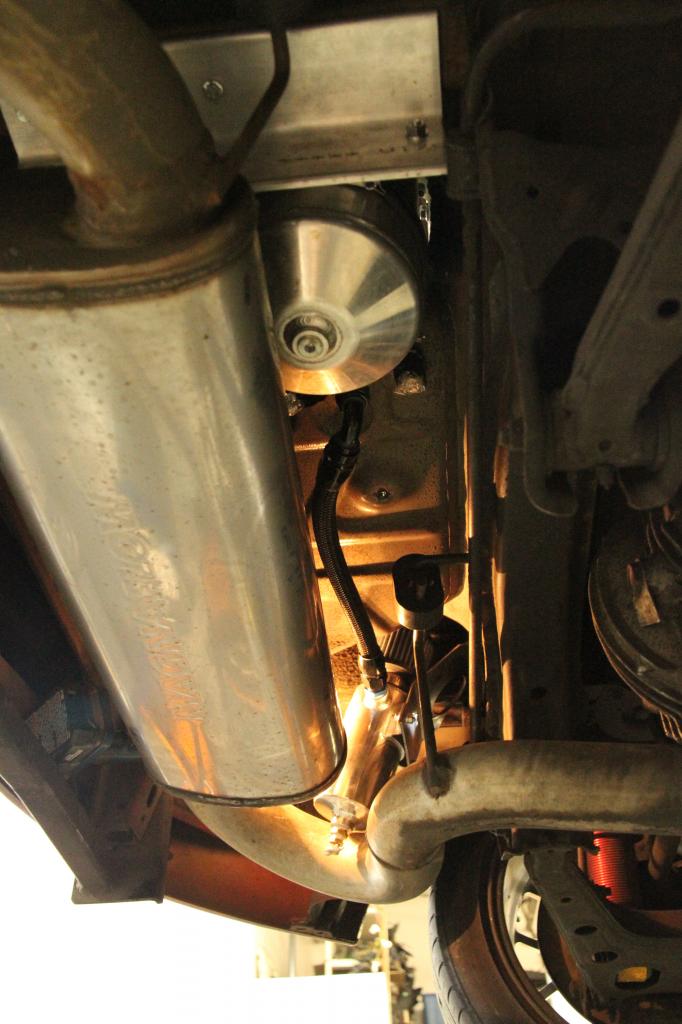

Catch can mounted. The filter is tucked up in a hole. I'm hoping it doesn't get too dirty there but i may need to make some shielding.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_1077_zps81731376.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_5917_zps7969ee4f.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_1081_zpsafaee720.jpg   Build Thread (FE3, RX7 TII, EFR 6258, MS3)-img_1076_zps85197cf3.jpg
yank is offline   Reply With Quote
