Old 07-16-2013, 09:20 PM   #361
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

yep you might wanna replace that check valve. it might be sticking
18psi is offline   Reply With Quote
Old 07-17-2013, 01:11 PM   #362
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by 18psi View Post
yep you might wanna replace that check valve. it might be sticking
Probably should just put one in since there isn't one currently installed...
yank is offline   Reply With Quote
Old 07-17-2013, 01:13 PM   #363
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

I'm scheduled to be tuned at PRE Racing in Portland on the 27th. Its about time I get this thing on the rack to see what it will do.
yank is offline   Reply With Quote
Old 07-27-2013, 07:20 PM   #364
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

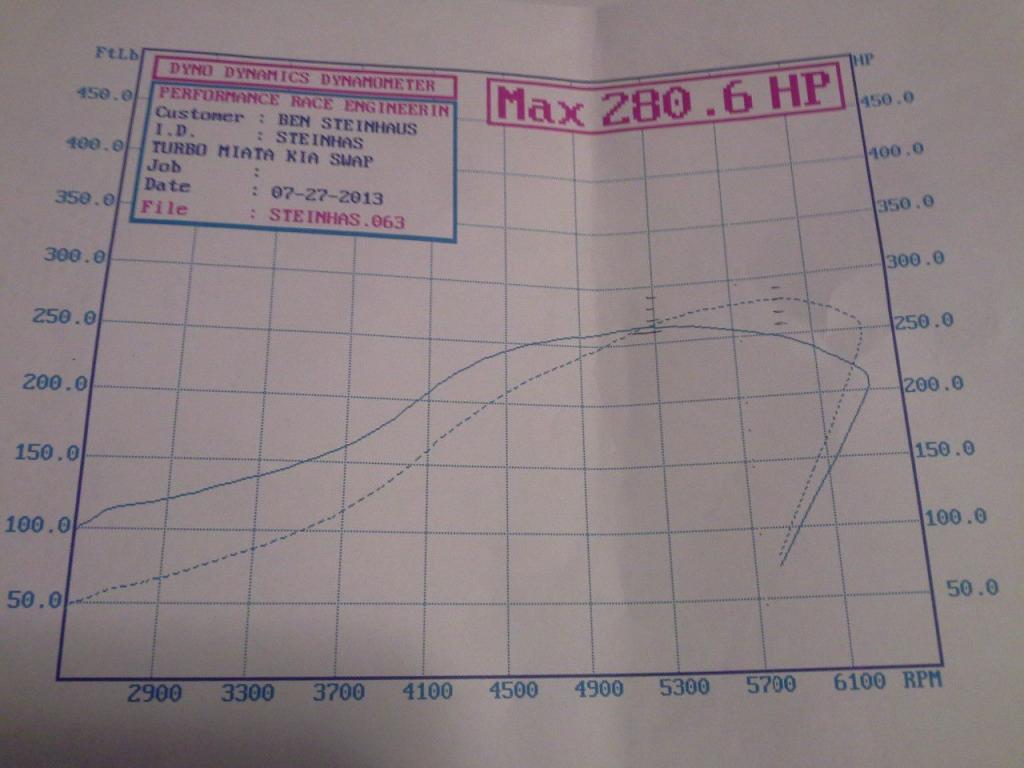

@ 17 psi

Compression test results
(1-4) 164, 155, 165, 170 (#2 not so good..)

Throttle body shaft leaks air pretty bad on both sides.

Conclusion:
Looks like piecing together this swap with parts that don't exactly fit together correctly and a cheaper turbo is a better idea.
Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-1072342_10100941105045152_703713349_o_zpsca512768.jpg
yank is offline   Reply With Quote
Old 07-29-2013, 10:38 AM   #365
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,247
Total Cats: 291
Default

I wouldn't discount all those parts you've put together. Most have been proven successful in various applications on this forum. I think you still have sorting to do. Unfortunately that includes those compression numbers. I suppose a leak down would be next. But on a fresh engine I'd be a little concerned with the differences. It would be nice if you had a baseline dyno from a known entity (stock Miata) to compare your number.
m2cupcar is offline   Reply With Quote
Old 07-29-2013, 10:47 AM   #366
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

I'll be brutally honest: those numbers are underwhelming to say the least for 17psi. When considering that this is an EFR on an FE3 the whole chart is very disappointing.

I'm thinking there's issues more than just the low compression here, but that is a hefty contributor. Bummer man, hope you can get it all sorted. I'm thinking a quick refresh of the head and re-ring/hone of the block would be the ticket to getting this thing back up to good health.
18psi is offline   Reply With Quote
Old 07-29-2013, 12:02 PM   #367
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 260
Default

did patsmx5 tune your car?
soviet is offline   Reply With Quote
Old 07-29-2013, 01:19 PM   #368
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,468
Total Cats: 785
Default

Something is pretty wrong.... my 207k mile F2T tests at 150psi across the board, dead. :(
concealer404 is online now   Reply With Quote
Old 07-29-2013, 05:34 PM   #369
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,298
Total Cats: 22
Default

Shouldn't the compression be 175-180 on a fresh motor? What's the AFR and timing maps look like under boost?
Der_Idiot is offline   Reply With Quote
Old 07-29-2013, 11:41 PM   #370
Elite Member
iTrader: (5)

m2cupcar's Avatar

Join Date: Jan 2005
Location: Atlanta
Posts: 7,247
Total Cats: 291
Default

My healthy junkyard FE3 9.5:1 showed high 180s across the board. Yank is ~8.5:1 IIRC.
m2cupcar is offline   Reply With Quote
Old 07-30-2013, 10:41 AM   #371
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

a 2L with a 6258 making 200tq at 4k he either has a MASSIVE exhaust leak or something else pretty significant causing the loss of spool, torque, and relatively low power.
18psi is offline   Reply With Quote
Old 07-30-2013, 10:52 AM   #372
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,468
Total Cats: 785
Default

Quote:
Originally Posted by m2cupcar View Post
My healthy junkyard FE3 9.5:1 showed high 180s across the board. Yank is ~8.5:1 IIRC.
My bad... forgot about how cams affect compression tests as well.
concealer404 is online now   Reply With Quote
Old 07-30-2013, 11:49 AM   #373
Senior Member
iTrader: (10)

Join Date: Jul 2009
Location: Oakdale, CA
Posts: 1,353
Total Cats: 66
Default

Quote:
Originally Posted by 18psi View Post
a 2L with a 6258 making 200tq at 4k he either has a MASSIVE exhaust leak or something else pretty significant causing the loss of spool, torque, and relatively low power.
I agree 100%, something is definitely wrong. I made 360whp with a 1.6, eBay turbo at 22psi. The clutch isn't slipping for sure? I know you have a leak at the throttle plate shaft, but that alone can't be robbing that much power can it?

The video of this thing looks incredibly quick, not that a fast video has anything to do with HP but I wanna see what this thing car really do.
RyanRaduechel is offline   Reply With Quote
Old 07-31-2013, 03:34 AM   #374
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

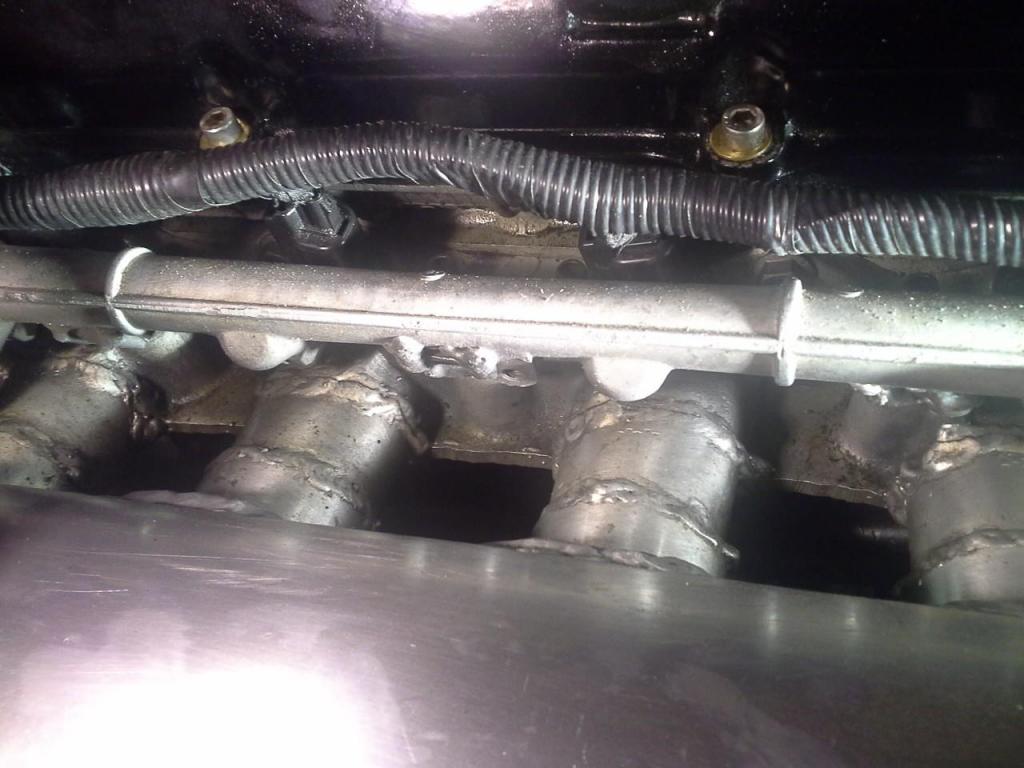

After idling at 5500 rpm i decided to take a look under the hood. These cracks in the manifold runners might be a contributing factor.. May relate somewhat to dyno numbers as well..

Attached Thumbnails
Build Thread (FE3, RX7 TII, EFR 6258, MS3)-1075491_10100944676203522_1632799838_o_zps89b32060.jpg
yank is offline   Reply With Quote
Old 07-31-2013, 06:44 AM   #375
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,640
Total Cats: 25
Default

...............

Facepalm
nitrodann is offline   Reply With Quote
Old 07-31-2013, 10:42 AM   #376
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,207
Total Cats: 2,587
Default

yikes.

explains a lot. also hopefully you didn't beat on it too much with like 50% of the charge air being leaked out and likely overspinning the daylights outa that 'spensive turbo
18psi is offline   Reply With Quote
Old 07-31-2013, 03:14 PM   #377
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

It wasn't this bad at dyno day but leaks did exist yes. Picked up a loaner miata from a friend for the rest of the week and we're going to TIG it this weekend. Adding reinforcement as well.
yank is offline   Reply With Quote
Old 07-31-2013, 09:41 PM   #378
Newb

Join Date: Feb 2011
Posts: 36
Total Cats: -3
Default

We should definatly see if my 9" 6uls clear your car its easy to run 2 autocross events every month here from March to September. You will also be ready for roll bar & hard top bolt in mounts to get out on track. Looks like front end pushed a lot during autocross need to unhook sway bar. We can go Tig your manifold mid morning Saturday about 9 am. Don't let my stock 1.6 scare you this week.
mrvwcastner is offline   Reply With Quote
Old 08-01-2013, 01:51 AM   #379
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jun 2007
Posts: 669
Total Cats: 29
Default

Quote:
Originally Posted by mrvwcastner View Post
We should definatly see if my 9" 6uls clear your car its easy to run 2 autocross events every month here from March to September. You will also be ready for roll bar & hard top bolt in mounts to get out on track. Looks like front end pushed a lot during autocross need to unhook sway bar. We can go Tig your manifold mid morning Saturday about 9 am. Don't let my stock 1.6 scare you this week.
Its making me wish i never did this swap. Nice smooth adequate powerband.

I got some new jeep CJ7 engine mounts in today. I'm hoping to get these new softer engine mounts put in while the car is down. Hearing the radio and having a conversation is a little hard with all the NVH from the poly engine mounts.
yank is offline   Reply With Quote
Old 08-01-2013, 09:44 AM   #380
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,908
Total Cats: 1,793
Default

I'm begining to think that sheet metal IMs on a miata needs bracing.
Braineack is online now   Reply With Quote
