Old 10-22-2013, 04:52 PM   #241
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Check any documentation Brain gave you, but for my Reverant MS3 there is o2 power, o2 ground, and o2 signal built into the adapter harness. You want to use the same power and ground as the MS, not your radio circuit.
thenuge26 is offline   Reply With Quote
Old 10-22-2013, 06:15 PM   #242
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

probably not on his ms3x harness... just the o2 input on the pink wire.
Braineack is offline   Reply With Quote
Old 10-22-2013, 09:00 PM   #243
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

WTF is the confusion on the dimmer? ground to bright, 12v to dim.. how ******* hard is that?
triple88a is offline   Reply With Quote
Old 10-22-2013, 09:47 PM   #244
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

I was just going to avoid the dimmer for now as I was having a tough time finding a 12v power when the headlights were turned on. But if you have a suggestion of which wire, I would be happy to hear

(I read that it was the red/black wire that is hooked up to the dimmer ****/many other things in the dash, but knowing the fragility of the dimmer circuit in these cars I didn't want to try it).
Ds1 is offline   Reply With Quote
Old 10-22-2013, 09:52 PM   #245
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Okay so O2 signal and power are figured out. I also found in the manual that the white wire needs to be grounded if not used (I'm assuming any ground is fine) and the unused black wire can just be electrical taped.

Suggestions where to put the white wire (on a 1.6) are appreciated.

So now its just ground. Where do I put it on the MS3X? I don't see a black wire going to the center auxiliary section of the harness.
Ds1 is offline   Reply With Quote
Old 10-22-2013, 09:53 PM   #246
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Are there any ground wires coming from the MS? They are all connected internally unless brain did something wacky. So you can use any ground wire coming from the MS3. Read:
http://www.msextra.com/doc/general/grounding.html
FRT_Fun is offline   Reply With Quote
Old 10-22-2013, 11:25 PM   #247
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by Ds1 View Post
Suggestions where to put the white wire (on a 1.6) are appreciated.

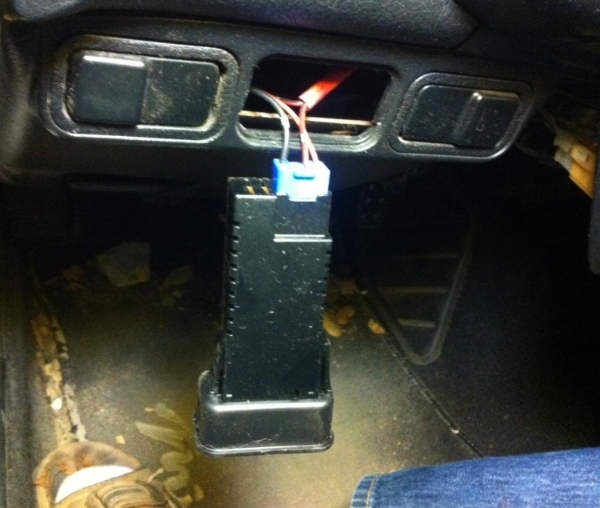

I just spliced into the rd/blk wire here. Seems to work fine on my car.

[/URL]
Attached Thumbnails
DS1 has a horrible Build Thread.-6676e391-5e46-42ec-a0c6-ed26b5e8f1eb.jpg
RayinNorCal is offline   Reply With Quote
Old 10-23-2013, 12:02 AM   #248
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Well if it hasn't friend your dimmer switch yet, I guess I might as well give it a try

That diagram helps a lot, thanks FRT. But it confuses me as to which pin I'm actually supposed to tap into for my black wire. I would assume anything 7-19? And that also brings me to ask, should I ground the MS3X's case itself to the block? Thats what it said in the diagram, but I thought these are all grounded internally and to the case and everything already.

Don't worry, I'm so close, a few more stupid questions and you won't have to hear from me anymore
Ds1 is offline   Reply With Quote
Old 10-23-2013, 12:07 AM   #249
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Quote:
Originally Posted by RayinNorCal View Post
I just spliced into the rd/blk wire here. Seems to work fine on my car.

[IMG]https://www.miataturbo.net/attachment.php?attachmentid=92315&dateline=1382495 136[IMG][/URL]
I just threw up in my mouth a little bit over your interior
18psi is offline   Reply With Quote
Old 10-23-2013, 01:24 AM   #250
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by 18psi View Post
I just threw up in my mouth a little bit over your interior
Oh come on now, Vlad...That's just dust, a few leaves and rocks from living the mountain life...not to mention bad lighting from a shop light.
RayinNorCal is offline   Reply With Quote
Old 10-23-2013, 01:25 AM   #251
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

Quote:
Originally Posted by Ds1 View Post
That diagram helps a lot, thanks FRT. But it confuses me as to which pin I'm actually supposed to tap into for my black wire. I would assume anything 7-19? And that also brings me to ask, should I ground the MS3X's case itself to the block? Thats what it said in the diagram, but I thought these are all grounded internally and to the case and everything already.

Don't worry, I'm so close, a few more stupid questions and you won't have to hear from me anymore
What? Where does it say that in the diagram? Grounded internally? huh? The MS has the potential to have many grounding wires depending on how it is built. You will need to ask brain for the specific grounds that you have available to you, but they should be all black wires from the MS. All the grounds are interconnected inside the MS. Because of this you can choose any of the ground wires to ground your sensors. Then the others grounding wires will ground to the block. Nothing about the case, only wires that go to the circuit board inside the case.
FRT_Fun is offline   Reply With Quote
Old 10-23-2013, 01:33 AM   #252
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,206
Total Cats: 2,587
Default

Quote:
Originally Posted by RayinNorCal View Post
Oh come on now, Vlad...That's just dust, a few leaves and rocks from living the mountain life...not to mention bad lighting from a shop light.
lol alright....I'm ocd about interior cleanness
18psi is offline   Reply With Quote
Old 10-23-2013, 09:02 AM   #253
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,904
Total Cats: 1,793
Default

Black goes to the Black ground wires of the MS harness. Use the ones closest to the center connector; they will be paired on 2 pins.

White goes to R/B wire on the radio.

Brown is unused. don't ground it; just dont connect it.

Yellow goes to the pink wire on the center of your MS harness.
Braineack is offline   Reply With Quote
Old 10-23-2013, 01:52 PM   #254
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Quote:
Originally Posted by Braineack View Post
Black goes to the Black ground wires of the MS harness. Use the ones closest to the center connector; they will be paired on 2 pins.
Theres the good stuff, thanks Brain!

I'm hoping to get out of work early today and go finish this stuff up.
Ds1 is offline   Reply With Quote
Old 10-23-2013, 08:03 PM   #255
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

Quote:
Originally Posted by 18psi View Post
I just threw up in my mouth a little bit over your interior
never mind the socks and sandles with toe holes worn through lol


this thread delivers btw
hi_im_sean is offline   Reply With Quote
Old 10-23-2013, 08:06 PM   #256
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,133
Total Cats: 599
Default

Quote:
Originally Posted by 18psi View Post
lol alright....I'm ocd about interior cleanness
Must always wipe the *** off the seat.
triple88a is offline   Reply With Quote
Old 10-24-2013, 03:04 AM   #257
Junior Member
iTrader: (6)

Join Date: Nov 2010
Location: Three Rivers, Ca
Posts: 176
Total Cats: 4
Default

Quote:
Originally Posted by hi_im_sean View Post
never mind the socks and sandles with toe holes worn through lol
Make me a shifter like the one in your thread and I'll forget you ever spoke ill of my socks and sandals.
RayinNorCal is offline   Reply With Quote
Old 10-24-2013, 09:47 AM   #258
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,905
Total Cats: 613
Default

Quote:
Originally Posted by RayinNorCal View Post
Make me a shifter like the one in your thread and I'll forget you ever spoke ill of my socks and sandals.
lolz pm me if you really want one
and my interior looks about the same
hi_im_sean is offline   Reply With Quote
Old 10-24-2013, 02:21 PM   #259
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Quote:
Originally Posted by triple88a View Post
Must always wipe the *** off the seat.
Miataturbo.net, still #1 for gayest forum content on the internet!
Ds1 is offline   Reply With Quote
Old 10-24-2013, 02:31 PM   #260
I'm a terrible person
iTrader: (19)

FRT_Fun's Avatar

Join Date: Apr 2009
Location: Arizona
Posts: 7,293
Total Cats: 180
Default

As if there was any question.
FRT_Fun is offline   Reply With Quote
