Old 07-12-2013, 01:14 PM   #81
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

I think BEGI also sells the braided kits for like $60. Or eBay, haha.
Ds1 is offline   Reply With Quote
Old 07-12-2013, 04:29 PM   #82
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Tekel View Post
Is there somewhere that sells braided kits like this as well?
Call or msg Stephanie and ask. Theres lots of crap they dont have listed on their website like the oil and coolant lines combo.
triple88a is offline   Reply With Quote
Old 07-13-2013, 01:18 PM   #83
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Okay, another thought. How about a re-man SR20 turbo? EDIT: Nevermind I did some searching. Looks like I'll go with a SR20.

EDIT Part 2: Anyone had experience bolting this to a FM or BEGI Downpipe? Should be all good, right?

Last edited by Ds1; 07-13-2013 at 01:34 PM.
Ds1 is offline   Reply With Quote
Old 07-15-2013, 09:43 PM   #84
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Overland Park, Kansas
Posts: 5,382
Total Cats: 43
Default

Come on OP...

SS AutoChrome Manifold and Downpipe: $45.00 - Craigslist
T3/TD04E ChinaCharger: $129.95 - T04E T3 T4 63 A R 57 Trim Turbo turbocharger Compressor 410 HP New | eBay
Megasquirt v2.2 kit: $157.00 - MegaSquirt-I Programmable EFI System PCB2.2 - Kit w/ BLACK CASE DIYAutoTune.com
Tial 38mm Wastegate: $150 - Miataturbo.net forum
Ebay Blowoff Valve: $20.00 - Ebay
CXRacing Intercooler: $99 - Ebay
GM IAT sensor: $14.95 - AutoZone
Flyin'Miata Boost pipes: $360 - Flyinmiata.com
AEM UEGO Wideband: $140 - MT.net forum member
Vulcan Firesleeve 1" x 3': $24.95 - ebay
Vulcan Firesleeve 3/8" x 3': $14.95 - ebay

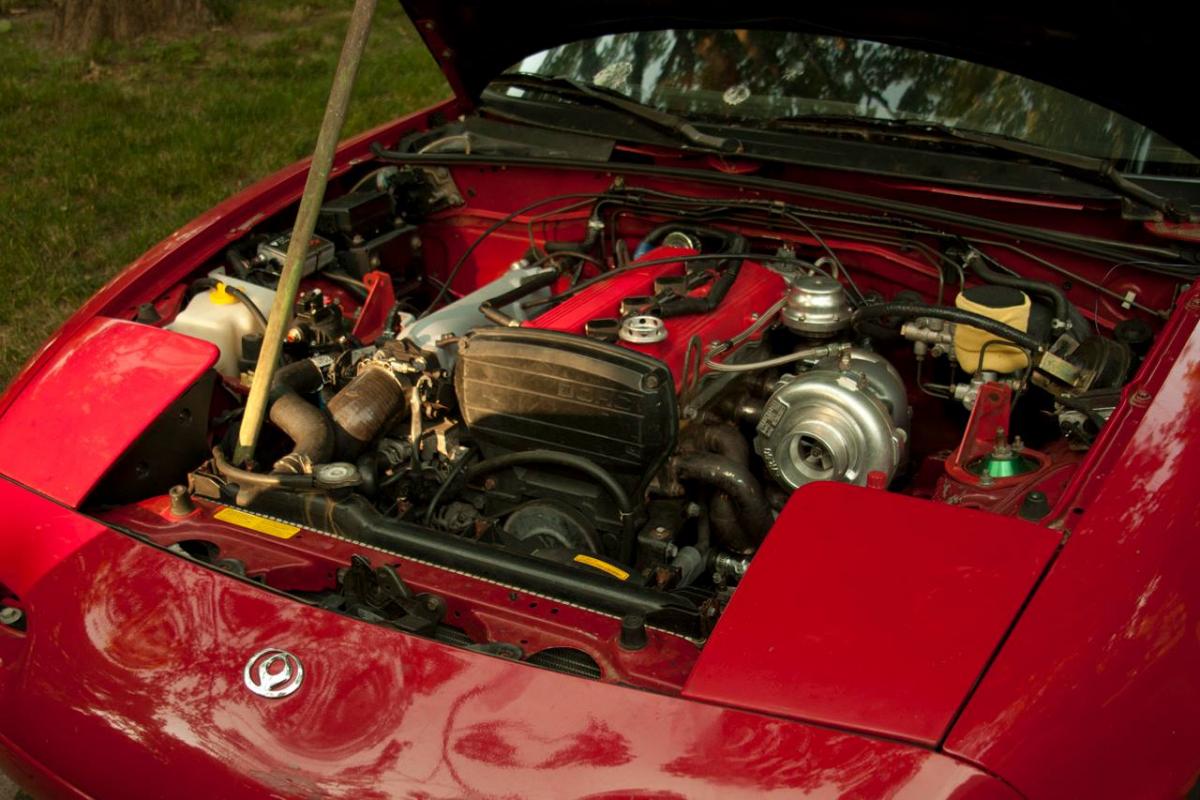

Basically for +/- maybe $200 for odds/ends I spent about $1156 to turbo my 1.8. Some advice, spend a little more money on the boost reference line to your wastegate or you'll end up with an esploded motor after a few 23+psi pulls. Was this the best setup in the world? Not even close. Do I have a few more things on the car which weren't mandatory? Yeah. Was it unbelievably quick? You got it.


Attached Thumbnails
DS1 has a horrible Build Thread.-882206_10152984196020389_414811267_o%5B1%5D.jpg
elesjuan is offline   Reply With Quote
Old 07-16-2013, 12:27 AM   #85
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Thanks for the parts list, you have a seriously cheap (in a good way) build!

I'm going to avoid the chinese turbo and manifold/dp, but other than that you're right on. How hard was it to build your MS? Because paying $150 for it vs. paying Brain $600 to build it for me is a biiiig difference.
Ds1 is offline   Reply With Quote
Old 07-16-2013, 12:38 AM   #86
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

comparing a ms1 to the ms2e or ms3 that brain builds is not even close
18psi is offline   Reply With Quote
Old 07-16-2013, 12:43 AM   #87
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

This is true. Would it really be that big of difference for a "mild" 200whp build, though?
Ds1 is offline   Reply With Quote
Old 07-16-2013, 01:05 AM   #88
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,175
Total Cats: 2,576
Default

if your question is: will it work and/or run my car and/or suffice for 200whp, then the answer is yes, it will.

i just don't like when people compare ecu's with about 10-15 years worth of development differences between them like they are the same
18psi is offline   Reply With Quote
Old 07-16-2013, 01:07 AM   #89
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,638
Total Cats: 25
Default

You have no idea.

Keep reading.

EDIT: ninjad by 18

Dann
nitrodann is offline   Reply With Quote
Old 07-16-2013, 01:16 AM   #90
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Oh wow, I didn't know it was that much time between them. That's a long time in ECU years!!
Ds1 is offline   Reply With Quote
Old 07-16-2013, 07:45 AM   #91
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Its like comparing the difference between windows ME and windows 8 and calling them the same because theya re both made by windows. Also the "oh i'm just looking to make only 200hp" bs... havent u learned anything when we were discussing ebay manifolds about the "oh i'm just looking to make only 200hp" theory?
triple88a is offline   Reply With Quote
Old 07-16-2013, 09:20 AM   #92
Senior Member
iTrader: (2)

Join Date: May 2010
Location: Beckley, WV
Posts: 868
Total Cats: 36
Default

Quote:
Originally Posted by triple88a View Post
Its like comparing the difference between windows ME and windows 8 and calling them the same because theya re both made by windows. Also the "oh i'm just looking to make only 200hp" bs... havent u learned anything when we were discussing ebay manifolds about the "oh i'm just looking to make only 200hp" theory?
Good analogy... Windows ME is a much better and more stable OS than 8.
Tekel is offline   Reply With Quote
Old 07-16-2013, 10:04 AM   #93
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

LOL I'm a Mac man, myself...
Ds1 is offline   Reply With Quote
Old 07-16-2013, 10:18 AM   #94
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by Ds1 View Post
LOL I'm a Mac man, myself...
says the guy that wants to cheap out on a turbo kit but overspends times 5 on a computer...
Braineack is offline   Reply With Quote
Old 07-16-2013, 10:47 AM   #95
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Hey my Mac setup is budget too! Cheapest Mac mini they've got, plus 16GB of cheap china RAM, plus a 27" Sony TV for the monitor, plus a used bluetooth keyboard and magic trackpad. Cha-Ching!
Ds1 is offline   Reply With Quote
Old 07-16-2013, 10:50 AM   #96
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

sounds like it.
Braineack is offline   Reply With Quote
Old 07-16-2013, 10:58 AM   #97
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Okay so back on topic, here is where this build is seriously going now (From a $500 build to $2k):

Bought stuff:
460cc RX7 Injectors
Rebuilt SR20 Turbo
SS Manifold from SKmetalworks

Needed stuff with highest amount I hope to spend on each:
Brain's MS $590
Used BEGI/FM/Custom downpipe $150ish?
Used Wideband $100
CX racing intercooler kit w/ BOV $190
Air filter $30
Oil/coolant line kit: $45
Inlet/outlet for SR20 $50
IAT sensor with tap: $30
Oil pan tap: $10
Other fasteners and stuff: $50-100

I already have a full dual outlet Racing Beat exhaust, so this should be it. I don't think I need a Walhbro pump from what I've seen. Feel free to add/subtract to this list, or PM me if you have something you want to sell or saw a good deal on!
Ds1 is offline   Reply With Quote
Old 07-16-2013, 01:32 PM   #98
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

I am going to have fun with your list. My comments are in bold.

Quote:
Originally Posted by Ds1 View Post
Okay so back on topic, here is where this build is seriously going now (From a $500 build to $2k):

Bought stuff:
460cc RX7 Injectors
Rebuilt SR20 Turbo
SS Manifold from SKmetalworks

Needed stuff with highest amount I hope to spend on each:
Brain's MS $590 Good choice, I support giving my BFF cash
Used BEGI/FM/Custom downpipe $150ish? Expect to spend more then that having a downpipe made
Used Wideband $100 Buy a new wideband. An MXT-L is $166.00 on Amazon. It is worth the piece of mind knowing you have a good one.
CX racing intercooler kit w/ BOV $190 Good choice
Air filter $30 Looks fine
Oil/coolant line kit: $45 You will spend more then that on getting quality AN lines made. I recommend Bat Inc with Mocal parts for cheaper lines
Inlet/outlet for SR20 $50 Goodluck finding them that cheap. Expect to pay full price for new at about $80
IAT sensor with tap: $30
Oil pan tap: $10 Drill bit and tap are a bit more then $10
Other fasteners and stuff: $50-100 Probably about right

I already have a full dual outlet Racing Beat exhaust, so this should be it. I don't think I need a Walhbro pump from what I've seen. Feel free to add/subtract to this list, or PM me if you have something you want to sell or saw a good deal on!
shuiend is offline   Reply With Quote
Old 07-16-2013, 01:37 PM   #99
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Leafy is offline   Reply With Quote
Old 07-16-2013, 01:45 PM   #100
Ds1
Junior Member
Thread Starter
iTrader: (2)

Join Date: Feb 2011
Posts: 283
Total Cats: -31
Default

Quote:
Originally Posted by Leafy View Post
Yep thats it!

Oil coolant lines would be these ones. From what I see these should work just fine: T25 T28 G28 GT25 GT28 Oil Feed Send Line Oil Water Cooled Turbo Banjo Hardware | eBay

Oops that was a typo on the oil pan tap. I also found the Wideband even cheaper on eBay at $155... I didn't know they were so cheap, I'll just go that way (thanks!): http://www.ebay.com/itm/INNOVATE-384...-/370520832034
Ds1 is offline   Reply With Quote
