So this is pretty cool, an article about Lazarus from when we started until now. Print version will be out next month!
Project Lazarus will inspire you
greddygalant is offline   Reply With Quote
Old 02-23-2015, 04:30 PM   #402
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Break in miles have started, got 45 in today so far, car runs great with some very mild safe street tuning, currently running nonofit.
Name:  20150223_074916_zps7sd2posq.jpg
Views: 2
Size:  149.0 KB
so happy to be driving this car again
Attached Thumbnails
Lazarus:making something out of nothing-img_20150223_085754_zps96hwtjow.jpg
greddygalant is offline   Reply With Quote
Old 03-01-2015, 05:21 PM   #403
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

200 miles or so on the clock now, no leaks, no issues other than my fan no longer works, curly and I have been stumped by this particular issue.

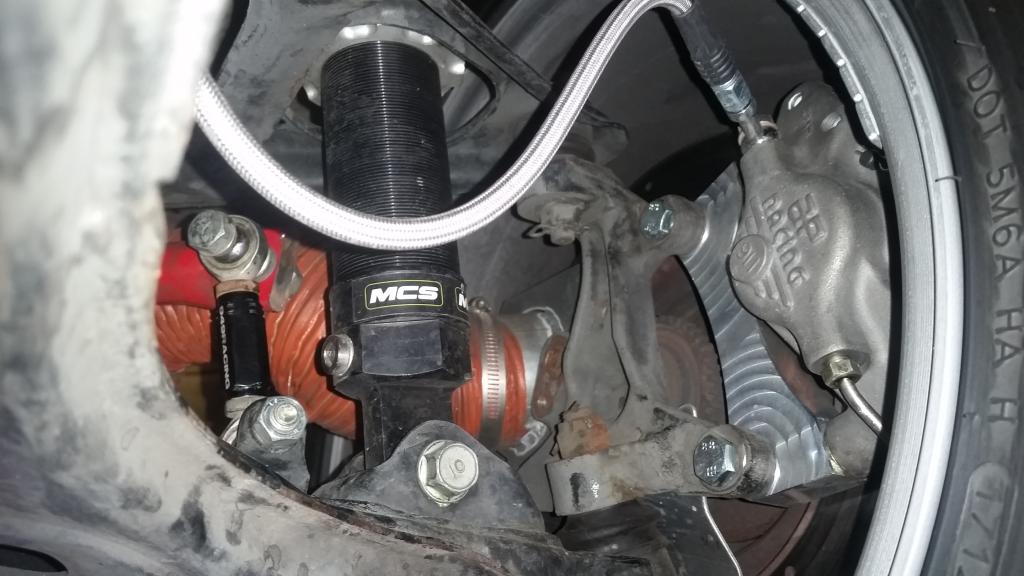

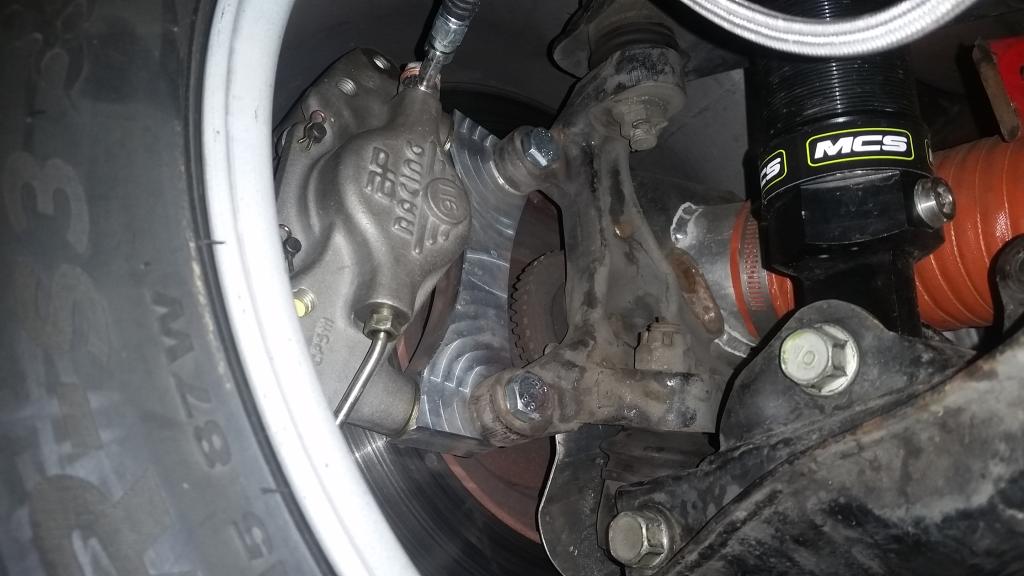

A few shots of the front suspension/brakes
Attached Thumbnails
Lazarus:making something out of nothing-20150301_105158_zpswalpejkt.jpg   Lazarus:making something out of nothing-20150301_102342_zpslx5p5o7m.jpg   Lazarus:making something out of nothing-16472507977_719ddb39bf_h_zpstyvfedxn.jpg

Last edited by greddygalant; 03-02-2015 at 12:31 PM.
greddygalant is offline   Reply With Quote
Old 03-01-2015, 05:26 PM   #404
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Have you guys tested the megasquirt fan output? Or tried another fan?

Brakes are sexy.
aidandj is offline   Reply With Quote
Old 03-01-2015, 05:35 PM   #405
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

We can ground the circuit like the switch on the thermo cover used to do, and it'll turn on. So fuse, relay, and 90% of the wiring is intact.

But tripping the fan in test mode won't activate the relay.

Am I right in assuming MS just ground the fan wire? I swear I measured continuity between 1R and gnd, but nothing would switch off. So it should be constantly on? Maybe I'm checking the wrong pin. We had a lot of other stuff to fix and a time limit that day.

We also can't get launch to work, despite the jumper removed, and the LC pin grounded.
curly is offline   Reply With Quote
Old 03-01-2015, 05:48 PM   #406
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I believe that's right. 1R should be 12v when on and then the megasquirt grounds it to turn the fan on...I think.

What about this jumper, J8:

aidandj is offline   Reply With Quote
Old 03-01-2015, 05:51 PM   #407
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Wait laz has a gen1 PNP right? Not sure then. For launch control you connected pin 12 and 13 on the center connected like the manual said?
aidandj is offline   Reply With Quote
Old 03-01-2015, 05:55 PM   #408
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

No, a gen2.

I think that jumper is soldered in, it's definitely something I can double check.
curly is offline   Reply With Quote
Old 03-01-2015, 05:58 PM   #409
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

That jumper would make sense, except that it worked before right? To me it sounds like an old wire broke, or something pulled out of a connector on install.
aidandj is offline   Reply With Quote
Old 03-01-2015, 05:59 PM   #410
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

You should be able to measure 12v at the ecu connector when the car is on. If not I bet there is a broken wire. If you do get 12v, try another ecu
aidandj is offline   Reply With Quote
Old 03-01-2015, 06:02 PM   #411
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Yeah I suppose I can always try my ecu, although it's a 3.3.1, it's still a MSPNP2.

I don't think it's supposed to see 12v, just gnd when activated, I could be wrong though.

We don't know if it worked before. We went to the MS2, and starting hearing the rod knock before I really had a chance to test any functions.
curly is offline   Reply With Quote
Old 03-01-2015, 07:02 PM   #412
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Ohhh, thought it worked before. My 1.6 wiring diagram has 12v at 1R on it. So maybe 12v when not on and gnd when on?

Firmware shouldn't matter. You don't even need to start the engine. I think. On ms3 I have an option to allow the fan to be on when the engine is off. Or just use the test mode.

That test wont actually fix anything haha, just will tell you which way to go with your debugging.
aidandj is offline   Reply With Quote
Old 03-01-2015, 07:29 PM   #413
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

It did, but with the MS1.

I mean v1.2 vs. 1.3, not firmware, brain fart. But yeah, I can just test it in test mode on my car and his to eliminate the MS.

The silly thing is that the signal wire is burried in the harness from the ECU to the fuse box under the hood, which we didn't mess with.

We did cut 2 wires to use for sequential injection, but one was for the charcoal canister, and another for...something unrelated to the fan. Forget what.
curly is offline   Reply With Quote
Old 03-01-2015, 07:32 PM   #414
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yeah I would be surprised if it was harness side. But it is 25 year old wiring.

Also are you sure on the software setup? No msq posted, rooky mistake martin
aidandj is offline   Reply With Quote
Old 03-01-2015, 08:41 PM   #415
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,054
Total Cats: 8
Default

Is the front sway bar cut for clearance purposes?
Efini~FC3S is offline   Reply With Quote
Old 03-01-2015, 08:44 PM   #416
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

Yeah. It was an NB bar, I think bought because we were running an NB subframe and NB control arms. But it bolts to a crashed NA chassis, and rubbed the shocks a bit. So the ends were chopped.
curly is offline   Reply With Quote
Old 03-01-2015, 08:45 PM   #417
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Would an NA bar work?
aidandj is offline   Reply With Quote
Old 03-01-2015, 09:02 PM   #418
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,110
Total Cats: 518
Default

No idea, but a chopped up NB bar works.
curly is offline   Reply With Quote
Old 03-01-2015, 11:38 PM   #419
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:

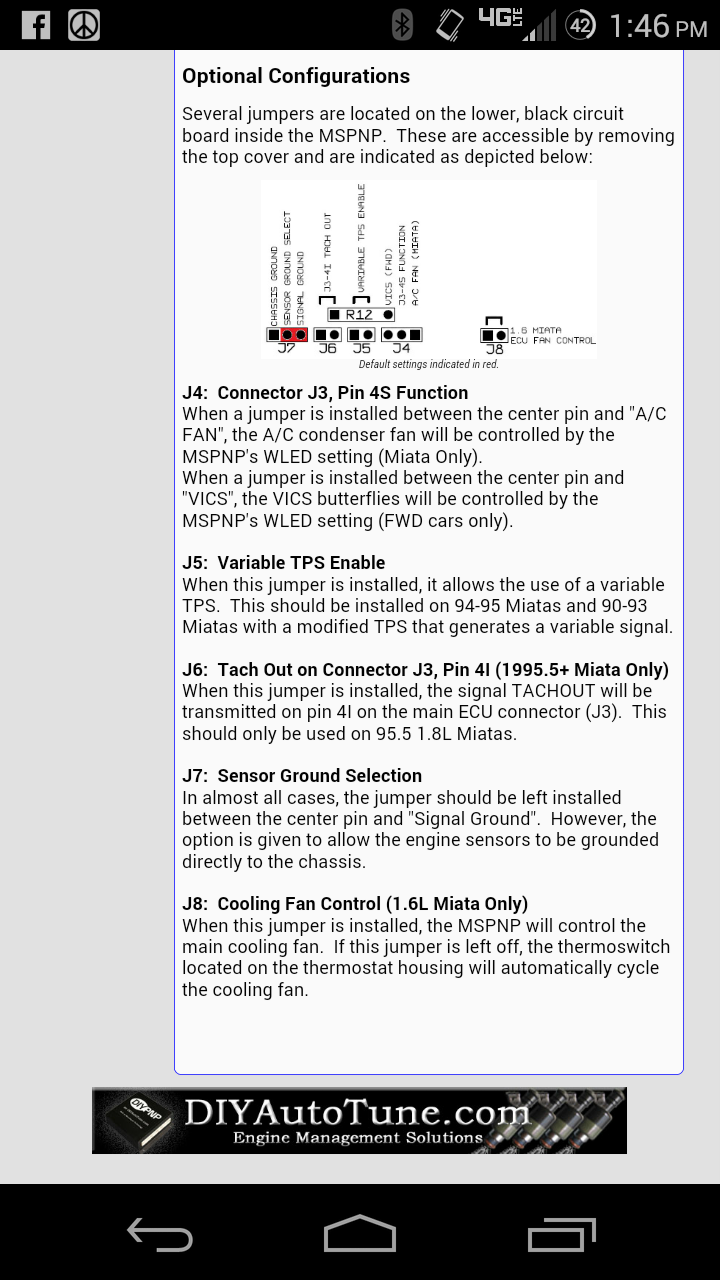

Originally Posted by Reply to noon on CR.net about launch control View Post
Read more, couple minutes and I found this that might help.

If you have v1.3 (which I think you do because you mentioned pin 12 as launch control...)

Pin 13 is actually launch control:



Also, make sure you have the correct jumper orientations:



And if you have v1.2:



And if you don't know what board you have...

http://www.megasquirtpnp.com/docs/mspnp_g2_boardID.php

TL;DR: RTFM

If you have checked all this and still nothing then I would consider asking DIYAutoTune.
Ignore the sass, but read about the jumper (but I think you mentioned that already...)

Ignore if you've checked all that.
aidandj is offline   Reply With Quote
Old 03-11-2015, 10:39 AM   #420
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Dyno today, hoping for 250/250 on an oem 100k msm turbo setup.
greddygalant is offline   Reply With Quote
