Old 11-21-2015, 12:34 PM   #501
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by OneTwo View Post
Can't wait to see how the new turbo holds up at the track. Who did the hybrid build? BNR?

What compressor wheel did you decide to use?

I'm not much of an RWB fanboi, but its nice to see someone who wants to to go as good as it looks. That's a great looking car.
Pretty sure its a local guy. Turbocharger systems or something.
aidandj is offline   Reply With Quote
Old 11-21-2015, 03:52 PM   #502
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Looks like a ton of fun. I have also come to the W2WIWIA realization. Future plans...
turbofan is offline   Reply With Quote
Old 12-06-2015, 02:38 AM   #503
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

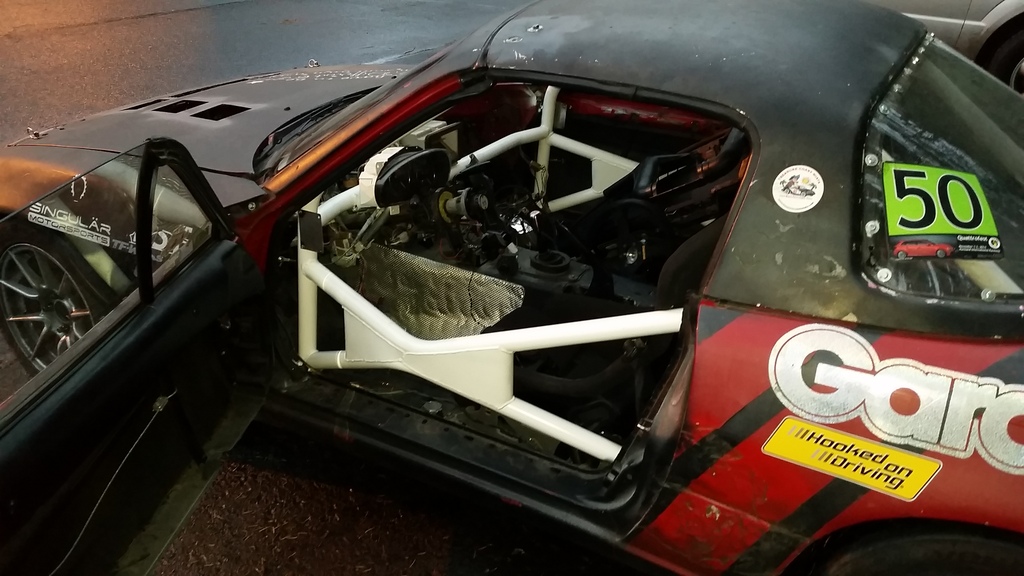

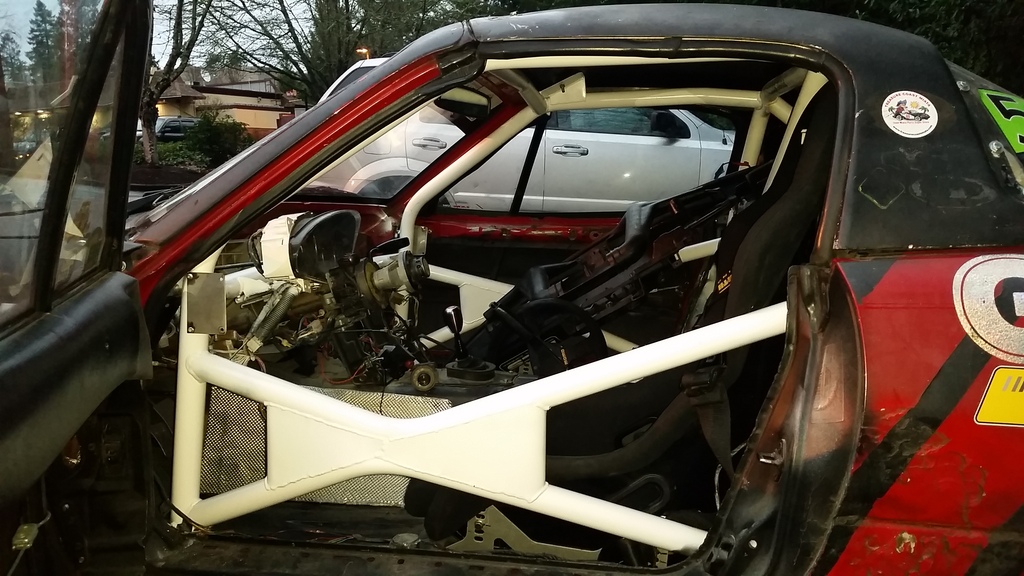

Cage is in and painted, need to reinstall dash and wiring etc.
Attached Thumbnails
Lazarus:making something out of nothing-20151205_155843_zpsujjpxy6j.jpg   Lazarus:making something out of nothing-20151205_155904_zpspmdu5bcu.jpg
greddygalant is offline   Reply With Quote
Old 12-06-2015, 02:43 AM   #504
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Thats a really cool looking cage, does the stock dash tie into that dash bar?
aidandj is offline   Reply With Quote
Old 12-06-2015, 12:08 PM   #505
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

The dash is retained with some trimming, it attaches to the stock bolt that sits near the middle of the windshield and then 2 plates that are attached to the cage on either side.
greddygalant is offline   Reply With Quote
Old 12-06-2015, 12:09 PM   #506
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Awesome. Looking good.
aidandj is offline   Reply With Quote
Old 12-22-2015, 02:25 AM   #507
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

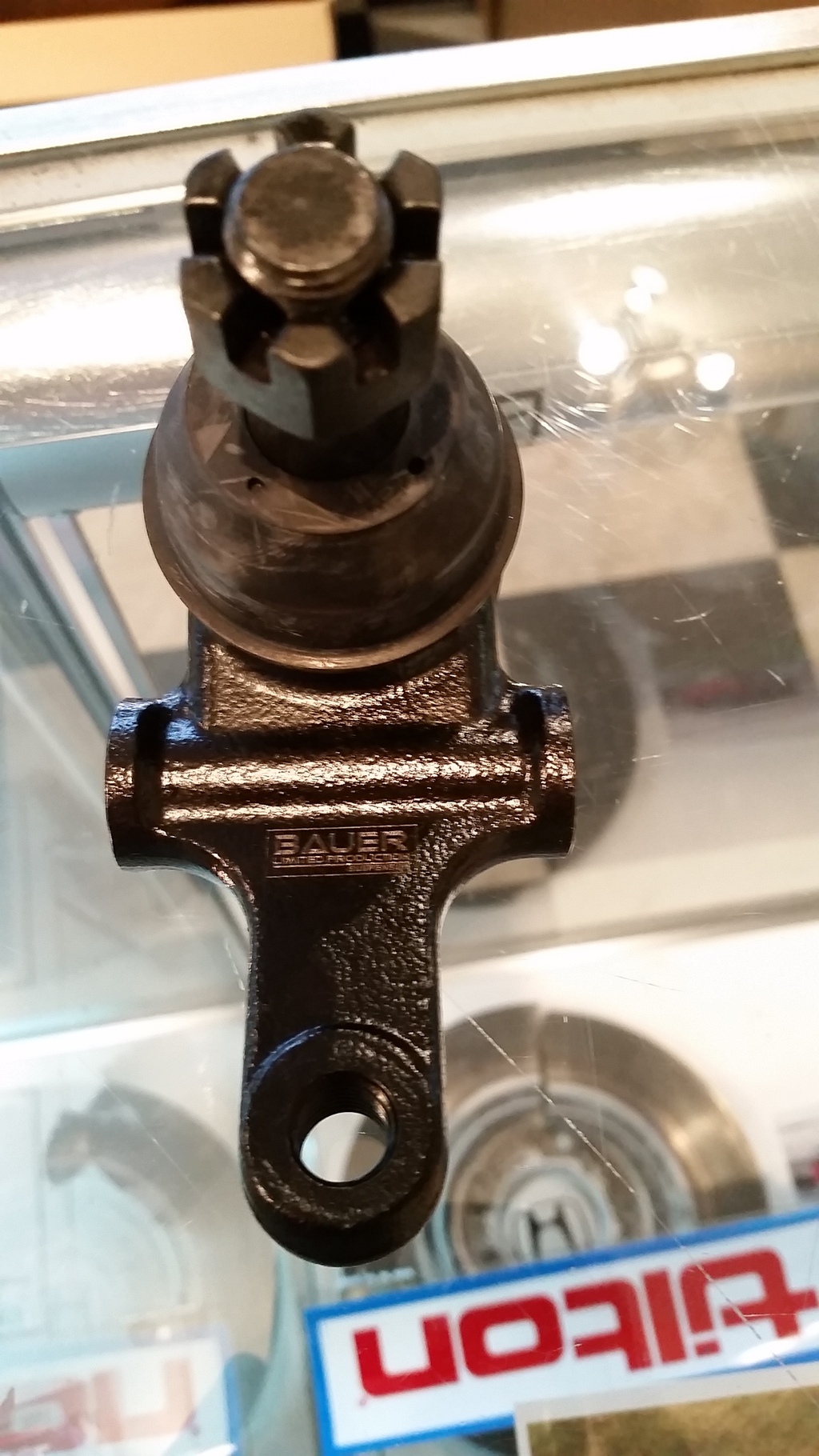

Extended ball joints and fab9 intercooler to replace the current evo 8 core that blocks my entire radiator.
Attached Thumbnails
Lazarus:making something out of nothing-20151215_100143_zpsqfiwftal.jpg
greddygalant is offline   Reply With Quote
Old 12-31-2015, 01:30 PM   #508
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Copied from CR

Quote:
Originally Posted by curly View Post
Martin wants an update while he's in Hawaii, so here y'all go!

Original plan was just to dyno it with a few changes, but a lot of these projects are connected. The dash came out after his half cage was turned into a full cage, and although it was meant to go back in, it was in a poor state and was never going to look good again. So we decided to go full race car and remove the dash completely. This also lets us fix a lot of ugly wiring which has all been added at seperate times, like sequential injection, EBC, VICS, and gauge wiring. It was a rats nest of a million wires with 3 million crimps that I cut out and will be redoing properly with the new gauge panel.

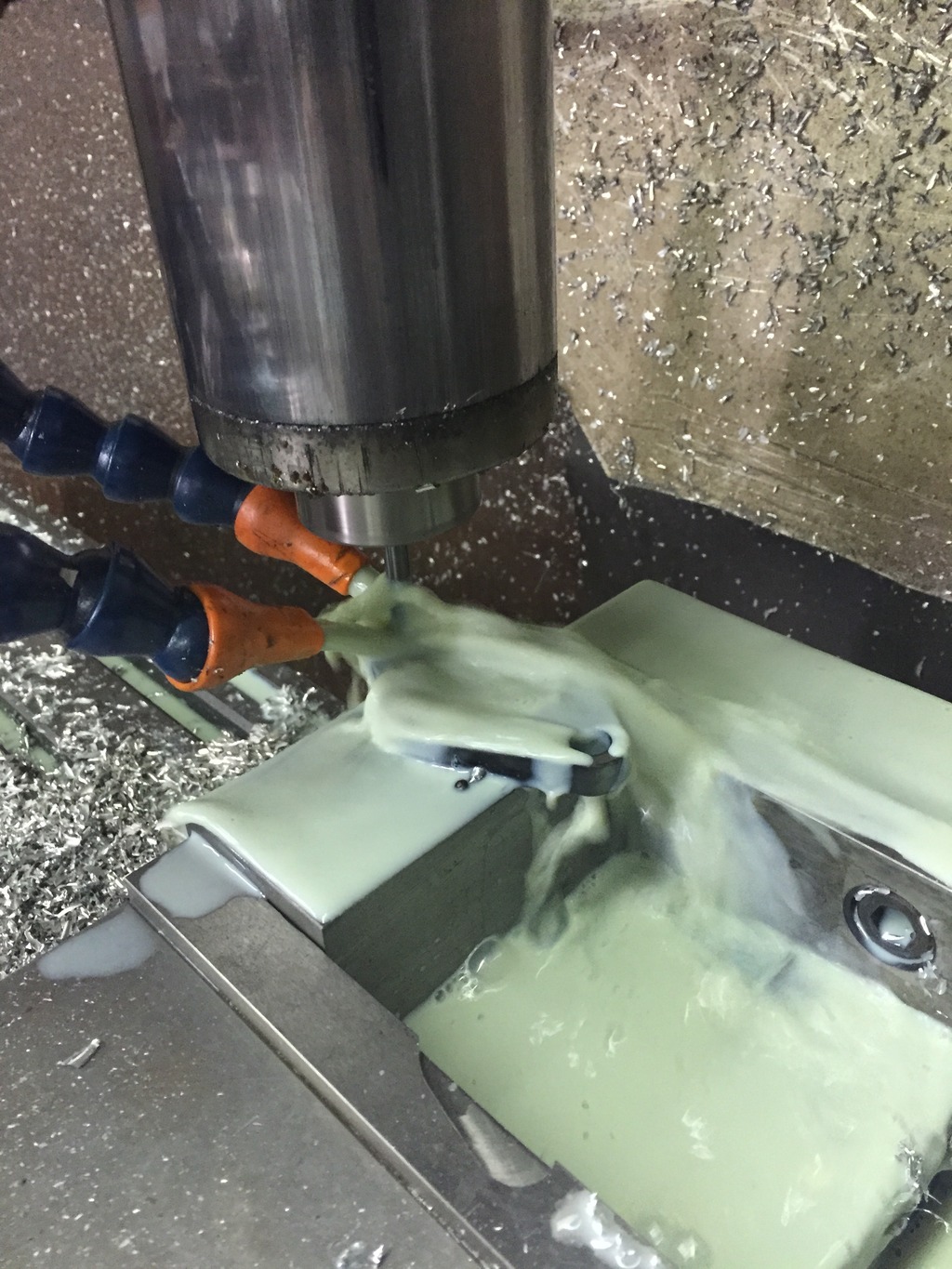

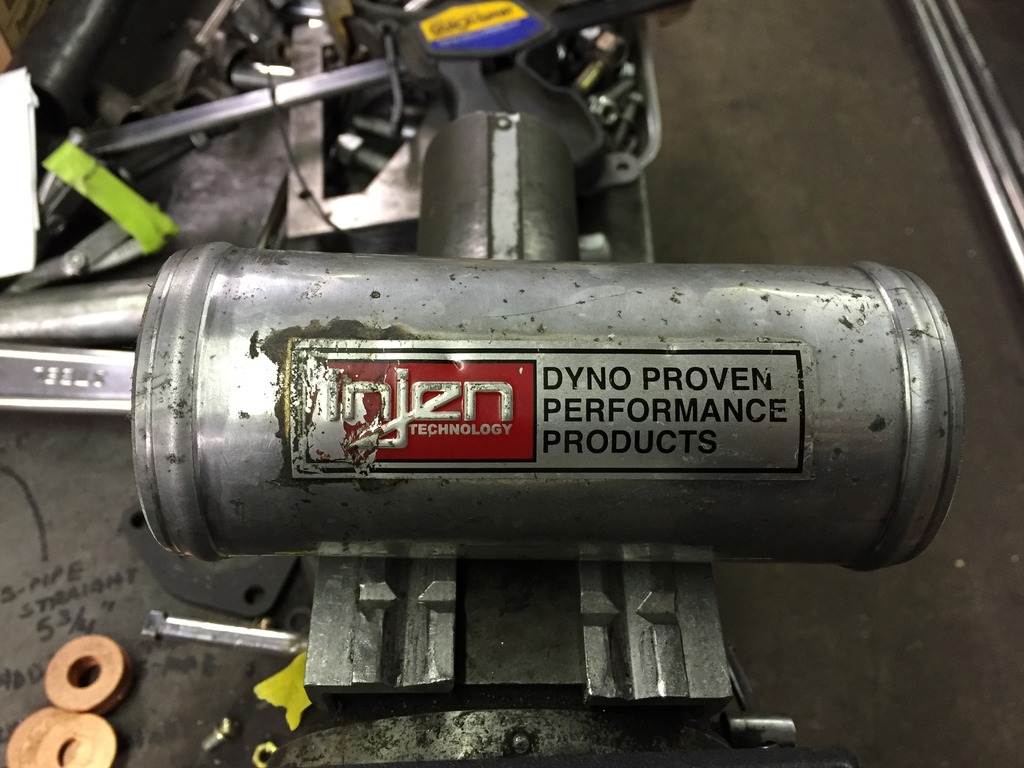

Today and yesterday I spent a few hours with Kris at KO Racing to help with a lot of the fab work on Laz's intercooler pipes. Spent an hour doing trig to make his Tial wastegate flange have MSM compressor outlet hole spacing. Why an hour? Because CNC.



Turned it into this:



He also did some TIG welding.



And some bead rolling.

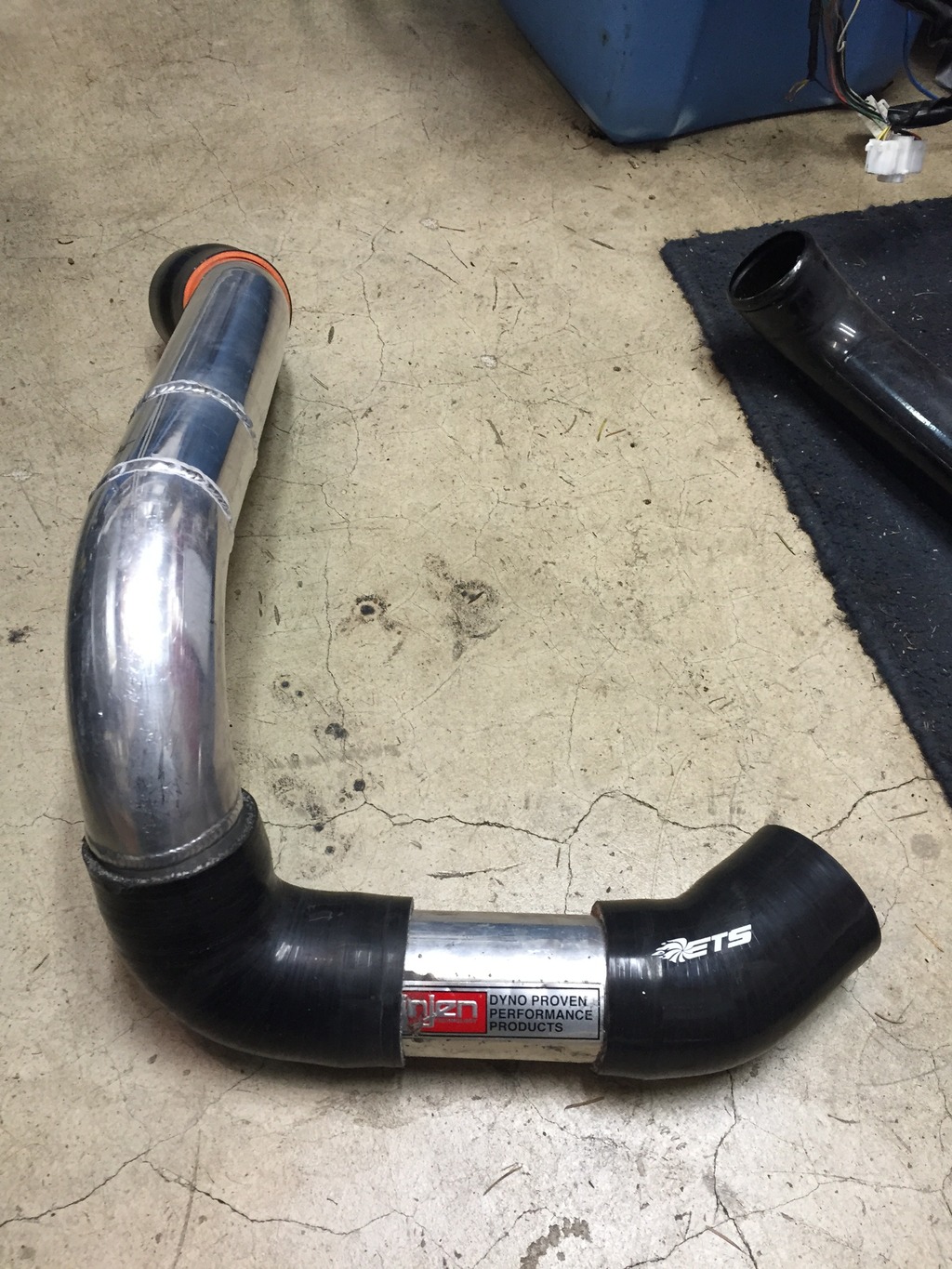

These pieces completed the cold side intercooler pipe. Fully beaded with only 3 couplers.

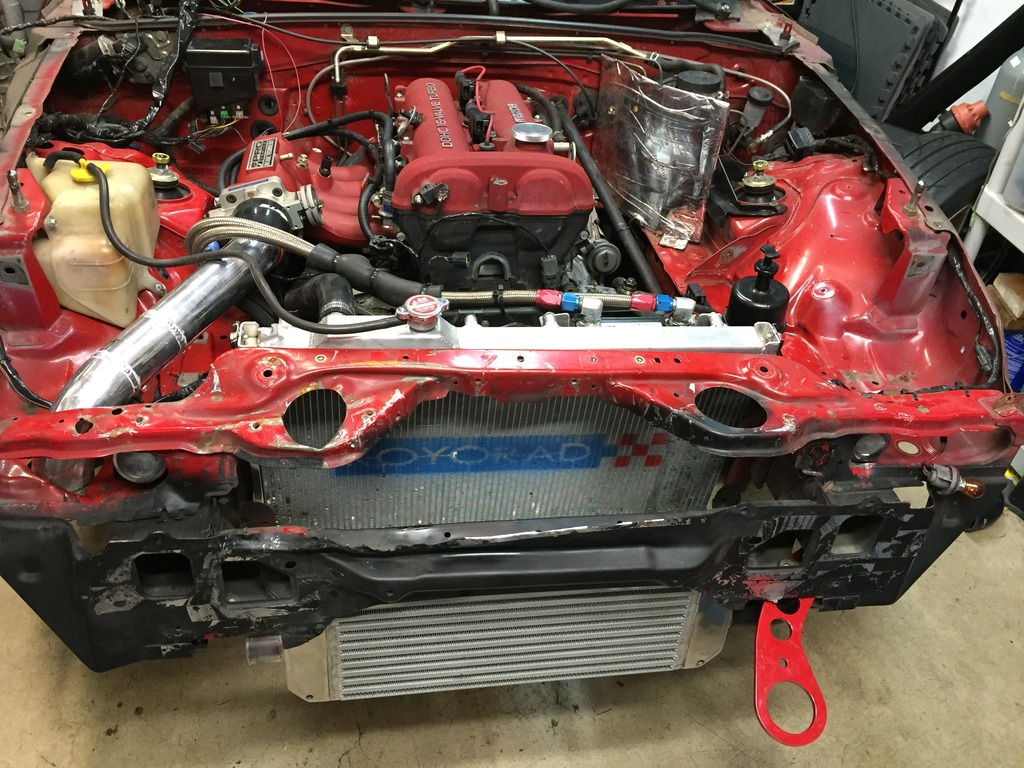

And here it is installed, along with the Honda intake manifold, Fab9 intercooler, and new tow hook.

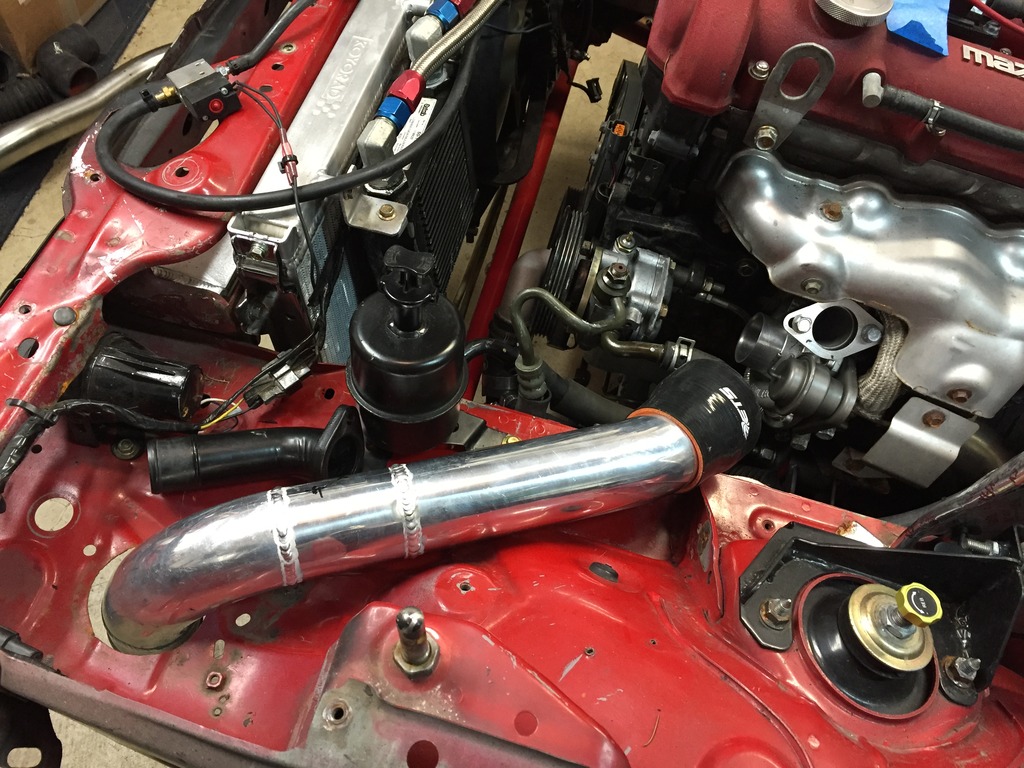

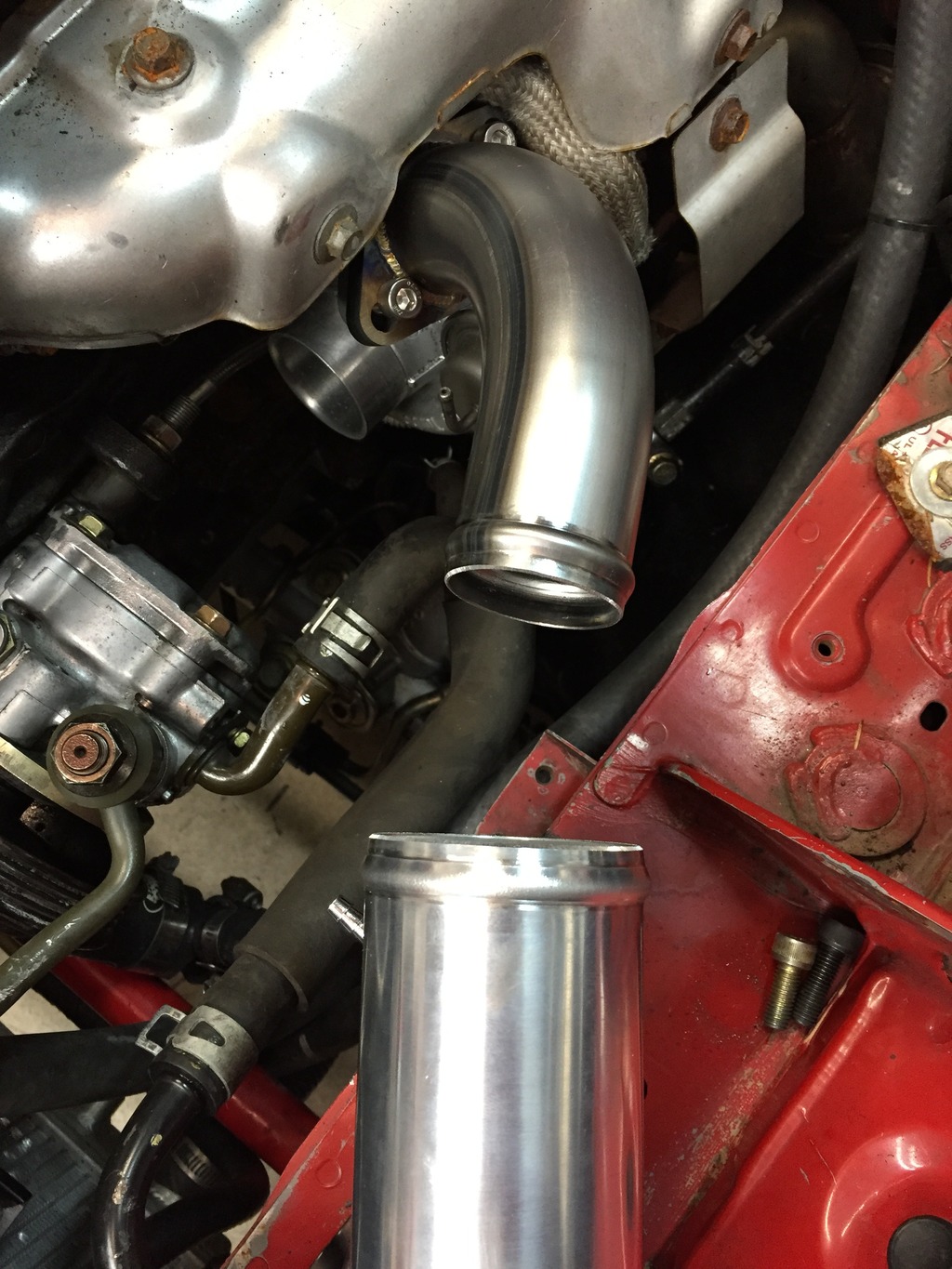

Here's my plan for the hot side. This is technically the cold side piping from the previous picture, but I should be able to mirror it on the hot side, including only having 3 couplers and it'll be fully bead rolled. I just need to get that funky compressor outlet pipe fabricated and expanded to 2.5" from 1.5".



Also pictured, power steering. He now has Mobius' rack from his wrecked '01, which also cuts about 4.5 feet off his turning radius.

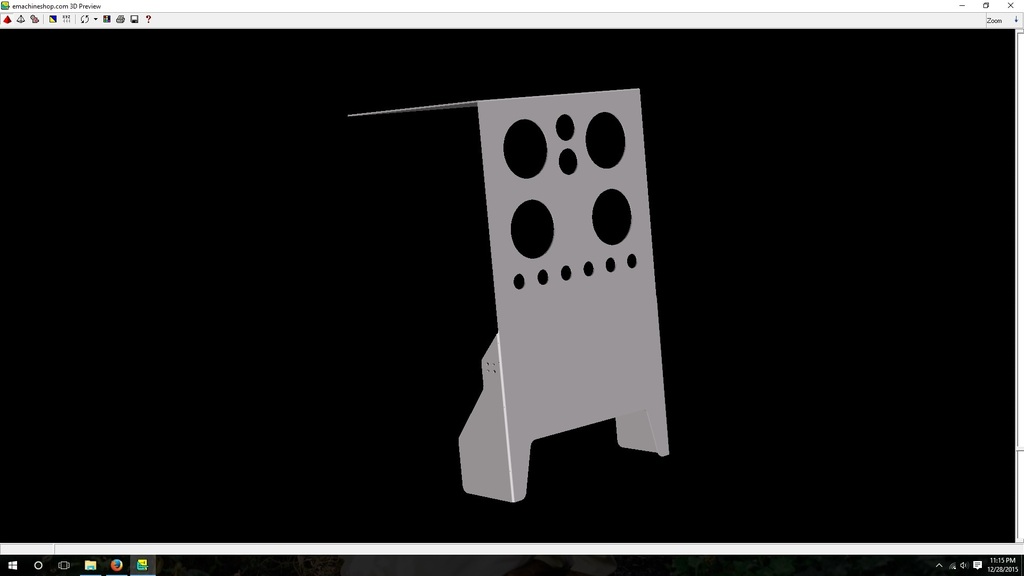

We're also getting rid of the dash, and replacing it with something like this, courtesy of Humming Aero:



Gauges are AFR, oil temp, boost, and water temp. Switches are WTFK.

On it's way:

1. NB PS pump for complete tensioner hardware
2. Oil temp sensor for sandwich plate

Need to buy:

1. Couplers for intercooler setup
2. gauge panel

Need to fab:

1. compressor outlet
2. hot side intercooler pipe
3. ducting
4. gauge panel
5. stock gauge cluster mounts

Need to install:

1. Inner tie rods and boots
2. Front wheels
3. oil temp sensor
4. intake manifold
5. cold side piping
6. hot side piping
7. gauge panel

Need to wire:

1. Everything
Attached Thumbnails
Lazarus:making something out of nothing-acef1007-6b08-49ee-9883-ded91ddf8478_zps0zc6p2ub.jpg   Lazarus:making something out of nothing-bf34b28a-2cf9-41eb-82fc-70cefd4814d9_zps0lg8cado.jpg   Lazarus:making something out of nothing-8d4c2a7a-2838-498e-9e89-10b6db7728ba_zpsls3mioq4.jpg   Lazarus:making something out of nothing-7fc51fb5-464b-43aa-8dc4-2613d96a8594_zpsc42f3wit.jpg   Lazarus:making something out of nothing-d3bb043f-085b-475f-af25-07249ee6d7e9_zpsmgqw9cnb.jpg

Lazarus:making something out of nothing-340c8c59-5c51-4280-bf49-d5879eb65027_zpsxjr5g8j5.jpg   Lazarus:making something out of nothing-018ed7f6-0bf1-4ad6-bb2e-ea3e75b62305_zpsw4uswbpp.jpg   Lazarus:making something out of nothing-laz%2520dash_zpsjcnvp8i9.jpg
greddygalant is offline   Reply With Quote
Old 12-31-2015, 01:31 PM   #509
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

Double post
Attached Thumbnails
Lazarus:making something out of nothing-acef1007-6b08-49ee-9883-ded91ddf8478_zps0zc6p2ub.jpg   Lazarus:making something out of nothing-bf34b28a-2cf9-41eb-82fc-70cefd4814d9_zps0lg8cado.jpg   Lazarus:making something out of nothing-8d4c2a7a-2838-498e-9e89-10b6db7728ba_zpsls3mioq4.jpg   Lazarus:making something out of nothing-7fc51fb5-464b-43aa-8dc4-2613d96a8594_zpsc42f3wit.jpg   Lazarus:making something out of nothing-d3bb043f-085b-475f-af25-07249ee6d7e9_zpsmgqw9cnb.jpg

Lazarus:making something out of nothing-340c8c59-5c51-4280-bf49-d5879eb65027_zpsxjr5g8j5.jpg   Lazarus:making something out of nothing-018ed7f6-0bf1-4ad6-bb2e-ea3e75b62305_zpsw4uswbpp.jpg   Lazarus:making something out of nothing-laz%2520dash_zpsjcnvp8i9.jpg
greddygalant is offline   Reply With Quote
Old 12-31-2015, 01:50 PM   #510
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Don't know if you have any plans to log oil temp with the megasquirt, but there is a Saturn temp sensor that uses the GM curve and can be wired into the megasquirt pretty easily.

I have a bunch of pigtails from the junkyard for it too.
aidandj is offline   Reply With Quote
Old 12-31-2015, 06:31 PM   #511
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by aidandj View Post
Don't know if you have any plans to log oil temp with the megasquirt, but there is a Saturn temp sensor that uses the GM curve and can be wired into the megasquirt pretty easily.

I have a bunch of pigtails from the junkyard for it too.
Part# or source?
stefanst is offline   Reply With Quote
Old 12-31-2015, 06:37 PM   #512
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,997
Total Cats: 1,463
Default

Quote:
Originally Posted by stefanst View Post
Part# or source?
See my ms wiring stuff for rockauto link

https://docs.google.com/spreadsheets...p=docslist_api
aidandj is offline   Reply With Quote
Old 01-03-2016, 03:43 PM   #513
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

More updates

Quote:
Originally Posted by curly View Post
Ok intercooler pipes are finally finished. Hardest part was getting the correct angle and orientation on the new compressor outlet, but it's finished. I upped it by .25" from 1.5" to 1.75", because most couplers don't reduce smaller than 1.75", at least the ones at siliconeintakes.com don't.

The entire hot side was nearly all guess work, the cold side elbow looked usable, so I had Kris at KO Racing copy it. I can't recommend him enough for any of your fabrication needs. I'd love to do this myself, but I'd rather spend $350 getting this done instead of $3500 of tools. For now.

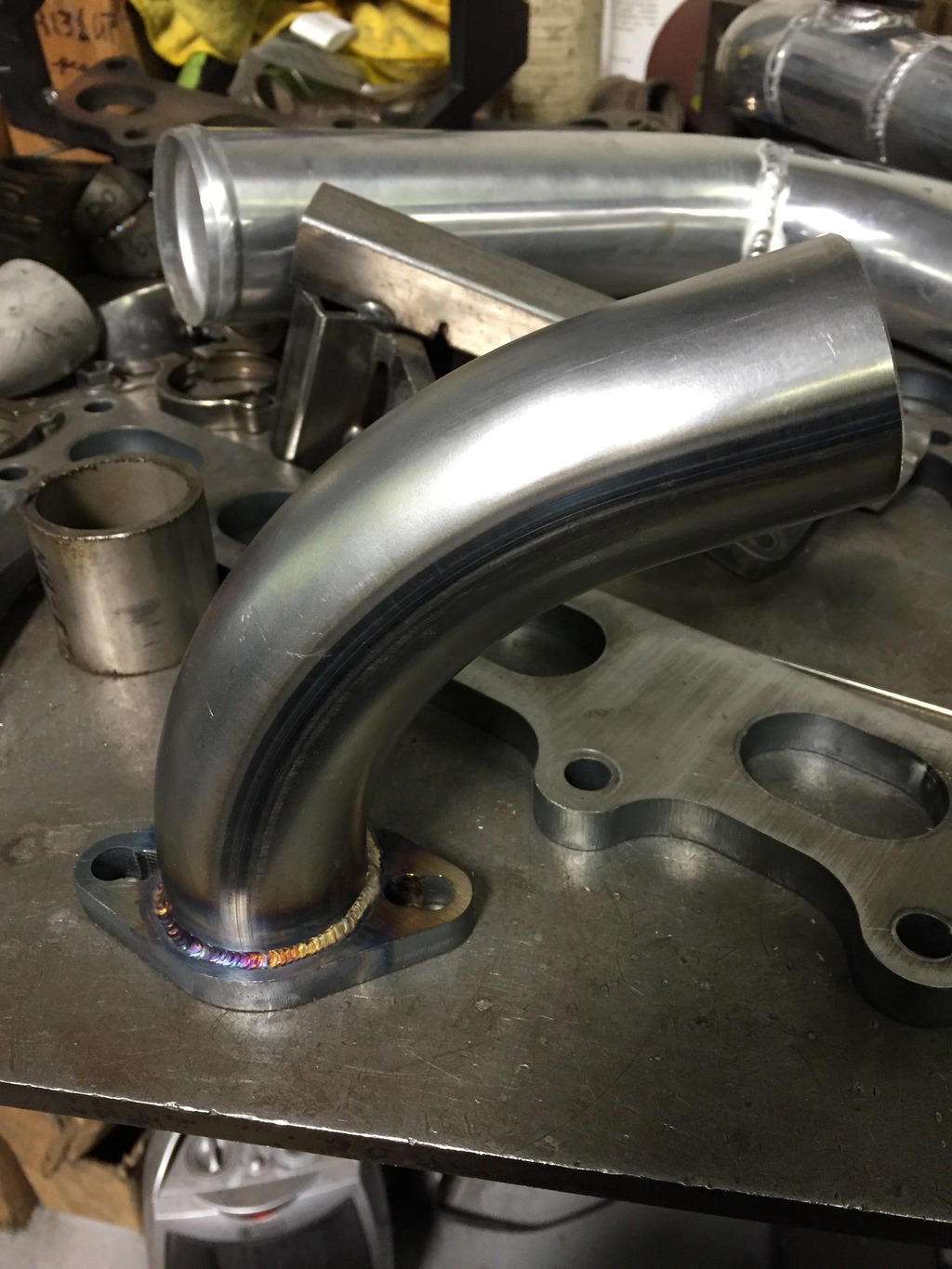

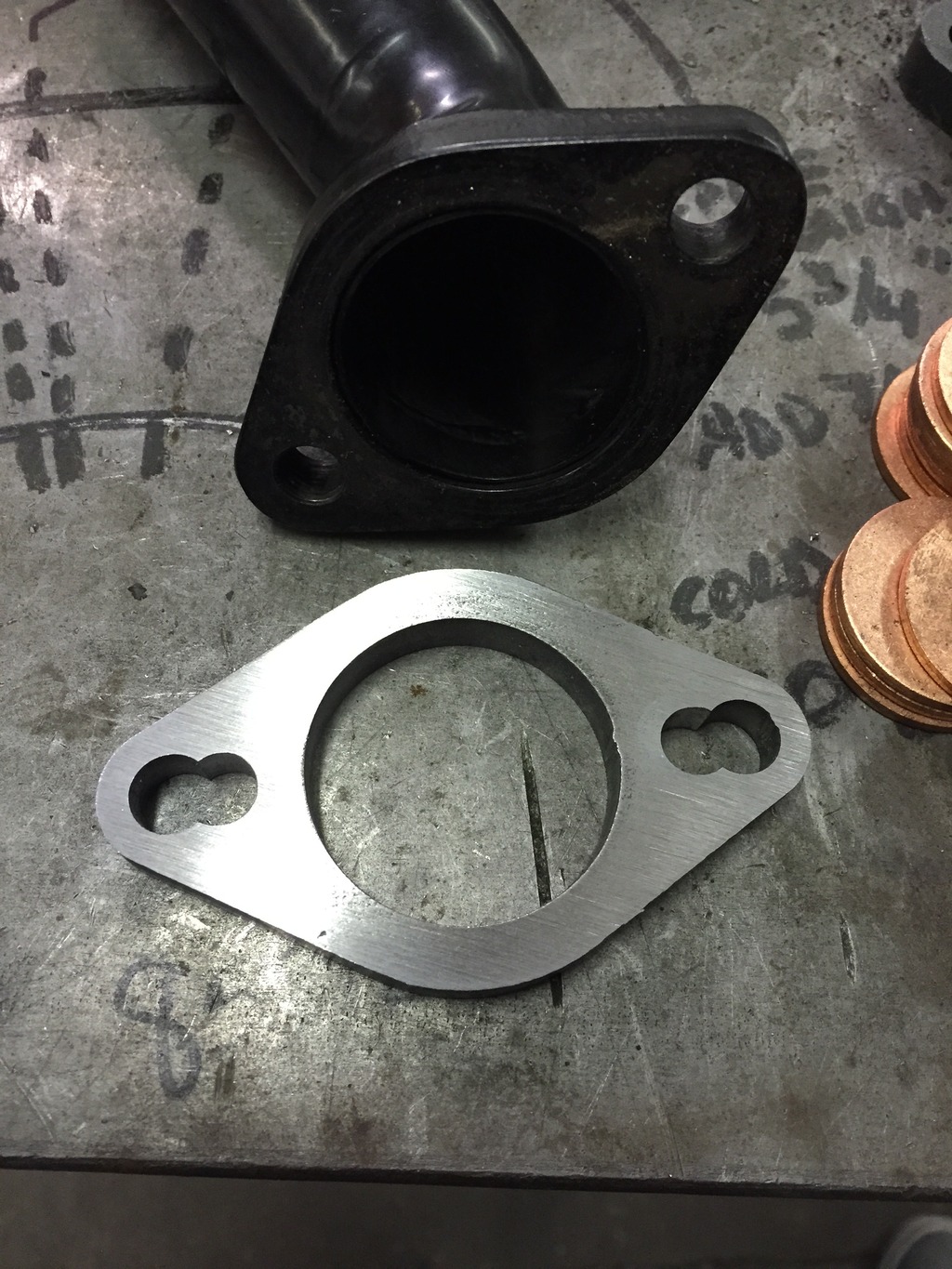

The compressor outlet is the only steel piece in the intercooler setup, Ideally it'd be powder coated I think, but we ain't got time for that, so high temp paint for now.

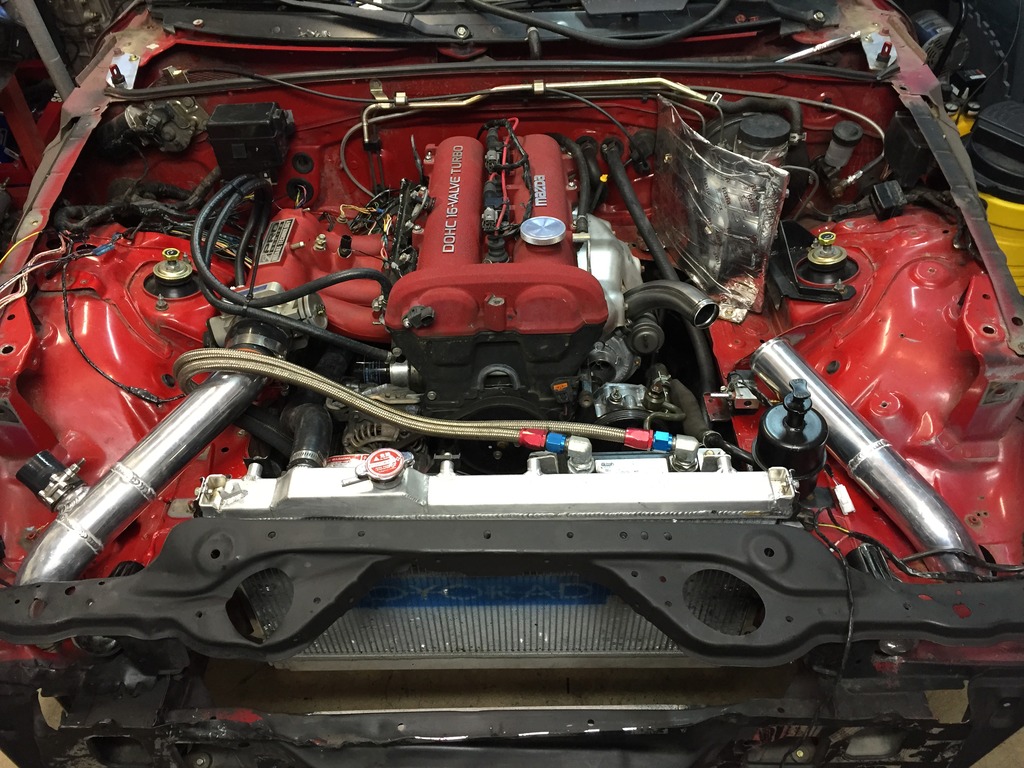

Here's the "completed" setup, just missing the couplers. When it's sitting in it's proper place, the hot side aluminum pipe is ~2" from the compressor outlet. Kris says he shoots for 1" between pipes, but again this was all remotely fabricated. The reducer coupler on siliconeintakes is only 3", which doesn't leave much on the pipe, so I'll probably have to bring it back for one more extension.





Next up is wiring, I've been finishing up the engine bay, routing everything I need into the cockpit to eventually bolt up to the gauge panel. I'm attempting to integrate everything into the dash harness, we'll see how that goes!
Attached Thumbnails
Lazarus:making something out of nothing-b155ed29-e1b3-4f33-b2d3-4bec2b196056_zpsnxjwrlji.jpg   Lazarus:making something out of nothing-751f71f4-bf22-448f-a52f-e72f054de422_zpsizxa9wvc.jpg   Lazarus:making something out of nothing-f0cb7864-69f2-42d5-b5f4-e2d89c90e2ed_zpsajmseamt.jpg
greddygalant is offline   Reply With Quote
Old 02-26-2016, 08:48 PM   #514
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default



I'll let curly talk about the details
Attached Thumbnails
Lazarus:making something out of nothing-80-laz_20honda_20manifold_zps51nouk5b_c9d6d2d1482e704f24d1606a5a0661eeeedefc0b.jpg
greddygalant is offline   Reply With Quote
Old 02-26-2016, 09:14 PM   #515
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

18psi is offline   Reply With Quote
Old 02-27-2016, 02:29 AM   #516
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Mobius is offline   Reply With Quote
Old 02-27-2016, 08:28 AM   #517
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,803
Total Cats: 494
Default

I'm not missing out on a ride this year.
Monk is offline   Reply With Quote
Old 02-28-2016, 02:00 PM   #518
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

When are you coming put this direction again?
greddygalant is offline   Reply With Quote
Old 02-28-2016, 02:16 PM   #519
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

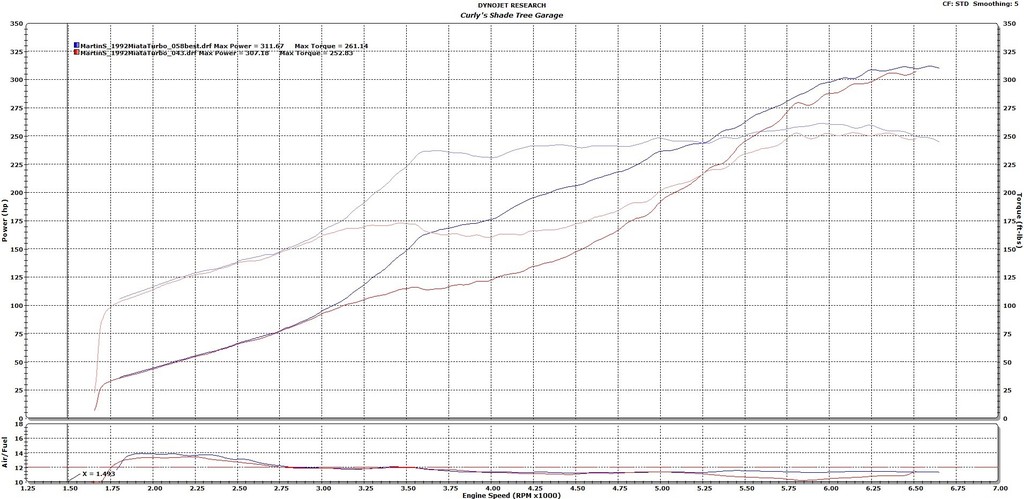

This graph was the hilarious one:



This is a before/after of this particular dyno session. Came in with 122hp at 4000rpm and 310 by 6500. Boost control was shut off to try and work our way up to high boost, but it was obvious the new compressor wheel was over powering the wastegate hole. Fail. So we made boost 225kpa throughout the entire power band. Worked well!
Attached Thumbnails
Lazarus:making something out of nothing-before-after_zpshwfiheoq.jpg
curly is offline   Reply With Quote
Old 02-28-2016, 02:25 PM   #520
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

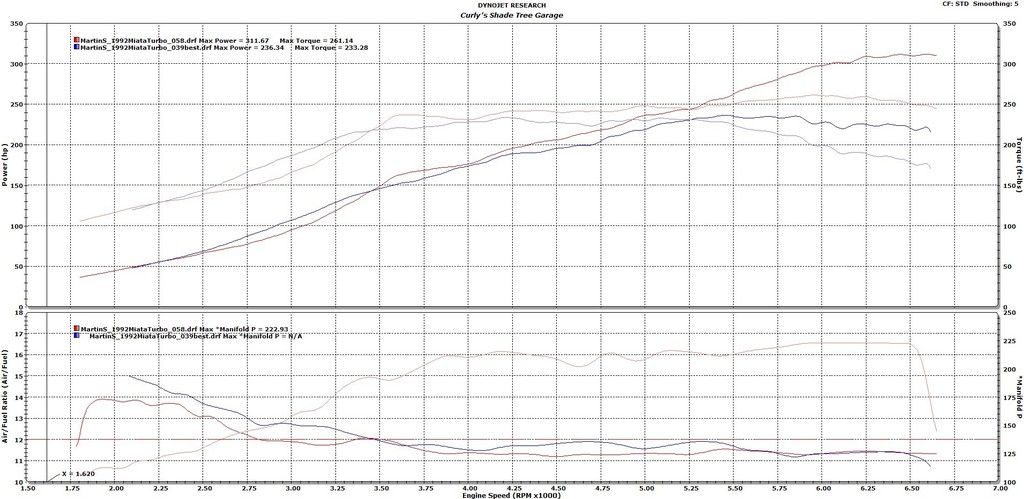

Oh and the 236/233 graph martin posted was:

VICS manifold, stock throttle body, shitty leaky intercooler pipes made up of OEM mitsubishi stuff, stock turbo, and an OEM evo 8(??) intercooler, again hacked up to fit.

Laz is now: Honda manifold, S2 72mm(?) throttle body, Fab9 baby intercooler, some Subaru billet compressor wheel with a rebuilt turbo, and KO Racing fabb'ed 2.5" intercooler pipes.
