Old 03-11-2015, 11:06 AM   #421
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

I'm so excited about this.
You are good at taking pics/vids so I'm pretty much opening this thread right after work today
18psi is offline   Reply With Quote
Old 03-11-2015, 11:38 AM   #422
Junior Member

Join Date: Apr 2011
Posts: 194
Total Cats: 10
Default

Yes excited to see as well but please take a video longer than 1.7 seconds.
oregonmon is offline   Reply With Quote
Old 03-11-2015, 11:43 AM   #423
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Quote:
Originally Posted by greddygalant View Post
Dyno today, hoping for 250/250 on an oem 100k msm turbo setup.
Unless this dyno reads high I just can't see those numbers being possible. The best I could do on 14psi (which is well outside of its efficiency range) is 217whp. I hope you prove me wrong though.
Ryan_G is offline   Reply With Quote
Old 03-11-2015, 12:39 PM   #424
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

We already hit 221, so, yeah...

I'm guessing more like 230/250. Who knows what a proper 3" and non-stock exhaust* would do.

*For those that are wondering, we're running an ebay downpipe, and stock exhaust cut off right before it turns into the muffler, so it dumps right behind the rear axle.
curly is offline   Reply With Quote
Old 03-12-2015, 02:47 AM   #425
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

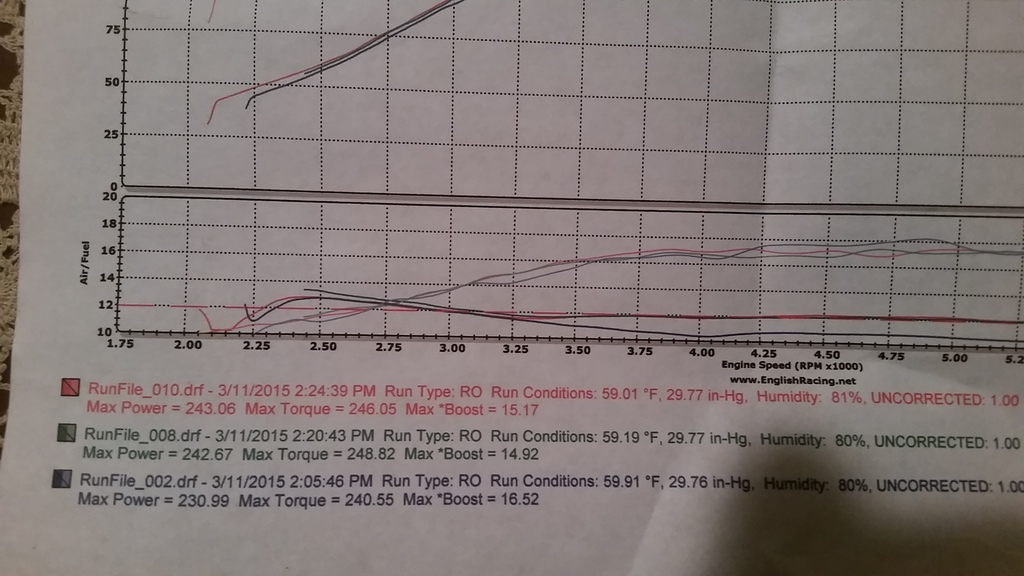

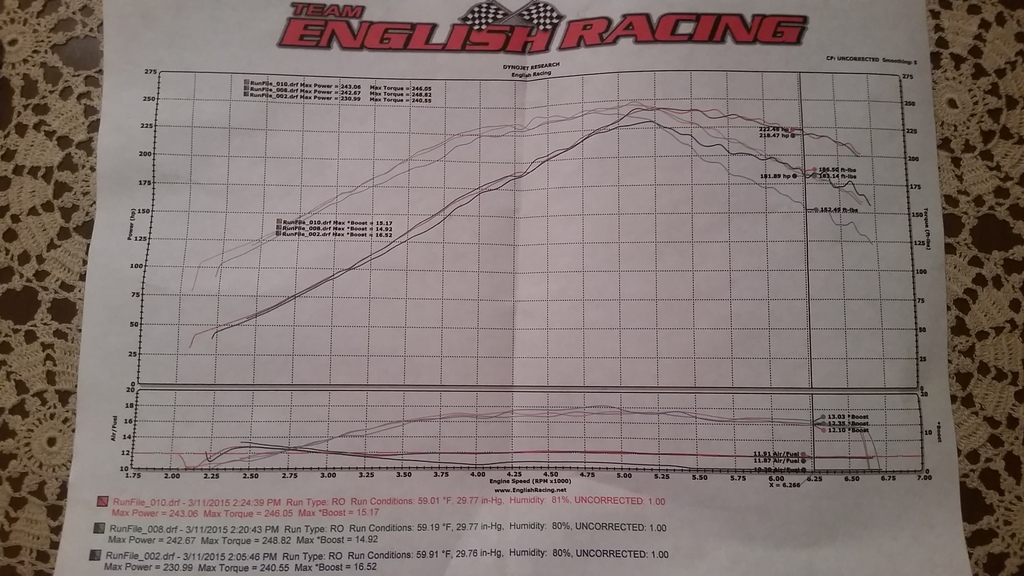

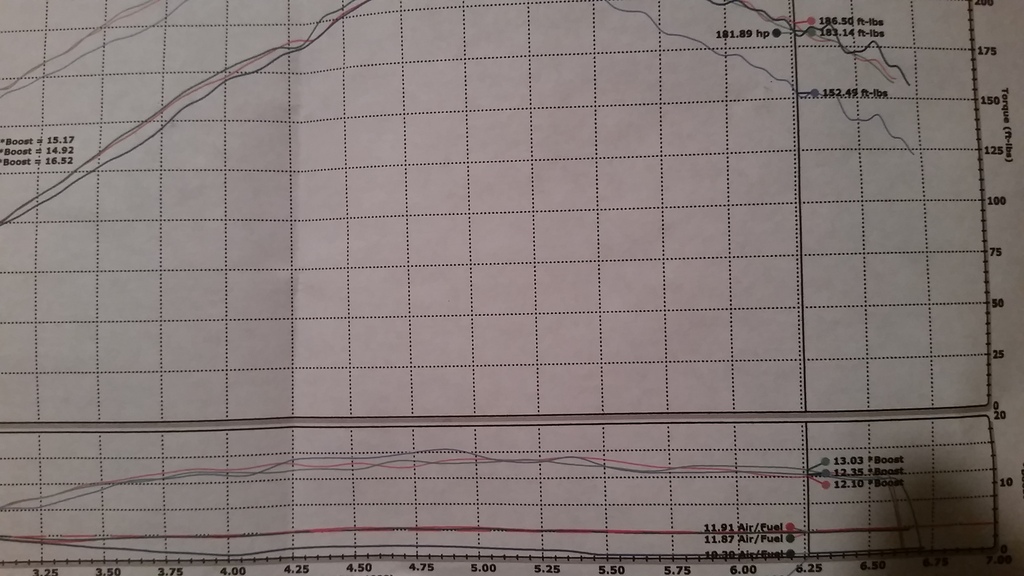

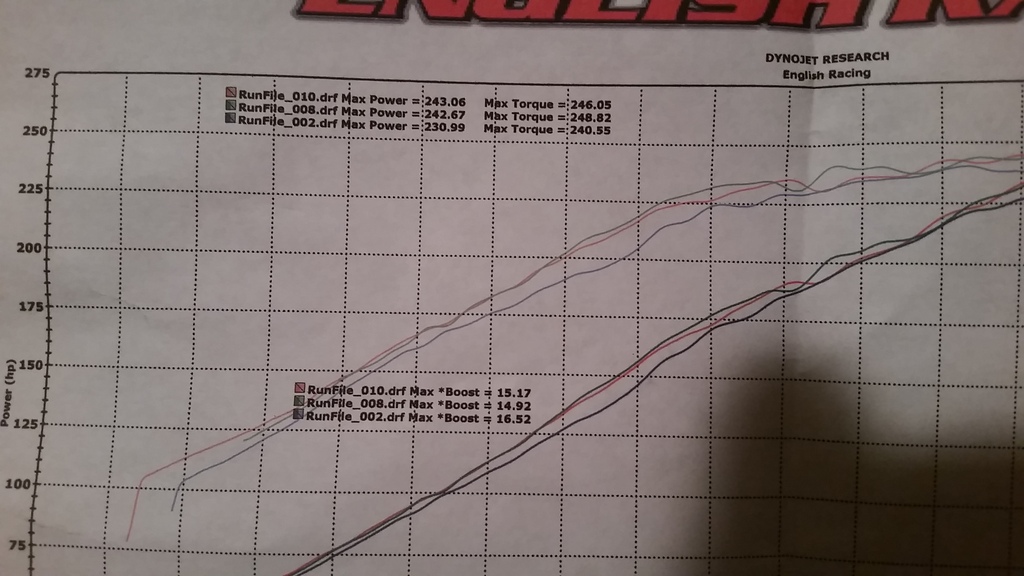

Ok so a few updates, car made 243/248 at 15 psi. Graph is uncorrected, it was a rainy humid day. Really smooth torque curve with lots of useable power, I'm really pleased. Changes from last time are FIC injectors, wally 190, forged rods and a little more boost. Graph shows first pull and the last two pulls for comparison. Still on stock msm hotside bits and exhaust except for a 2.5 catless downpipe. Name:  20150311_192756_zpsmiyeahjc.jpg
Views: 1
Size:  259.3 KBName:  20150311_192805_zpsxds0mq0b.jpg
Views: 1
Size:  203.1 KBName:  20150311_192812_zpsvwrpudbo.jpg
Views: 1
Size:  213.9 KBName:  20150311_192821_zpslszf3bkb.jpg
Views: 1
Size:  214.7 KB
and some video

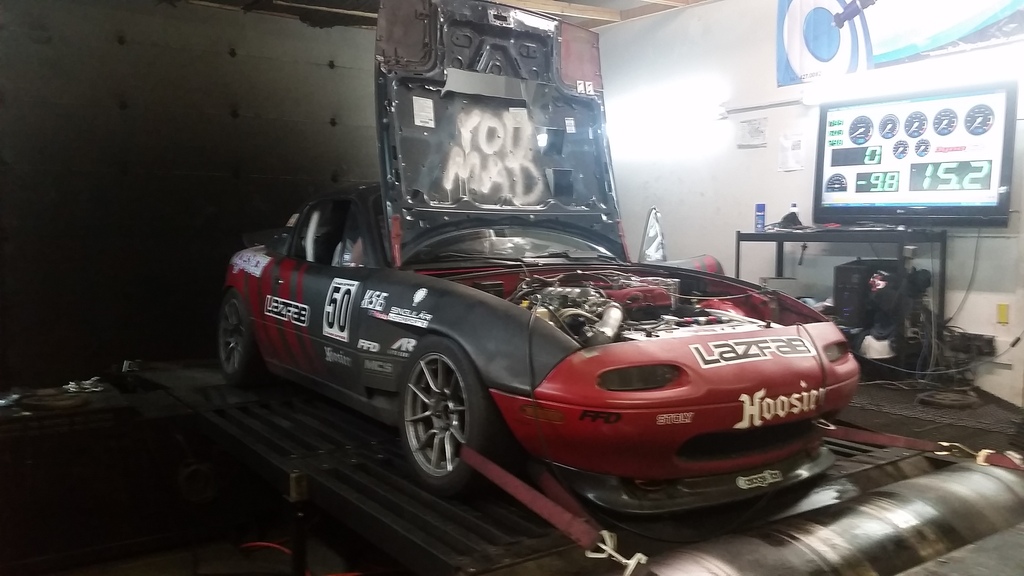

Laz dyno rear shot:
Dyno pull:
all in all very pleased, 3 inch and wastegate dump to come as well as a fresh ihi , this one has some bent compressor fins
Attached Thumbnails
Lazarus:making something out of nothing-20150311_140315_zps4nyyyyl8.jpg   Lazarus:making something out of nothing-20150311_192756_zpsmiyeahjc.jpg   Lazarus:making something out of nothing-20150311_192805_zpsxds0mq0b.jpg   Lazarus:making something out of nothing-20150311_192812_zpsvwrpudbo.jpg   Lazarus:making something out of nothing-20150311_192821_zpslszf3bkb.jpg

greddygalant is offline   Reply With Quote
Old 03-12-2015, 02:48 AM
greddygalant
This message has been deleted by curly. Reason: double post
Old 03-12-2015, 03:20 AM   #426
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,178
Total Cats: 267
Default

Laz got good numbers, and sounds good!
Mobius is offline   Reply With Quote
Old 03-12-2015, 03:33 AM   #427
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

very nice.
I think it's safe to say this is either the record or close to it on the MSM bits
18psi is offline   Reply With Quote
Old 03-12-2015, 03:54 AM   #428
Junior Member

Join Date: Sep 2011
Posts: 64
Total Cats: 0
Default

time for a new snail
lightw8 is offline   Reply With Quote
Old 03-12-2015, 05:00 PM   #429
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

What does the spark table look like now?
Also I'm kinda impressed that the little ihi actually holds 12psi all the way to redline
18psi is offline   Reply With Quote
Old 03-13-2015, 02:31 AM   #430
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

That's all due to the new ebc rather than the MBC we ran before.
I'll let josh post the spark table.
greddygalant is offline   Reply With Quote
Old 03-13-2015, 02:35 AM   #431
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

really? the mbc didn't hold boost to redline as well? that's surprising
18psi is offline   Reply With Quote
Old 03-13-2015, 01:31 PM   #432
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

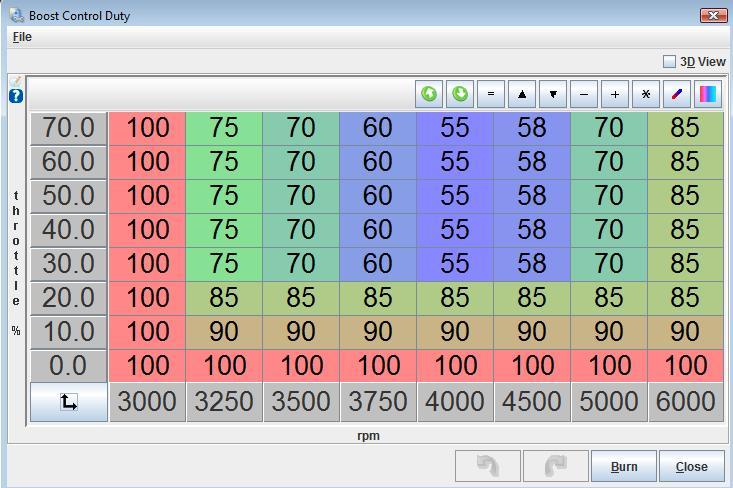

I think it held boost, just bled off more than the EBC does. Here's our boost table. You can see we had to go down to 55 DC at 4000rpm to keep it from over boosting, and could go all the way to 85 DC to redline to try to keep as much boost as possible, but we still lost around 3psi by redline. Can't do that with an MBC.

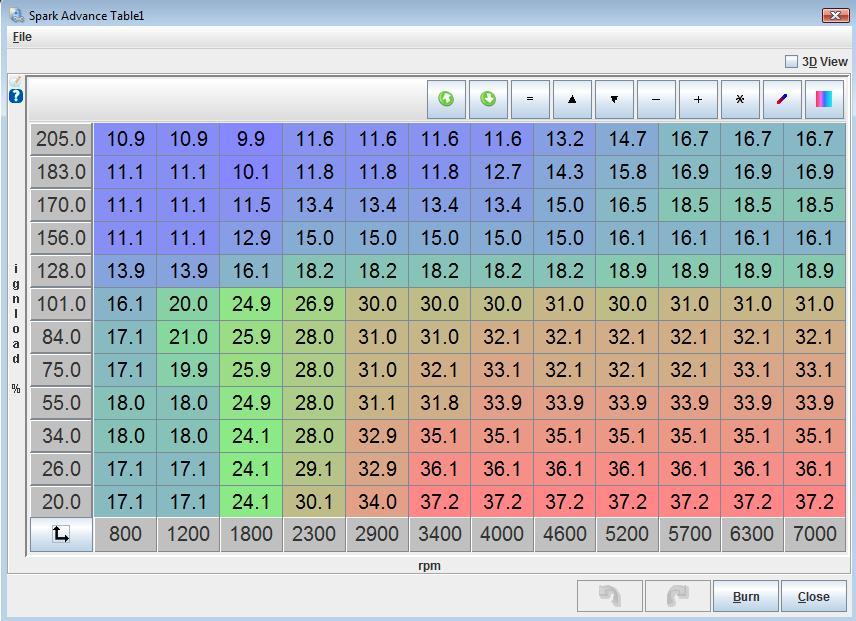

And the spark map. I'm almost positive we tuned it last time 10* off, this one looks much better.

Attached Thumbnails
Lazarus:making something out of nothing-laz%2520boost%2520table_zps2ebtx1ox.jpg   Lazarus:making something out of nothing-laz%2520timing%2520table_zpszrgwl1v3.jpg
curly is offline   Reply With Quote
Old 03-13-2015, 01:34 PM   #433
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

Awesome, thanks for the clarification
18psi is offline   Reply With Quote
Old 03-17-2015, 03:32 PM   #434
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

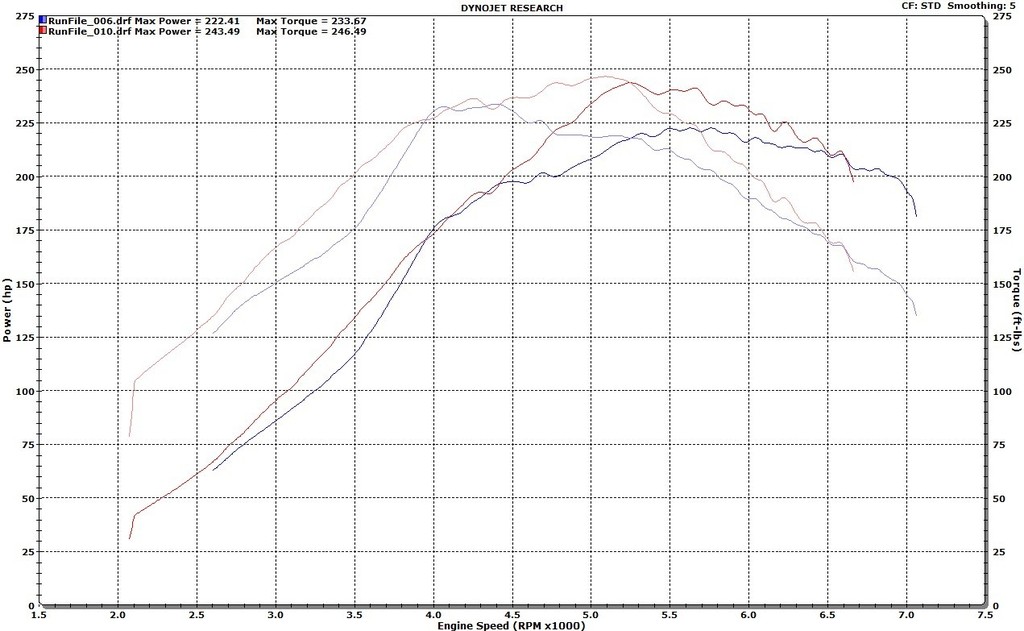

comparison of old best and current best, 25 more wtq @ 3500 rpm and more power up top too
Attached Thumbnails
Lazarus:making something out of nothing-old%2520vs%2520new_zpswpxkbtfc.jpg
greddygalant is offline   Reply With Quote
Old 03-17-2015, 04:01 PM   #435
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,199
Total Cats: 2,584
Default

yeah the 2.5-4 gains are really solid. is this ebc vs mbc too like curly mentioned?
18psi is offline   Reply With Quote
Old 03-17-2015, 04:06 PM   #436
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,109
Total Cats: 518
Default

Yeah, EBC vs. MBC. You can pretty easily see the MBC's efficiency range, which is 4-4.5k, where the two graphs are near identical. Then we can keep some more boost in in from 4.5-5.5k, but then the turbo just starts to run out of steam and starts to equal the old MBC graph.

This is also VTCS vs. VICs, however when we activated vics at 1000rpm, then at 9000rpm (basically on vs. off), we saw no changes...so we're not sure what's up with that.
curly is offline   Reply With Quote
Old 03-18-2015, 09:37 AM   #437
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,804
Total Cats: 494
Default

Twodoor did a pretty interesting test with VICS recently. Not sure if it has any relevance or not.
Quote:
Originally Posted by Twodoor View Post
I got bored and the weather was good so I did some VICS cross over point testing today to see if it had any effect on my weird upper RPM boost dip. I did pulls ranging from having the VICS activate at 2500 RPM to having the VICS totally disabled. Nothing I did had any effect on the upper RPM boost dip, but I did collect some interesting data.

With VICS disabled vs active from 2500 RPM to redline.

With the VICS active the whole run you get about 14 more peak HP at 6200 RPM and with VICS disabled you get about 12 more lb-ft of torque at 4300 RPM and more overall mid-range torque from 3400 RPM to 5200 RPM

The graphs from the runs where the cross over was 5000 RPM and 5,500 RPM are almost identical and show the mid range of the disabled VICS and the top end of the active VICS... looks like Mazda got it right! I will be setting my activation point at 5200 RPM.


Red is active VICS from 2500 to Redline, Blue is VICS disabled, and green is VICS crossover at 5,500 RPM.

Keith
Monk is offline   Reply With Quote
Old 03-20-2015, 02:18 PM   #438
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

So, first track day of the season in the books, lets start with the good.
1. Lotus/AP racing brakes are phenomenal, no bias issues with my stock 1.6 rears, gutted oem prop valve. The pedal feels amazing and consistent the entire time.
2. The improved power band is definitely noticeable.
3. I dialed out a little negative camber in the rear during my last alignment, leading to an improvement in traction.
4. Bested my personal time by 1.7 seconds, dropping the car to a 1:24 dead around PIR. For comparison a 997.2 on MCS doubles, exhaust, software, and Hoosiers runs a similar time.

The bad
1. My ebay radiator gave up the ghost, I got tired of waiting for 949s radiator to be in stock so I ordered one of the new Koyo Hyper V units.
2. I need new front rotors, I used junk rotors that we pulled of a customer's racecar for testing purposes, but they are cracking due to age and use and the fact that OEM lotus rotors are shitty and crossdrilled and vented only one direction meaning one rotor is always hotter than the other. Aftermarket rotors fix that and are cheaper. DBA 4000 rotors are on the way, I had the 5000 2 piece ones on order but they are backordered till mid May so I'll get them next time around.
3. Car started to lean out under boost, all signs point to the fuel pump, seeing as we had to add 5% fuel on our last dyno run and I think the track day killed it. This was a brand new Walbro 190 purchased from 949. Emilio was very helpful over email and I am quite pleased with his customer service. I will be replacing it with a DW300 that Mobius had laying around.
4. The wires on my prosport water temp gauge sender melted, causing it to short out and tell me that Laz is at 350F water temp. Prosport is sending me a new one and I also have a boost gauge on the way from them as well.

Overall, very very pleased, the car is really fast and easy to drive, and I know there is still time left on the table before I do more suspension work and finally jump into some serious aero.

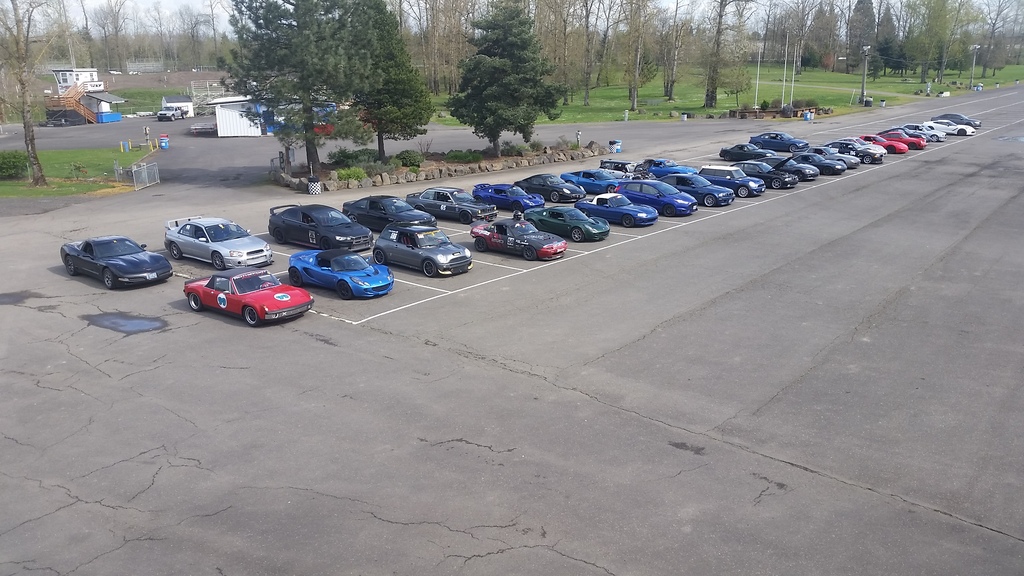

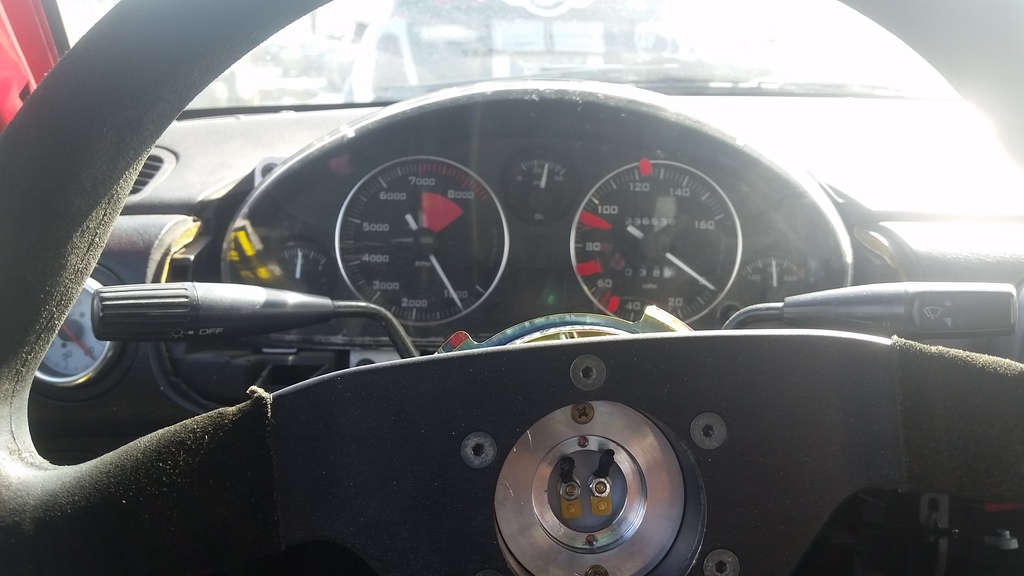

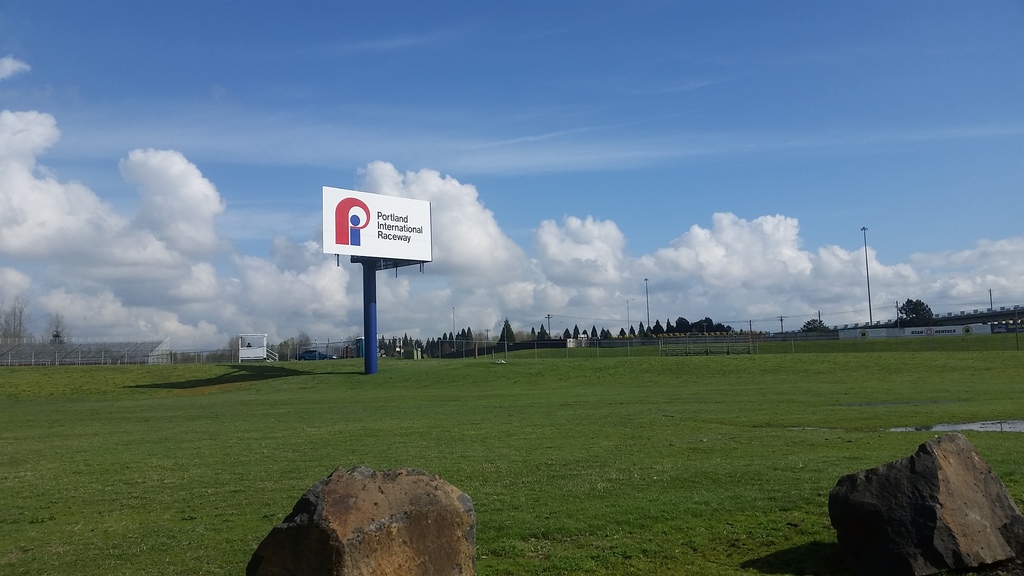

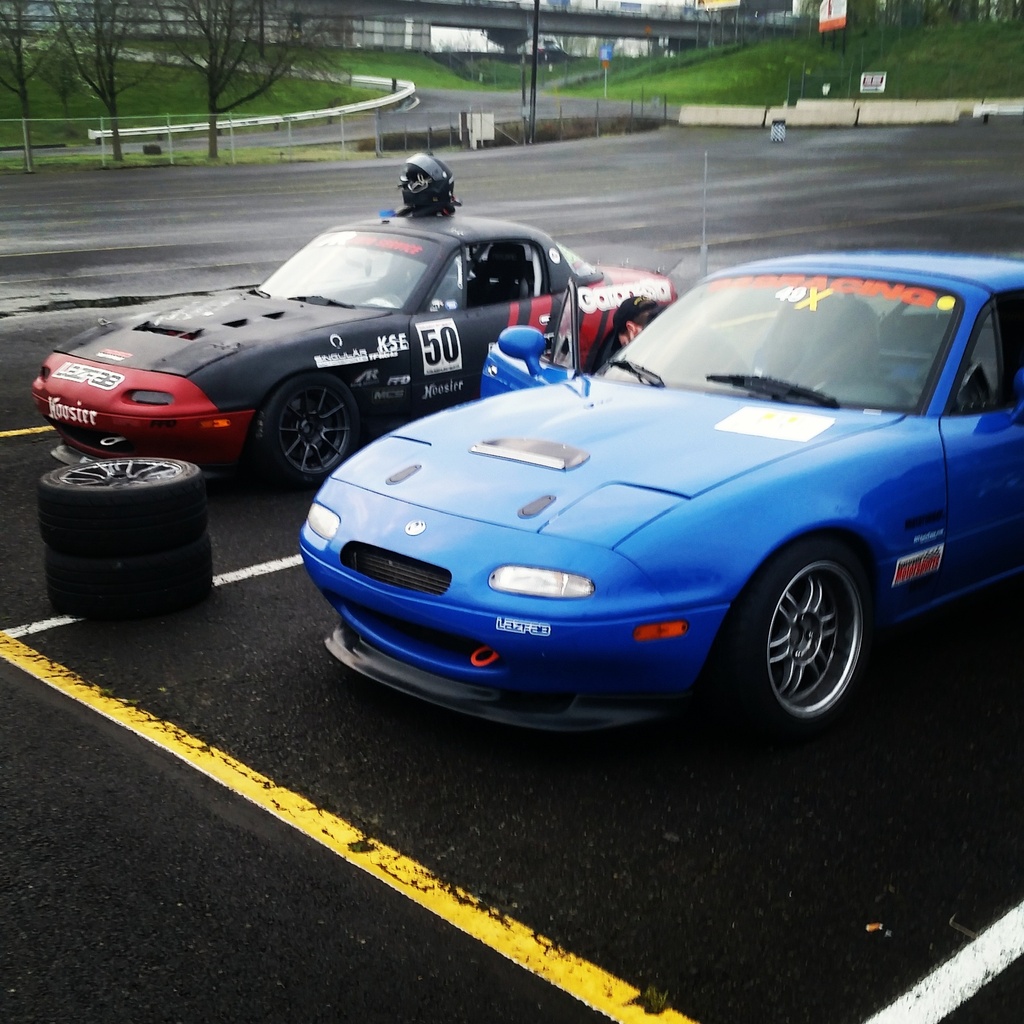

Here's some photos of the day.




Also, here's a little tophat teaser

Attached Thumbnails
Lazarus:making something out of nothing-img_20150318_105700_zpsxfj0kogj.jpg   Lazarus:making something out of nothing-20150318_115652_zpsap9xo4u0.jpg   Lazarus:making something out of nothing-20150318_115634_zpsv0c6yd1z.jpg   Lazarus:making something out of nothing-20150318_132636_zpsbg9fvrxb.jpg   Lazarus:making something out of nothing-20150311_192837_zpsjajlkppx.jpg

greddygalant is offline   Reply With Quote
Old 03-20-2015, 04:55 PM   #439
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,927
Total Cats: 526
Default

1:24... phenomenal.

What's bundy's best here again?
turbofan is offline   Reply With Quote
Old 03-21-2015, 03:10 PM   #440
Senior Member
Thread Starter
iTrader: (3)

Join Date: Nov 2011
Location: Beaverton, OR
Posts: 737
Total Cats: 30
Default

I think Bob is in the high 1.21.xx
don't remember for sure
