Old 05-21-2013, 01:25 AM   #41
Senior Member
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

So when are you getting internals?
Impuls is offline   Reply With Quote
Old 05-21-2013, 08:04 AM   #42
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Impuls View Post
So when are you getting internals?
Then engine builder I plan on using is backed up for about a month which is fine with me because I haven't had a lot of time to work on the car between work and getting settled in my new house. It's just a matter getting time to pull the motor and get it to him.
FrankB is offline   Reply With Quote
Old 05-21-2013, 10:18 AM   #43
Elite Member
iTrader: (8)

Ryan_G's Avatar

Join Date: Jan 2012
Location: Tampa, Florida
Posts: 2,579
Total Cats: 155
Default

Are you working with BogusSVO or did you go with someone else?
Ryan_G is offline   Reply With Quote
Old 05-21-2013, 10:23 AM   #44
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by Ryan_G View Post
Are you working with BogusSVO or did you go with someone else?
Yes, I want to try and work with BogusSVO.
FrankB is offline   Reply With Quote
Old 06-01-2013, 12:18 PM   #45
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

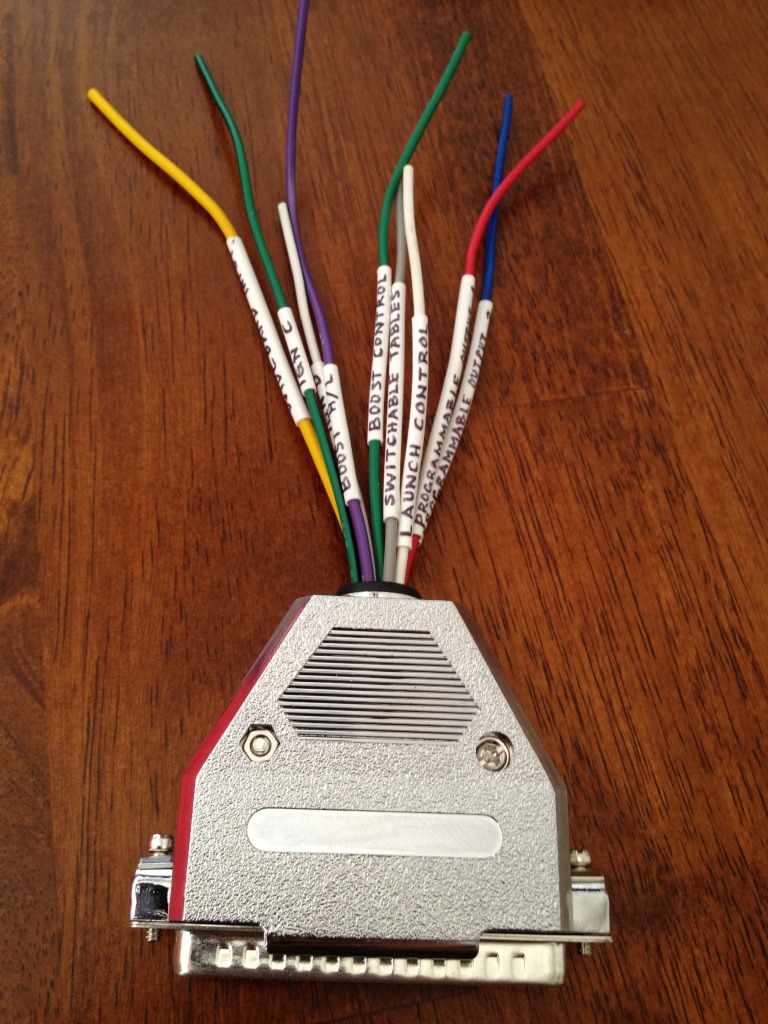

Alright so I've had a chance to get a little work done on the car. So after I got my MS in I realized I needed a DB37 connector from DIY. I soldered in some accessories I thought I would end up using in the future if not right away. BTW white heat shrink tubing works nice for labeling wires. You just write on it before you heat it up.

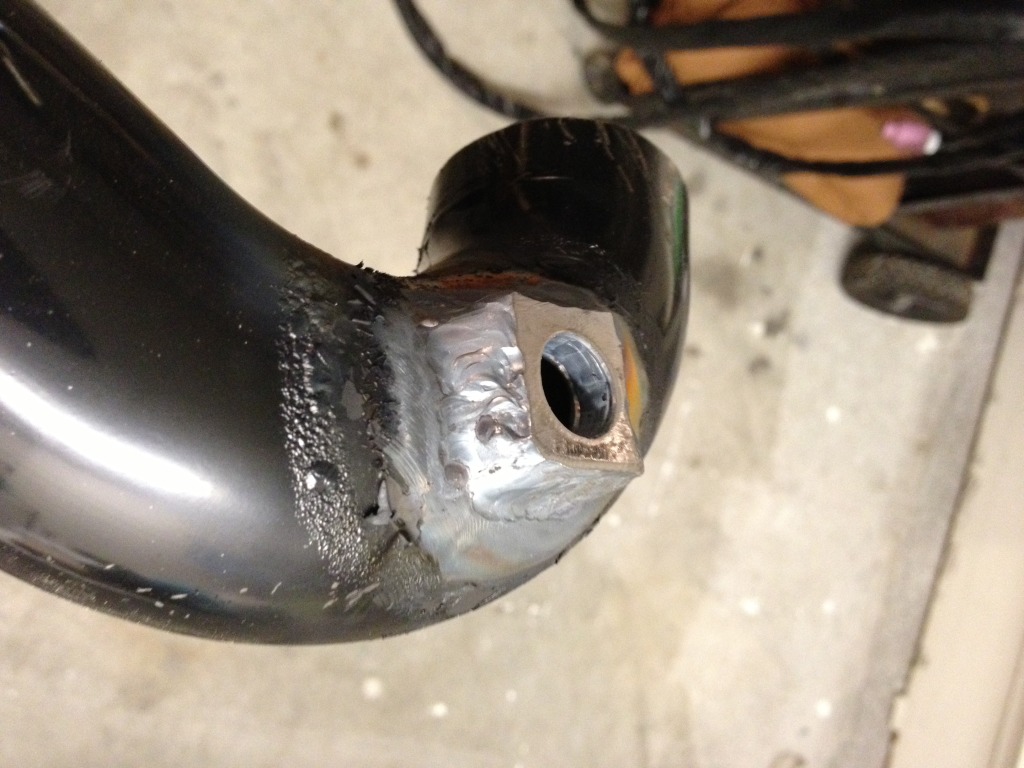

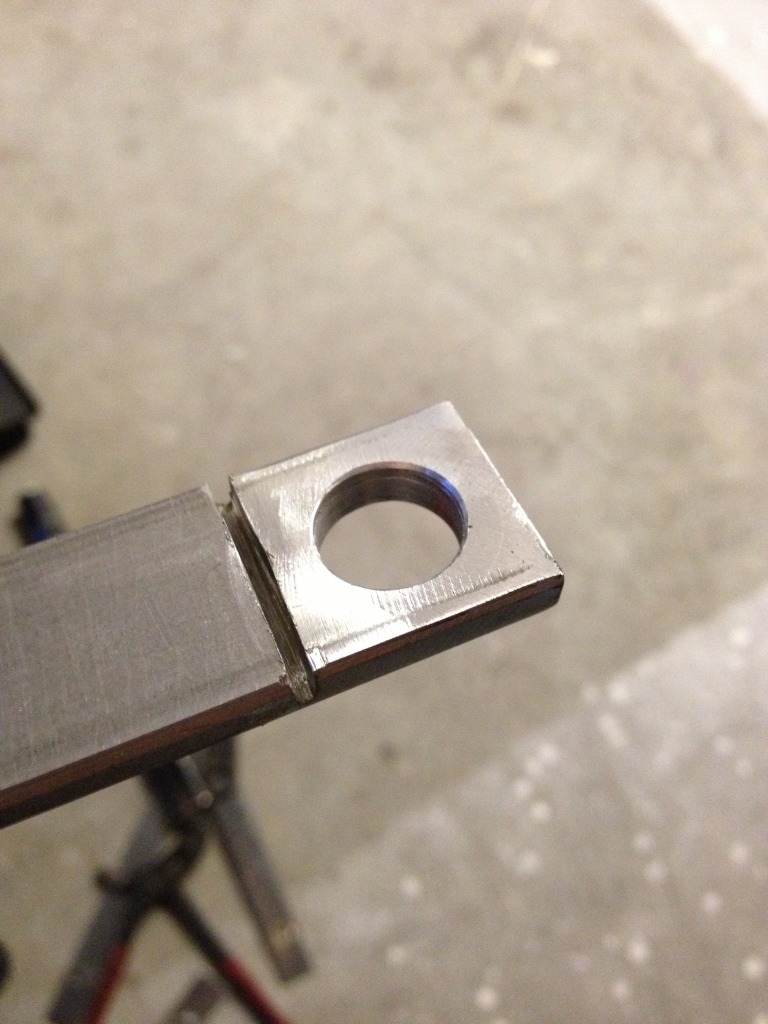

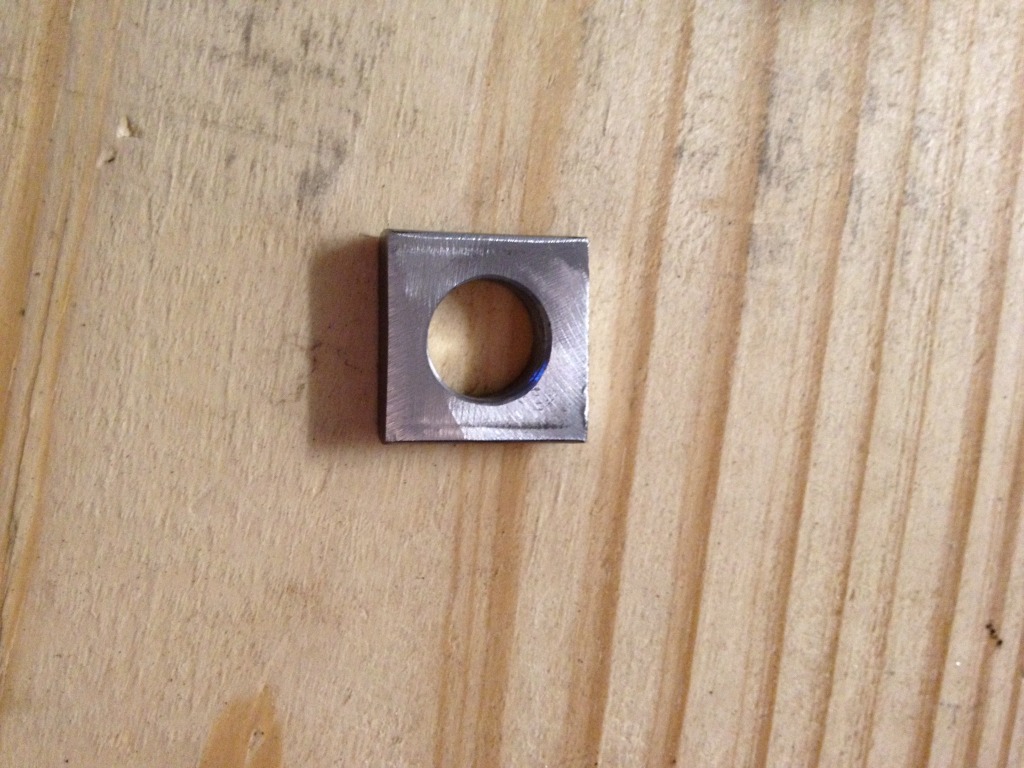

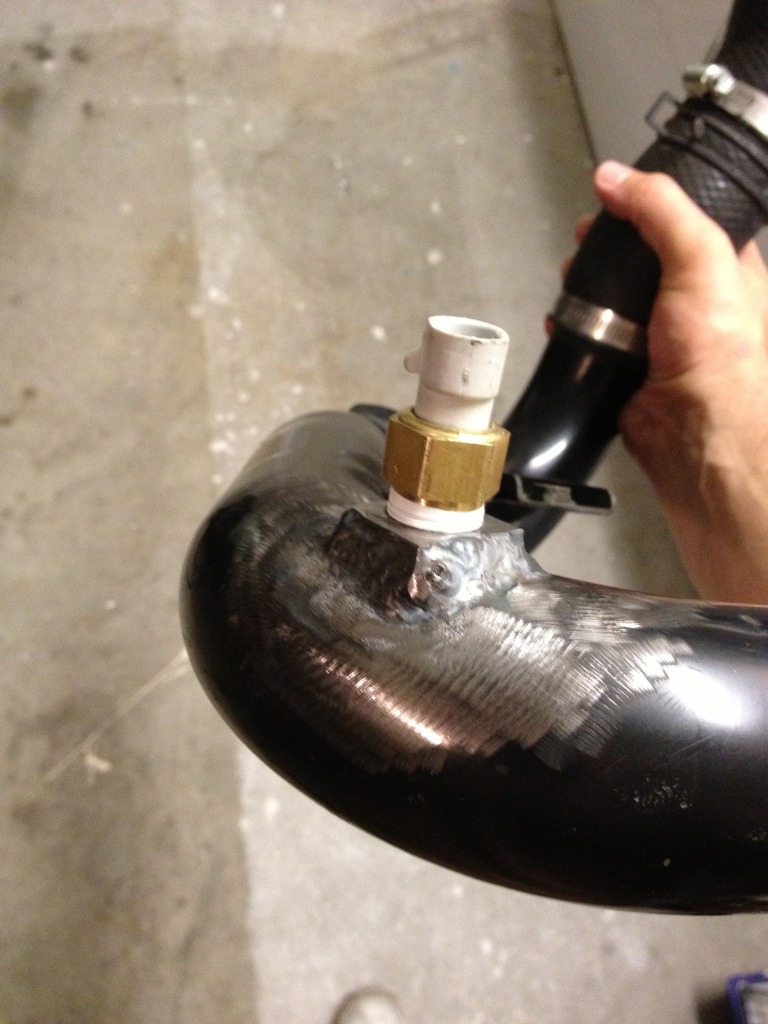

I also ordered an aluminum IAT bung for my intercooler piping but I remembered that my factory intercooler piping was steel so until I'm ready to put the EFR on and redo the piping I made my own steel bung out of some bar stock I had. I drilled the hole for the sensor then cut the piece I wanted to use. Welded it to the piping and then tapped it for the sensor. Nothing fancy but it'll do until I install my new setup.

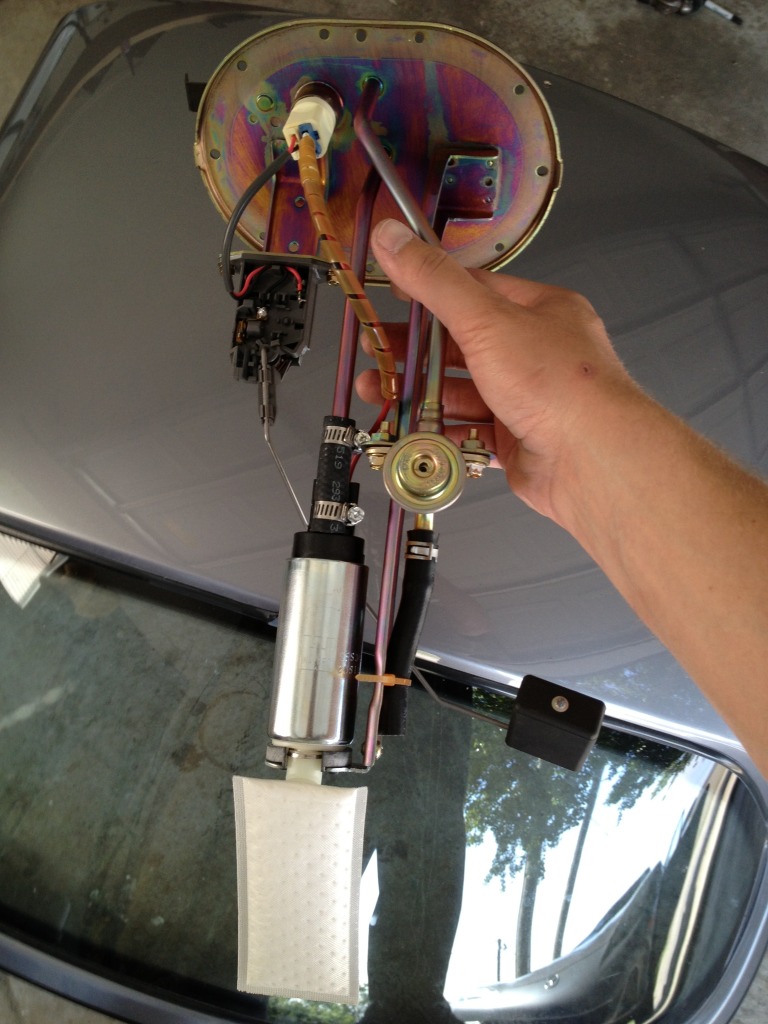

I also got around to installing my Walbro 255 fuel pump.


I installed my Fuel Injector Clinic 775cc injectors but it was late last night and I didn't take any pictures because I was in a rush to get everything back together and the MS at least connected. I did get the MS connected but I haven't mounted it yet. I registered for tunerstudio and then followed Reverant's start up instructions and got the car idling last night. I'm going to try and start tuning toady hopefully.

Side note:
I'm contemplating selling my hardtop (no headliner no defrost) and getting one with the headliner and defrost. Mine just doesn't seem to fit right. Im not sure if there is a slight shape difference between the NA and NB tops but its annoying. I was also thinking of just taking my soft top out completely and bolting the hardtop down. The wife on the other hand is not in favor of said idea.
Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-1ffc5c70-a510-4830-a179-f22eeb391e98-38420-0000286e583403ac.jpg   Mazdaspeed meets EFR, ARTech, MS2E-f878a3ae-8092-4ab2-a39f-db7c8e8979dd-38332-000028665541aece.jpg   Mazdaspeed meets EFR, ARTech, MS2E-25938006-8dcb-4b56-b9dc-46e5e3eb0b00-38332-0000286663994082.jpg   Mazdaspeed meets EFR, ARTech, MS2E-2dceafa4-d4a1-443f-87b5-4b9abcc1869d-38332-000028666ee66c5e.jpg   Mazdaspeed meets EFR, ARTech, MS2E-acd43d36-7d4a-48f5-a8ef-ca87c26c2b28-38332-000028667c0f0e19.jpg

Mazdaspeed meets EFR, ARTech, MS2E-037de1bb-d4a3-49a3-bc6c-b802d2f6d60a-38288-000028618e2a33b3.jpg

Last edited by FrankB; 06-01-2013 at 12:36 PM.
FrankB is offline   Reply With Quote
Old 06-02-2013, 01:05 PM   #46
Junior Member

Join Date: Sep 2009
Posts: 82
Total Cats: 0
Default

Quote:
Originally Posted by FrankB View Post
Side note:
....I was also thinking of just taking my soft top out completely and bolting the hardtop down. The wife on the other hand is not in favor of said idea.
I did that, but use the factory latches instead of the bolt on brackets (like Rennenmetal). I prefer the hardtop look and what it does offer for noise reduction. As such, I ordered a rollbar that isn't soft top compatible (harness bar doesn't work with glass rear windows).
Corey is offline   Reply With Quote
Old 06-04-2013, 03:32 PM   #47
Senior Member
iTrader: (10)

Join Date: Aug 2007
Location: Fredericton, NB
Posts: 1,187
Total Cats: 4
Default

sell it...to me... but ya...amazing build...sub'd!
Preluding is offline   Reply With Quote
Old 07-18-2013, 11:16 PM   #48
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Update:

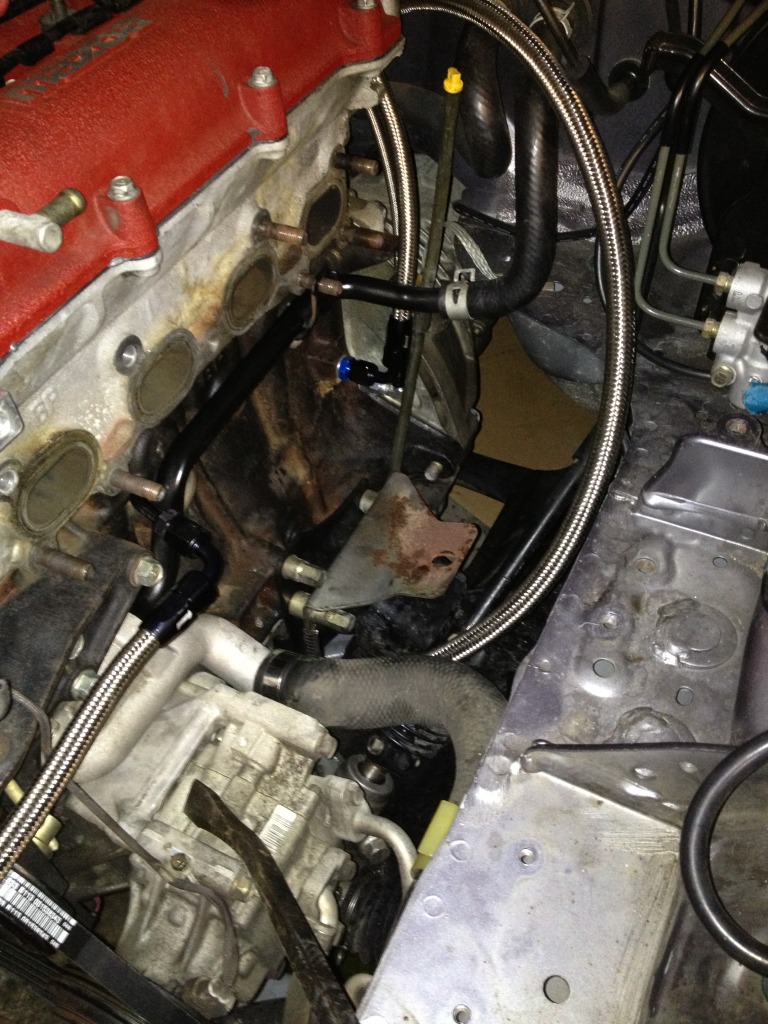

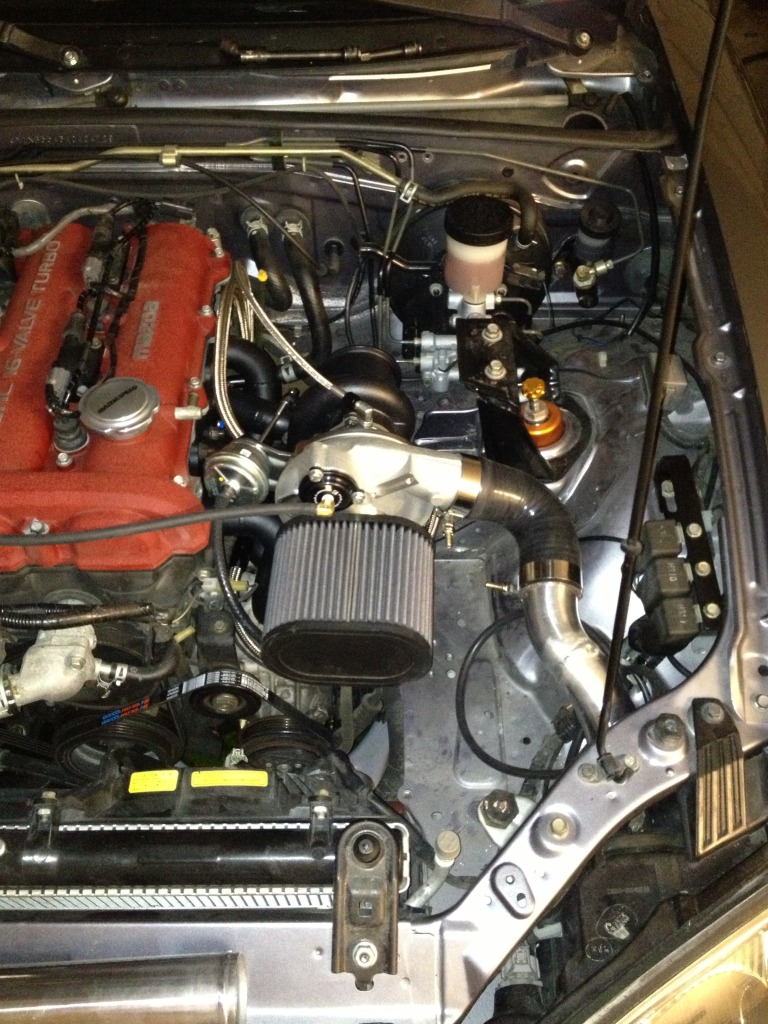

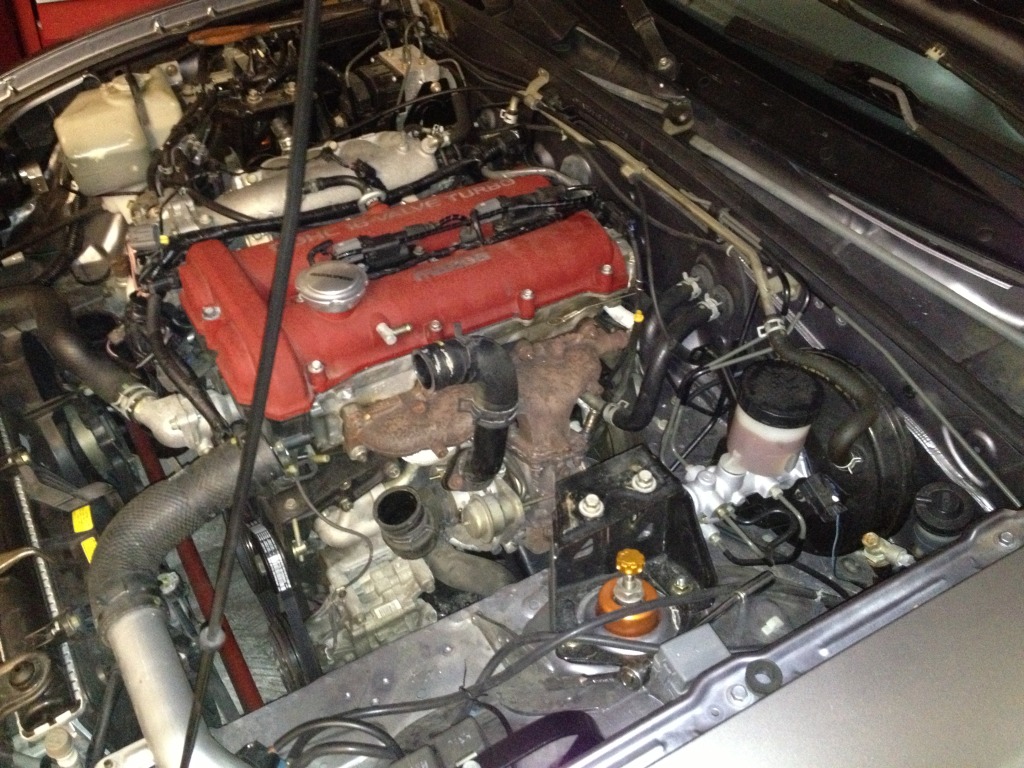

I removed the FM intake kit and started my install of the Borg Warner set up. I finished fabricating the hot side intercooler piping along with all the oil and coolant lines.




Not done yet though. I still need to install DP and fab up the intercooler pipe from the TB to the intercooler... Besides that I just need to swap the injectors and MS2 back in.

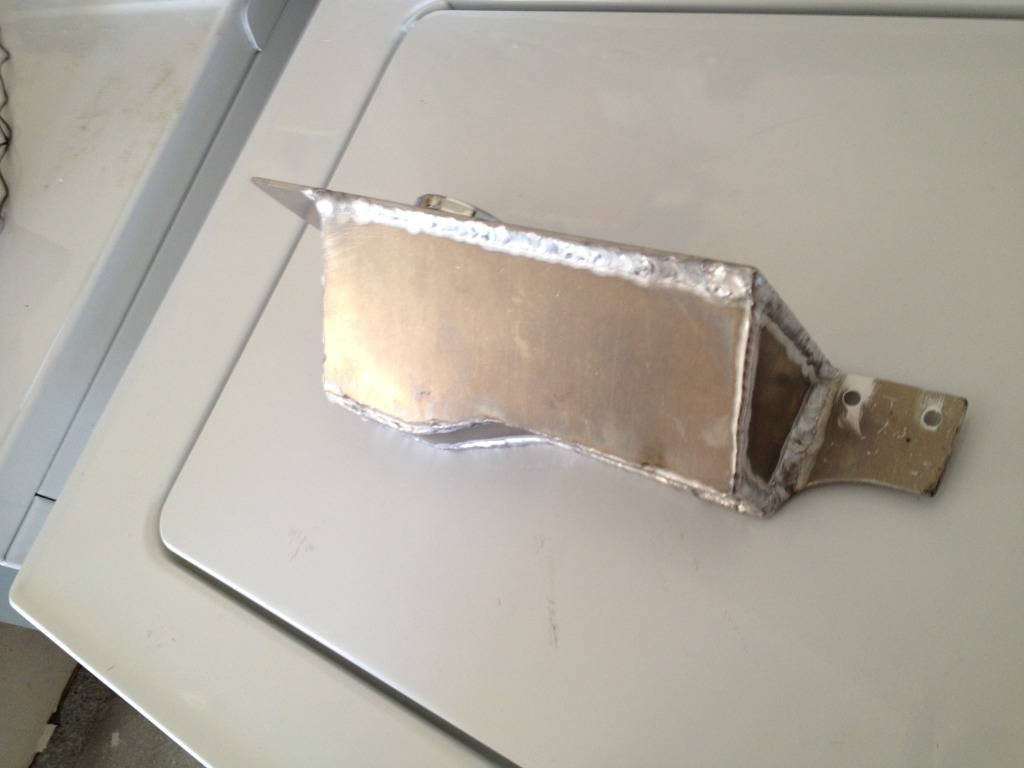

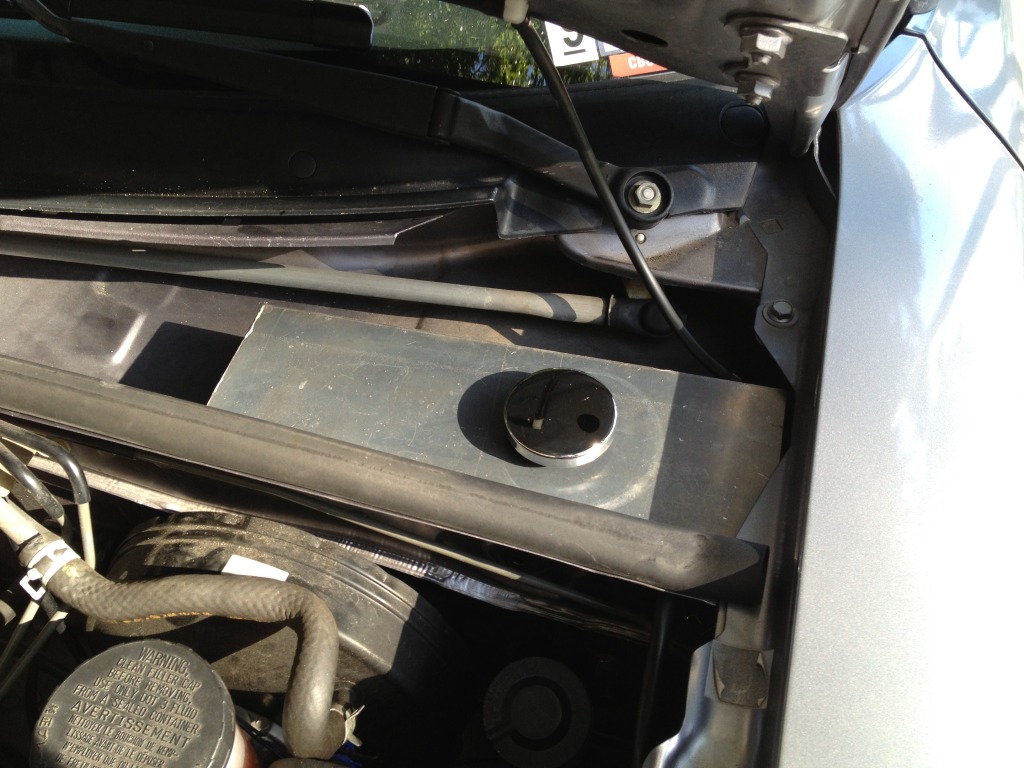

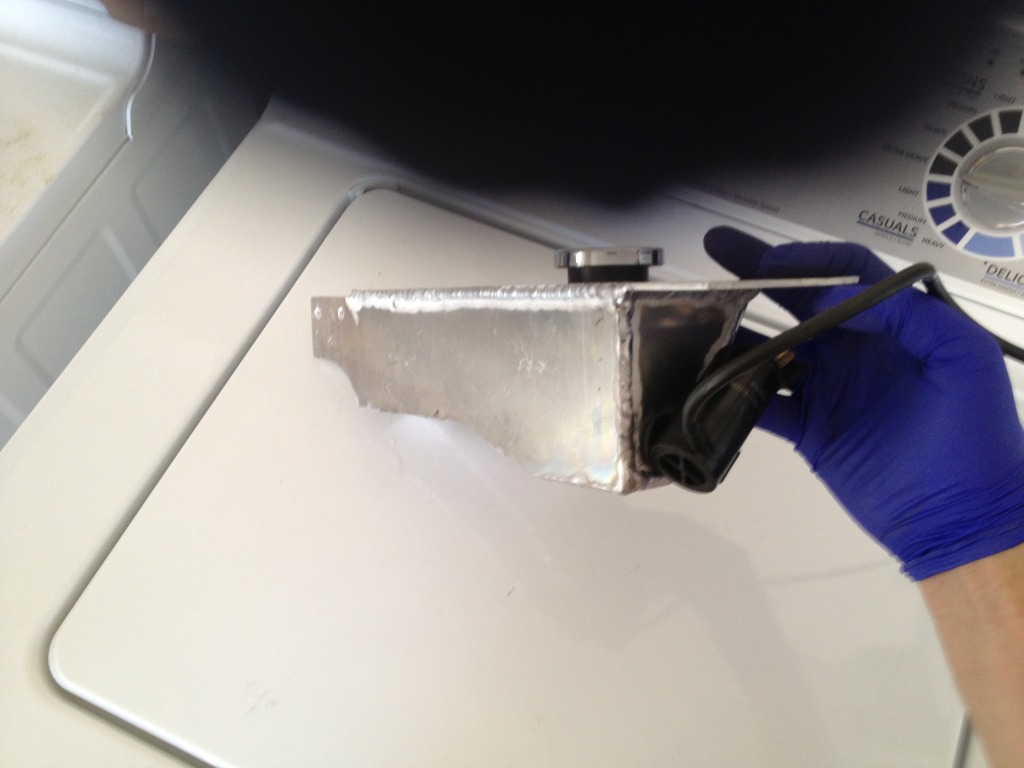

I did start a little side project..



It's made out of 1/8" 5052 aluminum
Works like a charm too!
Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-null.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null-2.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null-4.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null-7.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null-6.jpg

Mazdaspeed meets EFR, ARTech, MS2E-null-5.jpg
FrankB is offline   Reply With Quote
Old 07-19-2013, 12:04 AM   #49
Junior Member

ozbrock's Avatar

Join Date: Dec 2010
Location: Orlando, FL
Posts: 192
Total Cats: 19
Default

Washer bottle? That looks awesome!
ozbrock is offline   Reply With Quote
Old 07-19-2013, 07:14 AM   #50
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Quote:
Originally Posted by ozbrock View Post
Washer bottle? That looks awesome!
Yes it's a custom washer bottle I designed and put together. It took a little while to get the design down. This is actually the third and final design I came up with. It utilizes the factory pump as well. I have quite a bit oh left over material if there is any interest, I already made an extra one for RyanG, I'm not sure if it'll fit the same in NA's though.
FrankB is offline   Reply With Quote
Old 07-19-2013, 10:51 AM   #51
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

I received a PM asking me about how I ran my AN lines so I figured it would be good to post in here. I utilized all the factory MSM spots on the block (-6AN to 12mmx1.25 for the coolant and -4AN to 10xmm1.5 for the oil inlet) then I welded a -6AN male fitting on to the 1/4" coolant line that was also originally used for the turbo. For the oil pan I used the BEGi MSM turbo drain flange with a 3/8" NPT to -8AN fitting.
FrankB is offline   Reply With Quote
Old 07-27-2013, 08:56 PM   #52
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

Update:

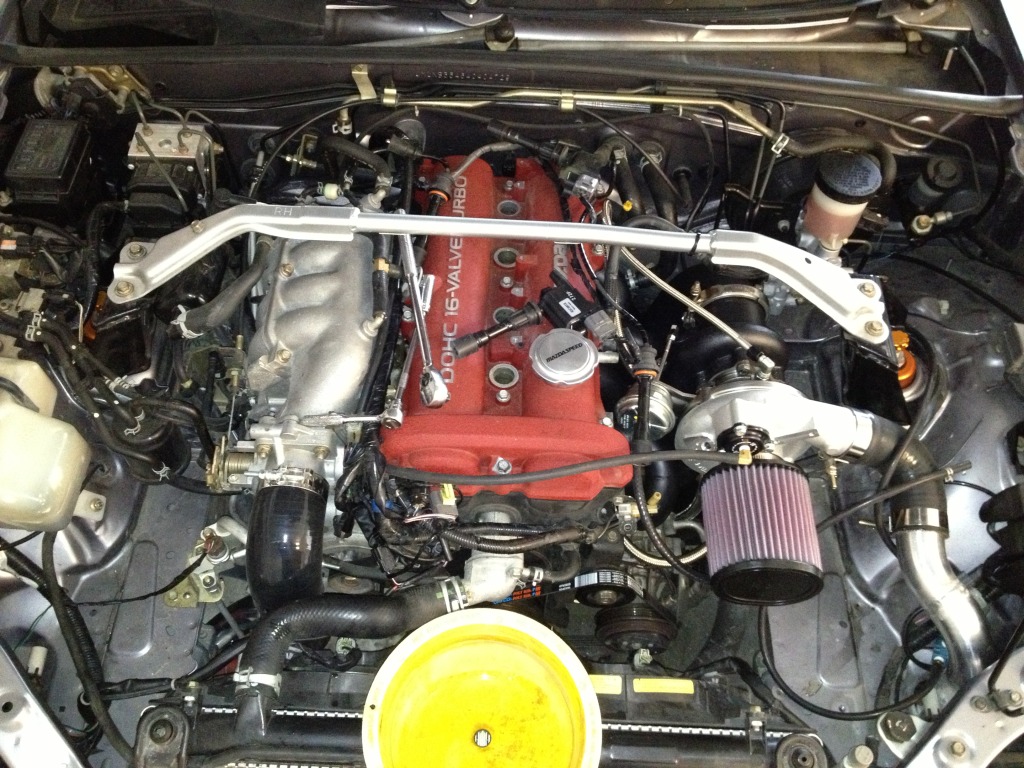

Well I finished my turbo install today and I started it up and I was about to recheck the ignition timing. The car idled for about a minute (not even a terrible idle at that) and then died. When I went to crank it back up I heard a POP and then the coolant bubbled then the motor stopped cranking. I pulled the plugs and cylinder 2 was full of oil. I've never heard of a headgasket blowing while cranking, I wonder of maybe I blew out the valve stem seals. All I know is its a lot of oil. Enough to stop the motor from turning over after cranking a few times. I was so close... :(

Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-null-9.jpg

Last edited by FrankB; 07-28-2013 at 07:10 PM. Reason: Found oil in cylinder, not coolant
FrankB is offline   Reply With Quote
Old 07-28-2013, 11:19 PM   #53
Senior Member

Join Date: Mar 2011
Location: South Chicago
Posts: 701
Total Cats: 26
Default

LOL... That is... Awesome. So much awesome the motor was like "**** this **** I'm out!"

Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-mjaxmi05mdlhmwnkogrknme0nwnl.png
Mazduh is offline   Reply With Quote
Old 07-29-2013, 02:16 PM   #54
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Wow, I guess you can blow a motor just cranking with an EFR. LOL, jk. That really sucks though, at least you were going to build the motor anyways.
Fireindc is offline   Reply With Quote
Old 07-29-2013, 02:21 PM   #55
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Fireindc View Post
Wow, I guess you can blow a motor just cranking with an EFR. LOL, jk. That really sucks though, at least you were going to build the motor anyways.
Well I mean it spools up when you crank it over.
Leafy is offline   Reply With Quote
Old 07-29-2013, 02:55 PM   #56
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,892
Total Cats: 1,792
Default

I don't even understand.
Braineack is offline   Reply With Quote
Old 07-29-2013, 04:48 PM   #57
Senior Member
iTrader: (2)

Join Date: Nov 2007
Location: Saint Paul, MN
Posts: 1,296
Total Cats: 22
Default

It think it might be bad seals too. At least it's only the valve cover you gotta remove to find out.
Der_Idiot is offline   Reply With Quote
Old 07-29-2013, 06:15 PM   #58
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

To avoid double posting the recent events here is a link to the thread I started on my situation.

https://www.miataturbo.net/engine-pe...ranking-74142/

long story short. I'm looking at getting the motor built.
FrankB is offline   Reply With Quote
Old 08-10-2013, 11:18 PM   #59
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

UPDATE:

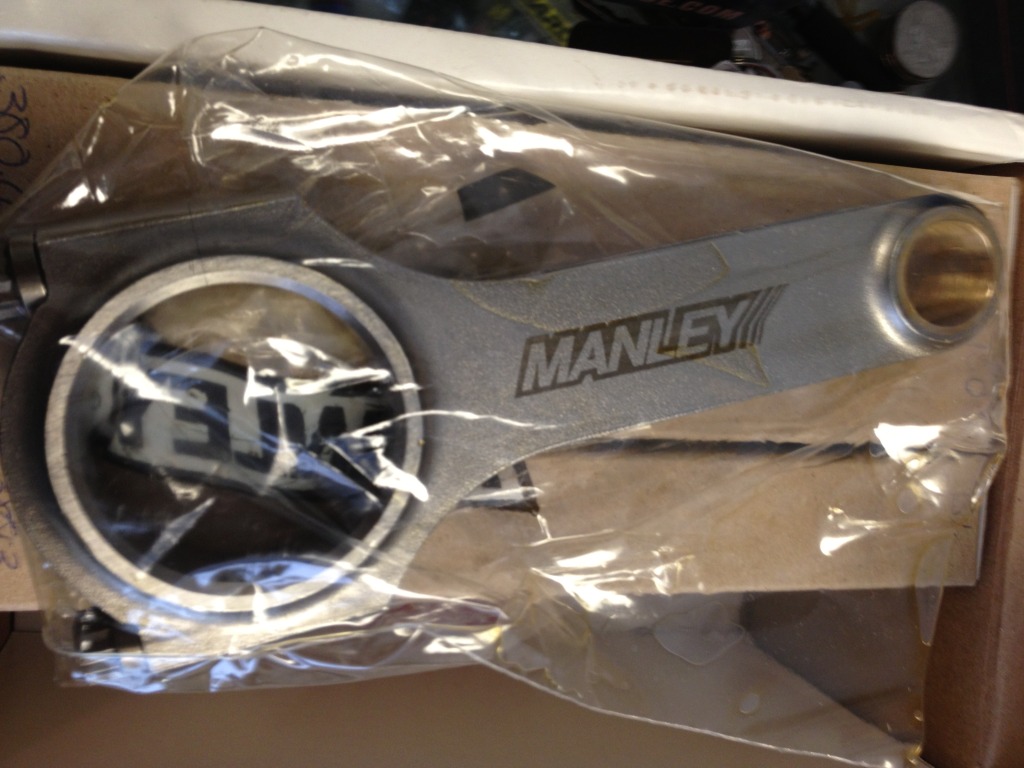

Well the motor is out and has been taken apart and I have a bent connecting rod.


Unfortunately that was only the effect of the oil and not the cause, which at this time is still unknown.

The head is being sent out to the machine shop on Monday to be checked for and cracks or other issues. The intake manifold was filled with oil when it was taken off the head but the throttle body and intercooler piping were dry so the oil had to have been sucked into the intake after the throttle body at some point I'm thinking. However the motor is in pieces and I'm still stumped!

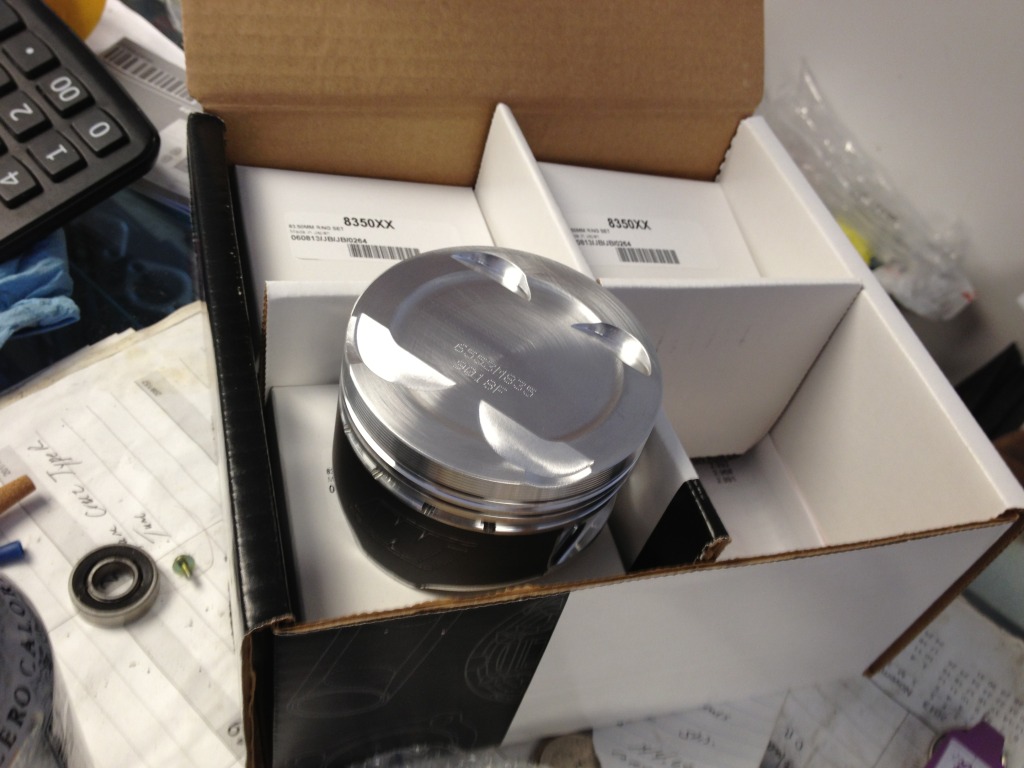

The motor will be getting a few upgrades once this all get figured out though.




I noticed that the turbo manifold was a bit too close for my liking to my lower radiator hose connection on the block. I took the liberty of fixing said issue by notching the coolant outlet and changing the angle the hose connects to for a little added piece of mind.
Name:  null-11.jpg
Views: 26
Size:  62.8 KB
Name:  null-12.jpg
Views: 26
Size:  66.1 KB
Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-null-22.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null-20.jpg
FrankB is offline   Reply With Quote
Old 09-26-2013, 10:52 PM   #60
Junior Member
Thread Starter
iTrader: (4)

Join Date: May 2012
Location: Mayport, FL
Posts: 478
Total Cats: 33
Default

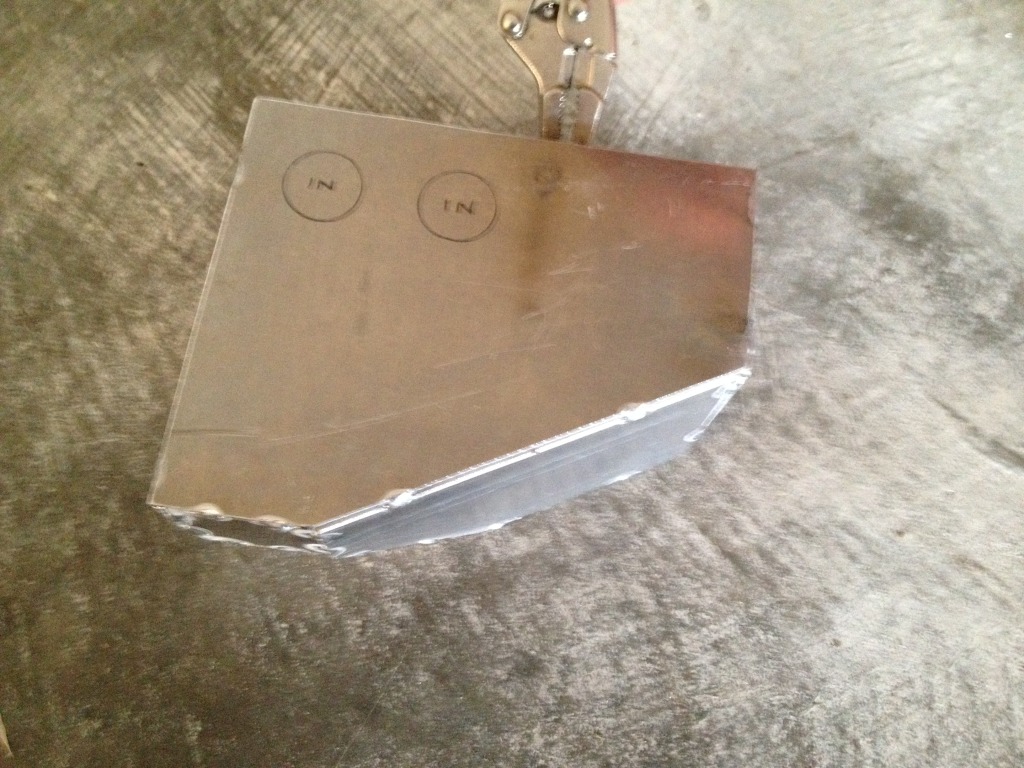

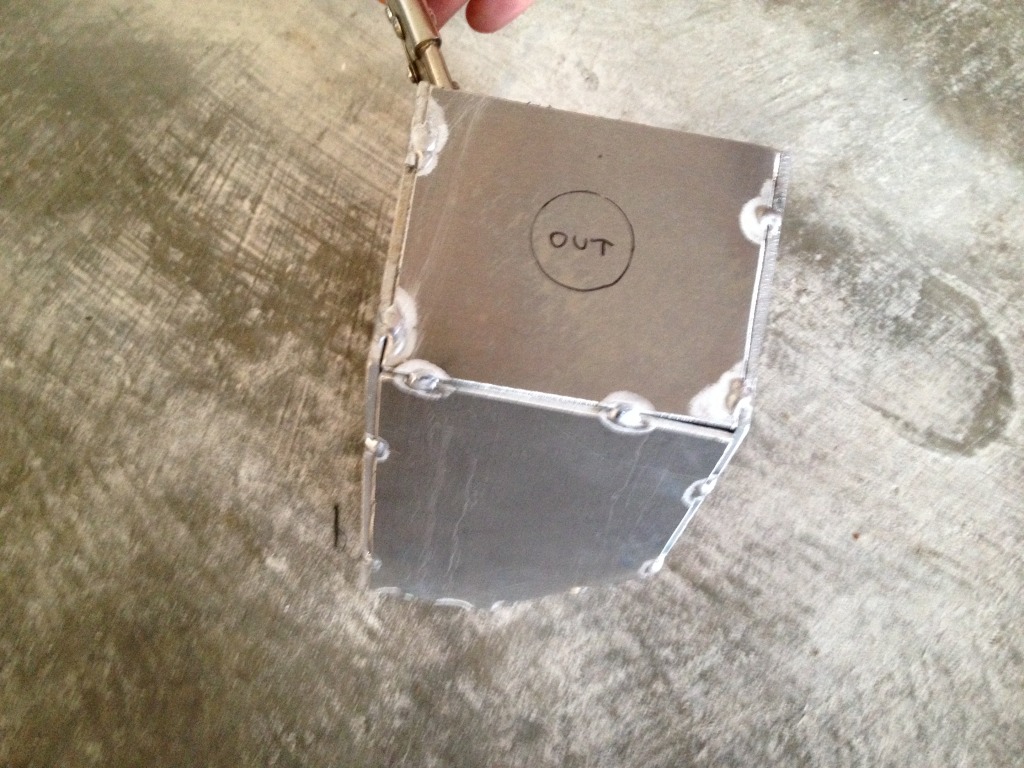

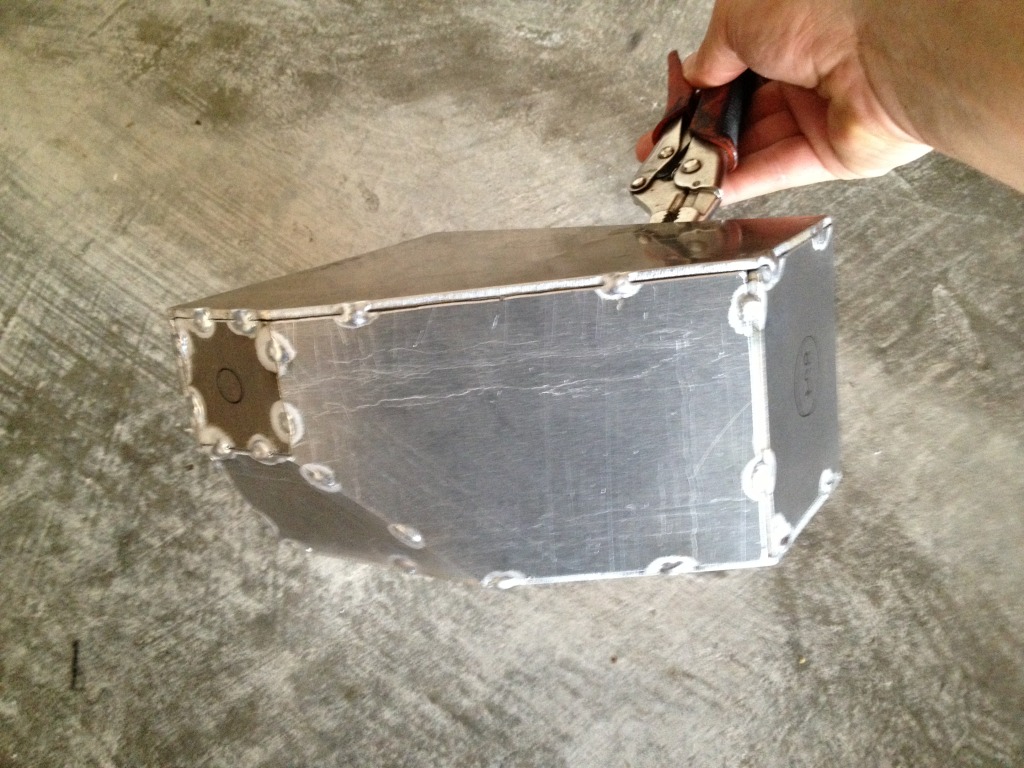

So my motor still isn't done yet but I'm working on designing a new oil catch can that will go on the drivers side between the clutch master cylinder and the strut tower. It will have two -10AN inlets from the valve cover, one -10AN outlet to the intake, a manual drain and a sight to check the oil level. Still waiting on the weld on bungs to come in so not done yet but I have everything tacked together and will triple check the fitment tomorrow before welding it up. Here's some pics for now.

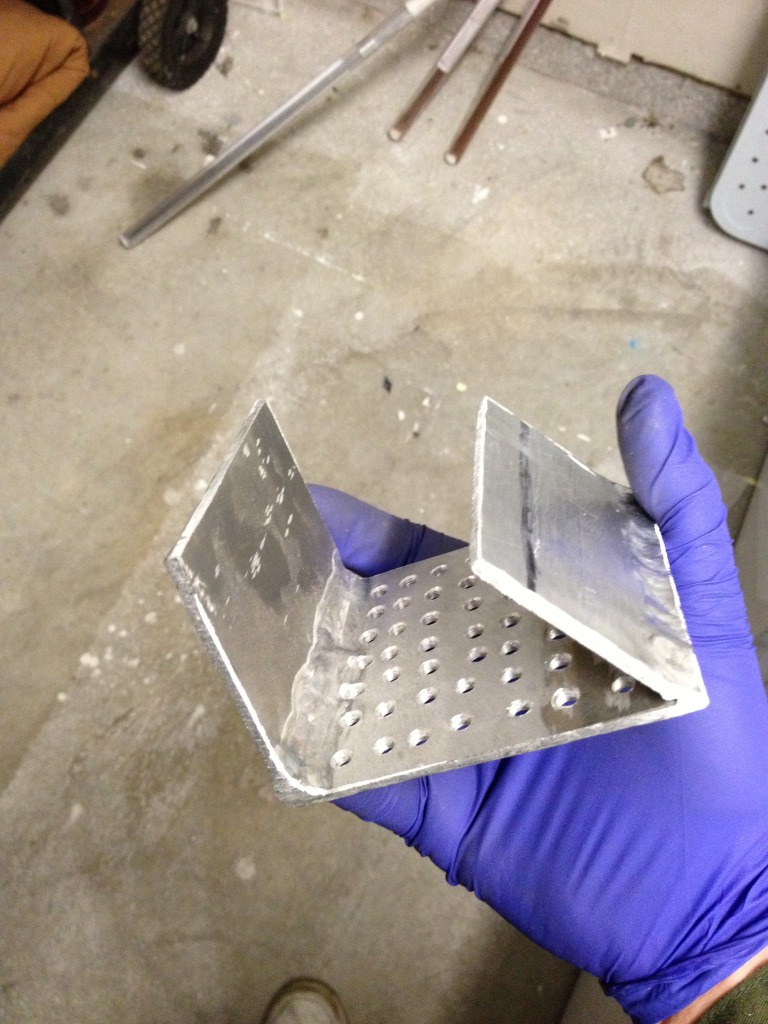

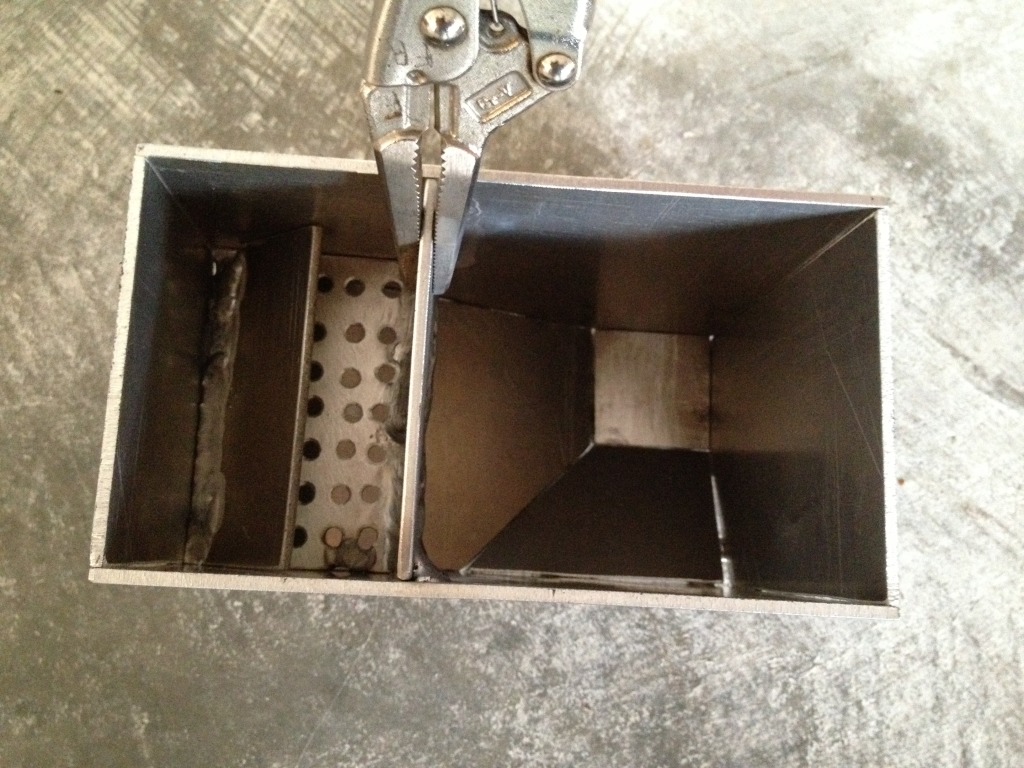

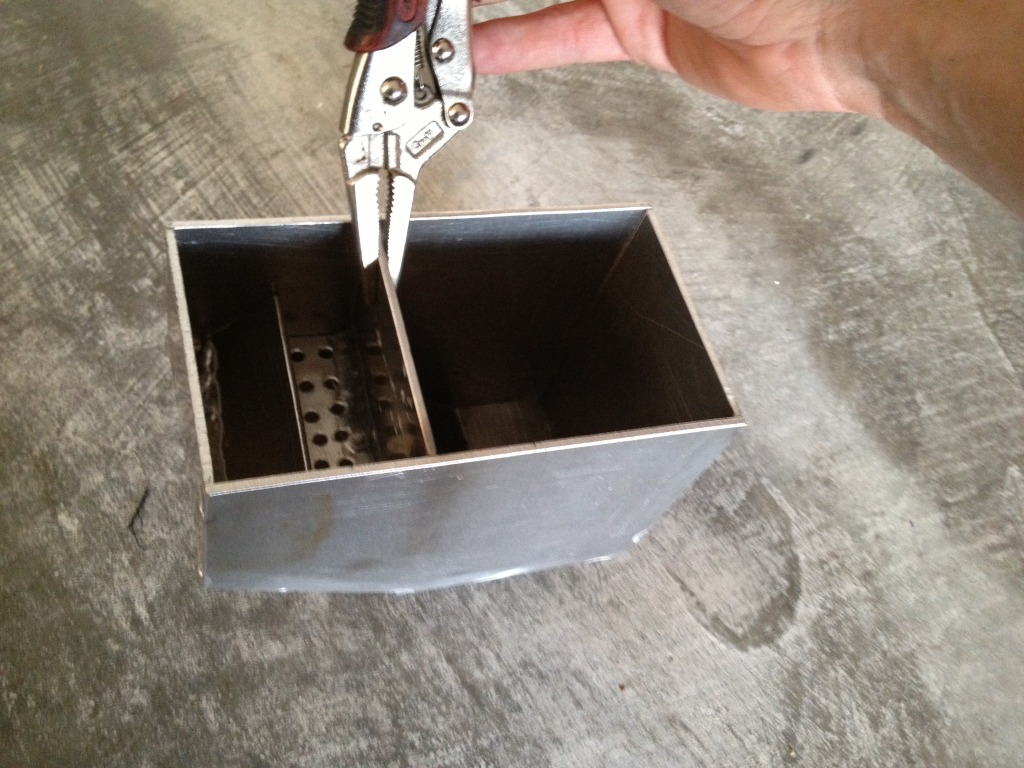

This first picture shows the inside of the catch can. I actually ended up shortening this part by by rows of holes but I forgot to take a picture after changing it. I will also be putting course steel wool in the big side of the catch can.






Attached Thumbnails
Mazdaspeed meets EFR, ARTech, MS2E-null_zpse5ef6275.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpsceee3230.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zps1bfb29eb.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpsd832d402.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpse1a231db.jpg

Mazdaspeed meets EFR, ARTech, MS2E-null_zpsf9a9d286.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpse5ef6275.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpsceee3230.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zps1bfb29eb.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpsd832d402.jpg

Mazdaspeed meets EFR, ARTech, MS2E-null_zpse1a231db.jpg   Mazdaspeed meets EFR, ARTech, MS2E-null_zpsf9a9d286.jpg

Last edited by FrankB; 09-26-2013 at 11:22 PM.
FrankB is offline   Reply With Quote
