Old Jun 20, 2015 | 10:31 AM
  #1361
aidandj's Avatar
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

As long as I don't get a kitten. Yet.
Old Jun 20, 2015 | 02:38 PM
  #1362
Monk's Avatar
Elite Member
iTrader: (3)

Joined: Apr 2014
Posts: 2,885
Total Cats: 617
From: Huntington, Indiana
Default

Don't worry, I don't ship live animals.
I'll get some in the mail to you.
I have something for G as well come to think of it.
Old Jun 20, 2015 | 02:45 PM
  #1363
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Well that's dubious.
Old Jun 20, 2015 | 03:43 PM
  #1364
rleete's Avatar
Elite Member
iTrader: (21)

Joined: Jun 2007
Posts: 6,794
Total Cats: 1,342
From: Rochester, NY
Default

You ship to me, yet? I'm waiting to polish your ****...
Old Jun 20, 2015 | 03:49 PM
  #1365
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

So im sitting here in the driveway trying to get the car to start on the ID1000 settings and I come to realize it's running stupid lean. WTF? I'd expect it to be fat! I had to add about 30-40 points everywhere on my Fuel VE Table to even get it to idle. Now that it's warmed up I'm letting VEAL cut it back down again, but the changes its making are pretty dramatic, sometimes adding even more fuel to some areas of the map. Again, this is not exactly expected. I'm not sure if I should ride this out or what. Req_fuel is set to 2.6 based on 1000cc scaled for 58psi base pressure.

I went to take it for a drive to see what VEAL would do in load cells rather than just freerevving in the driveway and I realized I haz no shifter. #justgordonproblems.
Old Jun 20, 2015 | 03:51 PM
  #1366
aidandj's Avatar
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Start up enrichment? Did you change req_fuel? I've never had good luck just using req_fuel. When I switched from RX8 to GT500 I had to add a **** ton of fuel.</p>
Old Jun 20, 2015 | 04:28 PM
  #1367
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Originally Posted by rleete
You ship to me, yet? I'm waiting to polish your ****...
I'll be honest, I'm surprised no one has made that joke yet.

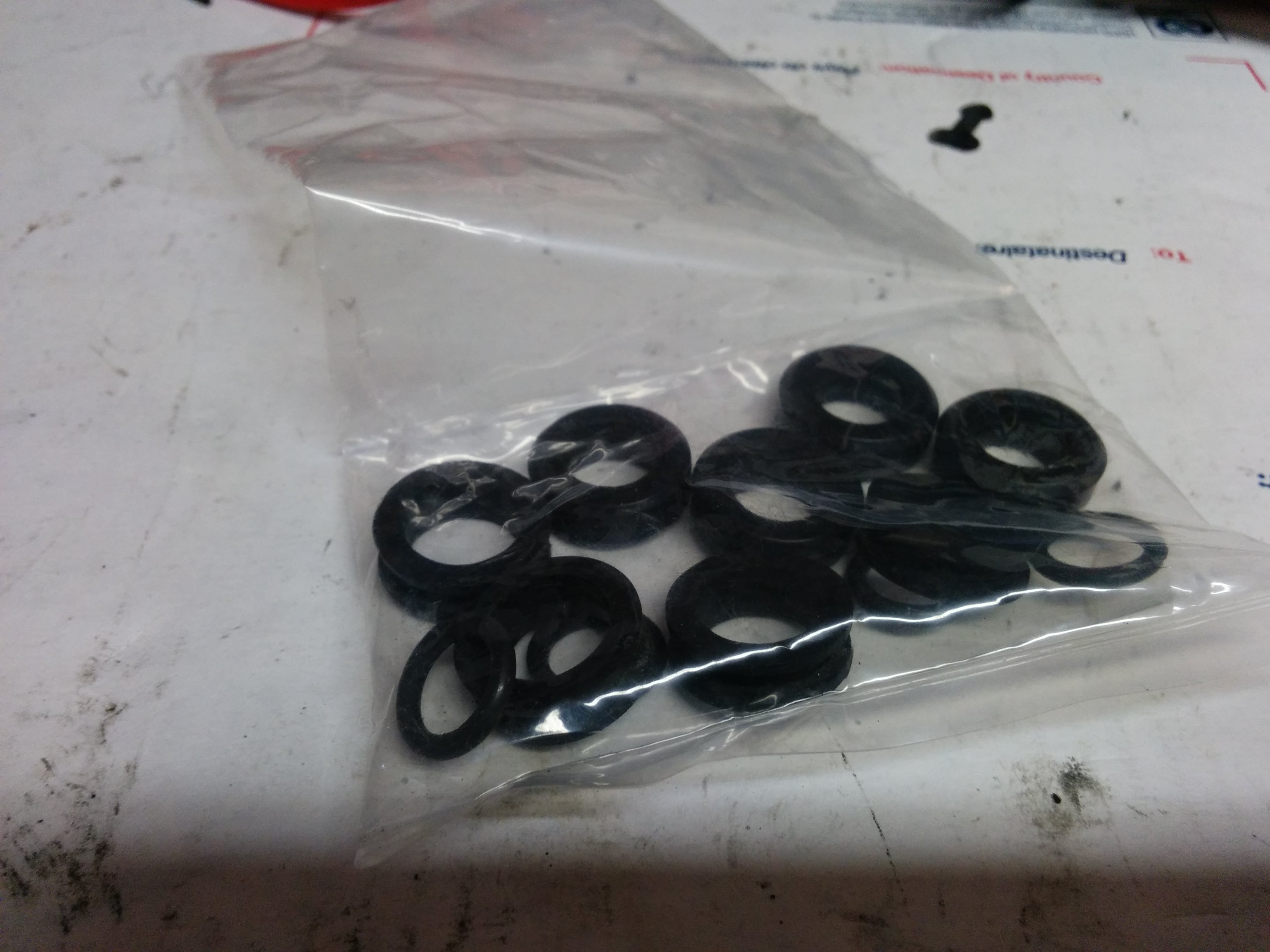

I'm not sure if these are what you are looking for, but it appears that I have a full set:

Not sure if they are new or used, does that matter? You are welcome to them either way!

Originally Posted by aidandj
<p>Start up enrichment? Did you change req_fuel? I've never had good luck just using req_fuel. When I switched from RX8 to GT500 I had to add a **** ton of fuel.</p>
Just Req_fuel, I've not touched ASE yet. The fact that you had to add fuel makes me feel much better.
Attached Thumbnails Nothing to see here, just project Sisyphus, move along-n7jwggg.jpg
Old Jun 20, 2015 | 04:32 PM
  #1368
aidandj's Avatar
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Yeah, I had to do the same thing going from stock to rx-8. It gets you close but definitely not perfect. Also, I wouldn't worry at all about adding fuel. Nothing wrong with running rich. You had the wideband when running stock ecu right?</p>
Old Jun 20, 2015 | 04:37 PM
  #1369
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Nope, stock narrowband with stock ECU.

My only concern is that I'm going to end up running out of range on the top end. I'm in the 70 in some cells now unloaded and IIRC it only goes to 255? That means I'm using 27% of the scale at no load. This does not seem right.
Old Jun 20, 2015 | 04:38 PM
  #1370
aidandj's Avatar
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>You can always re-adjust req_fuel and scale the map down.</p>
Old Jun 20, 2015 | 04:39 PM
  #1371
aidandj's Avatar
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Also, its not linear. Look at my map (I know its weak-sauce-psi)</p><p><img src="http://cimg6.ibsrv.net/gimg/www.miataturbo.net-vbulletin/900x371/80-o1snxlj_ef6ddb602b26e131819967475143340e434c23f4.p ng" title="" /><br /><br />&nbsp;</p>
Old Jun 20, 2015 | 04:40 PM
  #1372
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Truth.

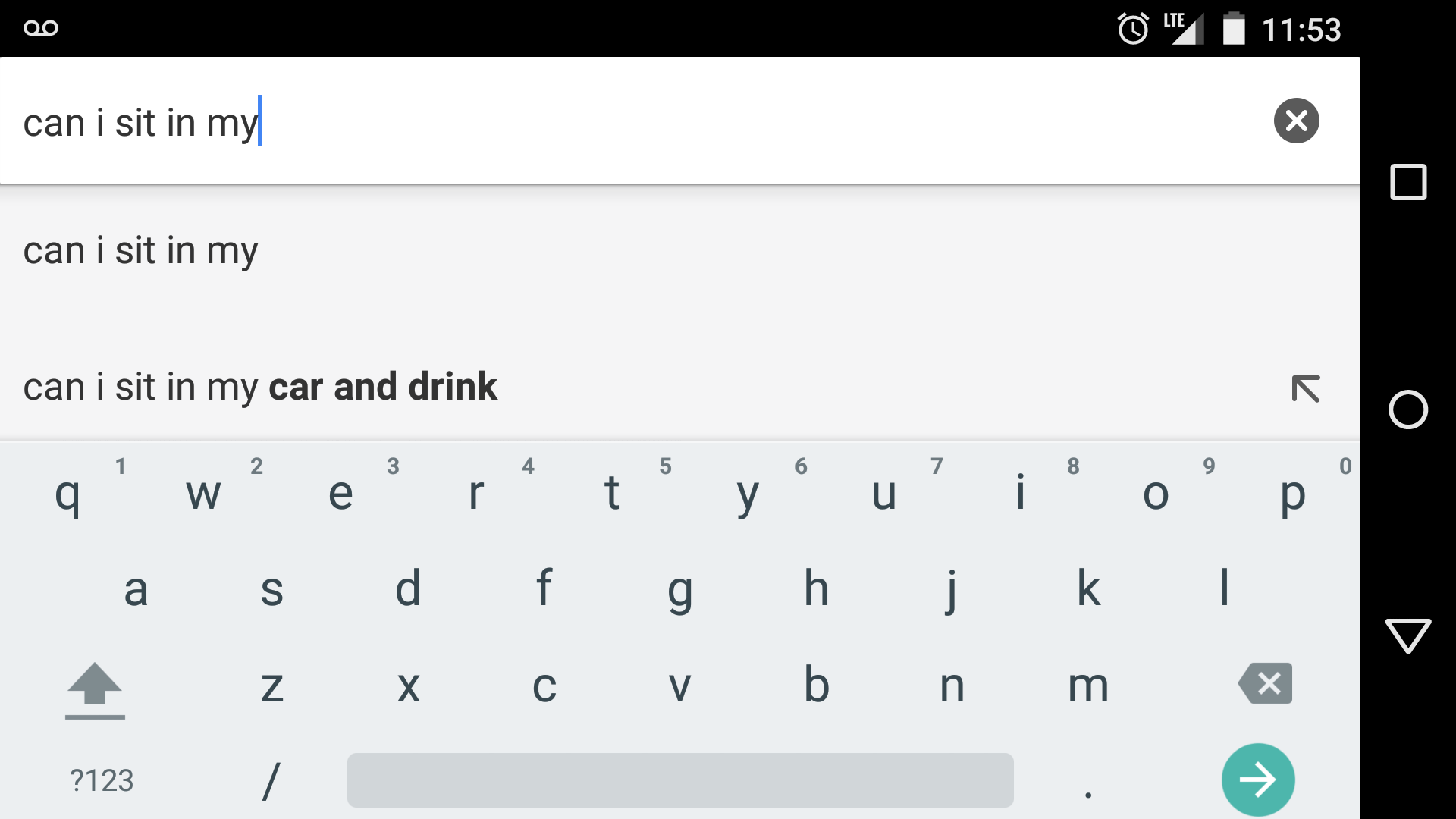

Also this just happened:



Well, it happend over an hour ago, but you get the idea. It seems even google is aware of my drinking habits.
Attached Thumbnails Nothing to see here, just project Sisyphus, move along-dxkhnil.png
Old Jun 20, 2015 | 04:43 PM
  #1373
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Originally Posted by aidandj
Also, its not linear. Look at my map (I know its weak-sauce-psi)
Weak-sauce or not, at least it goes over 100kpa

What's with all the 20s in the bottom row?
Old Jun 20, 2015 | 04:45 PM
  #1374
aidandj's Avatar
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Thats vacuum. If I let it autotune there it tries to add fuel. Mostly because I've been too lazy to set up over-run fuel and this is a bandaid that works. I need to move the 12kpa row because its useless but this is my dyno tuned fuel table and I'm not changing it lol. I don't even autotune anymore.</p><p>Also my TPS is all sorts of fucky so I just changed the TPS activation for over-run, well see if it fixed anything.&nbsp;</p>
Old Jun 20, 2015 | 04:50 PM
  #1375
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Well yeah vacuum, lol. I didn't realize you didn't have overrun on. Bandaid away sir, keep doing your thing mang

I noticed Soviet has a bunch of 10's in that row in his tune ...on his AFR target table. Methinks he likes fireballs
Old Jun 20, 2015 | 07:19 PM
  #1376
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Hitting a cell that's 25-30 points off at 6800rpm provides some legit pucker factor, even when moving sloooooowly between cells. I was actually closer to 40+ points off in some cells. My VE table looks a lot like aidandj's above. On hot restarts I'm getting a little kickback right before it catches so I need to figure out how to tune that out. I had this problem before and never figured it out so I'll have to figure out where to do some reading.

The car drives A LOT better then it did this morning but its certainly not perfect at all. I'm going to smooth out the VE table manually and then probably VEAL it some more tonight, but I'm happy with the progress I've made today.
Old Jun 20, 2015 | 07:42 PM
  #1377
aidandj's Avatar
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

What I would give for a steady state dyno. I need some 55 gallon drums.
Old Jun 20, 2015 | 07:43 PM
  #1378
patsmx5's Avatar
Elite Member
iTrader: (16)

Joined: Aug 2007
Posts: 9,406
Total Cats: 559
From: Houston, TX
Default

Originally Posted by EO2K
Hitting a cell that's 25-30 points off at 6800rpm provides some legit pucker factor, even when moving sloooooowly between cells. I was actually closer to 40+ points off in some cells. My VE table looks a lot like aidandj's above. On hot restarts I'm getting a little kickback right before it catches so I need to figure out how to tune that out. I had this problem before and never figured it out so I'll have to figure out where to do some reading.

The car drives A LOT better then it did this morning but its certainly not perfect at all. I'm going to smooth out the VE table manually and then probably VEAL it some more tonight, but I'm happy with the progress I've made today.
As in it feels like it's trying to fire backwards? Or it just tries to crank but sputters and doesn't actually start?
Old Jun 20, 2015 | 07:57 PM
  #1379
EO2K's Avatar
Thread Starter
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

Kicking back against the starter. Almost like I've got too much cranking advance or something.
Old Jun 20, 2015 | 08:09 PM
  #1380
DNMakinson's Avatar
Elite Member
iTrader: (3)

Joined: Jan 2013
Posts: 5,030
Total Cats: 861
From: Seneca, SC
Default

Or lean.

Crank at 10 degrees seems to work well. Mine would kick back at 15, all else unchanged.

It also kicked back when lean, though I don't remember now if that was cranking pulse or low ASE, but I think it was cranking pulse.
