Old 07-17-2015, 12:35 PM   #1561
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Haha, thanks man. Speaking of OCD, the surface rust on that timing belt tensioner is killing me. Apparently it only shows up on the camera

It's taken a long time to get here so I figure I better cross the Ts and dot the Is. I've got the tools, time and documentation so I damn well better do this right.
EO2K is offline   Reply With Quote
Old 07-17-2015, 12:47 PM   #1562
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,887
Total Cats: 566
Default

Quote:
Originally Posted by EO2K View Post
I've got the tools, time and documentation so I damn well better do this right.
And yet, you happily said "F*** It" and pressed on with assembly when 2 exhaust shims got dislodged and you couldn't find your feelers.

BTW, did you get the air guide templates yet?
hornetball is offline   Reply With Quote
Old 07-17-2015, 01:04 PM   #1563
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Quote:
Originally Posted by hornetball View Post
And yet, you happily said "F*** It" and pressed on with assembly when 2 exhaust shims got dislodged and you couldn't find your feelers.
Hey now, I did say I was 80% sure. I felt confident enough to press on and make some actual progress. Even if I have to go back and pull the cam again its not the end of the world. I'm making good progress and that's what counts. This is not something I'll forget to do, I need to check and document the clearances on all the lifters anyway so I can keep an eye on the valve seats.

But yes, you make a valid point.

Quote:
Originally Posted by hornetball View Post
BTW, did you get the air guide templates yet?
Yes I did! I've been intending to PM you and let you know they arrived. Thank you once again
EO2K is offline   Reply With Quote
Old 07-17-2015, 04:30 PM   #1564
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Looks good Harold, great minds think alike.

Quote:
Originally Posted by HHammerly View Post
I had to machine the AC compressor bracket to clear the oil return on this pan, looks like you may have to do the same on yours.
Bah, this engine will never see an AC compressor
EO2K is offline   Reply With Quote
Old 07-17-2015, 08:15 PM   #1565
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,480
Total Cats: 289
Default

Quote:
Originally Posted by EO2K View Post
Hey now, I did say I was 80% sure. I felt confident enough to press on and make some actual progress. Even if I have to go back and pull the cam again its not the end of the world.
Easy enough to check and fix later, yes. Just don't forget.

I should probably recheck my valve clearances now that the motor's got a few thousand miles on it.

--Ian
codrus is offline   Reply With Quote
Old 07-19-2015, 06:57 PM   #1566
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

All aboard the progress train! Choo choo!

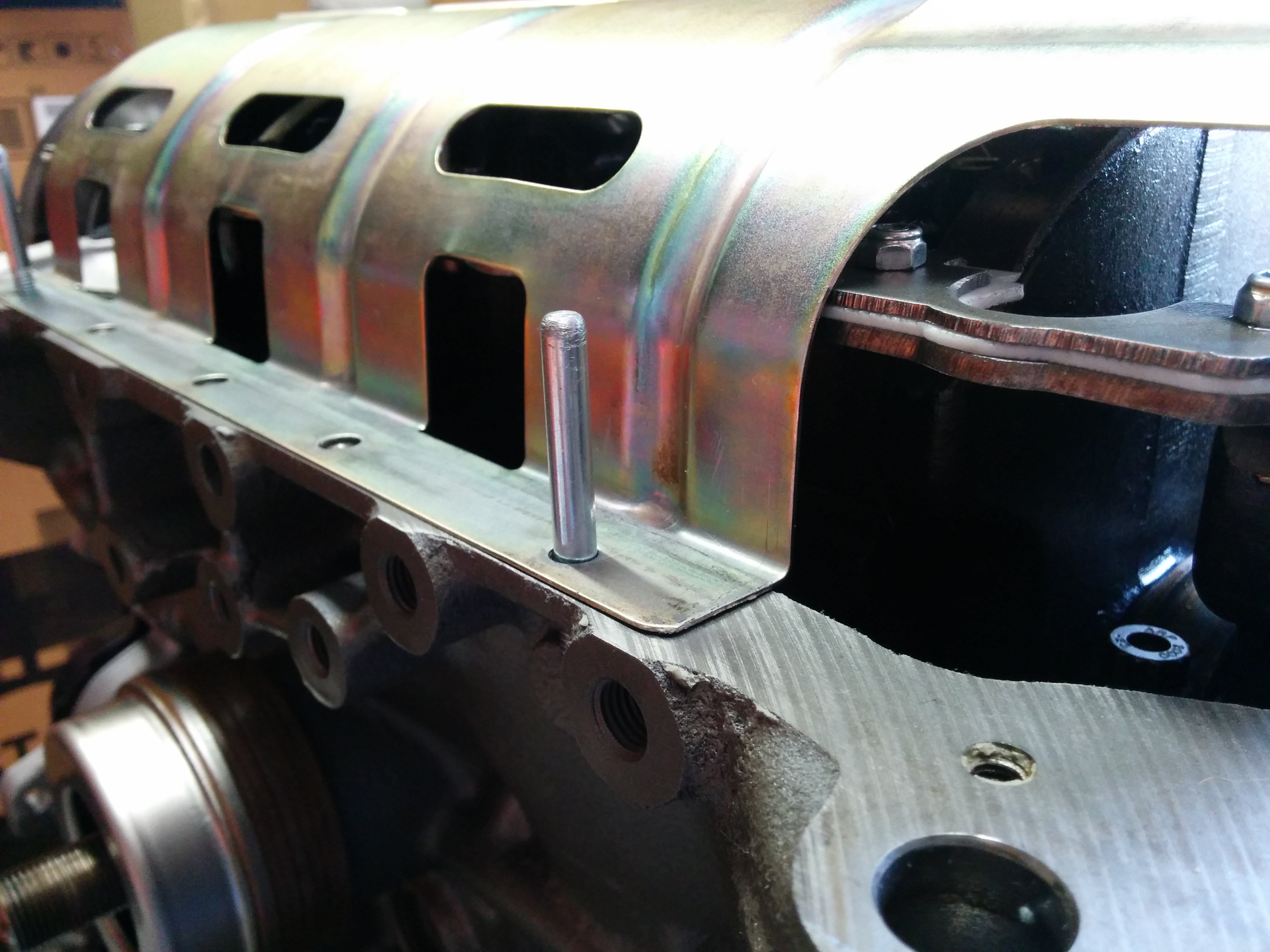

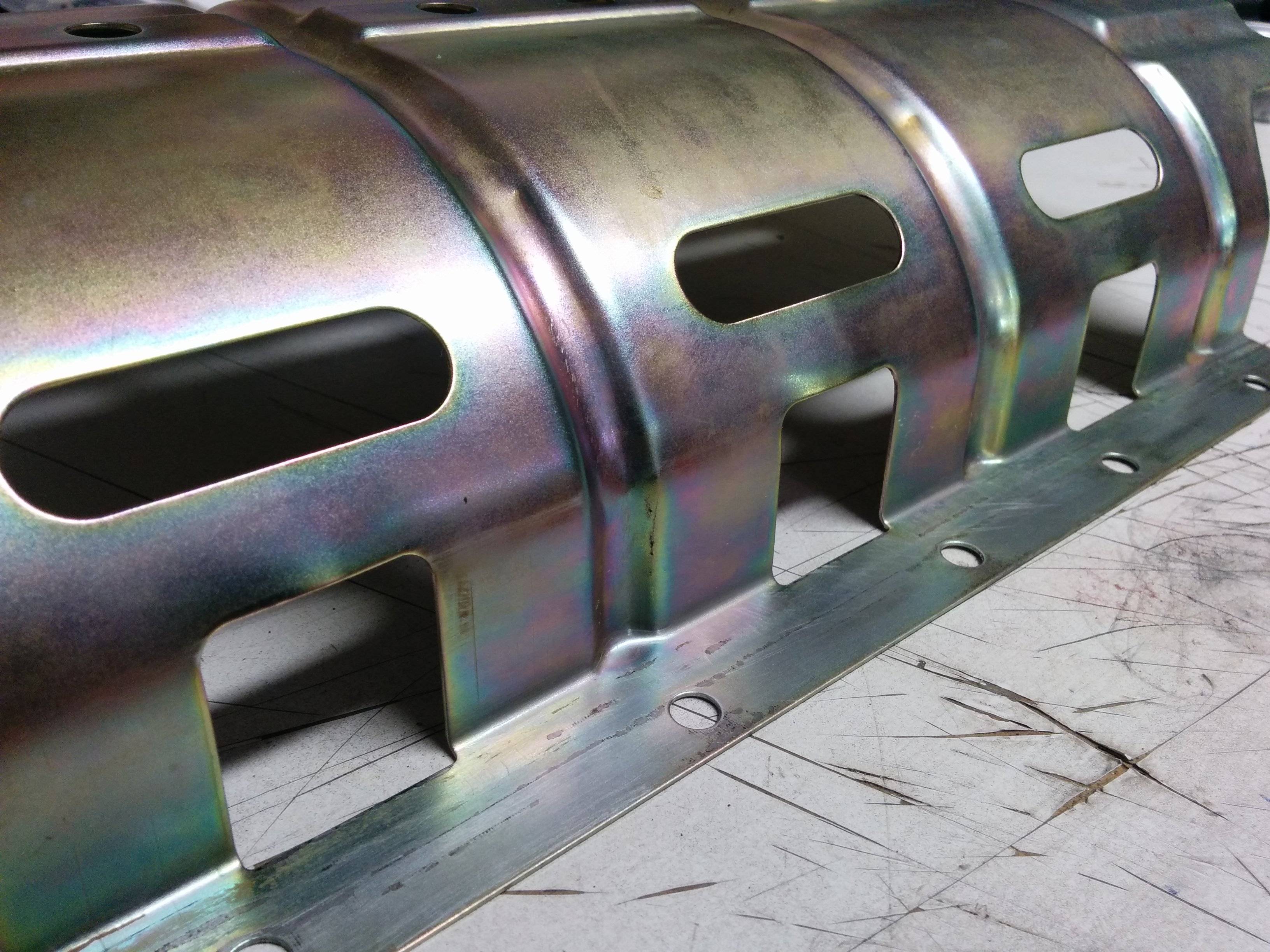

Added some clearance dents to keep the windage tray from touching the backside of the Ishihara-Johnson direct contact crank scraper


Here you can see the issue pretty clearly while test fitting. I actually had to get slightly more aggressive with the hammer before I got good clearance, but its no big deal. What are those funny studs you might ask?


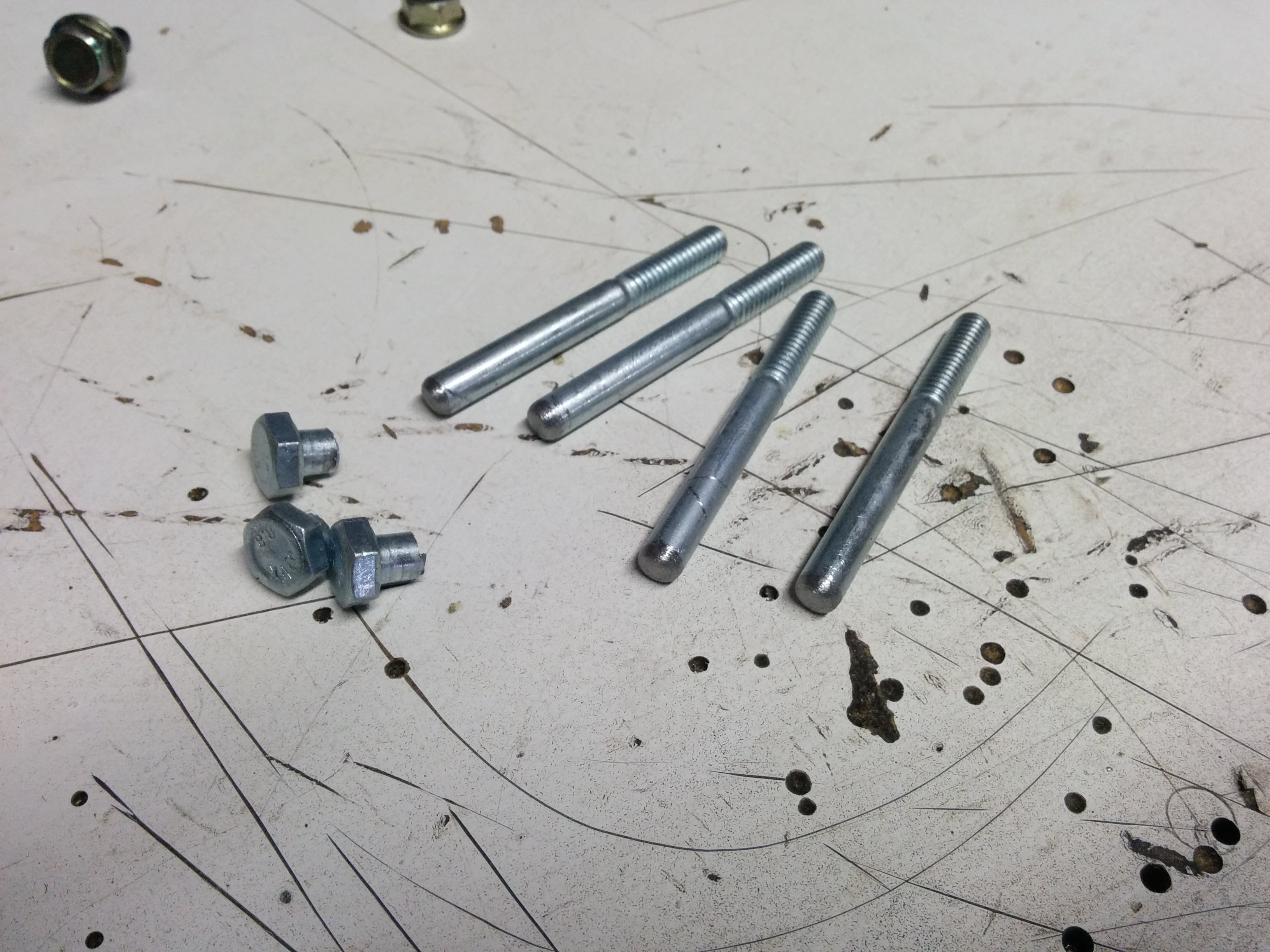

I hate trying to line up that stupid windage tray while trying to install the oil pan so I made these out of a couple bolts. Just a couple minutes with the hacksaw and a file and they became guide studs. Problem solved.

I stopped taking pictures at this point because I had black RTV all over my hands, but needless to say, it worked perfectly and the oil pan is on. w00t! I got a solid and consistent bead of ultra black that squeezed out from around the pan rail when I torqued the bolts so I'm confident it sealed.

If it leaks oil I'm parting out.

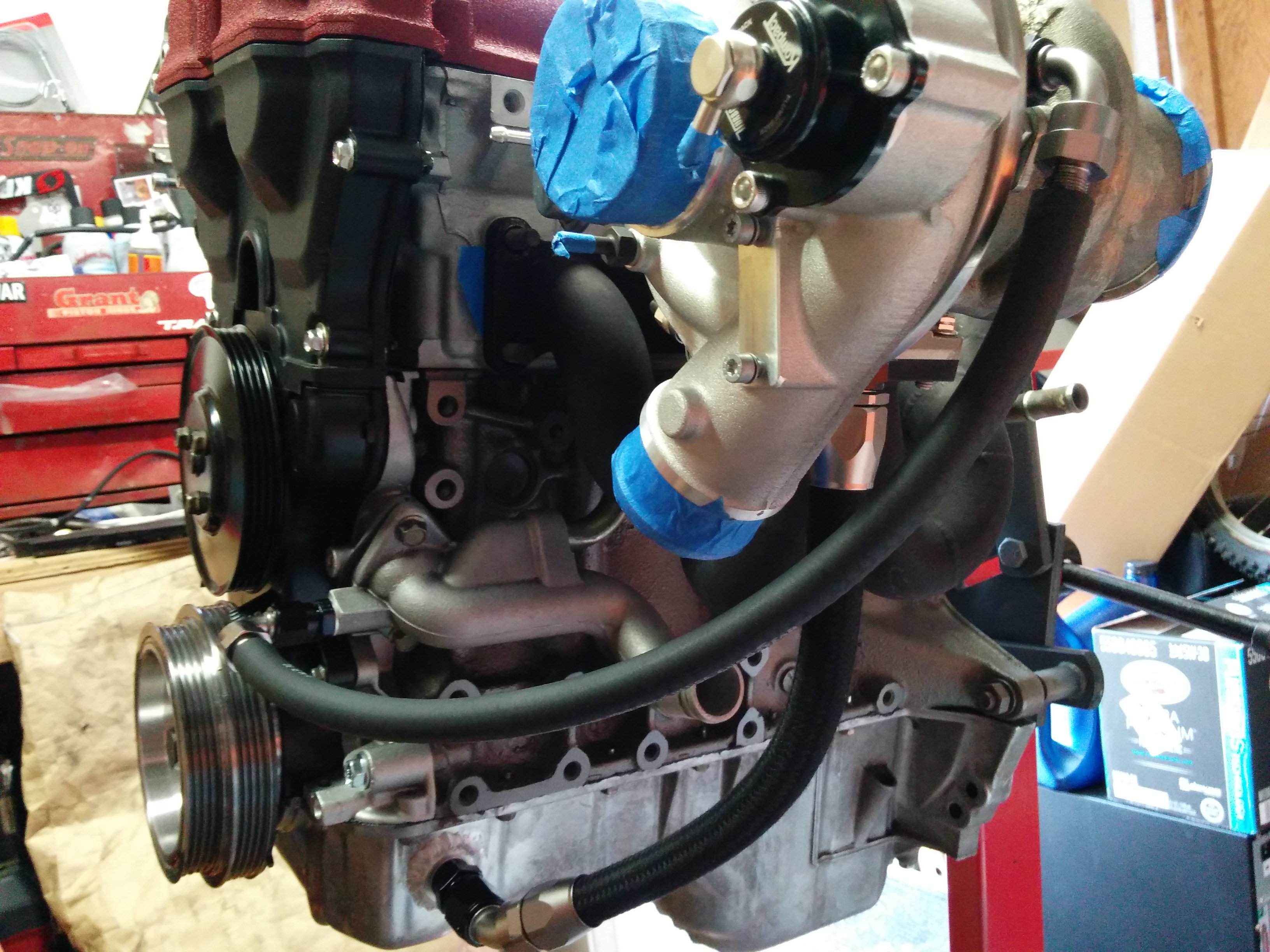

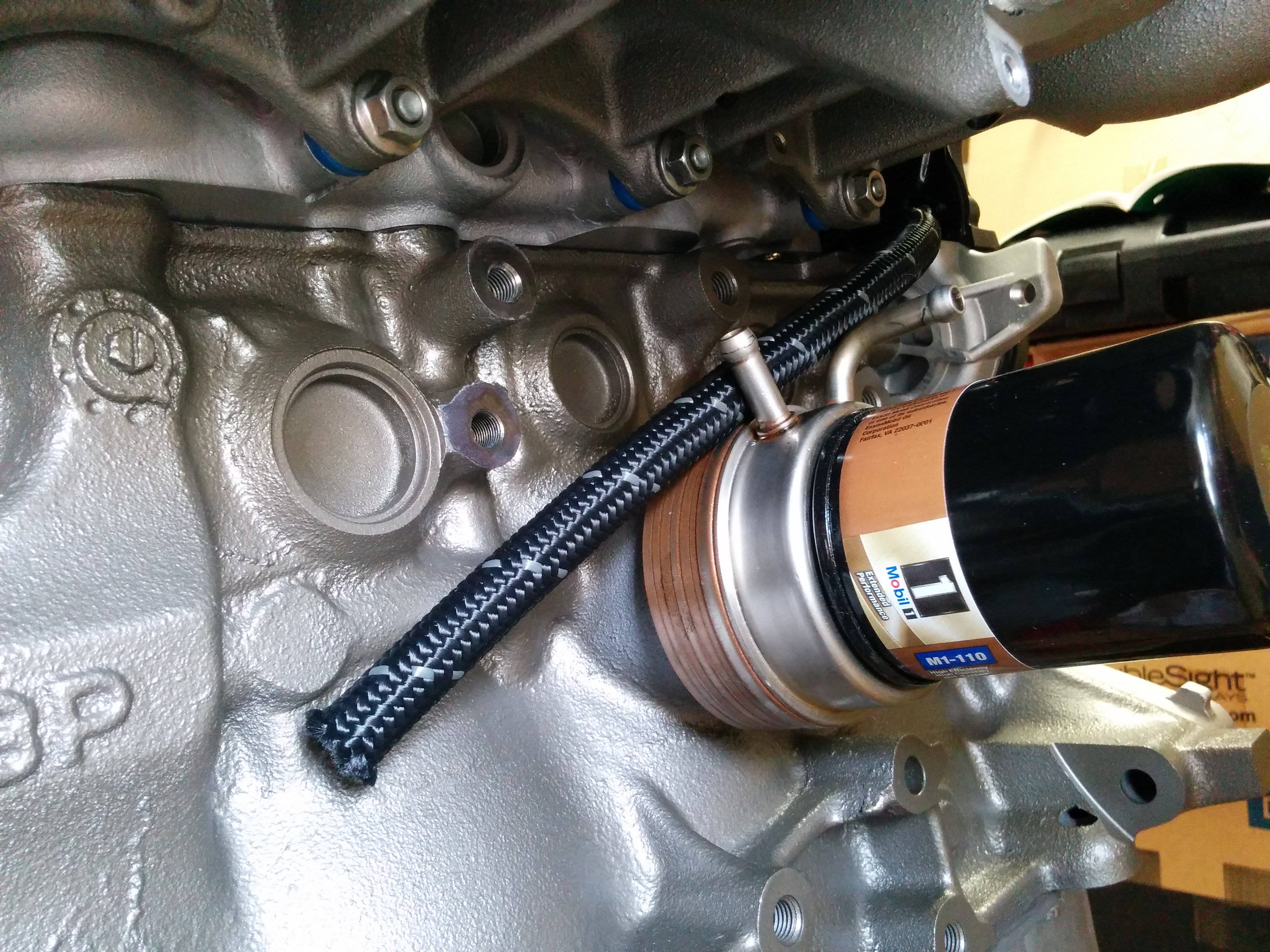

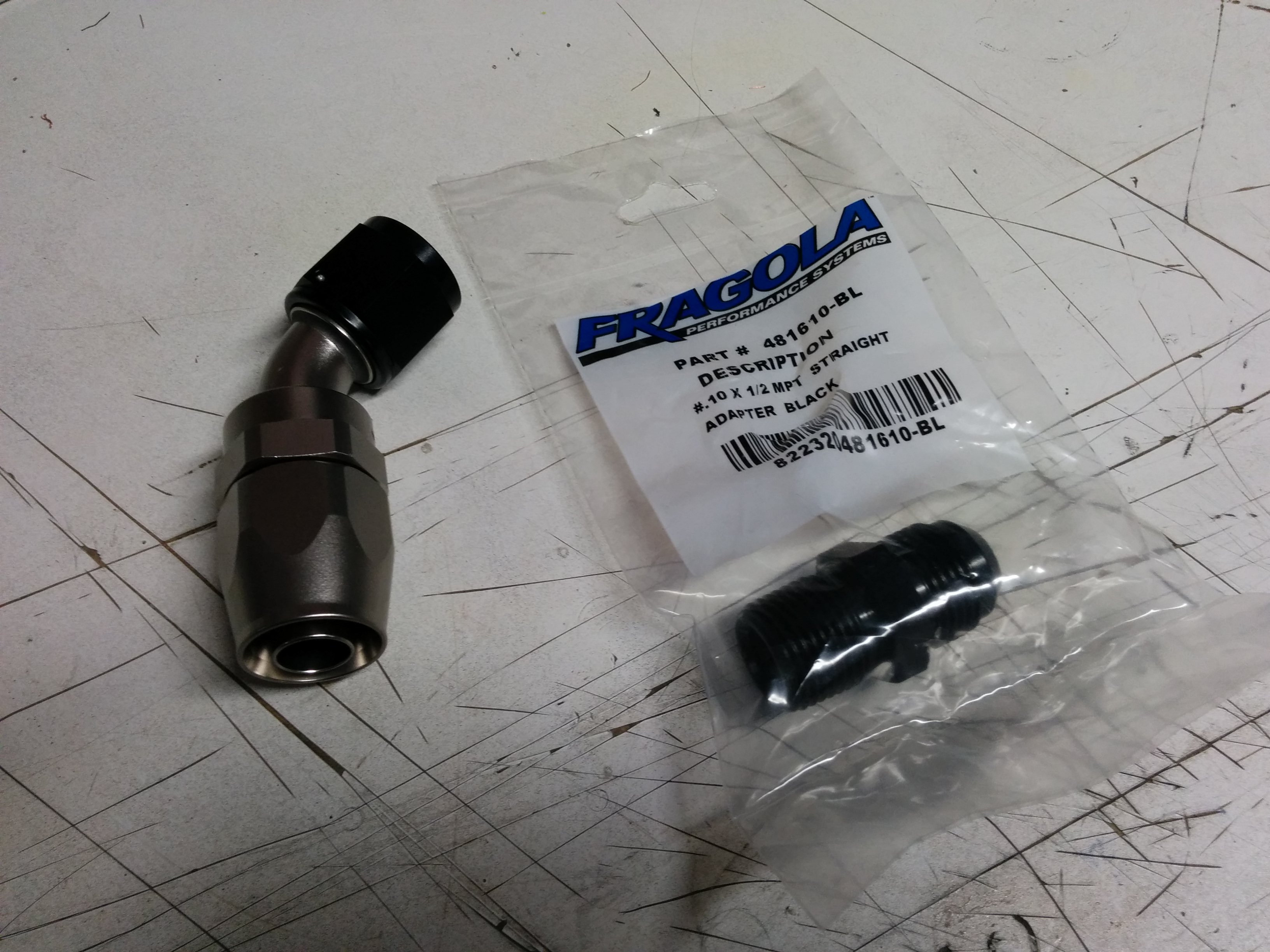

Time to start plumbing the trubo! These go in the pan side of the drain line.


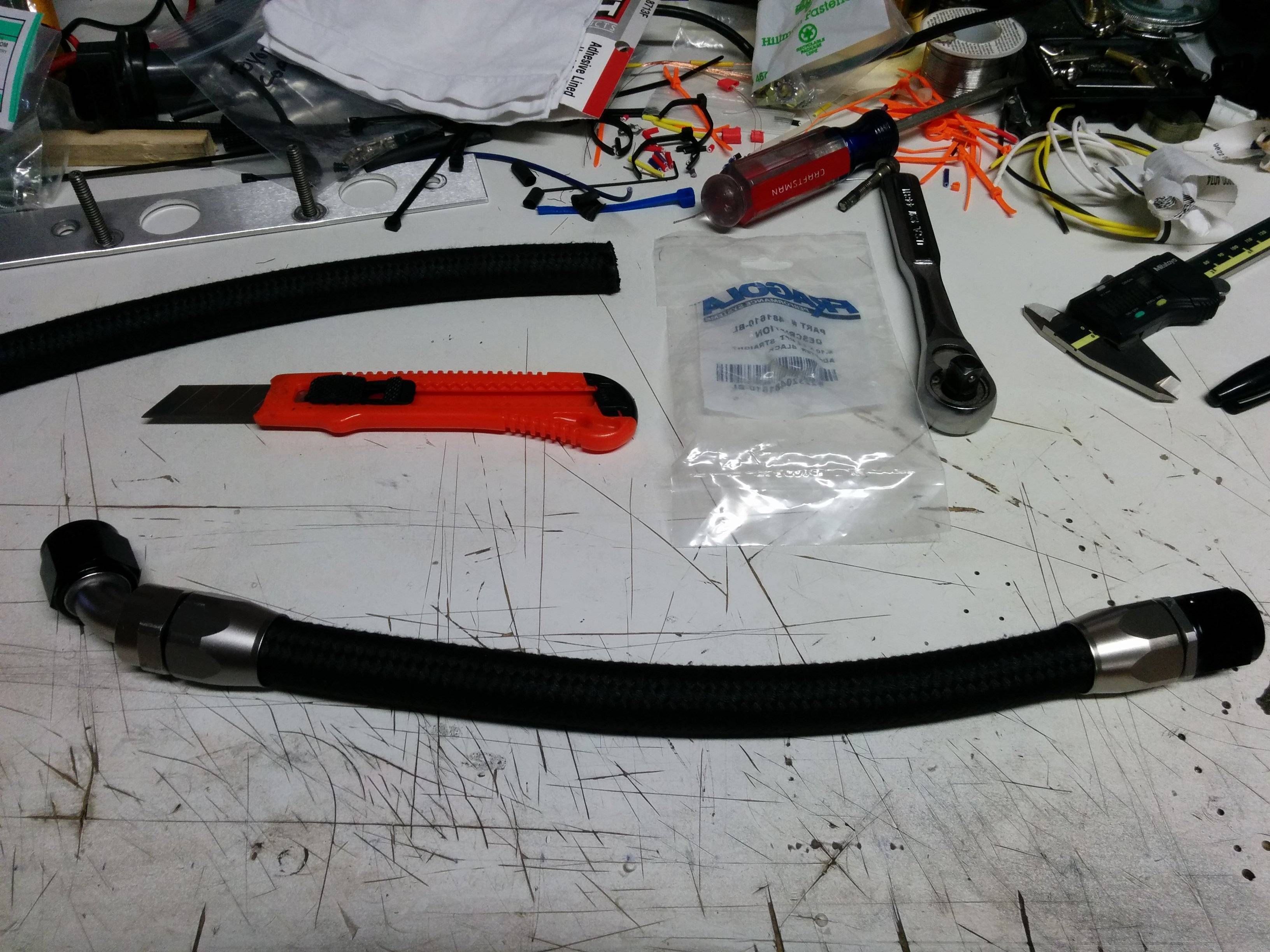

After much careful measuring and many youtube videos later, I made my first AN line.


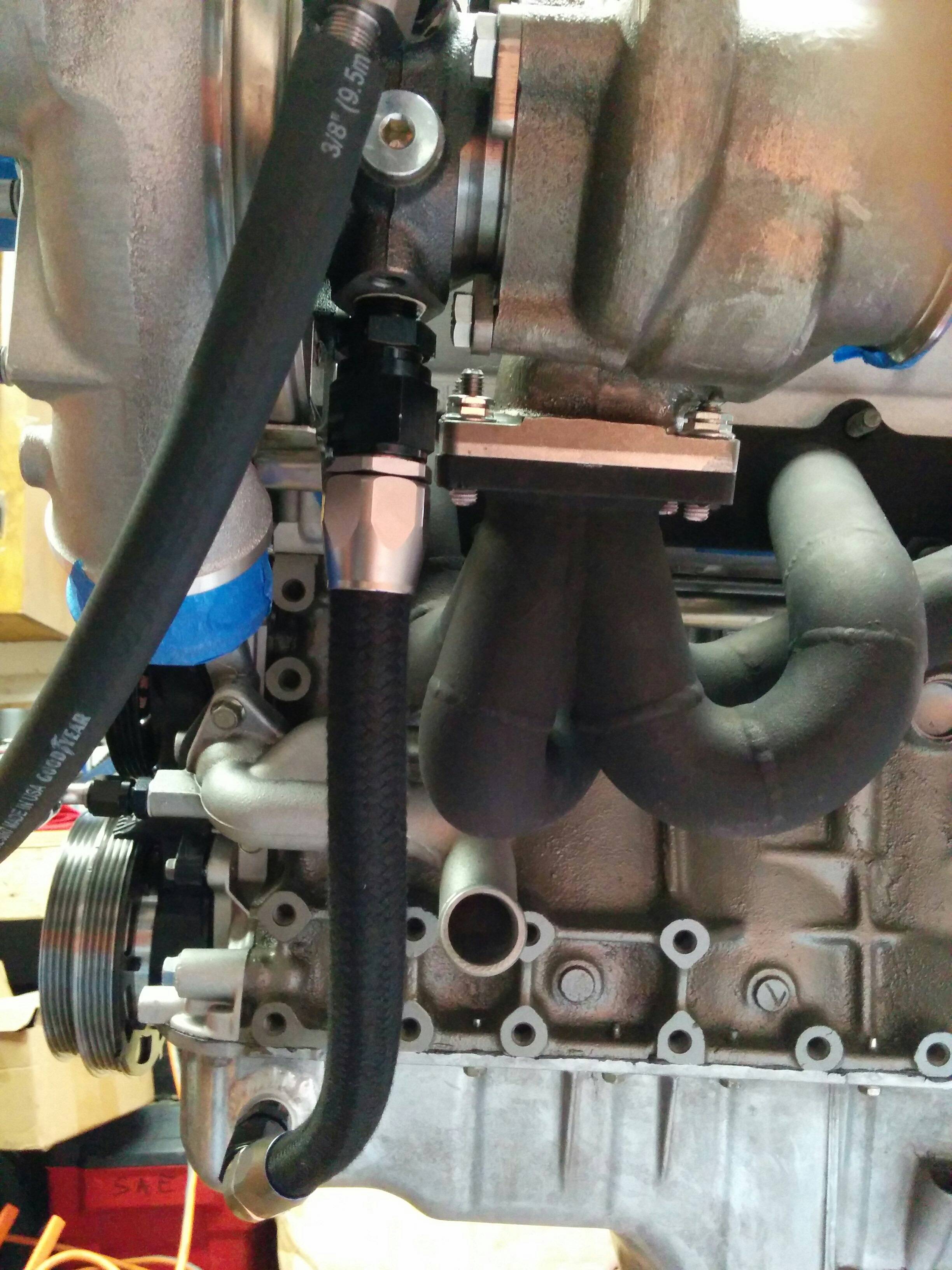

Its still about 1/2" too long, but it fits and I'm not taking it apart again. If I do that I'm going to order a 30 -10 fitting for the turbo side to replace the straight fitting, just to take some of the curve out of the hose.

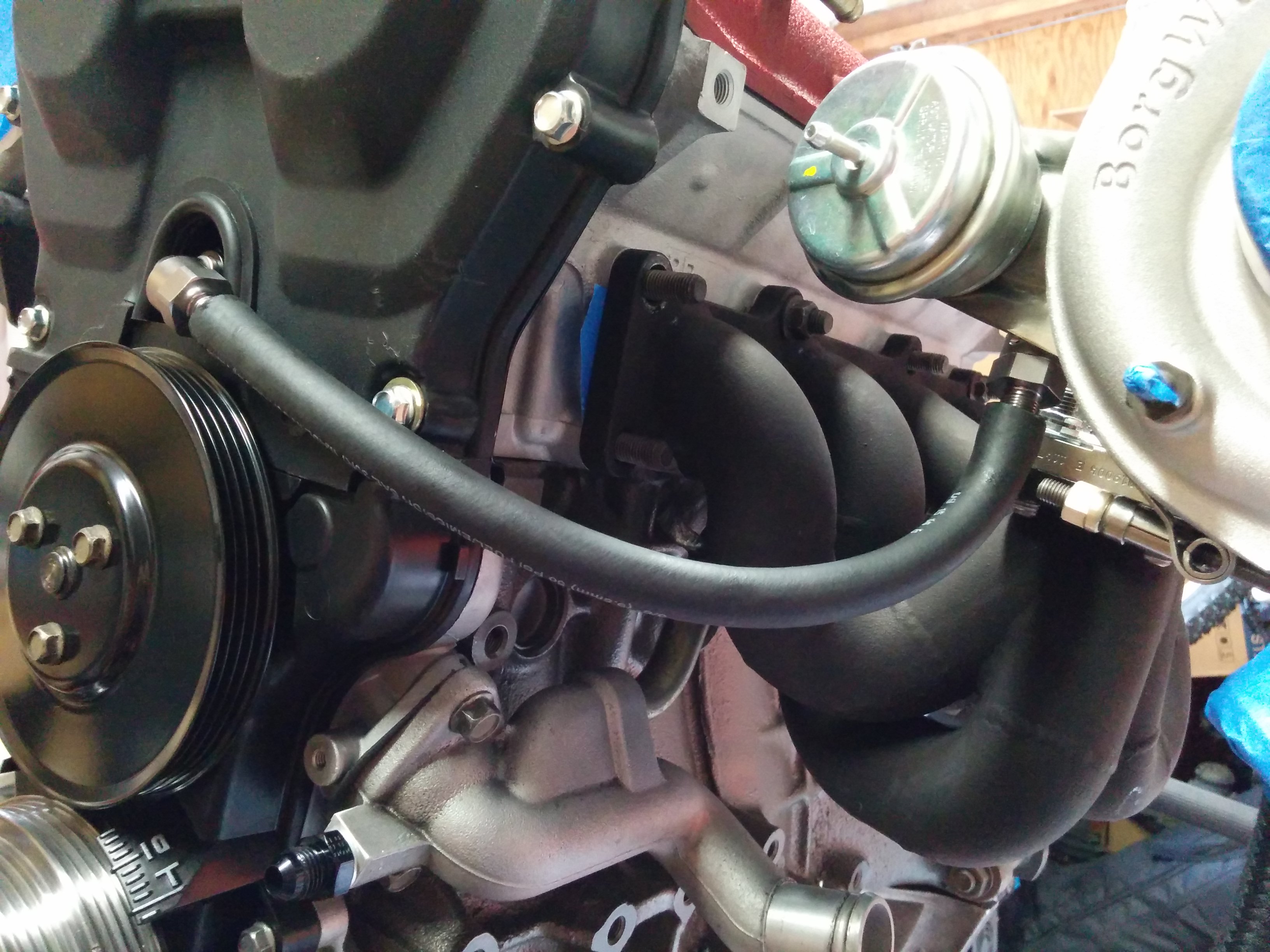

Seen here is the mockup of the coolant return using some Gates fuel line I had lying around. I don't really like having a run that long hanging out in space but I'm not sure what to do about it. 90 -6AN fittings on both ends.

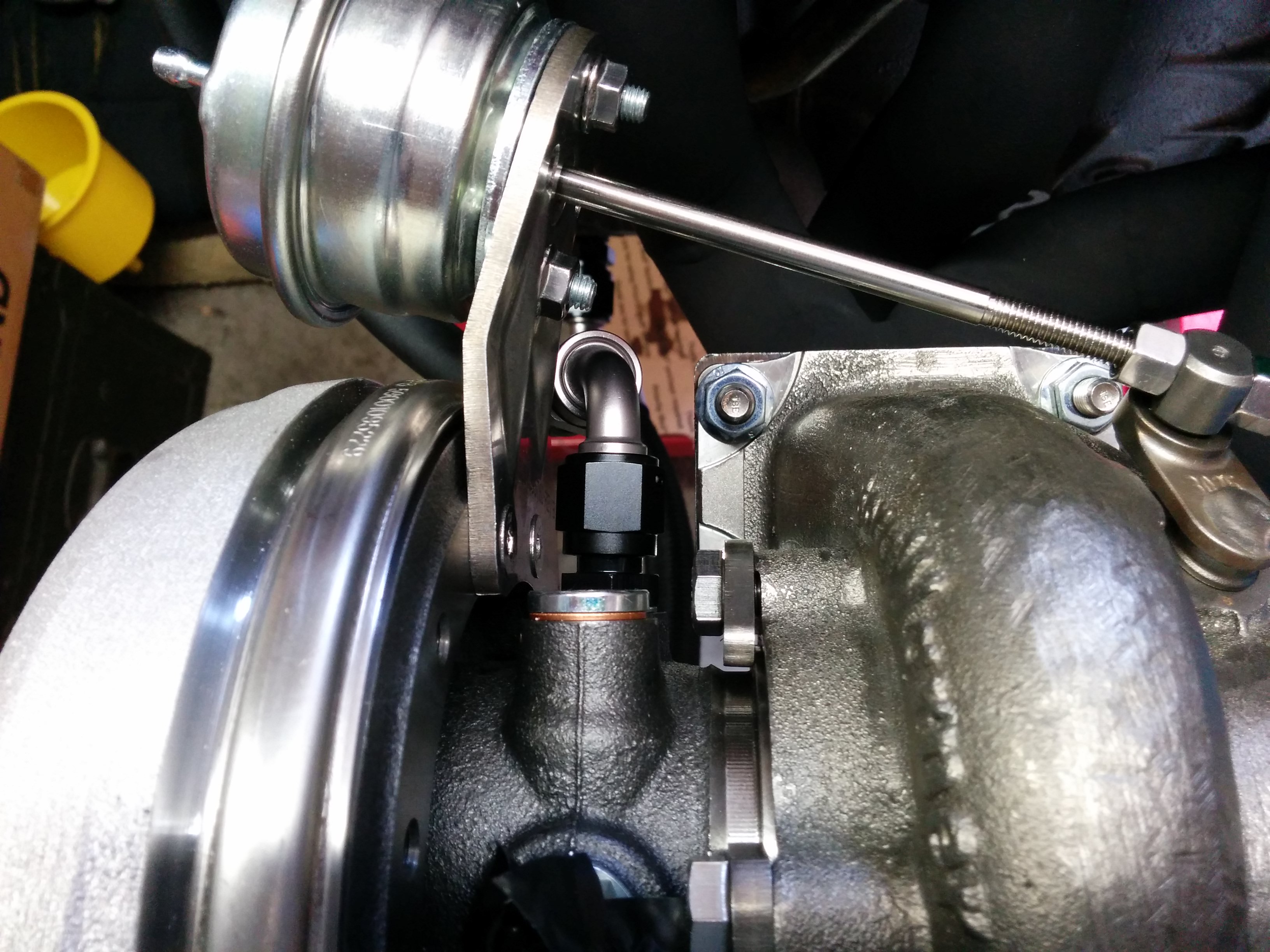

Mockup of the coolant feed. Again, 90 -6AN fittings on both ends.


With the external WGA bracket right there, I don't have much of a choice. Also shown: cancer turbine housing.

So I think that's the coolant and oil drain sorted, I just need to order some more -6AN hose and a couple more fittings. Oil feed is the next project.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-6wfqgxk.jpg   Nothing to see here, just project Sisyphus, move along-94zghhf.jpg   Nothing to see here, just project Sisyphus, move along-xgphytl.jpg   Nothing to see here, just project Sisyphus, move along-c7r0luw.jpg   Nothing to see here, just project Sisyphus, move along-e6ym5nx.jpg

Nothing to see here, just project Sisyphus, move along-uqycd3w.jpg   Nothing to see here, just project Sisyphus, move along-h5dgqe9.jpg   Nothing to see here, just project Sisyphus, move along-uioawv7.jpg   Nothing to see here, just project Sisyphus, move along-tmd2fbe.jpg
EO2K is offline   Reply With Quote
Old 07-19-2015, 07:06 PM   #1567
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Before someone points it out, yes I have a thermal protection strategy for the drain line.
EO2K is offline   Reply With Quote
Old 07-19-2015, 07:10 PM   #1568
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Ok, stupid question time:

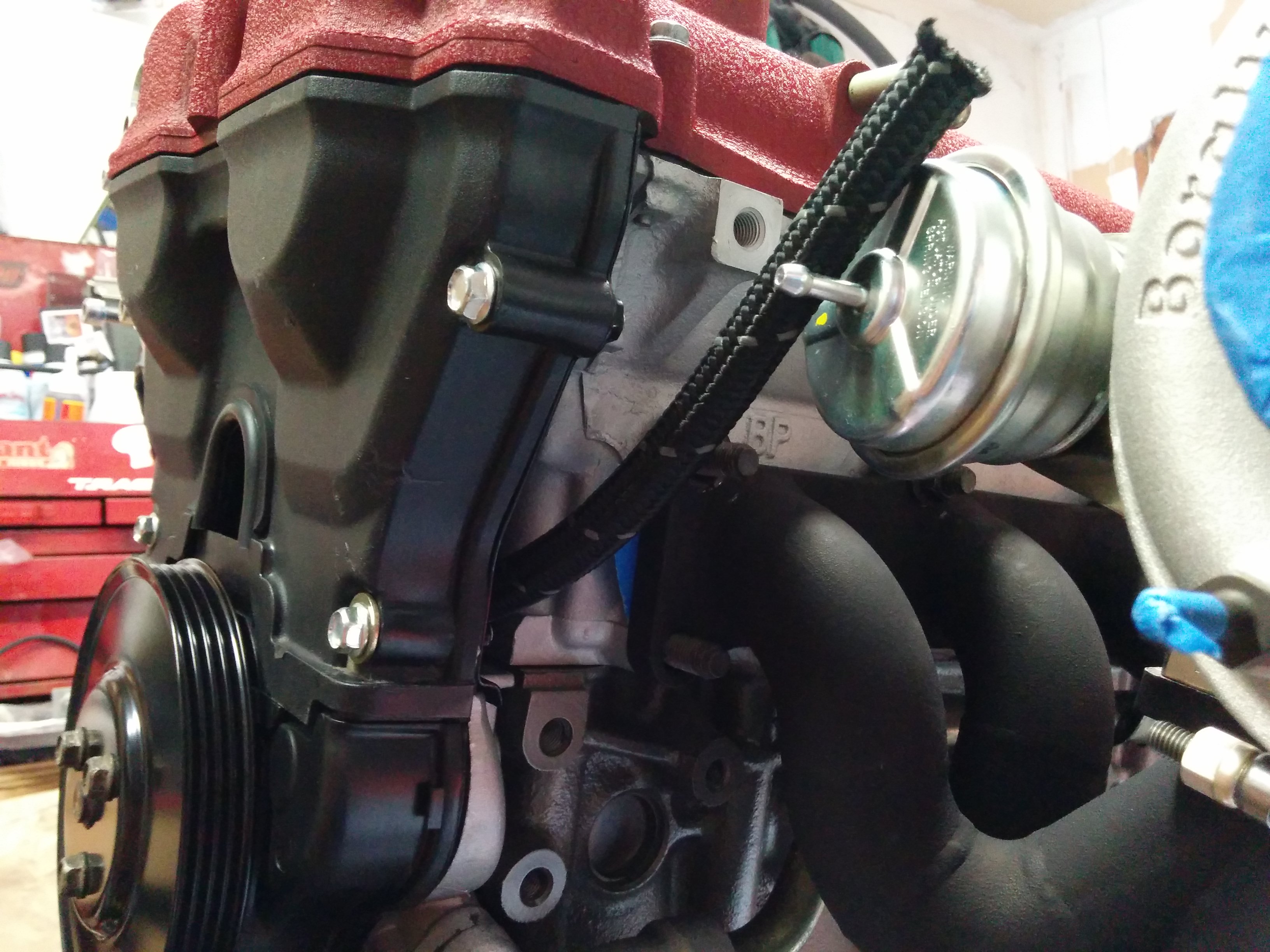

Has anyone ever run the oil feed around the FRONT of the block, in the space between the back of the metal timing cover shield and the block, above the water pump?

Something like this:





This could potentially remove FEET from my oil feed, especially if I use my sammich plate as a source. For reference, that's a -6 line. It would need to be protected from chaffing in a couple places, but its totally doable. There is even a threaded boss on the bottom of the intake where I could put a support for the oil line.

Someone tell me why I shouldn't do this.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-dgc1agz.jpg   Nothing to see here, just project Sisyphus, move along-frbydau.jpg
EO2K is offline   Reply With Quote
Old 07-19-2015, 07:12 PM   #1569
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Apparently Amazon Prime has Sunday delivery. Who knew? Now that I have feeler gauges its time to check them shims.
EO2K is offline   Reply With Quote
Old 07-19-2015, 08:46 PM   #1570
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

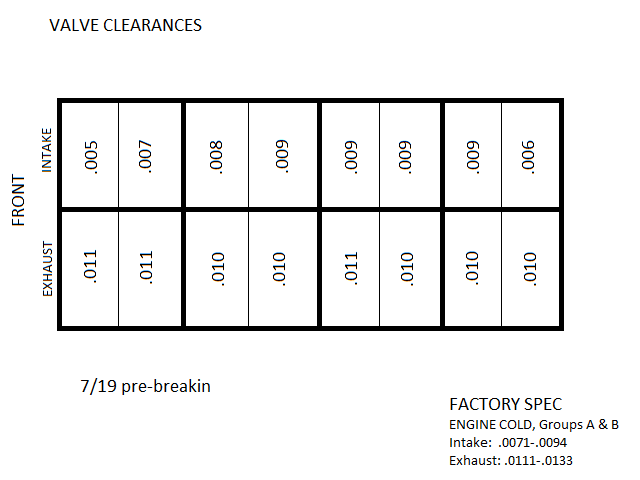

Such clearance, much tight, very wow. Here she is by the numbers:



Keep in mind this is the feeler that fits and my feelers are all in .001 steps so there could be another .0005 in there as well. More than half of the exhaust are out of spec, but barely. The only one I feel like I should touch is that .005 on the cyl 1 intake, if I touch anything at all.

This head 5A intake, 4W exhaust and all Supertech hardware; SS +1 on the intake and Inconel +1 on the exhaust, Supertech doubles and TI retainers all around. SUBs were not in the budget when I ordered the head so its factory SOB shims.

Thoughts?
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-avsicor.png

Last edited by EO2K; 07-19-2015 at 09:02 PM.
EO2K is offline   Reply With Quote
Old 07-19-2015, 10:39 PM   #1571
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,480
Total Cats: 289
Default

Quote:
Originally Posted by EO2K View Post
Such clearance, much tight, very wow. Here she is by the numbers:

Thoughts?
This is a 949 head, right? I would call Emilio and ask him about the clearances. IIRC, you can go a bit tighter than factory died, but if it's too tight it will hang open when hot, not good.

--Ian
codrus is offline   Reply With Quote
Old 07-19-2015, 10:49 PM   #1572
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,410
Total Cats: 184
Default

Quote:
Originally Posted by EO2K View Post
Such clearance, much tight, very wow. Here she is by the numbers:

...

Keep in mind this is the feeler that fits and my feelers are all in .001 steps so there could be another .0005 in there as well. More than half of the exhaust are out of spec, but barely. The only one I feel like I should touch is that .005 on the cyl 1 intake, if I touch anything at all.

This head 5A intake, 4W exhaust and all Supertech hardware; SS +1 on the intake and Inconel +1 on the exhaust, Supertech doubles and TI retainers all around. SUBs were not in the budget when I ordered the head so its factory SOB shims.

Thoughts?
Bad machine work, that sucks. Pay someone to do it right. I built my head a couple years ago, rev'd it to 8,800 RPMs and after 2,000 miles checked the clearances, they were all the exactly (.000") the same as before, nothing changed despite the RPMs/boost/heat/miles. And I set them all to the same spec, whatever I set them at when I built it. I think I used minimum spec for intakes and exhaust.

Any good machine shop can do this. Who did this head? How many miles are on it? Any track time?

EDIT: I used .007 and .0011 I believe, but I can double check if it matters.
patsmx5 is online now   Reply With Quote
Old 07-19-2015, 10:51 PM   #1573
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,867
Total Cats: 1,261
Default

Its a 949 CNC head.
<br />
<br />#inb4partout. I want the turbo.
aidandj is offline   Reply With Quote
Old 07-19-2015, 10:52 PM   #1574
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,410
Total Cats: 184
Default

Quote:
Originally Posted by EO2K View Post
Ok, stupid question time:

Has anyone ever run the oil feed around the FRONT of the block, in the space between the back of the metal timing cover shield and the block, above the water pump?

...

Someone tell me why I shouldn't do this.
Hard to tell on pics, but reasons not to do it:
Can you change that line if it fails easily?
If it leaks, can you see the entire line? If it leaks, will it get on timing belt?
Will it rub anything going through there?
patsmx5 is online now   Reply With Quote
Old 07-19-2015, 10:54 PM   #1575
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,867
Total Cats: 1,261
Default

Do it. I run water/vacuum lines there. Mostly do it so we know if it works or not
aidandj is offline   Reply With Quote
Old 07-19-2015, 11:17 PM   #1576
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

Quote:
Originally Posted by patsmx5 View Post
Bad machine work, that sucks. Pay someone to do it right.
One shim out and its garbage? Seriously?



Quote:
Originally Posted by codrus View Post
This is a 949 head, right? I would call Emilio and ask him about the clearances. IIRC, you can go a bit tighter than factory died, but if it's too tight it will hang open when hot, not good.

--Ian
Yarr, will shoot him an email and see what he recommends. Its not a big deal, its just not something I was expecting.

Quote:
Originally Posted by aidandj View Post
Do it. I run water/vacuum lines there. Mostly do it so we know if it works or not
I like the way you think.

IF I decide to use this routing, I'll use -4 rather than the -6AN line that is shown in the pic. I was worried before with a 56" -4AN line that is traditionally run with the BP because of what BorgWarner specs for the EFR. With this routing the line will end up being under 30" or so. I'm MUCH more comfortable with 30" -4AN rather than 56" of -4AN.
Attached Thumbnails
Nothing to see here, just project Sisyphus, move along-hqdefault.jpg
EO2K is offline   Reply With Quote
Old 07-19-2015, 11:23 PM   #1577
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,867
Total Cats: 1,261
Default

Buy some AN line clamps. Bolt them to the inner timing cover so the oil line is held in place not touching anything.
<br />All this talk makes me want to find a 94 block.
aidandj is offline   Reply With Quote
Old 07-19-2015, 11:25 PM   #1578
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,410
Total Cats: 184
Default

Maybe I read it wrong, but you have more than 1 shim out, and they're all over the place. Right? How is that a troll? You asked for opinions BTW, and I machined my cylinder head myself and it works, I know what it takes to do it right. They should not be all over the place like that. If you seriously think that's normal, it's not. Best case is the guy that adjusted the valves did a bad job adjusting them. More likely, bad machine work is causing the tolerances to move. My last reply if you think this is trolling, that's BS, I posted accurate info.

EDIT: And if you don't believe, me just do a search here, there are people on THIS FORUM that have had repeat valves-getting-tight in very short usage (like under 1,000 street miles) due to poor machine shop work. Some of them even checked the clearances when the head was new (they were fine) and then again when the motor had a misfire or burned a valve. Still rediculous I'm posting this after being called a troll, you even said yourself half the exhaust valves are out of spec!
patsmx5 is online now   Reply With Quote
Old 07-19-2015, 11:34 PM   #1579
Elite Member
iTrader: (15)

patsmx5's Avatar

Join Date: Aug 2007
Location: Houston, TX
Posts: 8,410
Total Cats: 184
Default

But if you think I'm full of it, adjust all the valves, get them perfect, and then run it and see if they change AGAIN. If they do, then ask yourself if you and whoever BOTH adjusted the valves wrong or if there's a problem with the machine work.
patsmx5 is online now   Reply With Quote
Old 07-20-2015, 01:30 AM   #1580
Destroyer of Inconel
Thread Starter
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,260
Total Cats: 870
Default

You basically walked in here and told me my head was garbage and the machinist was incompetent. If that's not trolling I don't know what is.

I'm glad you have the resources to build these things yourself, I don't. For this reason, I checked what I could and I'm realistic about the tolerances of the tools I have available. Some of us don't have the tools or ability to rip apart an entire cylinder head and check every single clearance on every single mating part. For those things I have to trust that the work was done correctly. To this end I've hedged my bets and purchased a head from a trusted source. Don't assume I don't know what I'm doing just because I didn't do the work myself.

Here's the score:
  1. the majority of the lifters are on the "tight" end of the spec
  2. my feelers are .001 steps
  3. there could very easily be another .0009 on any of these measurements, I don't have the measurement resolution to confirm or deny
  4. there is one maybe two that are outside my measurement resolution and OEM tolerance
  5. this head has never been run, I expect these measurements to change after the valves fully seat

As I feel Ian correctly pointed out, the next step is to contact the guys from whom I purchased the head and ask their advice. They may tell me "Yeah, we run them tight because X" or "Its assumed you are going to re-shim after X hours on the motor once the valves seat" or even "Dear god that's terrible, the responsible parties will be shot at dawn. Here is our FedEx account number, crate your motor and sent it to us and we'll make it right." For all I know they may not be using OEM specs for what are obviously not OEM parts. I'll never know until I ask.

Also, in the interest of accuracy I need to remember to order a set of feelers that have .0005 steps.
EO2K is offline   Reply With Quote


Reply

Related Topics
Thread Thread Starter Forum Replies Last Post
3d scanned miata parts- interest check asmasm General Miata Chat 43 Today 03:34 PM
The Slowest Miata in Tampa Build vtbandit Build Threads 9 02-01-2017 07:29 PM
Help me test MS3 firmware! Win stuff! Ben MEGAsquirt 17 01-20-2017 05:29 PM
Noob from Arizona, Hi Richard here! Richard346 Meet and Greet 11 12-16-2016 04:48 PM
Move to Florida. Buy Miata vtbandit Meet and Greet 7 12-15-2016 08:33 PM


Tags
begi isn't helping, buttsex, doubt, efr=tits man, failure is an option, iono mang, longing, manifold mastectomy, moist b-hole, offending tits, procrastination, silent but deadly, tartar sauce massage oil, uncertainty, yearning

Thread Tools Search this Thread
Search this Thread:

Advanced Search

Posting Rules
You may not post new threads
You may not post replies
You may not post attachments
You may not edit your posts

BB code is On
Smilies are On
[IMG] code is On
HTML code is Off
Trackbacks are Off
Pingbacks are Off
Refbacks are Off



All times are GMT -4. The time now is 04:49 PM.
