Old 07-27-2012, 10:24 AM   #141
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Any dyno numbers on this thing? Curious if so. Or at least throw a good 3rd gear pull into virtual dyno and see what you are at there. That would be neat. 13's isn't bad at all.
Fireindc is offline   Reply With Quote
Old 07-31-2012, 05:09 PM   #142
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

Yeah. Probably in the fall when it gets cooler out. I will probably also try to fine tune it.

Might try out this virtual dyno, i've never really looked into it.
Erat is offline   Reply With Quote
Old 08-01-2012, 03:38 PM   #143
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

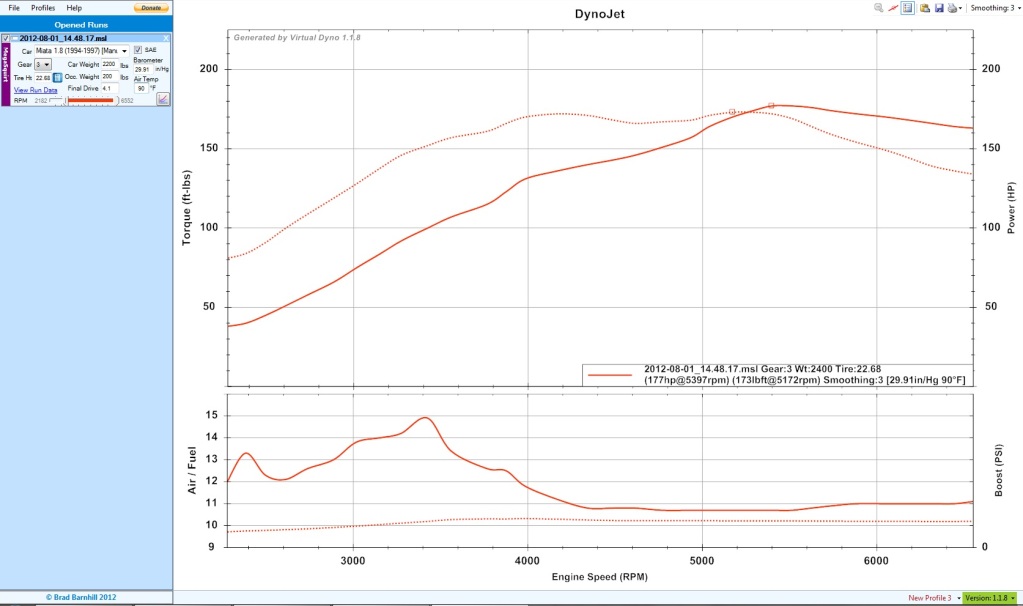

VD is a bit easier than i thought.



Seems pretty dang low IMO. I'm going to go back out and try again after i make a few adjustments. Not sure why my AFR's were like they are when i went WOT around 2200rpm. Also, i'm not 200lbs, i just had crap in the car. Plus this was an up hill on ramp to an expressway, i'm guessing that would make a difference as well.
Attached Thumbnails
Slowest turbo Miata ever-vd.jpg
Erat is offline   Reply With Quote
Old 08-01-2012, 04:36 PM   #144
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

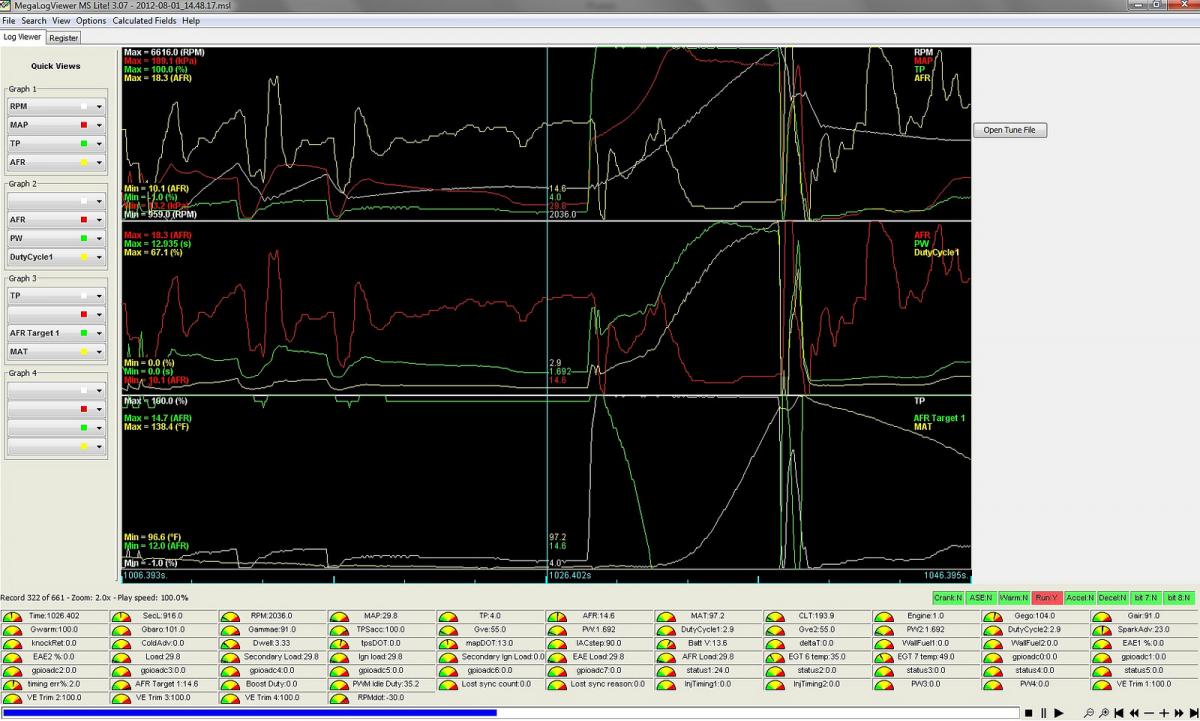

I'll post this so you guys can pick me apart. I feel my AFR's go kinda funny until i am at desired boost level. Also, my boost level seems to spike then settle. Shitty boost controller i assume? Need to get EBC working.

Attached Thumbnails
Slowest turbo Miata ever-3rdpull.jpg   Slowest turbo Miata ever-7694200534_e2d193f477_h.jpg   Slowest turbo Miata ever-7694200534_e2d193f477_h.jpg

Last edited by Erat; 08-01-2012 at 06:49 PM.
Erat is offline   Reply With Quote
Old 08-01-2012, 06:33 PM   #145
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Looks like you got some boost drop here. Where's your wastegate signal coming from?

Also with virtual dyno make sure you do the pull on the flattest road possible, then cut out all extra data before you graph it. Also when graphing it make sure you have the correct final drive selected, and at least close to the correct tire height using their calculator.

to break 13's i'd imagine you need to be at least 180whp, but I could be wrong.
Fireindc is offline   Reply With Quote
Old 08-01-2012, 06:50 PM   #146
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

I'm pretty sure i have all the variables set correctly. I just had a bad "pull".

How would you crop what you wanted from the datalog? I've looked around a bit on megalogviewer but it's not very clear if you can do it with that.

Hmm, i just found when reviewing this datalog that it's saying i lifted at 6600rpm, when i'm pretty sure my tachometer was at like 6900. I think the tach reads a little ligh, which would also explain why i don't bang the limiter i set at 6800 all the time. Anyone else experience this?

Last edited by Erat; 08-01-2012 at 07:41 PM.
Erat is offline   Reply With Quote
Old 08-01-2012, 07:58 PM   #147
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

nice build thread, been thumbing through it for a bit. on the virtual dyno question try removing some of the smoothness it will smooth the map to common points thus drop a few hp on the process. try like 2 instead of the 3 its set to in the pic
redturbomiata is offline   Reply With Quote
Old 08-01-2012, 08:08 PM   #148
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

Yeah, bumped it to 184hp. Not much, but it's a few. Thanks for looking through.
Erat is offline   Reply With Quote
Old 08-02-2012, 09:38 AM   #149
Newb

Join Date: Apr 2011
Posts: 10
Total Cats: 1
Default

Quote:
Originally Posted by Erat View Post
How would you crop what you wanted from the datalog? I've looked around a bit on megalogviewer but it's not very clear if you can do it with that.
Look at the time index of your pull in megalogviewer and edit the file with a text editor of you choice, cutting all data bevor and after the pull. wordpad works fine!
Quote:
I think the tach reads a little ligh, which would also explain why i don't bang the limiter i set at 6800 all the time. Anyone else experience this?
Thats perfectly normal.
Monti is offline   Reply With Quote
Old 08-02-2012, 12:04 PM   #150
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

Quote:
Originally Posted by Fireindc View Post
Looks like you got some boost drop here. Where's your wastegate signal coming from?

Also with virtual dyno make sure you do the pull on the flattest road possible, then cut out all extra data before you graph it. Also when graphing it make sure you have the correct final drive selected, and at least close to the correct tire height using their calculator.

to break 13's i'd imagine you need to be at least 180whp, but I could be wrong.
After reading your thread, i must be doing something wrong. Hmm... I think one of my problems is IAT's.

Quote:
Originally Posted by Monti View Post
Look at the time index of your pull in megalogviewer and edit the file with a text editor of you choice, cutting all data bevor and after the pull. wordpad works fine!
Thats perfectly normal.
Solid first post, i'll try that out thanks.

Gonna do a little more work on it today, see what can't be done and post back. It's another hot day, here today 90F.
Erat is offline   Reply With Quote
Old 08-02-2012, 01:21 PM   #151
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Looking at your VD graph, you are on your way to 200whp if you didn't drop boost so drastically. What's your timing map look like? and where's that wastegate signal coming from? What is your wastegates pressure, and what pressure are you targeting?
Fireindc is offline   Reply With Quote
Old 08-02-2012, 03:48 PM   #152
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

Wastegate is coming off the compressor. I know that's not ideal, but usually you see pressure drop at high RPM's and i'm not getting that. It's an 8psi wastegate and i'm trying to hit 12psi. I'm really not dropping that much boost, it's a spike to about 14psi then settle at 12 very quickly.

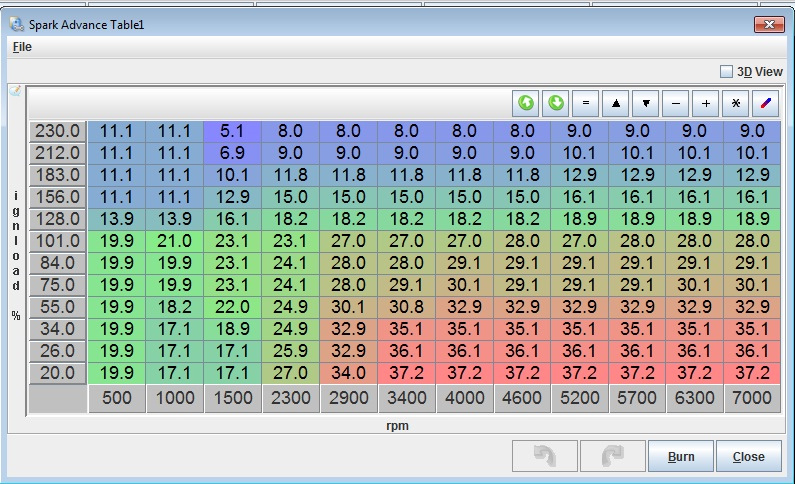

Looks a lot like your old spark map. I am pretty sure that this is untouched, and i'm not sure what to mess with on this.
Attached Thumbnails
Slowest turbo Miata ever-7699836076_48bbf7c159_b.jpg
Erat is offline   Reply With Quote
Old 08-02-2012, 04:47 PM   #153
Elite Member
iTrader: (1)

Join Date: May 2009
Location: Jacksonville, FL
Posts: 4,677
Total Cats: 212
Default

Ignition is hella conservative.
You could essentially shift that entire map up one cell. At 12 psi youre at 12.9 degrees atdc, you could easily be at 16 degrees.

Also, move the wastegate signal to the cold side charge piping. Trust me.
Full_Tilt_Boogie is offline   Reply With Quote
Old 08-03-2012, 02:15 PM   #154
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Ignition is hella conservative.
You could essentially shift that entire map up one cell. At 12 psi youre at 12.9 degrees atdc, you could easily be at 16 degrees.

Also, move the wastegate signal to the cold side charge piping. Trust me.
This is what i was getting at as well.

Timing map looks like it needs help, but I'm far from the one to give advise on that.
Fireindc is offline   Reply With Quote
Old 08-03-2012, 06:04 PM   #155
Elite Member
iTrader: (1)

Join Date: Jun 2006
Location: Warrington/Birmingham
Posts: 2,658
Total Cats: 41
Default

Quote:
Originally Posted by Full_Tilt_Boogie View Post
Ignition is hella conservative.
You could essentially shift that entire map up one cell. At 12 psi youre at 12.9 degrees atdc,
ummm BTDC not atdc.

If he really was 12.9deg atdc it really would be ------- slow!
richyvrlimited is offline   Reply With Quote
Old 08-12-2012, 02:32 AM   #156
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

Still have no idea what i'm doing with the MS...

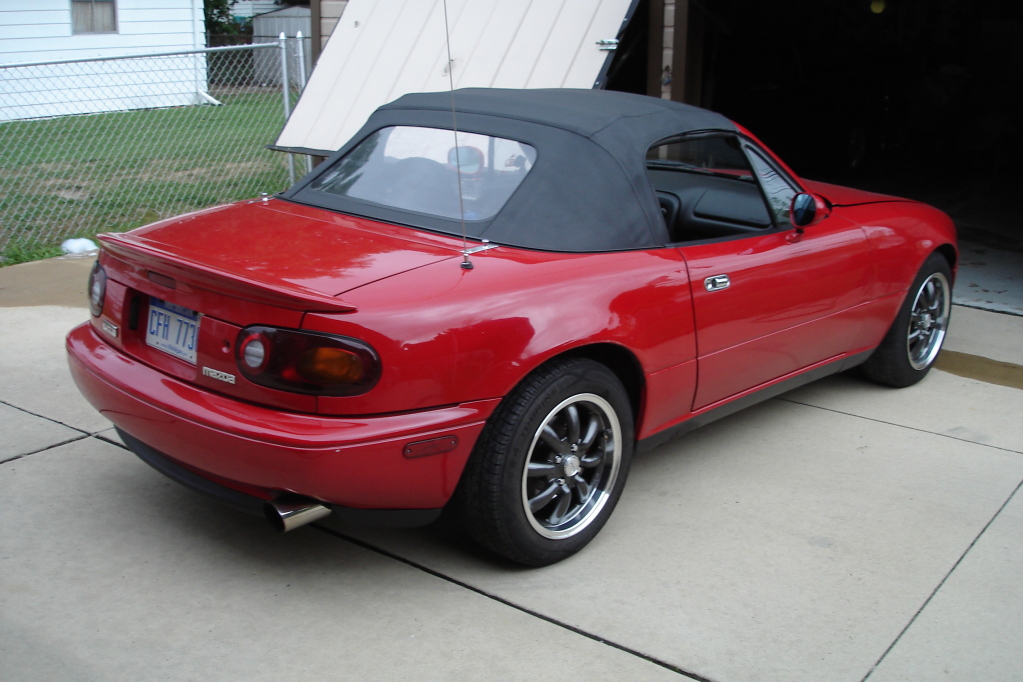

But in the meantime. I put these wheels on.



They're meh. Not sure if i like them or not. I like my Boyds to much to like anything else.

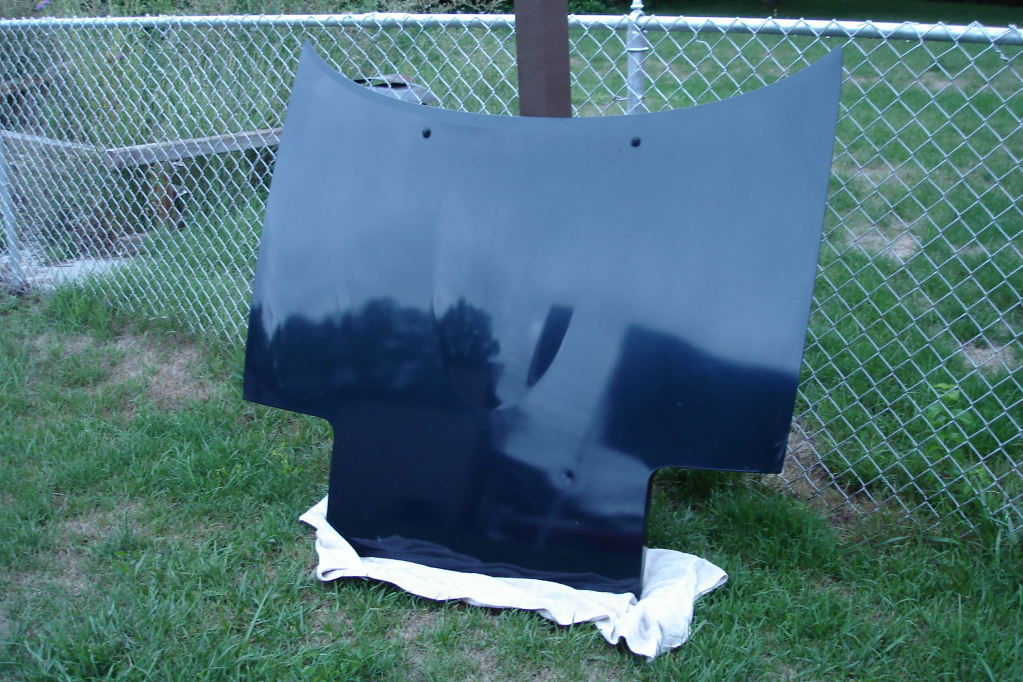

Picked up this hood the other day. I plan on cutting into it and putting some extractor vents in it.




Someone can make me an offer on either the hood or wheels, and if i like the price i'll sell both of them.
Attached Thumbnails
Slowest turbo Miata ever-dsc04776.jpg   Slowest turbo Miata ever-dsc04777.jpg
Erat is offline   Reply With Quote
Old 08-18-2012, 10:35 AM   #157
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

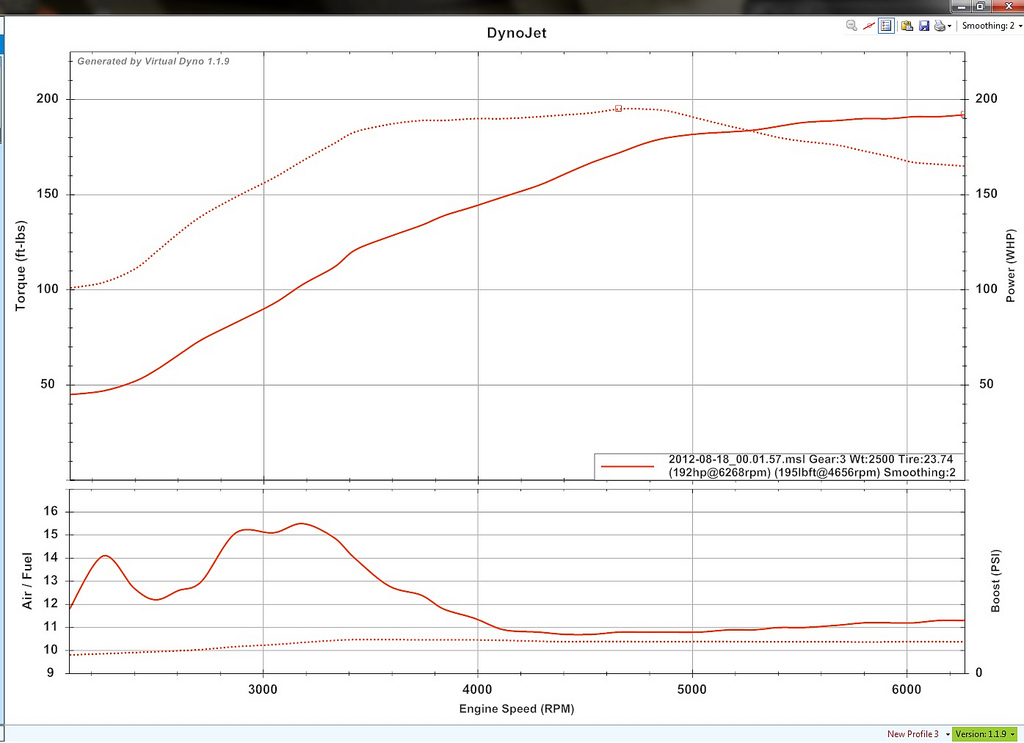

Tweaked a few things, didn't touch spark. Went from 12psi to 10psi and got the numbers i'm more looking for.



Graph cuts off at 6200rpm and i took it to 6400rpm according to the datalog. Not sure why VD did that. I hate how the tachometer is so slow, when i think i'm at 7000 i'm not.
Attached Thumbnails
Slowest turbo Miata ever-7808218134_bd30872f7a_b.jpg
Erat is offline   Reply With Quote
Old 08-18-2012, 07:43 PM   #158
Elite Member

Join Date: Apr 2010
Location: Newcastle, Australia
Posts: 2,593
Total Cats: 22
Default

Dude add 3 degrees of timing everywhere above 100kpa and go make 15hp more.

Dann
nitrodann is offline   Reply With Quote
Old 08-22-2012, 06:42 PM   #159
Elite Member
Thread Starter
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,131
Total Cats: 257
Default

I didn't want to start a new thread for this.

But i have a question, on cold starts (ambient coolant temp) i usually have to cycle the ignition 3-4+ times after cranking before it actually fires. I've messed around with a few settings but i'm not sure which direction to go. Only ONCE have i had it backwire while doing this, which lead me to believe that it was cranking to lean. Was more like a spark cut pop out the exhaust. Coldest it's been was 60f and it was the worst. Even if i start it, drive it and let it sit for 4-6 hours then start it to drive it home that night it will start fine. Only when it sits overnight is when it gives me the problem. Otherwise it starts perfect.

Tune is attached, i have some video if that helps.
Attached Files
File Type: msq CurrentTune.msq (84.1 KB, 78 views)
Erat is offline   Reply With Quote
Old 08-22-2012, 06:57 PM   #160
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

Is the 15:1 AFR between 2800 and 3400rpm something Erat should be worried about? or is it low enough that it doesnt matter?
