DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 08-29-2007, 07:31 PM   #561
Elite Member
iTrader: (3)

Join Date: May 2006
Location: Houston, TX
Posts: 2,900
Total Cats: 0
Default

Quote:
Originally Posted by y8s View Post
I bit the bullet and ordered 4 connectors from Toyota. I guess I'll see if they have pins or not. And if not, I'll try to find those too.... heh!
Make sure to let us all know what that goes... I'm really hoping they come with pins, but something tells me they don't.
Arkmage is offline   Reply With Quote
Old 08-29-2007, 07:37 PM   #562
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

Quote:
Originally Posted by Arkmage View Post
Make sure to let us all know what that goes... I'm really hoping they come with pins, but something tells me they don't.
The fact that they show a different p/n for a "repair wire" with a pin crimped on is a bad sign huh?

Even still, there's a lot of pins out there. Maybe something else fits... or maybe I can hunt down the OEM and get samples that way. I've already checked about ten different OEMs and none of them are it.
y8s is offline   Reply With Quote
Old 08-29-2007, 08:10 PM   #563
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Sweet, hope mine arrive soon.
beerslurpy is offline   Reply With Quote
Old 08-29-2007, 08:14 PM   #564
Elite Member
iTrader: (8)

Join Date: Sep 2006
Location: Severn, MD
Posts: 1,927
Total Cats: 5
Default

Once I get mine, I'll see what my buddies can come up with for pins. They've made a DSM COP setup for years.

I've also got a big Packard crimper/connector set that the PO of my car threw in with the purchase. Might have something in there.

Frank
fmowry is offline   Reply With Quote
Old 08-29-2007, 08:38 PM   #565
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Quote:
Originally Posted by Loki047 View Post
Hey lazzer next time you go to the junkyard want some company? I could probably snag a set of these.
The yard I go to up here doesn't have anything newer then '98.
lazzer408 is offline   Reply With Quote
Old 08-29-2007, 08:44 PM   #566
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

cjernigan -paid- thank you.
jayc72 -paid- thank you.
fmowry -paid- thank you.

I placed the order but they're short 2 coils. I'll give it a few days to see if they come up with more. Apperently they sold 2 out of the 12 I told them I wanted. If one of you guys doesn't mind waiting let me know. I'd rather have someone volunteer then just leave you hanging. I can have these 10 shipped but it might be a week or two before I get the other 2 coils. If this is a problem let me know.
lazzer408 is offline   Reply With Quote
Old 08-30-2007, 08:40 AM   #567
Junior Member

Join Date: Mar 2006
Location: Sydney Australia
Posts: 138
Total Cats: 0
Default

w00t!!!

Mine arrived today!
Manny Thanks Lazzer
ampz is offline   Reply With Quote
Old 09-01-2007, 02:55 PM   #568
Junior Member

Join Date: Oct 2006
Posts: 312
Total Cats: 0
Default

Kickass, mine arrived.

What did you guys use to splice wired together? I usually use electricians twist caps for everything, but they won't look very nice under the hood.

I'm still waiting for my oil cooler parts from racer parts wholesale. It has taken them weeks to fulfill my order. I really am turned off by this.
beerslurpy is offline   Reply With Quote
Old 09-01-2007, 06:51 PM   #569
Junior Member

Join Date: Mar 2006
Location: Sydney Australia
Posts: 138
Total Cats: 0
Default

I've almost always used solder and heatshrink for permanent stuff... twist and elcetrical tape for testing/semi permanent.
ampz is offline   Reply With Quote
Old 09-01-2007, 07:30 PM   #570
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

My write-up on how to make strong, clean connections.

https://www.miataturbo.net/showthrea...941#post145941
lazzer408 is offline   Reply With Quote
Old 09-01-2007, 11:25 PM   #571
y8s
2 Props,3 Dildos,& 1 Cat
iTrader: (8)

y8s's Avatar

Join Date: Jun 2005
Location: Fake Virginia
Posts: 19,038
Total Cats: 406
Default

wait for me to get my connectors from toyota. see if it's an easy way to go.
y8s is offline   Reply With Quote
Old 09-03-2007, 06:30 PM   #572
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default Schematic update for MS owners.

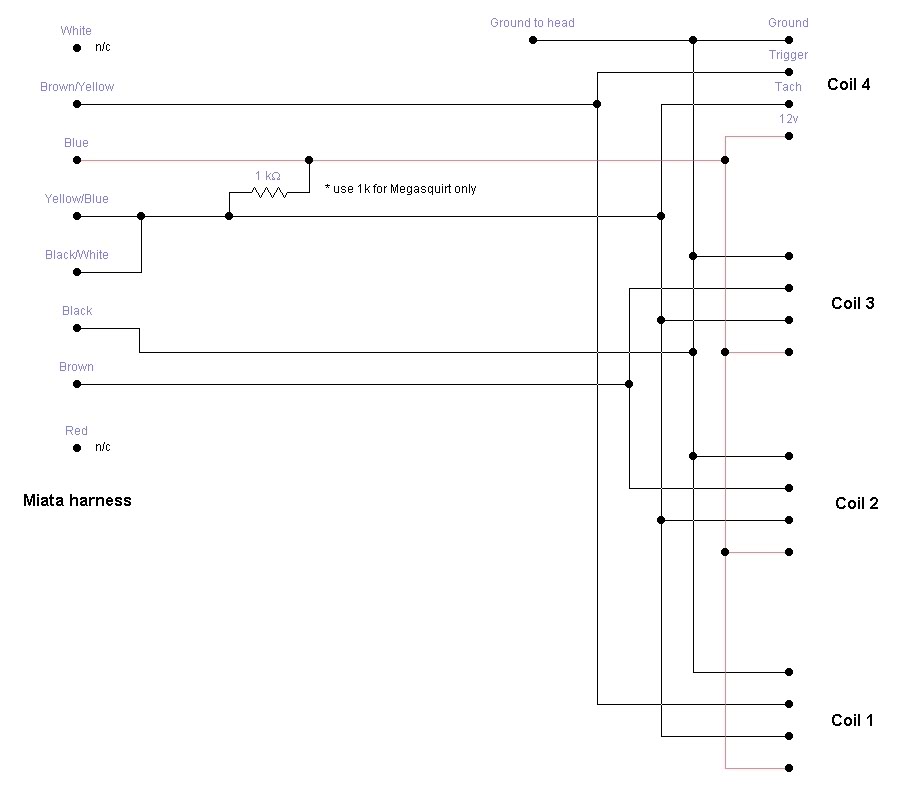

Name:  1.6L_COP_Schematic.jpg
Views: 4
Size:  37.0 KB

Schematic update for MS owners.
lazzer408 is offline   Reply With Quote
Old 09-03-2007, 06:31 PM   #573
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,292
Total Cats: 26
Default Tach with MS!

Got the tach working with MS!

MS1 v3.0
90-93 Miata

Ran a 1k resistor between Blu (12v ignition power) and the Tach wire (4, yel/blu). I now have a working tach, have not driven around or abused it... but it works to rev and idle.

For MS, you do not need to combine the Yel/Blu (4) and Blk/Wht (5). Blk/Wht is there for the OEM Ecu to provide a 1v feed into the ignitor, which explains why the OEM Ecu can get Tach working with the COPs and the 4/5 merged.

Lazzer is going to update schematics.... but for now, we having working solution for MS.
Splitime is offline   Reply With Quote
Old 09-03-2007, 06:34 PM   #574
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

You -could- connect the black/white as shown and put the 1k from 12v to black/white at the MS itself rather then under the hood.
lazzer408 is offline   Reply With Quote
Old 09-03-2007, 11:10 PM   #575
Elite Member
iTrader: (14)

Join Date: Mar 2006
Location: Edmonton, AB
Posts: 4,921
Total Cats: 0
Default

When should we expect out COPs?
jayc72 is offline   Reply With Quote
Old 09-03-2007, 11:18 PM   #576
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Yewl be teh uber 1337!
neogenesis2004 is offline   Reply With Quote
Old 09-04-2007, 03:16 AM   #577
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

I've ordered them but as I mentioned I'm 2 short. I'm waiting to hear about those. I told him I was buying all 12 but someone sold 2 of them. Hold tight, I'm busting ***** about it.
lazzer408 is offline   Reply With Quote
Old 09-06-2007, 07:23 PM   #578
Senior Member
iTrader: (1)

Join Date: Aug 2006
Location: Illinois
Posts: 1,011
Total Cats: 7
Default

Well I ordered the 10 they had. I'm waiting for 2 more. Of the 3 people who ordered coils, someone is going to have to wait for the remaining 2. I'm giving them a set of connectors for the trouble. Any volunteers?

I also have one extra set of connectors. You might have to extend the wire from the terminal itself because the pigtail was cut short. (about 1"). Someone make me an offer on them.
lazzer408 is offline   Reply With Quote
Old 09-06-2007, 07:42 PM   #579
Senior Member

Join Date: May 2006
Posts: 884
Total Cats: 0
Default

Just in case someone was looking for plugs for their coils.

http://cgi.ebay.com/ebaymotors/Toyot...em280149204603

I just picked up the first set.
firedog25 is offline   Reply With Quote
Old 09-06-2007, 08:30 PM   #580
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,835
Total Cats: 1,786
Default

that name is familar...he should have freakin' sold them here.
Braineack is online now   Reply With Quote
