Old 12-19-2012, 09:19 AM   #1561
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,809
Total Cats: 1,780
Default

these cops run at 5v.
Braineack is offline   Reply With Quote
Old 12-19-2012, 01:31 PM   #1562
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

How much do the normal na/nb coils run at?
triple88a is offline   Reply With Quote
Old 12-19-2012, 01:41 PM   #1563
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

IGNITION COIL (BP4W-18-10XB-9U)



Ignition Coil Fits:
1999-2000 Miata

Your Price: $284.88
SKU: BP4W-18-10XB-9U

My COPs cost around $45 for the coils on eBay plus whatever connectors cost from Ballengar.
Attached Thumbnails
COP Thread-88058c653f1fede3685b5f0b386d8068__80100_std.jpg
EO2K is offline   Reply With Quote
Old 12-19-2012, 01:44 PM   #1564
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,684
Total Cats: 555
Default

Er, I think he meant at what voltage.
rleete is offline   Reply With Quote
Old 12-19-2012, 02:01 PM   #1565
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

LOL. I thought they ran 12v source from the Black/White wire? What am I missing here?

Also: Ran mine on the stock ECU with the 5ms dwell. It worked, but I recommend against this course of action. I definitely damaged one of my COPs. Its a beezy to troubleshoot because it only gets flaky when it gets hot
EO2K is offline   Reply With Quote
Old 12-19-2012, 02:13 PM   #1566
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by EO2K View Post
LOL. I thought they ran 12v source from the Black/White wire? What am I missing here?

Also: Ran mine on the stock ECU with the 5ms dwell. It worked, but I recommend against this course of action. I definitely damaged one of my COPs. Its a beezy to troubleshoot because it only gets flaky when it gets hot
Thats what i thought too, 12 volts nah?

Correct on the dwell, however during my research i've been seeing people say that if you lower the voltage you need to increase the dwell time to charge the coils. Makes sense. On our waste spark system we can run 2 coils at the same time in series to lower the voltage to half of it.
triple88a is offline   Reply With Quote
Old 12-19-2012, 02:27 PM   #1567
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I'm no EE, but that sounds about right, but I'm an electrical retard. I'm not sure I'm going to try it though Does the Adaptronic in your sig not have dwell adjustment? I'm surprised you aren't running them sequential.
EO2K is offline   Reply With Quote
Old 12-19-2012, 02:29 PM   #1568
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Well yes adaptronic does have a dwell adjustment however i gotta be able to swap to the stock ecu to pass emissions and i'm trying to keep the amount of stuff i gotta switch over to a minimum currently all i gotta do is swap the ecus, install the maf, swap the injectors, and unhook the wastegate :P.

I mean if a simple change like that would make it work... why not?
triple88a is offline   Reply With Quote
Old 12-19-2012, 02:35 PM   #1569
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
Well yes adaptronic does have a dwell adjustment however i gotta be able to swap to the stock ecu to pass emissions and i'm trying to keep the amount of stuff i gotta switch over to a minimum currently all i gotta do is swap the ecus, install the maf, swap the injectors, and unhook the wastegate :P.

I mean if a simple change like that would make it work... why not?
You need to be able to put the stock ecu in long enough pass your tests? WHy cant you do that with cops wired normal again? I put my cops in months ago back when I was supposed to get my ecu from trackspeed originally and daily drove and raced the car for months with them and mine are still fine.
Leafy is offline   Reply With Quote
Old 12-19-2012, 02:37 PM   #1570
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Leafy View Post
You need to be able to put the stock ecu in long enough pass your tests? WHy cant you do that with cops wired normal again? I put my cops in months ago back when I was supposed to get my ecu from trackspeed originally and daily drove and raced the car for months with them and mine are still fine.
Most toyota coils burn out when ran at 5ms.
triple88a is offline   Reply With Quote
Old 12-19-2012, 02:39 PM   #1571
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by triple88a View Post
Most toyota coils burn out when ran at 5ms.
Ok, but how long is it going to take?
Leafy is offline   Reply With Quote
Old 12-19-2012, 03:10 PM   #1572
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

At least a week. Last time it took me 2 weeks. Its about 100 miles for the obd sensors to get set.
triple88a is offline   Reply With Quote
Old 12-19-2012, 03:28 PM   #1573
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

2 weeks? My COPs took 6 months plus a couple track days worth of stock ECU abuse before I finally damaged one. Maybe the ones I'm using are a bit more robust?

IDK how IL treats inspections, but would COPs even pass a visual? If you are already swapping injectors and crap, you might as well just suck it up and install the stock coil. Its not that much more work once you are already in there. I actually have 2 injector/ignition harness for exactly this reason.
EO2K is offline   Reply With Quote
Old 12-19-2012, 03:31 PM   #1574
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

IL does not check the engine bay, they only check the obd 2 sensor readings.
triple88a is offline   Reply With Quote
Old 12-19-2012, 03:39 PM   #1575
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

<- jelly

That's really nice. Wheel dyno and OBDII port?
EO2K is offline   Reply With Quote
Old 12-19-2012, 03:44 PM   #1576
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Guess its the same as NH or mass, you show up. They plug in, turn the key to the on position, computer reads that all monitors show passed, testing computer prints out the inspection sticker and receipt, you pay and leave. Or if the shop doesnt know you they also do the safety inspection, all of the safety inspection.
Leafy is offline   Reply With Quote
Old 12-19-2012, 06:51 PM   #1577
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by EO2K View Post
<- jelly

That's really nice. Wheel dyno and OBDII port?
Nope no wheel dyno either.

Step by step.

You drive up, turn off the car, they open the gas tank to check the cap to ensure its not leaking. Next they ask you to start your car and walk out with the door open. They plug in the obd2 scanner. They check for any codes. If you're in the clear you pass. You get a little note that says you passed all the junk (cat efficiency, sensors up to temp, etc). And you go on your marry way. You do not pay either.
triple88a is offline   Reply With Quote
Old 12-19-2012, 06:58 PM   #1578
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

EO2K is offline   Reply With Quote
Old 01-04-2013, 10:56 AM   #1579
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I've decided to tackle this mess and get few things that confuse me straightened out. Brain were u trolling with the 5 volt?

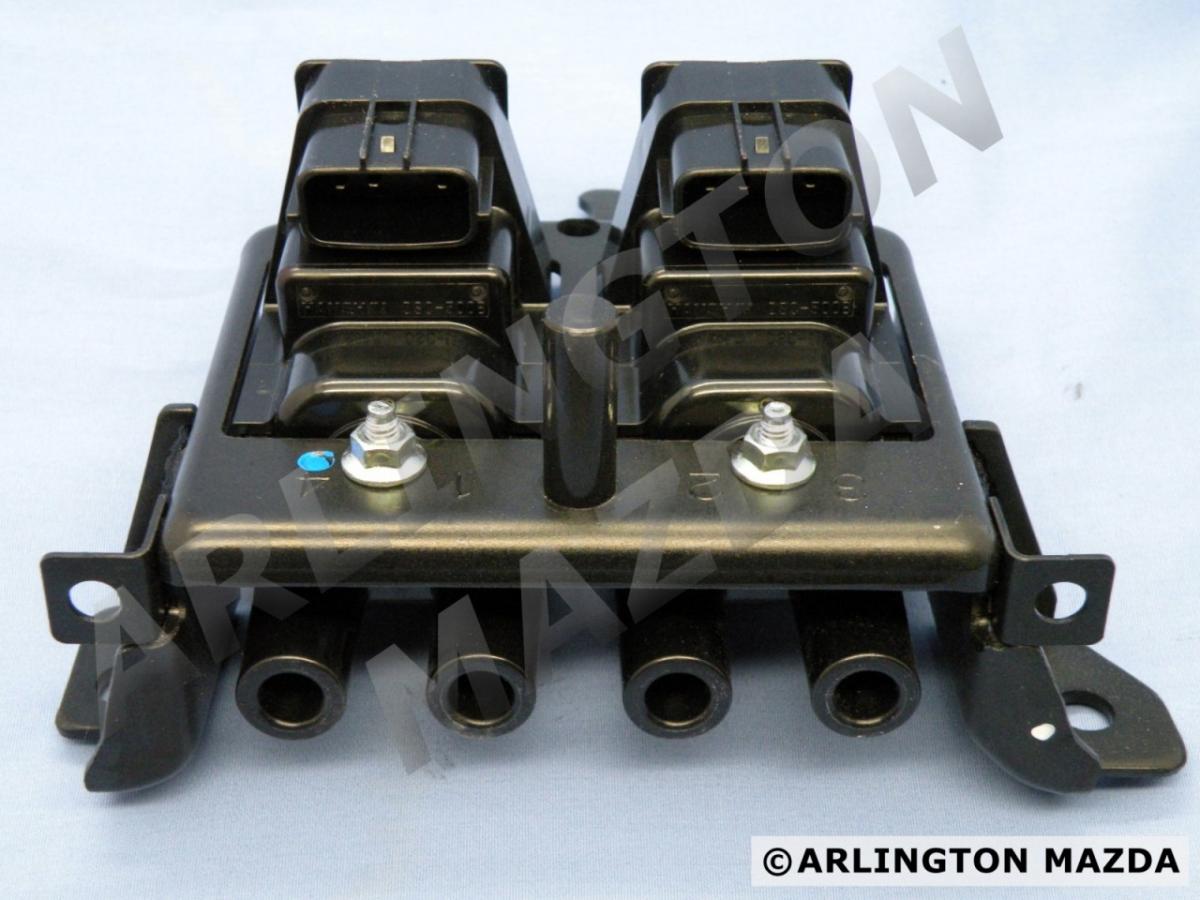

My one question is theres 2 harnesses on the stock 99-00 coils. Also what do u do for the 2 harnesses? Do you have to cut them out from the stock coils or is there an alternative?

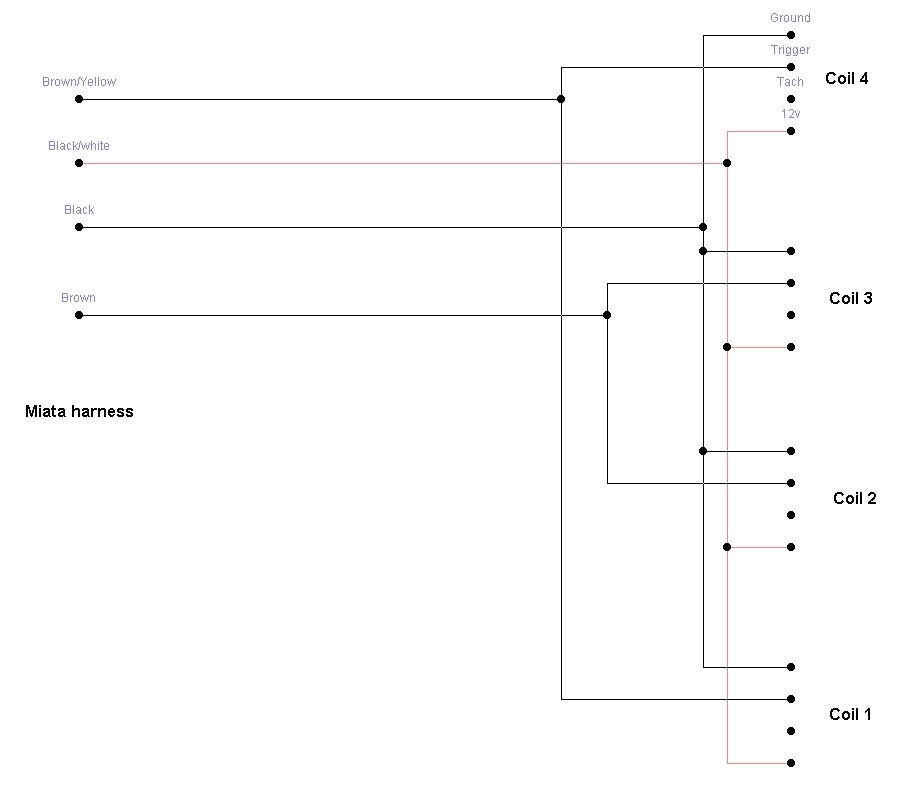

The wiring harness in the discussion cops thread shows 1 harness, sup with that?


The next thing is some people say use a capacitor between the gnd and the 12volt, others say not to. Do i need it for my 99 car? How about the resistor? I have no tach wire so i take it i dont need it either?
Attached Thumbnails
COP Thread-88058c653f1fede3685b5f0b386d8068__30102_zoom.jpg
triple88a is offline   Reply With Quote
Old 01-04-2013, 12:05 PM   #1580
Senior Member
iTrader: (5)

Join Date: May 2011
Location: London,OH
Posts: 1,125
Total Cats: 13
Default

im looking at building a cop setup for my new car, and im planing sequential spark. im assuming that the only differences in the wiring is the triggers are all independent?
sorry if its been brought up already i dug a few pages back and didnt see anything.
redturbomiata is offline   Reply With Quote
