Old 01-07-2015, 02:07 PM   #1741
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,158
Total Cats: 131
Default

I don't feel qualified to start the thread, but why not an "Miataturbo official LS coil thread" in addition to the COP thread?
Chiburbian is offline   Reply With Quote
Old 01-07-2015, 02:56 PM   #1742
Newb

Join Date: Apr 2009
Location: Austin, TX
Posts: 32
Total Cats: 3
Default

Quote:
Originally Posted by Stot View Post
Logs showed it to be the overboost protection kicking in. My turbo is only set for 7.5psi and I had overboost setting at 150kPa with 10kPa hysteresis so it would hit peak boost then stop spark for 1/2 second while MAP dropped to 140kpa then back on til peak boost then stop for 1/2 second again etc.

Worth checking. I since set my overboost to 170kPa with a 1kPa hysteresis so I can turn up the boost to 10psi gradually.

Cheers
Stot
Good idea Stot, but mine only has one option in Overboost Protection and it is PSI, which is set at 15.
iblameadd is offline   Reply With Quote
Old 01-07-2015, 03:56 PM   #1743
Newb

Join Date: Apr 2009
Location: Austin, TX
Posts: 32
Total Cats: 3
Default

Does this log help? I cannot go drive the car right now but at idle there is a random hickup and the idle shoots up to 1900.
Attached Files
File Type: msl 2015-01-07_13.47.56.msl (36.8 KB, 82 views)
iblameadd is offline   Reply With Quote
Old 01-07-2015, 04:07 PM   #1744
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Default

Quote:
Originally Posted by iblameadd View Post
Does this log help? I cannot go drive the car right now but at idle there is a random hickup and the idle shoots up to 1900.
Why don't you defeat over boost etc and try driving the car ?

The COPS should not have anything to do with what you are experiencing.
poobs is offline   Reply With Quote
Old 01-07-2015, 08:59 PM   #1745
Newb

Join Date: Apr 2009
Location: Austin, TX
Posts: 32
Total Cats: 3
Default

Quote:
Originally Posted by poobs View Post
Why don't you defeat over boost etc and try driving the car ?

The COPS should not have anything to do with what you are experiencing.
Can't disable overboost protection so I just cranked it to 20psi, didn't help though.

Made a quick test run log... Let me know if yall find any errors.
Thanks again guys for taking time to help.
Attached Files
File Type: msl Log 2015-01-07_17.53.35.msl (220.7 KB, 62 views)
File Type: msq tune2015-01-07.msq (41.9 KB, 58 views)
iblameadd is offline   Reply With Quote
Old 01-07-2015, 09:13 PM   #1746
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Quote:
Originally Posted by iblameadd View Post
Can't disable overboost protection so I just cranked it to 20psi, didn't help though.

Made a quick test run log... Let me know if yall find any errors.
Thanks again guys for taking time to help.
Why are your boost targets 70kpa...thats vacuum.
aidandj is offline   Reply With Quote
Old 01-08-2015, 10:53 AM   #1747
Newb

Join Date: Apr 2009
Location: Austin, TX
Posts: 32
Total Cats: 3
Default

Quote:
Originally Posted by aidandj View Post
Why are your boost targets 70kpa...thats vacuum.
Because I don't have an E boost controller.
iblameadd is offline   Reply With Quote
Old 01-09-2015, 12:16 AM   #1748
Newb

Join Date: Apr 2009
Location: Austin, TX
Posts: 32
Total Cats: 3
Default

I connected the Megasquirt MAP sensor to a vac pump. -10psi and 34kPa showing on the Megasquirt is actually -15psi on the vac gauge.
Engine off, the Megasquirt shows 64kPa and -.9psi. WTF is going on here?
I tried switching settings between 115kPa, 250kPa and 400kPa and the gauges didn't change. How do I calibrate the MAP sensor? I couldn't find a setting for it.

I got a capacitor from RadioShack and installed on the power wires to the COPs but didn't help.

Made another test run data log. Ignore the idle change in the "idle cut" log and skip to the end. This is where it had that weird idle hickup. Wondering if they are related.
Not to throw more confusion in the mix but I may have heard a click under the dash when the idle hickup occurred...
Attached Files
File Type: msl 2015-01-08 with cap.msl (172.2 KB, 63 views)
File Type: msl 2015-01-08 idle cut at end.msl (1.26 MB, 48 views)
iblameadd is offline   Reply With Quote
Old 03-18-2015, 05:41 PM   #1749
Junior Member
iTrader: (1)

Join Date: Nov 2009
Posts: 107
Total Cats: 3
Default

Hey guys and gals

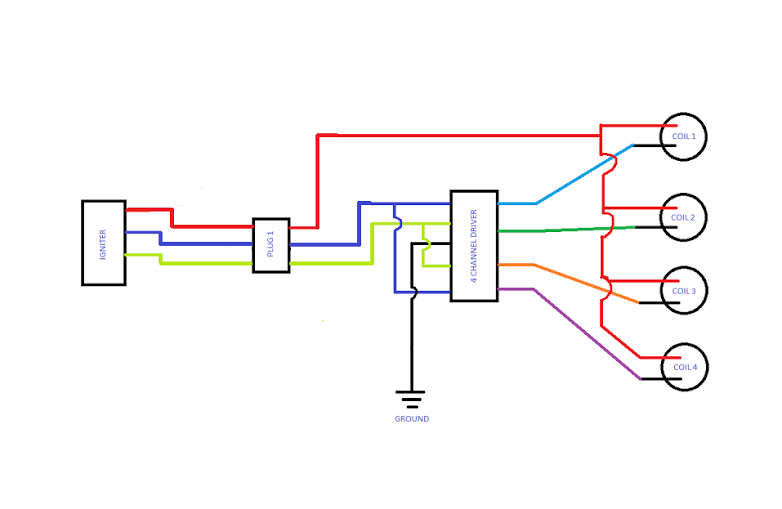

I just made this wonderful paint drawing of how to wire up coils that are dumb (ignitorless) such as the denso pencils you get in the fab9 kit and such. I got my coils from a junkyard off a gsxr 1000 and the 4 Channel driver is a bosch piece from a 1.8t audi a4, part no: Bosch 0 227 100 211.

this is the wiring for a 90-93 1.6 car, and i showed the igniter and coil plugs so you can choose where you wire from. I am doing mine to be completely reversible, using a crap coil to get the plugs for easy installation.

hope you like




FYI colors are not what is in the harness, ill update this thread when i get the pinout of what color wire corresponds to the colors here.

Obviously red is +12V and black is Ground. the lime and purple are the triggers for (1 and 4) and (2 and 3)
Attached Thumbnails
COP Thread-90-93_miata_cop_wiring.png
duhafnusa4 is offline   Reply With Quote
Old 03-18-2015, 05:56 PM   #1750
Senior Member
iTrader: (1)

Join Date: Apr 2008
Location: Florida
Posts: 774
Total Cats: -5
Thumbs up

Quote:
Originally Posted by duhafnusa4 View Post
Hey guys and gals

I just made this wonderful paint drawing of how to wire up coils that are dumb (ignitorless) such as the denso pencils you get in the fab9 kit and such. I got my coils from a junkyard off a gsxr 1000 and the 4 Channel driver is a bosch piece from a 1.8t audi a4, part no: Bosch 0 227 100 211.

this is the wiring for a 90-93 1.6 car, and i showed the igniter and coil plugs so you can choose where you wire from. I am doing mine to be completely reversible, using a crap coil to get the plugs for easy installation.

hope you like




FYI colors are not what is in the harness, ill update this thread when i get the pinout of what color wire corresponds to the colors here.

Obviously red is +12V and black is Ground. the lime and purple are the triggers for (1 and 4) and (2 and 3)
You Rock Dude !!!
poobs is offline   Reply With Quote
Old 03-18-2015, 06:07 PM   #1751
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Prop'd
EO2K is offline   Reply With Quote
Old 03-18-2015, 06:12 PM   #1752
Junior Member
iTrader: (1)

Join Date: Nov 2009
Posts: 107
Total Cats: 3
Default



also 100 Posts WOOOT (I use the search so no dumb questions )
duhafnusa4 is offline   Reply With Quote
Old 03-18-2015, 06:16 PM   #1753
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

So what are you sayin'
EO2K is offline   Reply With Quote
Old 03-18-2015, 06:25 PM   #1754
Junior Member
iTrader: (1)

Join Date: Nov 2009
Posts: 107
Total Cats: 3
Default

I'm saying I am a part of a minority that doesn't make threads because I didn't search. You're welcome lol
duhafnusa4 is offline   Reply With Quote
Old 03-18-2015, 11:38 PM   #1755
Junior Member
iTrader: (1)

Join Date: Nov 2009
Posts: 107
Total Cats: 3
Default

OK people, i just got it all wired up and installed, but its not starting. This diagram I made a derp in that I made 2 plugs at the oem coils. Looking at my car its just 1 plug with 3 wires. The 2 signals (1 and 4) and (2 and 3) and the +12V. Ill update the drawing tomorrow. But still from the wiring diagram I made it should fire and run, but I am getting nothing. :/ Ill be doing some diagnostics this week.
duhafnusa4 is offline   Reply With Quote
Old 03-18-2015, 11:47 PM   #1756
Junior Member
iTrader: (1)

Join Date: Nov 2009
Posts: 107
Total Cats: 3
Default

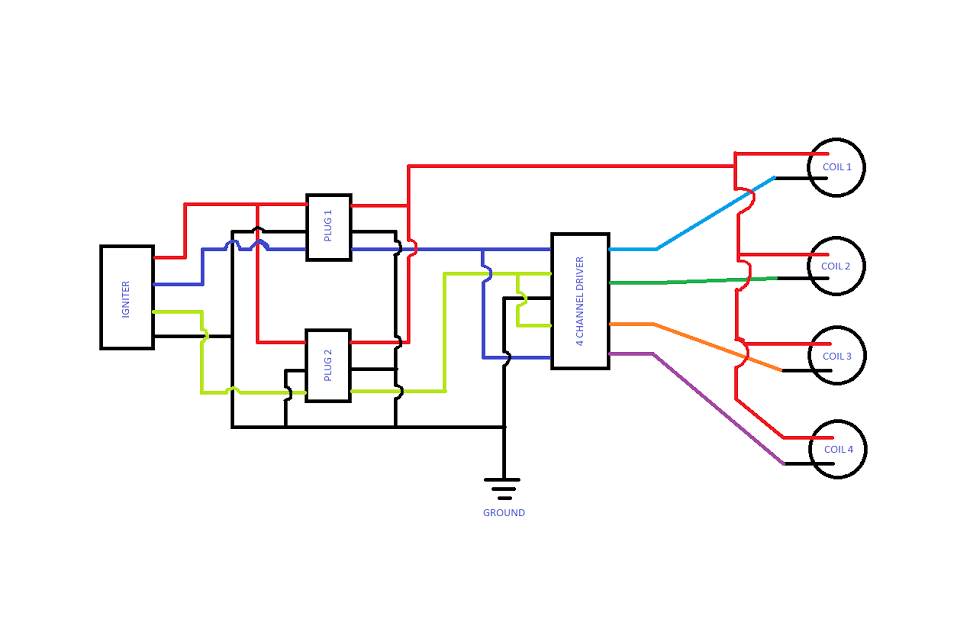

here is the updated drawing:

Attached Thumbnails
COP Thread-90-93_miata_cop_wiring.png
duhafnusa4 is offline   Reply With Quote
Old 03-19-2015, 12:58 AM   #1757
Junior Member
iTrader: (1)

Join Date: Nov 2009
Posts: 107
Total Cats: 3
Default

OKOKOK I got it going running like a baws!

My issue was that I was leaving the stock power igniter plugged in (derp). You can use the 3 pin plug near the coil, but to do so, you must just outer 2 pins on the 8 pin stock igniter plug. This allows the trigger signal to be sent to the 3 pin plug, making the wiring shorter, and no need to hack up your stock parts

After more testing, I plan on getting all the exact wire dimensions, part numbers, etc. and making a diy, not to undercut the fab9 pieces (they are quite nice), but to undercut the fab9 pieces (they are quite pricey) and for those who dont want to have to hard wire in their plugs. (reversibility is a nice thing ) I was also depressed by the lack of information on wiring for these types of coils in the miata community. Going else where and just looking at how they operate was how I did it, but having a nice DIY will help others who dont like nor want to use the toyota coils.

remember that when using these coils, you need plugs that have the screw off head, since these are originally motorcycle coils (smaller accepting point in coil). Denso makes some good ones.
duhafnusa4 is offline   Reply With Quote
Old 08-14-2015, 04:43 PM   #1758
Newb

Join Date: Jan 2008
Location: Athens, Greece
Posts: 44
Total Cats: 0
Default

Hello guys...I received the Fab9 COP kit which I proceeded to install to my car that was already having coil pack problems(had swapped mine with a friends one and most of issues went away).

* The car is 1991 with an DIYAutotune MSPnP *

The kit was great quality, followed the instructions(after doing the stupid mistake on wiring them to...nowhere once) and the car was now starting and running smoothly. Drove the car hard for literally 24h and I now have to issues:

a) The RPM/tach signal doesn't work. Connected the 1k Ohm 0.25 Watt resistor exactly as the diagram asks but I get no tach signal at all RPM is dead.

All wires are hardwired after the 8 pin igniter connector directly to the car's harness and all cop related readings and operation feel and look fine.


b) After 24h with the car running with cops the alternator light came on and apparently the alternator is not charging. This could be random failure but since the only thing changed -from the electric side of things- was this wanted to know if it could be somehow connected.


Tried to contact Fab9 about the RPM/tach signal issue that shouldn't actually exist since wiring is following instructions to the letter but no success...
Mythos is offline   Reply With Quote
Old 02-06-2017, 06:41 PM   #1759
Newb

Join Date: Mar 2016
Posts: 13
Total Cats: -8
Default

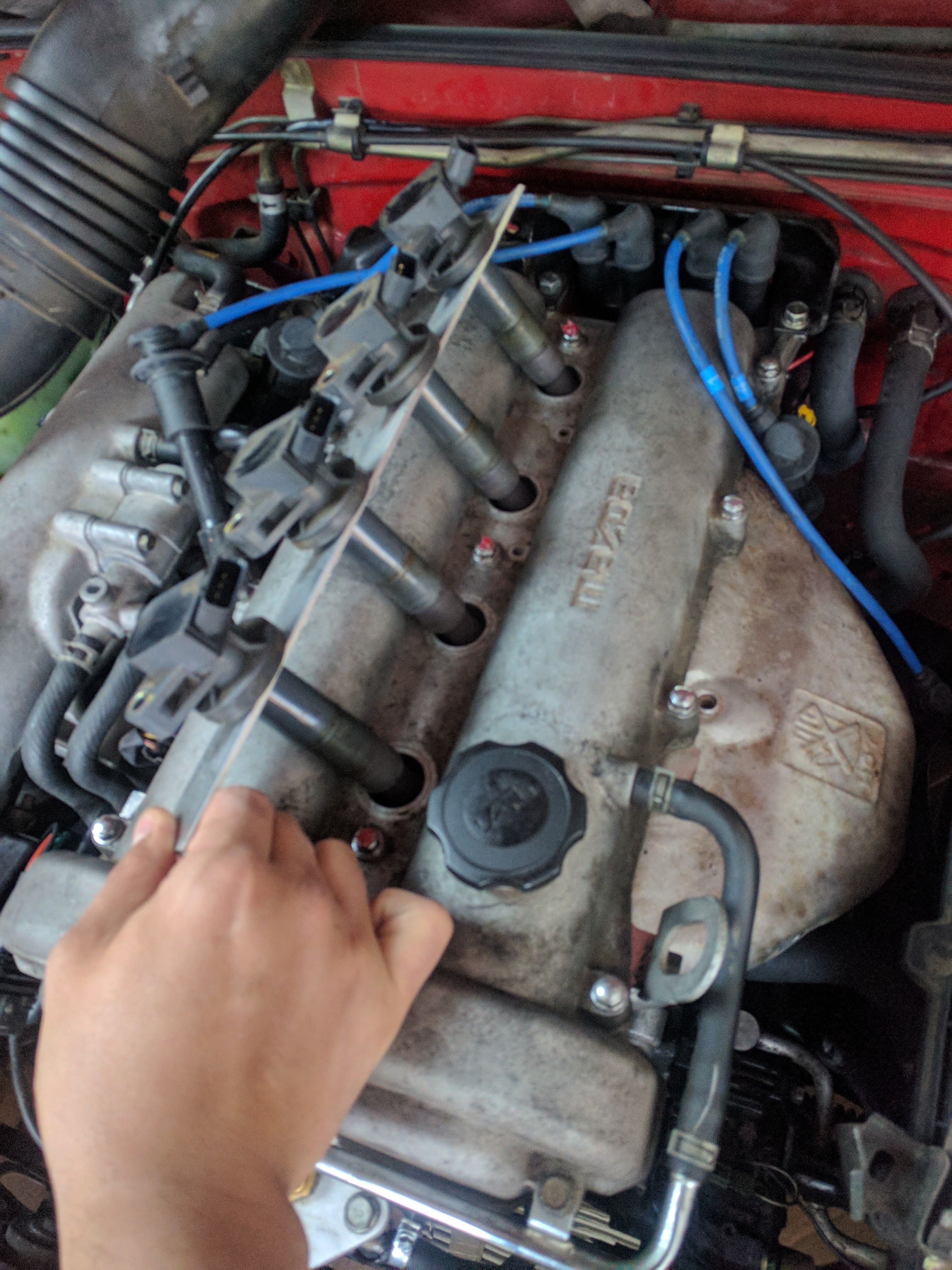

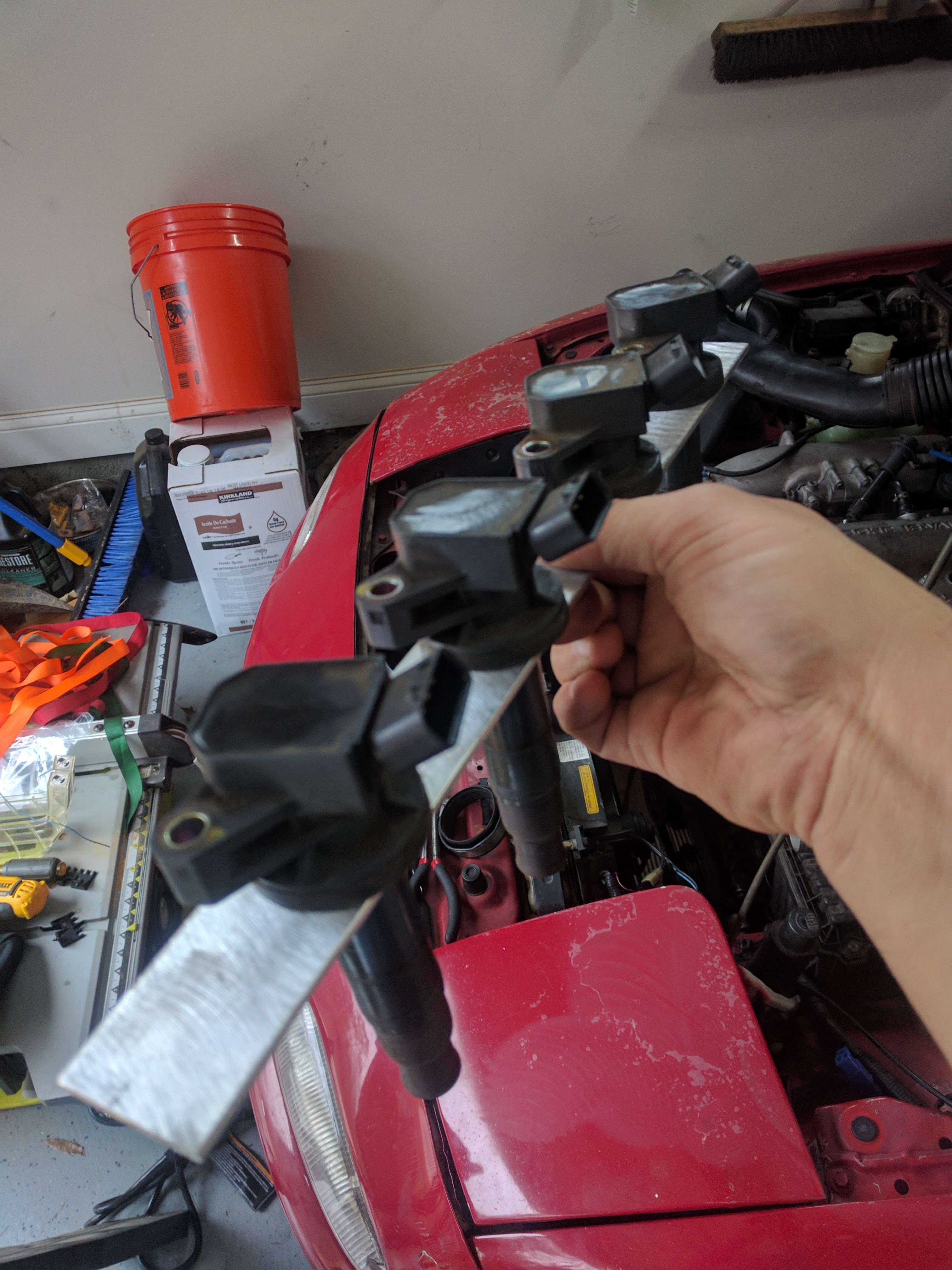

Ok, well, not to dig up an old thread but I wanted to post some PDF's for anyone that wants to make a braket to hold down the coils. Also here are some rough measurements as well.

Valve Cover Bolt size - ~7mm diameter
Spark plug hole size - ~1in
Front of Valve Cover to 1st bolt - ~1.5 inches
First bolt to first plug - ~35mm
Between each plug hole - ~85mm
Between SP hole 2 and bolt 2 - ~43mm
Between bolt 2 and SP hole 3 - ~43 mm
Between SP 4 and bolt 3 - unknown (see below)

- Used a 1x5 in by 36" piece of flat bar aluminum from Home Depot

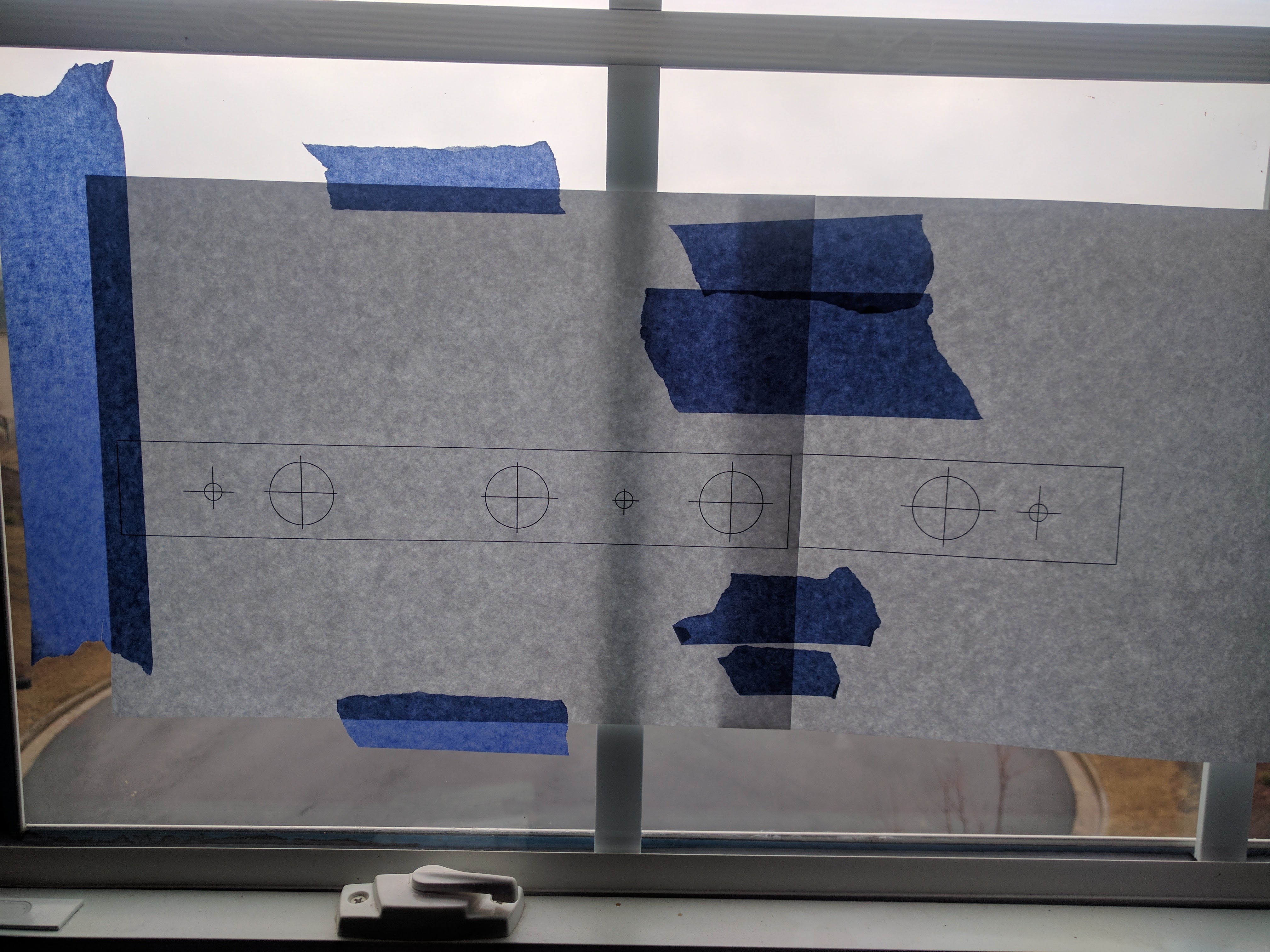

- I created this in illustrator (first time doing it) and put it on two 8.5x11 sheets of paper. Printed those out, and aligned them in the window and then verified 85mm between SP hole 3 and 4.

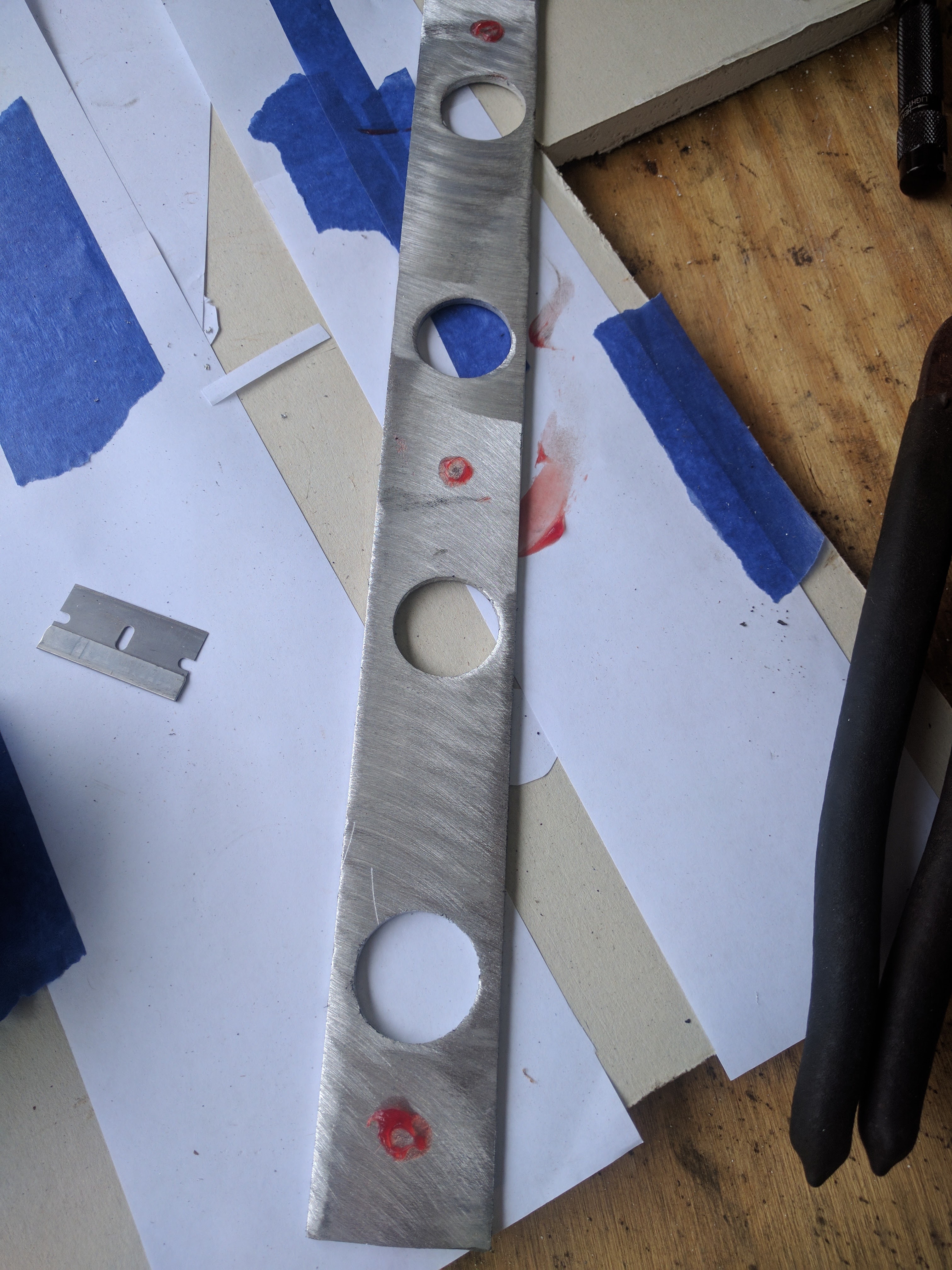

- Taped and used a center punch to mark the holes, then drilled the 4 SP holes using a 1" hole saw (not great, seemed to of destroyed the 1" bit, but it worked)

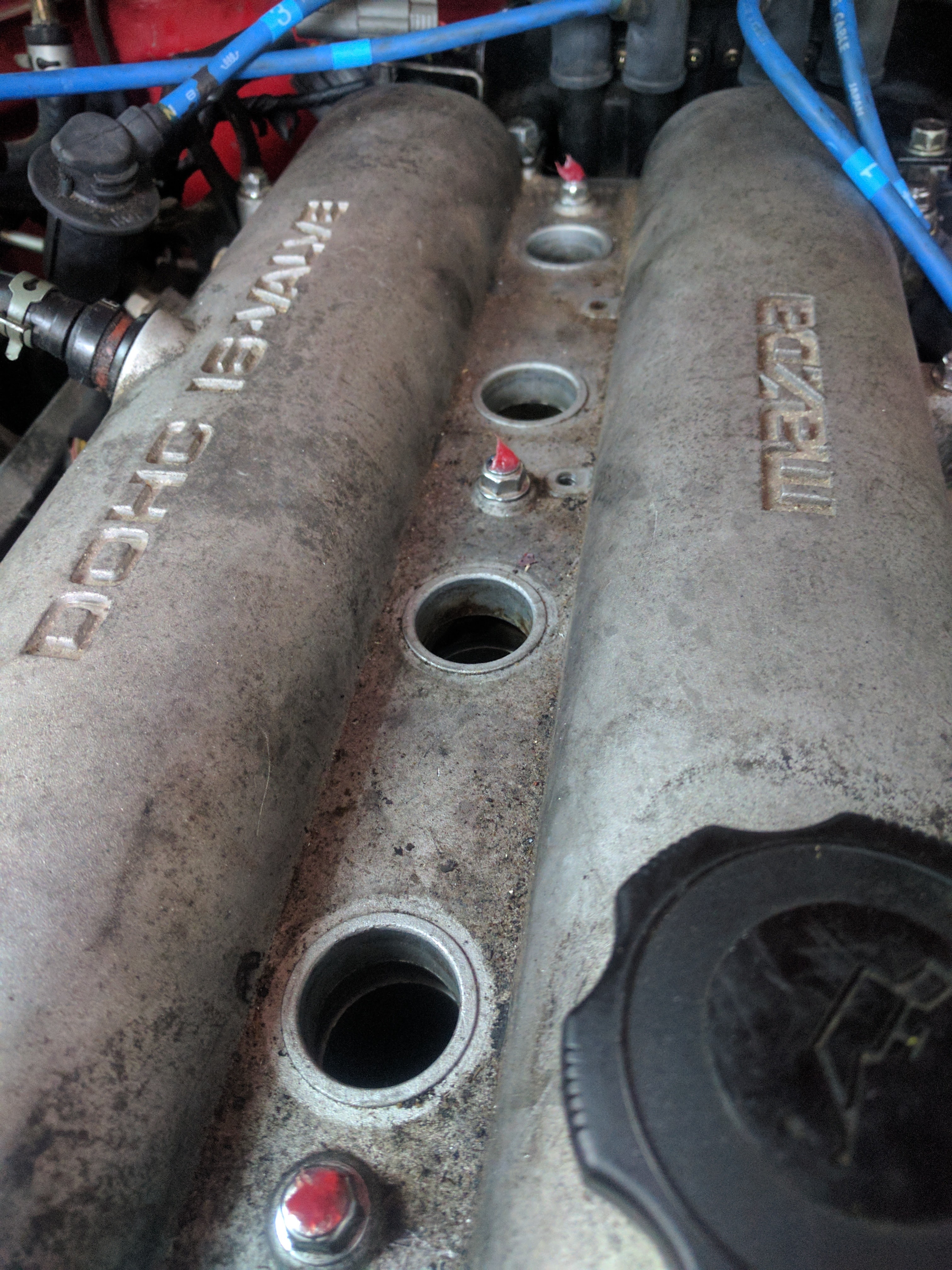

- Rather than drilling the VC bolt holes, I did a method mentioned earlier. A dab of grease on the 3 bolt heads, and pressed the flat bar down to mark the holes (see photos) While not great,and not producing a 100% square bracket/mount, again it works

Someone sells this bracket for $40 + shipping (trackspeed maybe?) I am $30 into it after the flat stock and hole saw, and still need some hardware. Probably should have just bought it from TS, but if you have the hole saw and or flat stock already this may help.

The ZIP file contains the Illustrator files as well as the PDF's

If you want to use this as a starting point and make it better, please do!
Attached Thumbnails
COP Thread-img_20170206_160755.jpg   COP Thread-img_20170206_164758.jpg   COP Thread-img_20170206_164807.jpg   COP Thread-img_20170206_164827.jpg   COP Thread-img_20170206_164920.jpg

Attached Files
File Type: zip Miata COP Bracket.zip (4.41 MB, 5 views)
File Type: pdf Page1-Miata-COP.pdf (772.9 KB, 35 views)
File Type: pdf Page2-Miata-COP.pdf (773.8 KB, 61 views)
Woogi is offline   Reply With Quote
Old 02-27-2017, 10:39 AM   #1760
Newb

Join Date: Aug 2016
Location: Minneapolis Minnesota
Posts: 3
Total Cats: 2
Default

So, reading through the thread I'm noticing bits and pieces of LS coil information, but not a ton. Maybe i missed it! anyway, i was wondering if anyone has made the LS coil a coil on plug, i used a protege boot and a Miata stock boot together and it fits nice and snug. But i can't help but think someones already done it and has a better way. Google only pulls up the FM and SadFab style mounts. Does this look familiar to anyone else coil setup?
BRG21 is offline   Reply With Quote
