Well here we go folks.

Attached Thumbnails

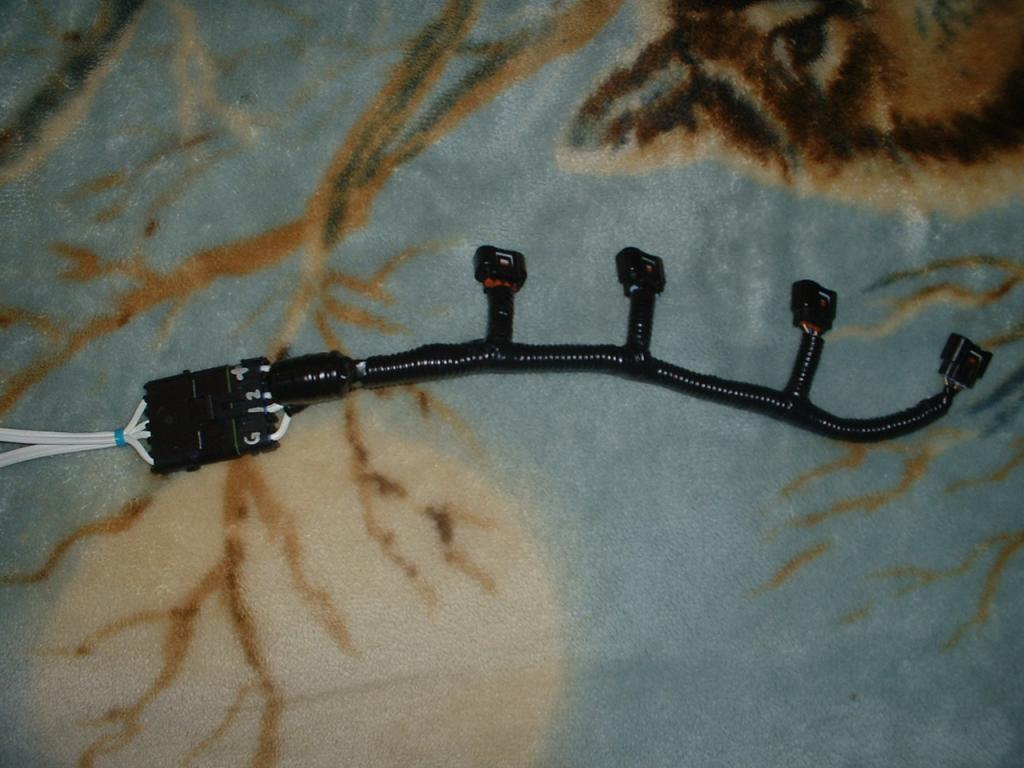

COP Thread-dscf0001_zpsc2be1ae9.jpg
triple88a is offline   Reply With Quote
Old 08-29-2013, 08:15 AM   #1602
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

Quote:
Originally Posted by triple88a View Post
Has any of you folks been able to find a voltage vs dwell chart for the Toyota cops?

Similar to this?

yes. ive posted it a few times for you lazies who cant take Jason's dwell curve findings, apply a little 3rd grade math and figure it out for yourself...
Braineack is offline   Reply With Quote
Old 08-29-2013, 08:46 PM   #1603
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

...this thread is 81 pages long, sorry i missed it. Dont make the mistake thinking i havent searched for it because i have for quite a while.
triple88a is offline   Reply With Quote
Old 08-30-2013, 09:13 AM   #1604
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Alright now that i learned what that graph is called i can actually search for it (before google showed like 2-3 non specific results and then bunch of chinese symbols). It appears that at 7 volts you would be running these things for ~5ms. That said if one runs these things in series of pairs it should bring down the voltage per coil to ~7 volts. Am i crazy for trying it? (To eliminate the need for a dwell reducer while running on stock ecu).

Would the trigger mix things up?
triple88a is offline   Reply With Quote
Old 08-30-2013, 09:16 AM   #1605
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

lolwut?
Braineack is offline   Reply With Quote
Old 08-30-2013, 09:18 AM   #1606
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

I searched against my posts with the search term: dwell battery cops

this was the first result:

https://www.miataturbo.net/diy-turbo...22/#post749575
Braineack is offline   Reply With Quote
Old 08-30-2013, 09:21 AM   #1607
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

No? When you run the coil at lower voltage you need more time (dwell) to charge it up. The stock NB1 coils are charged for 5ms. The cops on the other hand are only for 2.3ms however at 7 volts they have to be charged for 5ms therefore running them in series should lower the voltage at the coils to 7 volts. Or am i thinking this completely wrong?
triple88a is offline   Reply With Quote
Old 08-30-2013, 09:26 AM   #1608
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

read my post.
Braineack is offline   Reply With Quote
Old 08-30-2013, 09:38 AM   #1609
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

I did. I saw that thread. I also saw another one with a graph that continued your numbers so ~7 ends up about 5ms.
triple88a is offline   Reply With Quote
Old 08-30-2013, 09:49 AM   #1610
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

well lets just hope your NB doesn't ever run at 7v.
Braineack is offline   Reply With Quote
Old 08-30-2013, 09:51 AM   #1611
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Braineack View Post
well lets just hope your NB doesn't ever run at 7v.
Right however wouldnt connecting them in series lower the voltage per coil to 7ish volts?

We have 4 coils. You connect the + of the 1st coil to +, you connect the - of the 1st coil to the + of the 4th coil, then the - of the 4th coil to ground. Same for the 2nd and 3rd coils.
triple88a is offline   Reply With Quote
Old 08-30-2013, 09:52 AM   #1612
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

lolwut?!
Braineack is offline   Reply With Quote
Old 08-30-2013, 10:01 AM   #1613
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Not sure if sarcasm of confused. I can bust out the MS paint if you need me to :P
triple88a is offline   Reply With Quote
Old 08-30-2013, 10:10 AM   #1614
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

why?
Braineack is offline   Reply With Quote
Old 08-30-2013, 10:26 AM   #1615
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by thasac View Post
For those running COPs on their 1.6, did you add a second ground to the head?

I noticed there are 2 'lazzer' diagrams floating around the internet and one utilizes the OEM harness ground wire and the other adds an additional ground at the head.

I was going to opt of of the second ground since it seems like over kill and it's one more piece of cooper spagetti cluttering up my bay.

-Zach
Figured I'd follow up in this thread with my results (even though it's in my build thread). Huge thanks to Lazzer/Brain and the rest of the forum for making this so damn easy.







With a little bit of filing the COPs fit great sideways. No excuse not to go this route since the wiring runs so much cleaner and you can use the cam cover bolts to secure the harness (important if you soldered the splices like me).

-Zach
Attached Thumbnails

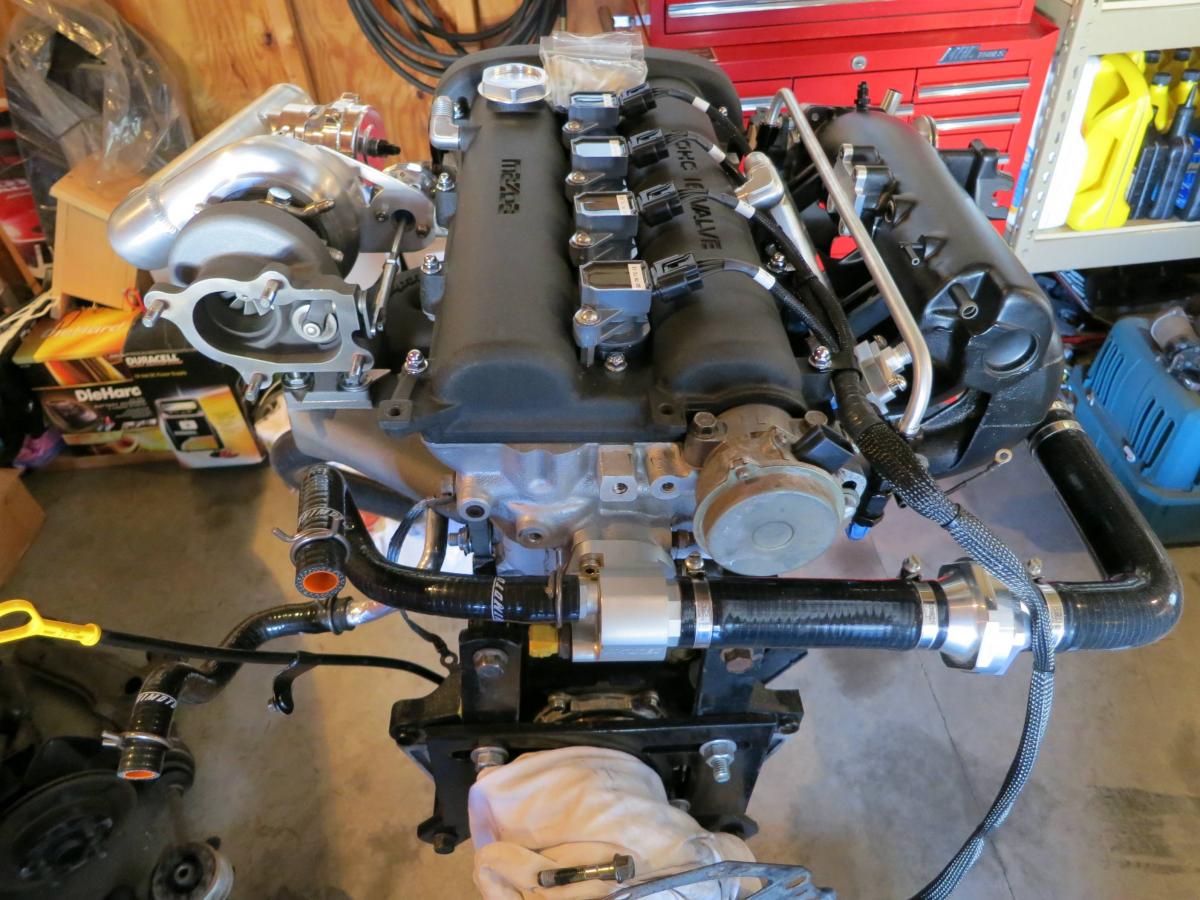

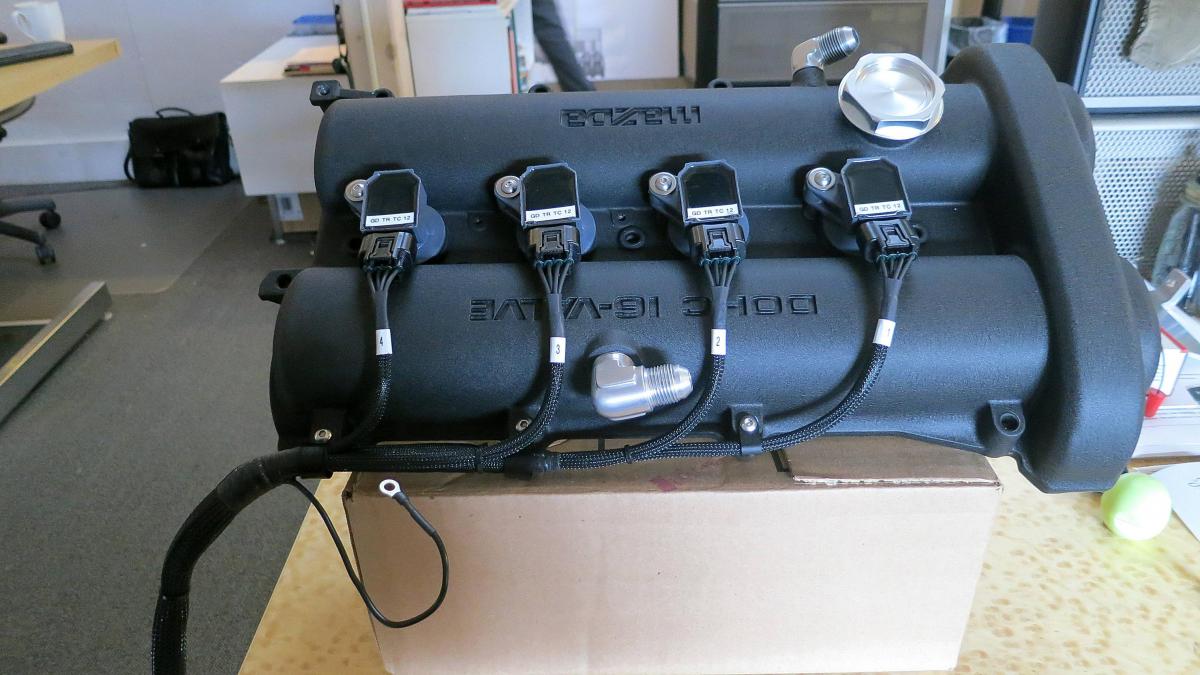

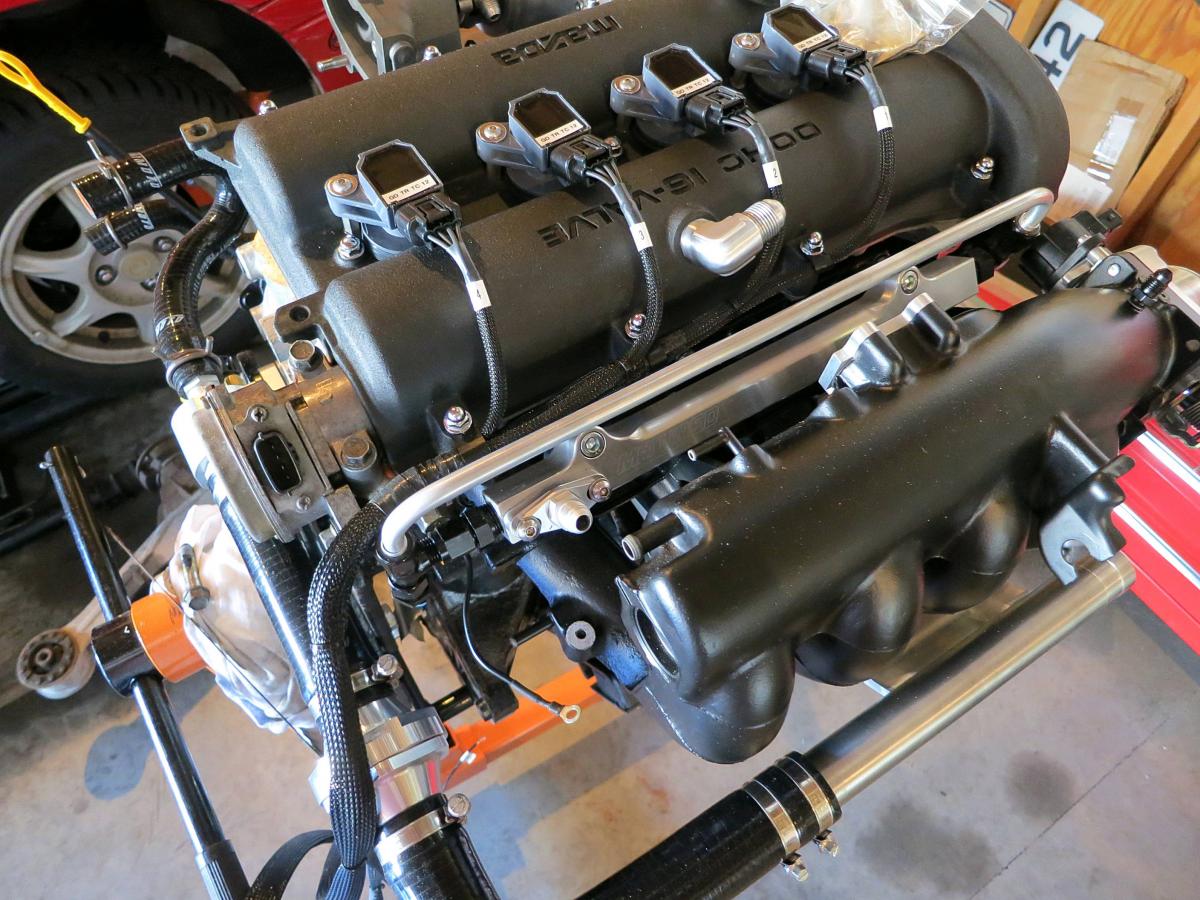

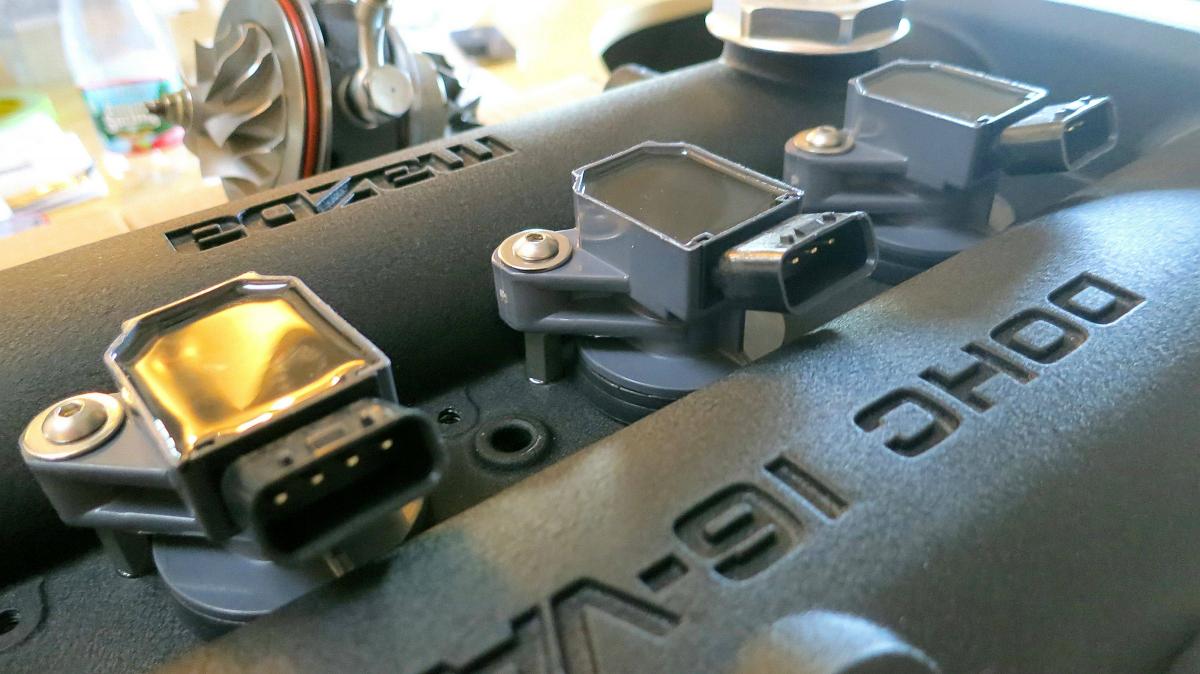

COP Thread-9w8qpom.jpg   COP Thread-00omuxr.jpg   COP Thread-1ybvnyo.jpg   COP Thread-4b55lc7.jpg
thasac is offline   Reply With Quote
Old 08-30-2013, 12:24 PM   #1616
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,662
Total Cats: 1,560
Default

Quote:
Originally Posted by triple88a View Post
Not sure if sarcasm of confused. I can bust out the MS paint if you need me to :P
I'm not an EE but I don't believe you cut the voltage in half by running coils in series. You would likely double the ohms by running them in series, but not halve the voltage..

But why wouldn't you run them in parallel?
sixshooter is offline   Reply With Quote
Old 08-30-2013, 01:15 PM   #1617
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

each coil will have 1/4 the battery voltage, so ~3.5v.

good luck with your .0000001" spark gap.

also, you realize when one coil goes bad they all go bad? going to be interesting to see what happens when the first coil fires...as that would most likely momentarily cut power to the rest as it when send the power through the coil.
Braineack is offline   Reply With Quote
Old 08-30-2013, 06:19 PM   #1618
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Braineack View Post
each coil will have 1/4 the battery voltage, so ~3.5v.

good luck with your .0000001" spark gap.

also, you realize when one coil goes bad they all go bad? going to be interesting to see what happens when the first coil fires...as that would most likely momentarily cut power to the rest as it when send the power through the coil.
God dammit and you yell at me for not reading.

4 coils... 2 pairs of series.

1st paired with 4th, 2nd paired with 3rd.

The main reason i'm trying to work around this is to be able to run these coils on the stock ecu when i have to pass emissions.
triple88a is offline   Reply With Quote
Old 08-30-2013, 06:25 PM   #1619
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,847
Total Cats: 1,788
Default

i thought it was only the msm that had issues with them on the stock ecu?


anyways yeah i failed to read.
Braineack is offline   Reply With Quote
Old 08-30-2013, 06:29 PM   #1620
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Quote:
Originally Posted by Braineack View Post
i thought it was only the msm that had issues with them on the stock ecu?


anyways yeah i failed to read.
The stock nb1 ecu charges coils for 5ms which would probably burn them, no?
triple88a is offline   Reply With Quote
