Old 09-19-2013, 11:01 AM   #1641
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Quote:
Originally Posted by Leafy View Post
Yes you do, solder is not allowed here, nor are hardware store crimp terminals.
wait, I'm missing something...no solder for the wiring harness? Is there some impedance that shouldn't be present if using solder
psyber_0ptix is offline   Reply With Quote
Old 09-19-2013, 11:04 AM   #1642
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by psyber_0ptix View Post
wait, I'm missing something...no solder for the wiring harness? Is there some impedance that shouldn't be present if using solder
Its a brittle joint on top of a vibrating engine, a recipe for failure.
Leafy is offline   Reply With Quote
Old 09-19-2013, 03:50 PM   #1643
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

Quote:
Originally Posted by Leafy View Post
Its a brittle joint on top of a vibrating engine, a recipe for failure.
In theory, yes.

In practice, a well fixtured soldered joint ... even on a BP ... should hold up on 98% of the cars on this board. At least I hope so since I soldered mine

-Zach
thasac is offline   Reply With Quote
Old 09-19-2013, 04:01 PM   #1644
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Leafy View Post
Yes you do, solder is not allowed here, nor are hardware store crimp terminals.
define: here.
Braineack is offline   Reply With Quote
Old 09-19-2013, 04:05 PM   #1645
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by Braineack View Post
define: here.
The whole site, you cannot solder your MS together, electrical connections on circuit boards must be made with Joe's semen.






Seriously, I mean here as in the cop harness.
Leafy is offline   Reply With Quote
Old 09-19-2013, 04:08 PM   #1646
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,780
Total Cats: 1,106
Default

If you are seriously considering spending $300 on the TSE COP kit I would highly suggest you go with an LS coil setup instead. Bracket and spark plug wires are $200 from FM, coils go for about $100 on ebay with all the wiring you need.
shuiend is offline   Reply With Quote
Old 09-19-2013, 04:16 PM   #1647
Boost Czar
Thread Starter
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,899
Total Cats: 1,792
Default

Quote:
Originally Posted by Leafy View Post
Seriously, I mean here as in the cop harness.
and why can't you crimp the pins with a needle nose and then solder them as well?
Braineack is offline   Reply With Quote
Old 09-19-2013, 09:50 PM   #1648
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by shuiend View Post
If you are seriously considering spending $300 on the TSE COP kit I would highly suggest you go with an LS coil setup instead. Bracket and spark plug wires are $200 from FM, coils go for about $100 on ebay with all the wiring you need.
Really? I can't find it on FM's page without the coils. With the coils they're $700+.
JasonC SBB is offline   Reply With Quote
Old 09-19-2013, 09:53 PM   #1649
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Quote:
Originally Posted by JasonC SBB View Post
Really? I can't find it on FM's page without the coils. With the coils they're $700+.
I just got the bracket from them. I think it was around $40 or so. Just call them. As they say on their website: They sell you any single item from any of their kits.
stefanst is offline   Reply With Quote
Old 09-19-2013, 09:54 PM   #1650
Elite Member
iTrader: (5)

Join Date: Aug 2011
Location: South Jersey
Posts: 1,523
Total Cats: 30
Default

Quote:
Originally Posted by JasonC SBB View Post
Really? I can't find it on FM's page without the coils. With the coils they're $700+.
Yeah I was looking early and couldn't find it either
BTMiata is offline   Reply With Quote
Old 09-19-2013, 10:54 PM   #1651
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Quote:
Originally Posted by stefanst View Post
I just got the bracket from them. I think it was around $40 or so. Just call them. As they say on their website: They sell you any single item from any of their kits.
And then you can order the wires from magnacore for like $250 shipped, at least for the VVT fitment.
Leafy is offline   Reply With Quote
Old 09-20-2013, 12:30 PM   #1652
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

I found the FM part numbers, but not the prices:

26-04320 LS Coil Bracket, 1994-05 will only work with Hydras*
26-04075 Magnecor Sequential LS coil 8. 1994-00 5mm wire set For 94-00 Hydra equipped cars (45491)
stefanst is offline   Reply With Quote
Old 09-21-2013, 03:52 AM   #1653
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,878
Total Cats: 344
Default

FM's LSx coil kit doesn't fit with the EGR pipe. Unclear if it fits with a coolant reroute or not.

--Ian
codrus is offline   Reply With Quote
Old 09-21-2013, 04:02 AM   #1654
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,131
Total Cats: 598
Default

Hmm how does it get in the way of the EGR?
triple88a is offline   Reply With Quote
Old 09-24-2013, 08:14 PM   #1655
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

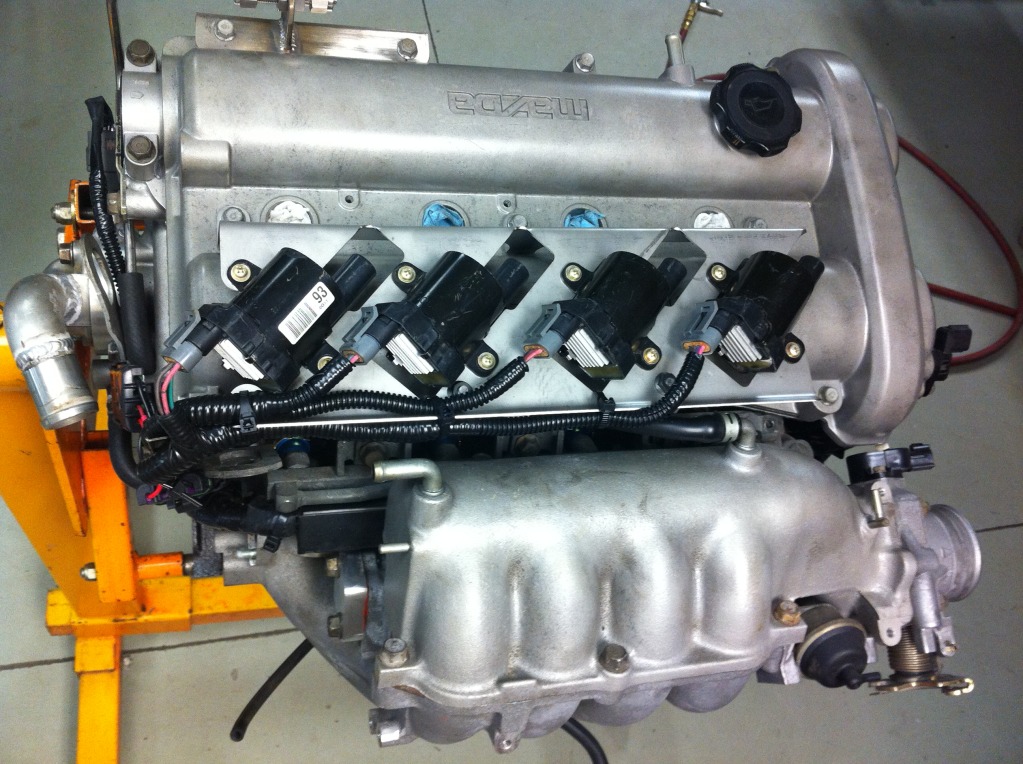

This is the way i am installing my coils, i think that they would fit on a VVT motor but have not fit tested it yet, i designed the bracket and have the DXF file if any one wants it.

Attached Thumbnails
COP Thread-null_zps6d319bb9.jpg
HHammerly is offline   Reply With Quote
Old 09-25-2013, 12:12 AM   #1656
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

The VVT pipe might be in the way, so you might have to offset the coils so that they dont interfere, or raise it up.
Leafy is offline   Reply With Quote
Old 09-25-2013, 12:48 PM   #1657
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

That actually came out really nice. Are you willing to make more mounts?
EO2K is offline   Reply With Quote
Old 09-25-2013, 06:41 PM   #1658
Senior Member
iTrader: (3)

Join Date: Dec 2007
Location: Brownsburg,IN
Posts: 800
Total Cats: 58
Default

I can make some more if there is interest in them, i paid $25 for the 316 stainless steel one.
HHammerly is offline   Reply With Quote
Old 09-26-2013, 01:39 PM   #1659
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,683
Total Cats: 1,561
Default

Quote:
Originally Posted by HHammerly View Post
I can make some more if there is interest in them, i paid $25 for the 316 stainless steel one.
What's the cost to me? It looks nice.
sixshooter is offline   Reply With Quote
Old 09-26-2013, 01:41 PM   #1660
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by HHammerly View Post
I can make some more if there is interest in them, i paid $25 for the 316 stainless steel one.
I'd absolutely be down for one.
EO2K is offline   Reply With Quote
