Old 07-01-2016, 02:48 PM   #541
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

The ducting is awesome! I'm running with mat 15 over ambient (35+ celsius) and coolant 85 cruising and 95 driving hard... never be so cold, even this winter!
Only big difference is the undertray, it's the first time I installed one.

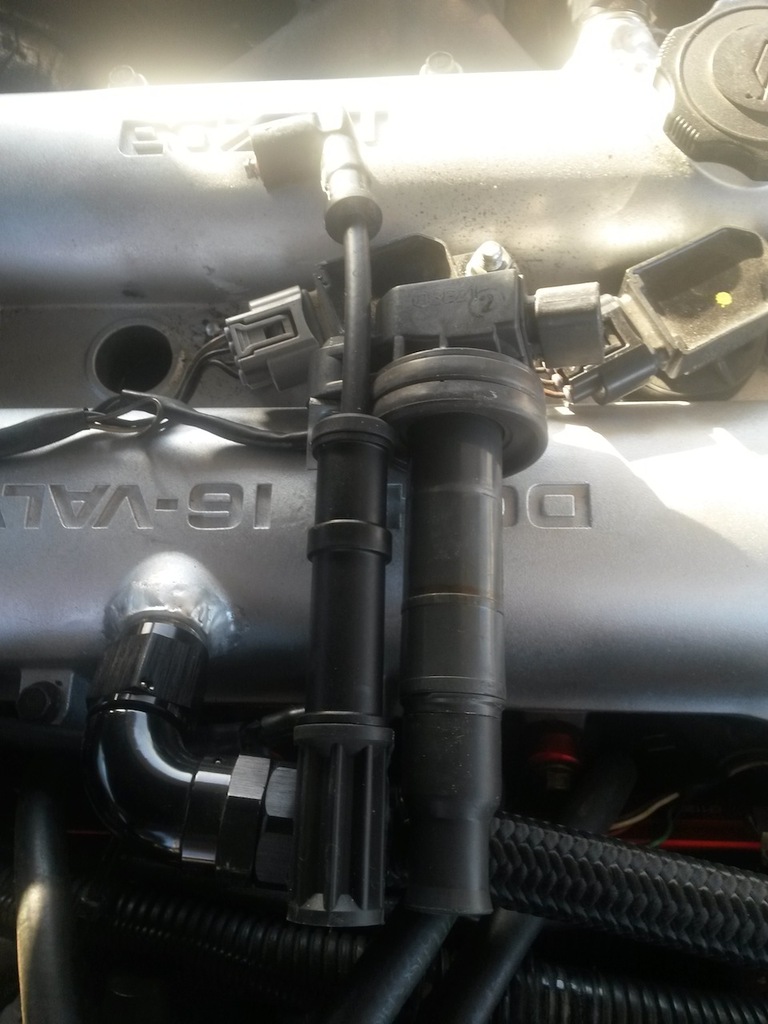

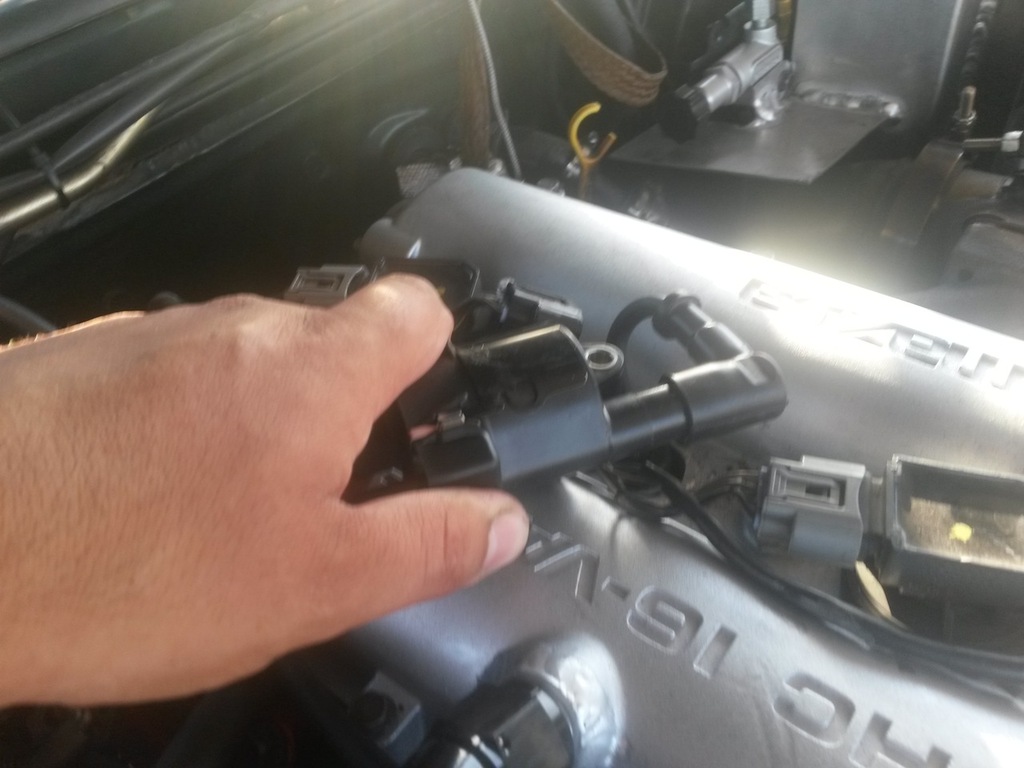

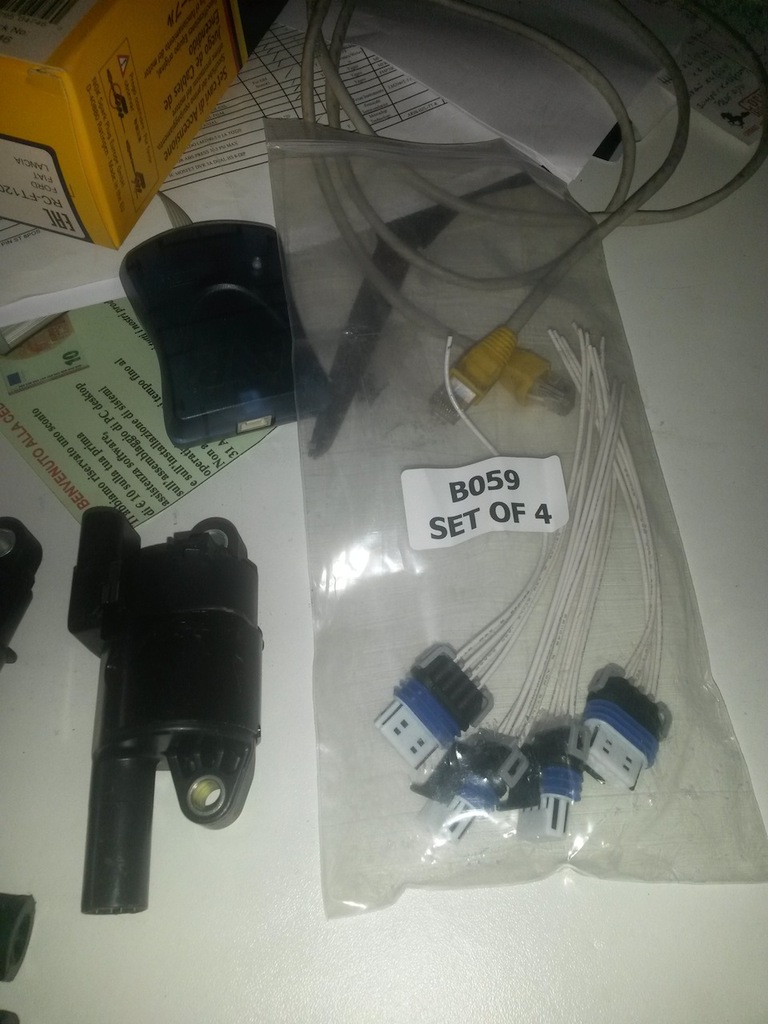

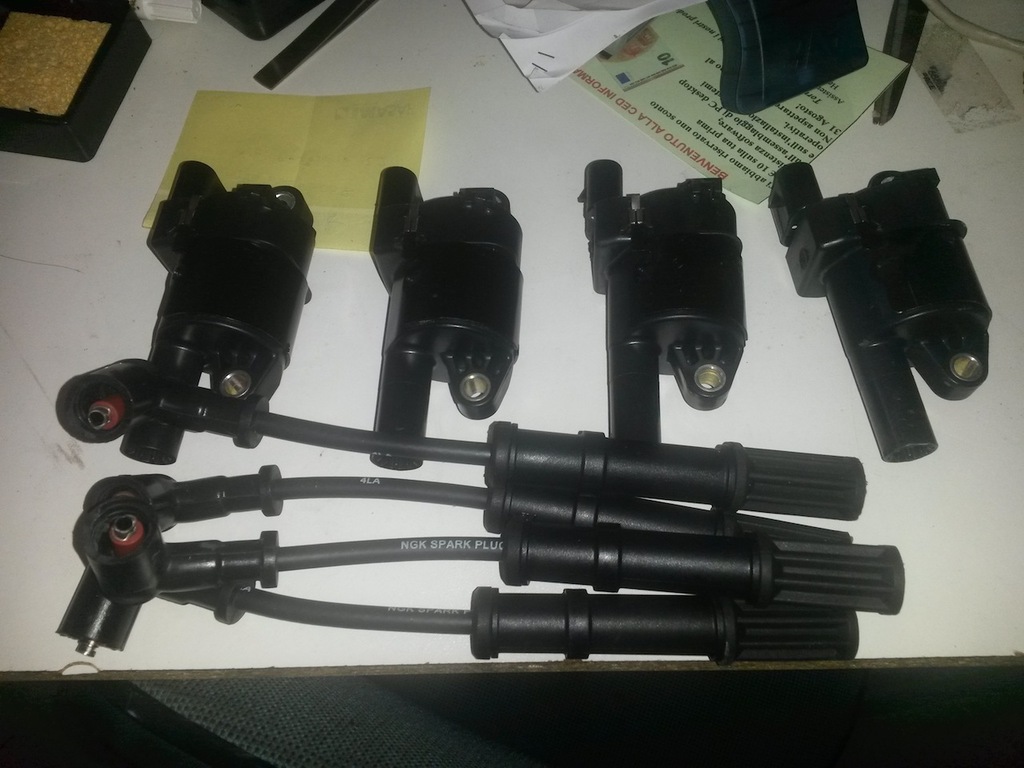

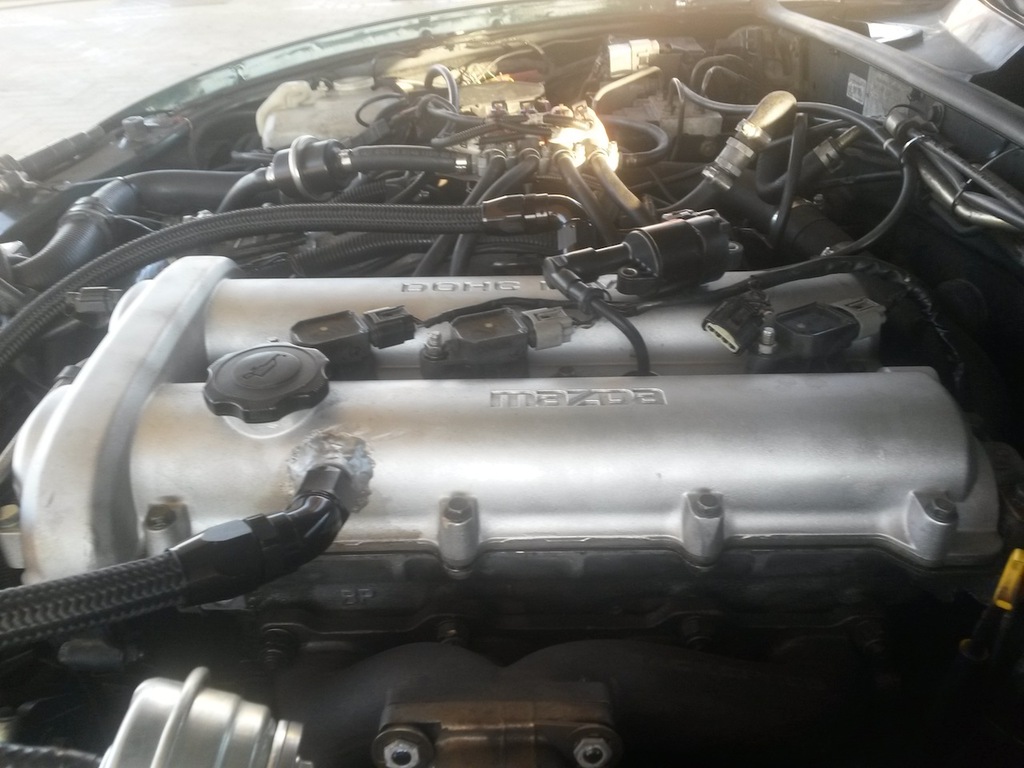

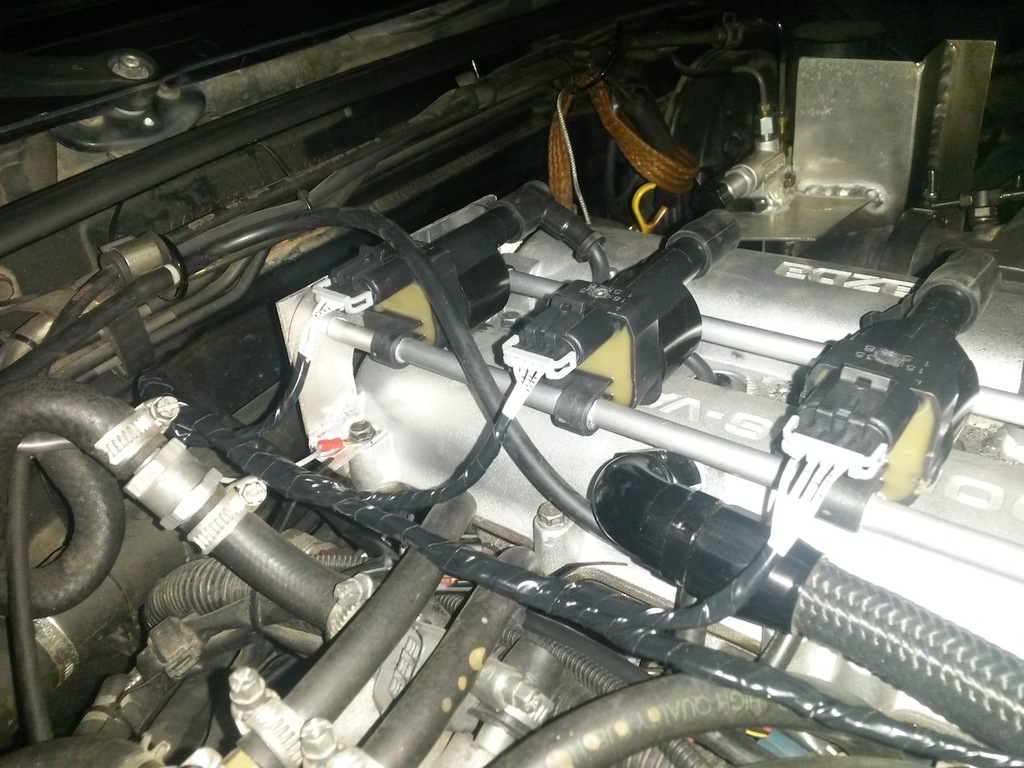

C6 coils are arrived with pigtails, just bought the spark wires too









Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20160701_191922_zpsxgij67yl.jpg   diy "turbo no hit block" '00 BP miata-20160701_193622_zps6zl6v6xm.jpg   diy "turbo no hit block" '00 BP miata-20160701_193840_zpswckh6izp.jpg   diy "turbo no hit block" '00 BP miata-20160701_194010_zpskvnco8bi.jpg   diy "turbo no hit block" '00 BP miata-20160701_194029_zps5xzu3mmx.jpg

DNA54 is offline   Reply With Quote
Old 07-02-2016, 07:44 PM   #542
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

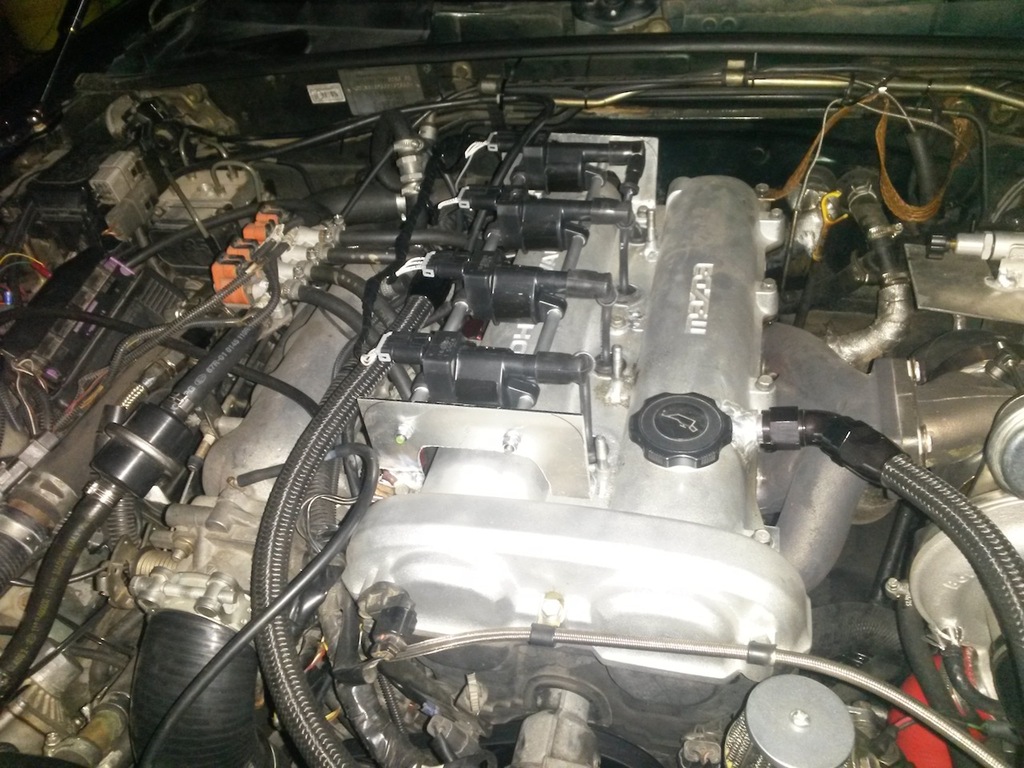

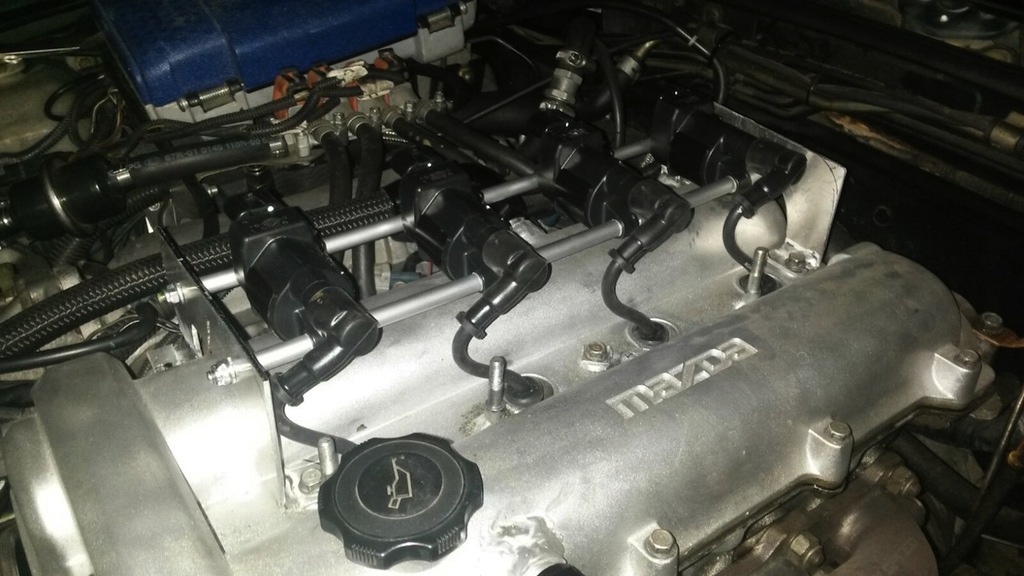

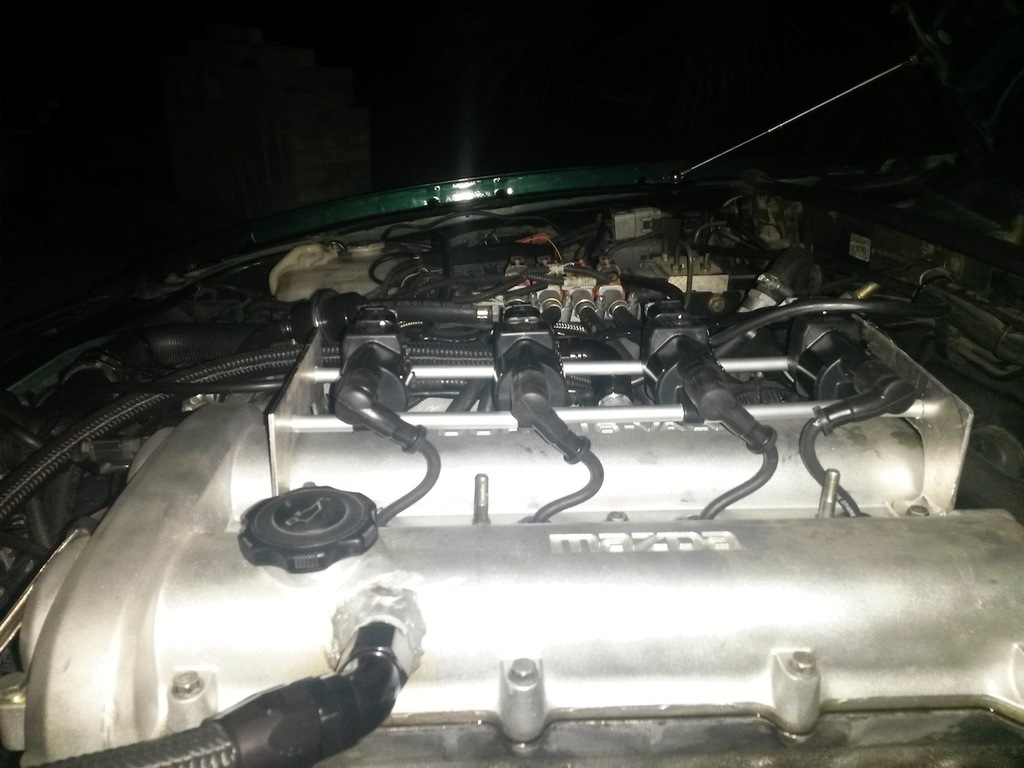

Installed:








Now the afr's turned from low 11 to mid 13, retuned and now the duty is 87% in boost... I think I must stop here, until I can take a set of ID1000
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-img-20160702-wa0029_zpsqm7yd3ti.jpg   diy "turbo no hit block" '00 BP miata-20160703_012355_zps0s5rknfw.jpg   diy "turbo no hit block" '00 BP miata-20160703_012402_zpsiapbqwb2.jpg   diy "turbo no hit block" '00 BP miata-20160703_012419_zpsotj1o1uj.jpg
DNA54 is offline   Reply With Quote
Old 07-09-2016, 06:58 PM   #543
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

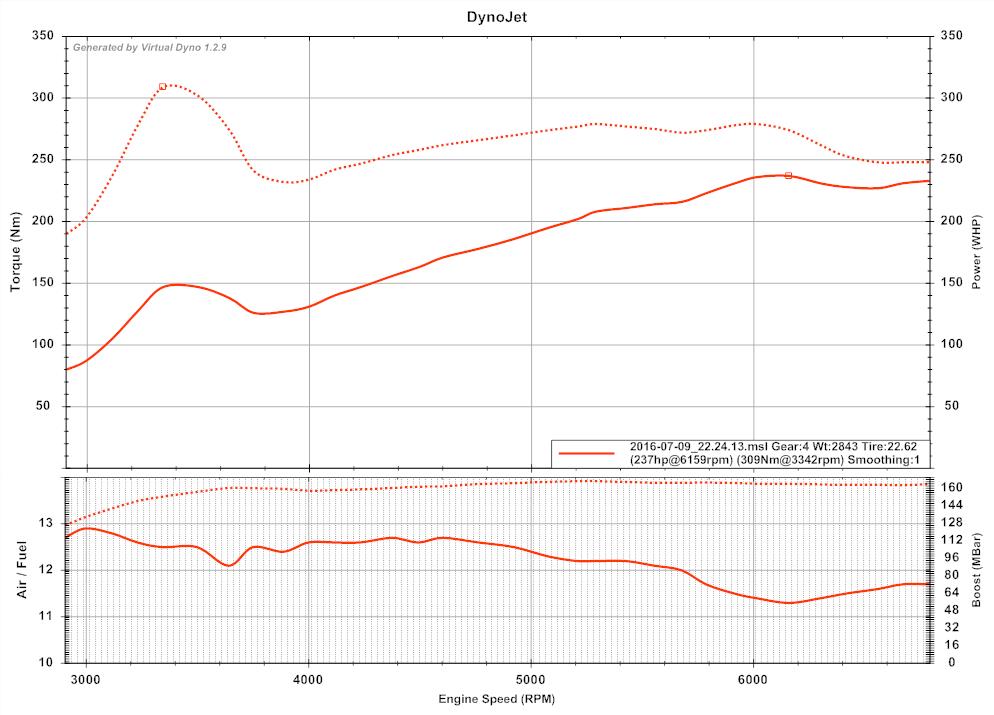

VD done on pure LPG, without any gasoline injection. Consider that before 4000 the clutch slipped a little bit, but in my opinion it's a great result!

diy "turbo no hit block" '00 BP miata-gpl_zpsyfhsokud.jpg
DNA54 is offline   Reply With Quote
Old 07-23-2016, 03:38 AM   #544
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

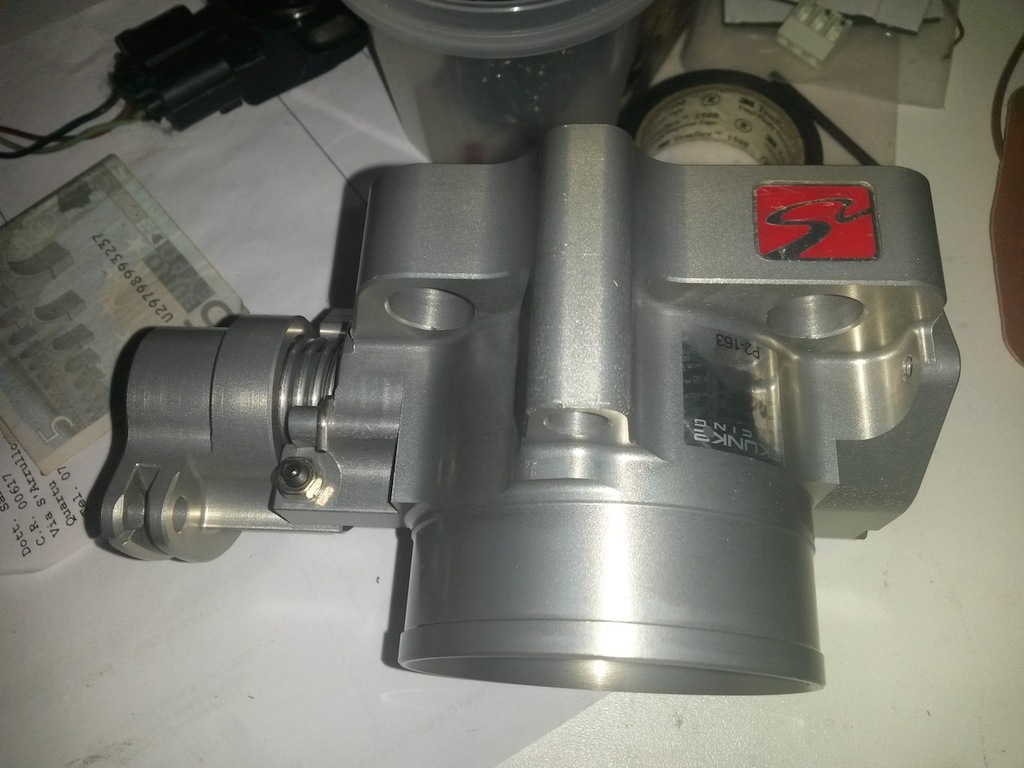

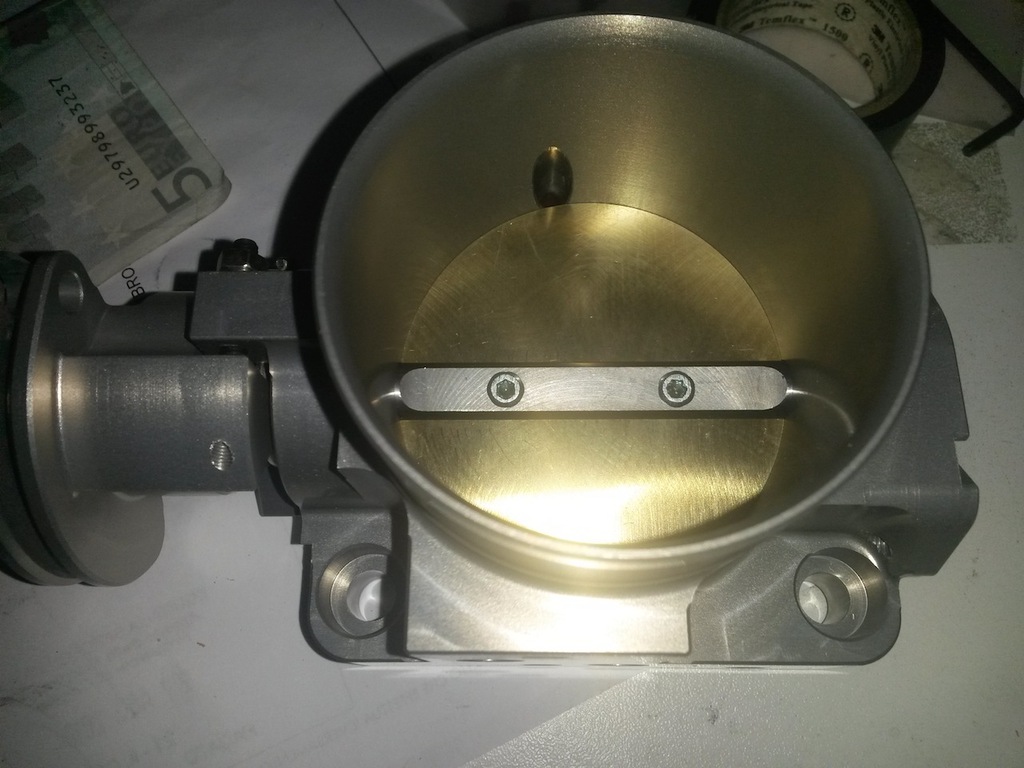

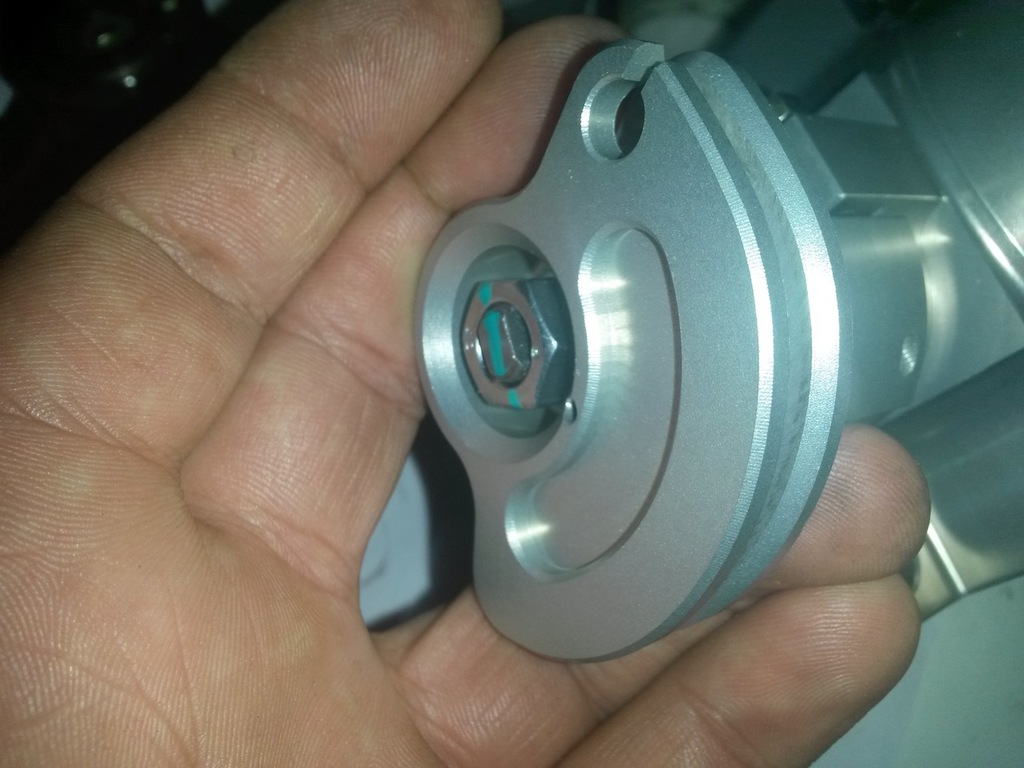

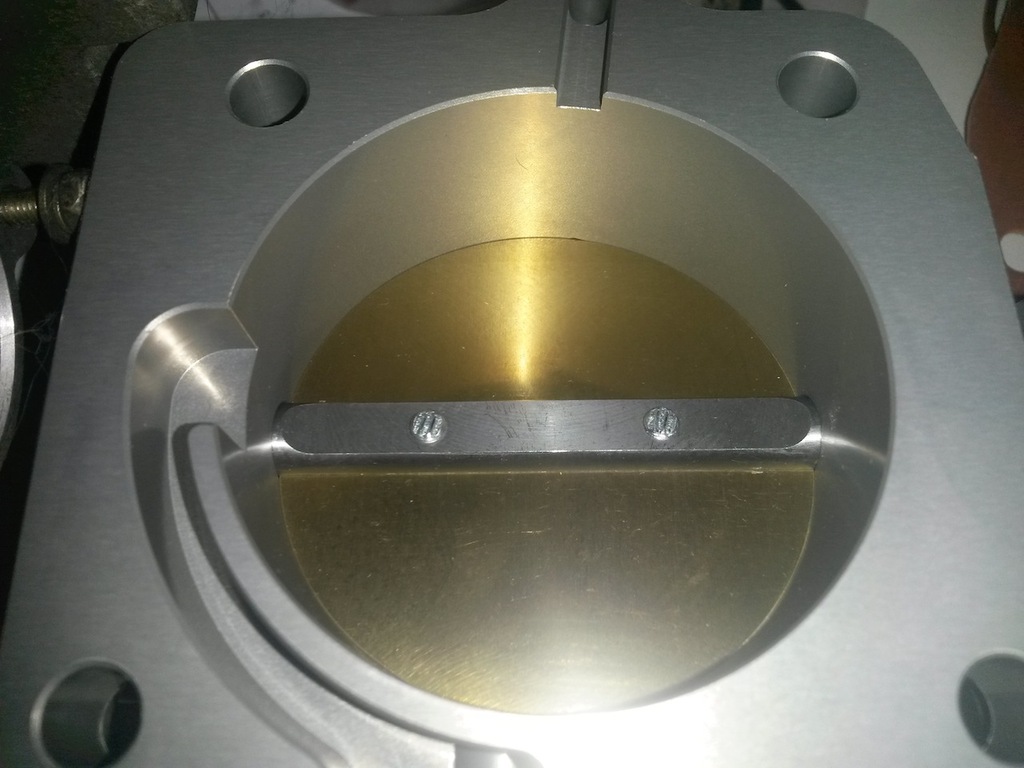

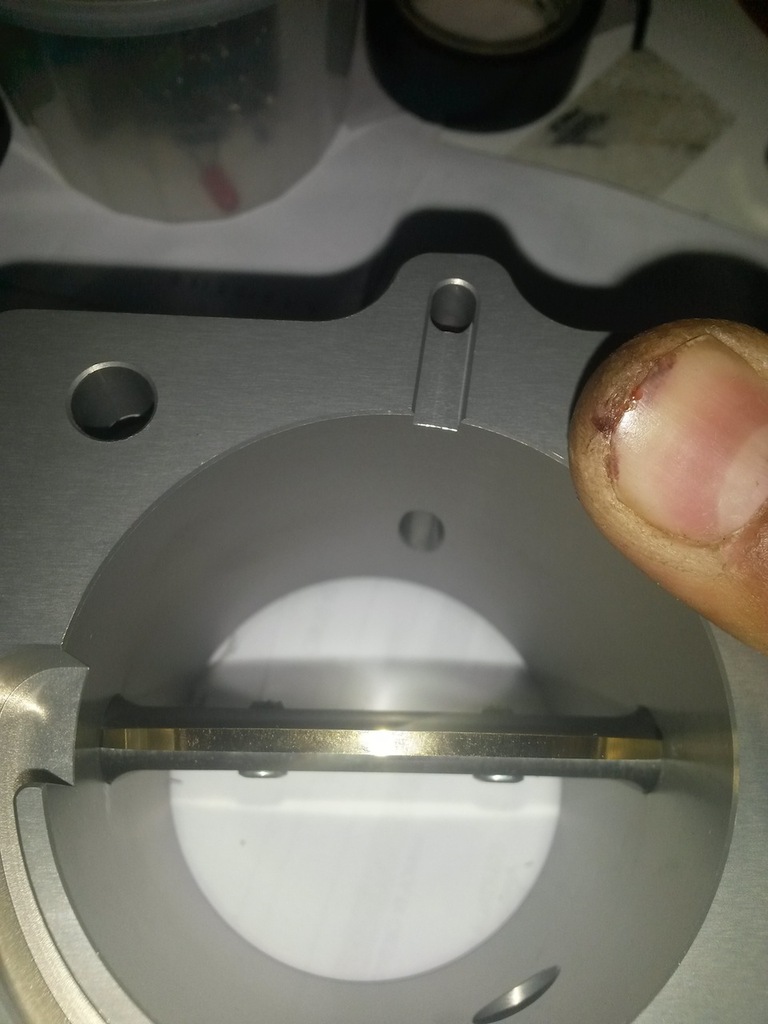

Skunk2 arrived











Beautiful piece, everything is cnc made

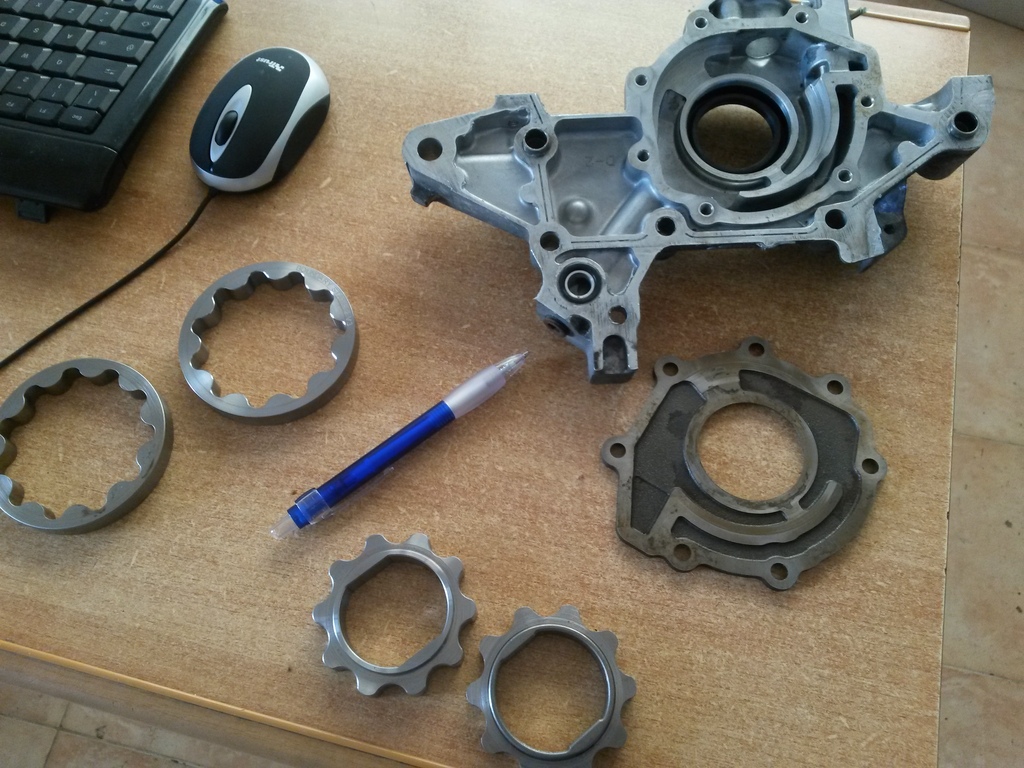

Billet gears are now installed into a housing (thanks curly!), other misc are arrived, like 2.75-2.5 reducer for the skunk2, new 10AN line for the oil return, new set of gaskets, all ARP for head, mains, rods and flywheel too, gates timing belt and adjustable pulleys.
Everything will be balanced this time. Engine will be opened soon
DNA54 is offline   Reply With Quote
Old 08-07-2016, 09:17 AM   #545
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

This week I opened the engine, everything was fine, no signs of det on the pistons, just very dirty because of the supertech rings

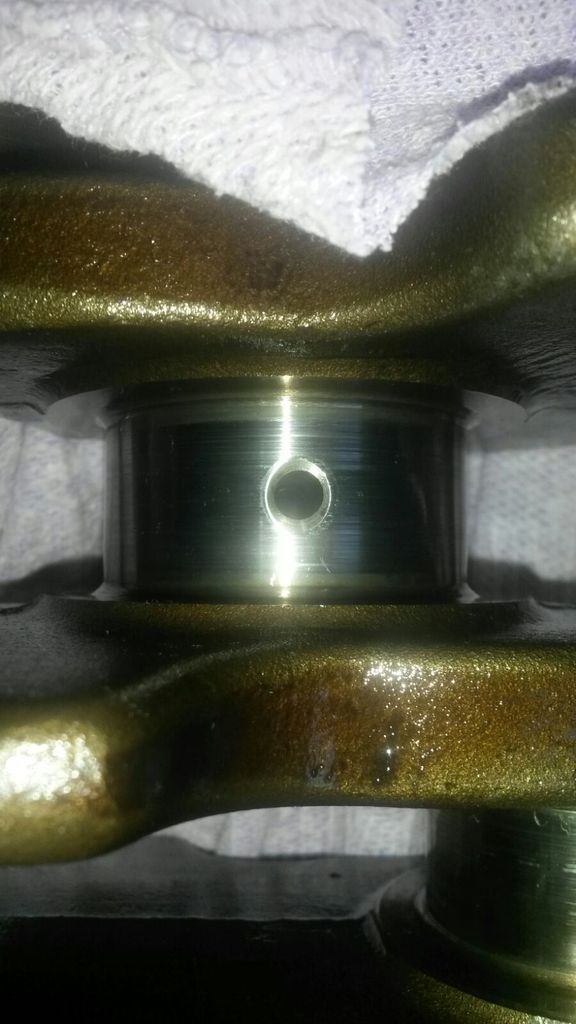

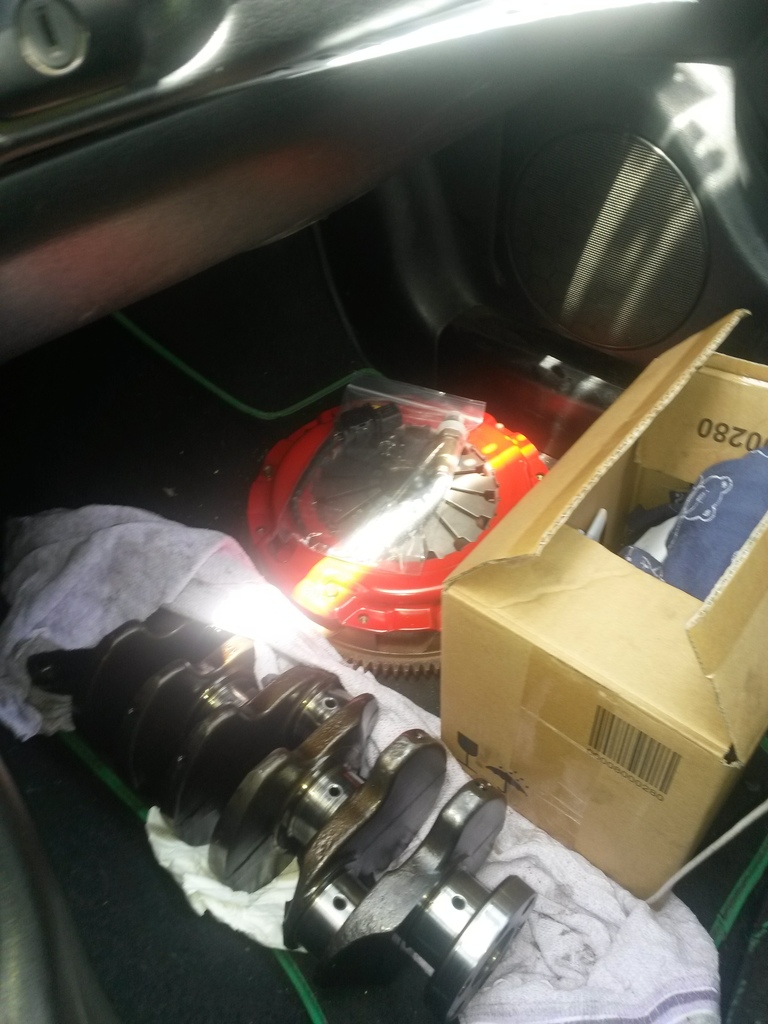

Crankshaft was balanced with pulley, flywheel and clutch. Rod bearings are good, but the mains have to be changed with std ones

oil pump machined to accomodate billet gears

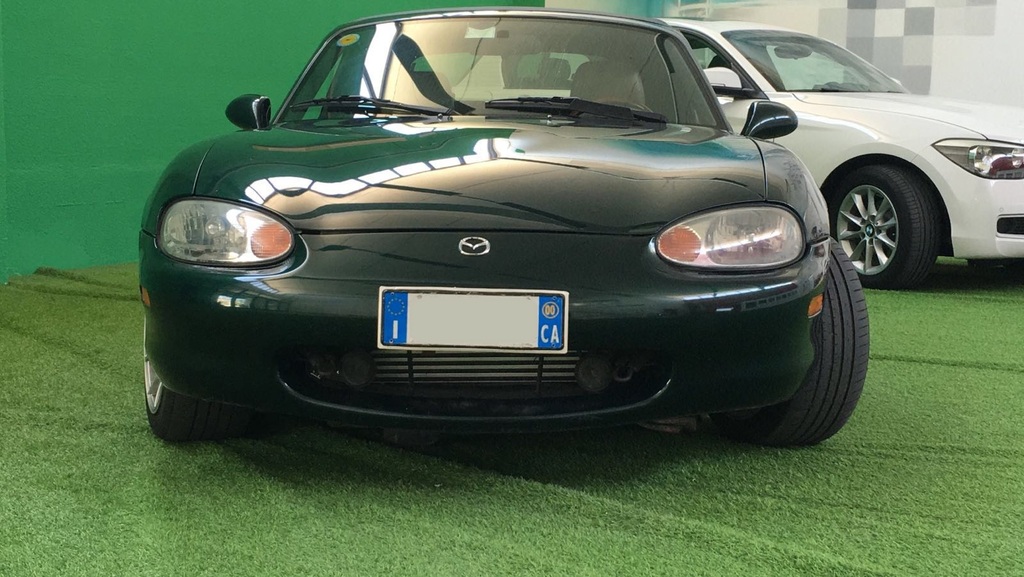

Detailing made by a friend (thanks again!!)

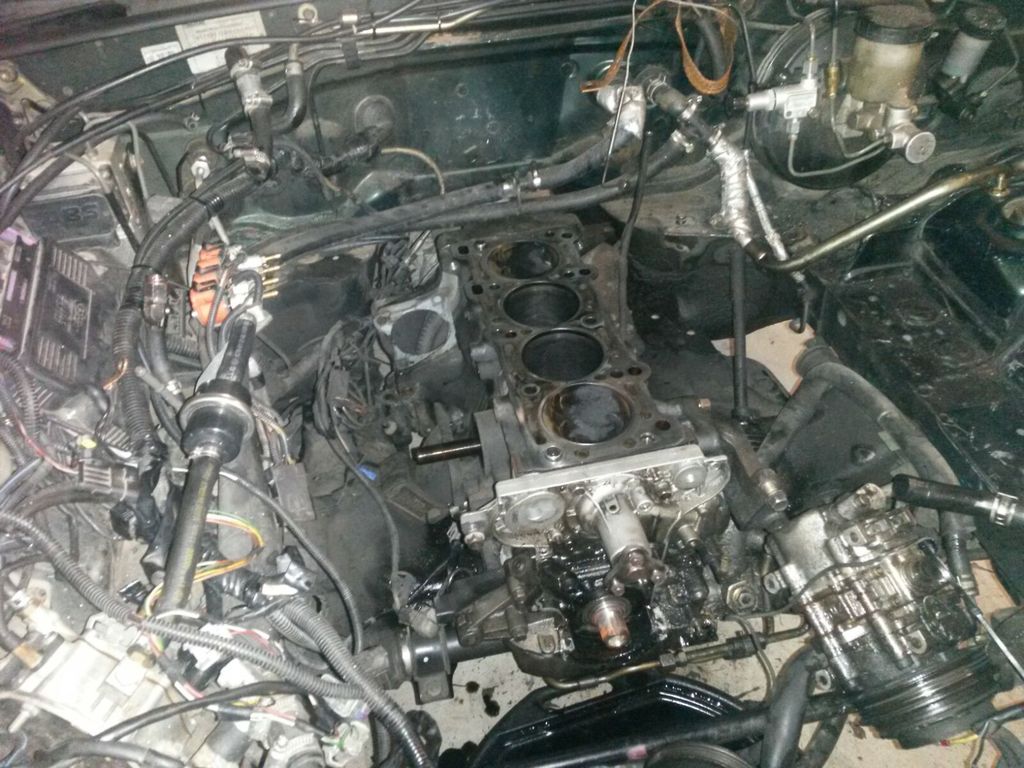

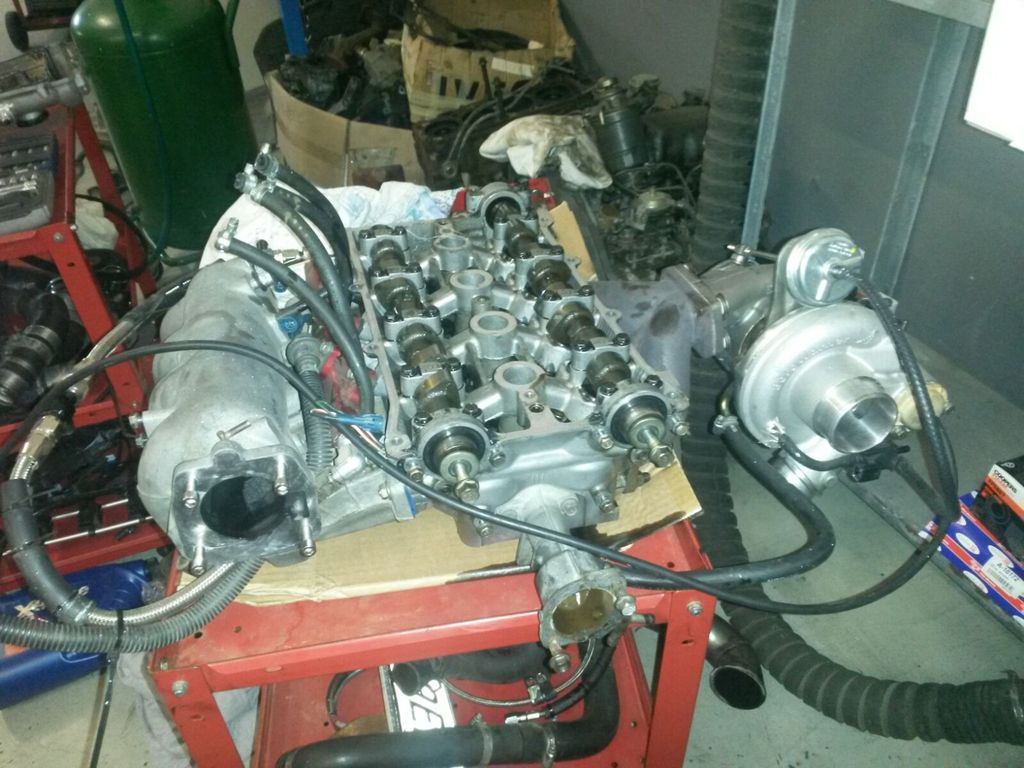

time to open the engine! Notice the dark inside of the intake manifold... too much overlap! I have to reduce it.

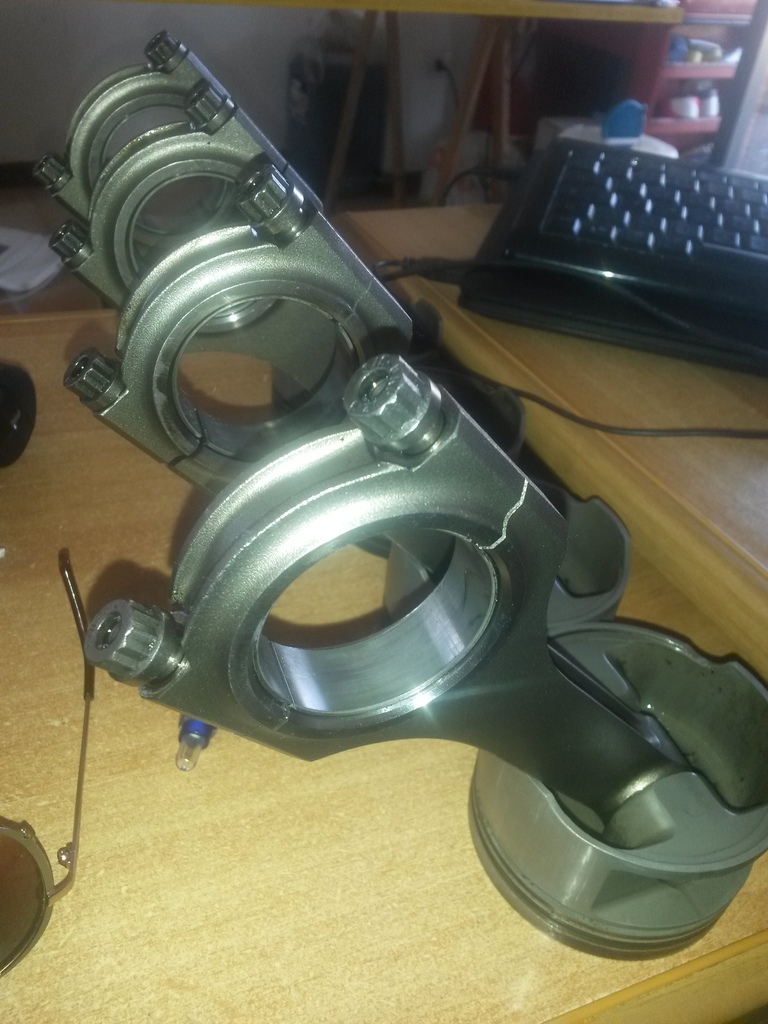

rod bearings






going to the machine shop




done!




the reason why mains are to be changed

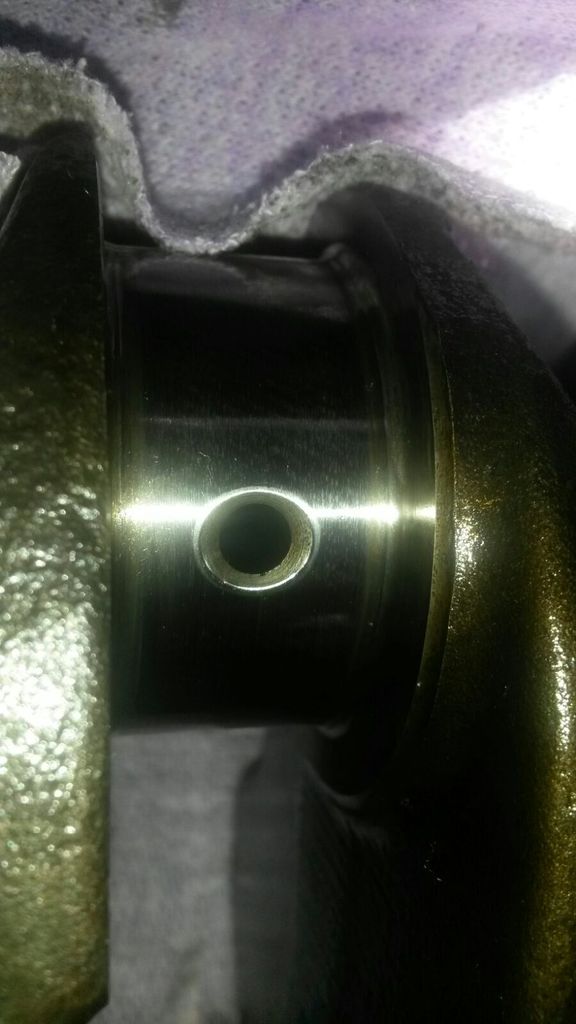

and why the rod bearings are good

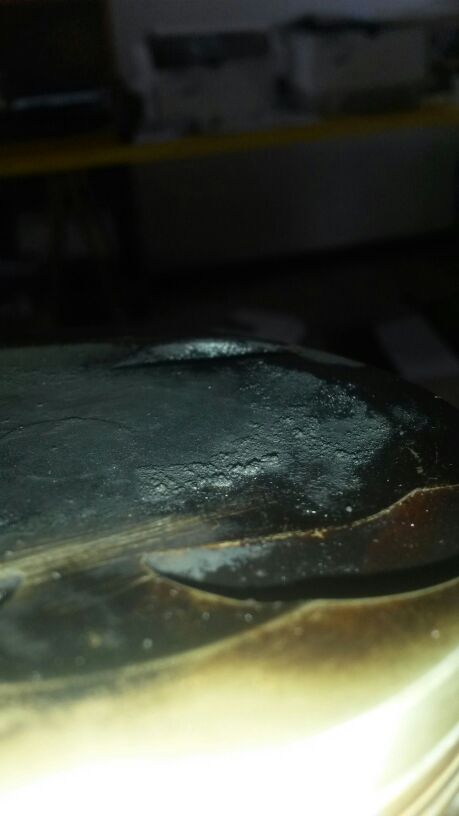

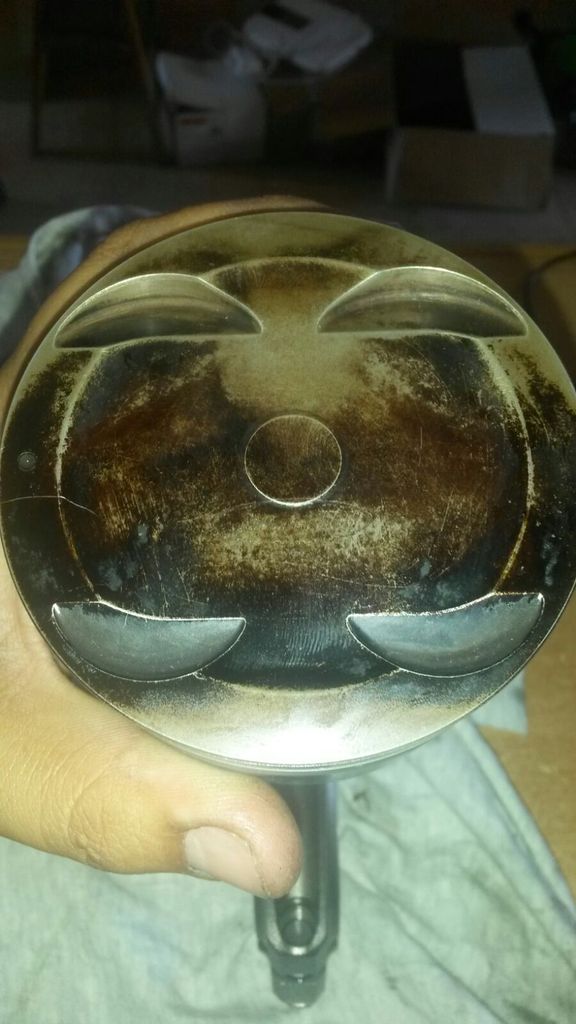

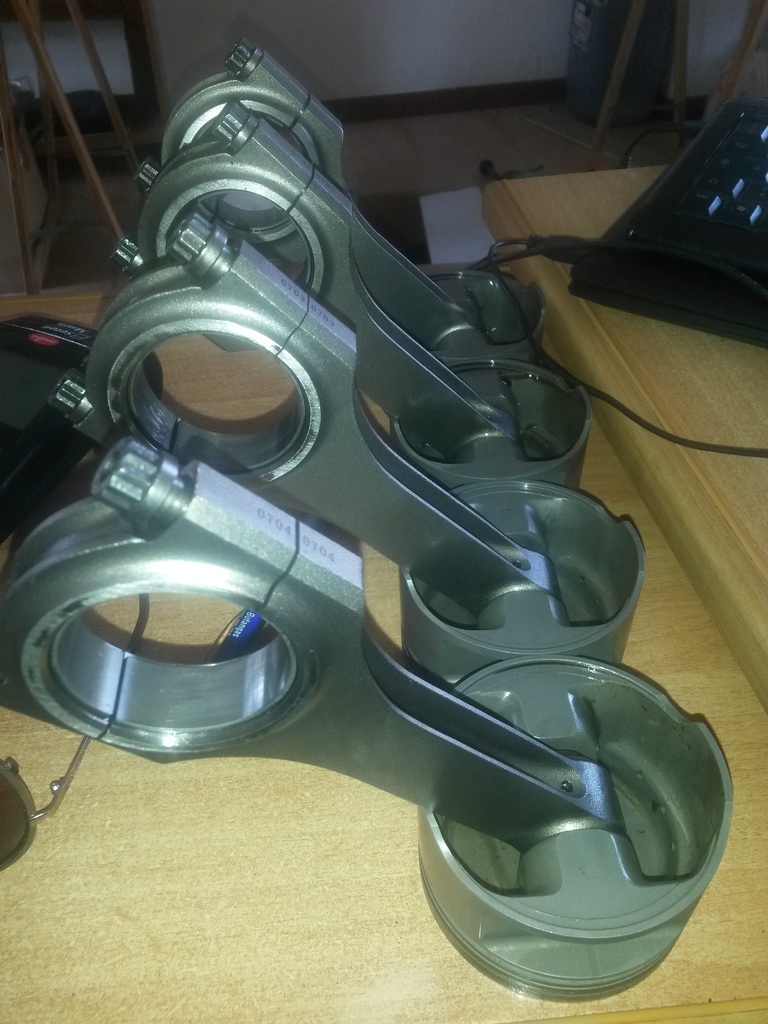

pistons before cleaning



almost cleaned

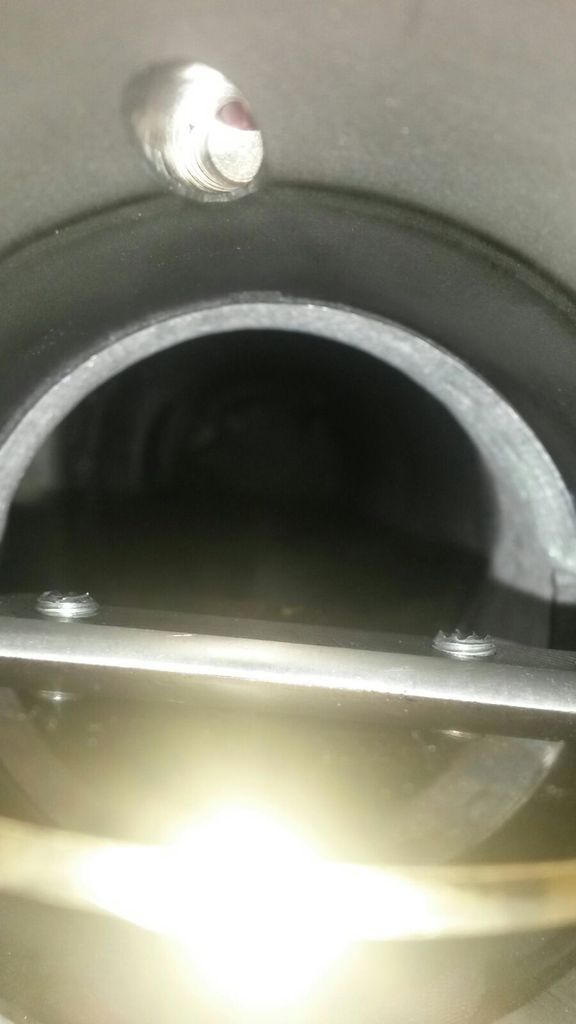

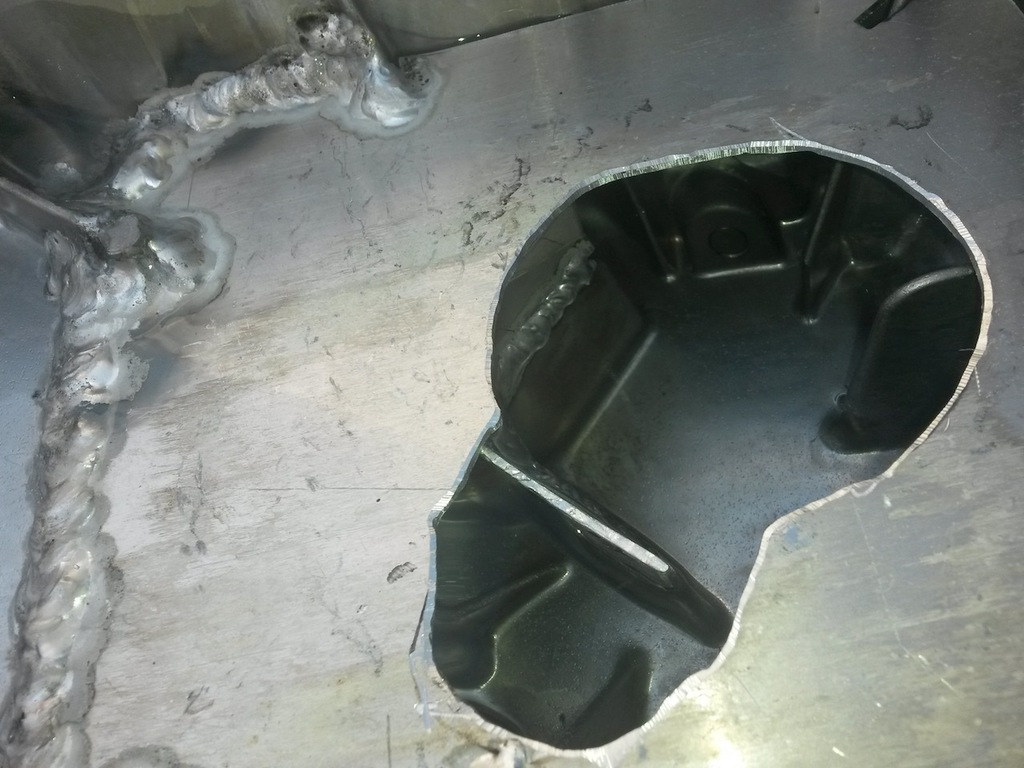

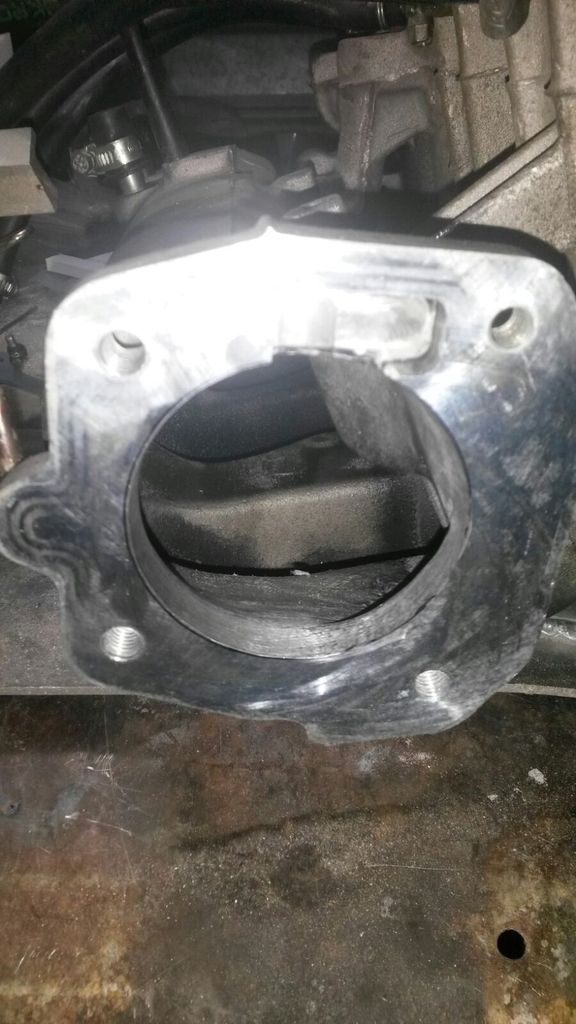

Gutting the intake for the skunk2








ARP bolts arrives next week, around 2-3 hours to close the engine and I can begin the break-in!
DNA54 is offline   Reply With Quote
Old 08-16-2016, 12:27 PM   #546
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

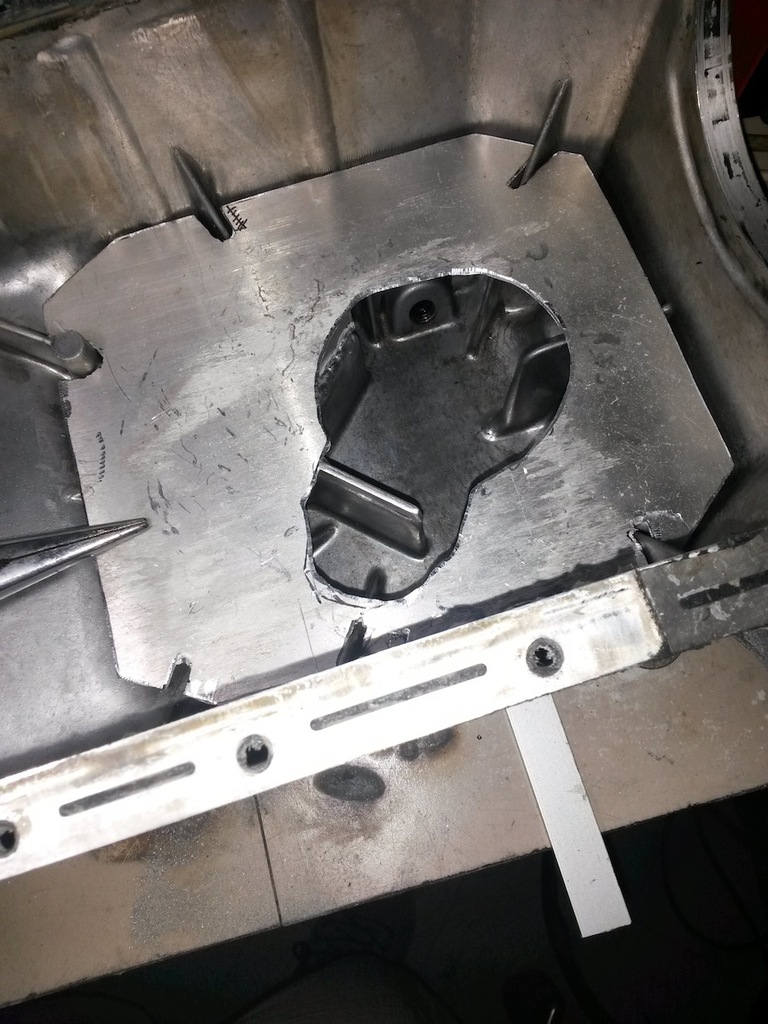

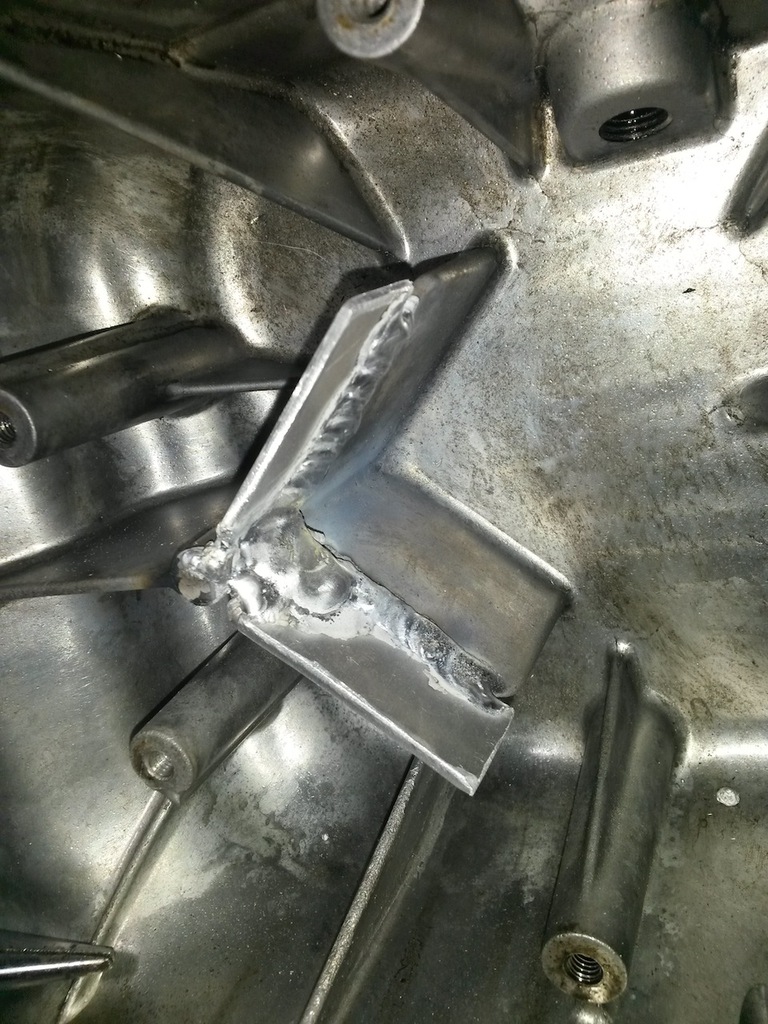

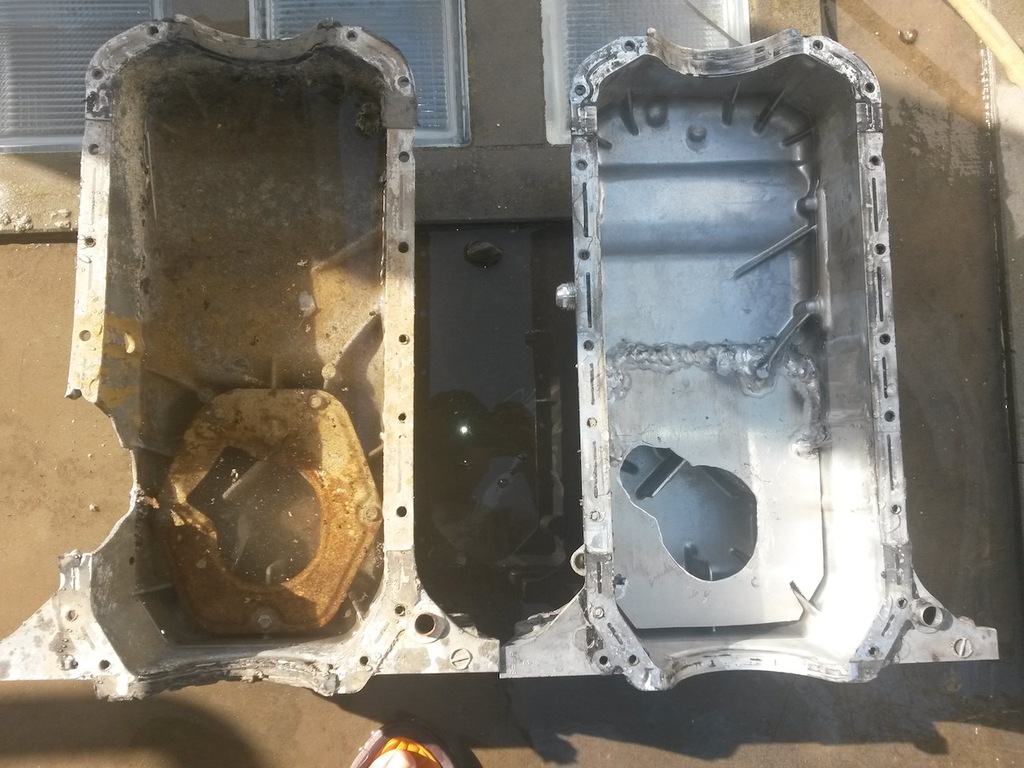

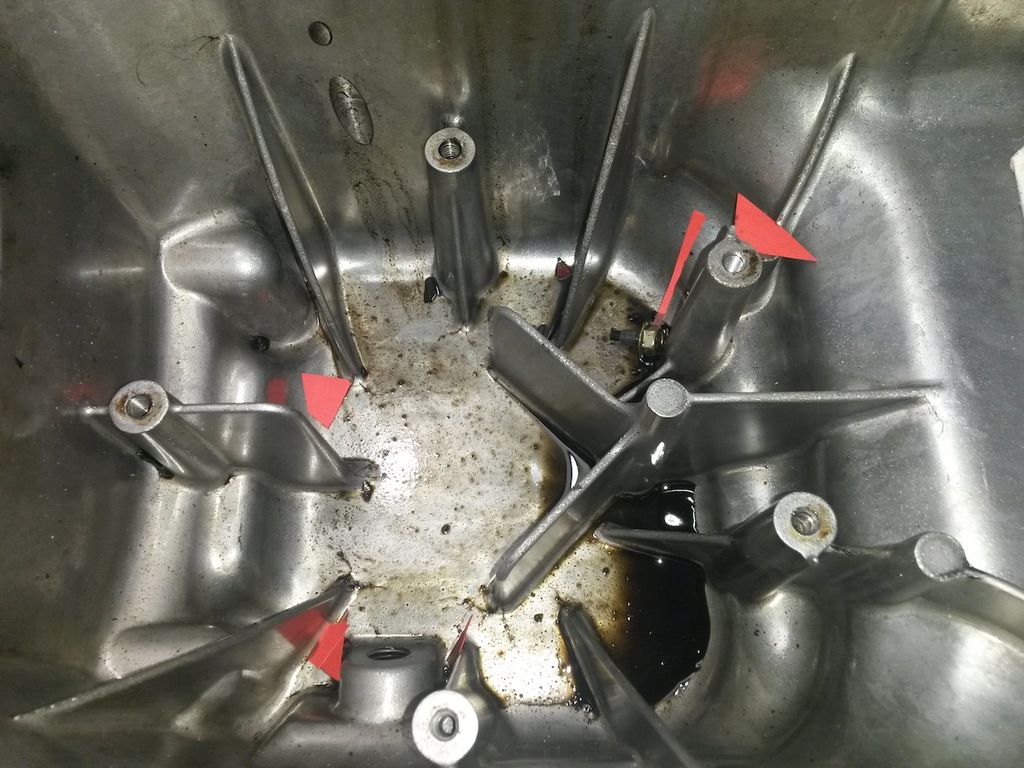

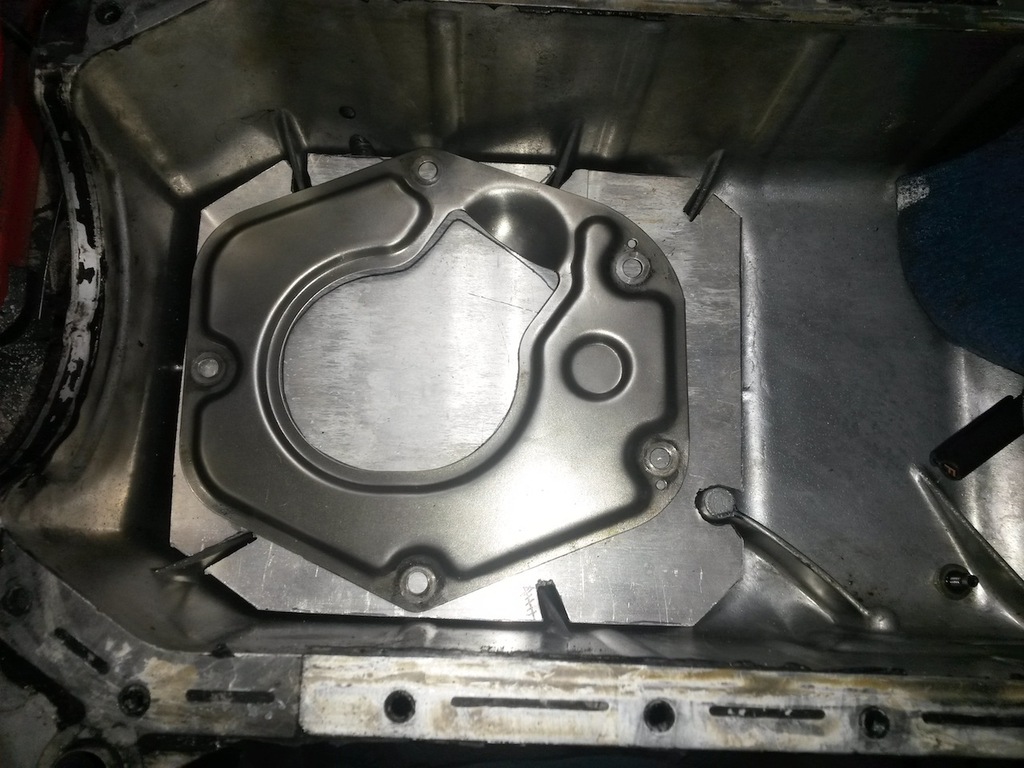

If I tilt the pans 45 degrees, the one with baffles stays full of oil near the pickup tube, the oem one is almost empty
DNA54 is offline   Reply With Quote
Old 08-18-2016, 05:37 AM   #547
Junior Member

Join Date: Nov 2013
Location: Sicily
Posts: 103
Total Cats: 3
Default

for the ventilated pan on the left...
Pepino is offline   Reply With Quote
Old 08-18-2016, 10:09 AM   #548
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,412
Total Cats: 2,250
Default

the ventilated pan needs moar baffles
18psi is offline   Reply With Quote
Old 08-19-2016, 10:43 AM   #549
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

I don't think so

high boost actuator on the way, let's see what 32psi feels like
DNA54 is offline   Reply With Quote
Old 08-19-2016, 11:24 AM   #550
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,061
Total Cats: 908
Default

Quote:
Originally Posted by DNA54 View Post
I don't think so

high boost actuator on the way, let's see what 32psi feels like
It will feel like time for something else to break.
shuiend is offline   Reply With Quote
Old 08-19-2016, 11:28 AM   #551
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

What's the point of a built engine if you don't make over 400 whp?
DNA54 is offline   Reply With Quote
Old 08-19-2016, 11:35 AM   #552
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,412
Total Cats: 2,250
Default

hahaha I like this guy more and more every day
18psi is offline   Reply With Quote
Old 09-22-2016, 10:27 AM   #553
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

The breack-in is finally ended!
sadly I ran out of fuel (100%dc) at 29 psi, but I can see the potential
now it spins 4th with standard tyres
DNA54 is offline   Reply With Quote
Old 09-22-2016, 01:48 PM   #554
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,429
Total Cats: 469
Default

Wow. Sounds crazy.
turbofan is offline   Reply With Quote
Old 09-22-2016, 04:37 PM   #555
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

VD said 408hp, it's really impressive!
I think it's time to stop here, even if the boost duty is 68%
DNA54 is offline   Reply With Quote
Old 09-22-2016, 09:40 PM   #556
Junior Member

Join Date: Aug 2012
Posts: 399
Total Cats: 50
Default

veeeery nice. Must feel like an absolute beast
G3ML1NGZ is offline   Reply With Quote
Old 09-26-2016, 10:47 AM   #557
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

First problem: blown head gasket
At idle it runs on 3 cylinders, smokes white and burns coolant
When I installed the head with arp's I scretched the head surface on the arp's, that's the only reason it comes in my mind
DNA54 is offline   Reply With Quote
Old 09-26-2016, 04:45 PM   #558
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,429
Total Cats: 469
Default

Could also be that you're simply running more boost than you should be. I know on my car, we could make more boost but couldn't make more power. Something to keep in mind.

Really should get it on a proper dyno with the power and boost levels you're running.
turbofan is offline   Reply With Quote
Old 10-02-2016, 03:55 AM   #559
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

I just ordered cometic HG, since I was using the ebay one, and AEM WI noozle, pump and everything else I need to run safer and with moar boost

AEM calculations said that if I use 50-50 water methanol the afr reading is a point richer than real, so if I run 11.5:1 I have to read 10.5:1
is it right?
DNA54 is offline   Reply With Quote
Old 10-03-2016, 11:33 AM   #560
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

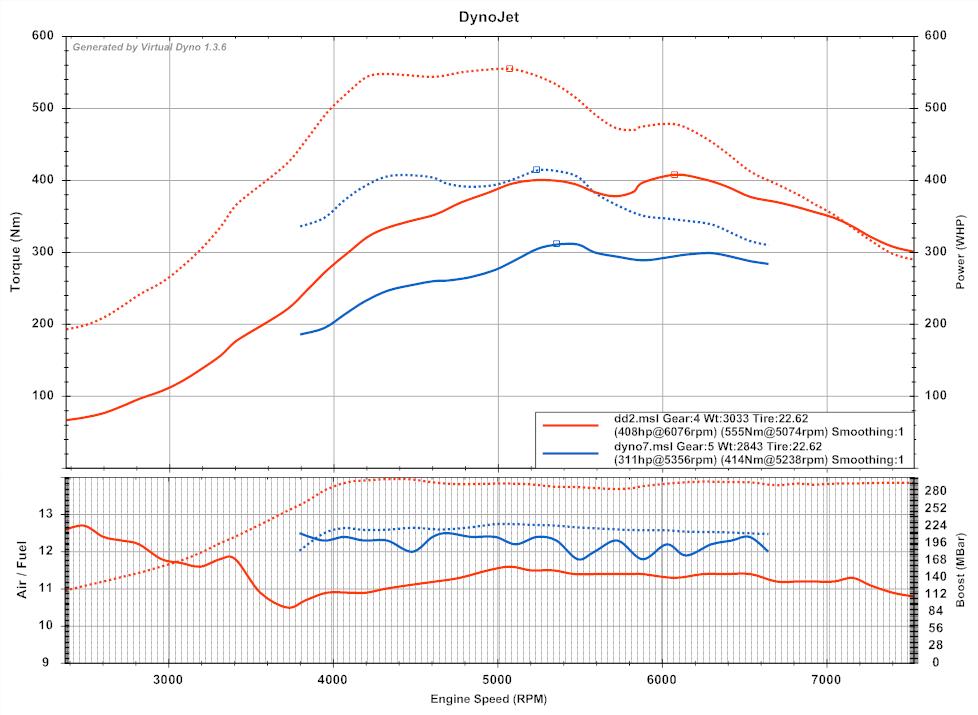

VD log, red is 15 psi, blue 30 psi. Consider that the torque is in Nm, not in Ft pound

DNA54 is offline   Reply With Quote
