Old 06-29-2015, 03:01 PM   #341
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

A piece of rubber has fallen into the turbine inlet... while wot
DNA54 is offline   Reply With Quote
Old 06-29-2015, 03:15 PM   #342
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 9
Default

Did you drive without filter?

EDIT: oh i guess thats a yes according to the last post.
Vincentmiata is offline   Reply With Quote
Old 06-29-2015, 03:30 PM   #343
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by Vincentmiata View Post
Did you drive without filter?

EDIT: oh i guess thats a yes according to the last post.
nope, never drove without a filter
I had a rubber ring to fit a 3" silicone hose into the 2.5" compressor inlet flange...
it was one of the universal filter adapters
DNA54 is offline   Reply With Quote
Old 06-29-2015, 05:20 PM   #344
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,229
Total Cats: 1,475
Default

Did it eat that black plastic piece in the picture?
sixshooter is online now   Reply With Quote
Old 06-29-2015, 05:27 PM   #345
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by sixshooter View Post
Did it eat that black plastic piece in the picture?

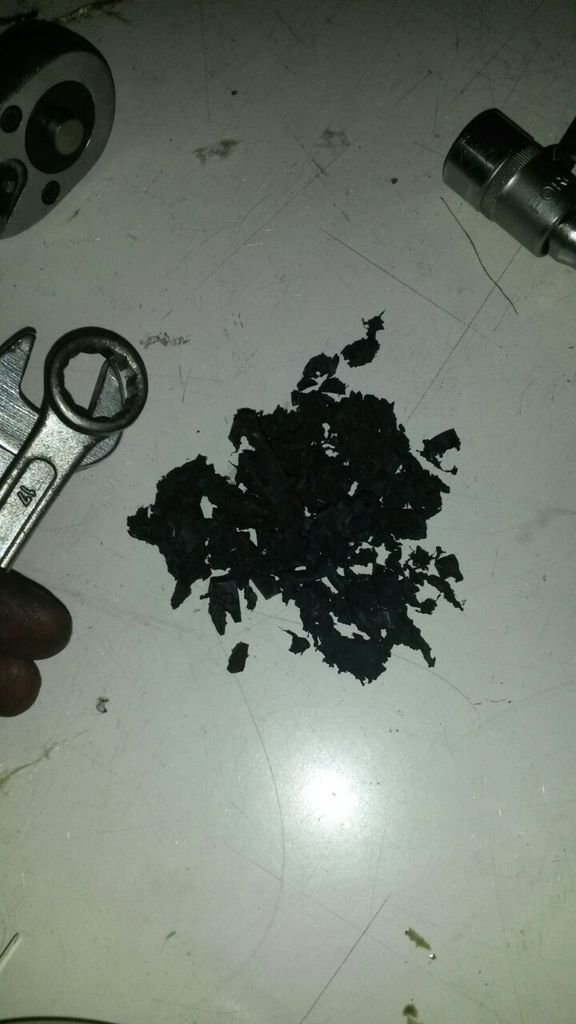

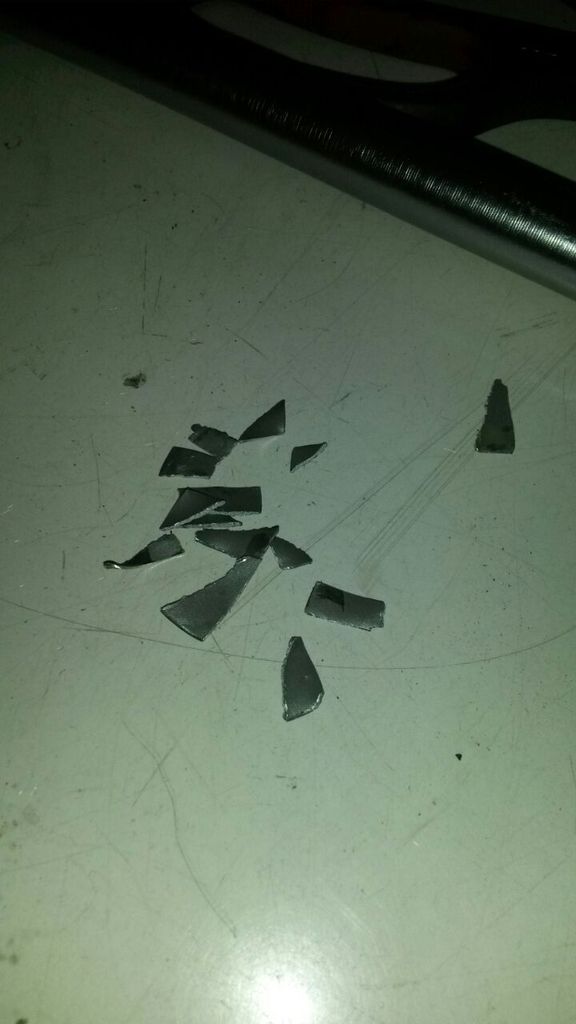

yes
well, that piece was like 1/5 of the rubber it eated
all the rest was stopped by the intercooler



Attached Thumbnails
diy "turbo no hit block" '00 BP miata-img-20150628-wa0005_zpsdruiujqq.jpg   diy "turbo no hit block" '00 BP miata-img-20150628-wa0007_zpsz5zabqbd.jpg
DNA54 is offline   Reply With Quote
Old 06-30-2015, 03:29 AM   #346
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

I'd flush the engine if I were you, fresh oil/oilfilter. Wouldn't want any shrapnell in the engine
tjeerd is offline   Reply With Quote
Old 06-30-2015, 07:03 AM   #347
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by tjeerd View Post
I'd flush the engine if I were you, fresh oil/oilfilter. Wouldn't want any shrapnell in the engine
how do you think it could compromise the engine oil?

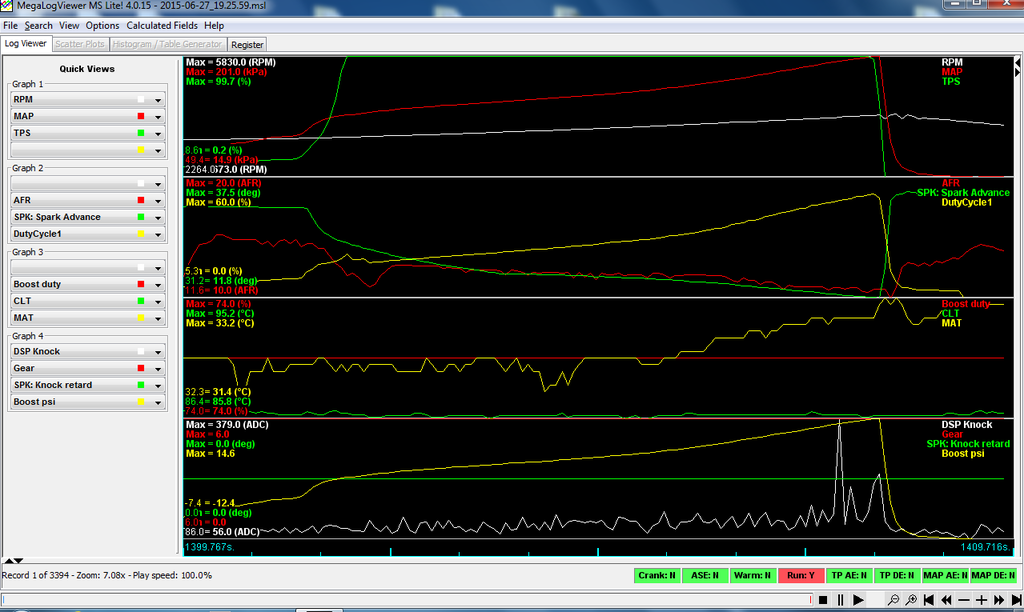

last log I did, this was a six gear pull, open loop ebc, target: 200 kPa (14.5 psi)
maximum boost is at 3295 rpm

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-immagine_zpszqxwmdeg.png
DNA54 is offline   Reply With Quote
Old 06-30-2015, 07:06 AM   #348
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,229
Total Cats: 1,475
Default

Quote:
Originally Posted by DNA54 View Post
how do you think it could compromise the engine oil?
It would not.
sixshooter is online now   Reply With Quote
Old 06-30-2015, 12:35 PM   #349
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,430
Total Cats: 195
Default

Looks like you have a huge knock event at the end of the log.
Reverant is offline   Reply With Quote
Old 06-30-2015, 12:41 PM   #350
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by Reverant View Post
Looks like you have a huge knock event at the end of the log.
it's around 37% knock (if 100% is 1023), I have to tune that area because I never used it with the chrubo
DNA54 is offline   Reply With Quote
Old 07-18-2015, 07:22 PM   #351
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

The turbo is in, and it pulls strong.
Even the 3.636 spins the first three gears (time for a good set of tires)

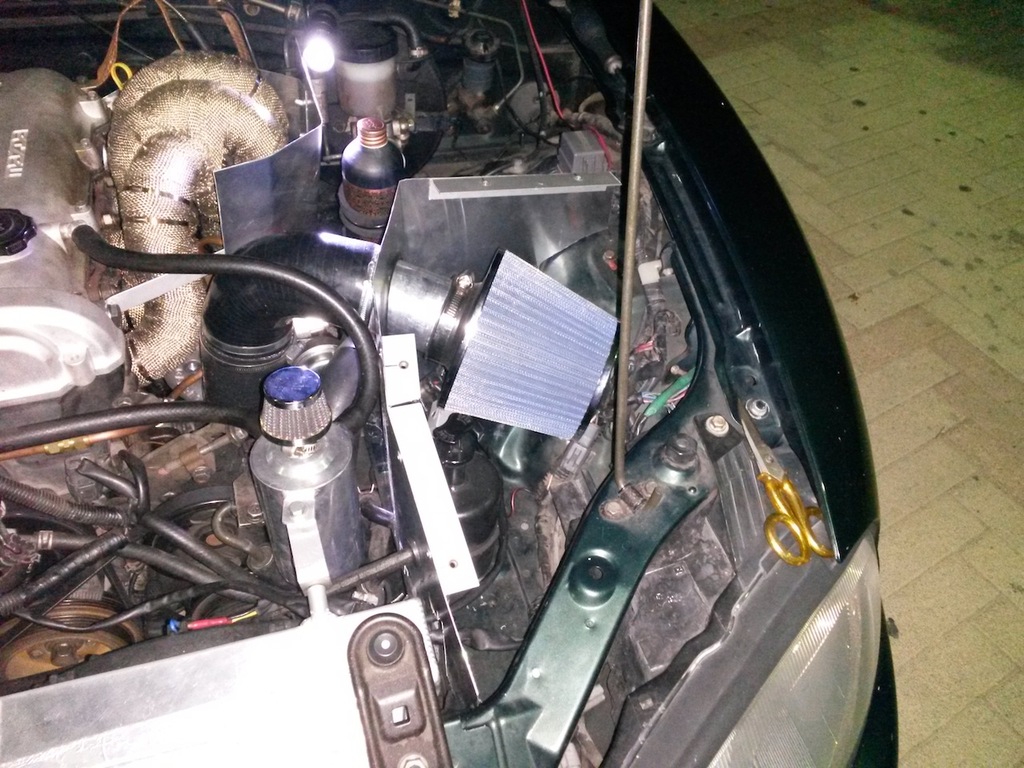

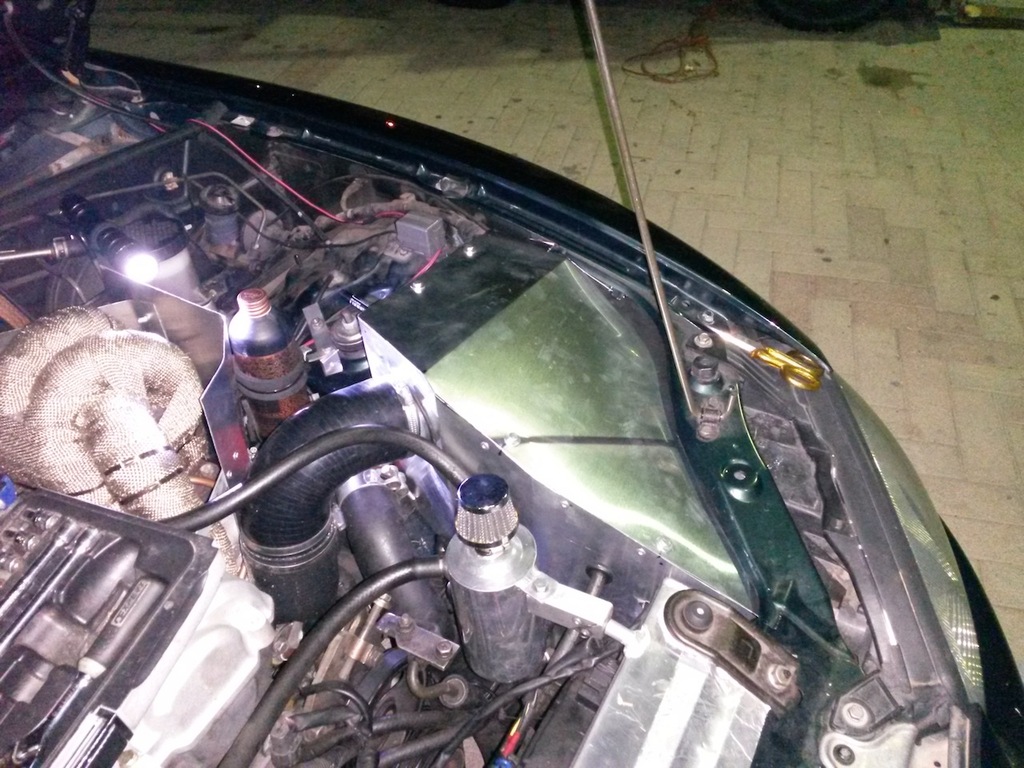

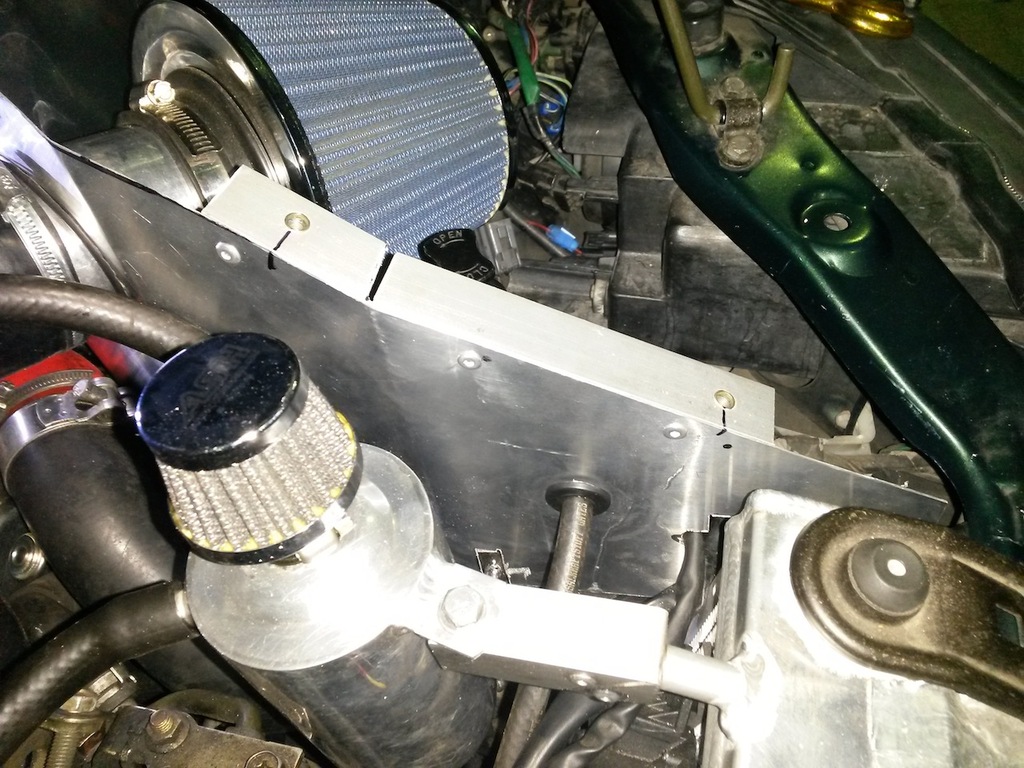

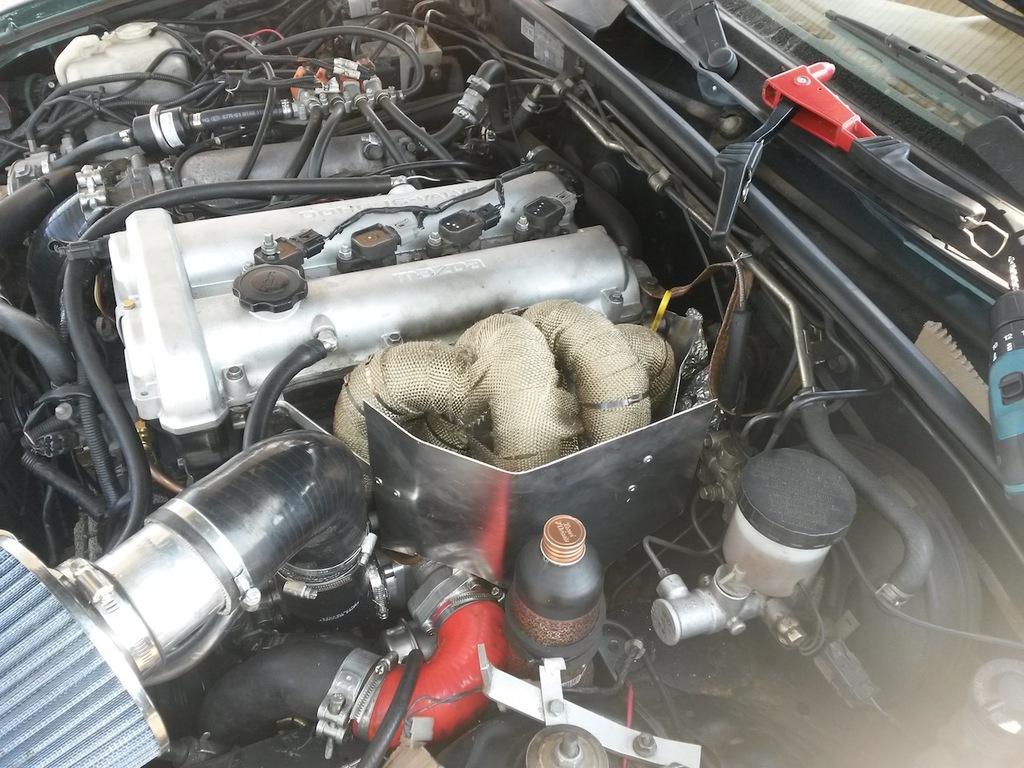

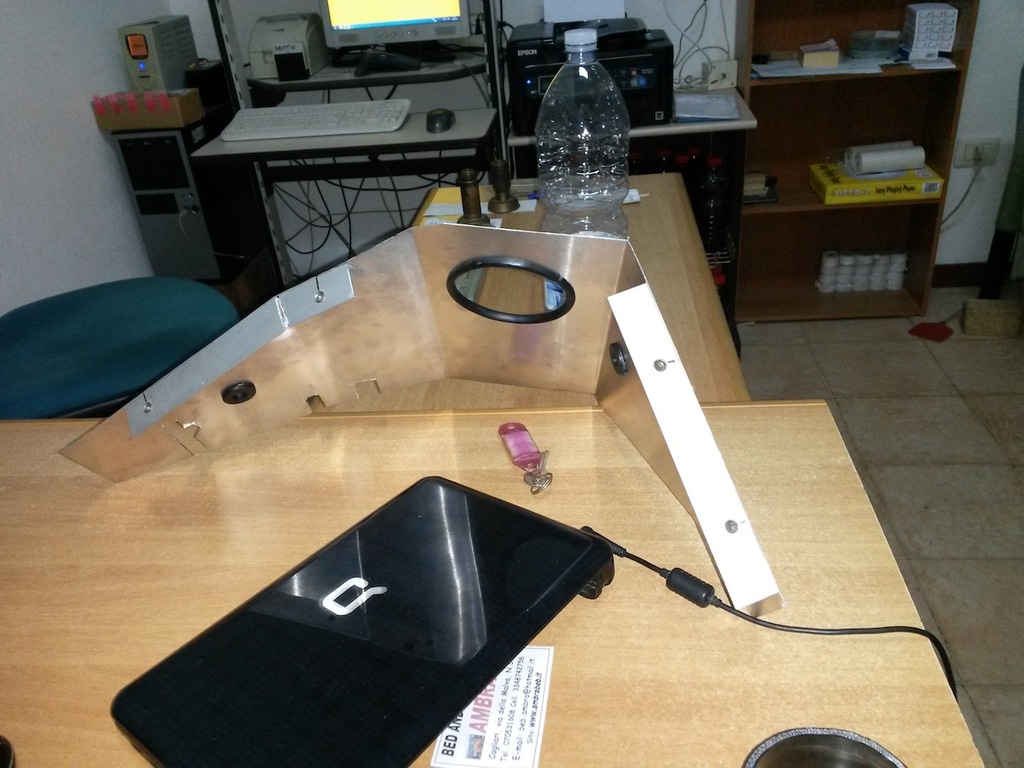

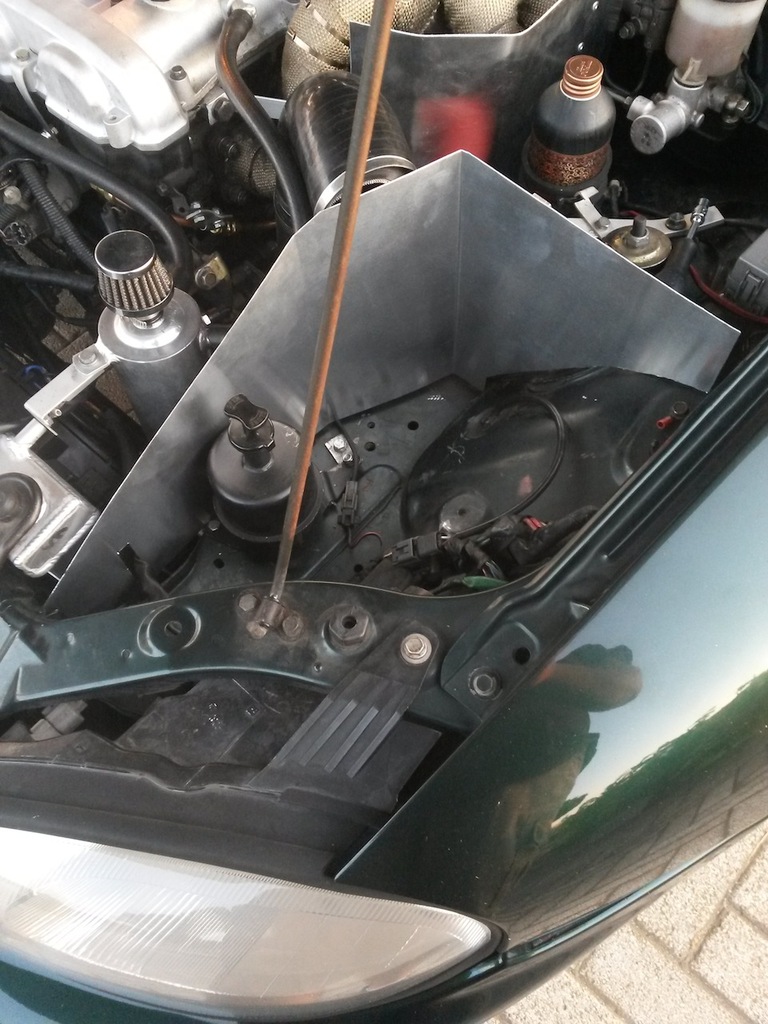

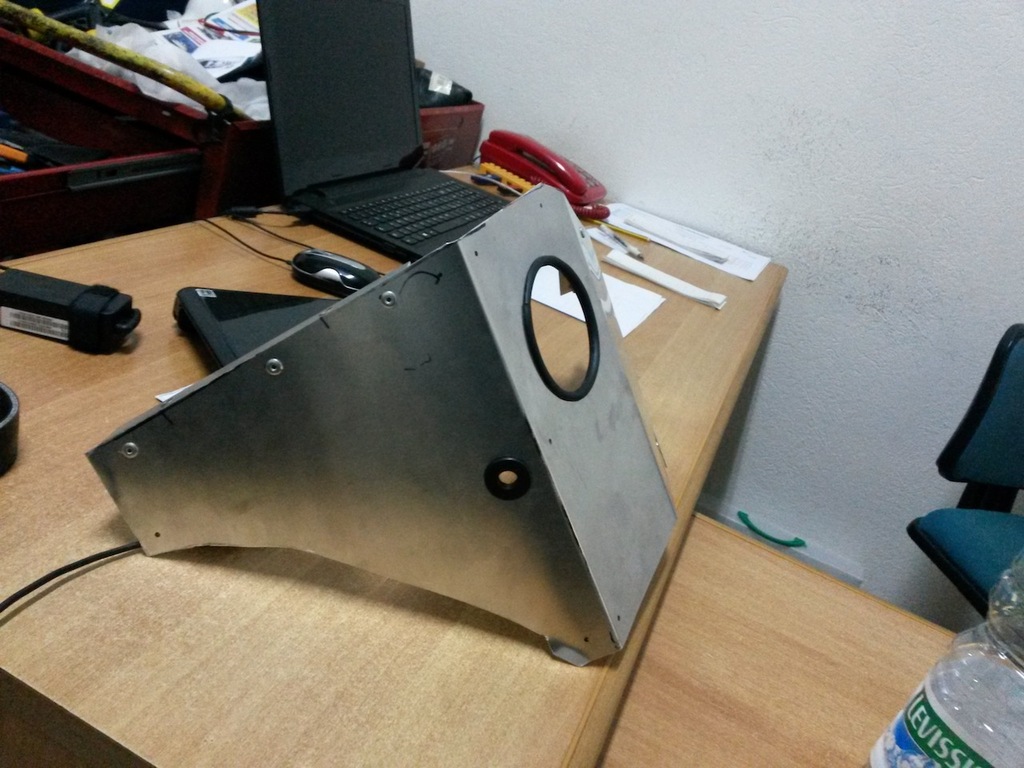

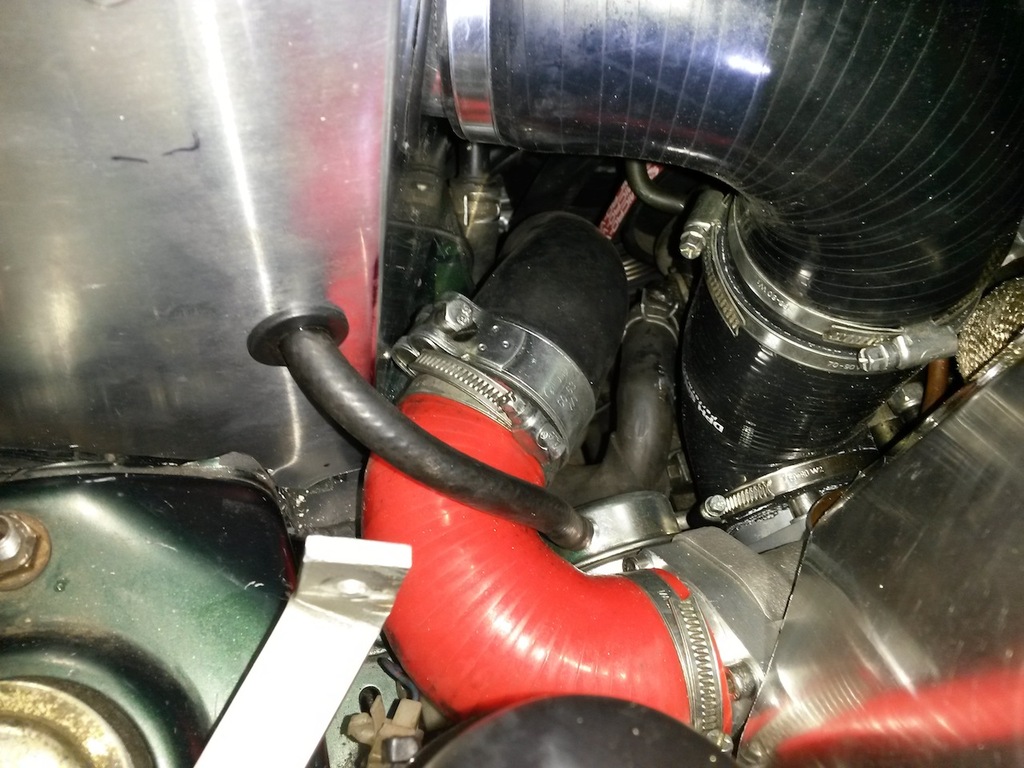

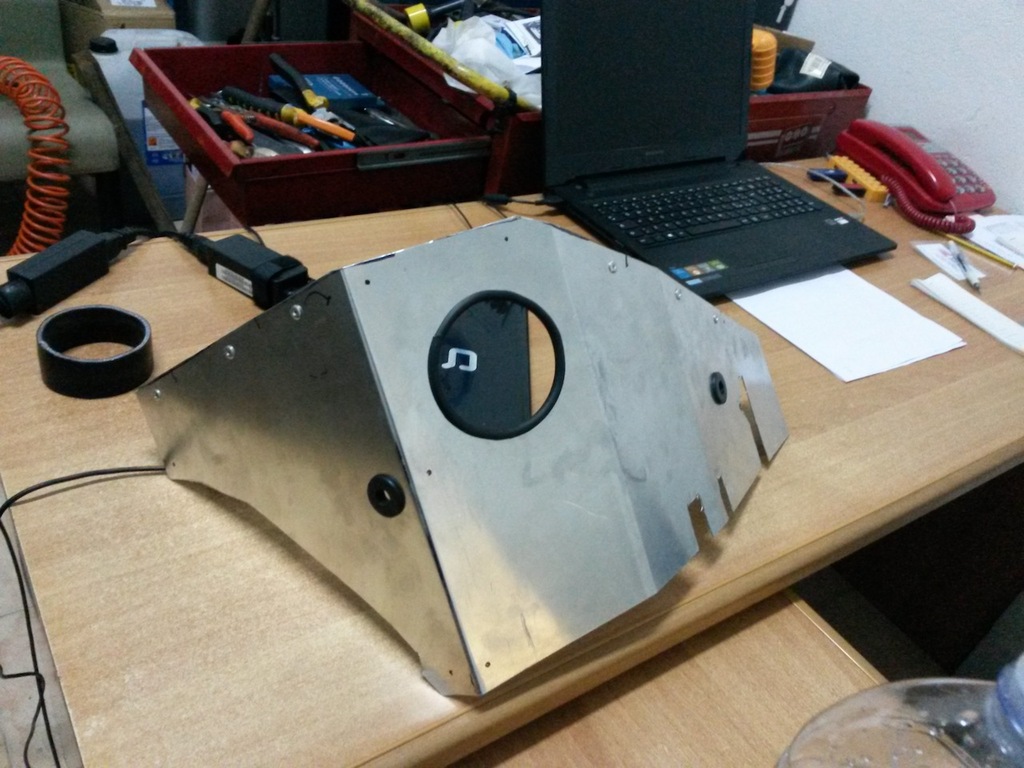

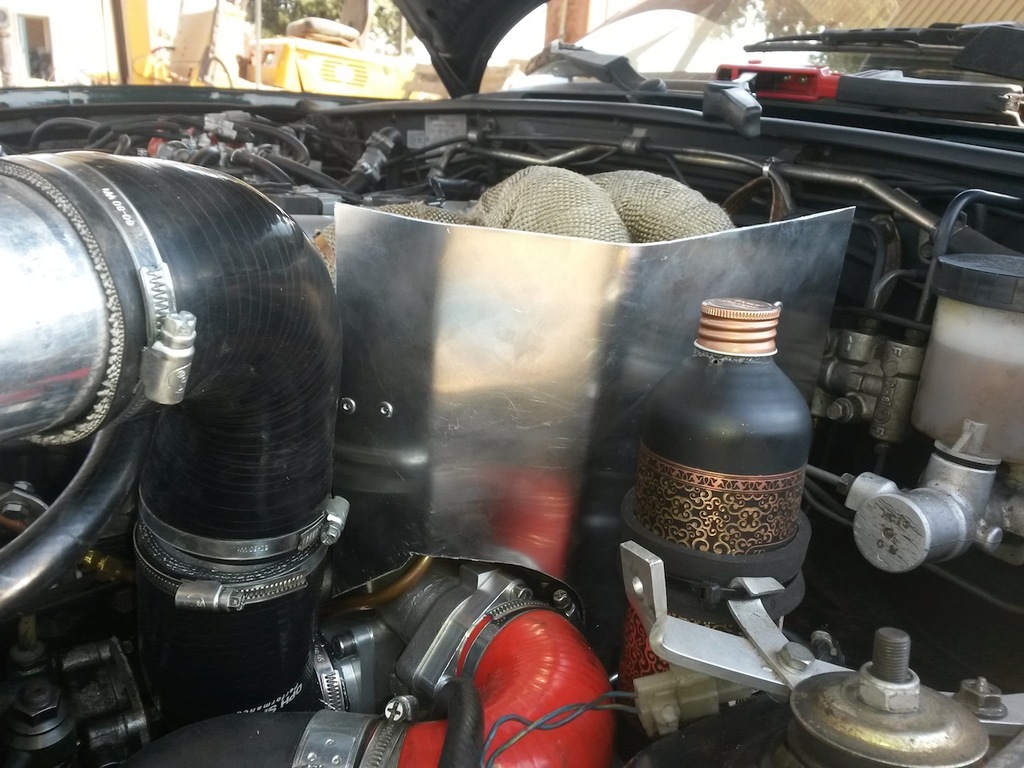

This evening I made some manifold shield and an airbox whith alluminium sheet




















Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150718_202933_zpszdjcx2jm.jpg   diy "turbo no hit block" '00 BP miata-20150718_232709_zpsqfgijdnk.jpg   diy "turbo no hit block" '00 BP miata-20150718_232713_zpsypfzjmpb.jpg   diy "turbo no hit block" '00 BP miata-20150718_232720_zpsqbu29mq4.jpg   diy "turbo no hit block" '00 BP miata-20150718_233650_zpspmgxh0ev.jpg

diy "turbo no hit block" '00 BP miata-20150718_233655_zpsn4ojnk9t.jpg   diy "turbo no hit block" '00 BP miata-20150718_233706_zps5q2yscg1.jpg   diy "turbo no hit block" '00 BP miata-20150718_233931_zpspb1tkfdc.jpg   diy "turbo no hit block" '00 BP miata-20150717_162807_zpsi0gelt4t.jpg   diy "turbo no hit block" '00 BP miata-20150717_162813_zpsrzi3h1of.jpg

DNA54 is offline   Reply With Quote
Old 07-18-2015, 07:32 PM   #352
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,877
Total Cats: 518
Default

<p>Looks good man, nice work.</p>
turbofan is offline   Reply With Quote
Old 07-19-2015, 07:28 AM   #353
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,229
Total Cats: 1,475
Default diy &quot;turbo no hit block&quot; '00 BP miata

That's pretty.
Are you surprising any other sports car owners over there yet?
sixshooter is online now   Reply With Quote
Old 07-20-2015, 04:07 PM   #354
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by turbofan View Post
<p>Looks good man, nice work.</p>
Thanks!

Quote:
Originally Posted by sixshooter View Post
That's pretty.
Are you surprising any other sports car owners over there yet?
well, not yet

I'm slowly tuning the advance table whith det cans, the oem knock sensor picks up too many noises, it's nearly impossible to tune whith it!

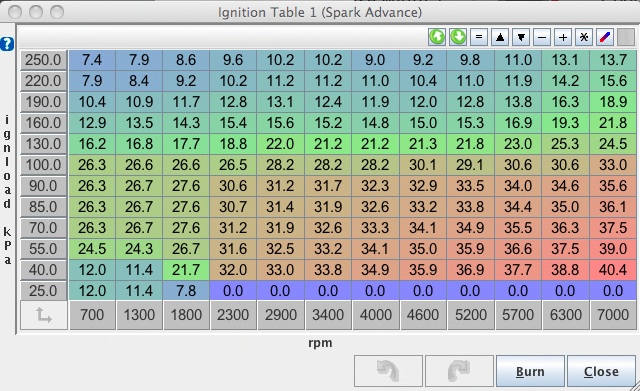

this is my current table:

Attached Thumbnails
diy &quot;turbo no hit block&quot; '00 BP miata-nn_zpsktvldhem.jpg
DNA54 is offline   Reply With Quote
Old 07-26-2015, 03:23 AM   #355
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

yesterday night I heared something fall out of something in the differential region, and it started an awful noise

it's like a whistle that follows the speed, and it's present only when I apply torque (a little bit, a lot... didn't change)

About a couple mounths ago the same whistle started from the primary shaft of the gearbox, this noise follows rpm's...

What the hell it's happening?
From yesterday to today the diff noise is even worst
DNA54 is offline   Reply With Quote
Old 07-26-2015, 09:44 AM   #356
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

oh my........5 speed couldn't handle the torque?
tjeerd is offline   Reply With Quote
Old 07-26-2015, 12:09 PM   #357
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

6 speed...
DNA54 is offline   Reply With Quote
Old 07-26-2015, 06:10 PM   #358
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

....how much bad luck can somebody have?
tjeerd is offline   Reply With Quote
Old 07-28-2015, 03:02 PM   #359
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by tjeerd View Post
....how much bad luck can somebody have?
I'm seriously think to sell it...

Seems like it's a bad bearing.
The worst thing is that noone can change it.

Another bad thing: this turbo is too little.
Wastegate shut: 250+ kpa at 4000 rpm and down to 220 at redline.
No huge power gain compared to 200 kpa
DNA54 is offline   Reply With Quote
Old 07-28-2015, 03:04 PM   #360
Junior Member

Join Date: Mar 2011
Location: Eindhoven, The netherlands
Posts: 170
Total Cats: 9
Default

Welcome to the club. Been there done that, had to rebuild everything twice. And now still smoking oil when lift off.
