Old 07-28-2015, 03:42 PM   #361
Newb

Join Date: May 2014
Location: Appeltern, the Netherlands
Posts: 32
Total Cats: 2
Default

I swapped the gr2860rs for a BW efr6258.....
tjeerd is offline   Reply With Quote
Old 07-30-2015, 06:29 AM   #362
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-all-my-friends-getting-placed-building-career-im-like-i-need-bigger-turbo_zpsi38.png
DNA54 is offline   Reply With Quote
Old 07-31-2015, 04:01 PM   #363
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

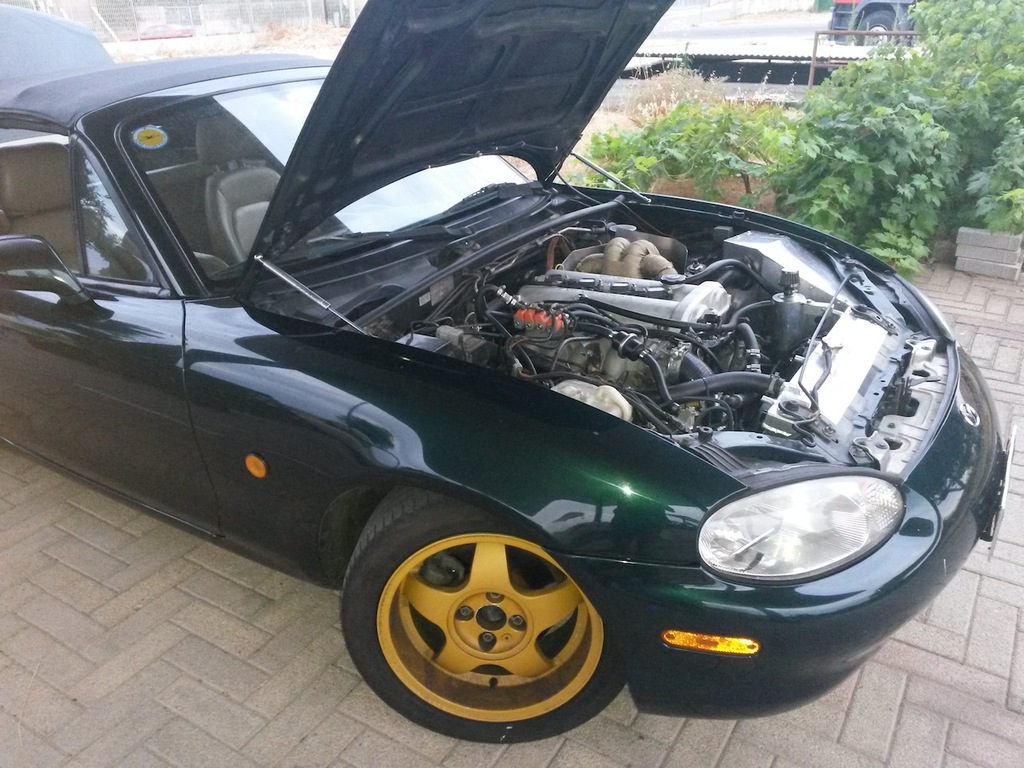

hood lifters (il motorsport)
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150730_202240_zpstkb664rg.jpg
DNA54 is offline   Reply With Quote
Old 08-07-2015, 02:41 PM   #364
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

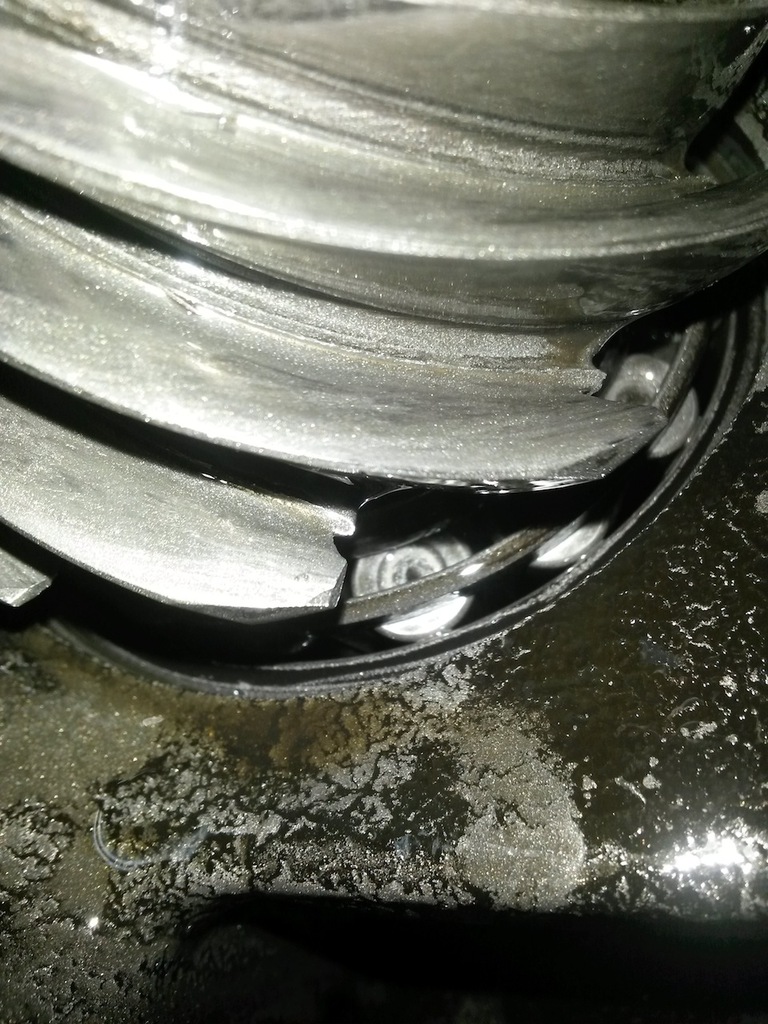

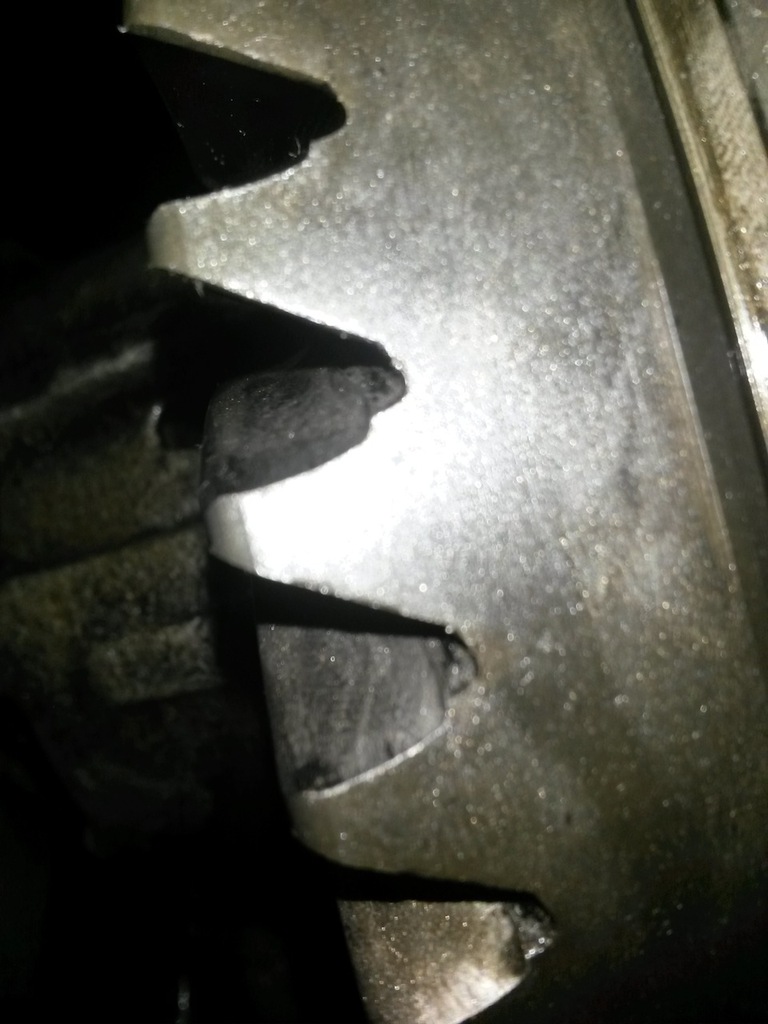

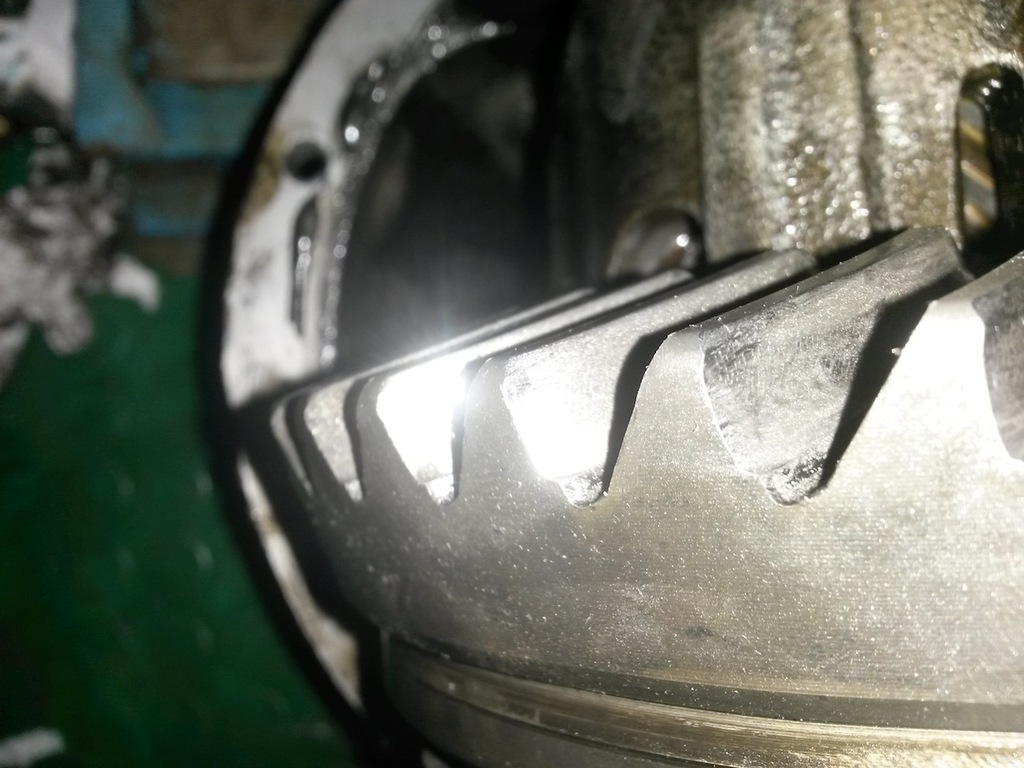

Do you remember the whistle?
Well, this is the result:







Now I put an open diff with 4.1 ratio
holy one wheel slip!! Almost every corner...

I'm finding a 3.636 gears, but for now the car is usable, whell, it moves!
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150803_204612_zpsfvpjkmjo.jpg   diy "turbo no hit block" '00 BP miata-20150803_204616_zpsqmwofbn8.jpg   diy "turbo no hit block" '00 BP miata-20150803_205352_zpsxqomhz1m.jpg
DNA54 is offline   Reply With Quote
Old 08-07-2015, 02:55 PM   #365
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,719
Total Cats: 2,481
Default

did you set the lash incorrectly? or was that an un-opened diff?
18psi is offline   Reply With Quote
Old 08-07-2015, 03:04 PM   #366
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by 18psi View Post
did you set the lash incorrectly? or was that an un-opened diff?
It was the stock diff, with 230.000 km
DNA54 is offline   Reply With Quote
Old 08-07-2015, 03:51 PM   #367
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,219
Total Cats: 1,473
Default

Do you have the diff protected form the heat of the new exhaust pipe? You are making a lot more heat than stock now and the heat destroys the fluid. How long since you had changed the rear diff fluid?
sixshooter is online now   Reply With Quote
Old 08-07-2015, 08:41 PM   #368
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by sixshooter View Post
Do you have the diff protected form the heat of the new exhaust pipe? You are making a lot more heat than stock now and the heat destroys the fluid. How long since you had changed the rear diff fluid?

Well, actually no... The pipe is running very close to the diff

The oil had around 1000 km when it started to whistle.

This evening even this open diff started to whistle... fresh oil of course

It lived three days
DNA54 is offline   Reply With Quote
Old 08-07-2015, 09:04 PM   #369
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,719
Total Cats: 2,481
Default

Something isn't right. You're destroying parts that normally don't just fall apart for no reason on our cars.

There's people with 400whp on stock diff and no problems
18psi is offline   Reply With Quote
Old 08-07-2015, 09:24 PM   #370
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Maybe it can be the use of the car?

I live in the middle of a place that is very similar to a track. Almost every night is like a 15 minutes session, and the last two days I abused my mx5.

Hell, I did several second gear launches... around 3 seconds wheelspin (not joking)
DNA54 is offline   Reply With Quote
Old 08-07-2015, 09:34 PM   #371
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,719
Total Cats: 2,481
Default

lol

well that explains all the broken parts
18psi is offline   Reply With Quote
Old 08-08-2015, 04:46 AM   #372
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

that's the second gear (without launch control) yesterday night, just an hour before the whistle

DNA54 is offline   Reply With Quote
Old 08-08-2015, 06:55 AM   #373
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

BTW
10* btdc at the last row (sub 20 kPa) && 12:1 afr without fuel cut == backfire.
A lot of backfire. I'm happy

DNA54 is offline   Reply With Quote
Old 08-08-2015, 01:04 PM   #374
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,219
Total Cats: 1,473
Default diy "turbo no hit block" '00 BP miata

I suggest the differential might last longer if it is cooler, regardless of abuse.
sixshooter is online now   Reply With Quote
Old 08-08-2015, 08:02 PM   #375
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 466
Total Cats: 22
Default

Man, that looks like a really fun drive home from work, lol.

I figured you just beat the crap out of your car when I noticed how much you broke so quickly. Looks like a fun time driving the car like that and just doing repairs when it breaks. This is probably one of the more enjoyable builds to follow right now.
90civichhb is offline   Reply With Quote
Old 08-11-2015, 02:48 AM   #376
I'm Miserable!

Join Date: Jul 2015
Posts: 46
Total Cats: -34
Default

Quote:
Originally Posted by DNA54 View Post
that's the second gear (without launch control) yesterday night, just an hour before the whistle

YouTube
Damn that was a cool launch ...
EunosMonster is offline   Reply With Quote
Old 08-11-2015, 02:11 PM   #377
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by 90civichhb View Post
Man, that looks like a really fun drive home from work, lol.

I figured you just beat the crap out of your car when I noticed how much you broke so quickly. Looks like a fun time driving the car like that and just doing repairs when it breaks. This is probably one of the more enjoyable builds to follow right now.
well, rebuilding eventually is annoyng

Maybe the crush sleeve is the cause of the broken diff(s)?

from Weir Performance - Solid Pinion Spacer Kits

Quote:
Our solid pinion spacer kits are over 3X stronger than the typical o.e.m. crush sleeves. What does all this mean? What these parts do when correctly installed is set the distance between the inner and outer pinion bearings (bearing preload). At the same time, these parts also locate the pinion gear relative to the ring gear within the casing. So, why does the crush sleeve fail? It fails because it is too weak to resist deflection when high pinion loads are applied. This is why we often hear people say, “my ring and pinion finally blew up”. The failure is not instantaneous as it would be if the gears were over-powered. The failure happens over time, due to repeated hard driving. High pinion loads deflect the pinion gear over and over until the o.e.m. crush sleeve becomes “loose” and cannot properly maintain the bearing preload. This also allows the position of the pinion gear within the casing to move causing misalignment of the ring and pinion gears. Over time, this leads to “howling” gears followed by “ground up” gear teeth and eventually destroys the gears. Protect your ring and pinion with one of our high strength steel solid pinion spacer kits. All kits come with instructions and shim sets.
DNA54 is offline   Reply With Quote
Old 08-14-2015, 12:55 PM   #378
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

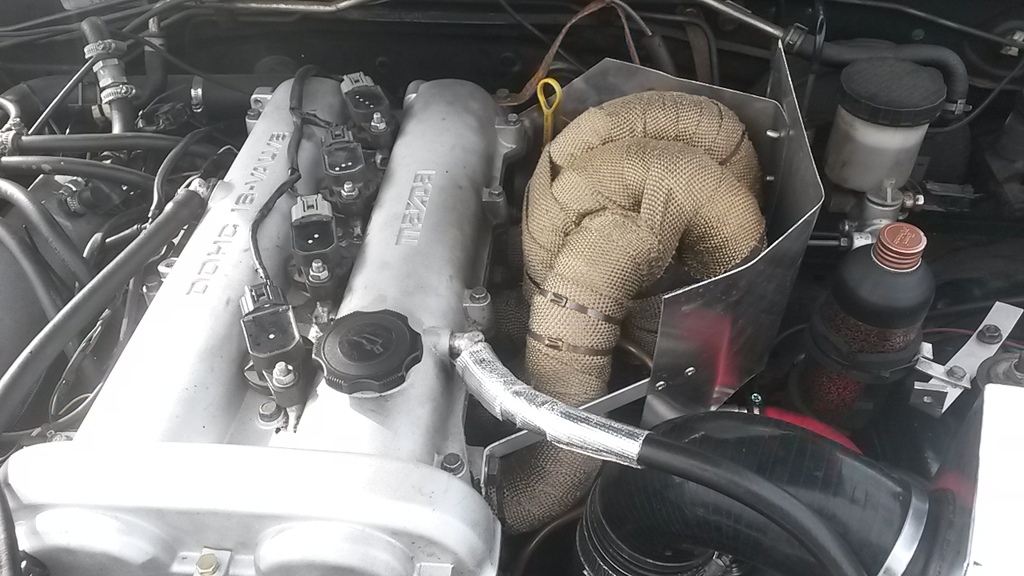

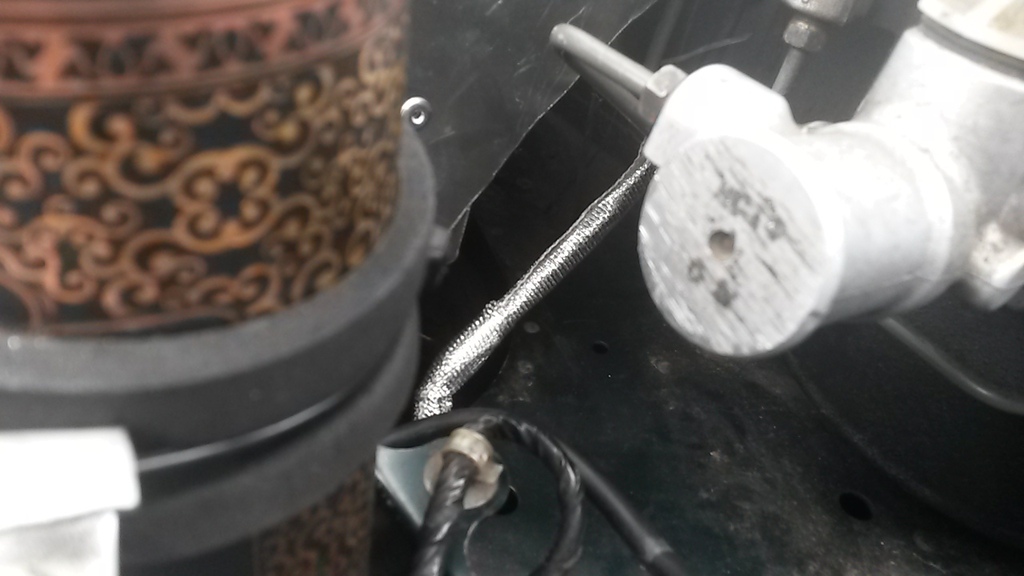

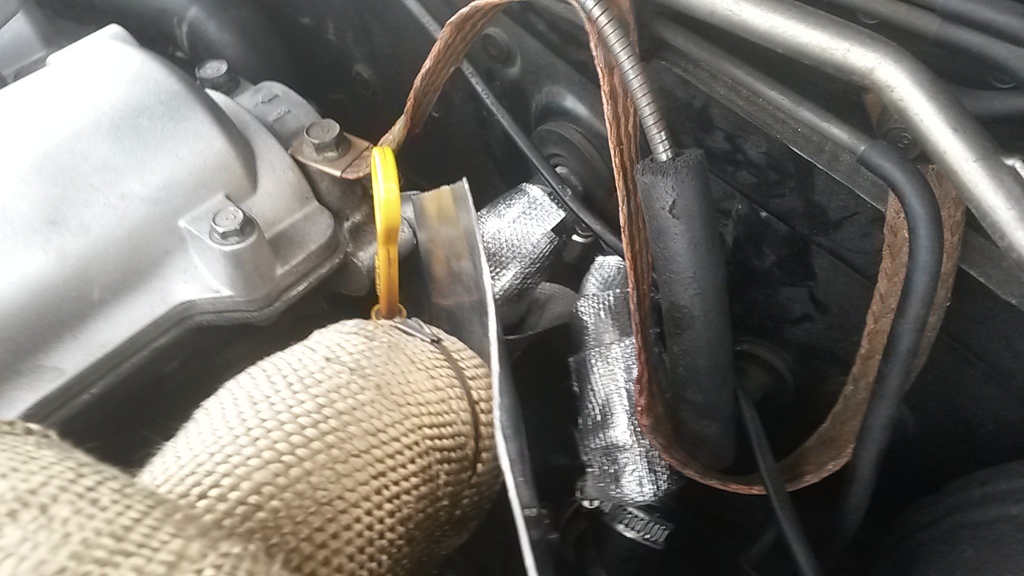

A little bit of aluminum heat wrap!

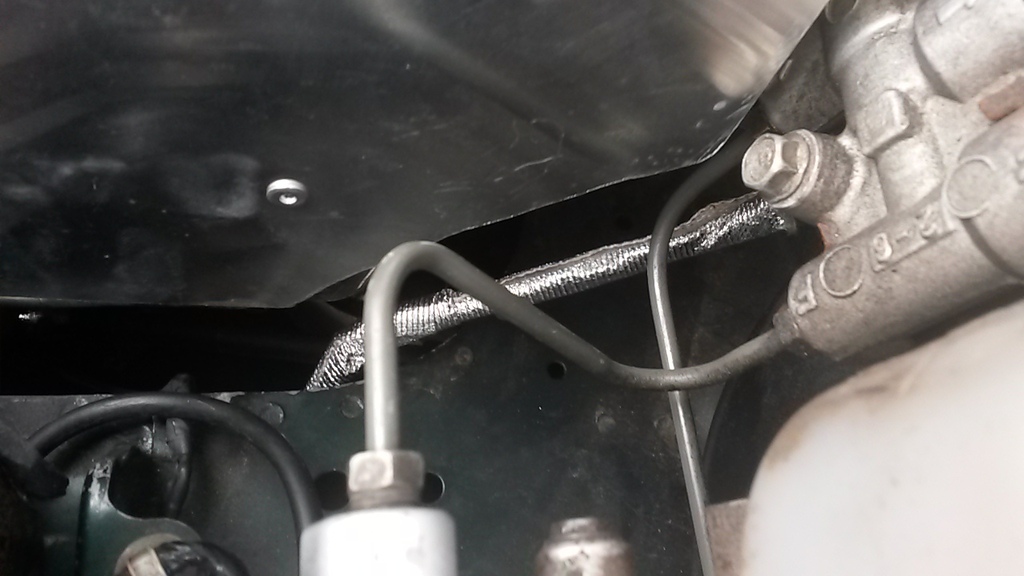

The other brake lines are a little bit cooler because of the shielding

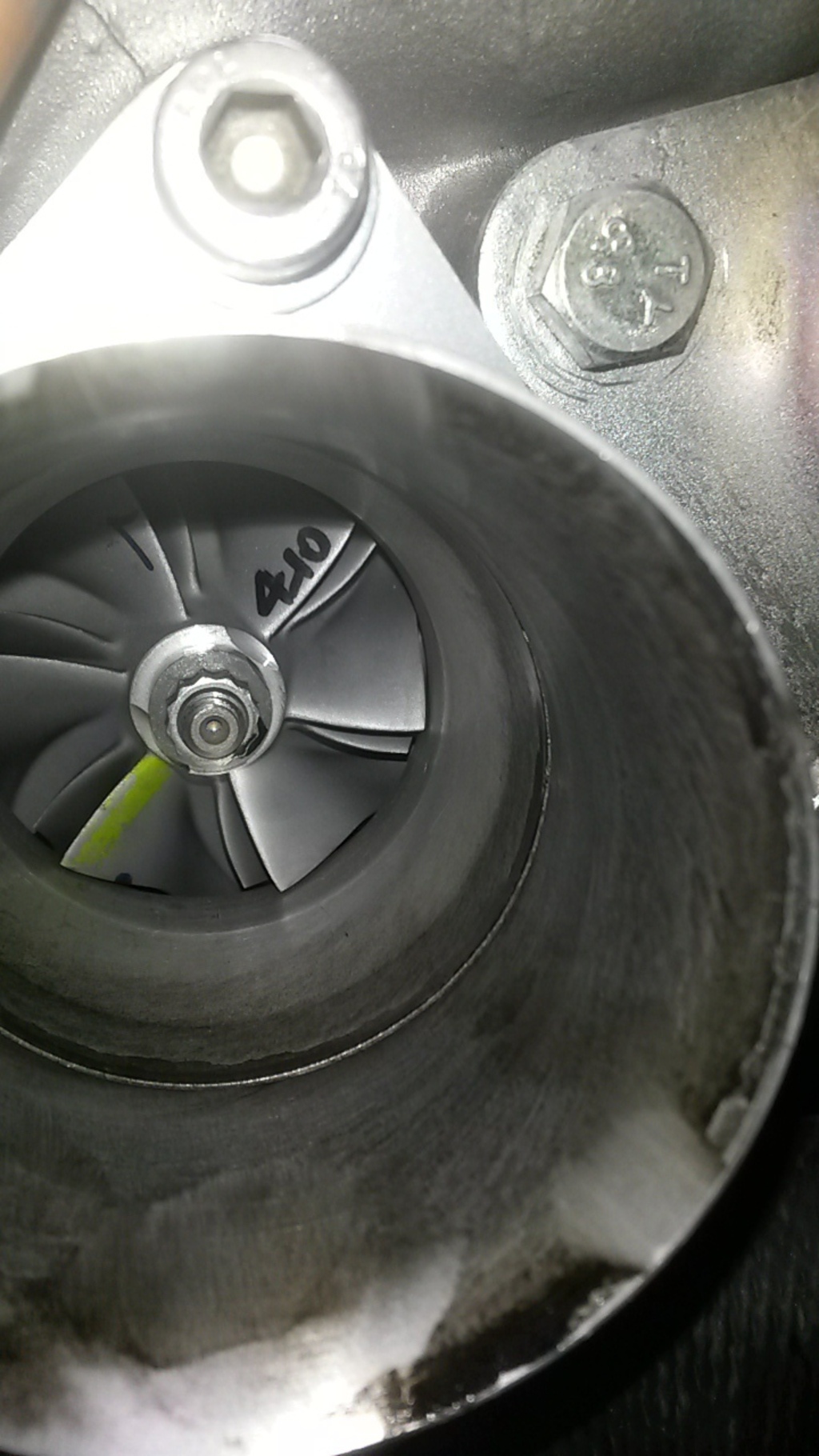

a little inspection: still zero shaft play, even now after 11.000 km of rape

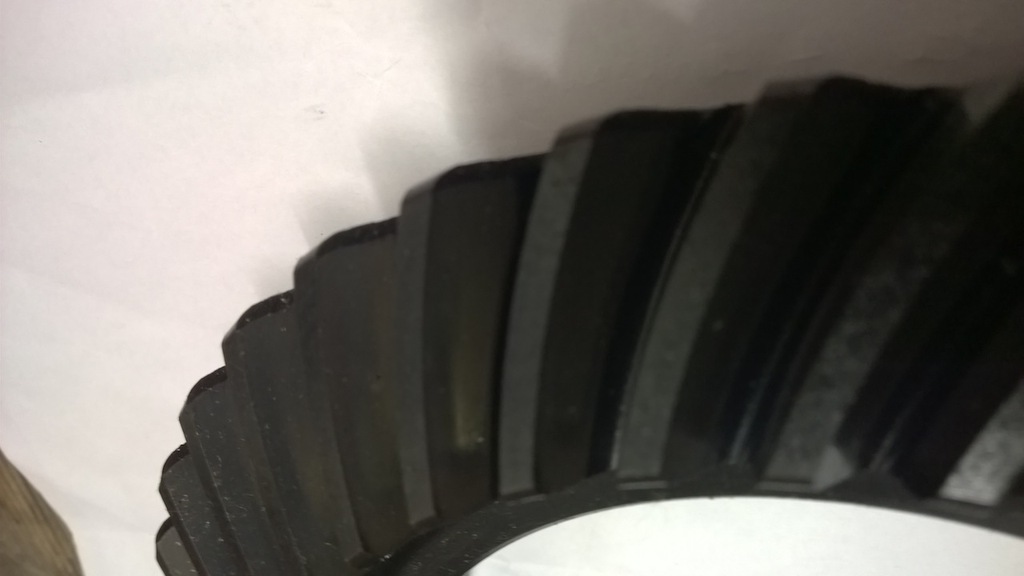

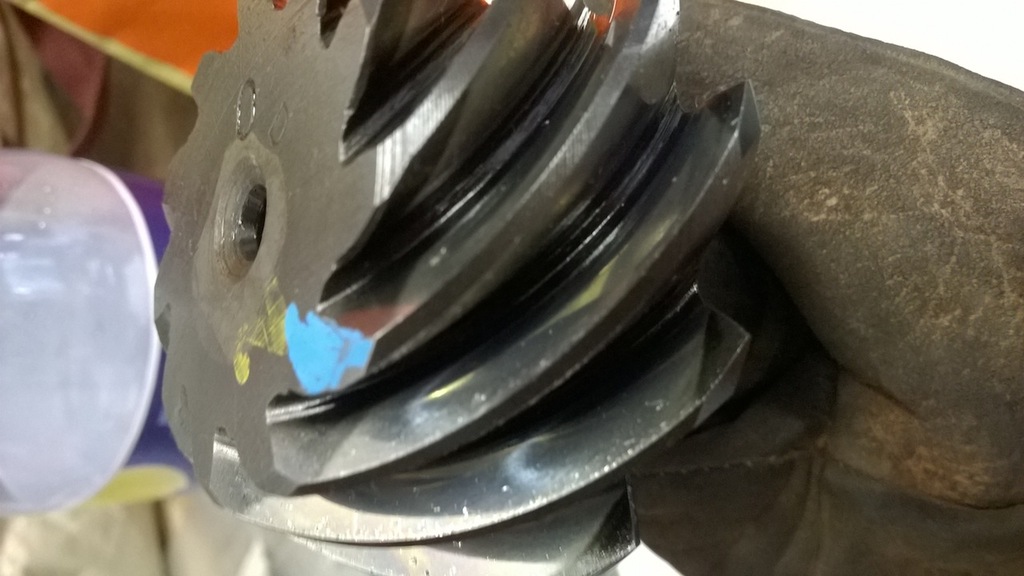

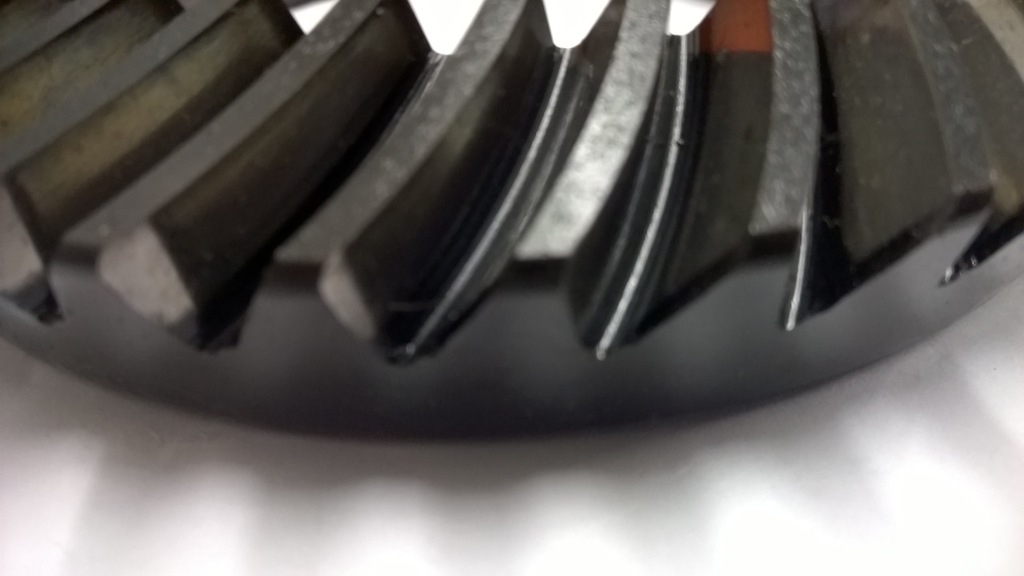

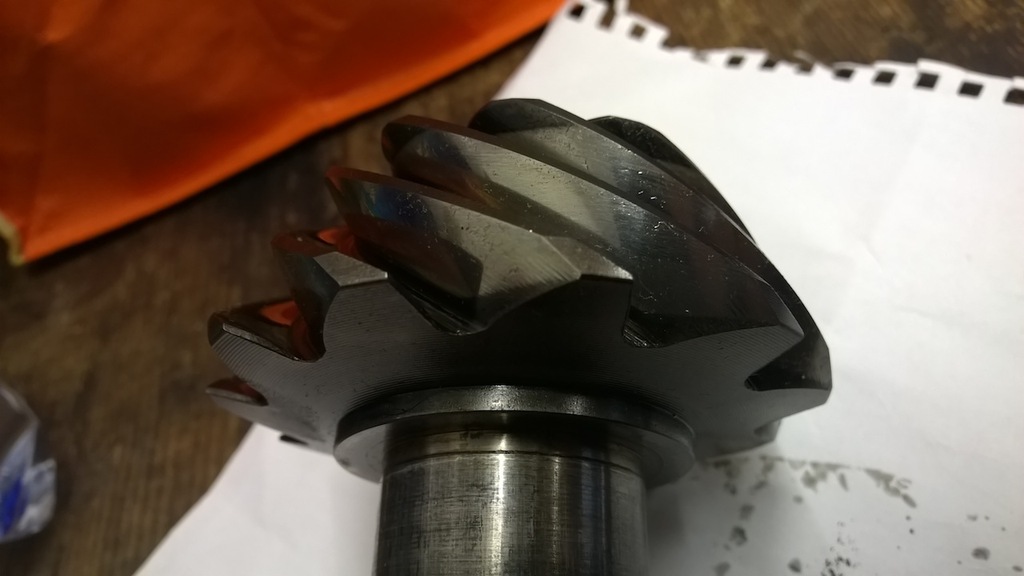

I also found another 3.636 ring&pinion, seems ok. I can have it next week.







Attached Thumbnails
diy "turbo no hit block" '00 BP miata-20150814_174517_zpsb5wc60pg.jpg   diy "turbo no hit block" '00 BP miata-20150814_174503_zps0pabn9qa.jpg   diy "turbo no hit block" '00 BP miata-20150814_174458_zpsnkol2fd5.jpg   diy "turbo no hit block" '00 BP miata-20150814_174452_zpsqxrkhy9p.jpg   diy "turbo no hit block" '00 BP miata-20150806_164322_zpsag67lx7r.jpg

diy "turbo no hit block" '00 BP miata-wp_20150812_010_zps5ljt1yry.jpg   diy "turbo no hit block" '00 BP miata-wp_20150812_006_zpsltbe6tbu.jpg   diy "turbo no hit block" '00 BP miata-wp_20150812_002_zpsitnojahc.jpg   diy "turbo no hit block" '00 BP miata-wp_20150812_001_zpsearbxlc8.jpg
DNA54 is offline   Reply With Quote
Old 08-18-2015, 04:03 AM   #379
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

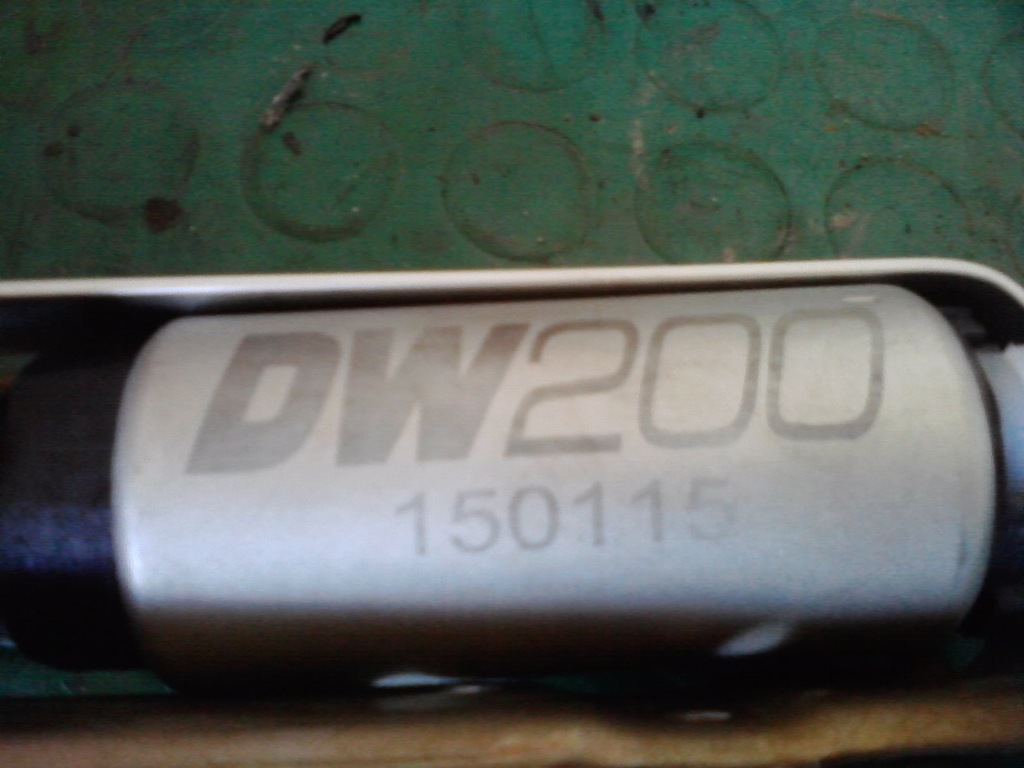

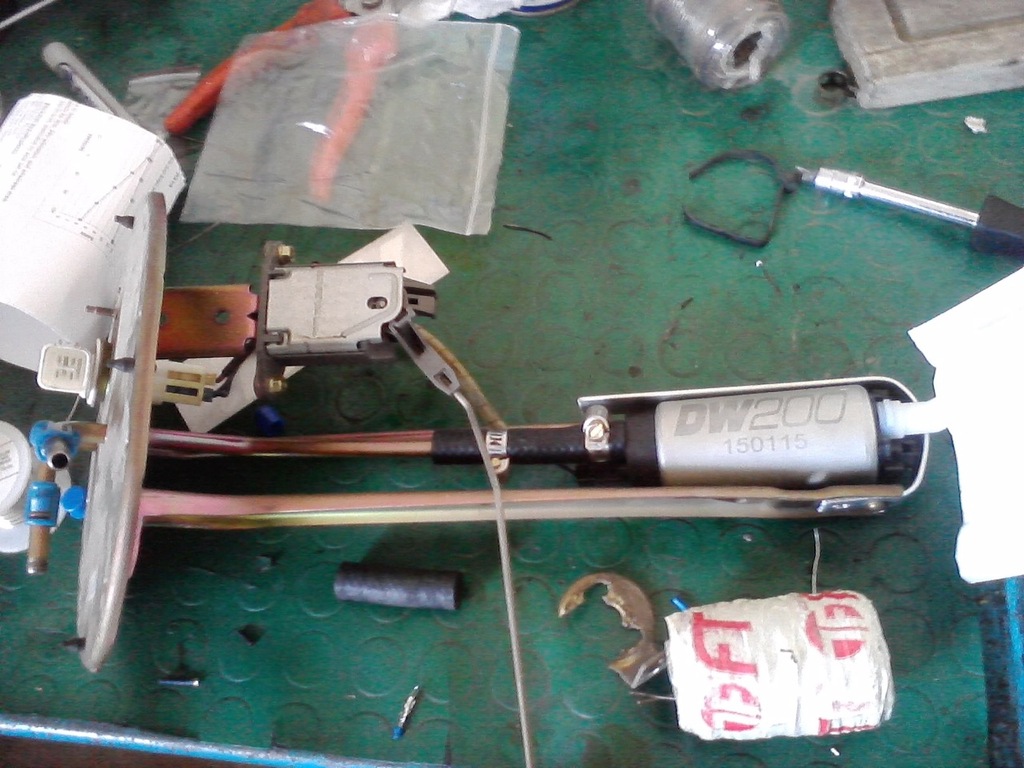

DW200 installed, the afr didn't changed with the rx8's at 100%, so the oem pump wasn't at his limit.
I also installed the rc's 820cc. It is possible to idle at 14.7, but very rough.. 14.0 is fine
Now it's time to tune all the map, again
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-p170815_13.54_zpspvikbdin.jpg   diy "turbo no hit block" '00 BP miata-p170815_13.53_zpsnvbtkgm1.jpg

Last edited by DNA54; 08-18-2015 at 04:58 AM.
DNA54 is offline   Reply With Quote
Old 08-20-2015, 02:57 AM   #380
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Tuned for 11-11.8:1 and 250 kPa. I cannot go any further because of the 250 kPa map sensor. I can reach 220 kPa in first gear (spinning)

Maximum duty cycle of the RC's: 56%
DNA54 is offline   Reply With Quote
