Old 11-02-2015, 01:31 PM   #401
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

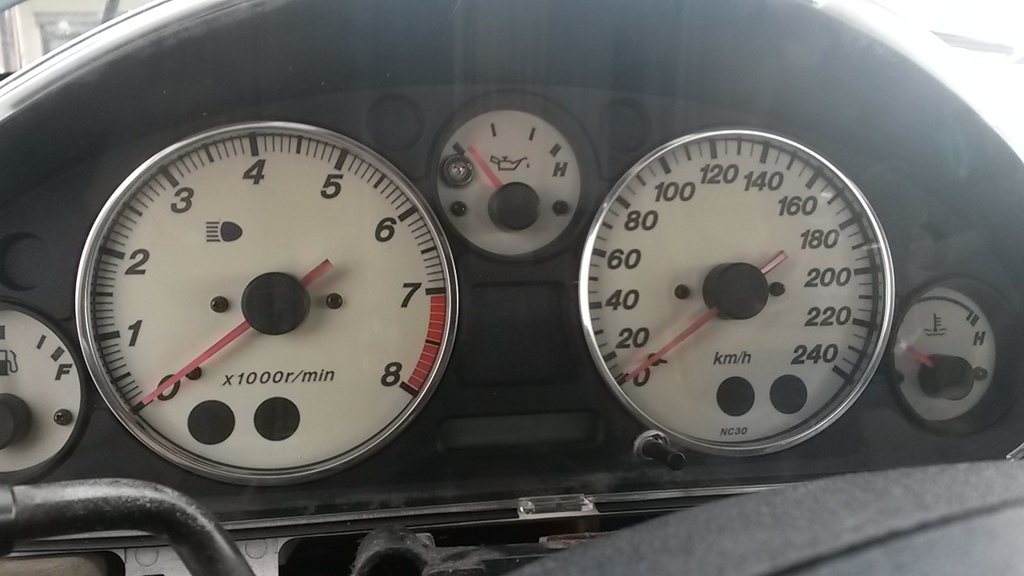

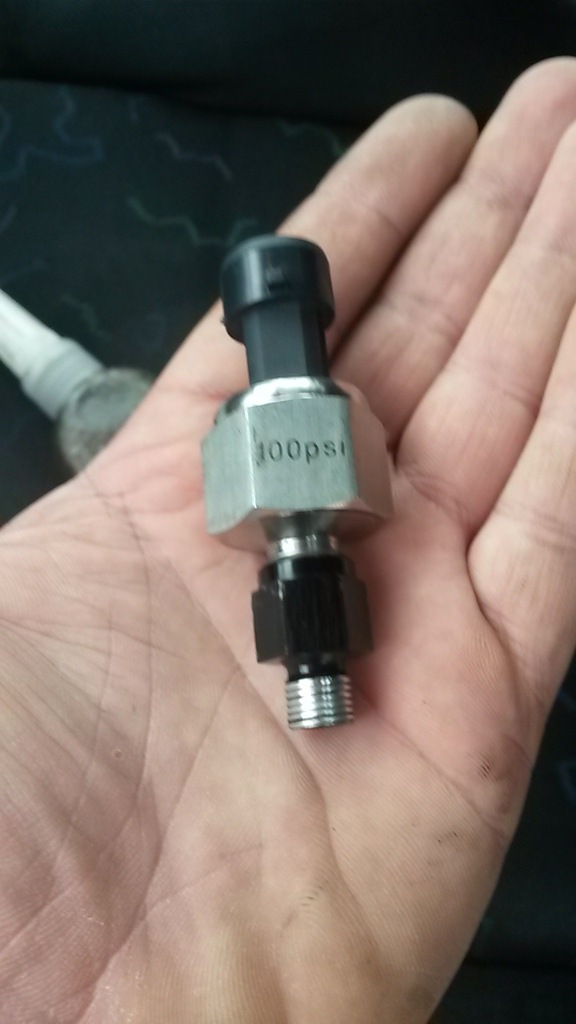

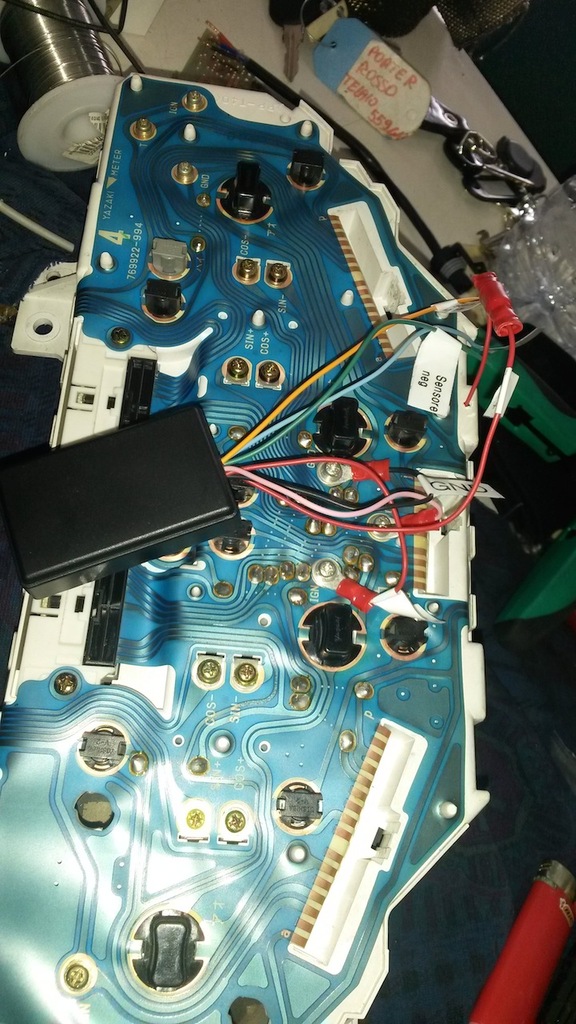

Attached Thumbnails
diy "turbo no hit block" '00 BP miata-img-20151102-wa0006_zpsliwdkpog.jpeg   diy "turbo no hit block" '00 BP miata-20151102_101805_zpsauc40yyt.jpg   diy "turbo no hit block" '00 BP miata-20151102_153006_zps8osblw1f.jpg   diy "turbo no hit block" '00 BP miata-20151102_153012_zpsogcjjdun.jpg
DNA54 is offline   Reply With Quote
Old 11-03-2015, 10:10 AM   #402
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

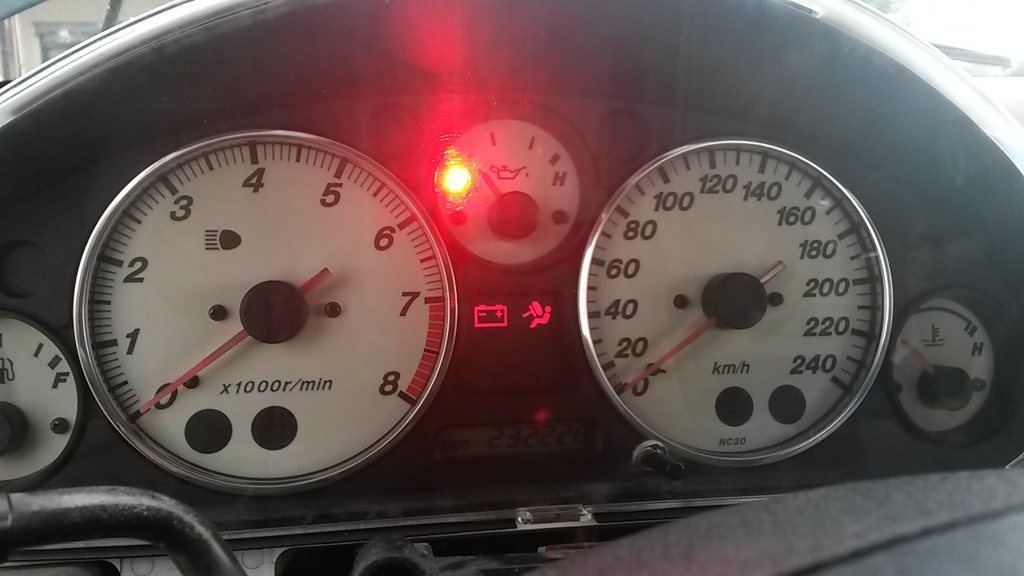

it goes to high for a couple of milliseconds when I turn the key to off position because I have an apexi turbo timer
DNA54 is offline   Reply With Quote
Old 11-19-2015, 08:48 AM   #403
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

The differential is whistling. Again.
It's like the fifth in a row, this time it lasted 16 days

Any advice?
I think I have two choices:
-overbuild with a stronger differential but without the ppf
-lower the pressure
-change the turbine with something bigger (less torque)
-sell the car

Since option #2 is not possible what would you do?
DNA54 is offline   Reply With Quote
Old 11-19-2015, 09:39 AM   #404
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,442
Total Cats: 2,259
Default

Find out what you are doing wrong that is destroying the diffs.

And it's not just sheer torque.

Bundy just posted about how his is still fine and he blew up 15 transmissions from pure torque and super hard track use, so I highly doubt your failures are from just too much power.

Either something is mis-aligned, or they keep getting put together wrong (if even taken apart, that is), or bad fluid, or something.
18psi is offline   Reply With Quote
Old 11-19-2015, 09:43 AM   #405
Senior Member
iTrader: (1)

Join Date: Dec 2010
Location: Farmington Hills, MI
Posts: 774
Total Cats: 69
Default

Excessive wheel hop?
acedeuce802 is offline   Reply With Quote
Old 11-19-2015, 09:50 AM   #406
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,868
Total Cats: 1,262
Default

Quote:
Originally Posted by acedeuce802 View Post
Excessive wheel hop?
This disntigrates diffs, not make em whistle. (Ask me how I know )
aidandj is offline   Reply With Quote
Old 11-19-2015, 10:18 AM   #407
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,442
Total Cats: 2,259
Default

I'm guessing incorrectly set tolerances or it's angled too much or janky fluid.

Just guesses

Shock loading will violently shear things, not "wear it out" like OP seems to be experiencing
18psi is offline   Reply With Quote
Old 11-19-2015, 02:25 PM   #408
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,439
Total Cats: 470
Default

Agreed. Something isn't right here. It's not just power or whatever.
turbofan is offline   Reply With Quote
Old 11-19-2015, 03:59 PM   #409
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

I'm honestly demotivated.
I done what I could, but the differential assembly isn't a thing that I want made myself, and this time I want to be sure is the last one.
What if I give the differential to another machine shop and it brokes again? I don't want this happen.
The only thing that I can do is unbolt the old unit and put in another one. It's pretty much straightforward, I don't believe that is my fault... I even torqued everything to mazda specs...
The last time I reinstalled the oem suspensions, trying to exclude even the uncorrect shafts angle (it was too low)

I honestly don't know where to smash my skull
DNA54 is offline   Reply With Quote
Old 11-19-2015, 04:02 PM   #410
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

oh, and by the way, holding the brake in sixth gear I can reach 7psi (0.5 bar) since 2500 rpm and 21 psi (1.5 bar) since 3000 rpm.
Yeah, yesterday I was bored during a 400km trip
DNA54 is offline   Reply With Quote
Old 11-19-2015, 04:02 PM   #411
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,439
Total Cats: 470
Default

Can't blame you there -- this would be seriously demotivating.

Would you please summarize your diff adventures into one post? Lots of info spread over several pages.

Tell us what diffs broke, when, and how you fixed/replaced them.
turbofan is offline   Reply With Quote
Old 11-19-2015, 04:17 PM   #412
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

first: mazda oem unit 3.636 + torsen, never opened.
Good until I tuned to 21 psi and it started to whistle. (from here I still ran 21 psi)

second: mazda oem 4.2 open, never opened. Two days and the left shaft escaped about 10mm out from the diff, letting the oil exit from the seal: wasted the third day. It was installed perfectly, I don't know why happened.
Bought new elastic rings for the shafts, oem of course. Raised the car with the oem suspension to exclude the excessive shaft angle.

Third: my first case with torsen, new r&p, new bearings, new seals and new crush sleeve.
One day after installation started to whistle.

Fourth: same differential, same case, just adjusted the tolerances (local machine shop)
lasted around six hours and started to whistle again

Fifth: same case, new r&p. The bearings had less than 250 km, we leaved them. This time I sent the case to another machine shop far away (very good reputation here).
It lasted 16 days. Now it's whistling again.

This saturday I will dyno on a mustang dyno, just to see how much torque I'm putting down. Sure enough I'm under 300hp, but the torque is real
DNA54 is offline   Reply With Quote
Old 11-19-2015, 04:28 PM   #413
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,439
Total Cats: 470
Default

Third, 4th and 5th COULD be errors in adjustments or parts. Second lost its oil, so it makes sense why it went pop. First diff... how was it a 3.636 but never opened?

I think it's worth a try to snag a low-ish mile, OEM Torsen that's truly never been opened and give it another shot.

But a Getrag upgrade is balleur.
turbofan is offline   Reply With Quote
Old 11-19-2015, 04:29 PM   #414
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,868
Total Cats: 1,262
Default

Quote:
Originally Posted by turbofan View Post
First diff... how was it a 3.636 but never opened?
Aussie mates.

I agree. Getrag
aidandj is offline   Reply With Quote
Old 11-19-2015, 04:32 PM   #415
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by turbofan View Post
Third, 4th and 5th COULD be errors in adjustments or parts. Second lost its oil, so it makes sense why it went pop. First diff... how was it a 3.636 but never opened?

I think it's worth a try to snag a low-ish mile, OEM Torsen that's truly never been opened and give it another shot.

But a Getrag upgrade is balleur.
the first was the original of the car. Mine is (was) a "miracle", selled with 1.8, 6 speed and 3.636 + torsen
DNA54 is offline   Reply With Quote
Old 11-20-2015, 03:30 PM   #416
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 14,405
Total Cats: 1,259
Default

Did you put it together with new bearings and a new "distance piece" or "crush sleeve"? If the bearings are worn it could make the diff not keep its tolerances.
sixshooter is online now   Reply With Quote
Old 11-28-2015, 10:45 AM   #417
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by sixshooter View Post
Did you put it together with new bearings and a new "distance piece" or "crush sleeve"? If the bearings are worn it could make the diff not keep its tolerances.
yes, the last one had everything new inside: all the bearings and new crush sleeve (oem mazda replacement)

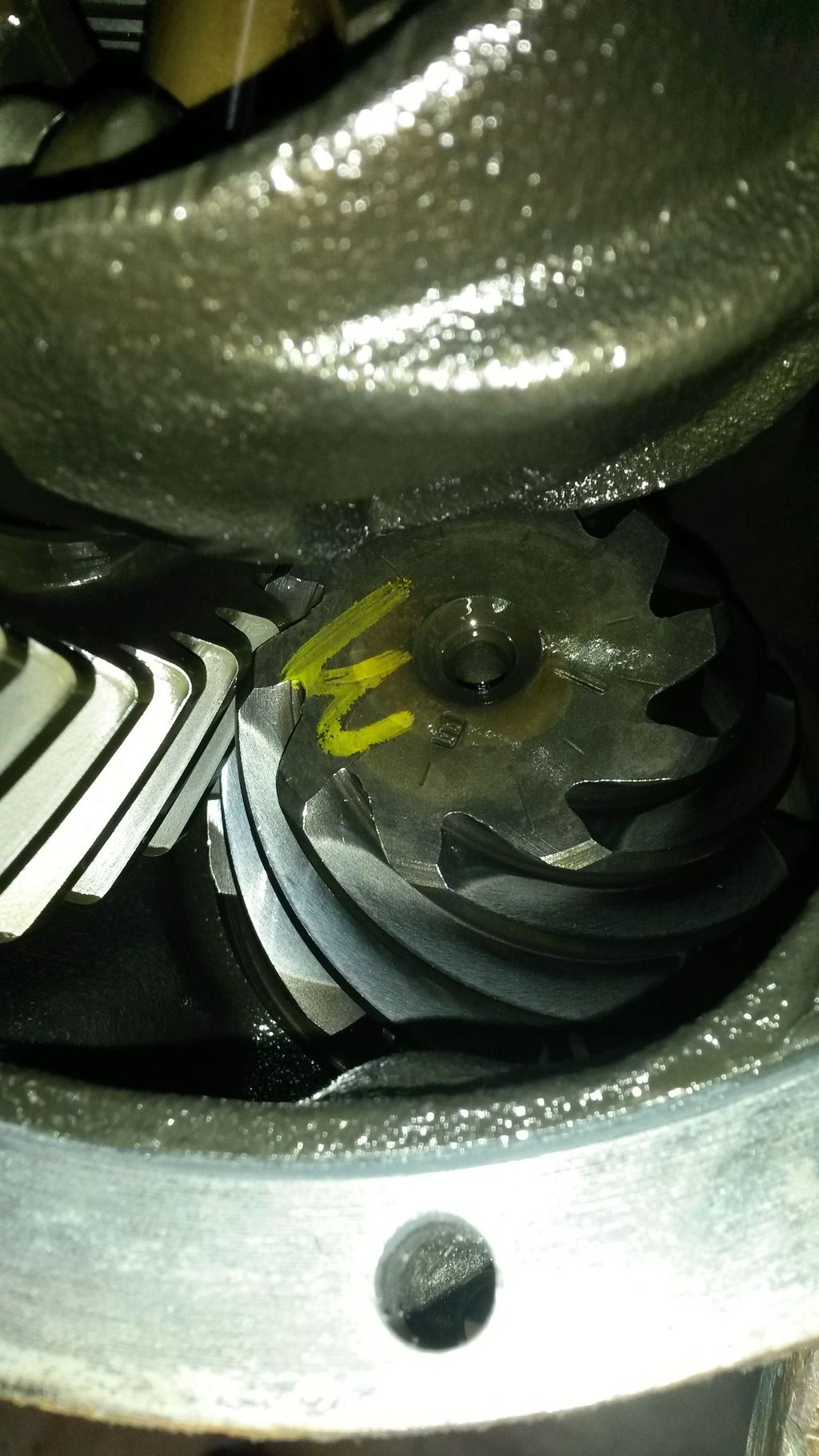

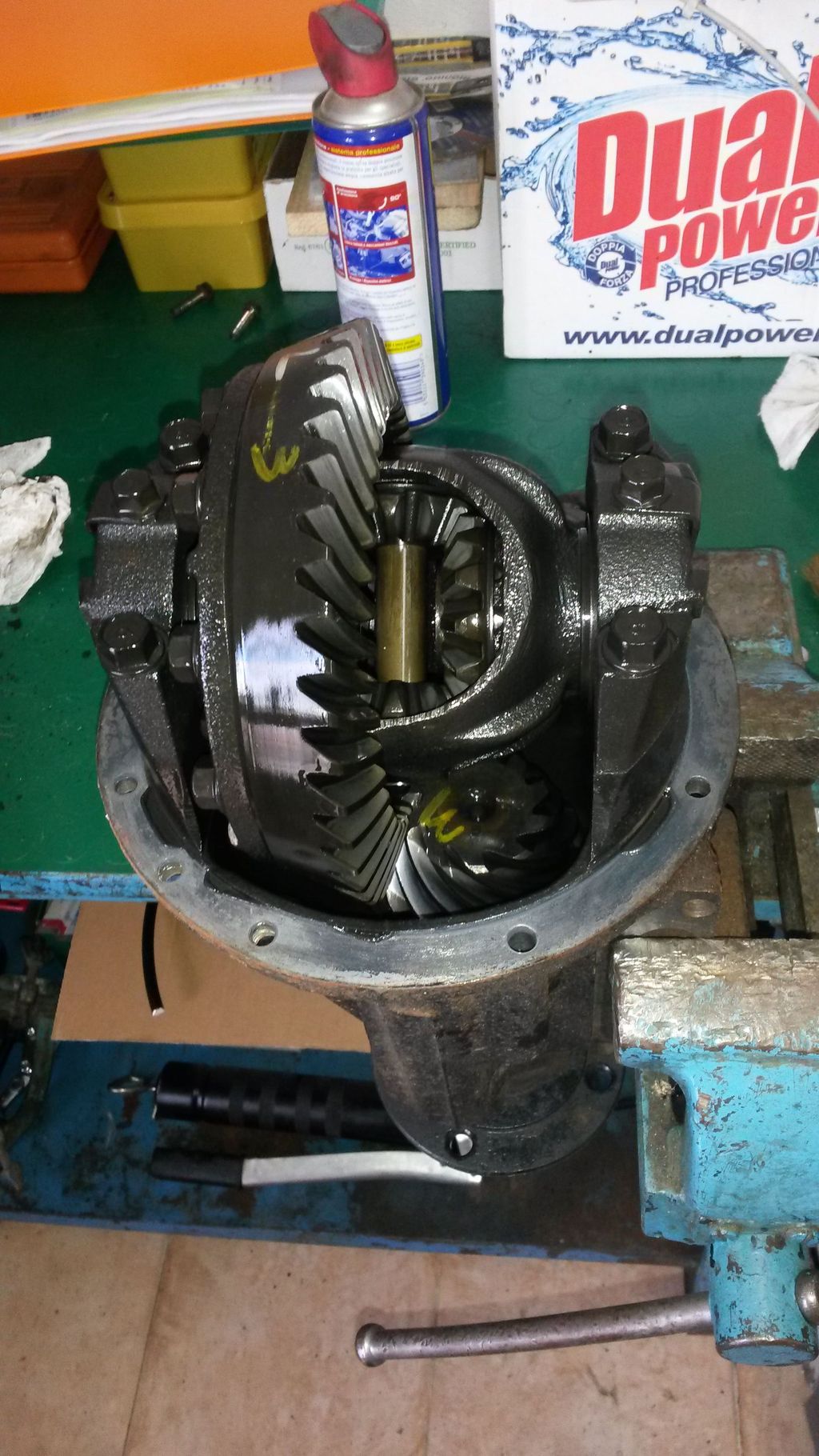

I want to try the last time. Oem 4.1 open diff with just 40.000 km on it. It's the less used one I found

It seems to be in great shape:



Attached Thumbnails
diy "turbo no hit block" '00 BP miata-img-20151127-wa0005_zpstk4o3p9q.jpeg   diy "turbo no hit block" '00 BP miata-img-20151127-wa0007_zpsvviif1sf.jpeg
DNA54 is offline   Reply With Quote
Old 11-30-2015, 11:46 AM   #418
Junior Member
iTrader: (5)

Join Date: Oct 2014
Posts: 436
Total Cats: 19
Default

Are you taking the correct measurement on the end caps with a 7-8inch micrometer? Then setting your backlash or are you setting your backlash and then taking the cross measurement?
90civichhb is offline   Reply With Quote
Old 11-30-2015, 01:26 PM   #419
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

Quote:
Originally Posted by 90civichhb View Post
Are you taking the correct measurement on the end caps with a 7-8inch micrometer? Then setting your backlash or are you setting your backlash and then taking the cross measurement?
I've never done a rebuild, but every machine shop I went for has the mellens printed from me, so mazda specs and assembly instructions
DNA54 is offline   Reply With Quote
Old 12-01-2015, 05:51 AM   #420
Junior Member
Thread Starter

DNA54's Avatar

Join Date: Nov 2013
Location: Sardinia, Italy
Posts: 369
Total Cats: 49
Default

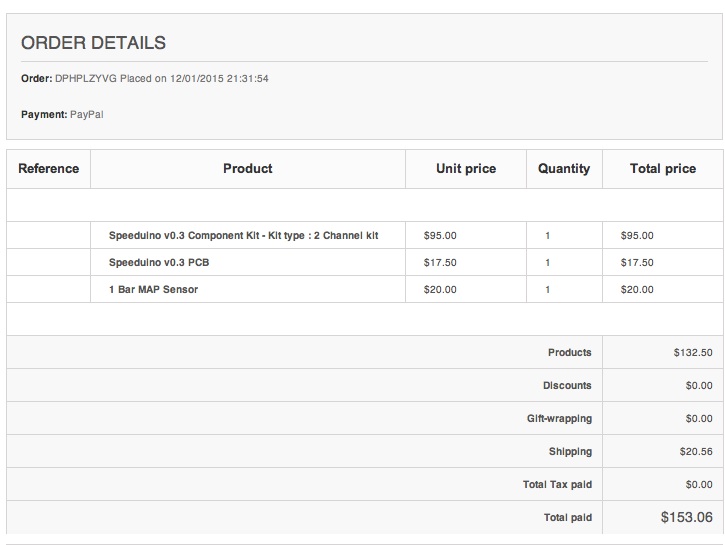

That "1 bar" sensor it's actually the mpx4250 (0-250 kPa) , not the 0-110 kPa one
Attached Thumbnails
diy "turbo no hit block" '00 BP miata-asdasdadsadsadsadsads_zpsr4n48kbq.jpg
DNA54 is offline   Reply With Quote
