Quote:
Originally Posted by EO2K View Post
So it runs better on 3 than it does on 4?

/boggle
-shrug-

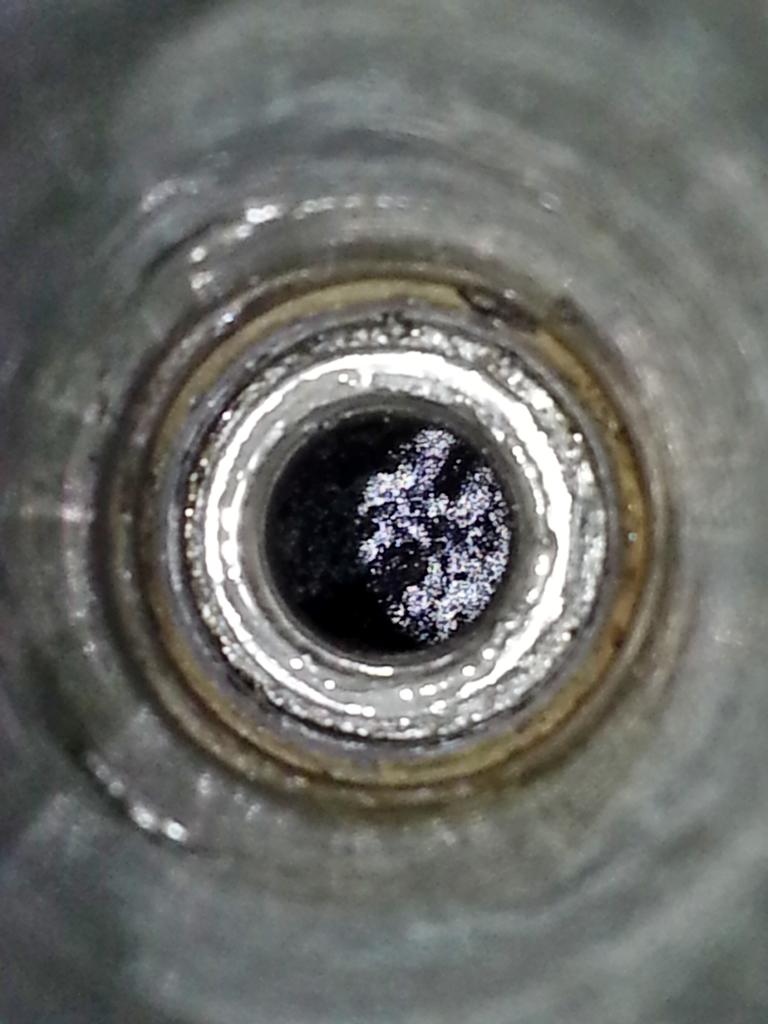

Cyl #4

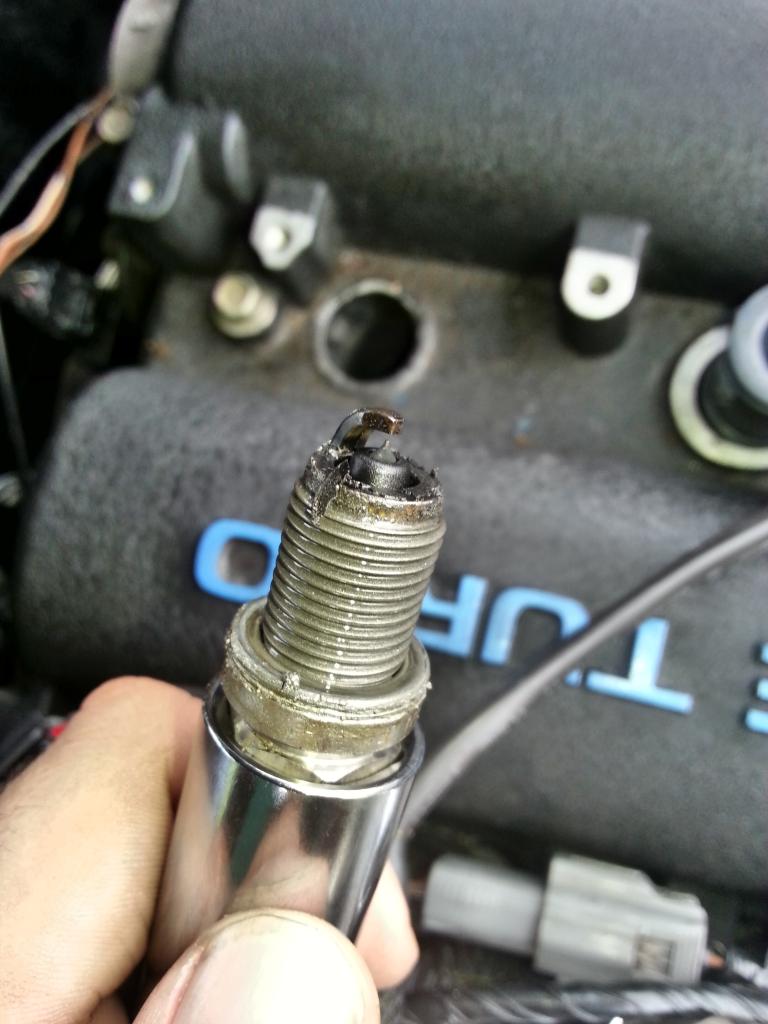

Spark plug #4
Attached Thumbnails
Impuls build-c360_2014-09-17-16-40-49-741_zps1vipslkx.jpg   Impuls build-c360_2014-09-17-16-42-46-878_zpskuiqlx1q.jpg
Impuls is offline   Reply With Quote
Old 09-17-2014, 06:12 PM   #522
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

time for comp/leakdown test
18psi is offline   Reply With Quote
Old 09-18-2014, 01:01 AM   #523
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default



I then tested spark. Fun little tool in MS I must say. Played with dwell and rpm.
#4 spark plug is very shitty spark.
All the others were spot on. I increased dwell and it cleared up some carbon and made #4 spark well but the engine still runs like ****.
I should of switched the plug around to test.

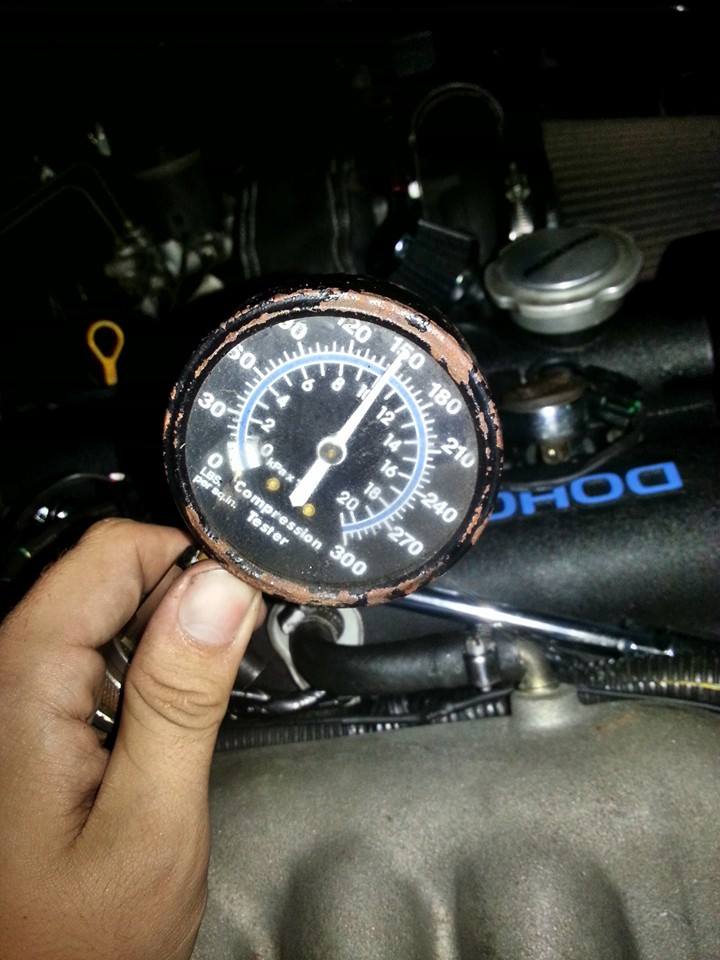

Tomorrow I'm going to compresson test ALLOFTHEM and probably replace the plugs with IK22's or BKR7Es that are cut to fit the coils.

Interesting fact: I found another plug to use besides BKR7E's where the insulator and actual end are different. Same 7 heat range but doesn't come out as far. The v8 drag guys use them here.
Here's the part number and link for info. NGK 4091 R5671A-7 Racing Plug
Attached Thumbnails
Impuls build-10606526_10202647655128443_8216355260008026974_n_zps4963936e.jpg
Impuls is offline   Reply With Quote
Old 09-18-2014, 01:03 AM   #524
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

can you please tell me in what universe comp testing 1 cylinder alone has any meaning whatsoever?

do you seriously never do anything properly?

you literally half *** EVERY single thing you do.

lol don't take this the wrong way, I'm not even mad. its just really amusing
18psi is offline   Reply With Quote
Old 09-18-2014, 01:15 AM   #525
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
can you please tell me in what universe comp testing 1 cylinder alone has any meaning whatsoever?

do you seriously never do anything properly?

you literally half *** EVERY single thing you do.

lol don't take this the wrong way, I'm not even mad. its just really amusing
Listen here bitch. It was 11pm at night and I wanted to be sure the cylinder has compression.
And **** mosquitos. hard. sideways.

Haha, I never have time for **** these days, nor the patients.
Impuls is offline   Reply With Quote
Old 09-18-2014, 02:07 AM   #526
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

Quote:
Originally Posted by Impuls View Post
Listen here bitch. It was 11pm at night and I wanted to be sure the cylinder has compression.
And **** mosquitos. hard. sideways.

Haha, I never have time for **** these days, nor the patients.
patients?
are you a doctor?
18psi is offline   Reply With Quote
Old 09-18-2014, 05:48 AM   #527
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
patients?
are you a doctor?
I might be.
You wanna ****?
Impuls is offline   Reply With Quote
Old 09-19-2014, 02:28 PM   #528
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

I thought so.

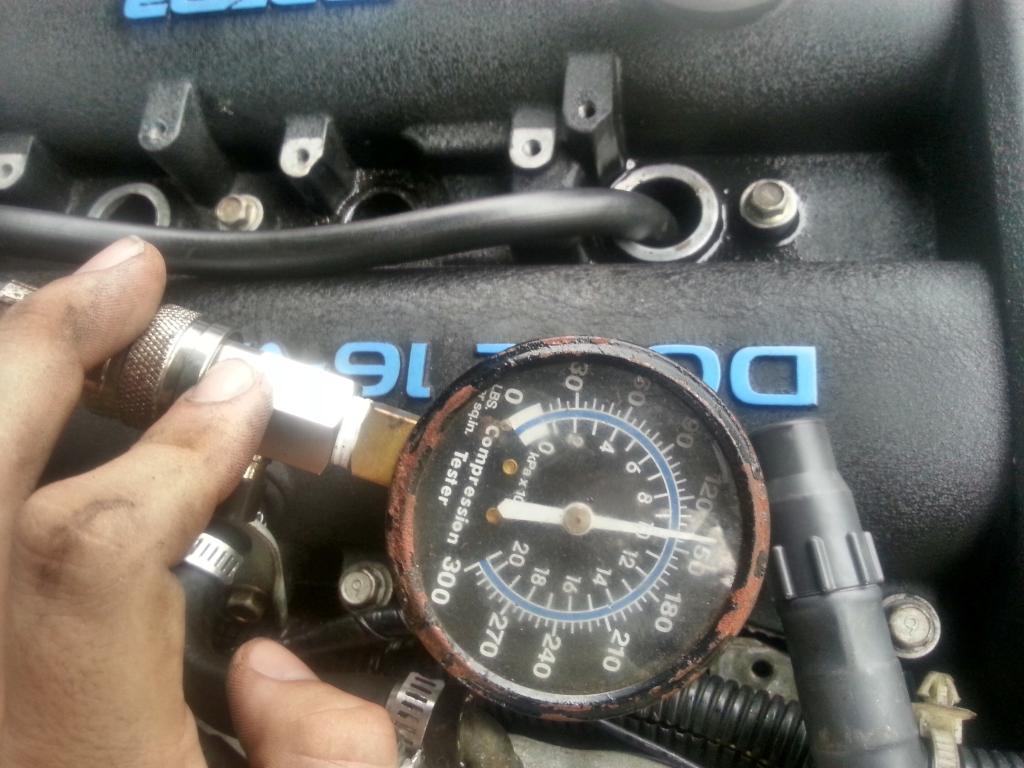

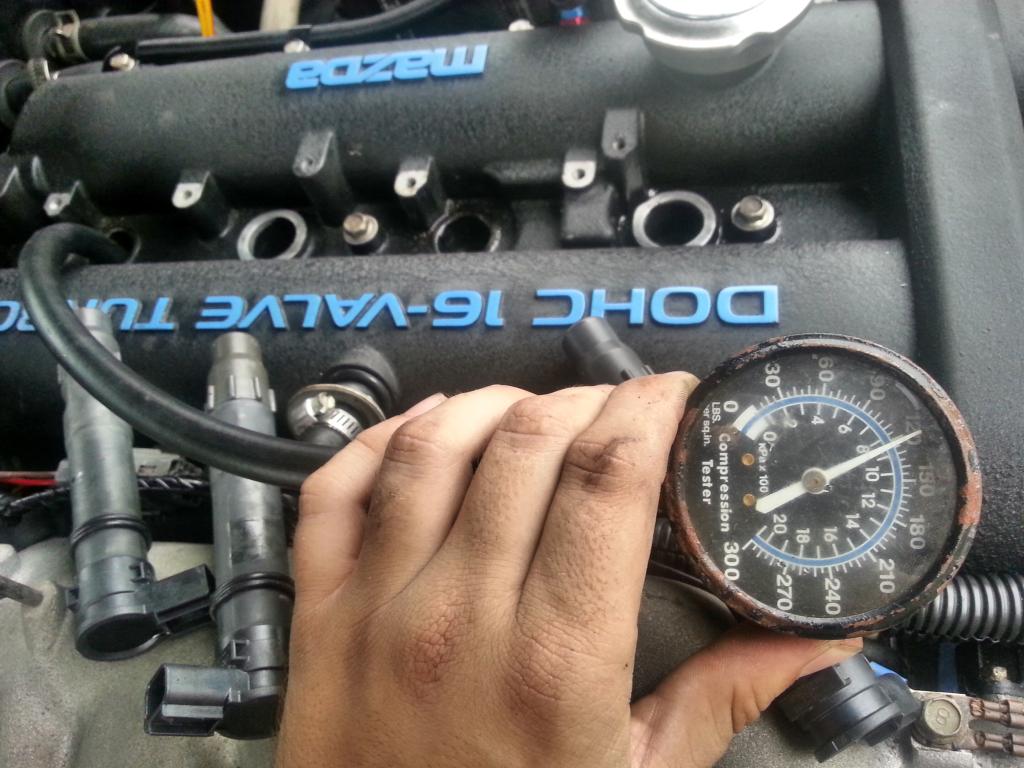

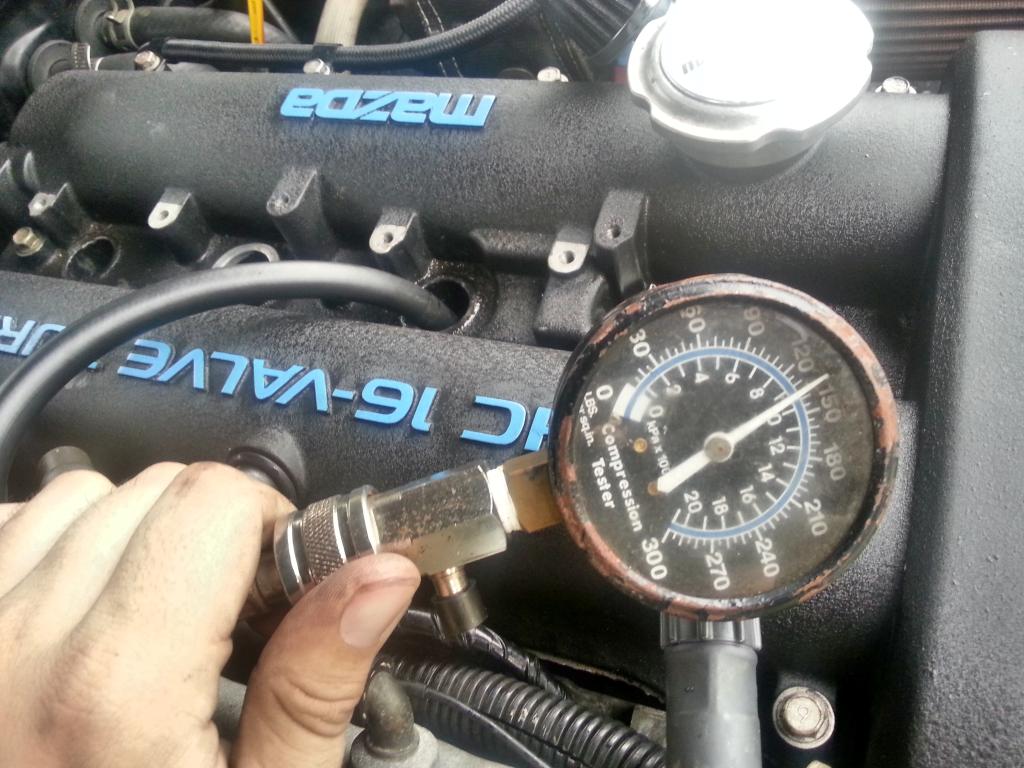

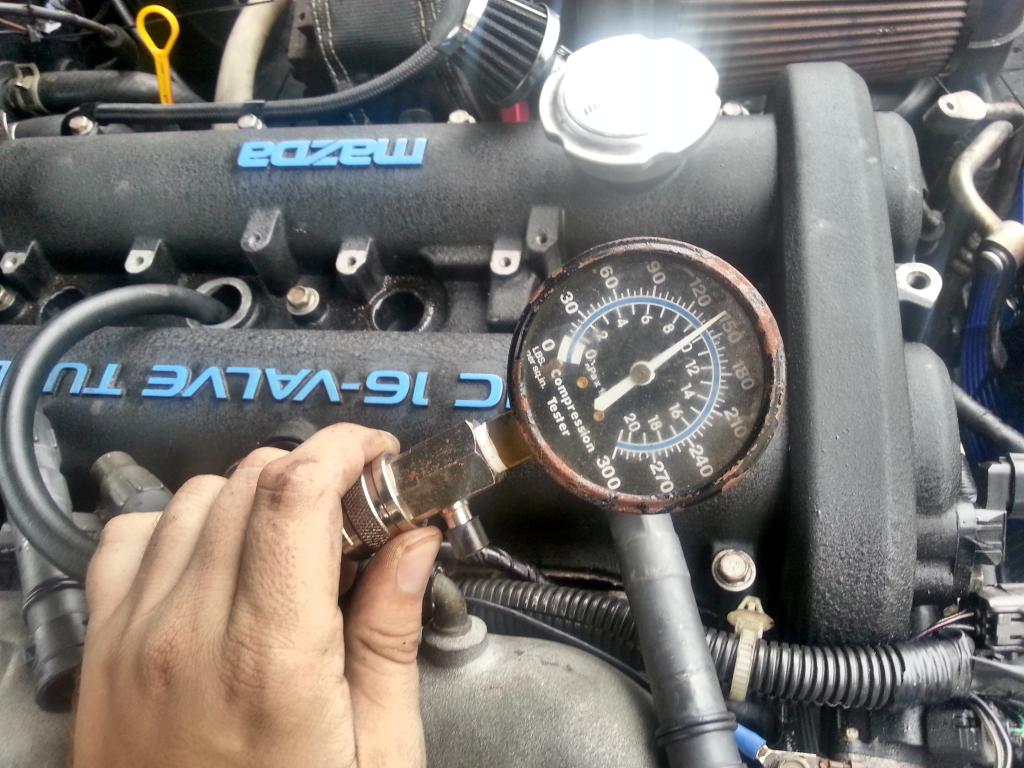

So, I'm having an awesome day. Car didn't start now, laptop won't connect to MS, and I'm not liking my compression numbers right now.
I expect the starting problem is from flooded cylinders of seaform so I'm letting them "air out"

Time to a leakdown test.
JUST TO MAKE VLAD HAPPY:



Attached Thumbnails
Impuls build-c360_2014-09-19-12-46-02-124_zpsdzzb5bzg.jpg   Impuls build-c360_2014-09-19-12-43-34-754_zpsgu4sdrf8.jpg   Impuls build-c360_2014-09-19-12-41-12-467_zpsfxi9idmk.jpg   Impuls build-c360_2014-09-19-12-37-48-882_zpsw3xmn4yd.jpg
Impuls is offline   Reply With Quote
Old 09-19-2014, 02:53 PM   #529
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

So, it does seem like cyl 4 is a little bit sad... What did the leakdown test show? Or are you just saying it's time for a leakdown test now that you properly did a compression test?
turbofan is offline   Reply With Quote
Old 09-19-2014, 03:12 PM   #530
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

lol I think he called the comp test a leakdown test

he just loves it when I correct all his mis-types and posts

yeah, doesn't look too good, bummer.

I'm guessing that's a low reading tester too, but still doesn't change the fact that there is a 20% variation in #4
18psi is offline   Reply With Quote
Old 09-19-2014, 04:04 PM   #531
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

did you even do the compression test with WOT?
bmxfuel007 is offline   Reply With Quote
Old 09-19-2014, 09:04 PM   #532
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by turbofan View Post
So, it does seem like cyl 4 is a little bit sad... What did the leakdown test show? Or are you just saying it's time for a leakdown test now that you properly did a compression test?
No I haven't been able to do a leakdown test. It's been raining all day here in Tampa and I had to deal with other things.
Impuls is offline   Reply With Quote
Old 09-20-2014, 11:24 PM   #533
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Swapped in some IK22's.
Started up fine. Did some seafoam, and found the manifold/turbo flange gasket blew out. So time to remove that gasket anyways the flanges were already trued so it was kinda pointless to have the gaskets.
Drove the car around and it runs pretty lean anywhere in WOT load, So I didn't do many pulls though.
Impuls is offline   Reply With Quote
Old 09-22-2014, 02:05 PM   #534
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

aren't you supposed to run the comp test with a warm engine?
your rings won't seal as good with them cold.

also, throw in some oil and see if comp gets better.
Alejo_NIN is offline   Reply With Quote
Old 09-22-2014, 02:10 PM   #535
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 782
Default

Quote:
Originally Posted by Impuls View Post
Swapped in some IK22's.
Started up fine. Did some seafoam, and found the manifold/turbo flange gasket blew out. So time to remove that gasket anyways the flanges were already trued so it was kinda pointless to have the gaskets.
Drove the car around and it runs pretty lean anywhere in WOT load, So I didn't do many pulls though.

Yup.
concealer404 is offline   Reply With Quote
Old 09-22-2014, 09:11 PM   #536
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Alejo_NIN View Post
aren't you supposed to run the comp test with a warm engine?
your rings won't seal as good with them cold.

also, throw in some oil and see if comp gets better.
What, did you want me to rub the engine till it's warm?
It's probably why the compression numbers were so low.
It runs now but has misfire still going to gap down the plugs more.
Do a warm compression test and get around to this leak down.

About the oil thing.
Supposedly, the Mystery Oil stuff works best to do that.
An engine builder was saying instead of the seafoam(I was using to clear up carbon) use it and it's what all the guys around here are doing. Helps the rings seal or something.
Impuls is offline   Reply With Quote
Old 09-22-2014, 09:12 PM   #537
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

He meant put oil in they cylinders during the compression test to see if it brought the numbers up. ATF works better than MMO if you're trying to do a top end ring soak.
Leafy is offline   Reply With Quote
Old 09-23-2014, 01:00 AM   #538
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Leafy View Post
He meant put oil in they cylinders during the compression test to see if it brought the numbers up. ATF works better than MMO if you're trying to do a top end ring soak.
Okay that's what I always thought. Using ATF for the rings. I did a dab in each cyl when the engine was built for break-in.

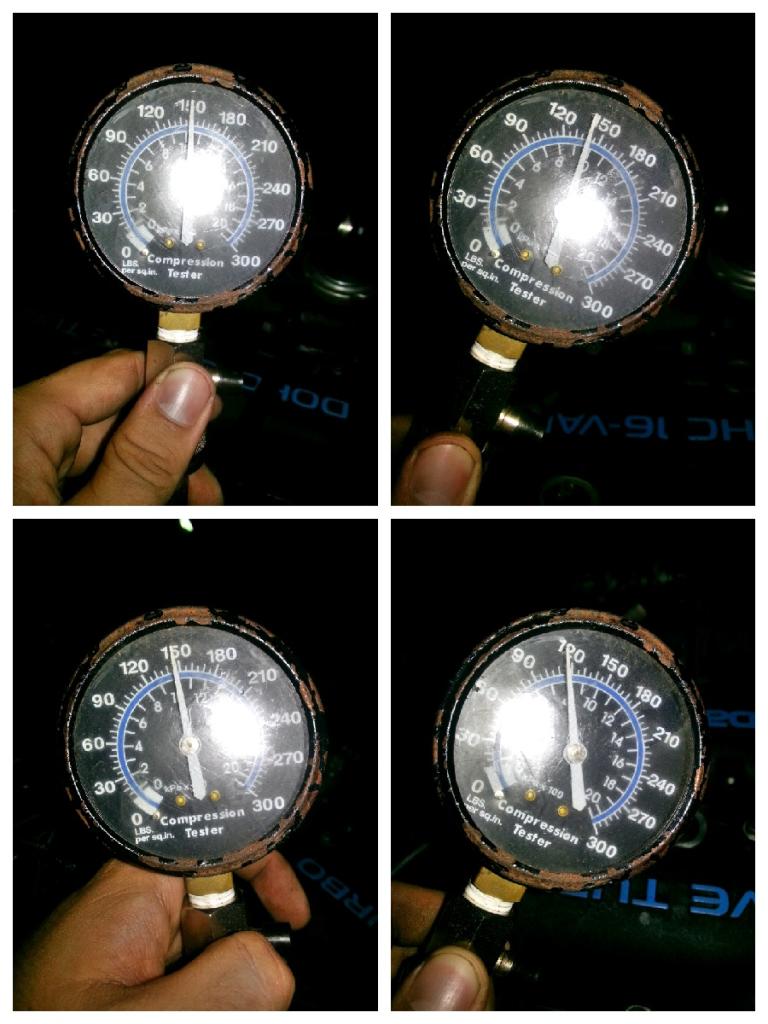

So warm compression numbers are here and not looking any better. :/
Name:  C360_2014-09-22-23-23-05-657_zpsdjqgvrhd.jpg
Views: 4
Size:  97.3 KB


Also got a video of the now very shitty idle and smoke out the exhaust(when rpms decrease) meaning valve/seals, correct?

Also have video's of how it doesn't like blipping the throttle or increasing the rpms.
Attached Thumbnails
Impuls build-c360_2014-09-22-23-23-05-657_zpsdjqgvrhd.jpg
Impuls is offline   Reply With Quote
Old 09-23-2014, 01:04 AM   #539
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,192
Total Cats: 2,583
Default

that motor needs to come out and apart.
18psi is offline   Reply With Quote
Old 09-23-2014, 02:43 AM   #540
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

you blew that engine..
Alejo_NIN is offline   Reply With Quote
