Old 08-27-2014, 03:06 AM   #461
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by EO2K View Post
Hey, at least he isn't sliding sideways into things on purpose.
Hey, I like that stuff though. Besides the hitting stuff part.

I've actually been trying to contemplate what I actually want to do with the car.


Quote:
Originally Posted by 18psi View Post
15.5? holy moly I ran 15.8 on a bone stock car

trap speeds?
I can't remember, I'll look at the slips tomorrow. Good point though


Quote:
Originally Posted by thenuge26 View Post
You still running that Ebay manifaild? Time to throw that cracked piece of **** away.
Attached Thumbnails
Impuls build-0fb.gif
Impuls is offline   Reply With Quote
Old 08-27-2014, 11:06 PM   #462
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Ehhmmm..
Impuls is offline   Reply With Quote
Old 08-27-2014, 11:11 PM   #463
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

is it moving where the snap ring is or where the bolt hold the cover to the back?

cause if the former, then that's relatively normal. if the former. then tighten the bolts
18psi is offline   Reply With Quote
Old 08-30-2014, 01:19 AM   #464
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
is it moving where the snap ring is or where the bolt hold the cover to the back?

cause if the former, then that's relatively normal. if the former. then tighten the bolts
It's at the snap ring. It seems I can't get a currently sized PVC cap too leak test. So I'm going to get just a plug and a 4" coupler and try that. :/

I took aparty BOV today because it was EASY to push it open. It had a bad oring at the fitting I replaced and and I made the fitting fo as far as it would go (max setting?)
I dunno about these GFB bov's. But it seems to have effected a little. May be too tight though, on light accel then let off I get the flutter now. Oh wells
Impuls is offline   Reply With Quote
Old 08-30-2014, 12:53 PM   #465
Elite Member
iTrader: (1)

Join Date: Jun 2014
Location: Austin, TX
Posts: 2,849
Total Cats: 271
Default

Quote:
Originally Posted by Impuls View Post
I dunno about these GFB bov's. But it seems to have effected a little. May be too tight though, on light accel then let off I get the flutter now. Oh wells
Where is the vac source for the bov?
Girz0r is online now   Reply With Quote
Old 08-30-2014, 02:16 PM   #466
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Girz0r View Post
Where is the vac source for the bov?
Intake manifold?
Impuls is offline   Reply With Quote
Old 09-01-2014, 01:57 PM   #467
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

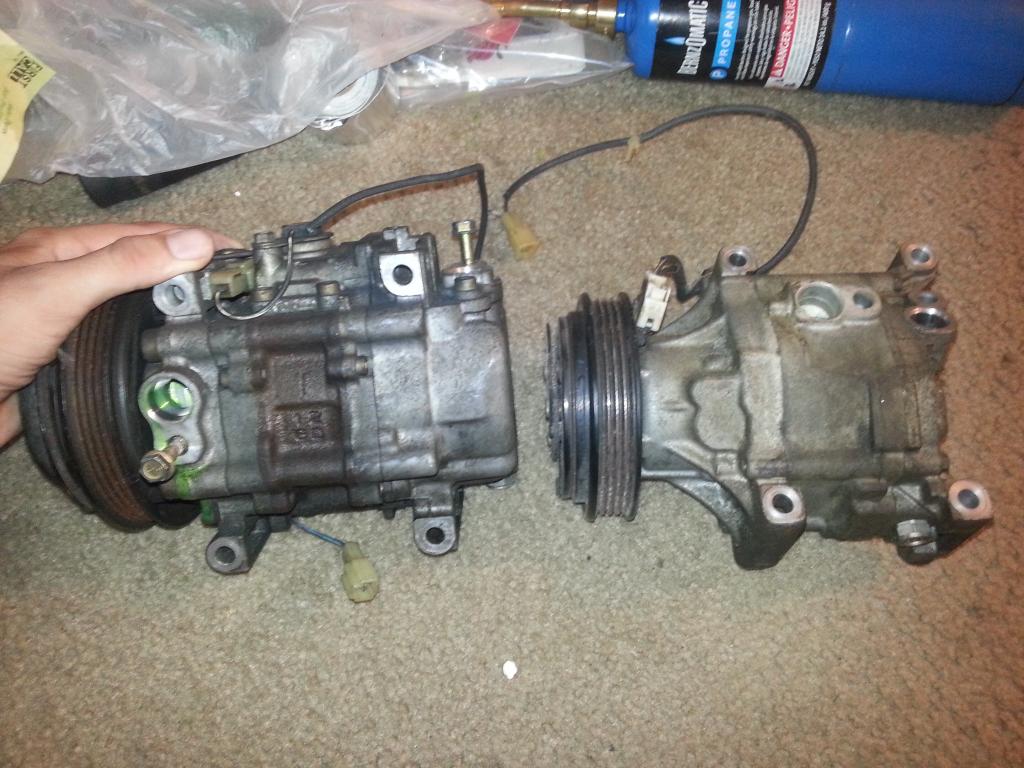

Poop, I was hoping the AC lines would be somewhat similar with the '99 and '04 compressors. Wrong. I'll have to fab some up to get it to work.
I went and looked at the lines the '99 lines the low side hardline bend would cover the '04 high side port.
Attached Thumbnails
Impuls build-c360_2014-09-01-12-35-37-275_zpsjzkelzrl.jpg
Impuls is offline   Reply With Quote
Old 09-01-2014, 04:34 PM   #468
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Are you sure that's a BP compressor?
I've never seen one like that, and we have a ton of NB2's here. All of them look the same or similar to the one on the left.
18psi is offline   Reply With Quote
Old 09-01-2014, 07:56 PM   #469
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
Are you sure that's a BP compressor?
I've never seen one like that, and we have a ton of NB2's here. All of them look the same or similar to the one on the left.
MSM compressor?
I know there's 2 different compressors
Impuls is offline   Reply With Quote
Old 09-01-2014, 08:26 PM   #470
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

Hmm, maybe. I'll have to take a peek at one of the msm's we have.

if that's the case, that sucker looks a whole lot smaller (and I'm guessing its prob lighter too), might be a cool mod for us NB2 people.

If you need an 01 compressor, I haz one for sale btw. same size/style as the left one
18psi is offline   Reply With Quote
Old 09-02-2014, 01:34 AM   #471
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
Hmm, maybe. I'll have to take a peek at one of the msm's we have.

if that's the case, that sucker looks a whole lot smaller (and I'm guessing its prob lighter too), might be a cool mod for us NB2 people.

If you need an 01 compressor, I haz one for sale btw. same size/style as the left one
Yeah! It's a whole lot lighter, it's awesome! The mounting points are different ever so slightly though. I mean I could just acquire the 99 mount. Since the block should be the same I think the difference is the mount bracket.

I wanted to get around to attaching the EBC and boost leak test things but..
Florida struck again.
Attached Thumbnails
Impuls build-screenshot_2014-09-01-19-50-16_zpsv3pfw2oo.png
Impuls is offline   Reply With Quote
Old 09-02-2014, 03:09 PM   #472
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

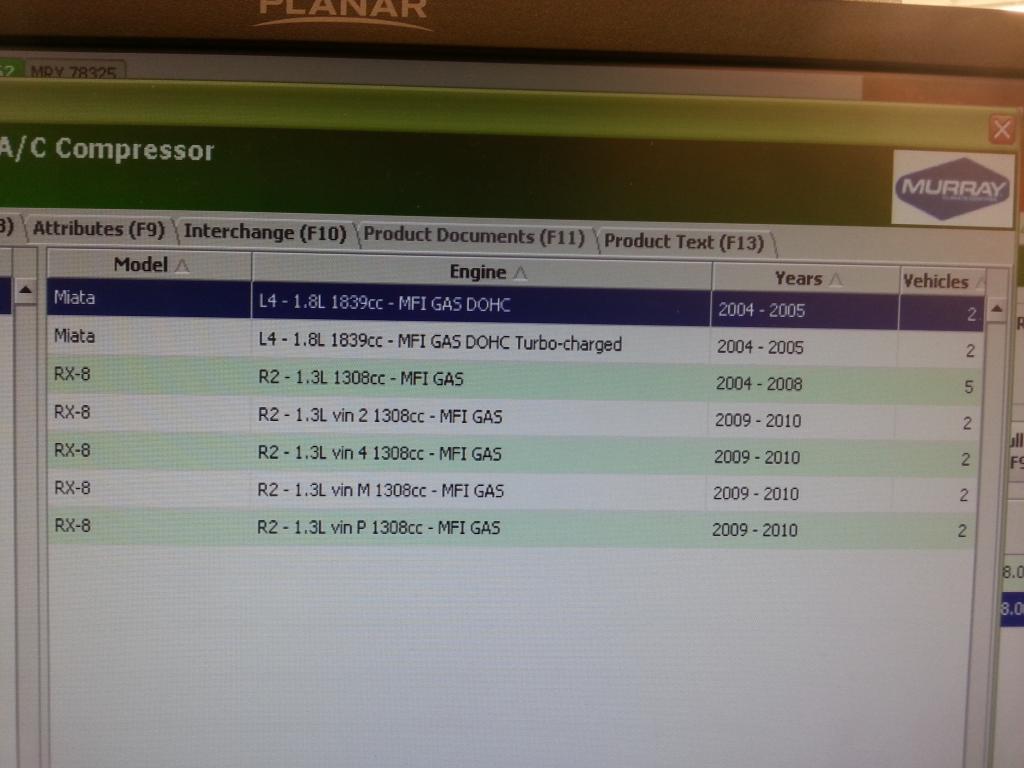

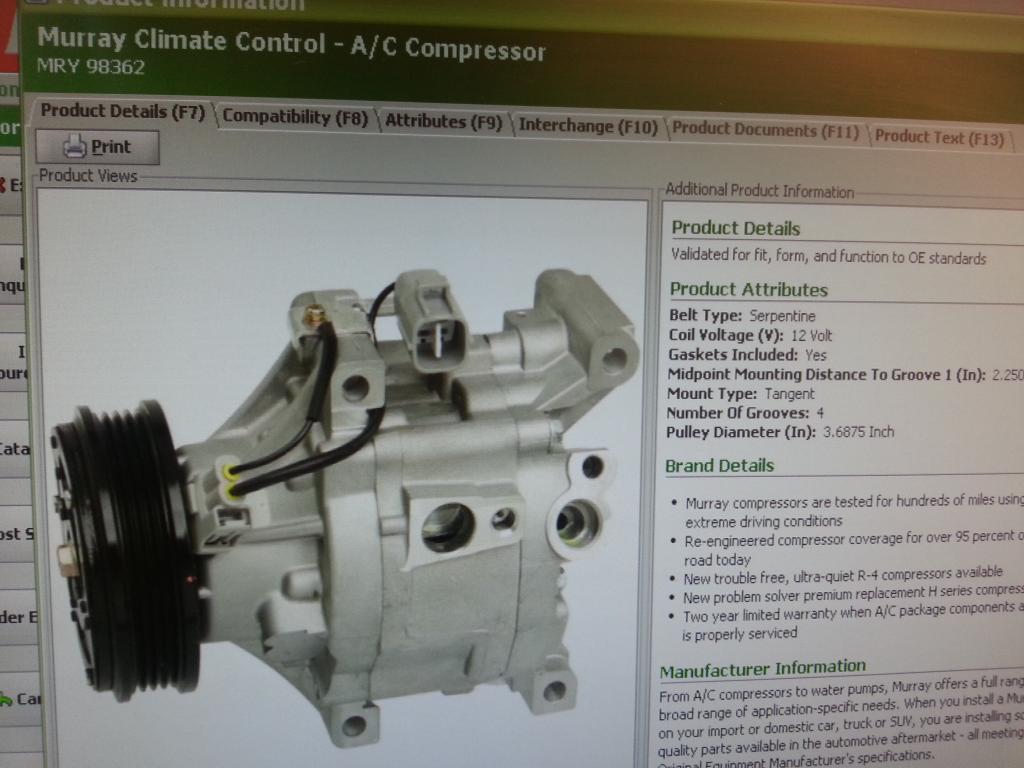

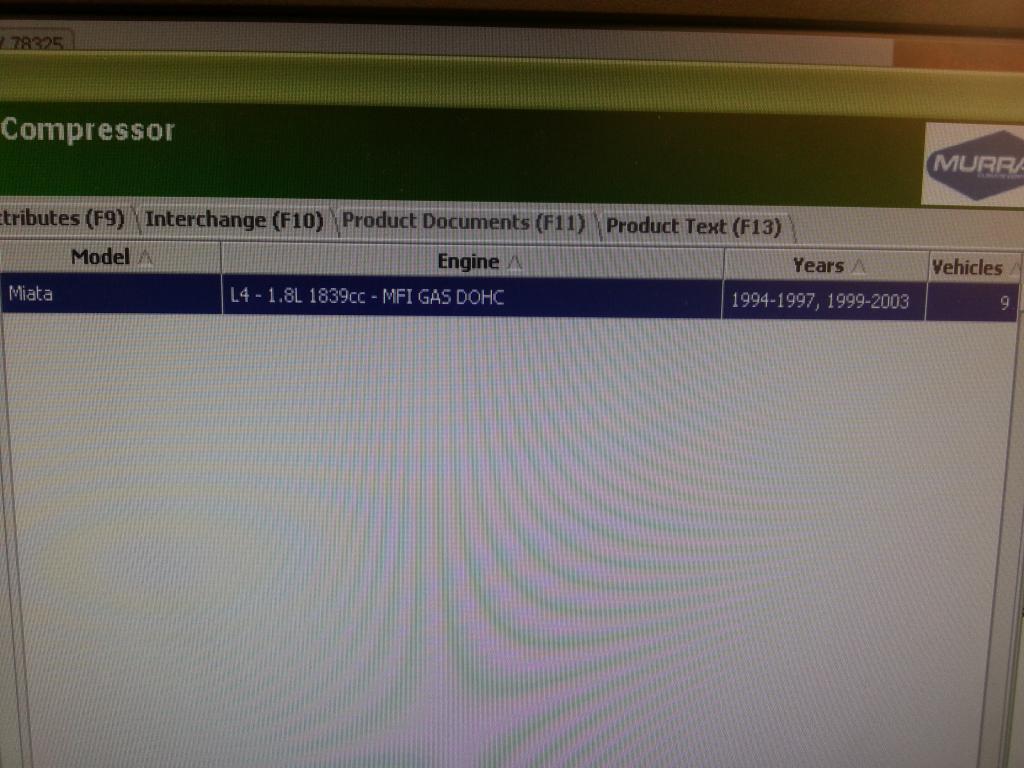

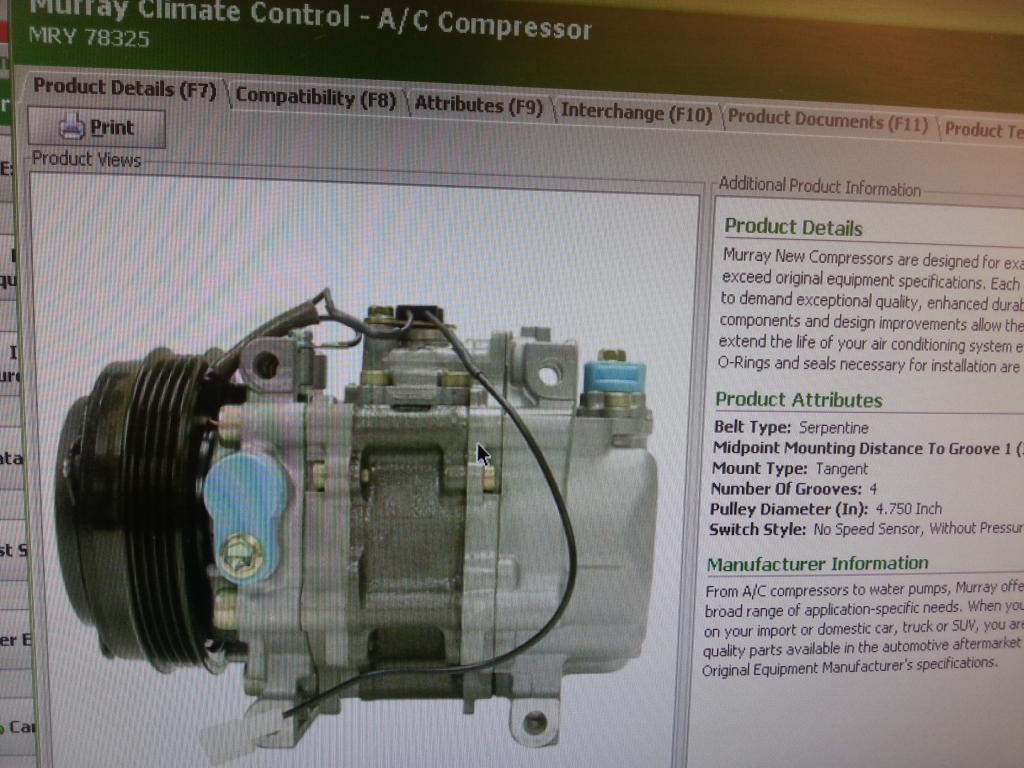

Yeah here's some insight on the compressors.
Only 04-05, used the smaller one along with Rx8, it's also cheaper.

But my A/C suction and discharge hoses are for only 99-00.


Attached Thumbnails
Impuls build-c360_2014-09-02-13-47-31-497_zpsvm9pfj2t.jpg   Impuls build-c360_2014-09-02-13-48-03-331_zps0aa20g3n.jpg   Impuls build-c360_2014-09-02-13-48-51-356_zpstdmvsdky.jpg   Impuls build-c360_2014-09-02-13-49-07-160_zps2aauwsuc.jpg
Impuls is offline   Reply With Quote
Old 09-02-2014, 03:15 PM   #473
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

that's pretty cool. if my original one fails I know what I'm getting

thanks for the idea
18psi is offline   Reply With Quote
Old 09-02-2014, 05:44 PM   #474
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
that's pretty cool. if my original one fails I know what I'm getting

thanks for the idea
No problem man! Do you have custom lines to make it work though?
If I can get a scale I'll weigh them to show the difference.
Impuls is offline   Reply With Quote
Old 09-02-2014, 06:11 PM   #475
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

the MSM lines that come with it wouldn't bolt up to the rest of the system?
18psi is offline   Reply With Quote
Old 09-02-2014, 10:35 PM   #476
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
the MSM lines that come with it wouldn't bolt up to the rest of the system?
I don't have the MSM lines :( The chassis lines are 99, I don't think they will work, the hard line of the fittings angle weird since the new compressor moves the ports pretty close to each other.
I should give it a try though.
Impuls is offline   Reply With Quote
Old 09-03-2014, 03:02 PM   #477
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by Impuls View Post

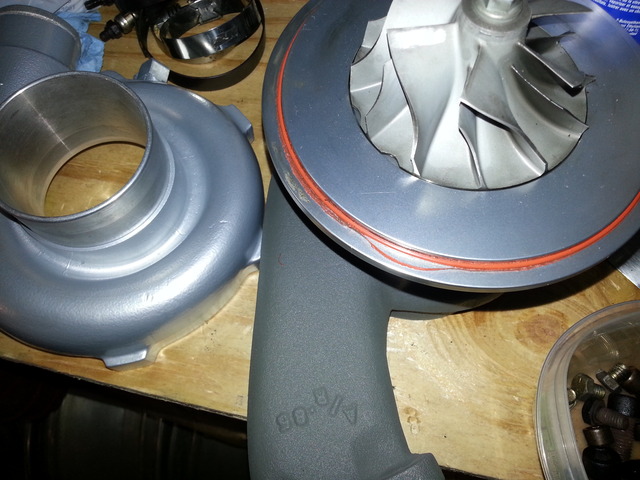

going back tot his, did you install the big thin o-ring?>
cuz if you dind't/you gonna ahve that movement plus very big boost leak.


Attached Thumbnails
Impuls build-20130114212343.jpg
Alejo_NIN is offline   Reply With Quote
Old 09-03-2014, 03:37 PM   #478
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Alejo_NIN View Post
going back tot his, did you install the big thin o-ring?>
cuz if you dind't/you gonna ahve that movement plus very big boost leak.


Well yeah, I didn't have one before but now I do. I still think wastegate is the culprit. :/
Impuls is offline   Reply With Quote
Old 09-03-2014, 03:38 PM   #479
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,186
Total Cats: 2,582
Default

he's getting movement at the c-clamp, which actually holds that backing plate in place. not the housing iirc
18psi is offline   Reply With Quote
Old 09-03-2014, 03:40 PM   #480
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by 18psi View Post
he's getting movement at the c-clamp, which actually holds that backing plate in place. not the housing iirc
that's where that oring is..right at the c-clamp. on the cold side.
Alejo_NIN is offline   Reply With Quote
