DIY Turbo Discussion greddy on a 1.8? homebrew kit?

Reply



LinkBack Thread Tools
Old 09-03-2014, 03:51 PM   #481
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

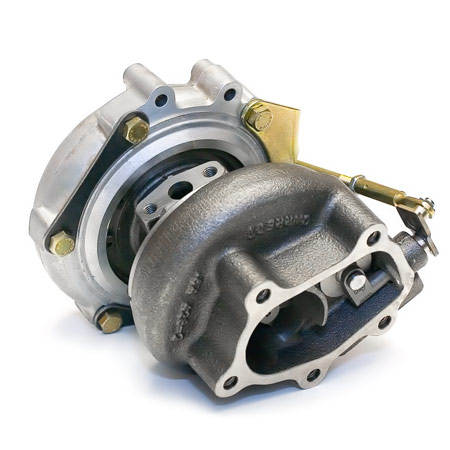

nope. the c-clamp holds the backing plate to the chra. the comp cover is held on by bolts
that o-ring is between backnig plate and cover
unless I'm completely mistaken about what turbo he has

*edit:

like this
Attached Thumbnails
Impuls build-garrett-gt28r-gt2860r-707160-5-turbocharger-picture-2-honeywell-450x450-turbocharger-specs-www.t.jpg
18psi is offline   Reply With Quote
Old 09-03-2014, 04:10 PM   #482
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

yea, you are right.
i was thinking more of a turbo that doens't have those bolts on the back...sorry..carry on.
Alejo_NIN is offline   Reply With Quote
Old 09-04-2014, 01:39 AM   #483
I'm Miserable!

Join Date: Aug 2014
Posts: 130
Total Cats: -162
Default

Quote:
Originally Posted by 18psi View Post
Hmm, maybe. I'll have to take a peek at one of the msm's we have.

if that's the case, that sucker looks a whole lot smaller (and I'm guessing its prob lighter too), might be a cool mod for us NB2 people.

If you need an 01 compressor, I haz one for sale btw. same size/style as the left one
hello impuls you are going to need the matching mazdaspeed compressor A/C bracket in order to fit the smallerMazdaspeed compressor unit in your NB. The compressor pulley in mazdaspeed compressor is about an inch longer therefore it will not align to the crank pulley , trust me on this dude.
StealthNB is offline   Reply With Quote
Old 09-05-2014, 04:27 PM   #484
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by StealthNB View Post
hello impuls you are going to need the matching mazdaspeed compressor A/C bracket in order to fit the smallerMazdaspeed compressor unit in your NB. The compressor pulley in mazdaspeed compressor is about an inch longer therefore it will not align to the crank pulley , trust me on this dude.
Yeah I thought I had the MSM bracket but on my inspection today it turns out I don't :(


I also wanted to look closer into my now returned weird noise. Since I stumbled upon another person with the same issue and he replaced his pinion outer bearing. But the noise comes from the pinion area for sure.
So I put the car up in the air to look at everything and went through the gears
A bit rich on decel and at 2:30 nice pop and the only exciting thing
[Url]

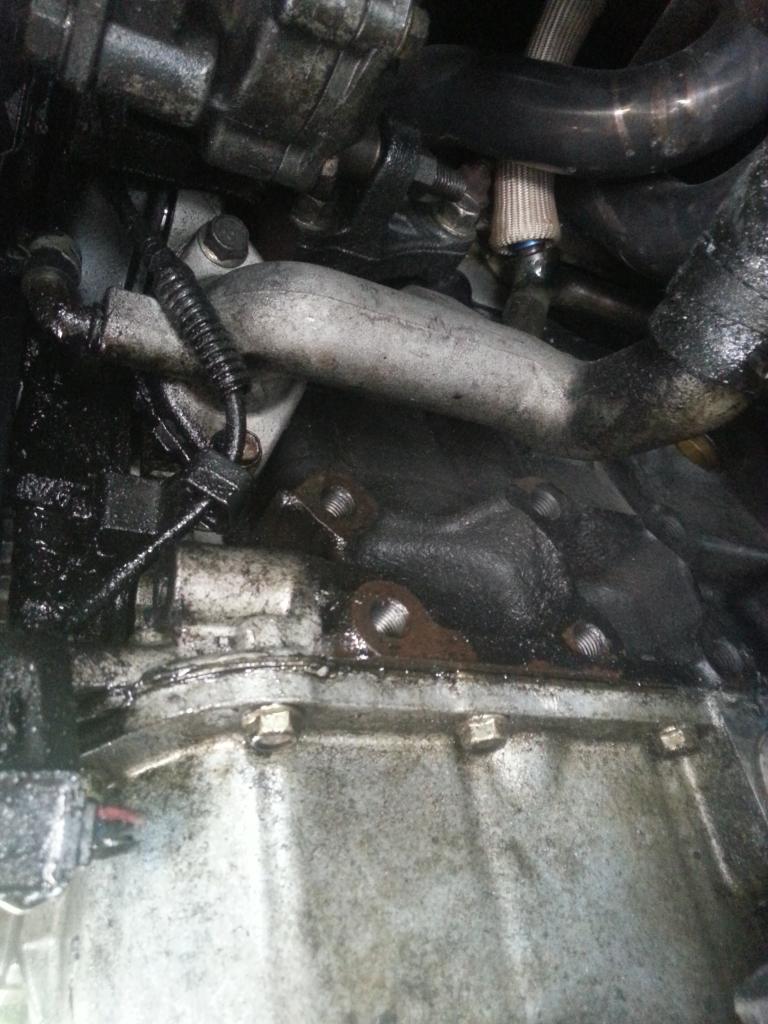

Looked closer and after going through gears and hearing it start out it in 5th and idle to keep speed.
[Url]
Attached Thumbnails
Impuls build-c360_2014-09-05-12-53-07-335_zpsohuw8sc6.jpg
Impuls is offline   Reply With Quote
Old 09-08-2014, 02:27 PM   #485
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

Quote:
Originally Posted by Impuls View Post
Yeah I thought I had the MSM bracket but on my inspection today it turns out I don't :(
nasty **** is nasty...holy **** dude...
Alejo_NIN is offline   Reply With Quote
Old 09-08-2014, 05:23 PM   #486
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Alejo_NIN View Post
nasty **** is nasty...holy **** dude...
Yup, how do you think I feel. That **** was gorgeous when it went it.

**** oil pan gaskets.
Impuls is offline   Reply With Quote
Old 09-09-2014, 08:51 AM   #487
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

lmao...RTV nig
Alejo_NIN is offline   Reply With Quote
Old 09-09-2014, 12:35 PM   #488
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Alejo_NIN View Post
lmao...RTV nig
Has that. Still decided to leak.

Now me and the mad scientist have to rip apart the block, and replace the gaskets that never sealed.
Also clean that bitch off.
Impuls is offline   Reply With Quote
Old 09-09-2014, 10:19 PM   #489
Junior Member
iTrader: (2)

Join Date: Jan 2007
Posts: 329
Total Cats: 16
Default

oh ******* sucks....
Alejo_NIN is offline   Reply With Quote
Old 09-09-2014, 10:24 PM   #490
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

No gaskets other than OEM end seals.

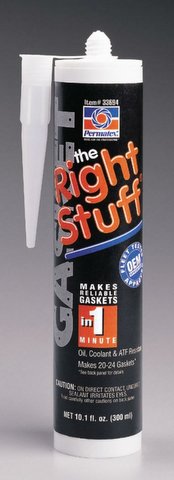

I also recommend this stuff:


Of course, you may never get the pan off again
Attached Thumbnails
Impuls build-33694.jpg
EO2K is offline   Reply With Quote
Old 09-10-2014, 12:40 AM   #491
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

its sucks not doing something correctly from the start.

but that's what this whole thread is about, and now you're learning
18psi is offline   Reply With Quote
Old 09-10-2014, 09:18 AM   #492
Junior Member
iTrader: (20)

Join Date: Apr 2010
Location: Redmond, WA
Posts: 494
Total Cats: 15
Default

Shouldn't there be a bolt right under that water pump coolant pipe? I swear there should be a bolt there securing the oil pump if you are missing a/c. might not be your oil pan gasket, but oil leaking from that hole

If you have a/c there, there's generally a bolt there as one of the bolts holding the compressor on.
bmxfuel007 is offline   Reply With Quote
Old 09-10-2014, 01:18 PM   #493
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by bmxfuel007 View Post
Shouldn't there be a bolt right under that water pump coolant pipe? I swear there should be a bolt there securing the oil pump if you are missing a/c. might not be your oil pan gasket, but oil leaking from that hole

If you have a/c there, there's generally a bolt there as one of the bolts holding the compressor on.
That is a very good point. How long has the compressor bracket been off the engine? You may be seeping because you are missing said bolt.

Checkit: https://www.miataturbo.net/1337-spea..._______-34796/

Last edited by EO2K; 09-10-2014 at 02:01 PM.
EO2K is offline   Reply With Quote
Old 09-12-2014, 03:52 PM   #494
Junior Member

Join Date: Oct 2012
Posts: 138
Total Cats: 4
Default

My 1.8 VVT engine with factory installed oil pump started leaking because I didn't replace that bolt when I removed the AC compressor bracket. Started out very slow but is now coating that corner of the engine quickly. Replacing that bolt is now on my to do list.
noname4me is offline   Reply With Quote
Old 09-12-2014, 06:32 PM   #495
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by EO2K View Post
No gaskets other than OEM end seals.

I also recommend this stuff:


Of course, you may never get the pan off again
I personally like the Ultra Black series of sealant. That's what's been used.
For whatever reason something didn't seal or hot blown out when I was trying to start it for 3 weeks straight and when it finally started it leaked.


Quote:
Originally Posted by 18psi View Post
its sucks not doing something correctly from the start.

but that's what this whole thread is about, and now you're learning
Meh, I didn't put the oil pan on.
So there's a lesson there.
I'll be happy if someone can pull anything out of my build. Helping each other is what it's about.


The bolt idea is interesting, I never noticed any oil from there though I'll check though thanks for the heads up.
One question which one are you talking about? The one facing forward on the engine?
I thought my bracket was still on there but I'm guessing that after the machine shop ranked it and what not it disappeared.
Name:  C360_2014-09-12-17-24-24-096_zpslf537qhk.jpg
Views: 4
Size:  124.4 KB
Impuls is offline   Reply With Quote
Old 09-12-2014, 06:41 PM   #496
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

?
Attached Thumbnails

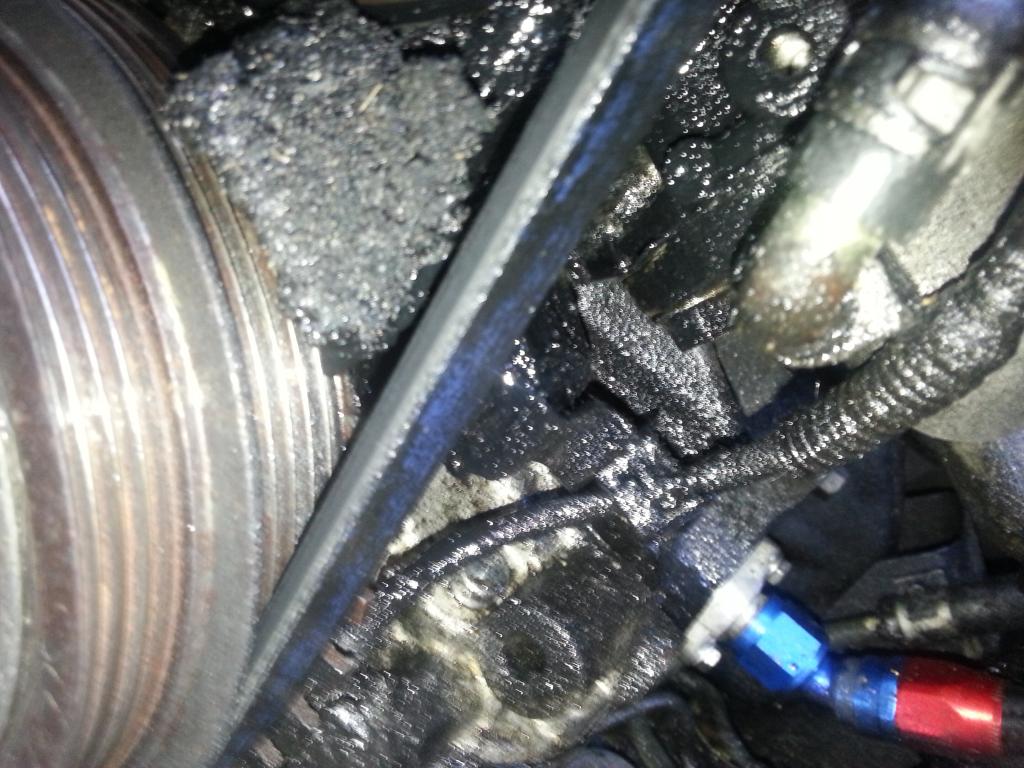

Impuls build-c360_2014-09-12-17-35-21-647_zpsv5jryj4s.jpg
Impuls is offline   Reply With Quote
Old 09-12-2014, 06:53 PM   #497
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by Impuls View Post
The bolt idea is interesting, I never noticed any oil from there though I'll check though thanks for the heads up.
One question which one are you talking about? The one facing forward on the engine?
I thought my bracket was still on there but I'm guessing that after the machine shop ranked it and what not it disappeared.

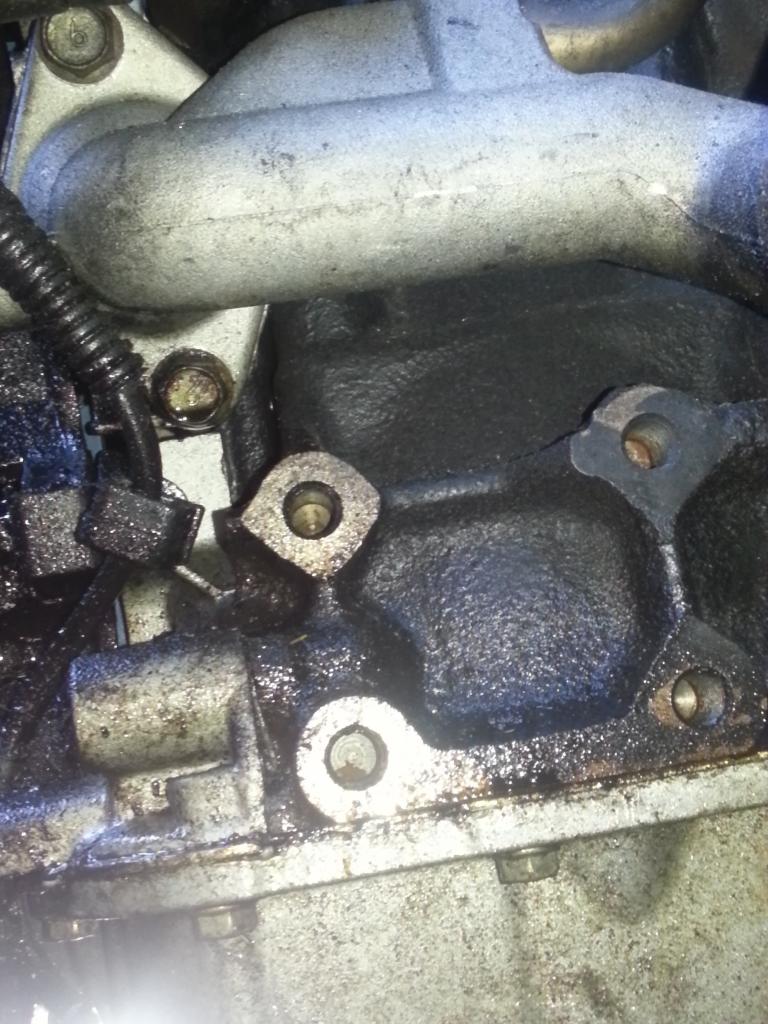

You see that round thing jutting out of the front of the engine block on the left of this picture? Its the aluminum colored thing. Yeah there should be a bolt going though it. Its like M8x1.25x85mm JIS.
Attached Thumbnails
Impuls build-c360_2014-09-12-17-24-24-096_zpslf537qhk.jpg

Last edited by Leafy; 09-12-2014 at 07:11 PM.
Leafy is offline   Reply With Quote
Old 09-12-2014, 07:09 PM   #498
Junior Member
iTrader: (1)

Join Date: Nov 2010
Location: Seattle, WA
Posts: 84
Total Cats: 2
Default

Its suppose to be an M8x1.25 x45mm
fail wagon is offline   Reply With Quote
Old 09-12-2014, 07:11 PM   #499
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

correct. you're missing one of the oil pump bolts
18psi is offline   Reply With Quote
Old 09-13-2014, 12:04 AM   #500
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by 18psi View Post
correct. you're missing one of the oil pump bolts
Well ****, thats not cool at all. O.o

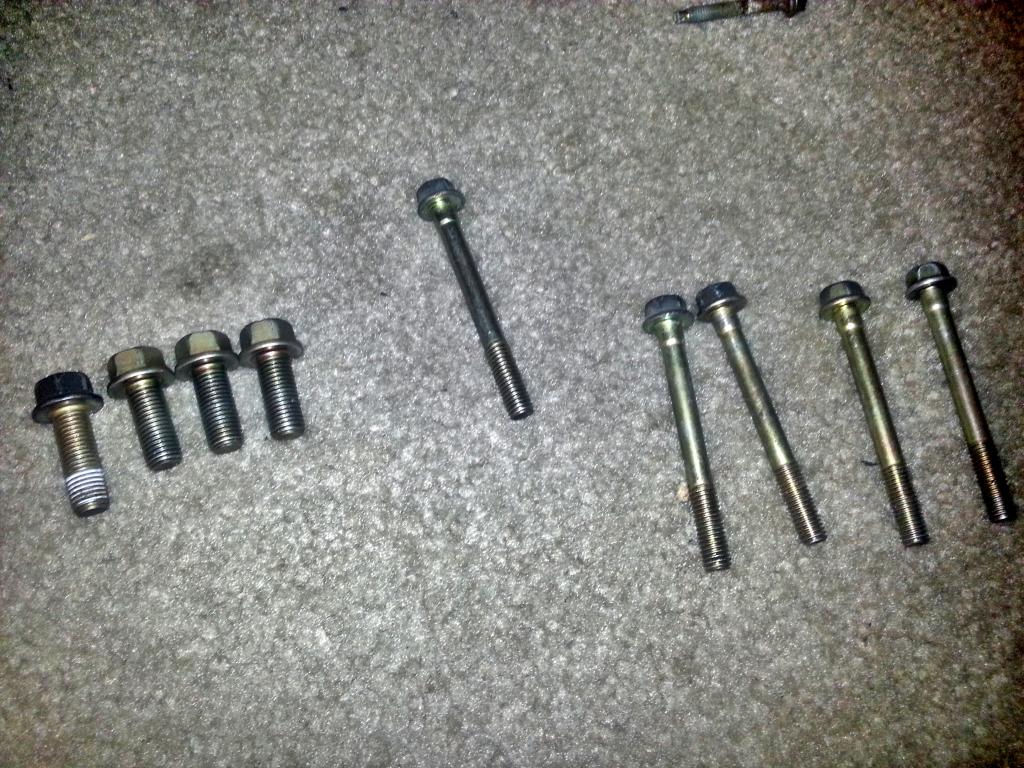

I wonder if one of these will work?
Attached Thumbnails
Impuls build-c360_2014-09-12-23-02-15-398_zpsqpofzryz.jpg
Impuls is offline   Reply With Quote
