Old 08-15-2013, 12:54 PM   #101
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Did you get a 2/3 jaw puller?
Leafy is offline   Reply With Quote
Old 08-15-2013, 01:50 PM   #102
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by Leafy View Post
Did you get a 2/3 jaw puller?
Yup it only came with 5/16ths 18x2" thought. I went tu the hardware store thought and hit a 2 1/2", pulling it off right now
Impuls is offline   Reply With Quote
Old 08-15-2013, 06:43 PM   #103
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Is this true? I never did this
https://www.miataturbo.net/ecus-tuni...e2/#post976776

So, the missing tooth needs to be at 80 after the sensor at TDC. and I need to grind off the 2 teeth on the cam wheel. maybe it's because of that and my settings set up for sequential (needs cam signal) that it ran like ****? I'm checking timing marks for TDC and this what I got:

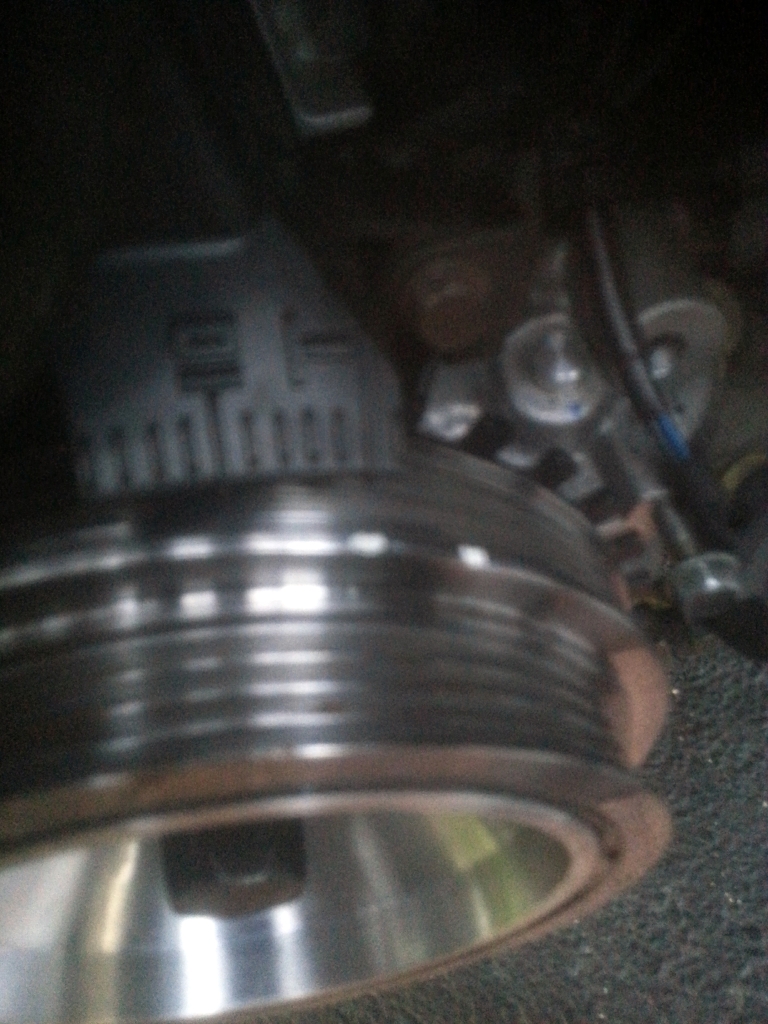

TDC:

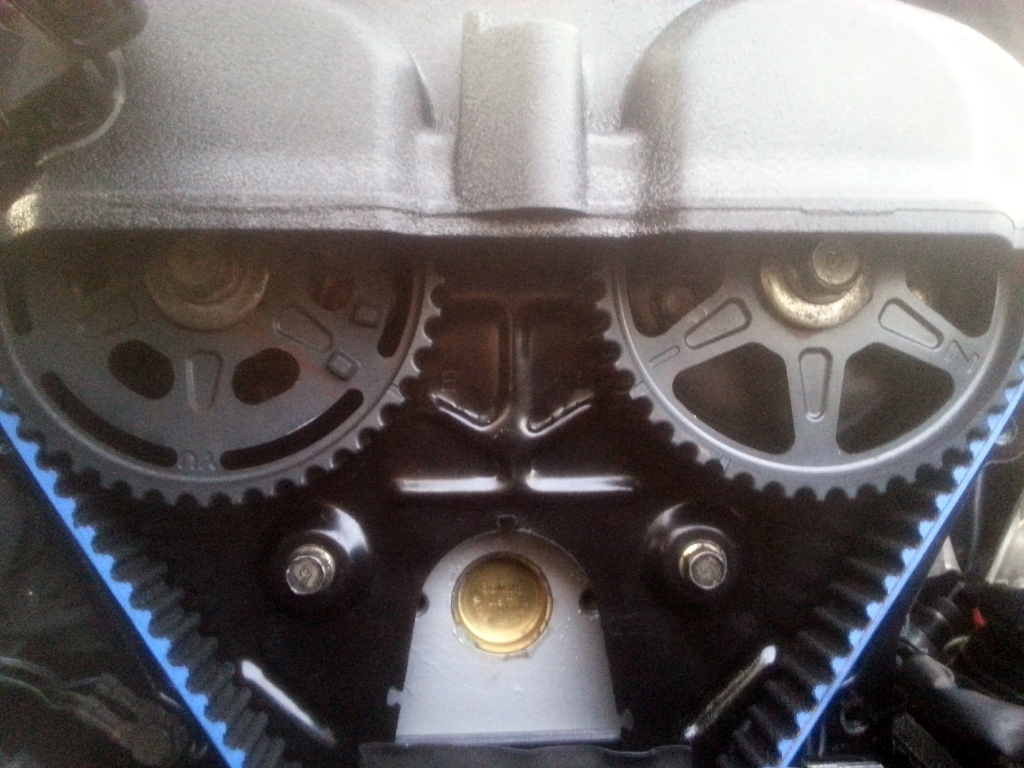

Cam timing:


****.
Attached Thumbnails
Impuls build-c360_2013-08-15-19-52-53-783_zps560d91af.jpg   Impuls build-c360_2013-08-15-19-51-59-487_zpse28b7ae6.jpg

Last edited by Impuls; 08-15-2013 at 09:03 PM.
Impuls is offline   Reply With Quote
Old 08-17-2013, 08:20 PM   #104
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Batch fueling doesn't work. Starts then instantly dies.

I may take the leap and just grind those teeth off.

Though I found out the output>ECU from my AFR controller took a ****. Keeps reading 1.6v or -1.2v and ****. Going to talk to prosport about it when I can.
Impuls is offline   Reply With Quote
Old 08-18-2013, 04:27 AM   #105
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Dude, you need to read & understand megasquirt trigger wheel settings. The car should run in batch/wasted spark. If it doesn't run in batch/wasted spark, you have issues. Get it running in batch/wasted spark first.

Megasquirt-3 MS3 Trigger Wheel
soviet is offline   Reply With Quote
Old 08-20-2013, 08:21 PM   #106
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by soviet View Post
Dude, you need to read & understand megasquirt trigger wheel settings. The car should run in batch/wasted spark. If it doesn't run in batch/wasted spark, you have issues. Get it running in batch/wasted spark first.

Megasquirt-3 MS3 Trigger Wheel
Yeah I know it SHOULD run on batch.
I've read about toothed wheel over and over again, I have a form understanding of it now.

I believe my Megasquirt got fried :/ it's showing 0.30 AFR at -1.24v with my AFR controller signal at 5.12v when the ignition is on. Which may be another result of my cigarette lighter going out frying my laptop's charging cable.
This really sucks.. it's a MS2PNP for 99. I'm sure there's a way to take it apart and check. off to take it out.
Impuls is offline   Reply With Quote
Old 08-20-2013, 10:31 PM   #107
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Sequential and batch logs..
The car battery died today from all the starting. Had everything in batch and started and ran for about 5 seconds though it's progress. But you can see I get sync loss reason 2. Missing tooth in wrong place.
Attached Files
File Type: csv Starting batch.csv (222.2 KB, 63 views)
File Type: msl Starting batch.msl (1.02 MB, 90 views)
File Type: zip Start Sequential.zip (595.1 KB, 50 views)
Impuls is offline   Reply With Quote
Old 08-21-2013, 10:43 AM   #108
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

I had sync loss when my cam sensor was wired in reverse. You may need to change 'rising edge' to 'falling edge' or vice versa.

Run the trigger logger. you should see 35 bars, gap, 35 bars, gap, etc...
MS2/Extra - Tooth and trigger loggers
soviet is offline   Reply With Quote
Old 08-21-2013, 11:04 AM   #109
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Yeah in the composite logs I posted I have that 35, gap, 35, gap.

I'll give that rising edge or falling edge a try. when ever I find out whats wrong with my actual MS. :/ The circuits may have gotten damaged. The only one I know for sure isn't working is reading AFR input.

Any experts on the schematics and what shiuld be tested?
I'm wondering if DIY will do a warranty type swap on it or if that just doesn't exist.
Impuls is offline   Reply With Quote
Old 08-21-2013, 11:18 AM   #110
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

Change the rising edge/falling edge and see if it works.
Also you might need to adjust the pots on megasquirt.
soviet is offline   Reply With Quote
Old 08-21-2013, 08:30 PM   #111
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

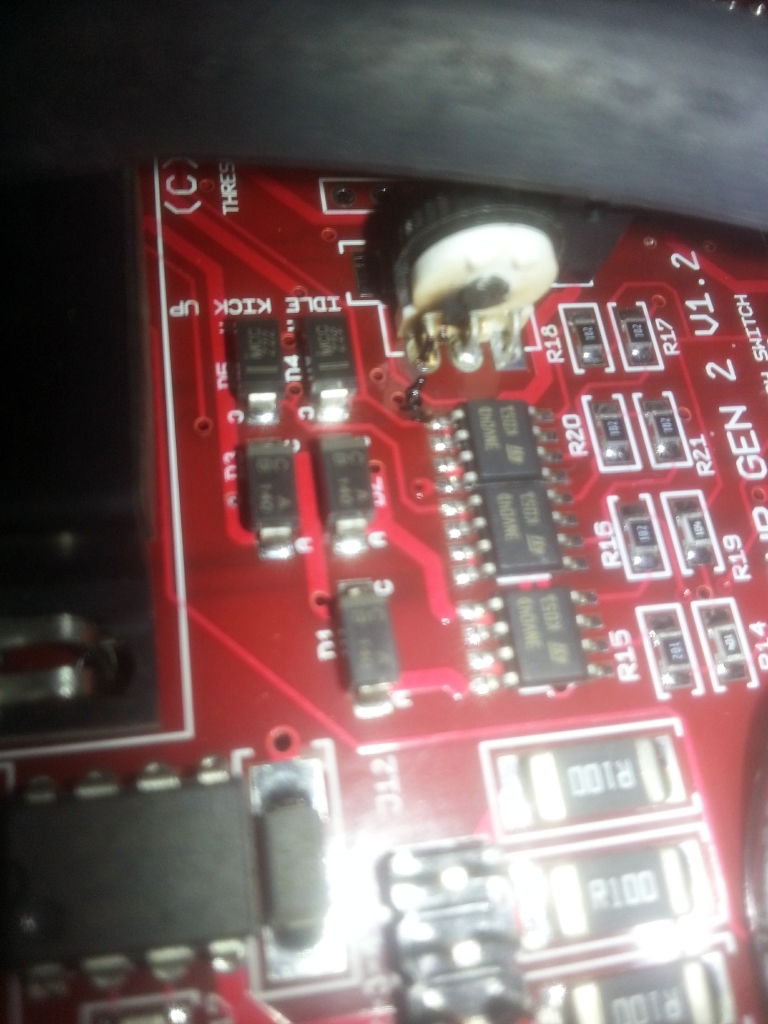

I found this ******. DB15 pin 14 (O2 sensor) leads to this..
Attached Thumbnails
Impuls build-c360_2013-08-21-19-17-55-573_zps10873576.jpg
Impuls is offline   Reply With Quote
Old 08-23-2013, 07:36 AM   #112
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

I learned my lesson to get the programming first, on a naturally aspirated motor before going all out on a build.

Its too late, the build looks good, be patient, if this is your DD, you should start checking CL for another to get you from point A to B.

Good luck on the build

I feel ya for the wideband, the same thing happened to me. Had to unplug/ disconnect everything and send it back to warranty. It pushed me back about a week, and similarly I had taken time off from work, I was furious. Moments like that you have to let go, and stop working on the car else it will end in the "part out" sub-forums.

Last edited by mazpr; 08-23-2013 at 07:51 AM.
mazpr is offline   Reply With Quote
Old 08-23-2013, 08:39 AM   #113
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by mazpr View Post
I learned my lesson to get the programming first, on a naturally aspirated motor before going all out on a build.

Its too late, the build looks good, be patient, if this is your DD, you should start checking CL for another to get you from point A to B.

Good luck on the build

I feel ya for the wideband, the same thing happened to me. Had to unplug/ disconnect everything and send it back to warranty. It pushed me back about a week, and similarly I had taken time off from work, I was furious. Moments like that you have to let go, and stop working on the car else it will end in the "part out" sub-forums.

The programming was fine before. I don't know what you're trying to say by "it's too late". I chose to build it out 7-8 months ago after it ran fine.

**** happens and you gotta fix it.
Impuls is offline   Reply With Quote
Old 09-04-2013, 08:13 PM   #114
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

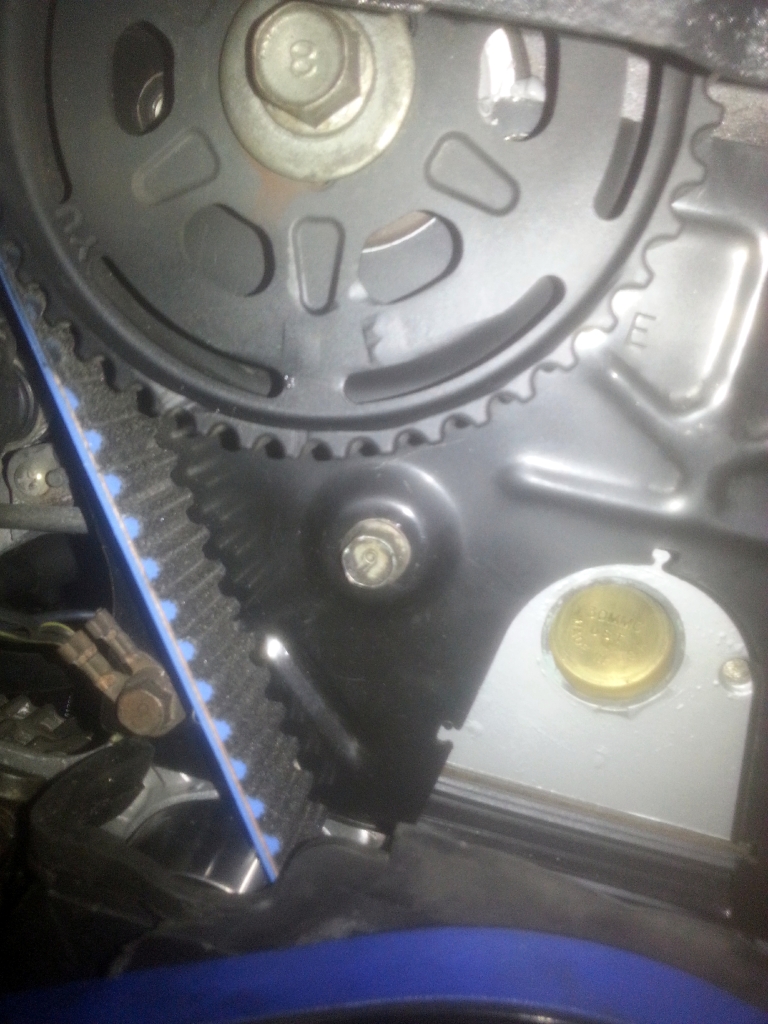

Well, I can now run sequential.
Still waiting on DIYautotune to send back my ECU. I suppose they are still testing it.
Attached Thumbnails
Impuls build-c360_2013-09-04-18-57-45-147_zpsa17f067d.jpg
Impuls is offline   Reply With Quote
Old 09-09-2013, 07:37 PM   #115
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

It does not sound that way by the questions you are asking...
mazpr is offline   Reply With Quote
Old 09-09-2013, 07:40 PM   #116
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Quote:
Originally Posted by mazpr View Post
It does not sound that way by the questions you are asking...
Explain
Impuls is offline   Reply With Quote
Old 09-12-2013, 12:21 AM   #117
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

Alright so,
I have idle problems consisting of oscillation and/or stall/dying.

Been doing some research on the subject but if anyone would like to point me in the right direction it would be greatly appreciated.

I still get sync loss reason 2, and now reason 5 (first tooth failed test) but I think reason 5 is from my battery dying once again from cranking.



I know the attached log is pretty horrible but my battery died. My idle is for sure "surging" or "oscillating" though. can't seem to figure out why or what to do.
Attached Files
File Type: msl idle oscillation.msl (182.7 KB, 82 views)
File Type: csv idle oscillation.csv (77.0 KB, 60 views)
File Type: msq ImpulsTune.msq (83.9 KB, 105 views)
Impuls is offline   Reply With Quote
Old 09-13-2013, 04:46 PM   #118
Boosting since 1984
iTrader: (1)

stefanst's Avatar

Join Date: Sep 2011
Location: Levittown
Posts: 1,198
Total Cats: 68
Default

Idle tuning is tricky. Anything being off will kill idle. Do a bit of VE analyze live in order to make sure your general fuel map is OK, injectors work etc. Then get to the idle.
stefanst is offline   Reply With Quote
Old 09-13-2013, 04:52 PM   #119
Elite Member
iTrader: (10)

soviet's Avatar

Join Date: Jan 2010
Location: VA
Posts: 3,519
Total Cats: 259
Default

By idle you mean idle control valve? Can the car idle with just the adjustment screw? That should be the first step - disconnect the idle control valve and just the screw.

Good to know that grinding those nubs off the cam wheel works. As far as I know, you're the first one who actually did it.
soviet is offline   Reply With Quote
Old 09-13-2013, 09:41 PM   #120
Senior Member
Thread Starter
iTrader: (1)

Join Date: Jan 2012
Location: Tampa, FL
Posts: 761
Total Cats: 19
Default

VE live is about impossible to do since my AFR takes long to calibrate when turned on. I need to source an external one/tail pipe sniffer.

I did the idle valve test. nothing changed with idle. Bad IAC Valve?
I'll try unplugging it just for kicks. if I can Getty it to idle somewhat I'm going to check for vacuum leaks too.
I'm doing a fresh slate install right now; reload firmware, reload basemap tune.
Impuls is offline   Reply With Quote
