Old 10-10-2013, 02:52 PM   #241
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

This is super awesome. So jelly.
Fireindc is offline   Reply With Quote
Old 10-10-2013, 04:47 PM   #242
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

With thinking of an AN-line to connect the two sump parts, why not an AN-line from the oil pump to the pickup?

The AN-line connecting the sump parts would need to go below the rack, that's pretty low.
NiklasFalk is offline   Reply With Quote
Old 10-10-2013, 05:11 PM   #243
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Our initial idea was using a -16 AN line, but the concern was that any soft line could potentially collapse on itself since oil is being sucked through it. The hard steel pickup will be safer, cheaper (eventually), and the material will mirror every OEM pickup we’ve seen.

We are not concerned with the pump priming, as nearly the entire pickup will be submerged in oil anyway.
KMiata is offline   Reply With Quote
Old 10-10-2013, 07:36 PM   #244
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,370
Total Cats: 1,332
Default

Quote:
Originally Posted by magicdc2 View Post
Our initial idea was using a -16 AN line, but the concern was that any soft line could potentially collapse on itself since oil is being sucked through it. The hard steel pickup will be safer, cheaper (eventually), and the material will mirror every OEM pickup we’ve seen.

We are not concerned with the pump priming, as nearly the entire pickup will be submerged in oil anyway.
Hard line is probably cheaper to manufacture, but I don't think the oil pump will suck an AN line closed. Look at pretty much every dry sump system in existence for proof of that.
Savington is offline   Reply With Quote
Old 10-13-2013, 08:22 PM   #245
Senior Member

Join Date: Apr 2011
Location: Hollywood, FL
Posts: 525
Total Cats: 18
Default

I don't believe you will have any issues with the oil pump pick up routing as you have it. Cant remember the Ford small block that had this same oil pan design to clear the steering rack but it must be the 5.0 Mustang and that was a factory design.
hector is offline   Reply With Quote
Old 10-26-2013, 11:36 PM   #246
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

Updates now!
Splitime is offline   Reply With Quote
Old 10-26-2013, 11:40 PM   #247
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by Splitime View Post
Updates now!
lol ok, here you go:

K24 Miata swap - first dyno - YouTube

Just dyno'd it today, feels great and zero oil pressure issues. and drove it 30 mins home. giggity giggity
KMiata is offline   Reply With Quote
Old 10-30-2013, 01:48 PM   #248
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

Just out of curiosity and because I'm not super familiar with K24 dynos, what size exhaust was that run with?
stinkycheezmonky is offline   Reply With Quote
Old 10-30-2013, 03:51 PM   #249
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by stinkycheezmonky View Post
Just out of curiosity and because I'm not super familiar with K24 dynos, what size exhaust was that run with?
sadly it was only 2.5" (if that, maybe smaller) with a full cat, res, and muffler. It's been proven over and over that 3" is needed for even a stock k20 or k24.

So, ebay exhaust with random pieces off other cars, hacked up ebay header, and random 2.75" intake pipe I found in my garage with a crappy filter. Proper setup will breath MUCH better up top, as I can tell you from my other K car.

PS - I enjoy driving on track with your old blue hatch on occasion...
KMiata is offline   Reply With Quote
Old 10-30-2013, 03:57 PM   #250
Miotta FTW!
iTrader: (24)

Splitime's Avatar

Join Date: Jun 2006
Location: Chicagoland, IL
Posts: 4,295
Total Cats: 26
Default

I have my old custom 3" exhaust that Jeremy put together for my setup you could use. Vibrant muffer, magnaflow (i think) resonator. If you didn't want its unique center exit format, would just be a bit of cut/weld to complete.

Cheap... and old Jabaay fabwork.

Uses this muffler: http://vibrantperformance.com/catalo...products_id=14
Splitime is offline   Reply With Quote
Old 10-31-2013, 10:01 AM   #251
Junior Member

Join Date: Nov 2010
Location: Winchester, VA
Posts: 302
Total Cats: 3
Default

Quote:
Originally Posted by magicdc2 View Post
PS - I enjoy driving on track with your old blue hatch on occasion...
I miss running with you guys. I'll be back at it in couple years though, most likely in a Miata of that color, and with this motor Glad you get to see it driven in anger!
stinkycheezmonky is offline   Reply With Quote
Old 11-18-2013, 01:50 AM   #252
Newb

Join Date: Oct 2013
Posts: 29
Total Cats: -7
Default

Swap kits in the future?
E4usmc is offline   Reply With Quote
Old 11-19-2013, 02:53 PM   #253
Newb

Join Date: Jan 2013
Location: Ocala, FL
Posts: 34
Total Cats: -13
Default

Quote:
Originally Posted by magicdc2 View Post
lol ok, here you go:

K24 Miata swap - first dyno - YouTube

Just dyno'd it today, feels great and zero oil pressure issues. and drove it 30 mins home. giggity giggity
AWESOME!
KipCantDrift is offline   Reply With Quote
Old 11-20-2013, 01:03 AM   #254
Supporting Vendor

KMiata's Avatar

Join Date: Sep 2012
Posts: 444
Total Cats: 145
Default

Quote:
Originally Posted by E4usmc View Post
Swap kits in the future?
that is the whole idea here
KMiata is offline   Reply With Quote
Old 12-05-2013, 11:27 AM   #255
Senior Member
iTrader: (1)

Join Date: Jun 2006
Location: Sweden
Posts: 1,391
Total Cats: 58
Default

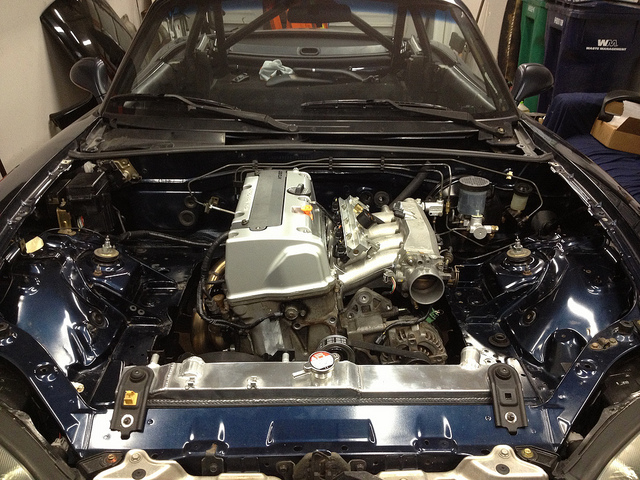

This just doesn't look right

Fugly valve cover
Attached Thumbnails
K series Miata swap-11180711713_5dd67f8445_z.jpg
NiklasFalk is offline   Reply With Quote
Old 12-05-2013, 11:32 AM   #256
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,093
Total Cats: 90
Default

Valve cover needs to be red.
Leafy is offline   Reply With Quote
Old 12-05-2013, 12:06 PM   #257
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Needs more $1,000 mugen valve cover.
Fireindc is offline   Reply With Quote
Old 12-12-2013, 12:58 PM   #258
Junior Member
iTrader: (1)

Join Date: Apr 2009
Location: Tehachapi, CA
Posts: 52
Total Cats: 2
Default

Any ballpark insider info on future pricing? Or an idea of when this might be available?
halfdemonpyro is offline   Reply With Quote
Old 12-12-2013, 01:00 PM   #259
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,465
Total Cats: 783
Default

I saw an S2000 last night with a K20 swap.

I watted.
concealer404 is offline   Reply With Quote
Old 12-12-2013, 01:23 PM   #260
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,703
Total Cats: 237
Default

Quote:
Originally Posted by concealer404 View Post
I saw an S2000 last night with a K20 swap.

I watted.
This is actually becoming pretty common. F20/22's are hard to come by, and the aftermarket isn't quite as vast for them.

Junkyard k24 setup in an s2000 with boost sounds like a winning combo to me. Cheap shortblocks for when it goez boom.
Fireindc is offline   Reply With Quote
