Old 05-21-2014, 03:16 PM   #781
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

The IB app sucks for small pics.

Picture of the completed intake manifold.
FE3 Miata intake manifold by HellaFab, on Flickr

Fe3 overview by HellaFab, on Flickr
shlammed is offline   Reply With Quote
Old 05-21-2014, 03:43 PM   #782
Junior Member
iTrader: (3)

Join Date: Mar 2014
Location: North Houston
Posts: 77
Total Cats: 0
Default

Now THAT is an idea I can get behind.
TheProfessor is offline   Reply With Quote
Old 05-22-2014, 01:02 PM   #783
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

Uses a BP4 throttle body, but there is enough space on the flange to be ported should the owner want to upgrade to a skunk2 at some point.

Lots of volume in the plenum and the runner length should match the turbo characteristics quite well.
shlammed is offline   Reply With Quote
Old 06-09-2014, 02:55 AM   #784
Elite Member
iTrader: (4)

Pen2_the_penguin's Avatar

Join Date: Dec 2009
Location: Reno, NV
Posts: 3,690
Total Cats: 97
Default

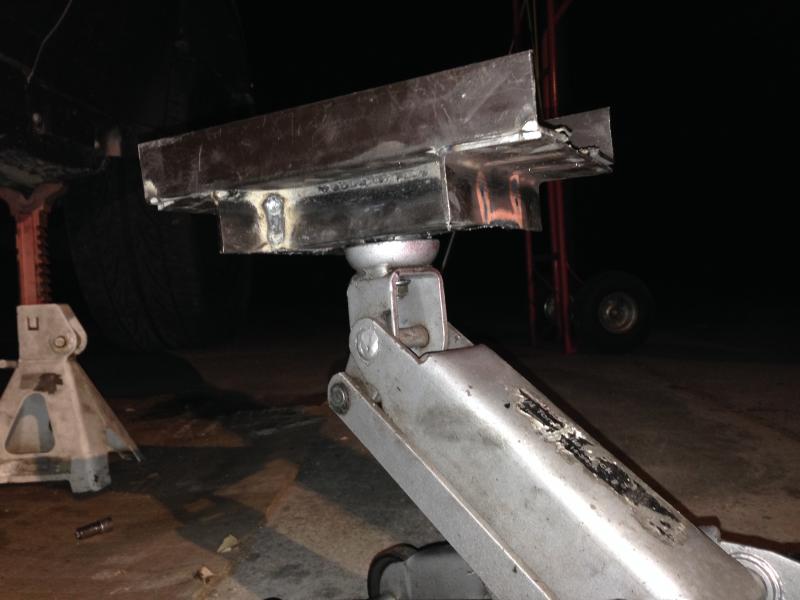

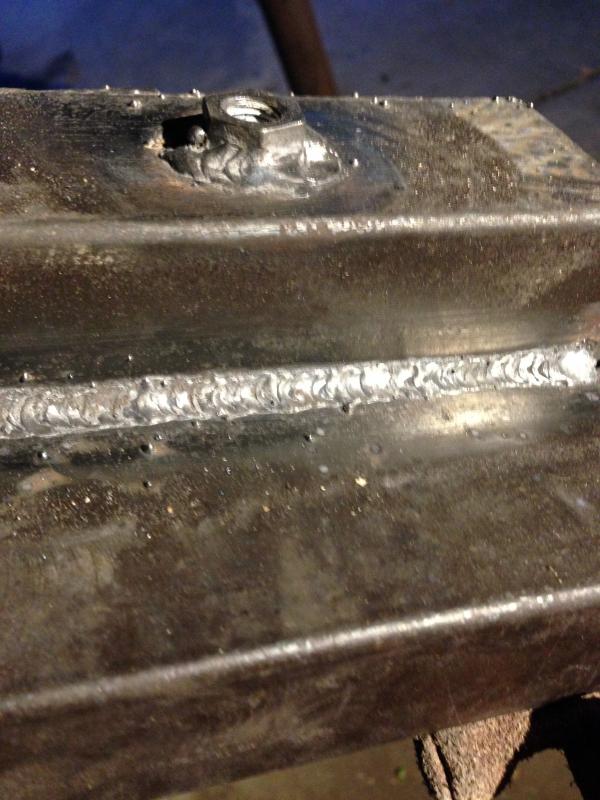

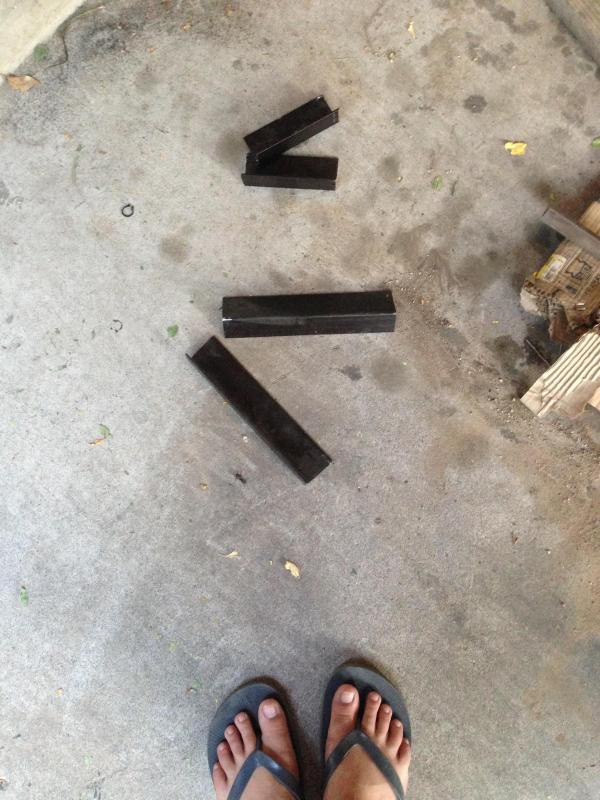

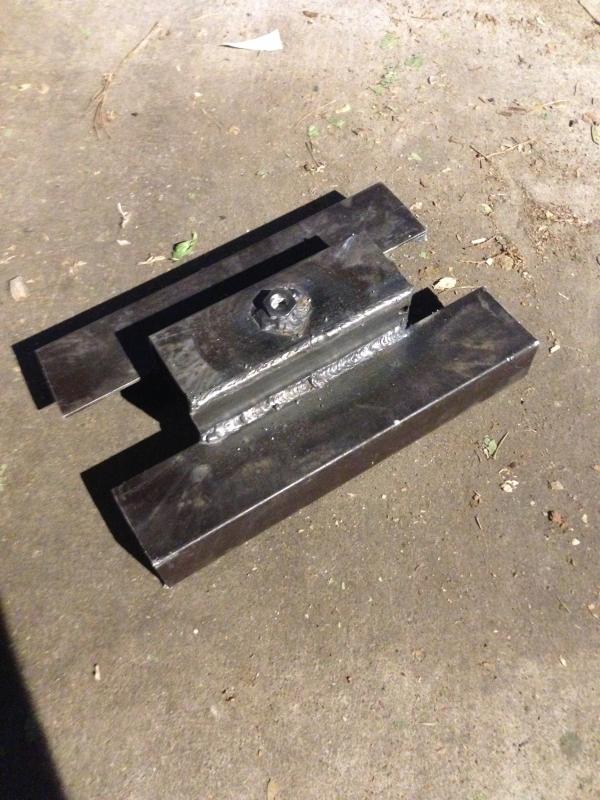

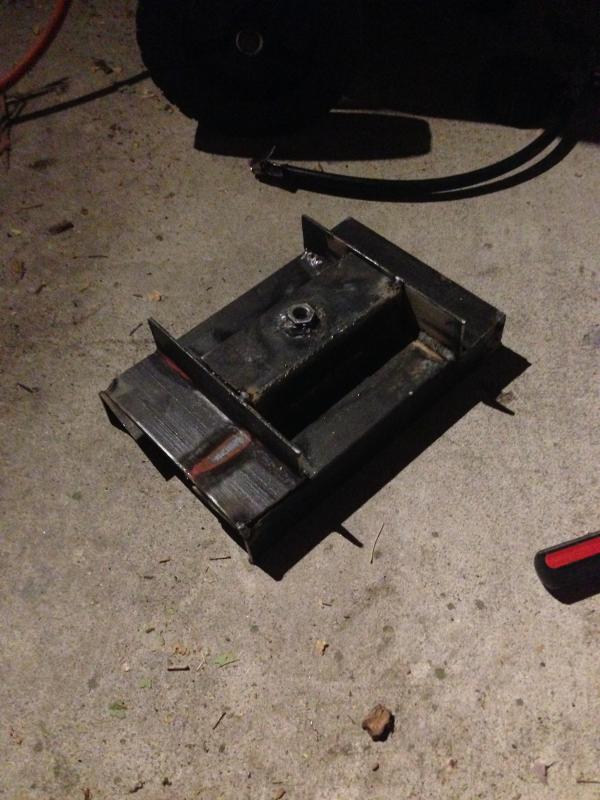

regretted letting a friend borrow my trans jack years ago and never got it back, so i fabbed my own out of a old craftsman floor jack, scrap angle beam, and a **** flux core welder.

Its the best I could do in a pinch, but i made it. All eye balled measured with test fits.
Name:  image3_zps4ad7cbce.jpeg
Views: 7
Size:  76.3 KB
Name:  image2_zps42403688.jpeg
Views: 7
Size:  68.8 KB
Name:  image4_zps117da99f.jpeg
Views: 7
Size:  82.3 KB
Name:  image1_zps81425abd.jpeg
Views: 7
Size:  68.6 KB
Name:  image_zps15fa889b.jpeg
Views: 7
Size:  42.9 KB
Pen2_the_penguin is offline   Reply With Quote
Old 06-24-2014, 01:30 AM   #785
Junior Member
iTrader: (1)

Join Date: Jan 2011
Posts: 375
Total Cats: 0
Default Not the most exciting but relevant

I found the legs on my 4x6 bandsaw to be the worst part of the saw. I cut them down and mounted it to a cart. I didn't see anyone else doing this so I figured I would share. Sheet metal is not my thing so the work is a little rough.

Very stable and now I have everything I need to make a flood coolant setup. I already had the pump, just have to hook it up.

I realize these photos aren't the best, but you get the idea. I can take more.



3rdCarMX5 is offline   Reply With Quote
Old 06-24-2014, 08:11 AM   #786
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,457
Total Cats: 244
Default

Nice job there, definitely makes flood coolant easy.
TurboTim is offline   Reply With Quote
Old 06-24-2014, 09:18 AM   #787
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

I tried tigging aluminum for the first time yesterday. I do not dare post pictures of the result. Had a lot of trouble getting a puddle started and maintaining an appropriate size. Only my second time attempting to use any form of welding though, and first time not using mild.
Schuyler is offline   Reply With Quote
Old 06-24-2014, 09:29 AM   #788
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

TIG weld?

Try running a dry bead. so light up the torch, hold it there until you see the aluminum get shiney (hot enough for filler) and then move the path with no filler (don't do it on a joint though, it wont work. Do this in the middle of a piece of plate)

trick with welding (aluminum especially) is reading the puddle. aluminum is easy to read. you see it shine, wait just a second and it will start to keyhole. in the time between shiney and keyhole you dip and move on. Im not as good as some at aluminum, but that has gotten me good results with nice penetration.
shlammed is offline   Reply With Quote
Old 06-24-2014, 09:30 AM   #789
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

Shinny, really only works if its clean and pretty. Once you get **** on/in the puddle all bets are off and it looks the same if its liquid or solid.
Leafy is online now   Reply With Quote
Old 06-24-2014, 09:51 AM   #790
Senior Member
iTrader: (1)

Join Date: Apr 2011
Location: Columbia, SC
Posts: 1,342
Total Cats: 78
Default

Quote:
Originally Posted by shlammed View Post
TIG weld?

Try running a dry bead. so light up the torch, hold it there until you see the aluminum get shiney (hot enough for filler) and then move the path with no filler (don't do it on a joint though, it wont work. Do this in the middle of a piece of plate)

trick with welding (aluminum especially) is reading the puddle. aluminum is easy to read. you see it shine, wait just a second and it will start to keyhole. in the time between shiney and keyhole you dip and move on. Im not as good as some at aluminum, but that has gotten me good results with nice penetration.
That sounds like basically what I was doing, though I was attempting to add fillter.

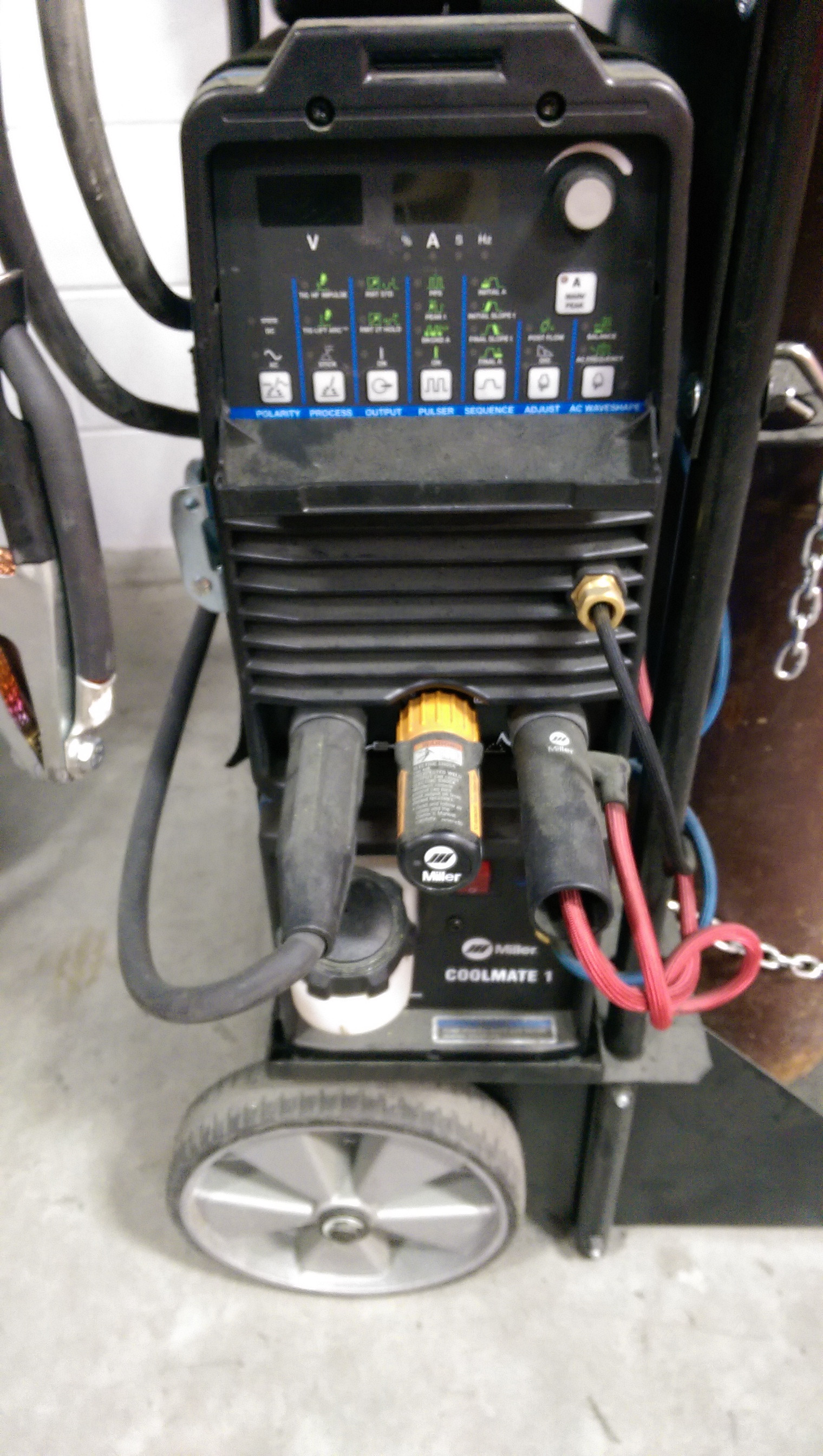

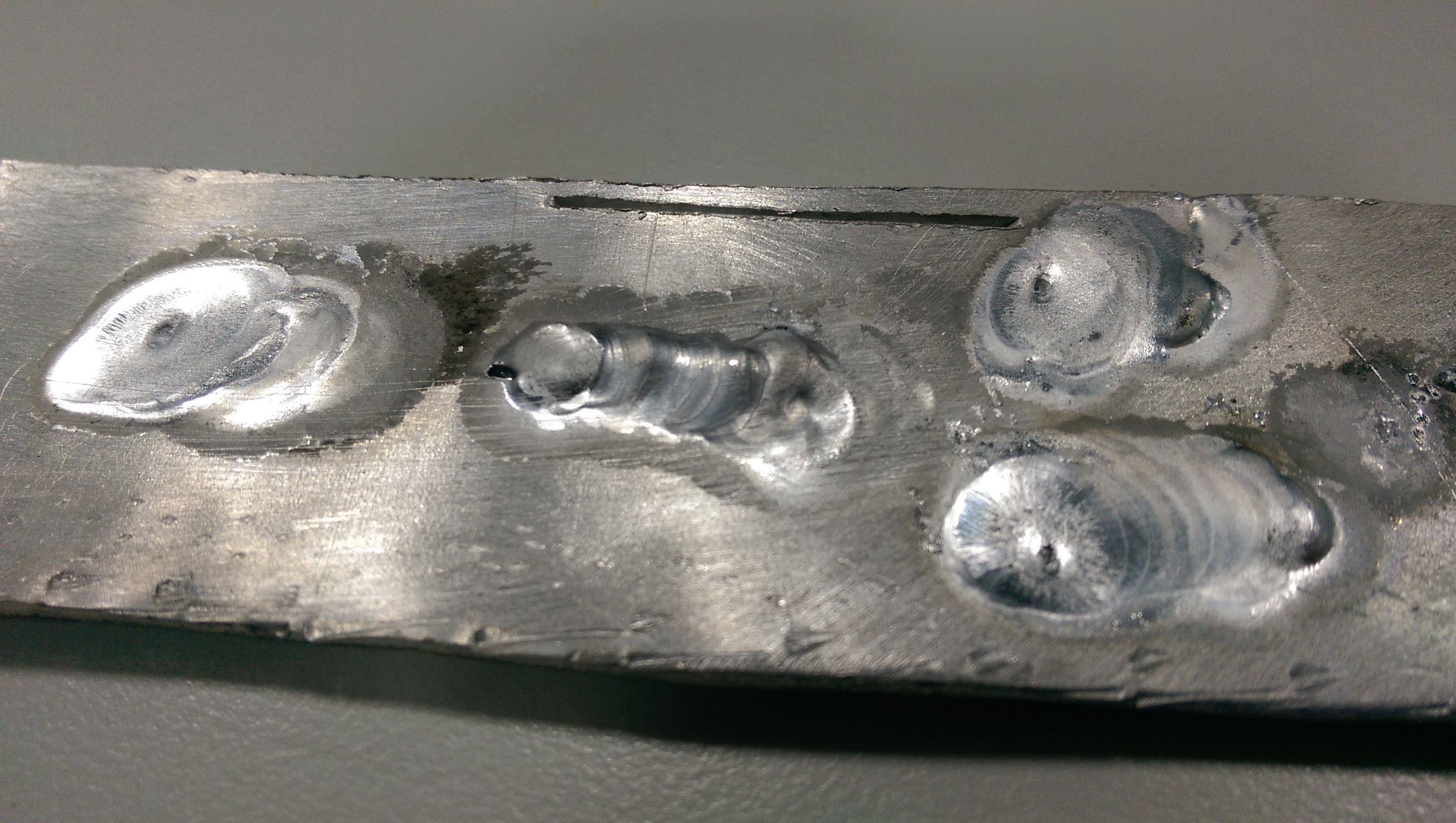

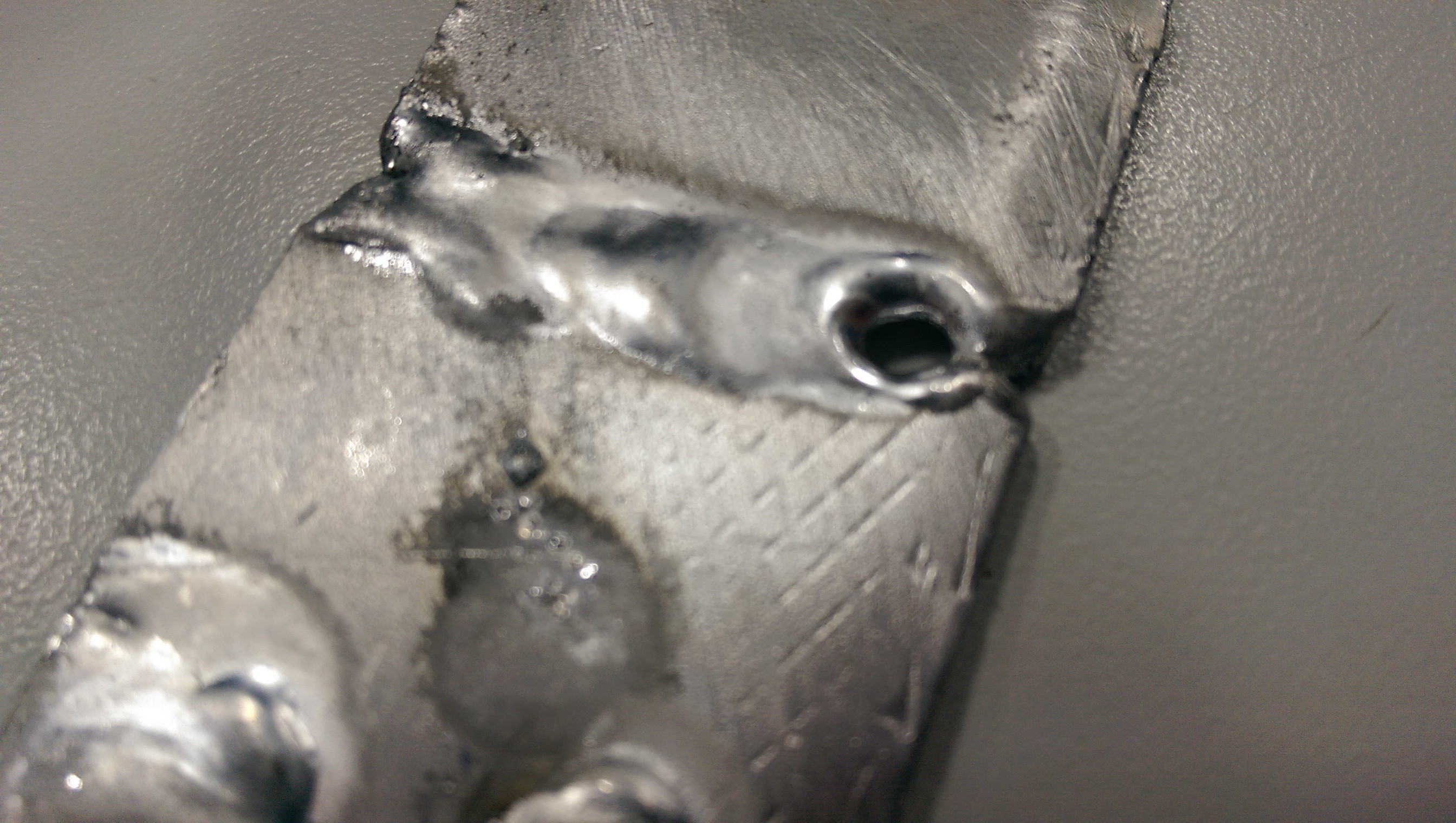

pics for constructive criticism Just my first attempts with pretty much no idea what I was doing. Also pic of the welder, meant to attach a picture of the settings I used but forgot. Though, I'm 70% sure the guy that got me setup set the amperate to 200A and told me to control it with my foot.

Also, did attempt one pathetic joint at the end. Also shown.



Schuyler is offline   Reply With Quote
Old 06-24-2014, 10:29 AM   #791
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

Quote:
Originally Posted by Leafy View Post
Shinny, really only works if its clean and pretty. Once you get **** on/in the puddle all bets are off and it looks the same if its liquid or solid.
Don't be lazy. Clean your dirty dipped weld and tungsten. Also, frequently clean your cup and collet.
shlammed is offline   Reply With Quote
Old 06-24-2014, 10:31 AM   #792
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

How do you clean your dipped weld? The wire brush, it does nothing.
Leafy is online now   Reply With Quote
Old 06-24-2014, 10:34 AM   #793
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

Quote:
Originally Posted by Schuyler View Post

pics for constructive criticism
When you touch the tungsten to the metal or hit the filler rod on the hot tungsten, stop welding.

with aluminum especially, you will see it glinging to your tungsten and its making your welds look black in the etch zone. The only material that I have ever welded that turned black like that is cast aluminum that has been in service (oil pan, valve cover, transfer case, etc).


You should be able to keep a nice white band on your weld.

HellaFab Turbo GXP intercooler kit by HellaFab, on Flickr
(Can you spot the dip? I stopped, cleaned the material and tungsten then continued on. Proper.)



Aluminum is great to learn on because it forces you to be clean with your material and tungsten or you get **** welds....
shlammed is offline   Reply With Quote
Old 06-24-2014, 10:44 AM   #794
Elite Member
iTrader: (8)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,783
Total Cats: 68
Default

Quote:
Originally Posted by Leafy View Post
How do you clean your dipped weld? The wire brush, it does nothing.
you get a flap disc out and grind the **** out of your weld.
On charge piping/intake manifolds especially. if you don't grind it out you get pinhole leaks everywhere.... even if it holds water at atmospheric pressure... once you add boost/vac it leaks through the weld RIGHT where you dipped. Learned that one early on.

Then start your next bead back where the last visible non-ground out weld is and weld over the last weld to keep going.
shlammed is offline   Reply With Quote
Old 06-25-2014, 06:45 PM   #795
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

So I picked up a bottle of Scotch (glendronach 15) for my FIL as a 35th anniversary present. Since it comes in a round tin, I didn't know how to wrap it. Additionally, I wanted a sufficiently manly wrapping, befitting of the contents. I think I came up with a pretty good solution:

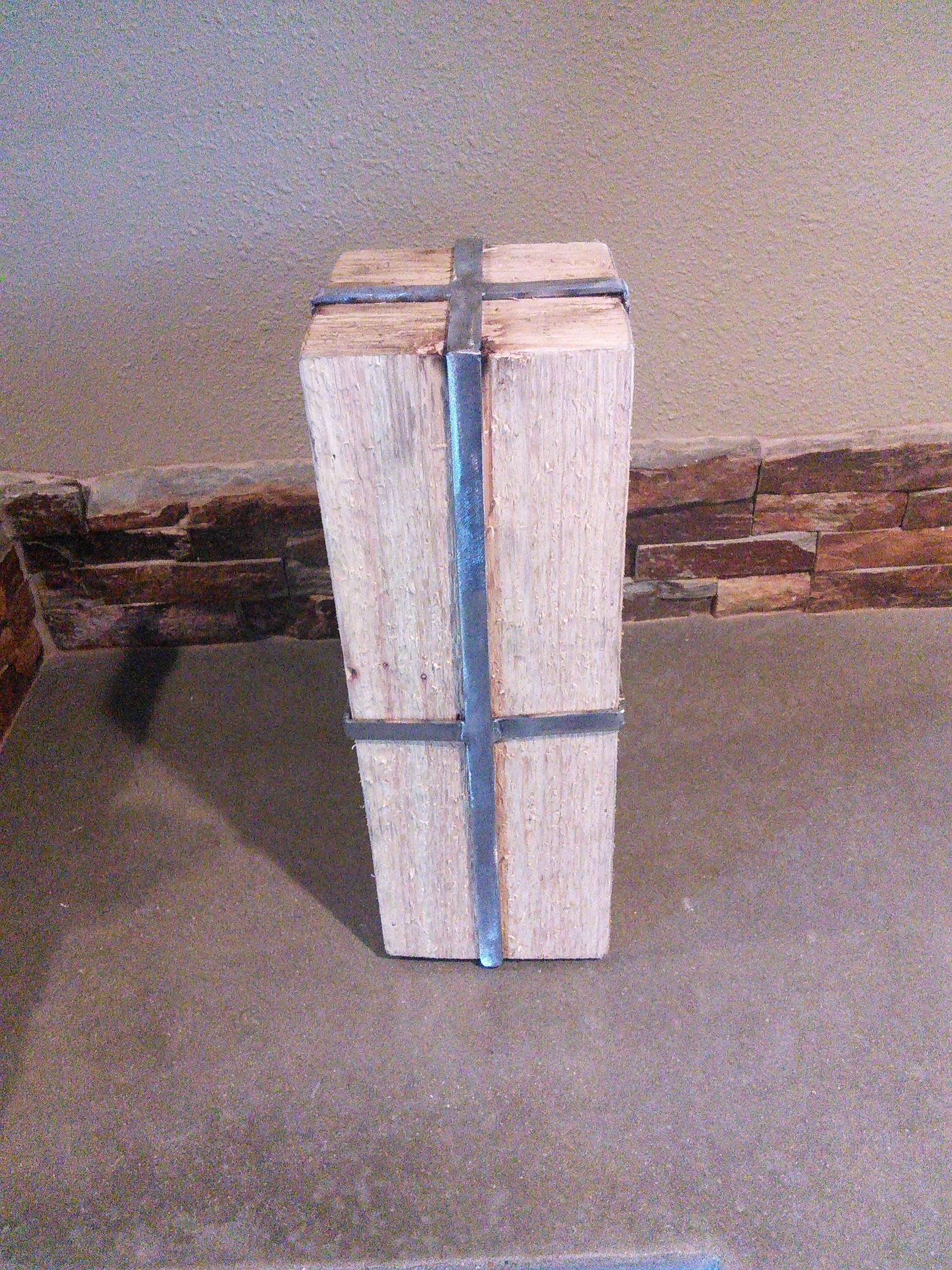

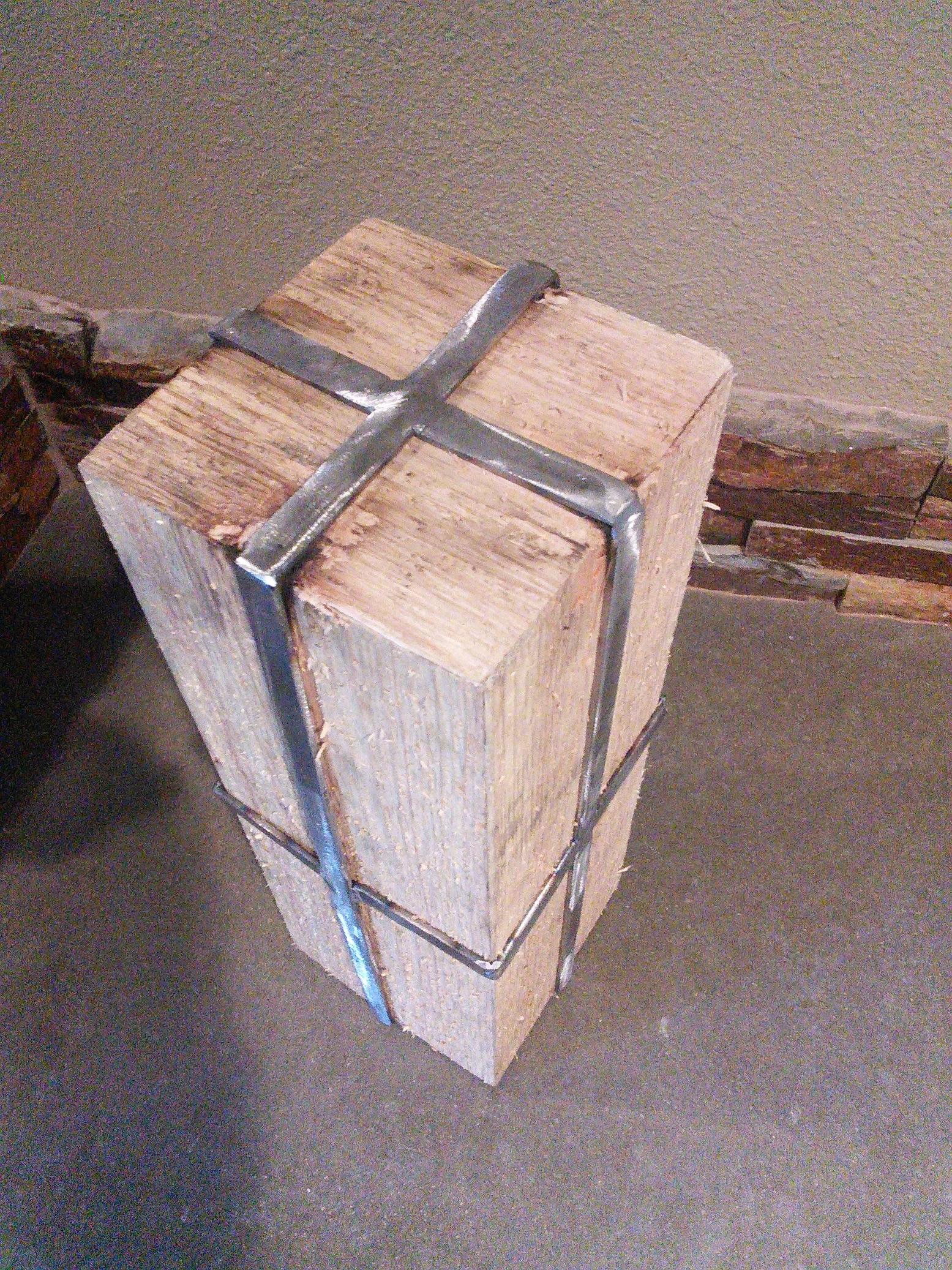

I made a box from some cedar 1x6 I had laying around. All four sides of each piece are cut on a 45, so it almost looks like a solid block, since there's no edge/end grain showing. Then I made the "ribbon" out of "x⅛" steel bar that I welded into the cage. I did 5 sides of the cage, slid it on then welded on the top (you can see some of the singed wood in the second pic) so it's going to take an angle grinder to open. My FIL and I have a somewhat antagonistic relationship, so the fact that it'll be a pita to open is a bonus. Though I'm so happy with the final product, I kinda hate to see it cut up.

Last edited by krazykarl; 06-25-2014 at 07:25 PM.
krazykarl is offline   Reply With Quote
Old 06-25-2014, 07:05 PM   #796
Senior Member
iTrader: (2)

Join Date: Aug 2013
Location: Houston, TX
Posts: 591
Total Cats: 28
Default

That's a priceless gift for a FIL.
SchmoozerJoe is offline   Reply With Quote
Old 06-25-2014, 07:17 PM   #797
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,881
Total Cats: 521
Default

Urban dictionary: FIL. Got through lots of stuff before I figured out you're talking about father in law.

Right?

Unless it's a fake internet lesbian.
turbofan is offline   Reply With Quote
Old 06-25-2014, 07:30 PM   #798
Junior Member

Join Date: Jan 2013
Posts: 59
Total Cats: 8
Default

Quote:
Originally Posted by turbofan View Post
Urban dictionary: FIL. Got through lots of stuff before I figured out you're talking about father in law.

Right?

Unless it's a fake internet lesbian.
Ha, sorry...yep father-in-law. It's a fairly common initialism on another forum I visit, so I assumed it was universal...
krazykarl is offline   Reply With Quote
Old 07-14-2014, 11:22 AM   #799
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,712
Total Cats: 1,081
Default

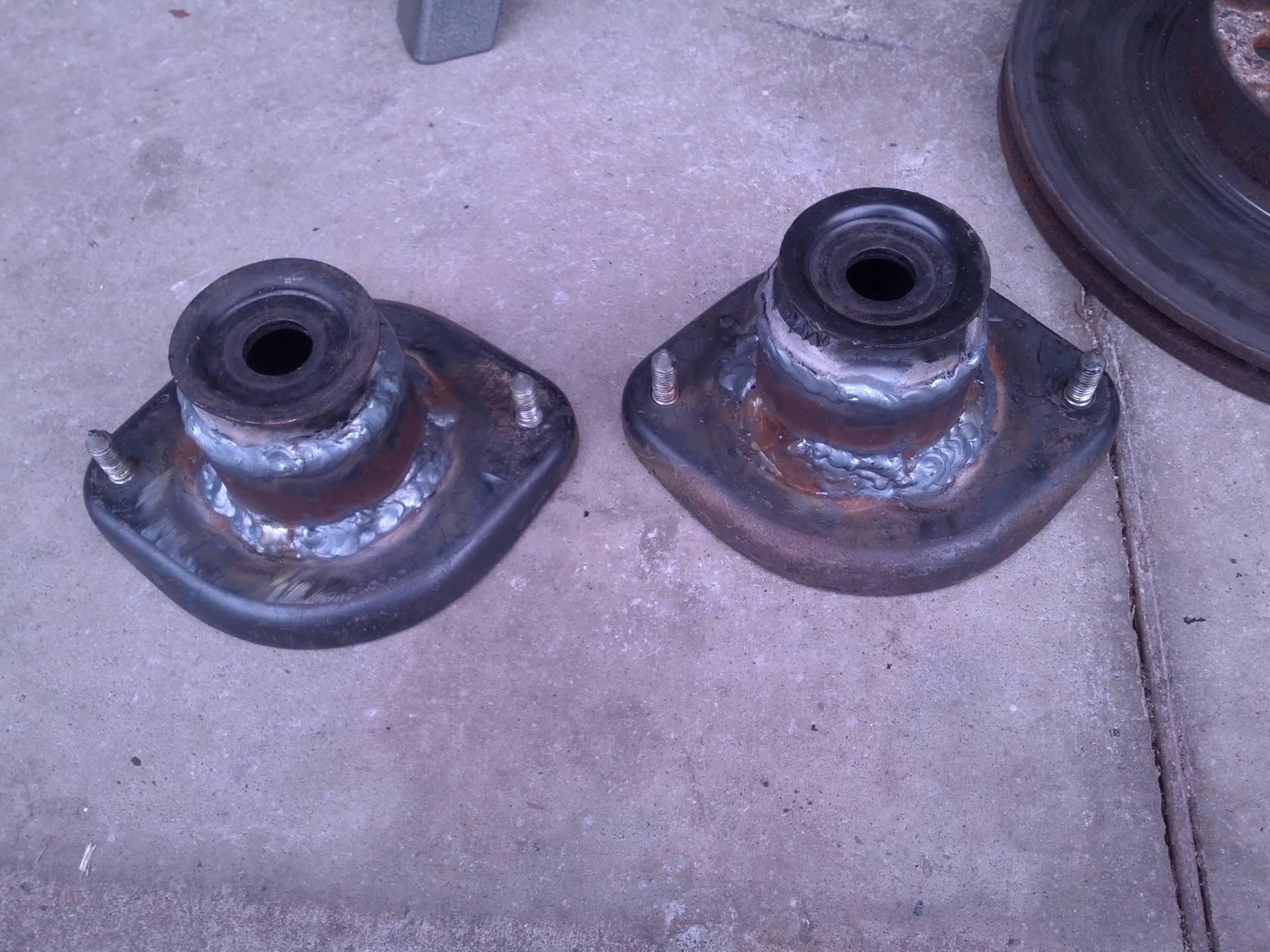

I made my friend some extended tophats for his rear shocks. I spent zero time at all actually prepping the metal in a good fashion. Used a big hole saw to cut off the top of the tophat, welded a pipe in its place, then welded the top back on the pipe.
shuiend is offline   Reply With Quote
Old 07-14-2014, 11:25 AM   #800
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,497
Total Cats: 1,706
Default

already better welds/material than ISC racing tophats...
