Old 07-30-2014, 11:04 PM   #821
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,175
Total Cats: 1,878
Default

Quote:
Originally Posted by scenturion View Post
A different kind of fab, but I thought you all might enjoy it.
I approve of this sort of thinking.

(Nice looking boards, BTW. Who did the fab?)

I'm curious- it looks like an entirely passive R/C circuit, which wouldn't have been my first guess for solving a VR-based problem. Care to share the Theory of Operation?




And now, some ghetto engineering.

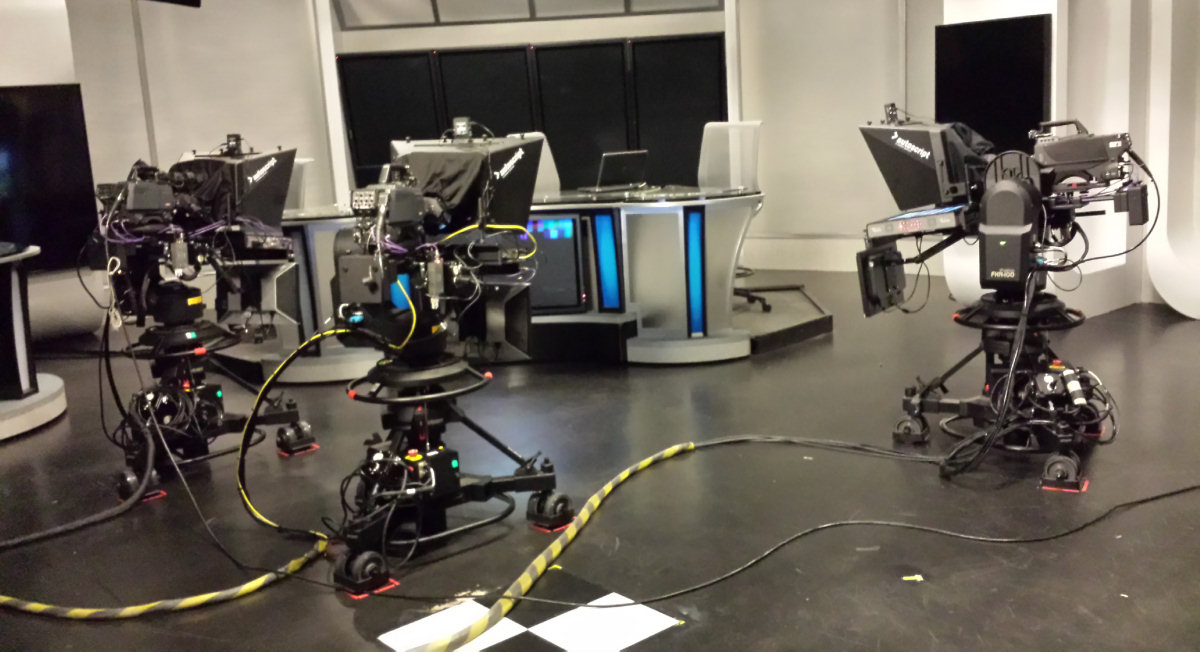

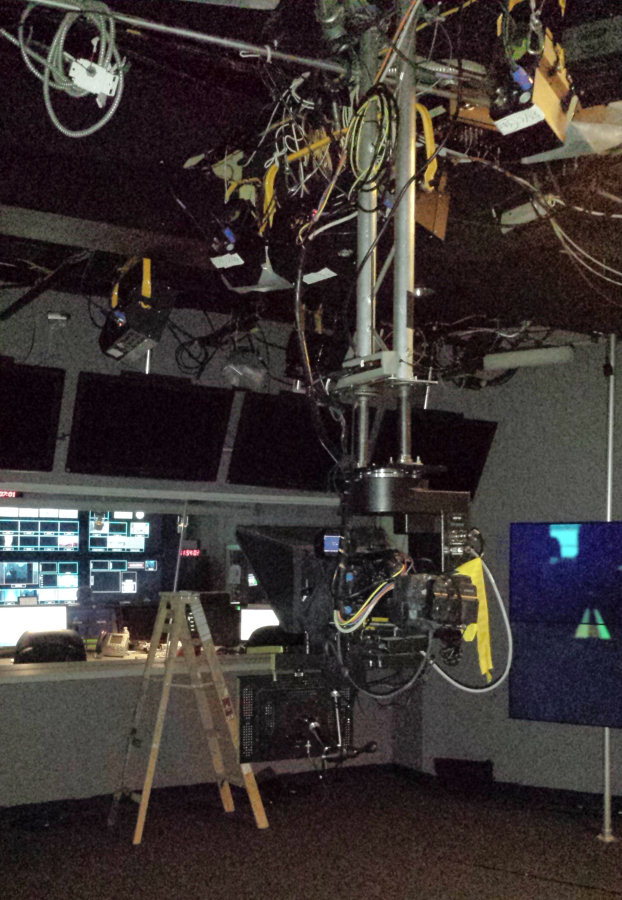

Here is WPIX studio camera #7, also known as the FlashCam. It's a Sony EX3 mounted on a 20 year old robotic pan/tilt head in the area between the newsroom and the production control room:



We hired a new traffic anchor who is short, and the ND decided to create a new shot of the traffic position, which I have very roughly modeled here:




By "short" I mean that she's damn near a midget. And so even with high-heels, she looks kind of weird when framed in the old setup. Thus, the ND has requested that we lower the entire 150 lb robot by 8", in order to get the lens down to her eye level.

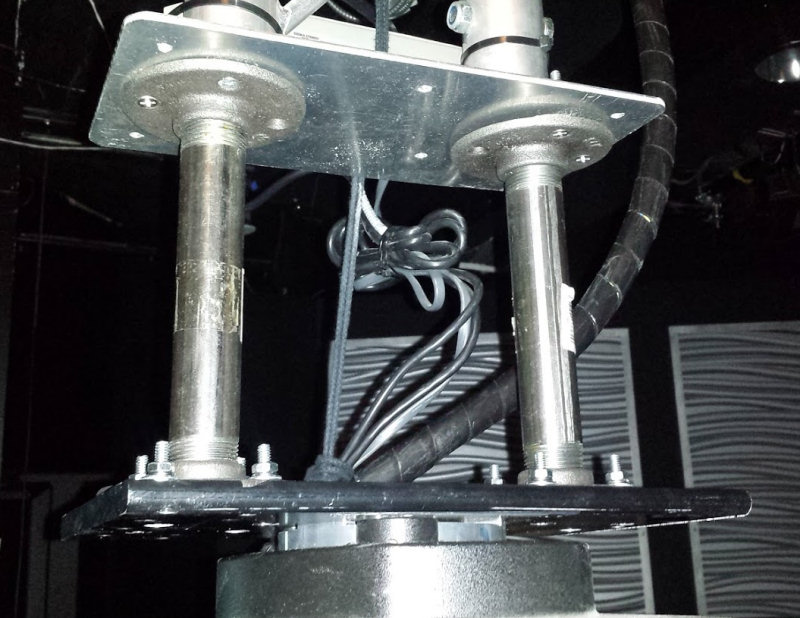

Since it was already at the extreme bottom end of travel, this presented a problem. Vinten (the manufacturer) sells a spacer plate for $900. As it turns out, the Home Depot on E. 59th St sells a functionally comparable spacer plate kit for only $32, which is mysteriously labeled as "plumbing supplies."

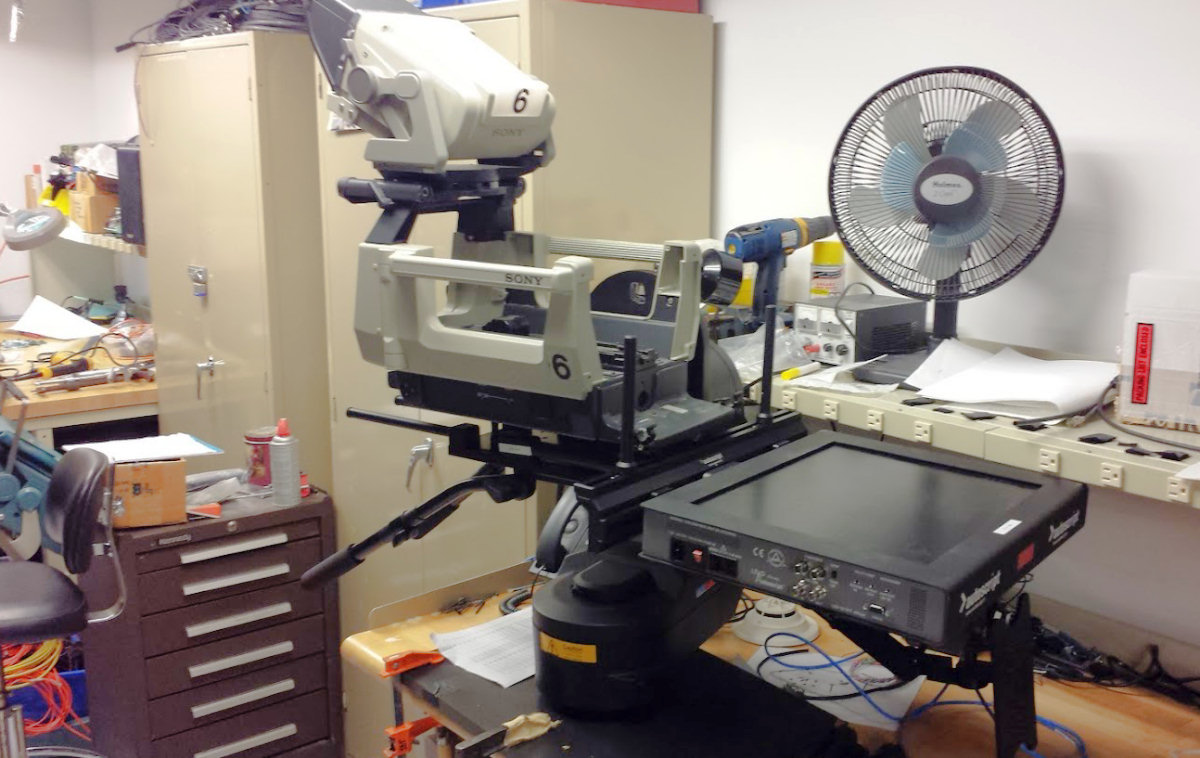

Unrelated: the new #6 studio robot is coming together nicely on the bench up on the 10th floor workshop. Once complete, we will duplicate it to build the new #4, and that will complete the rebuild of the studio robot system.

Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-flashcam1.jpg   The custom fabrication thread! (Post pics of stuff you have made)-flashcam2.jpg   The custom fabrication thread! (Post pics of stuff you have made)-robot-6.jpg   The custom fabrication thread! (Post pics of stuff you have made)-traffic.gif
Joe Perez is offline   Reply With Quote
Old 07-30-2014, 11:11 PM   #822
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

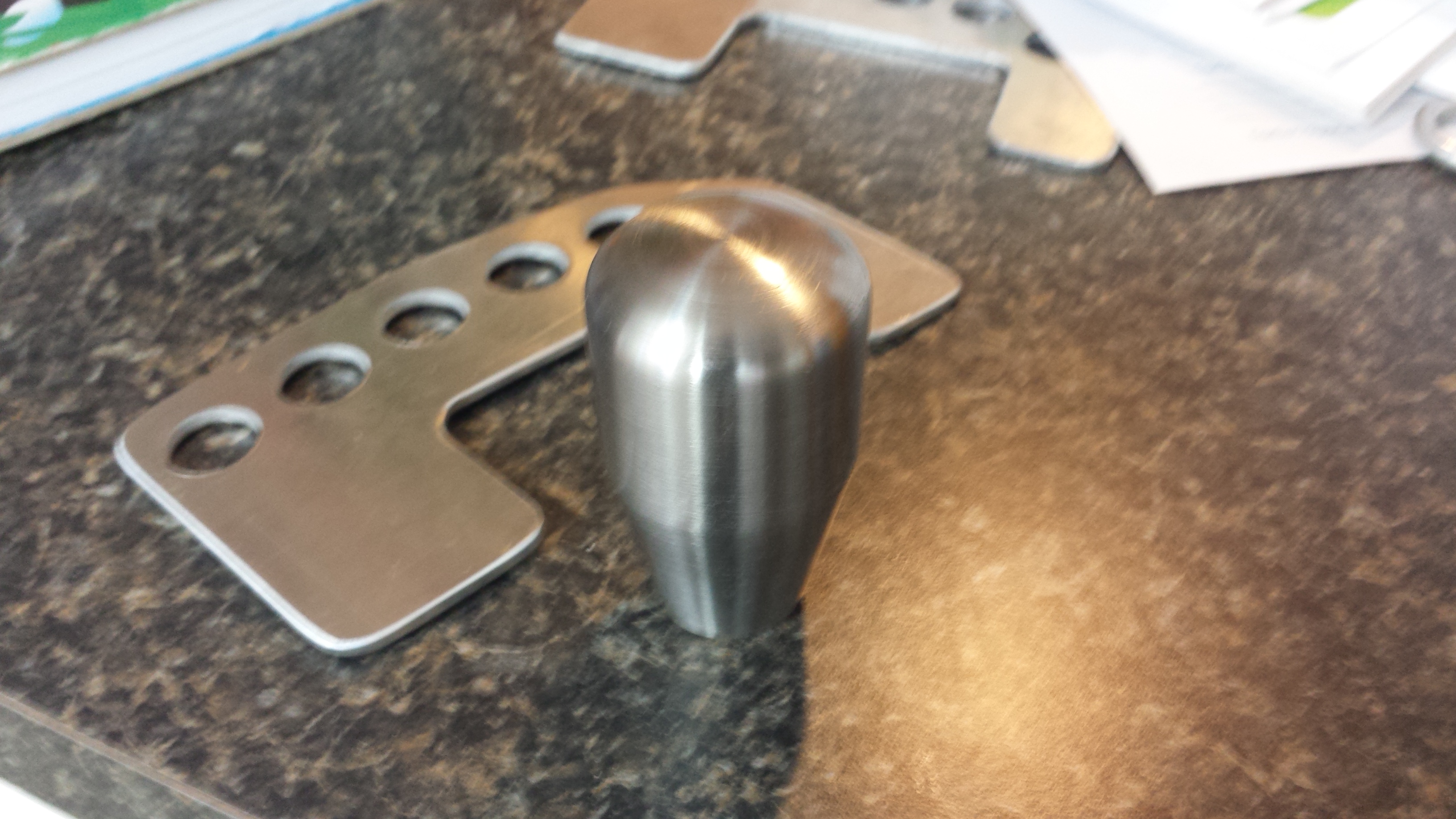

shift **** and pedal extensions
Name:  20131113_143506_zps9a96b3d3.jpg
Views: 20
Size:  1.82 MB

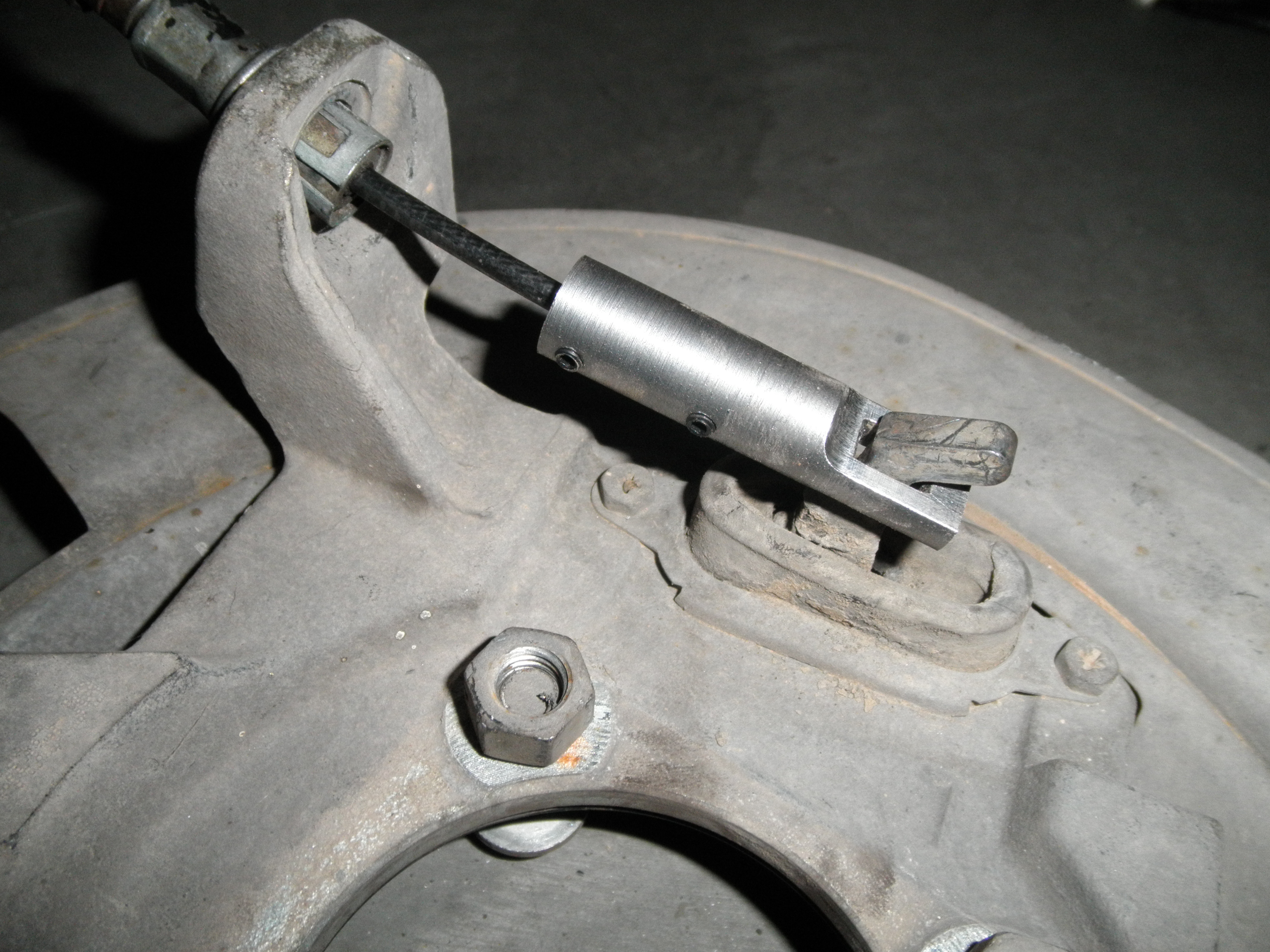

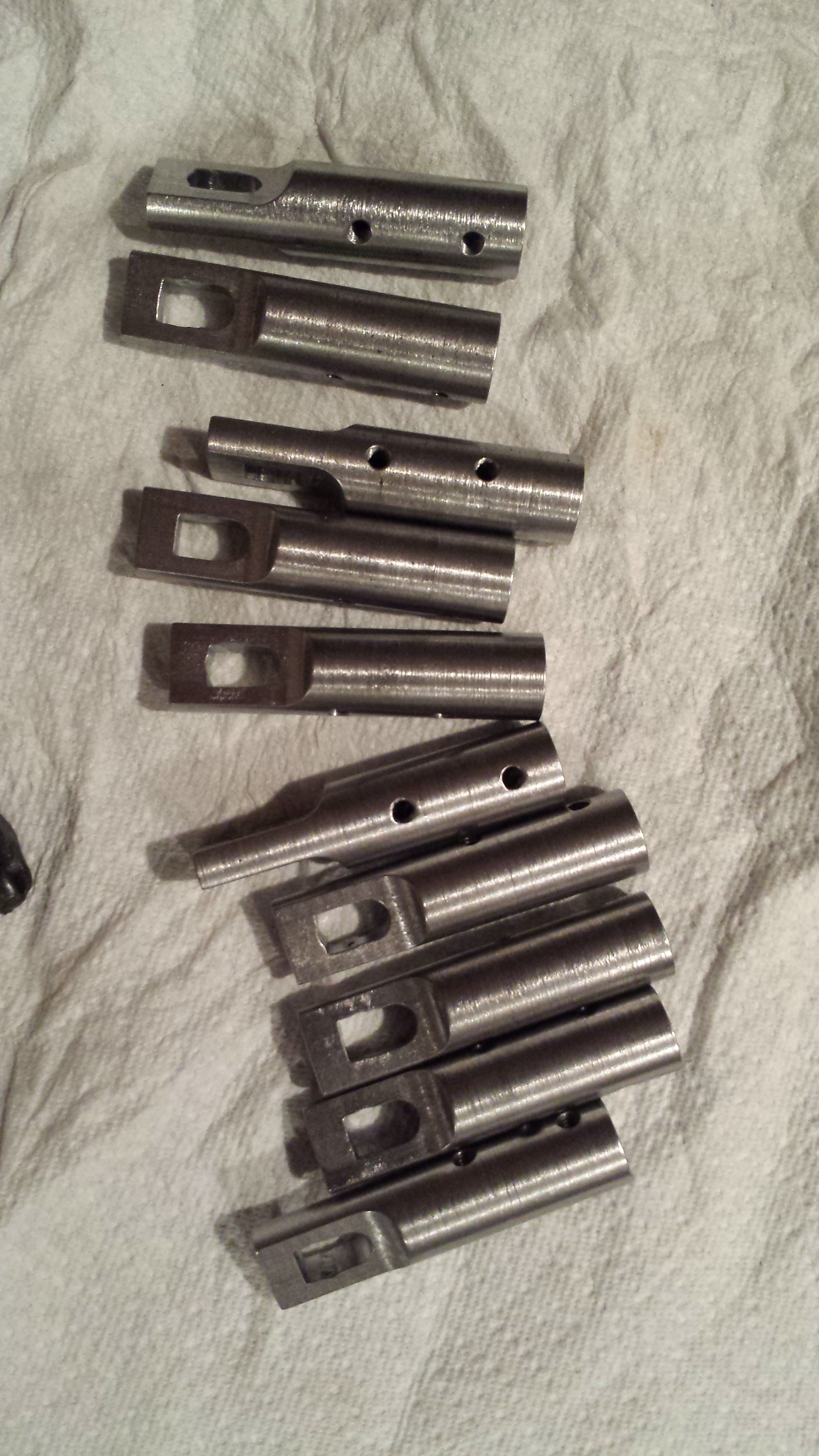

emergency brake adapters for chevy s10 rear disc swaps
Name:  20130827_200806_zps1dff0148.jpg
Views: 18
Size:  1.83 MB

Name:  P2060020_zps6d3de748.jpg
Views: 19
Size:  6.08 MB

various awesome looking chips from the machine shop at work
Name:  IMAG0977_zpsb59fc6ae.jpg
Views: 18
Size:  1.31 MB
ive always wanted to encapsulate these in acrylic for a nice paperweight

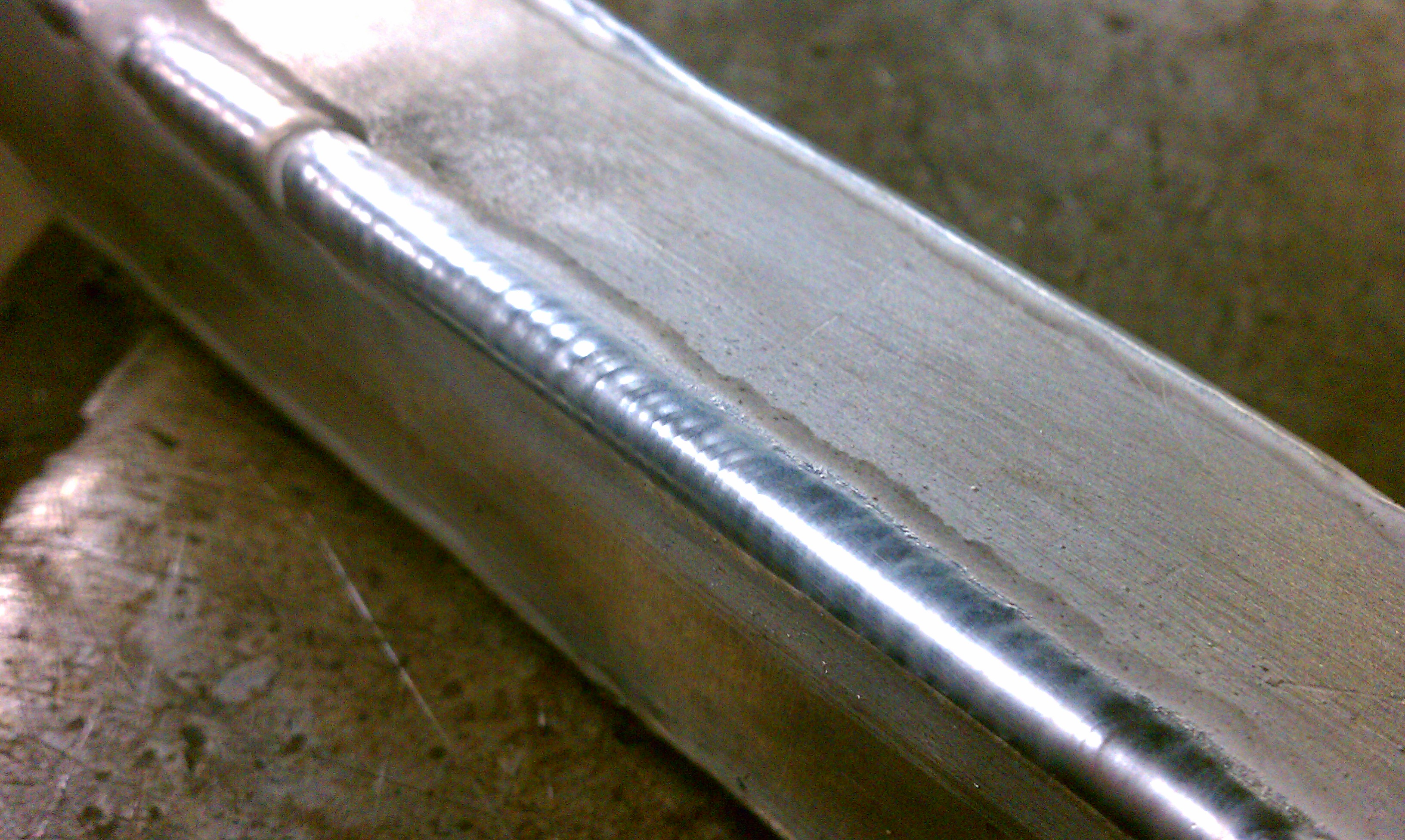

my fist day tig welding. best joint after about 2 hours of learing
Name:  IMAG0876_zps28a492af.jpg
Views: 18
Size:  1.59 MB

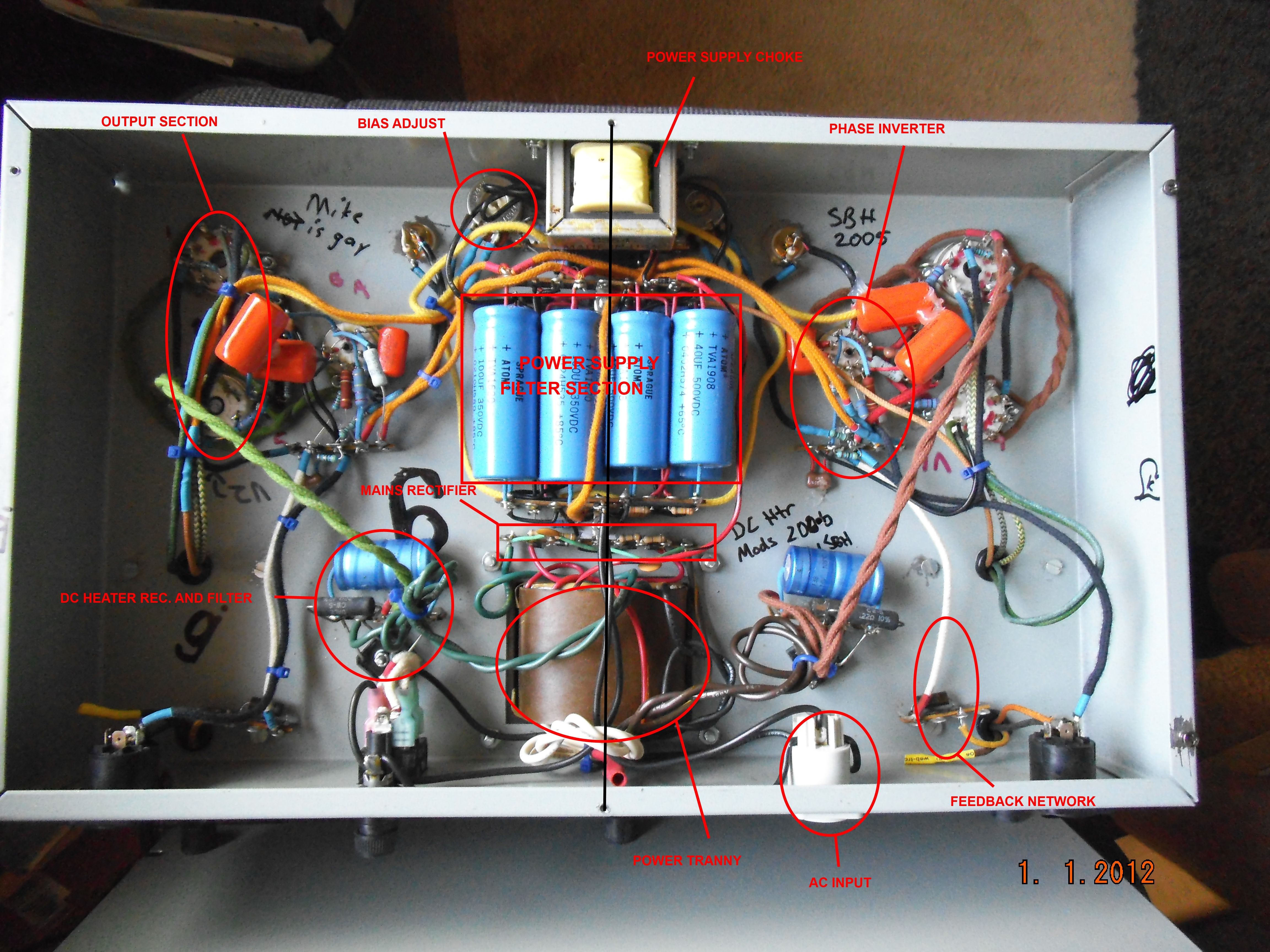

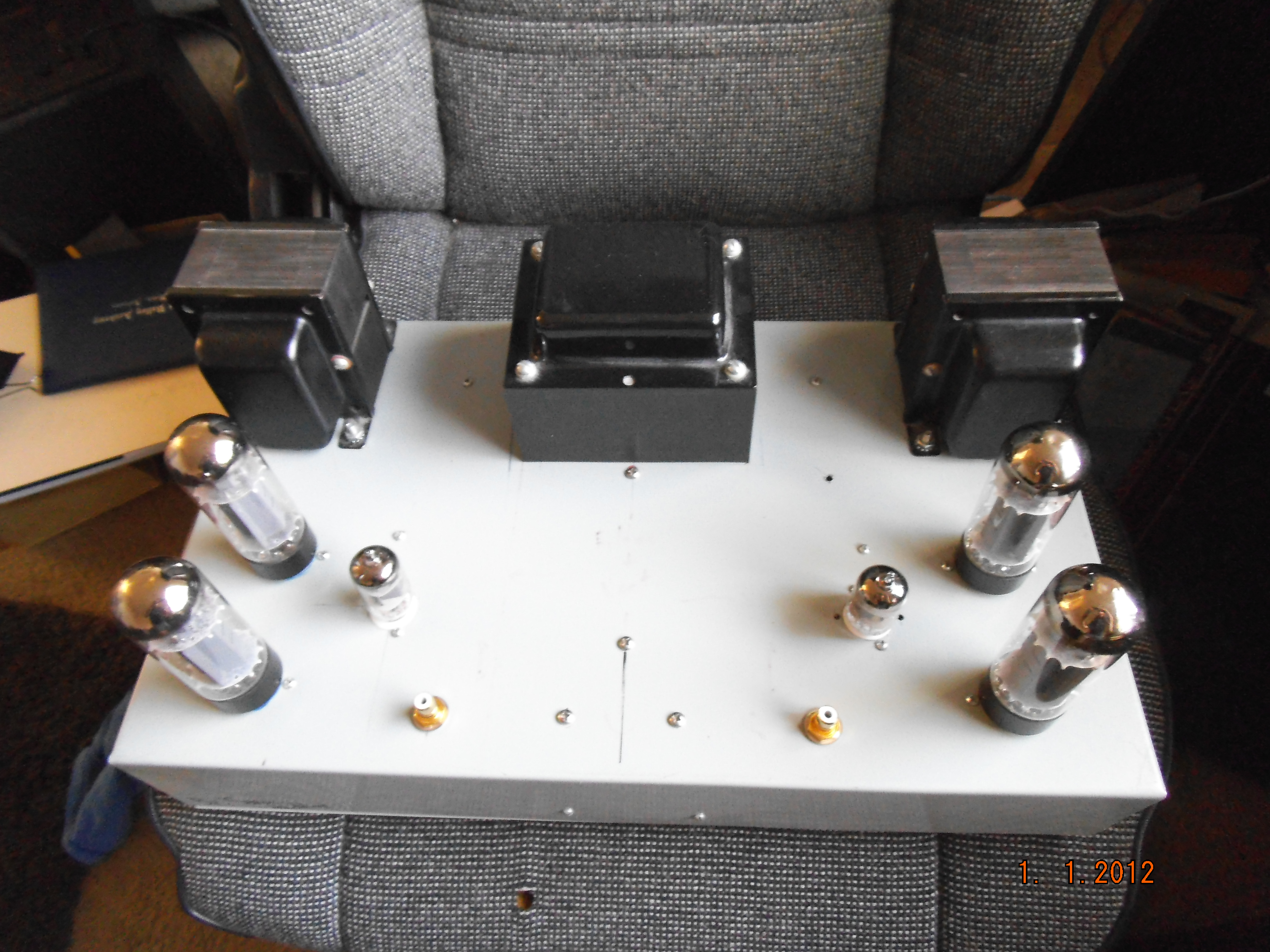

one of the many tube amps ive built. this one is my personal hifi stereo amp
Name:  DSCF1053-1_zps5f48c681.jpg
Views: 18
Size:  5.81 MB


Name:  DSCF1048_zpseab58dd2.jpg
Views: 17
Size:  3.23 MB

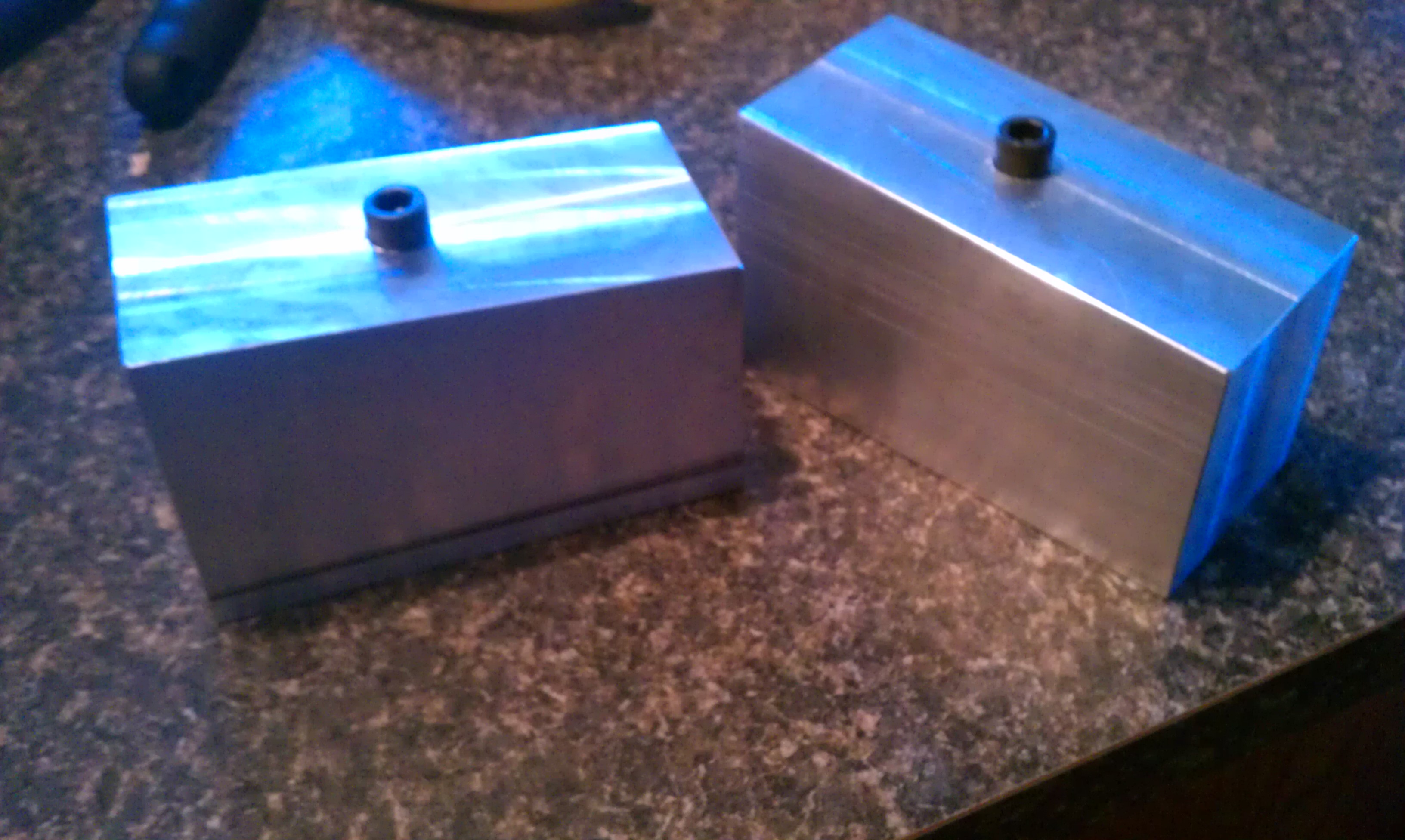

3", setback, angle drop blocks for s10 stance crowd who care about their drive line angles
Name:  IMAG0985_zps496458a6.jpg
Views: 17
Size:  836.3 KB

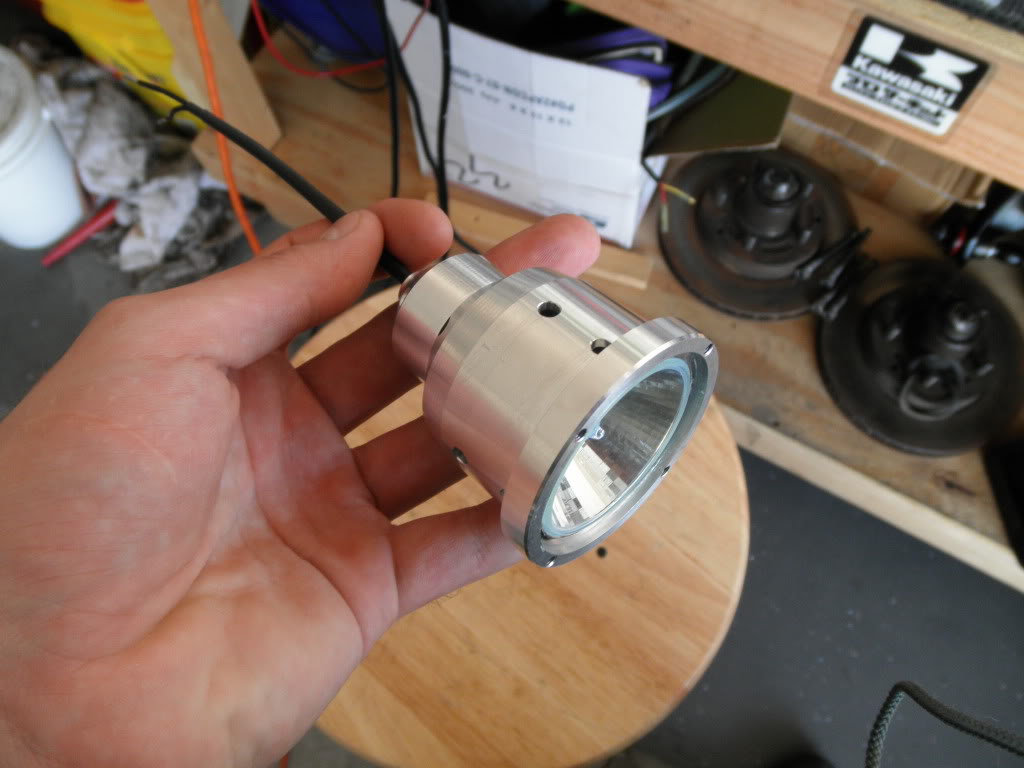

dirt bike helmet lamp for night riding
Name:  P7130053.jpg
Views: 19
Size:  75.2 KB

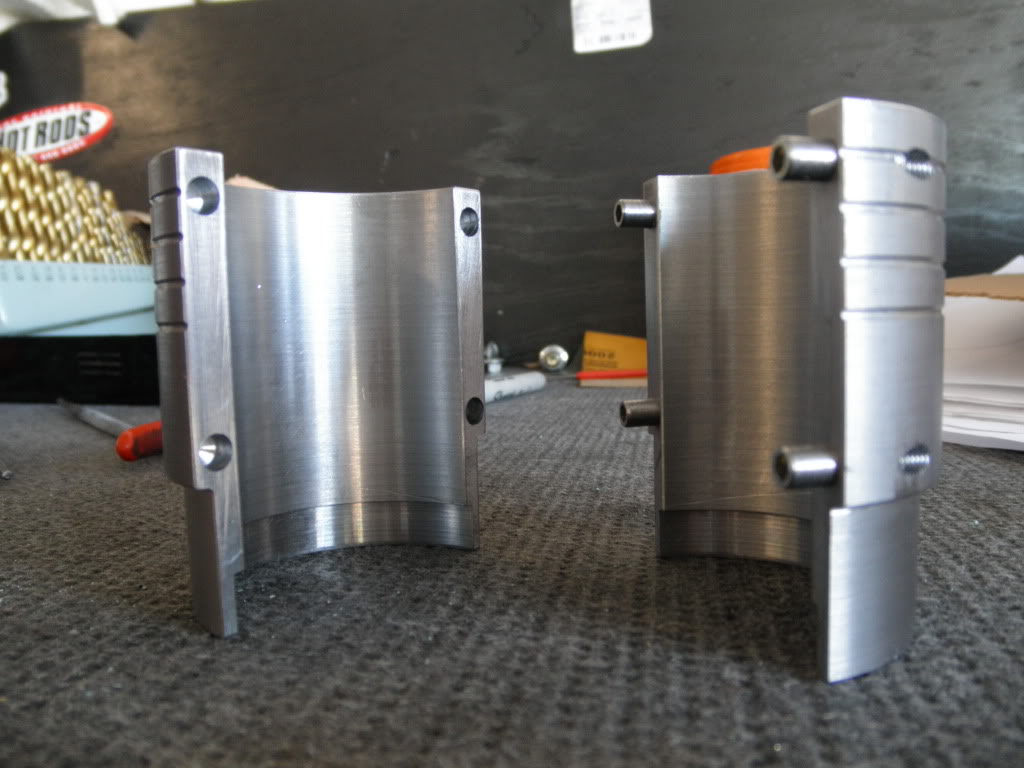

dirtbike fork seal driver tool
Name:  P5020003.jpg
Views: 16
Size:  90.5 KB

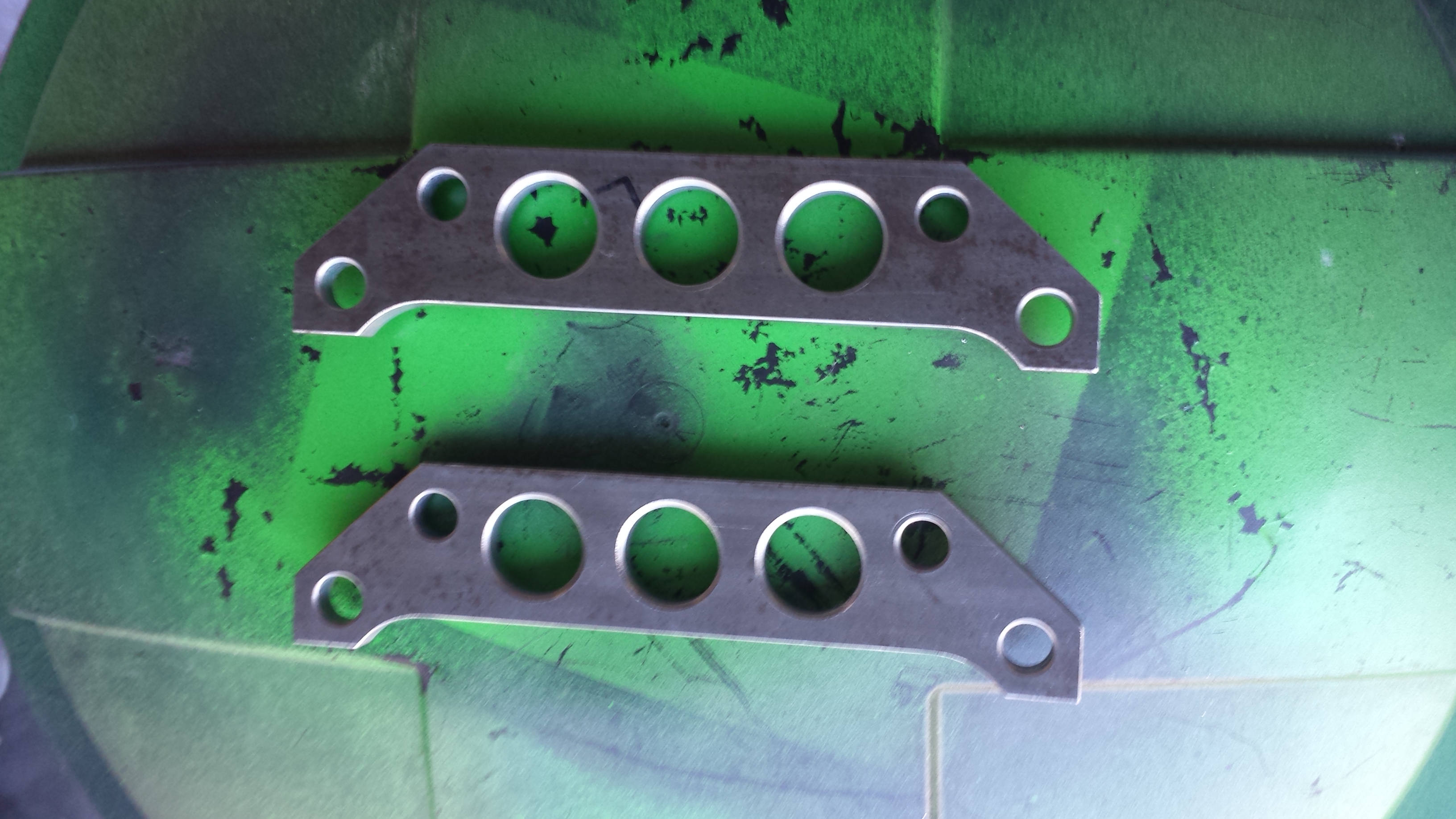

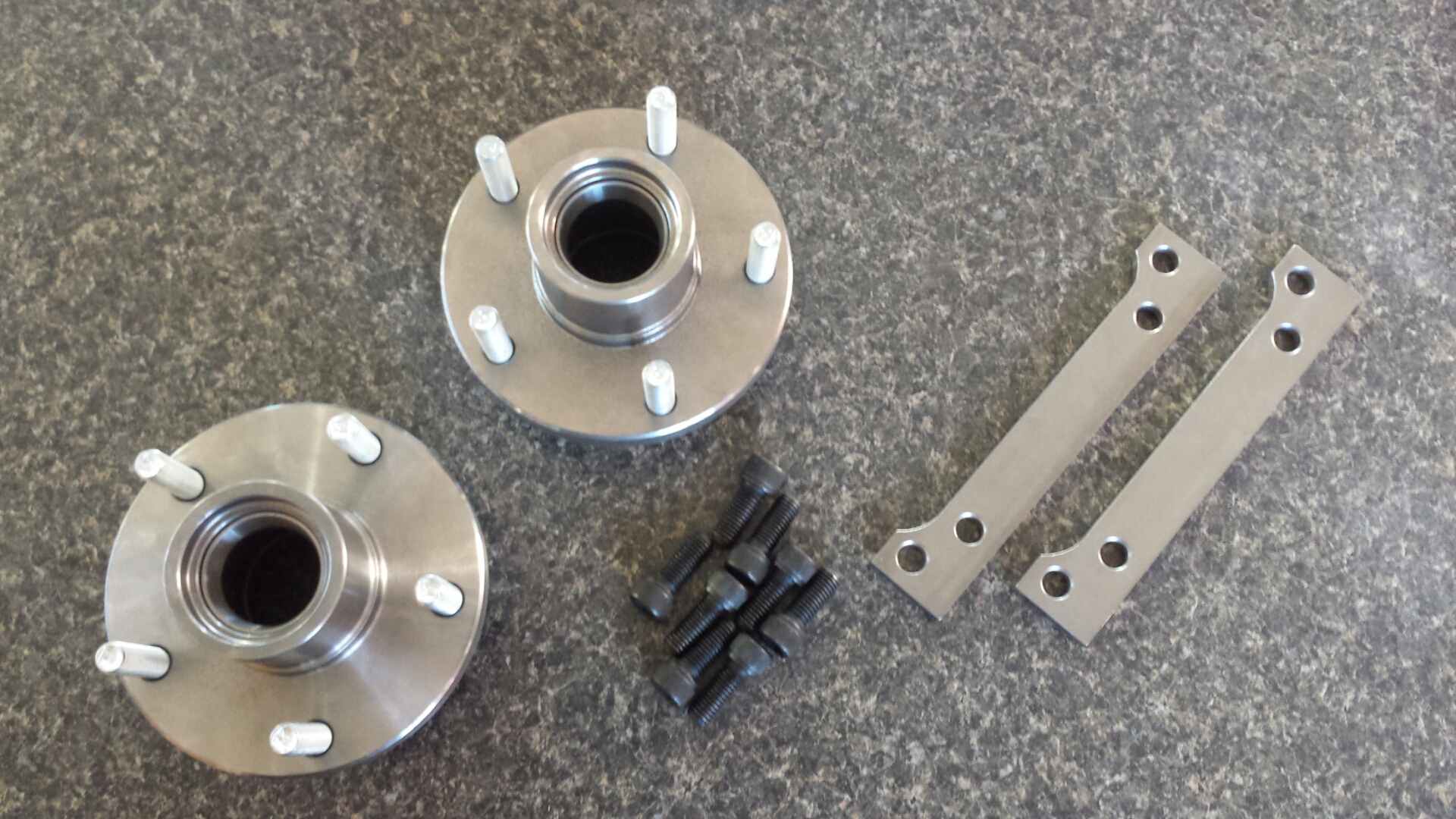

s10 big front brake kits i make and sell in the s10 world
Name:  2014-02-13%2017.28.23_zps9dvdkiw0.jpg
Views: 17
Size:  1.40 MB

Name:  20140215_094418_zpsffomvbn6.jpg
Views: 17
Size:  1.68 MB

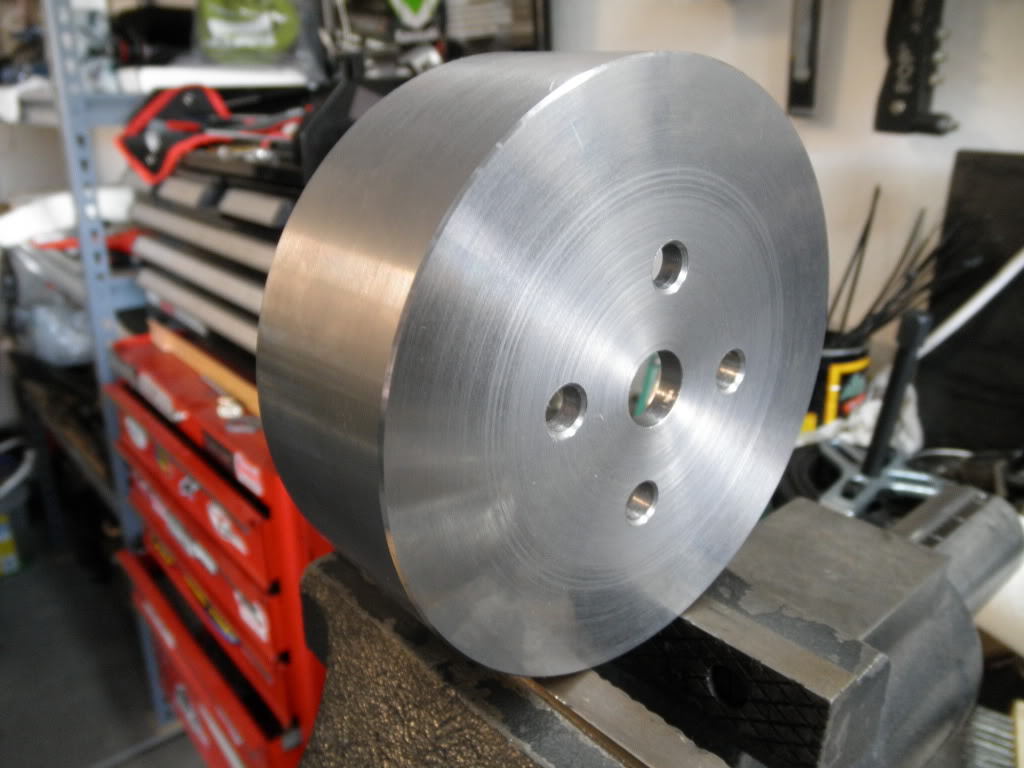

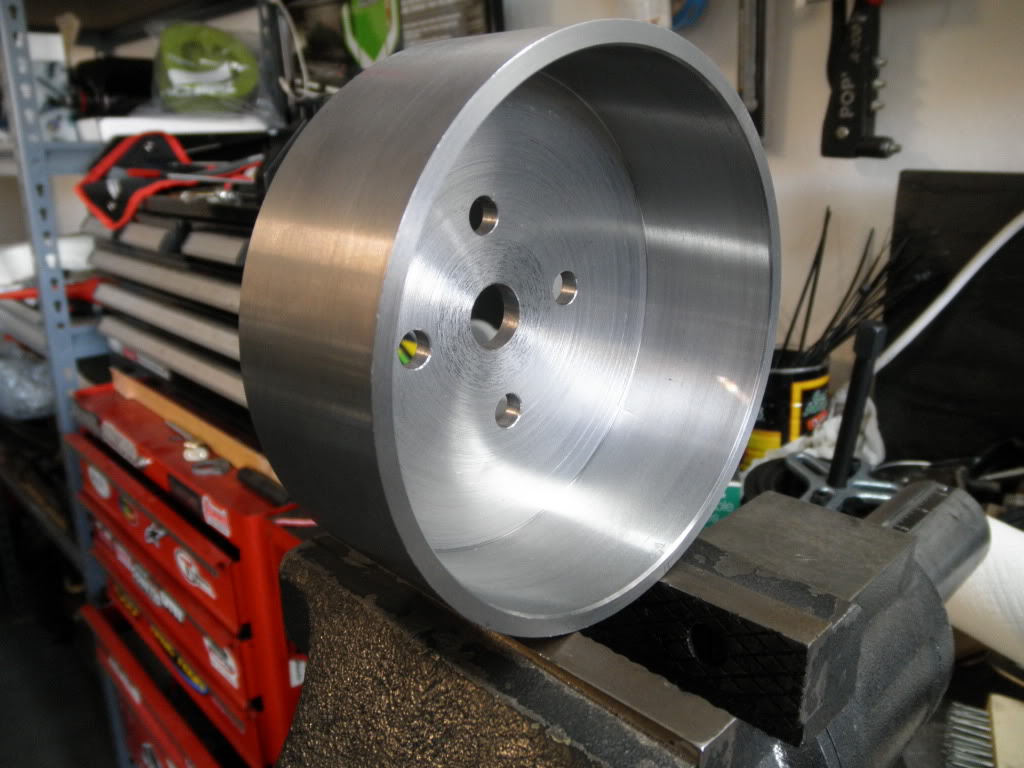

small block chevy water pump pulley to use short nose water pump with long nose accessories for rad clearance in sbc swapped vehicle, like my s10
Name:  P9280002.jpg
Views: 17
Size:  134.7 KB

Name:  PA030010.jpg
Views: 17
Size:  85.1 KB

Name:  PA030009.jpg
Views: 17
Size:  101.7 KB

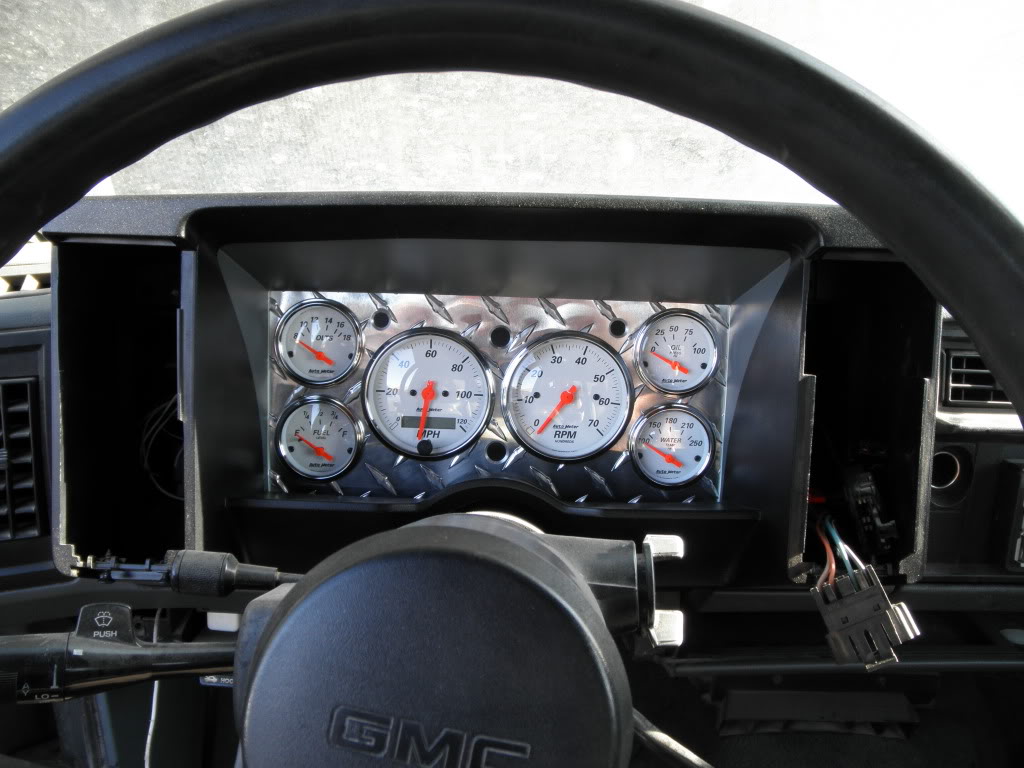

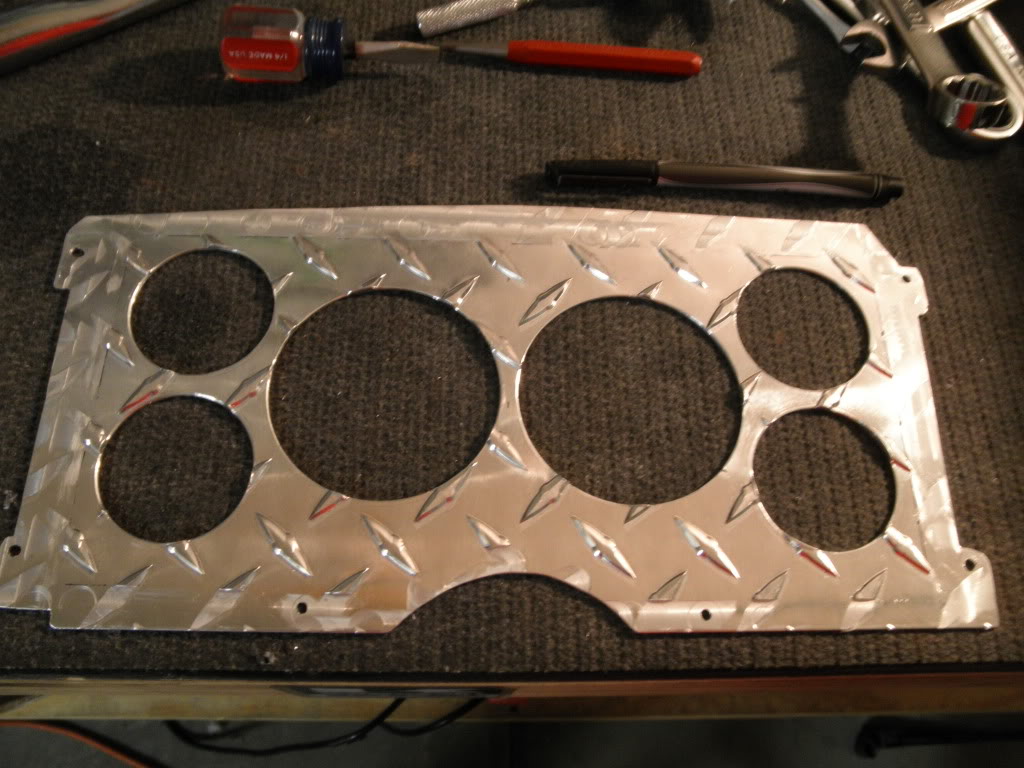

custom gauge cluster for arp gauges in fist gen s10
Name:  P4130008.jpg
Views: 17
Size:  121.2 KB

Name:  P5120036.jpg
Views: 17
Size:  110.7 KB

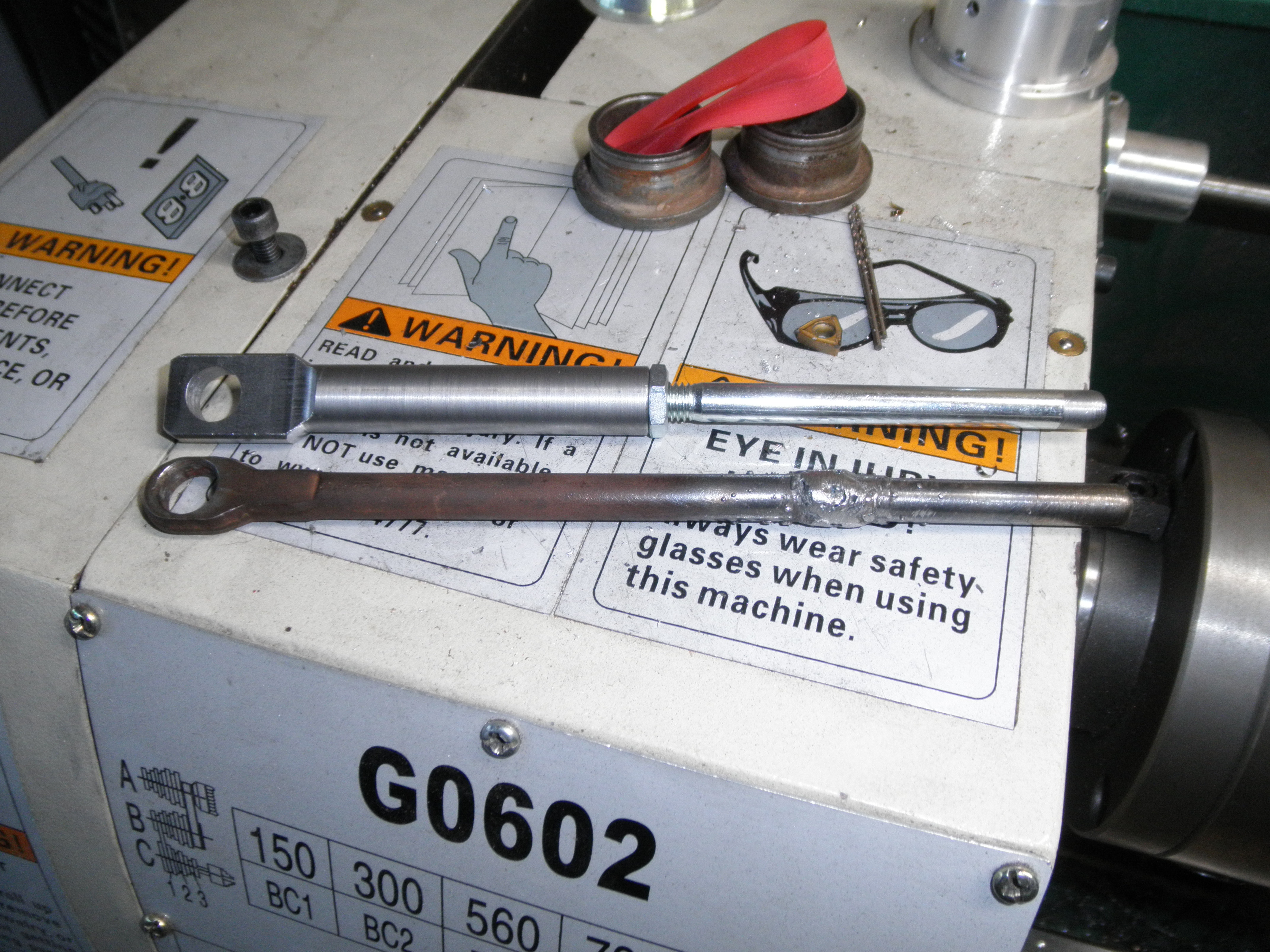

brake master adjustable pushrod for gbodies and s10
Name:  P1010041_zps5ea3e950.jpg
Views: 19
Size:  2.82 MB

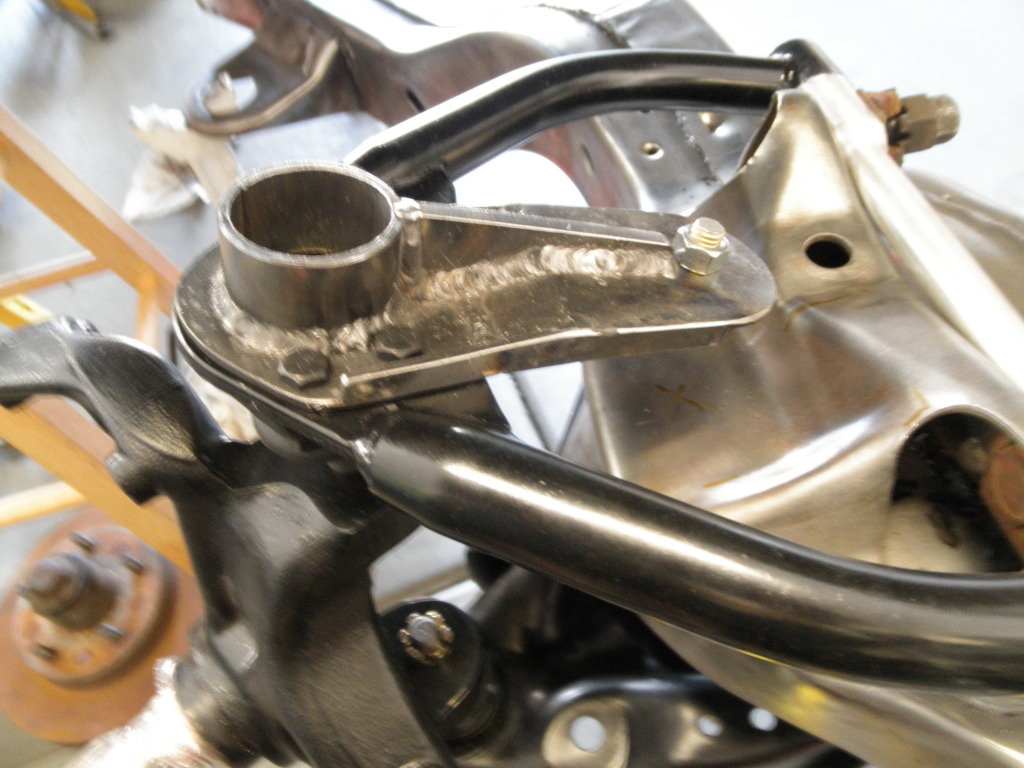

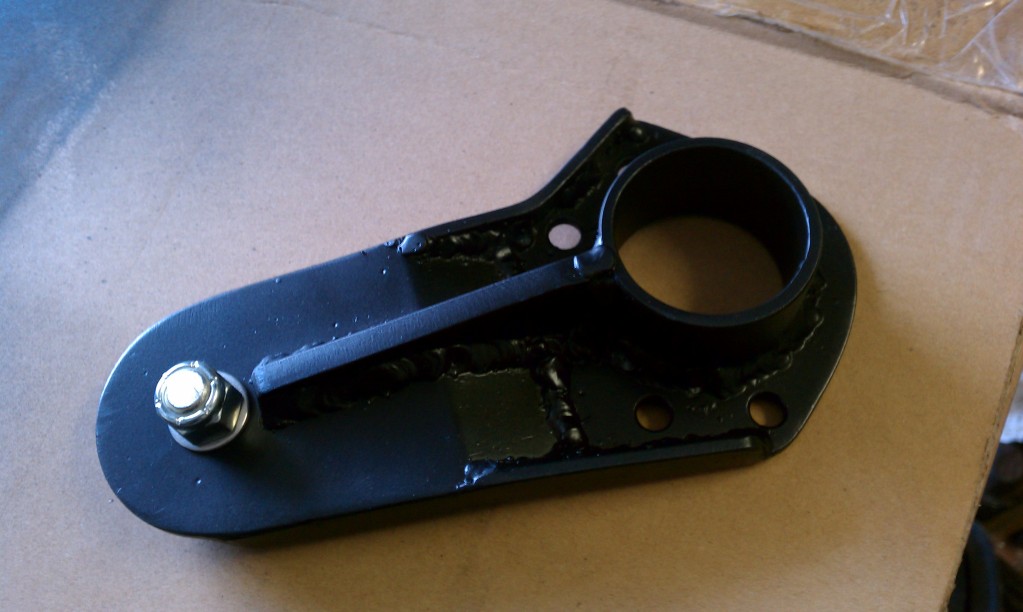

droop stop bracket for s10s with tubular uppers
Name:  P8190019.jpg
Views: 18
Size:  196.3 KB


Name:  IMAG0476.jpg
Views: 17
Size:  134.6 KB

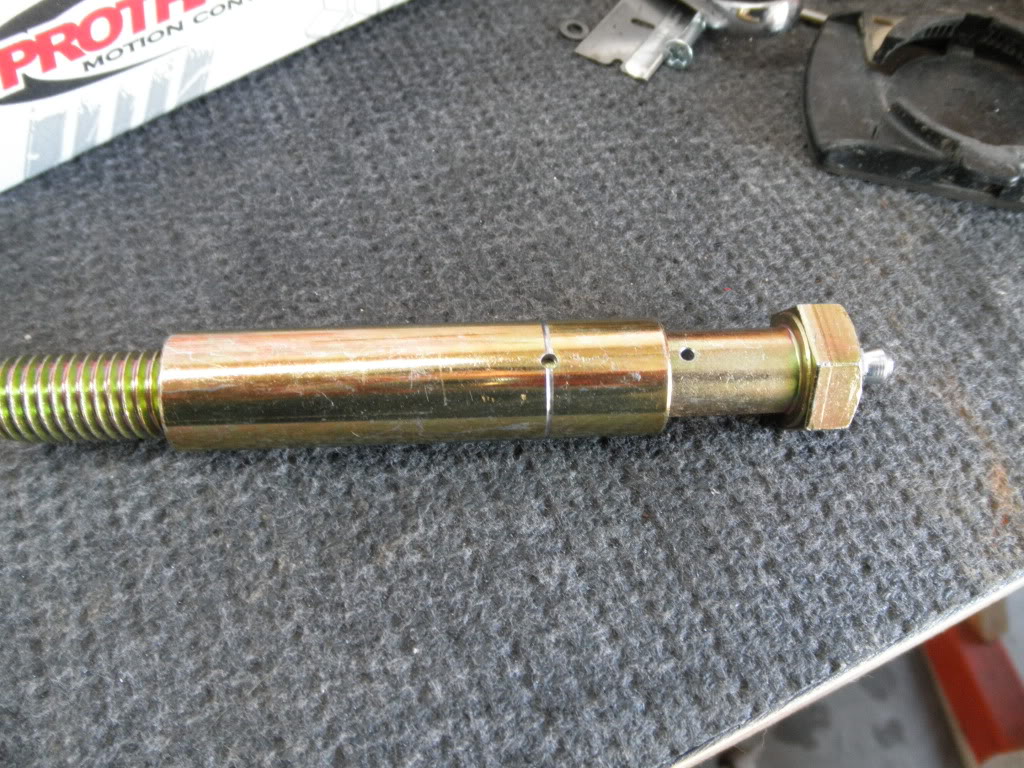

greasble pivot bolt for the urethane squeeks
Name:  P8010065.jpg
Views: 19
Size:  189.3 KB

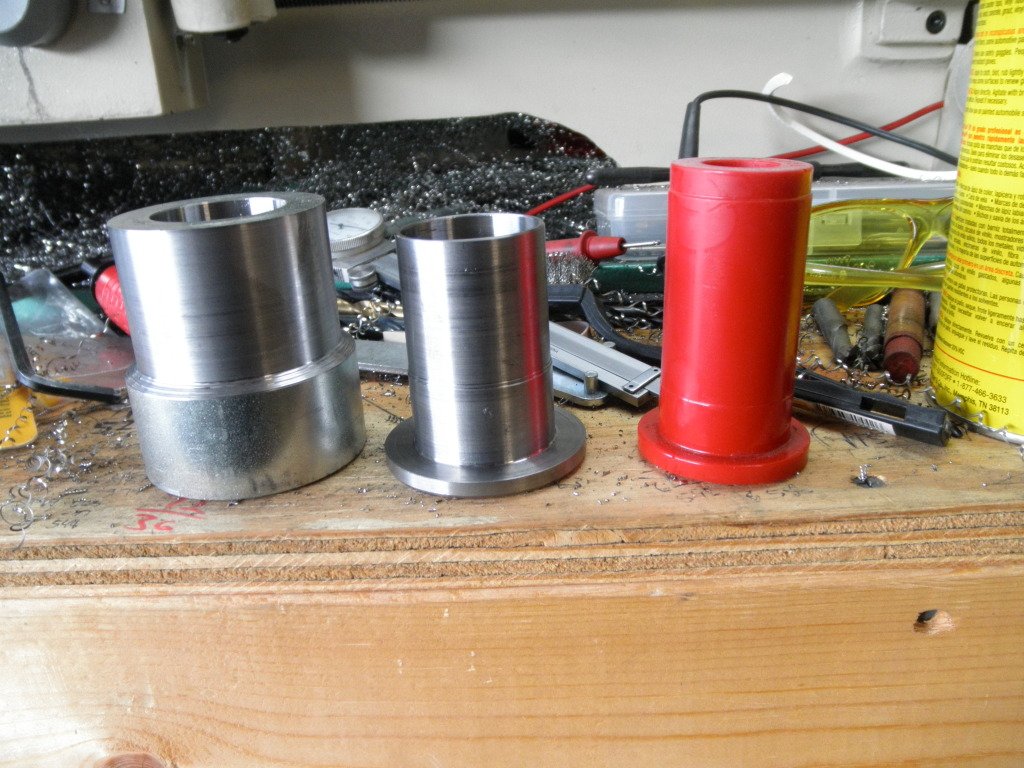

**** reusing the outer sleeve of the stock bushing. i make my own cuz im a badass
Name:  P8020009.jpg
Views: 17
Size:  241.7 KB

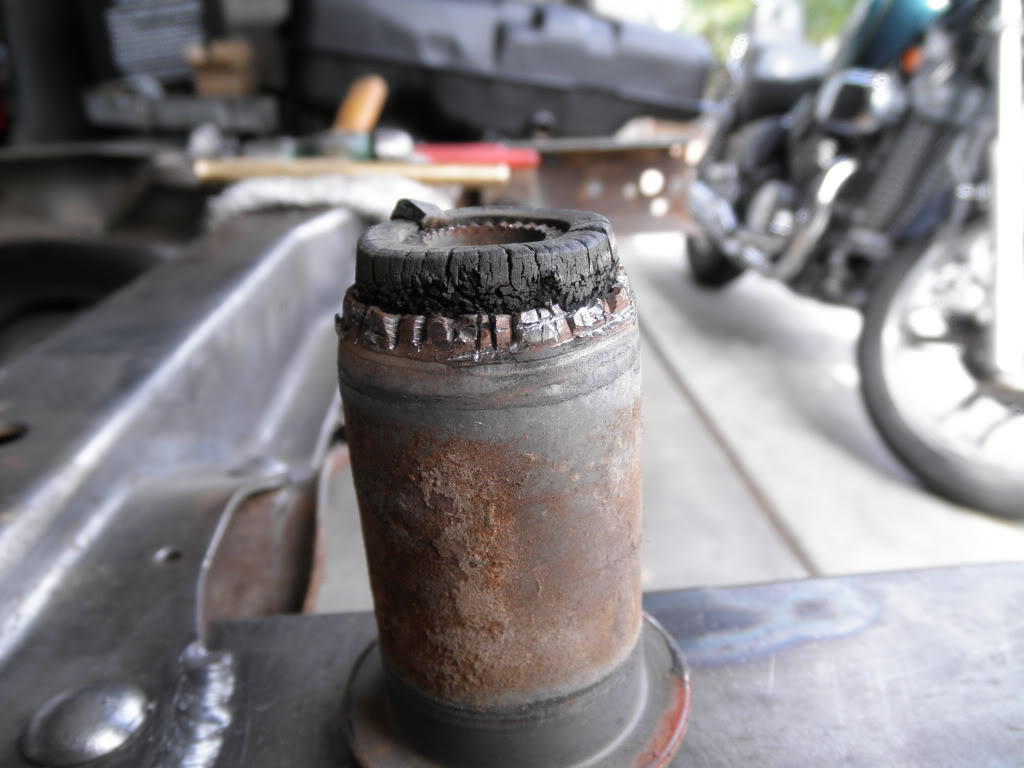

or maybe i just fuked up the stock ones before reading the directions?
Name:  P7150069.jpg
Views: 17
Size:  84.4 KB

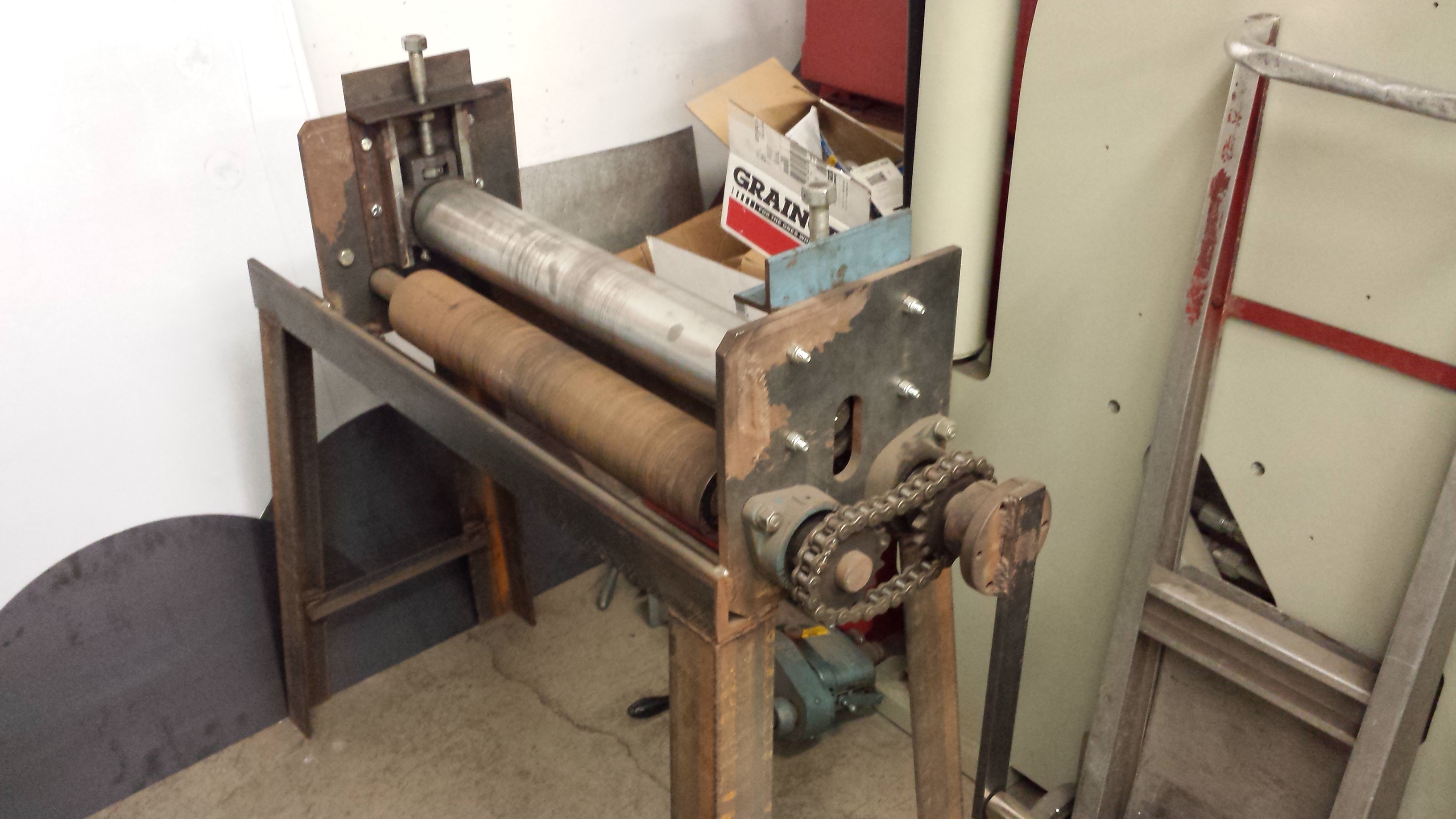

i cant take credit for this one. $10 sheet roller right next to the 100 ton nc press brake
Name:  20131122_125044_zpsa6567bb9.jpg
Views: 17
Size:  1.66 MB

one day i welded a bunch of rectangle tubing into larger rectangles
Name:  IMAG0871_zpsb8103511.jpg
Views: 17
Size:  1.49 MB
theyre actually base frames for portable conveyor belts i made for the governemnt...

helmet cam to roll bar mount


the kid i made, we call him izaak


tranny attachment (lol)


ive made a few v bands


1/4" ferrule for when my HF compressor decided to start leaking, didnt take long to see why


more drop blocks

Last edited by hi_im_sean; 07-30-2014 at 11:22 PM.
hi_im_sean is offline   Reply With Quote
Old 07-30-2014, 11:27 PM   #823
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,037
Total Cats: 99
Default

I love the irony of joes first picture. Potato quality photo of camera that cost more than most people's yearly salary.
Leafy is offline   Reply With Quote
Old 07-31-2014, 12:23 AM   #824
Boost Pope
iTrader: (8)

Joe Perez's Avatar

Join Date: Sep 2005
Location: Chicago (Over two miles from Wrigley Field. Fuck the Cubs. Fuck them in their smarmy goat-hole.)
Posts: 26,175
Total Cats: 1,878
Default

Quote:
Originally Posted by Leafy View Post
I love the irony of joes first picture. Potato quality photo of camera that cost more than most people's yearly salary.
Hahahaha. To be fair, it's pretty dark in the newsroom when the big lights are off, and my puny little Samsung GS4 doesn't quite have the same imaging sensor and glass as the other cameras.

And the EX3 is actually the budget model.



The camera itself costs less then $10,000, and the whole package (including lens, shader, teleprompter, robotic head, etc) comes in well under $35k. An average US household could easily afford to purchase one every single year, assuming that they don't waste too much money on frivolities such as food, healthcare, housing, etc.

In the big studio, we have the expensive cameras. Sony HDC-1500s with nice Fujinon lenses and HDCU-1000 CCUs, sitting on brand new FHR-100 robots and Osprey pedestals. 'Bout $120k each, x5.



Cameras 1, 2, and 3 are shown here, 4 and 6 are similar. Cam 5 is the same HDC-1500 but on a jib (very expensive) and cam 8 is another lightweight EX3, but on a StediCam with an uncompressed, zero-frame-latency wireless system. Cam 9 is a basic "handheld" HDC-1500 on the same fiber network but with no accessories (no prompter, pedestal, etc) that's purely shoulder-mounted, used for things like close-up shots during the cooking segment.



The old cameras, on the old robots, in the old studio:






And very slightly older still:



Attached Thumbnails
The custom fabrication thread! (Post pics of stuff you have made)-camerae.jpg
Joe Perez is offline   Reply With Quote
Old 07-31-2014, 09:35 AM   #825
Senior Member
iTrader: (1)

Join Date: Dec 2008
Location: Manassas, Virginia
Posts: 1,247
Total Cats: 57
Default

Quote:
Originally Posted by hi_im_sean View Post
the kid i made, we call him izaak
I love how you just put him in the middle like that.
mx5autoxer is offline   Reply With Quote
Old 07-31-2014, 10:00 AM   #826
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,712
Total Cats: 1,081
Default

Quote:
Originally Posted by mx5autoxer View Post
I love how you just put him in the middle like that.
It was not custom fabrication, but custom fornication.
shuiend is online now   Reply With Quote
Old 07-31-2014, 12:38 PM   #827
Junior Member
iTrader: (9)

Join Date: Dec 2011
Location: SFBay
Posts: 338
Total Cats: 39
Default

Quote:
Originally Posted by Joe Perez View Post
I approve of this sort of thinking.

(Nice looking boards, BTW. Who did the fab?)

I'm curious- it looks like an entirely passive R/C circuit, which wouldn't have been my first guess for solving a VR-based problem. Care to share the Theory of Operation?
It's actually a two-sided board so I could minimize the footprint. The fab was by OshPark - so cheap!

On the bottom there's a CS8190 air core motor driver. I completely bypass the speedo driver circuit by putting tape over the leads on the flex circuit, and the four mounting standoffs actually make the new electrical connection to the gauge leads.
I take the input for the board from the squarewave speedo out signal (I actually messaged you about that a couple months ago I think), not the VR sensor. Originally I was worried about having to put a MAX9924 on the board as well, but the speedo out signal is perfectly conditioned for the CS8190.
It works really well other than jumping around during cranking due to noise (even though I thought I put a decent input filter on the speedo line).
It has a faster response time than the stock meter driver, though you can really only tell when the board is attached to the tach and you're revving the car in neutral

It was a really fun project, though obviously it has a pretty limited use case

Also: holy crap the people in here are awesome at metal working! I am not worthy!
scenturion is offline   Reply With Quote
Old 07-31-2014, 03:21 PM   #828
SadFab CEO
iTrader: (3)

hi_im_sean's Avatar

Join Date: Sep 2012
Location: your mom's house phoenix, AZ
Posts: 3,835
Total Cats: 561
Default

Quote:
Originally Posted by shuiend View Post
It was not custom fabrication, but custom fornication.
i have to admit i had a lot of fun on that project. i even got to use my favorite tool.
hi_im_sean is offline   Reply With Quote
Old 07-31-2014, 09:32 PM   #829
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,712
Total Cats: 1,081
Default

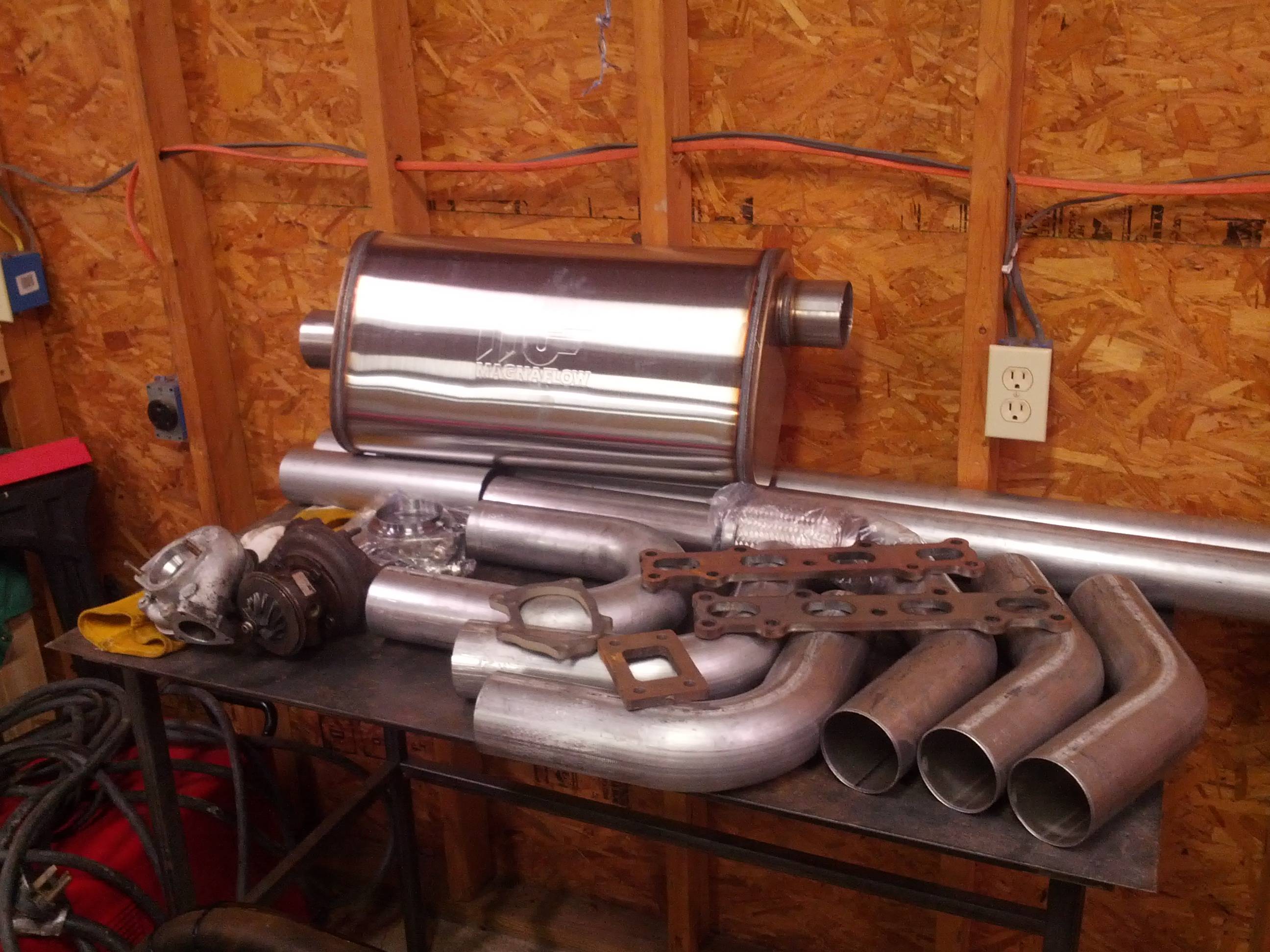

Parts are starting to gather.
