Old 02-24-2011, 07:42 PM   #181
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,476
Total Cats: 114
Default

Quote:
Originally Posted by wayne_curr View Post
So have you not had this problem with CHRA bolts at all then?
I did once but it hasn't been a re-occuring issue. like the turbo flange.

Bob
bbundy is offline   Reply With Quote
Old 02-24-2011, 07:47 PM   #182
Elite Member
iTrader: (13)

Join Date: Dec 2009
Location: Fraser Valley, British Columbia
Posts: 2,502
Total Cats: 13
Default

Has anyone tried something like an ARP2000 bolt or something even higher.. they have a pretty damn high tensile strength.
falcon is offline   Reply With Quote
Old 02-24-2011, 08:01 PM   #183
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Aaaaaaarrrrrrrrrggggggggghhhhhhhhhhhh!!!!!!!!!

Quote:
Originally Posted by jasonc sbb View Post
juuust to be clear, for posterity's sake, and for anyone who stumbles on this thread, and can't read through 9 pages.

for the love of god. Hustler. Please. Post photos of your setup with arrows pointing to the loosening bolts.

this should have been the first post.
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 10:12 PM   #184
Junior Member
iTrader: (8)

Join Date: Jul 2008
Location: Portland, OR
Posts: 397
Total Cats: 9
Default

Quote:
Originally Posted by falcon View Post
Has anyone tried something like an ARP2000 bolt or something even higher.. they have a pretty damn high tensile strength.
Not at 1700 degrees they don't
kaisersoze is offline   Reply With Quote
Old 02-24-2011, 10:19 PM   #185
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by JasonC SBB View Post
Aaaaaaarrrrrrrrrggggggggghhhhhhhhhhhh!!!!!!!!!
Dude, there is one safety wired bolt in a photo at the beginning of the thread. If you really need a red arrow pointing at it, I'm speechless.
Savington is offline   Reply With Quote
Old 02-24-2011, 10:20 PM   #186
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,357
Total Cats: 1,322
Default

Quote:
Originally Posted by falcon View Post
Has anyone tried something like an ARP2000 bolt or something even higher.. they have a pretty damn high tensile strength.
You haven't grasped the cause of this issue yet. Try again.
Savington is offline   Reply With Quote
Old 02-24-2011, 10:42 PM   #187
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

fooger03 is offline   Reply With Quote
Old 02-24-2011, 11:02 PM   #188
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

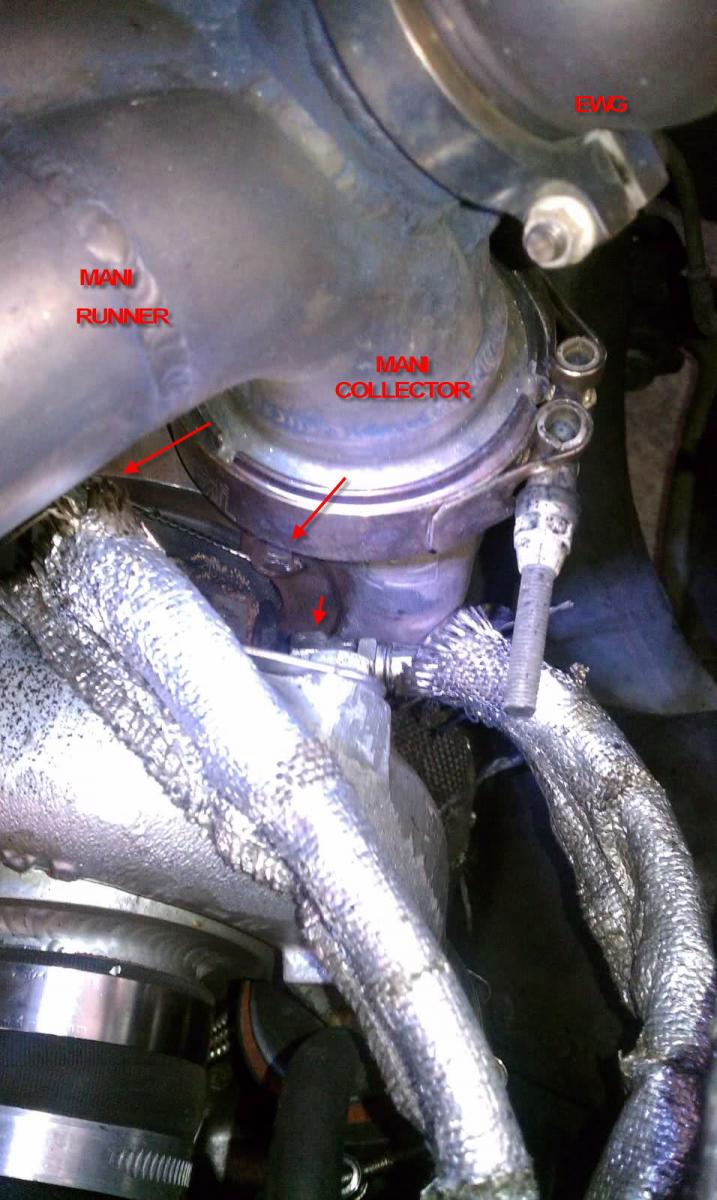

That's supposed to read "MANI" as in MANIFOLD, and not "MAN". JPG over-compression...
Attached Thumbnails
CHRA/turbine bolts relaxing.-hustlers-bitch.jpg

Last edited by JasonC SBB; 02-24-2011 at 11:28 PM.
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 11:17 PM   #189
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

So guys which bolts are we talking about again?
lmao
18psi is offline   Reply With Quote
Old 02-24-2011, 11:17 PM   #190
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by Savington View Post
Dude, there is one safety wired bolt in a photo at the beginning of the thread. If you really need a red arrow pointing at it, I'm speechless.
I have been making documentation, engineering notes and application notes for customers and for training engineers in-house for more than a decade. You don't expect your customer/audience to spend minutes figuring something out that a single arrow would clarify in seconds. YOU PUT THE ARROW IN THE DOCUMENTATION.

No I could not find the safety wire until you mentioned it. The original title did not say "CHRA". I looked at the pic and saw two humongous bolts with no safety wire. The Safety wire is BLURRY. The photo is over-jpeg-compressed. The two humongous bolts have no safety wire. So I ASKED. And did not get an answer.

Additionally, someone not familiar with the layout of his manifold and turbo would be thoroughly confused by his closeup.

For example, I did NOT know that Tial made turbine housings. When he said Tial, I thought, "wastegate". And, later, I thought "Vband housing" = "the ******* housing is attached to the CHRA by a VBAND. What's all this trouble regarding a ******* Vband bolt??"

I was not following Hustler's troubles carefully. I did not start reading this thread until it was several pages long. I do not want to read every post to try and understand what's going on. I wanted to understand WHICH GODDAM BOLT(S) are loosening. It was NOT CLEAR in his first post.

Let me repeat. When you show photos, you PUT ARROWS if it will prevent several minutes of confusion.

I'm not saying everyone here should do this, or there should be some mt.net rule about arrows. But it's NOT UNREASONABLE to ASK "WHICH ******* BOLT" and at least get an answer like "in the first photo there is an obscure bolt with safety wire that is BLURRY", like you answered, with sarcasm.

Hustler may have lost some opportunity for some readers to offer something helpful if he had put a ******* ARROW or had answered a not unreasonable question (another poster had expressed confusion, not just me).

</rant>

Sorry, I'm pissed because of work, and I'm pissed at the wife too.

Last edited by JasonC SBB; 02-25-2011 at 12:19 AM.
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 11:18 PM   #191
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Quote:
Originally Posted by hustler View Post
Good try but I expect these are your options:
PT doesn't have anyone driving hard enough to kill hardware
PT doesn't think you will drive hard enough to kill hardware
PT turbo won't tell you if they do
PT won't give you consideration.

I'll test the Inco bolts for you. Then you can get the EDM "drilled" and life successfully through my misfortunes.
I worked directly with PT's owner on a drag engine. Asked him twice for pricing because I wanted to sell his product. Nuttin. You'd think selling their products would be simplier. Tial is only marginally better too.

Got through about 4 inconel bolts tonight after work on one $3.50 drill. Niiiice.
TurboTim is offline   Reply With Quote
Old 02-24-2011, 11:23 PM   #192
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Some random thoughts.

Maybe Hustler is overtorquing those small M6 bolts and thus pre-stretching them too much, making them more susceptible to creep due to high temperature.

Maybe the combination of CTE's of the materials is such that during thermal transients, they bolts ar expected to lengthen to a point that they creep or yield. In which case, extra spacers under the bolt heads will help.

Vibration - if his manifold positions the turbo farther away from the motor than cast manifolds, then the moment arm is longer, and it will probably vibrate more. Is it farther?

Additionally, vibration would perhaps make the bolts back out - but the safety wire prevent this - so maybe it's not vibration.

But again if indeed vibration is the issue, maybe the additional stress is making the bolts stretch by loading them past the elastic limit - again a higher temp rated bolt may help (but then he used some other high temp bolts), or maybe again, spacers will help, because any stretching due to vibration, occurs over a longer length of bolt.

If vibration were the issue, anyone who can rev the engine through the resonance frequency can break them. You don't need to be a he-man driver like hustler to do it, because hustler's he-mannisms produces high temperatures, not RPMs. IOW if the resonant frequency is say, 6000 RPM, then any pussyfoot who can make the motor sit at 6000 RPM for prolonged periods can shake them loose. High temperatures not necessary.

THEREFORE the problem is either HEAT, or the combo of HEAT AND VIBRATION.
Ergo the solution may involve something like a bolt that handles vibration better at high temperatures.

Which reminds me. Hustler rev the engine in neutral at slowly increasing RPMS. If there is a strong resonance it should show up.

Last edited by JasonC SBB; 02-24-2011 at 11:39 PM.
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 11:26 PM   #193
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Quote:
Originally Posted by JasonC SBB View Post
I have been making documentation for customers for more than a decade. You don't expect your customer to spend minutes figuring something out that a single arrow would clarify in seconds. YOU PUT THE ARROW IN THE DOCUMENTATION.

No I could not find the safety wire until you mentioned it. The original title did not say "CHRA". I looked at the pic and saw two humongous bolts with no safety wire. The Safety wire is BLURRY. The photo is over-jpeg-compressed. The two humongous bolts have no safety wire. So I ASKED. And did not get an answer.

Additionally, someone not familiar with the layout of his manifold and turbo would be thoroughly confused by his closeup.

For example, I did NOT know that Tial made turbine housings. When he said Tial, I thought, "wastegate". And, later, I thought "Vband housing" = "the ******* housing is attached to the CHRA by a VBAND. What's all this trouble regarding a ******* Vband bolt??"

I was not following Hustler's troubles carefully. I did not start reading this thread until it was several pages long. I do not want to read every post to try and understand what's going on. I wanted to understand WHICH GODDAM BOLT(S) are loosening. It was NOT CLEAR in his first post.

Let me repeat. When you show photos, you PUT ARROWS if it will prevent several minutes of confusion.

I'm not saying everyone here should do this, or there should be some mt.net rule about arrows. But it's NOT UNREASONABLE to ASK "WHICH ******* BOLT" and at least get an answer like "in the first photo there is an obscure bolt with safety wire that is BLURRY", like you answered, with sarcasm.

Hustler may have lost some opportunity for some readers to offer something helpful if he had put a ******* ARROW or had answered a not unreasonable question (another poster had expressed confusion, not just me).

</rant>

Sorry, I'm pissed because of work, and I'm pissed at the wife too.
Sounds logical to me and a great idea. Seriously.

Please take pictures and make simple diagrams with arrows pointing to things you describe but I don't know exist within your fancy threads about electrical gizmos so I can follow your threads without reading every post.

haha
TurboTim is offline   Reply With Quote
Old 02-24-2011, 11:36 PM   #194
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Quote:
Originally Posted by JasonC SBB View Post
Some random thoughts.

Maybe Hustler is overtorquing those small M6 bolts and thus pre-stretching them too much, making them more susceptible to creep due to high temperature.
Completely possible.

Quote:
Maybe the combination of CTE's of the materials is such that during thermal transients, they bolts ar expected to lengthen to a point that they creep or yield. In which case, extra spacers under the bolt heads will help.
ehhh i'm drinking too much to post about this part or think if I'm correct but longer bolts would tend to be better generally like you mention below.

Quote:
Vibration - if his manifold positions the turbo farther away from the motor than cast manifolds, then the moment arm is longer, and it will probably vibrate more. Is it farther?
yes his CHRA is further from the engine than a BEGI or FM manifold.

Quote:
Additionally, vibration would perhaps make the bolts back out - but the safety wire prevent this.

If vibration is the issue, maybe the additional stress is making the bolts stretch by loading them past the elastic limit - again a higher temp rated bolt may help (but then he used some other high temp bolts), or maybe again, spacers will help, because any stretching due to vibration, occurs over a longer length of bolt.
Yes, and his higher temp bolts he tried were not safety wired and vibrated out quickly.
TurboTim is offline   Reply With Quote
Old 02-24-2011, 11:36 PM   #195
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by TurboTim View Post
Please take pictures and make simple diagrams with arrows pointing to things you describe but I don't know exist within your fancy threads about electrical gizmos so I can follow your threads without reading every post.

haha
The difference is, my electrical gizmo posts are me sharing my information, while hustler is asking for help. I'm trying to help hustler and all I was asking was "which ******* bolt".
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 11:38 PM   #196
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by TurboTim View Post
Completely possible.

ehhh i'm drinking too much to post about this part or think if I'm correct but longer bolts would tend to be better generally like you mention below.


yes his CHRA is further from the engine than a BEGI or FM manifold.

Yes, and his higher temp bolts he tried were not safety wired and vibrated out quickly.
Sorry about the ninja edits, read the last 4 paragraphs I wrote above.
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 11:40 PM   #197
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Quote:
Originally Posted by TurboTim View Post
Yes, and his higher temp bolts he tried were not safety wired and vibrated out quickly.
Intersting point! Perhaps the safety wire prevents backing out due to vibration, and the low temp bolts with safety wire cannot take the heat.
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 11:41 PM   #198
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,482
Total Cats: 248
Default

Quote:
Originally Posted by JasonC SBB View Post
If vibration were the issue, anyone who can rev the engine through the resonance frequency can break them. You don't need to be a he-man driver like hustler to do it, because hustler's he-mannisms produces high temperatures, not RPMs. IOW if the resonant frequency is say, 6000 RPM, then any pussyfoot who can make the motor sit at 6000 RPM for prolonged periods can shake them loose. High temperatures not necessary.

THEREFORE the problem is either HEAT, or the combo of HEAT AND VIBRATION.
Ergo the solution may involve something like a bolt that handles vibration better at high temperatures.

Which reminds me. Hustler rev the engine in neutral at slowly increasing RPMS. If there is a strong resonance it should show up.
Sounds a lot like post #164 and what I think is the proper solution.

And don't all of our cars have a wicked harmonic about 5500rpm? obvious when you rev the car in neutral? I hope so or else I'm doing something very wrong.
TurboTim is offline   Reply With Quote
Old 02-24-2011, 11:45 PM   #199
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

5500 RPM may be the harmonic of the intake manifold. The exhaust mani/turbo combo may have a different frequency/RPM.
JasonC SBB is offline   Reply With Quote
Old 02-24-2011, 11:46 PM   #200
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

Maybe the solution is safety-wiring the non-inconel fancy hi temp bolts (Nimonic), which may be easier to drill than inconel.

Last edited by JasonC SBB; 02-24-2011 at 11:59 PM.
JasonC SBB is offline   Reply With Quote
