Old 11-29-2009, 02:22 AM   #241
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,120
Total Cats: 588
Default

yeah man with the lathes we got in our shop we can turn 4-500 lb steel with ease. Taking half an inch cut from aluminum at 500-600rpm is like cutting butter with a hot knife.
triple88a is offline   Reply With Quote
Old 12-05-2009, 06:52 PM   #242
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

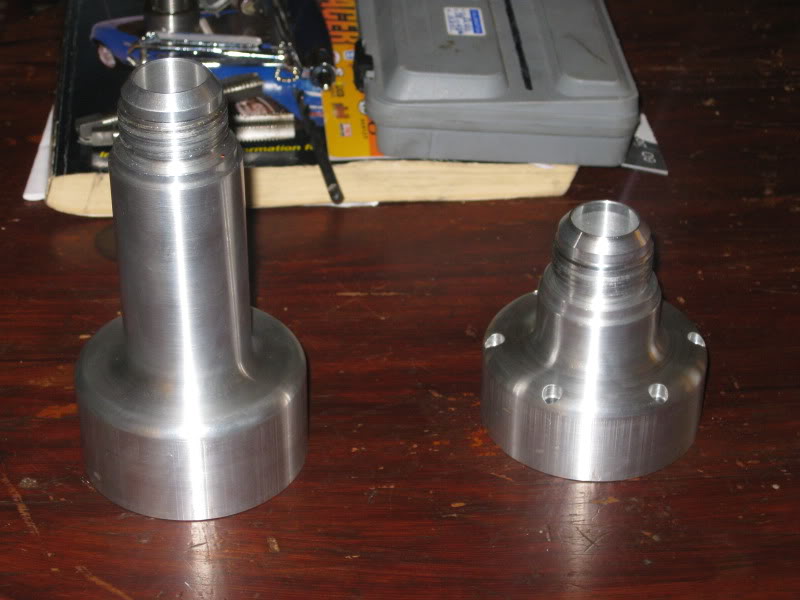

finished the 2nd side today, all thats left is to makle a mount. and put in the sensor bungs and fill spout

Name:  IMG_1648.jpg
Views: 9
Size:  66.2 KB

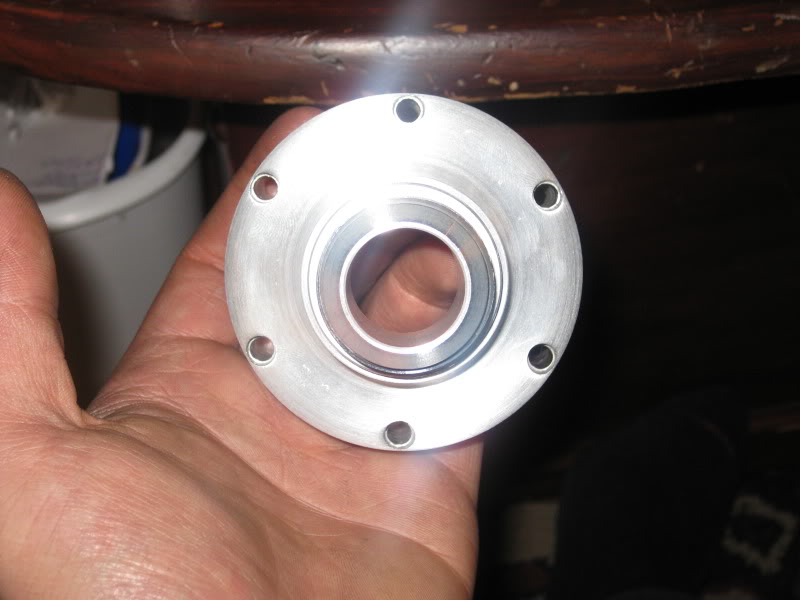

Name:  IMG_1649.jpg
Views: 9
Size:  59.2 KB

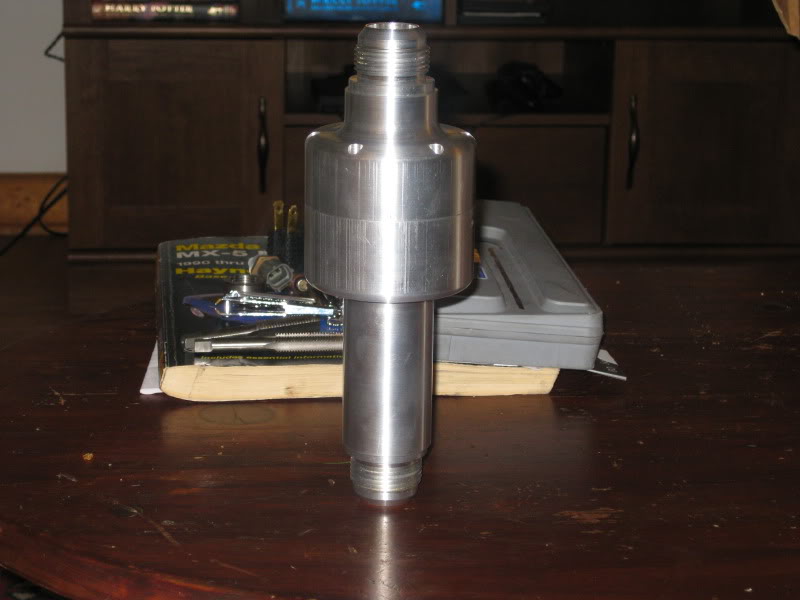

Name:  IMG_1652.jpg
Views: 9
Size:  54.4 KB
ctdrftna is offline   Reply With Quote
Old 12-05-2009, 07:44 PM   #243
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: McDonough Ga.
Posts: 356
Total Cats: -26
Default

Quote:
Originally Posted by ctdrftna View Post
yeah, i was cutting at .05 a pass. my boss doesnt want me cranking the rpms, so i have to turn at a slow feed rate. and the chuck jaws are ****, he machined ten diff diameters into them, so i was only grabing on like a 1/2" i didnt want to push it, and i didnt want to put in a live center. once i got it in the bridgeport it went pretty good. i didnt have a 2 flute ball endmill of the right dia, so i had to use 4 flute, so that took a little longer. the pics dont do it justice. it looks really really nice. the mtuned thing isnt what i want. i have a vmount so i am gonna be putting in a fill, so that its the highest point in the cooling system. no one makes one to my liking so im making my own. if i had a cnc this thing woulda been done in an hour or so.
You know after reading this I completly under stand,the oonly good machine we have is the CNC.Imreally likn your work.
(G)
Reverend Greg is offline   Reply With Quote
Old 12-05-2009, 08:43 PM   #244
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Your work is impressive....

I see you added your location...I'm right over in Meriden. Maybe I'll see you rippin around in this beast one day!
Cspence is offline   Reply With Quote
Old 12-05-2009, 09:08 PM   #245
Junior Member
iTrader: (1)

Join Date: Mar 2008
Location: Los angeles, San diego
Posts: 89
Total Cats: -22
Default

that is a pretty sick build.
jdmcwestevo is offline   Reply With Quote
Old 12-06-2009, 07:40 PM   #246
Junior Member
iTrader: (5)

Join Date: Jan 2009
Location: CT
Posts: 271
Total Cats: 0
Default

Another Meridenite checkin in! I wanna see that thing! Chris you should get over to see my pile'o parts sometime soon! Its pretty depressing! lol
FastColt is offline   Reply With Quote
Old 12-09-2009, 01:22 PM   #247
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,120
Total Cats: 588
Default

If that pile is depressing you, you can always ship it over here

as far as the coolant fitting goes, time to polish them up man make them look hawt :P
triple88a is offline   Reply With Quote
Old 12-27-2009, 11:23 AM   #248
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

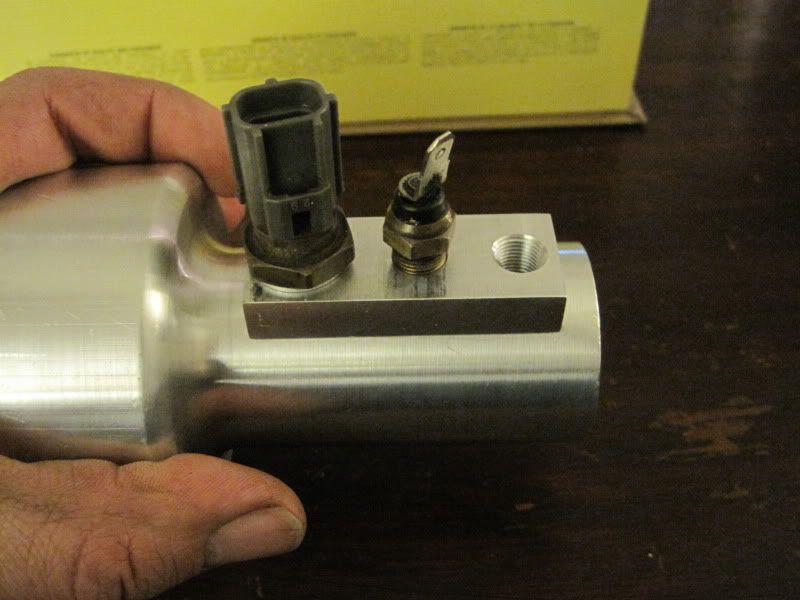

so i havent done anything in a while due to the month of december and having all my funds ripped away by that thing called christmas.... i finaly got to the shop yesterday to do some more work on the thermostat housing, im hoping to have it to my welder this week, i just need to get a peice of tubing. now that the money sucking is over, excpect to hardcore updates to be happening next month including, finishing the cooling system and the ignition system.

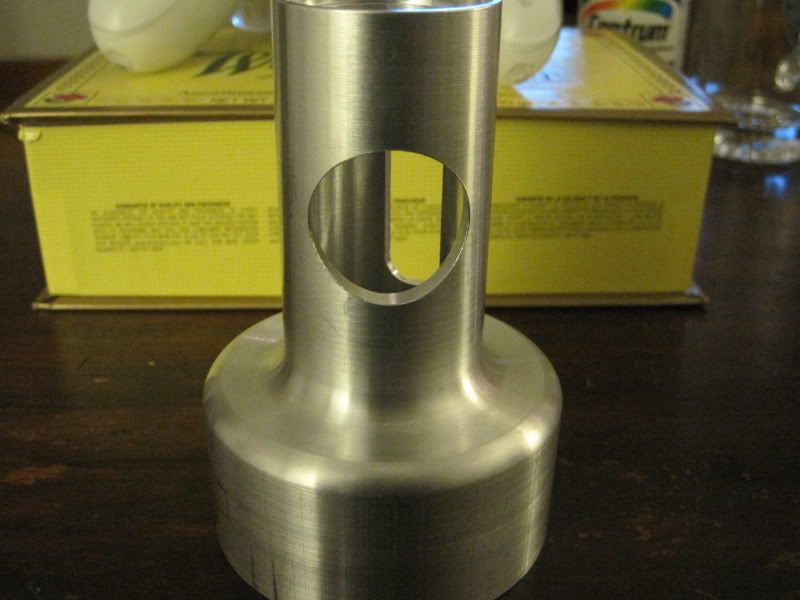

Name:  IMG_0042.jpg
Views: 9
Size:  59.1 KB
the hole is for the coolant fill, this is why i need to get some tubing to raise the fill cap up a few inches

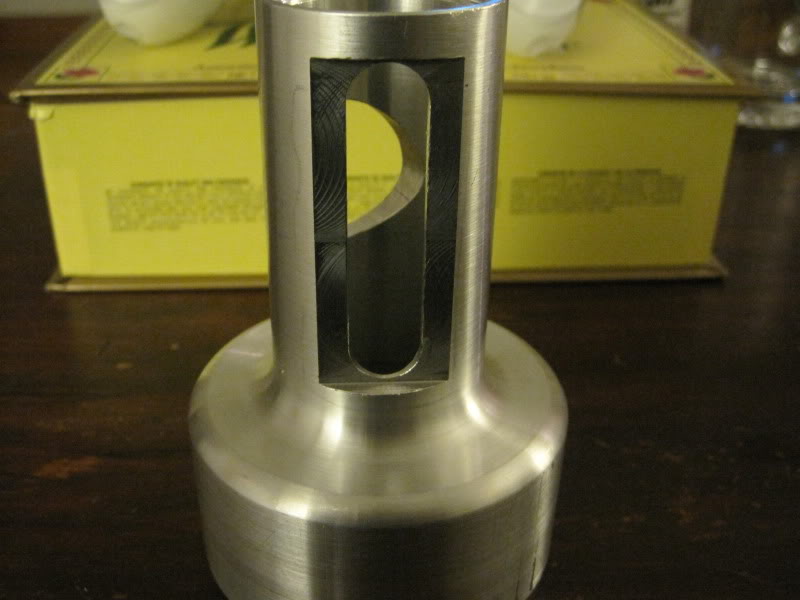

Name:  IMG_0043.jpg
Views: 9
Size:  55.2 KB
Name:  IMG_0044.jpg
Views: 9
Size:  67.2 KB

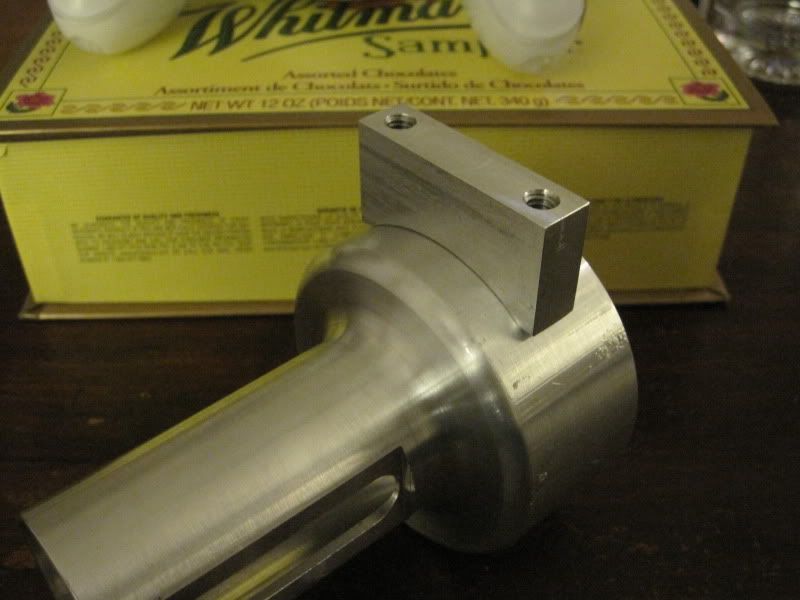

Name:  IMG_0045.jpg
Views: 9
Size:  57.7 KB
this is the mount, im gonna stick it over to the side of the intake manifold, near the TB, im gonna weld on a bracket to the hoop for this to mount to
ctdrftna is offline   Reply With Quote
Old 12-27-2009, 04:39 PM   #249
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

wow... now start mass producing and make some moneys!!!
p51hellfire is offline   Reply With Quote
Old 12-30-2009, 08:51 PM   #250
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

so ignition turned out to be a pain in the ***

i ordered boundary engineering COPS from there site a few days ago, then today i got an email saying my money was refunded, and a message saying the he was to far back ordered and ****. then thankfully i came on here and found the group buy there for them(i didnt see this untill today, i assumed they were availible) thank god i saw that!!!! that company needs to get its **** together. so that was FAIL

next i was thinking AEM pencil coils with AEM twin fire CDI ignition..... i call my tuner to ask what his thought were on the ignition box, he says he has three of the fry on his dyno and they were junk... so thats out

he recomended M&W pro14 box. i dont have $900 to spend on ignition

sooo..... looks like toyota COP. im gonna order some brand new coils and go to the junkyard and get some plugs off a car there. and make my own harness and mounting plate
ctdrftna is offline   Reply With Quote
Old 12-30-2009, 08:55 PM   #251
Elite Member
iTrader: (28)

Join Date: May 2008
Location: St. Augustine FL
Posts: 2,310
Total Cats: 2
Default

why did u rule out the toyota cops in the first place?
p51hellfire is offline   Reply With Quote
Old 12-30-2009, 09:17 PM   #252
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

just cause i stumbled across the boundary ones. they looked and sounded real nice. then i started thinking CDI, but thats outta my price range and not really needed
ctdrftna is offline   Reply With Quote
Old 12-30-2009, 09:24 PM   #253
Senior Member
iTrader: (12)

Join Date: Nov 2005
Location: Murfreesboro, TN
Posts: 596
Total Cats: 3
Default

Good call on the no-go with the AEM twin fire. They are indeed junk. We blew up 2 13B-REWs before we figured out that the damn ignition was causing random misfires and blowing them. That was a costly learning experience.
sbrian2 is offline   Reply With Quote
Old 01-02-2010, 06:19 PM   #254
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

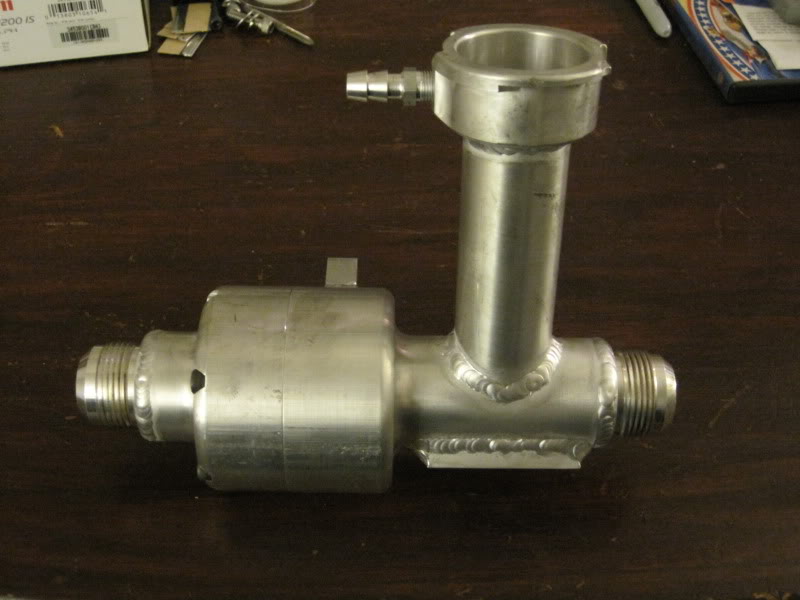

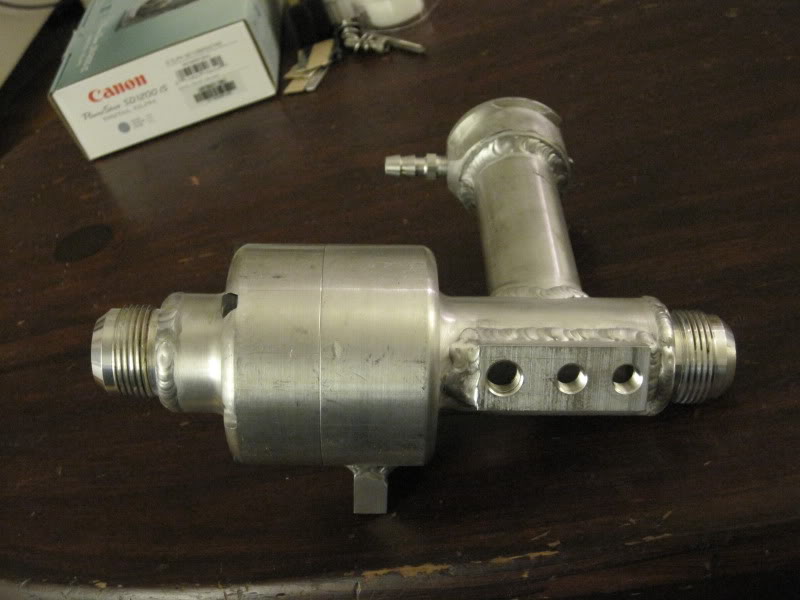

got the t-stat housing back

Name:  IMG_0046.jpg
Views: 9
Size:  59.3 KB

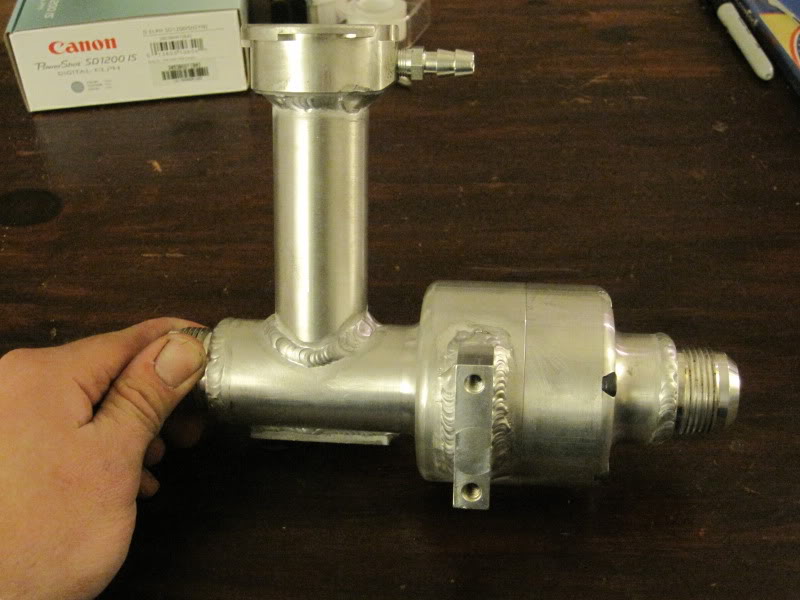

Name:  IMG_0049.jpg
Views: 9
Size:  74.5 KB
Name:  IMG_0048.jpg
Views: 9
Size:  60.7 KB

still gotta clean it up with some scotch brite and acetone
ctdrftna is offline   Reply With Quote
Old 01-02-2010, 06:22 PM   #255
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,702
Total Cats: 2,478
Default

holy hell. you're really going all out on the re-route aren't ya? good stuff
18psi is offline   Reply With Quote
Old 01-02-2010, 09:09 PM   #256
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

install it already!

and finish it already!


BTW dat **** looks real good!
WonTon is offline   Reply With Quote
Old 01-03-2010, 01:38 PM   #257
Junior Member
iTrader: (1)

Join Date: Apr 2007
Location: Toronto, Canada
Posts: 452
Total Cats: 18
Default

Quote:
Originally Posted by ctdrftna View Post
Great build thread. I'm jealous of the skills and time.

Hugely off topic but in this image it shows a throttle wheel with multiple pick-up points for the throttle cable. Did it come on the throttle body? Did you source it separately? Heck - did you fab it? Where can I get a couple?
BarbyCar is offline   Reply With Quote
Old 01-03-2010, 01:55 PM   #258
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

that came on my edlebrock throttlebody
ctdrftna is offline   Reply With Quote
Old 01-03-2010, 02:46 PM   #259
Elite Member
iTrader: (2)

triple88a's Avatar

Join Date: Apr 2006
Location: Chicago, IL
Posts: 9,120
Total Cats: 588
Default

I thought some one sold that wheel by it self. I dont remember if it was begi or brperformance or some one else since it was long ago when i saw it.

From memory they had few different designs so you can get one that is very rough on the lower pedal but very fine on the higher end or vise versa.
triple88a is offline   Reply With Quote
Old 01-08-2010, 05:09 PM   #260
Senior Member
Thread Starter
iTrader: (1)

Join Date: Mar 2008
Location: Cromwell CT
Posts: 1,094
Total Cats: 48
Default

good **** for this weekend
got 95% of everything to do my ignition. i need to stop at radio shack i may not be able to make the mounting plat yet but we'll see what happens.
also im gonna wire up the injectors after swaping clips and re-looming the harness and extending wires for my coolant temp sensors. and i will be mounting the t-stat housing, lastly im gonna order the rest of the stuff to finish up the cooling system like a fan,overflow tank, fittings,hose, some other odds and ends.

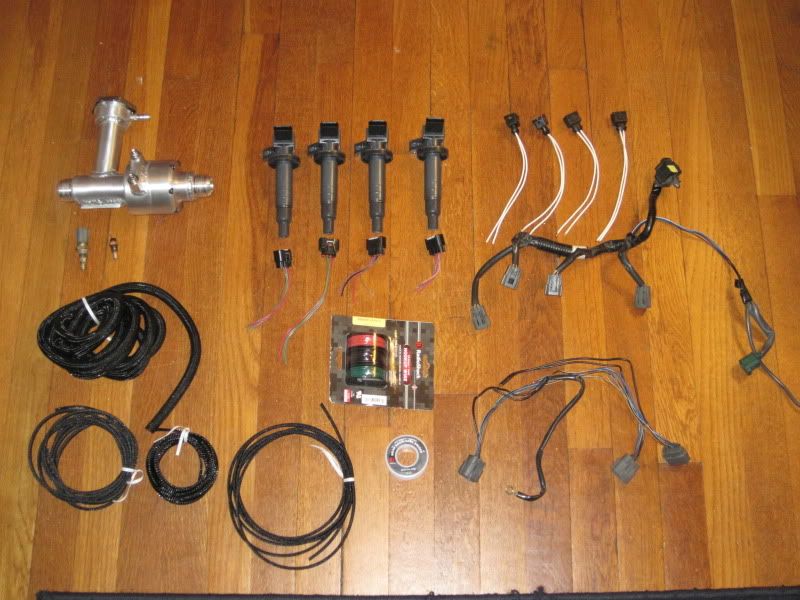

Name:  IMG_0050-1.jpg
Views: 9
Size:  113.4 KB
the black stuff is aerospace grade mesh wire loom

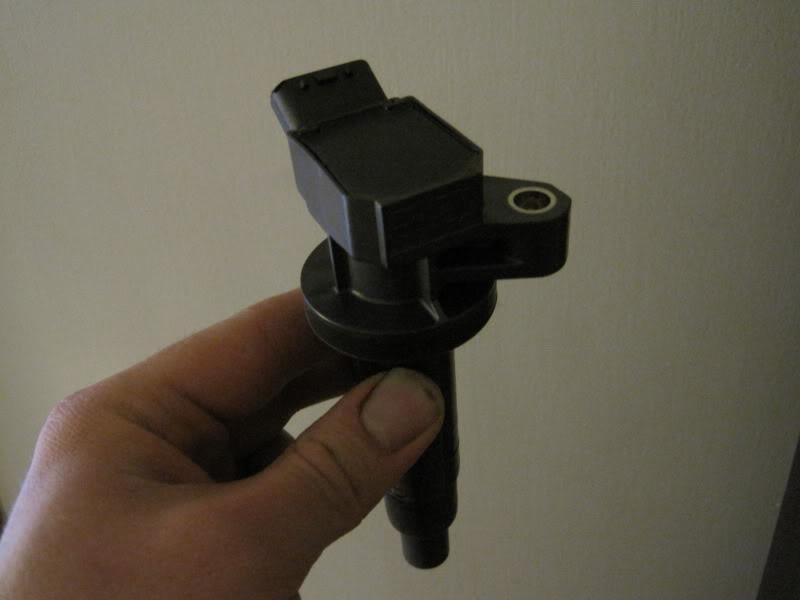

i couldnt fathom buying used coils. brand spanking toyota denso cops
Name:  IMG_0051-1.jpg
Views: 9
Size:  39.9 KB
ctdrftna is offline   Reply With Quote
