Old 09-28-2009, 09:04 PM   #161
Asx
Junior Member
iTrader: (1)

Join Date: Nov 2007
Location: Huntsville, AL
Posts: 78
Total Cats: 3
Default

Quote:
Originally Posted by hustler View Post
I'm killing the bearings in my car, I assume its from rotor heat.
Are you repacking the bearings with that redline supersexy bearing grease?

The spec miata kids found that the oem bearings would last several seasons, but that new oem bearings have a 1.5 weekend lifespan. Something about using cheap china grease in the new oem stuff. There's a writeup somewhere on specmiata.com
Asx is offline   Reply With Quote
Old 09-29-2009, 04:29 PM   #162
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

Interesting about the bearings.

Yeah, with ducting, everything is awesome. Without it, I'm not used to EVER going over 160 (where my thermo is at) but it'll drift back and forth to 185 or where ever I set the fans to come on now... It's very sensitive to outside weather, though.
AbeFM is offline   Reply With Quote
Old 09-29-2009, 04:41 PM   #163
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Damp, wet, rainy track day at Assen. Beat the hell out of some 12yr old Potenza's in about 45 laps. Did a 2:31.6. Pretty happy with that as the only cars that were significantly faster had aero, rain tires or is called KTM X-Bow, or any combination of the above.

Power was very useless apart from the three straights and mostly hindering corner exit. Did 70% of the layout in 4th gear. Two 3rd gear corners and a bit of 5th gear. Top speed 115mph today.

Ducting held up very well, water was at tstat opening temp 90% of the time. Oil 10* above that.

Really want a set of rain tires now as the guys on rain race rubber where flying and pulling 1g in the rain.

Laur3ns is offline   Reply With Quote
Old 10-01-2009, 06:43 PM   #164
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Pics from a day at Zolder (Sept 2):

Laur3ns is offline   Reply With Quote
Old 10-02-2009, 05:50 AM   #165
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

Quote:
Originally Posted by saint_foo View Post
Nice build, Spookyfish!

If you haven't done the rear diff bushings....don't!!! The other bushings were fine. The rear diff made the NVH almost unbearable at highway speeds above 70mph. That, coupled w/ the Mazdaspeed motormounts made my car go from fun autox car to "I hate driving on the highway!"
?? What did you do wrong? I just did a car with ES diff bushings and MS motor mounts, and there is no discernible increase in NVH. The customer was really worried about it, and after driving the car once even he said he couldn't tell a difference - aside from the phenomenally improved shift feel.

You want NVH? Go try some MMR motor mounts, then drive yourself to the dentist so he can re-insert your fillings.
Savington is offline   Reply With Quote
Old 10-02-2009, 06:00 AM   #166
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Savington View Post
?? What did you do wrong? I just did a car with ES diff bushings and MS motor mounts, and there is no discernible increase in NVH. The customer was really worried about it, and after driving the car once even he said he couldn't tell a difference - aside from the phenomenally improved shift feel.

You want NVH? Go try some MMR motor mounts, then drive yourself to the dentist so he can re-insert your fillings.
Good to know. I am actually going to do the diff mounts this winter along with the 4.1 Torsen I have in my garage. Or maybe sooner once I convince myself it's only a 2hr job.
Laur3ns is offline   Reply With Quote
Old 10-02-2009, 06:14 AM   #167
Supporting Vendor
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,367
Total Cats: 1,331
Default

You really need the right tools. I wouldn't bother without a press or an air hammer. Torch the outside to separate the adhesive they use, and then just hammer or press them out. Once you figure out the first one, the second is easy. With the right tools, it really is a 1 hour job.
Savington is offline   Reply With Quote
Old 10-02-2009, 06:17 AM   #168
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Savington View Post
You really need the right tools. I wouldn't bother without a press or an air hammer. Torch the outside to separate the adhesive they use, and then just hammer or press them out. Once you figure out the first one, the second is easy. With the right tools, it really is a 1 hour job.
I have air tools, so I really need something like this?
Laur3ns is offline   Reply With Quote
Old 10-02-2009, 07:48 AM   #169
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Or you could drill through them so the inner ring separates from the outer one, should be able to press out the remains with a screwdriver. That's how I did it
Oscar is offline   Reply With Quote
Old 10-02-2009, 08:35 AM   #170
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Thumbs up

Quote:
Originally Posted by Oscar View Post
Or you could drill through them so the inner ring separates from the outer one, should be able to press out the remains with a screwdriver. That's how I did it
So you've done all this already? When are you coming over to doing this job? I have the open diff on my car and the torsen pumpkin next to it.
Laur3ns is offline   Reply With Quote
Old 10-02-2009, 09:54 AM   #171
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

I have the 949-sold diff bushings and MS engine mounts and noticed no change on the street. For some reason when on track, with r-comps, I can feel the road surface much more.
hustler is offline   Reply With Quote
Old 10-02-2009, 01:37 PM   #172
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Spookyfish View Post
So you've done all this already? When are you coming over to doing this job? I have the open diff on my car and the torsen pumpkin next to it.
same day we're gonna put the sawzall to your rear bumper?

Swapping the guts isn't too bad, but I don't have the proper tools (big *** caliper for setting backlash) anymore though...
Oscar is offline   Reply With Quote
Old 10-02-2009, 02:24 PM   #173
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

Quote:
Originally Posted by Oscar View Post
same day we're gonna put the sawzall to your rear bumper?

Swapping the guts isn't too bad, but I don't have the proper tools (big *** caliper for setting backlash) anymore though...

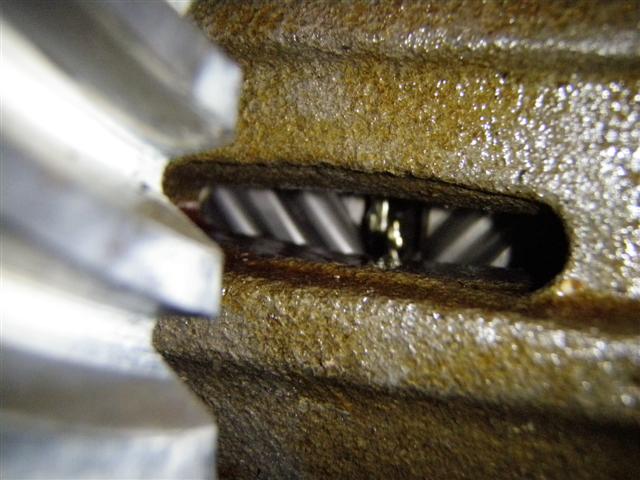

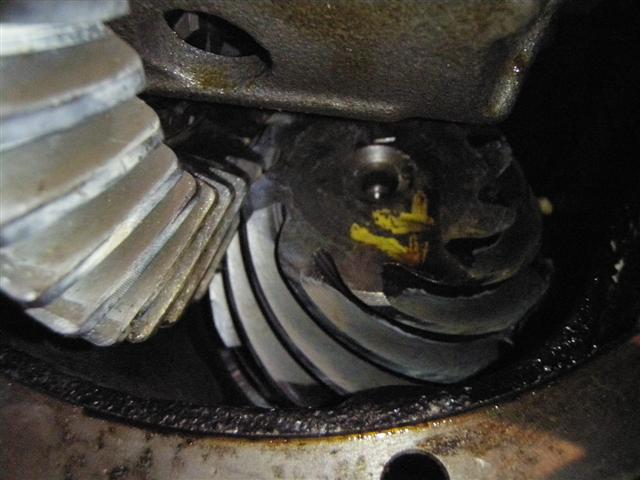

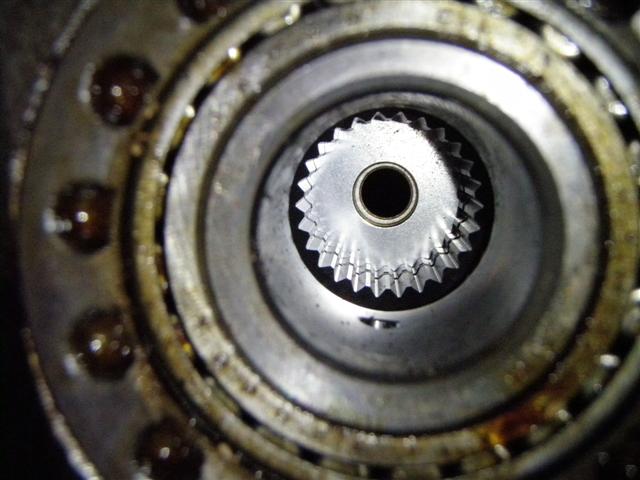

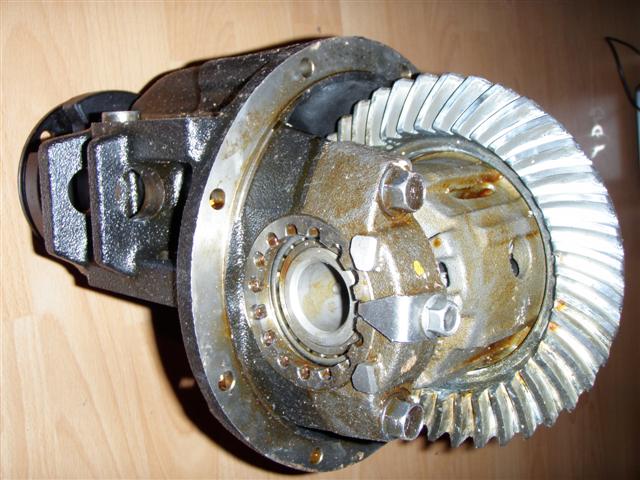

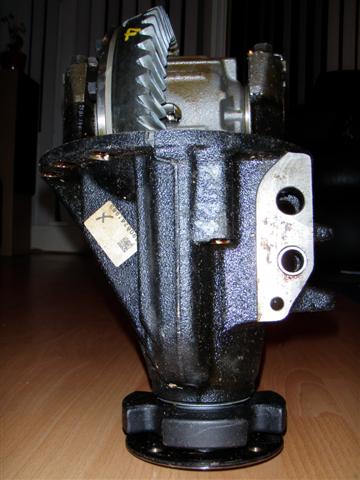

No need for setting that, I've had the unit as a whole ecked at a transmission specialist. I have this as one unit (half a unit actually), ready to go on:
Attached Thumbnails
Spookyfish rebuilding daily/track car-p8050119.jpg   Spookyfish rebuilding daily/track car-p8050123.jpg   Spookyfish rebuilding daily/track car-p8050127.jpg   Spookyfish rebuilding daily/track car-p8050129.jpg   Spookyfish rebuilding daily/track car-p8050132.jpg

Laur3ns is offline   Reply With Quote
Old 10-02-2009, 02:26 PM   #174
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by Savington View Post
?? What did you do wrong? I just did a car with ES diff bushings and MS motor mounts, and there is no discernible increase in NVH.
I put the same combo in my car as well... the NVH increased slightly but not enough my wife noticed it. I can't speak to improved shifter feel since I rebuilt the shifter while stuff was apart, but the powertrain definately moves around less. As for installing the diff bushings, it took Nick and I about an hour to change them out with a press. I didn't even bother heating them up, I bent back the metal lip on top, supported the diff ear well (Find a piece of thick wall tube a little taller and larger diameter than the bushing) and pressed. Use a LOT of the ES goo they give you for the new bushings, that's the key to them never squeaking. Be SURE to wear gloves and clothes you can afford to toss when you mess with the ES goo... it does NOT like to come off.

Here's Nick while we're pressing in the new bushings, note the piece of aluminum between the bushing and the press piston.


You wouldn't need to set backlash to swap pumpkins complete... only if you take the diff/ring gear out of the pumpkin.
Rennkafer is offline   Reply With Quote
Old 10-02-2009, 02:34 PM   #175
I haz no trubo
iTrader: (2)

Oscar's Avatar

Join Date: Jan 2007
Location: Bolton, UK
Posts: 3,021
Total Cats: 114
Default

Quote:
Originally Posted by Spookyfish View Post
No need for setting that, I've had the unit as a whole ecked at a transmission specialist. I have this as one unit (half a unit actually), ready to go on:

My bad, I swapped guts too when installing my LSD, that's why. But in that case, how about sunday? Should be done in a few hours tops I think...
Oscar is offline   Reply With Quote
Old 10-03-2009, 02:47 AM   #176
Elite Member
iTrader: (3)

AbeFM's Avatar

Join Date: Aug 2006
Location: San Diego, CA
Posts: 3,048
Total Cats: 8
Default

How solid are all these mounts you're talking about? A friend has a set of nylon ones I was thinking of swiping...

Oscar: Like the AV. Of course, I just ran mine up with the MS and a stim when I wanted to. It's shocking how non-linear the tach is btw.
AbeFM is offline   Reply With Quote
Old 10-03-2009, 12:46 PM   #177
Senior Member
iTrader: (3)

Join Date: Jun 2008
Location: Port Orchard, WA
Posts: 620
Total Cats: 4
Default

Quote:
Originally Posted by AbeFM View Post
How solid are all these mounts you're talking about? A friend has a set of nylon ones I was thinking of swiping...
The MS motor mounts are still rubber but a stiffer variety... it's actually hard to tell any difference with a stocker and MS in your hand (unless your mounts are really fucked up, mine weren't). The ES poly diff mounts are about as stiff as the suspension bushings... ie much harder than stock but still have some give to them. I'd think the nylon would be stiffer yet. Probably less NVH than solid aluminum mounts, more than stock, very slightly more than poly.
Rennkafer is offline   Reply With Quote
Old 10-03-2009, 03:45 PM   #178
MT Pony Underground
iTrader: (6)

Nagase's Avatar

Join Date: May 2009
Posts: 1,811
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
?? What did you do wrong? I just did a car with ES diff bushings and MS motor mounts, and there is no discernible increase in NVH. The customer was really worried about it, and after driving the car once even he said he couldn't tell a difference - aside from the phenomenally improved shift feel.

You want NVH? Go try some MMR motor mounts, then drive yourself to the dentist so he can re-insert your fillings.
Could you say any more about the MMR mounts?
Nagase is offline   Reply With Quote
Old 10-03-2009, 04:16 PM   #179
Senior Member
iTrader: (2)

Join Date: Apr 2008
Location: Tallahassee, FL
Posts: 1,378
Total Cats: 0
Default

Quote:
Originally Posted by Nagase View Post
Could you say any more about the MMR mounts?
I drive them, daily. Horrifying, especially when cold its ridiculous. If it idles smoothly bellow 1k, it's relatively smooth and quiet at stop lights and such. Very loud once RPMs start gaining. However when I'm driving "spiritedly" its amazing the feel. I want to say I can feel what the car/engine is doing 100% more.
naarleven is offline   Reply With Quote
Old 10-05-2009, 05:22 PM   #180
Elite AbsurdFlow Member
Thread Starter

Laur3ns's Avatar

Join Date: Mar 2008
Location: Enschede, NL
Posts: 2,058
Total Cats: 11
Default

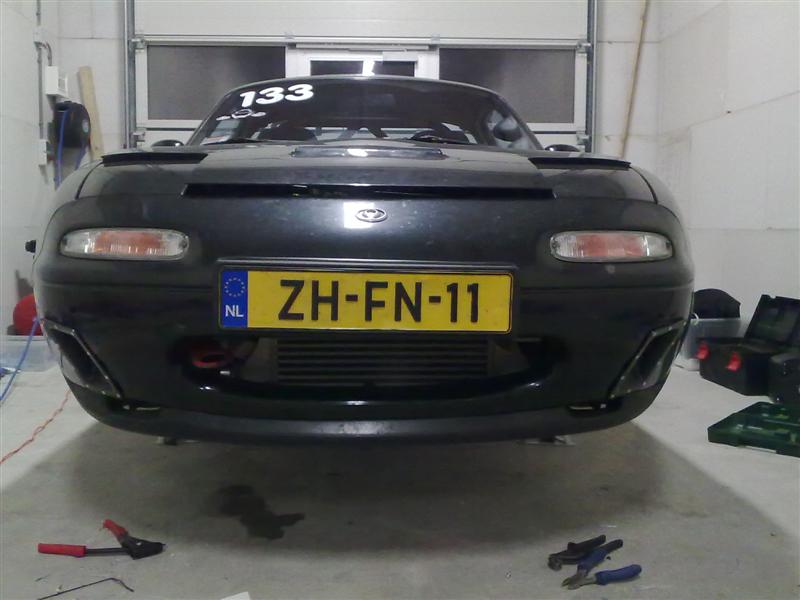

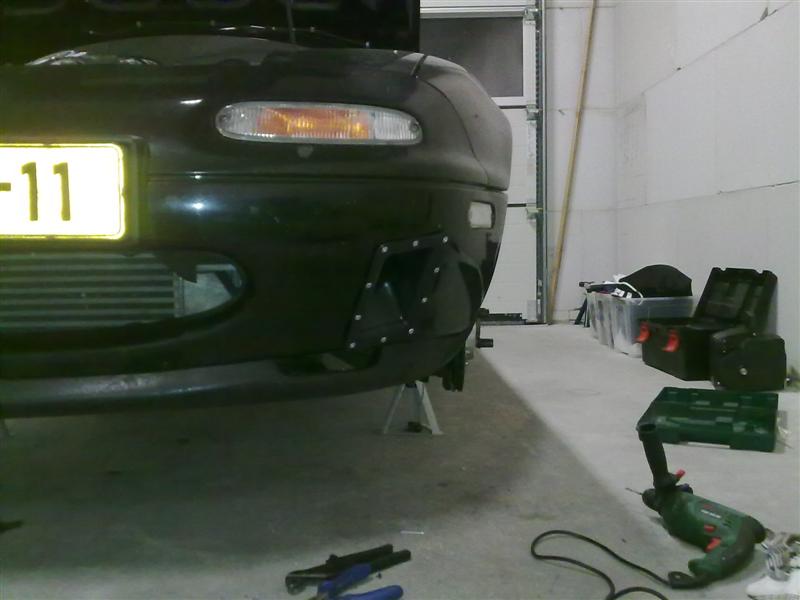

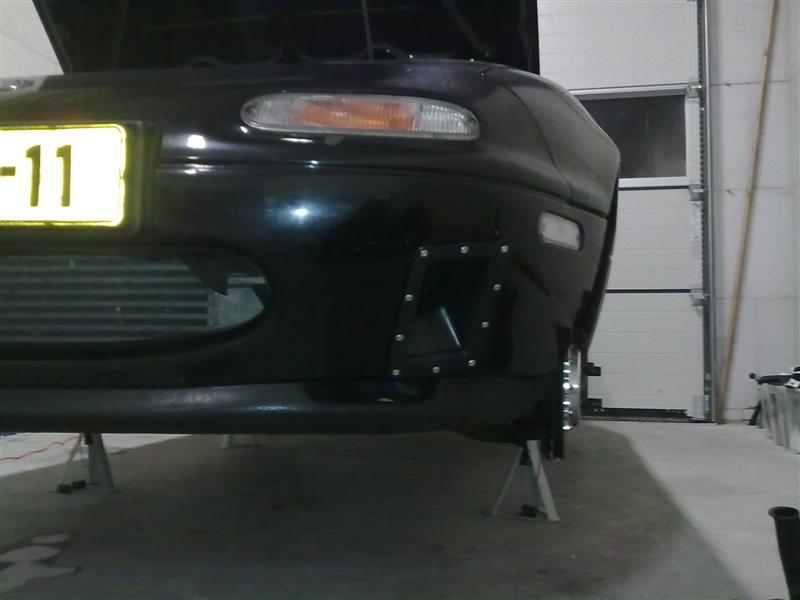

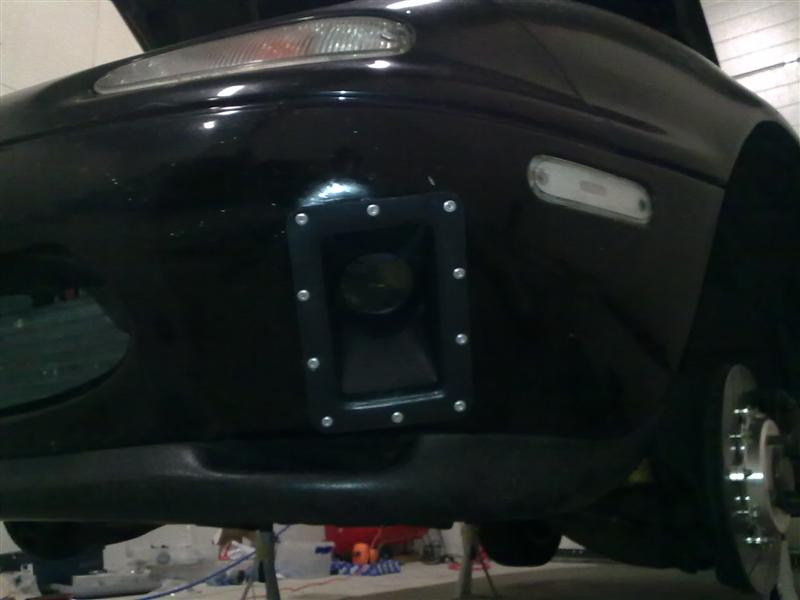

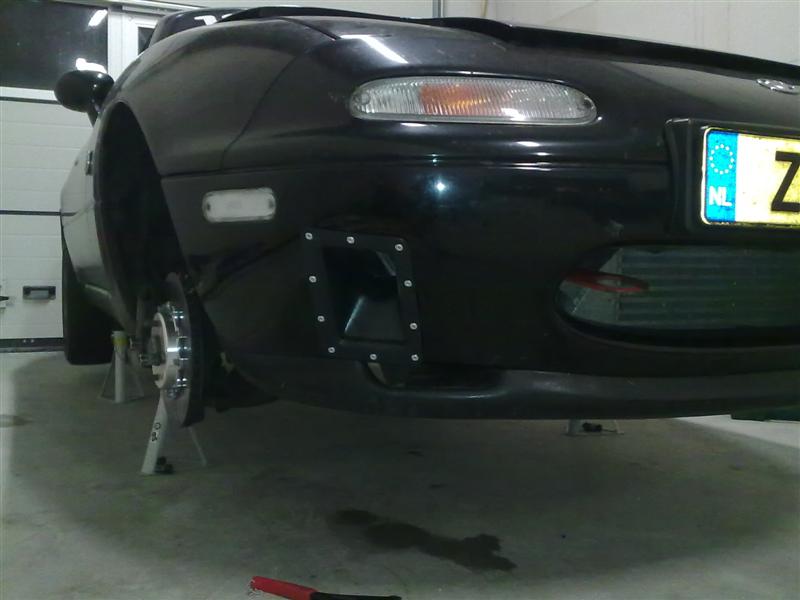

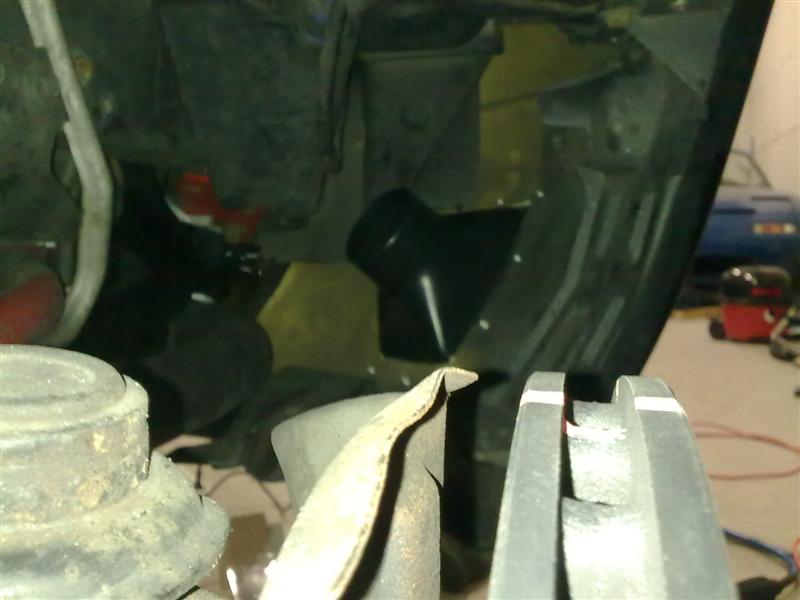

Ducts in place, piping still on back order.
Attached Thumbnails
Spookyfish rebuilding daily/track car-05102009260.jpg   Spookyfish rebuilding daily/track car-05102009261.jpg   Spookyfish rebuilding daily/track car-05102009262.jpg   Spookyfish rebuilding daily/track car-05102009265.jpg   Spookyfish rebuilding daily/track car-05102009268.jpg

Spookyfish rebuilding daily/track car-05102009271.jpg
Laur3ns is offline   Reply With Quote
