Old 04-14-2010, 03:07 PM   #101
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,326
Default

1. 294whp with zero tuning, I just roughed in the fuel map and did the pull

2. 8.6:1 vs 9.5:1, and I think we are using the same timing values (like 16-17 degrees at full boost), I am staying very conservative since I really don't have a good way to listen for knock right now (car is too loud for det cans)

3. Dynojet vs. Dynapack
Savington is offline   Reply With Quote
Old 04-14-2010, 03:16 PM   #102
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

get th polish electronic det cans.
hustler is offline   Reply With Quote
Old 04-14-2010, 04:19 PM   #103
Elite Member
iTrader: (15)

Join Date: Sep 2007
Location: Incline Village, NV
Posts: 2,073
Total Cats: 5
Default

Quote:
Originally Posted by ArtieParty View Post
Am I missing something in this build?

Sav’s car according to that thread: 2871 with peak hp at 294 and peak torque at 248 at 14 psi. He’s also running on 100 octane fuel.

Comparison - Paul’s Machine: 300 peak hp/ 242 torque at 14.5 psi on a 2560 and on pump 93 octane gas.

Sav’s got a 99 bottom end with the 02 head with vvt working and the new honda IM. Paul’s got a whole 99 engine with the begi IM.

Shouldn’t Sav be making MORE power with the larger turbo?
Machine=9.5:1
Savs =8.5:1

Edit: I phale
thesnowboarder is offline   Reply With Quote
Old 04-14-2010, 04:30 PM   #104
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

1 point compression better not make that much difference. Come on I made 269 @12psi on the 2560 with a internally stock '94, a worse exhaust mani, and wawa '92 octane. I've never "tuned" my timing and my fueling is less than perfect (~11.2:1 at higher rpm).

I hope it's due to the dynojet/dynapack differences.
TurboTim is offline   Reply With Quote
Old 04-14-2010, 04:41 PM   #105
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

1 point compression should be about 4% loss which is about 12 hp / ft-lbs.
JasonC SBB is offline   Reply With Quote
Old 04-14-2010, 05:28 PM   #106
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by TurboTim View Post
1 point compression better not make that much difference. Come on I made 269 @12psi on the 2560 with a internally stock '94, a worse exhaust mani, and wawa '92 octane. I've never "tuned" my timing and my fueling is less than perfect (~11.2:1 at higher rpm).

I hope it's due to the dynojet/dynapack differences.
I saw 12% difference on 2-dynojets compared to a DynoDynamics. 15% compared to the Mustang.

I made 242 on the Mustang at 11psi, that would be 289whp on the dynojet.
hustler is offline   Reply With Quote
Old 04-14-2010, 06:20 PM   #107
Elite Member
iTrader: (11)

Join Date: Jun 2007
Location: Meriden, CT
Posts: 2,072
Total Cats: 1
Default

Off topic, but where can I get a full size picture of your sig....your car is lookin GOOD! and any others...
Cspence is offline   Reply With Quote
Old 04-14-2010, 07:32 PM   #108
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,326
Default

Quote:
Originally Posted by TurboTim View Post

I hope it's due to the dynojet/dynapack differences.
Dynojets read high, give the car herpes, cheat on your wife, etc. I won't even waste time strapping my car to one. I'll use Mustang and Superflows, but I vastly prefer Dynapacks. Software is easy to use, they are *way* safer than roller dynos, and there's never any wheelspin issues. (yes, I've had wheelspin issues on dynos. )

I bet it's mostly the tune. I have like an hour into this tune tops, I'm sure Paul has way more. I don't plan to invest a ton of time into this tune since I'm switching exhaust manifolds again soon. Timmy is whipping me up something nasty. I do want to put another hour, maybe two hours into it, just to extract the most out of this setup before we make any more changes. This turbo isn't even in its sweet spot at 14psi - the 20+psi torque curves are wicked.

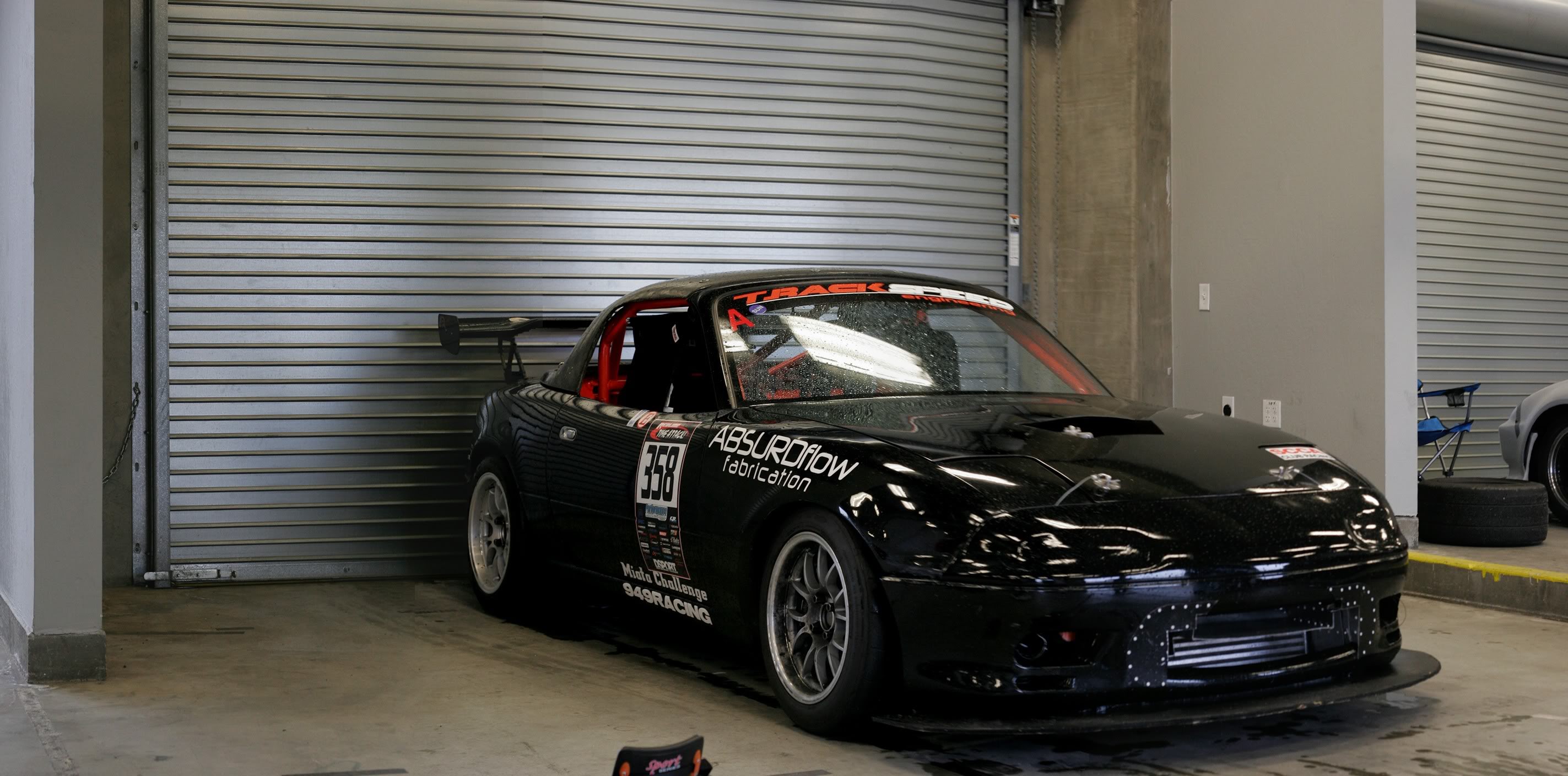

Big photoz, thanks to whoever took this:
Name:  _MG_5892-2_stitch.jpg
Views: 21
Size:  436.7 KB
Savington is offline   Reply With Quote
Old 04-14-2010, 07:49 PM   #109
Oni
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Tasmania, AUS
Posts: 164
Total Cats: 3
Default

Awesome build/updates. looking forward to more vids.
Oni is offline   Reply With Quote
Old 04-14-2010, 08:55 PM   #110
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by hustler View Post
I saw 12% difference on 2-dynojets compared to a DynoDynamics. 15% compared to the Mustang.

I made 242 on the Mustang at 11psi, that would be 289whp on the dynojet.
That's more like I would hope you'd get. Thanks
TurboTim is offline   Reply With Quote
Old 04-14-2010, 08:56 PM   #111
Elite Member
iTrader: (17)

Join Date: Apr 2009
Location: Atlanta, GA
Posts: 2,831
Total Cats: 0
Default

so witch is the dyno to trust???
WonTon is offline   Reply With Quote
Old 04-14-2010, 09:00 PM   #112
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

I have only gone to the delaware dyno place because for us locals, it's the easiest to compare setups especially if you are always using the same physical dynojet, let alone same dyno brand. For me, making 269rwhp isn't the key, it's making xxx more power & torque at xxxx rpm sooner compared to a very similar BEGI or FM setup or one of my other setups on the same physical dyno.
TurboTim is offline   Reply With Quote
Old 04-14-2010, 09:17 PM   #113
Junior Member
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

wait..Sav, so are you going to put your current AF exhaust mani FS later once you get the new AF ex. mani from Tim? If so, put me on your potential buyer list!
aznDragonX is offline   Reply With Quote
Old 04-14-2010, 09:19 PM   #114
Junior Member
iTrader: (5)

Join Date: May 2006
Location: San Francisco Bay area
Posts: 359
Total Cats: -1
Default

"Timmy is whipping me up something nasty. I do want to put another hour, maybe two hours into it, just to extract the most out of this setup before we make any more changes."

Can't wait to see the number from big nasty AF v2.0 exhaust mani!!
aznDragonX is offline   Reply With Quote
Old 04-14-2010, 09:22 PM   #115
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,365
Total Cats: 1,326
Default

Quote:
Originally Posted by aznDragonX View Post
wait..Sav, so are you going to put your current AF exhaust mani FS later once you get the new AF ex. mani from Tim? If so, put me on your potential buyer list!
I will be keeping both manifolds, sorry.
Savington is offline   Reply With Quote
Old 04-14-2010, 10:37 PM   #116
Elite Member
iTrader: (8)

Join Date: Jun 2009
Location: Albany, NY
Posts: 1,523
Total Cats: 4
Default

Car looks great in the new sig pic. I'm in for more pics.
webby459 is offline   Reply With Quote
Old 04-14-2010, 11:20 PM   #117
Elite Member
iTrader: (9)

TurboTim's Avatar

Join Date: Jun 2006
Location: Chesterfield, NJ
Posts: 6,485
Total Cats: 248
Default

Quote:
Originally Posted by aznDragonX View Post
wait..Sav, so are you going to put your current AF exhaust mani FS later once you get the new AF ex. mani from Tim? If so, put me on your potential buyer list!
Put me on the potential buyer list for the entire f'in car!!
TurboTim is offline   Reply With Quote
Old 04-15-2010, 03:36 AM   #118
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,107
Total Cats: 518
Default

Quote:
Originally Posted by Savington View Post
I will be keeping both manifolds, sorry.
Is this legal? Didn't Bill Gates try to do something similar in the 90's?

Edit: Yup, here we go.

http://www.infoplease.com/ce6/bus/A0833758.html
curly is offline   Reply With Quote
Old 04-15-2010, 09:33 AM   #119
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by curly View Post
Is this legal? Didn't Bill Gates try to do something similar in the 90's?

Edit: Yup, here we go.

http://www.infoplease.com/ce6/bus/A0833758.html

yeah but then he just lobbied the gov't and they were like oh yeah duh we shouldn't be meddling in the first place.
Braineack is offline   Reply With Quote
Old 04-15-2010, 10:02 AM   #120
Tour de Franzia
iTrader: (6)

hustler's Avatar

Join Date: Jun 2006
Location: Republic of Dallas
Posts: 29,114
Total Cats: 351
Default

Quote:
Originally Posted by TurboTim View Post
That's more like I would hope you'd get. Thanks
I also did something really stupid before that last dyno...I turned on knock control, jacked with it...and managed to leave it on in megatune. So instead of pulling 5* from MBT, its pulling a total up to 8*. lol

I'm tuning Johnwag's car in the near future and I may put mine back on the roller to get a 11psi and 16psi pull just to floss on the internet.
hustler is offline   Reply With Quote
