Old 04-12-2010, 12:18 PM   #81
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I'm guessing most of the gains up top are from the VVT and not the IM.
JasonC SBB is offline   Reply With Quote
Old 04-12-2010, 12:30 PM   #82
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

BTW how did you tune VVT? On the dyno or on the street by watching O2?
JasonC SBB is offline   Reply With Quote
Old 04-12-2010, 02:03 PM   #83
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

Quote:
Originally Posted by JasonC SBB View Post
I'm guessing most of the gains up top are from the VVT and not the IM.
Exact opposite. It's a combination of the two for sure, but the car only made ~260 on the stock IM with VVT at full retard. I'd say it's maybe 15% VVT and 85% intake manifold. I expected most of the power gains from VVT to come in the low-midrange and I was correct.

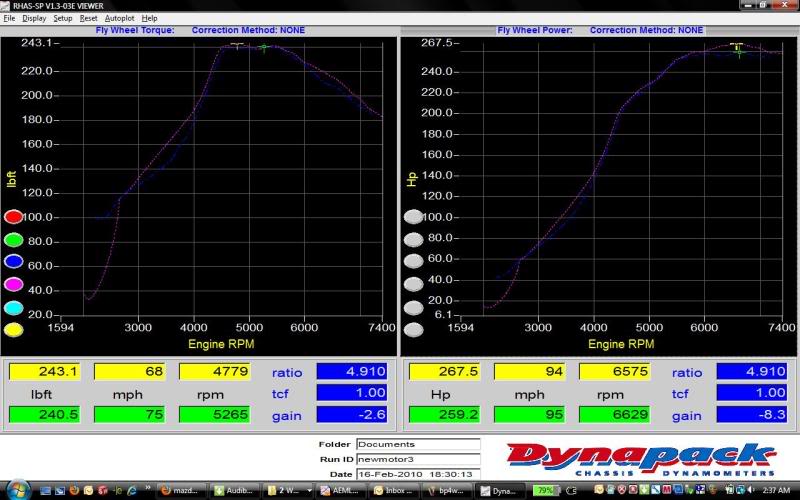

Here's the chart from the first time I tuned the motor - the purple curve is my '99 motor, the blue curve is the 2002 motor with VVT unplugged and a little less boost (12psi vs 14psi)

Name:  bp4w_vs_vvt.jpg
Views: 24
Size:  65.9 KB

I have it set at full retard from 5000rpm up. Full advance at 3000rpm, smooth changeover from 3k to 5k. As far as tuning it, I stole y8s' curve numbers, plugged them in, and did not make any changes to them. I ran through my fuel map from 2500rpm to 4500rpm, adjusted the AFRs, and that's the result I got. I'm sure with some tweaking on the actual VVT targets there are more gains to be had but that's going to be a long, expensive dyno session.
Savington is offline   Reply With Quote
Old 04-12-2010, 02:13 PM   #84
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

Quote:
Originally Posted by webby459 View Post
Was this dyno on gas or alky?
100 octane.
Savington is offline   Reply With Quote
Old 04-12-2010, 02:17 PM   #85
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

By any chance do you have your newest graphs with both HP and TQ on the same graph with VVT enabled that you could post?
shuiend is offline   Reply With Quote
Old 04-12-2010, 02:19 PM   #86
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

I just emailed Rick at Synergy, once I have the files I will post one chart with everything on it.
Savington is offline   Reply With Quote
Old 04-12-2010, 02:19 PM   #87
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

did you end up with the Victor or Performer X manifold? Either way I'm really glad it worked out well.
Braineack is online now   Reply With Quote
Old 04-12-2010, 02:21 PM   #88
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

It's a Blox B18 manifold, very similar to the Skunk2 piece.
Savington is offline   Reply With Quote
Old 04-12-2010, 02:22 PM   #89
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

ohhhh, okay, even better. the cheap the ITR/skunk2 rip off manifold. nice dawg!
Braineack is online now   Reply With Quote
Old 04-12-2010, 02:31 PM   #90
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

I just wish it was cheaper. Between the welding fab and resurfacing, I have over $400 into it. :(
Savington is offline   Reply With Quote
Old 04-12-2010, 02:34 PM   #91
Elite Member
iTrader: (12)

Join Date: Aug 2006
Location: Central-ish VA
Posts: 4,449
Total Cats: 16
Default

Get it on the track and that will leave your mind
neogenesis2004 is offline   Reply With Quote
Old 04-12-2010, 02:37 PM   #92
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,868
Total Cats: 1,790
Default

Quote:
Originally Posted by Savington View Post
I just wish it was cheaper. Between the welding fab and resurfacing, I have over $400 into it. :(
not a bad price price for the gains though. especially considering there isn't much OTS available.
Braineack is online now   Reply With Quote
Old 04-12-2010, 04:45 PM   #93
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

You can fine tune VVT numbers on the street with the wideband.

Make a change and if it goes leaner, it means VE went up.
JasonC SBB is offline   Reply With Quote
Old 04-13-2010, 02:24 AM   #94
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,863
Total Cats: 485
Default

Quote:
Originally Posted by Savington View Post
Also, if you want, divide those torque numbers by 3.909 for real torque. I did the pulls in 5th gear.
So because you did the run in a gear over 4th you divide the torque by the rear gear ratio to get true torque...? It's not making sense, but then again, I guess it doesn't matter.
What would you do to the numbers to get the accurate torque if you did a run in 3rd?

Last edited by ThePass; 04-13-2010 at 02:35 AM.
ThePass is offline   Reply With Quote
Old 04-13-2010, 03:06 AM   #95
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

Quote:
Originally Posted by ThePass View Post
So because you did the run in a gear over 4th you divide the torque by the rear gear ratio to get true torque...? It's not making sense, but then again, I guess it doesn't matter.
What would you do to the numbers to get the accurate torque if you did a run in 3rd?
5th gear is 1:1 in the 6-speed. If I did a run in 3rd, ratio is like ~1.6 IIRC, you would divide by whatever 3.909x1.6 is.

Jason, the car is really flashy and doing WOT pulls on the street is begging to get pulled over. I think I've driven it about 10-20 miles in the last year on the road.
Savington is offline   Reply With Quote
Old 04-13-2010, 12:12 PM   #96
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Sav, did you just have to cut the Blox flange off and weld the Miata flange on, was the spacing dead on or did you have to shorten/lengthen the runners?
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-14-2010, 04:24 AM   #97
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,363
Total Cats: 1,325
Default

Quote:
Originally Posted by levnubhin View Post
Sav, did you just have to cut the Blox flange off and weld the Miata flange on, was the spacing dead on or did you have to shorten/lengthen the runners?
I cut the Blox flange on, cut the Miata flange, and they were close. I was then an idiot and cut too much off the B18 manifold, trying to get rid of all of the fuel injector bosses, and ended up having to do a lot of port work to line everything up again. The spacing isn't dead nuts, but it's damn close.
Savington is offline   Reply With Quote
Old 04-14-2010, 10:25 AM   #98
Elite Member
iTrader: (30)

Join Date: Aug 2007
Location: Va Beach
Posts: 7,282
Total Cats: 0
Default

Quote:
Originally Posted by Savington View Post
I cut the Blox flange on, cut the Miata flange, and they were close. I was then an idiot and cut too much off the B18 manifold, trying to get rid of all of the fuel injector bosses, and ended up having to do a lot of port work to line everything up again. The spacing isn't dead nuts, but it's damn close.


So how long are the runners now? Seems like you got it perfect according to your dyno.
__________________
Best Car Insurance | Auto Protection Today | FREE Trade-In Quote
levnubhin is offline   Reply With Quote
Old 04-14-2010, 12:10 PM   #99
Elite Member

Join Date: Jul 2005
Posts: 6,454
Total Cats: 80
Default

I would be very suprised if this mani didn't help n/a motors' topend too.
JasonC SBB is offline   Reply With Quote
Old 04-14-2010, 02:47 PM   #100
Senior Member
iTrader: (1)

Join Date: Sep 2007
Location: Trenton, NJ
Posts: 1,125
Total Cats: 0
Default

Am I missing something in this build?

Savís car according to that thread: 2871 with peak hp at 294 and peak torque at 248 at 14 psi. Heís also running on 100 octane fuel.

Comparison - Paulís Machine: 300 peak hp/ 242 torque at 14.5 psi on a 2560 and on pump 93 octane gas.

Savís got a 99 bottom end with the 02 head with vvt working and the new honda IM. Paulís got a whole 99 engine with the begi IM.

Shouldnít Sav be making MORE power with the larger turbo?
ArtieParty is offline   Reply With Quote
