Old 02-12-2012, 09:13 PM   #61
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Quote:
Originally Posted by QWKDTSN View Post
Nice job getting it started.

CEL works on newer cars when the ECU has been replaced with MS?
nah rev set it up to flash when coolant temps go over a certain point
gorillazfan1023 is offline   Reply With Quote
Old 02-12-2012, 09:38 PM   #62
mkturbo.com
iTrader: (24)

shuiend's Avatar

Join Date: May 2006
Location: Charleston SC
Posts: 13,775
Total Cats: 1,106
Default

Quote:
Originally Posted by QWKDTSN View Post
Nice job getting it started.

CEL works on newer cars when the ECU has been replaced with MS?
No the cel will not work the same as with the stock ecu.
shuiend is offline   Reply With Quote
Old 02-12-2012, 10:30 PM   #63
Junior Member

Join Date: Feb 2011
Posts: 51
Total Cats: 2
Default

Clever!

I've never heard of the CEL being used as a warning. Is there info on this somewhere?

I'm sure it involves brainy things using the Proto area and various transistors.
QWKDTSN is offline   Reply With Quote
Old 02-12-2012, 10:57 PM   #64
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I took a data log of starting up when I added coolant and screwed around with the ASE percentage and PWM idle. It's still idling very low, but it idles longer and starts a little faster. Any suggestions?
Attached Files
File Type: msl 2-12-12 with coolant.msl (143.0 KB, 56 views)
gorillazfan1023 is offline   Reply With Quote
Old 02-13-2012, 12:24 AM   #65
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

So looking at my data log I can see I have waaay to much fuel. 10:1..So I need to reduce it. How do I go about doing this? Do I have to remove fuel from my fuel table or do I do something in the start up and idle section?
gorillazfan1023 is offline   Reply With Quote
Old 02-13-2012, 12:33 AM   #66
Junior Member

Join Date: Feb 2011
Posts: 51
Total Cats: 2
Default

Before you start changing fueling, have you set your base timing?
QWKDTSN is offline   Reply With Quote
Old 02-13-2012, 12:42 AM   #67
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by QWKDTSN View Post
Before you start changing fueling, have you set your base timing?
Just open your spark table while the car is running. If it says 10 on the cell where it's running at, shoot the balancer with your timing light and it should read 10 as well...simple.
It's not like the older cars where you need to move your CAS...you should be good to go.
In order to adjust fueling in your fuel table, the car should be fully warmed up. If it's not warmed up and it's running really rich (10 something), then it's in your warm up tables.
thirdgen is offline   Reply With Quote
Old 02-13-2012, 01:05 AM   #68
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I haven't messed with the timing. Mainly because I thought since my car is a 2001 and has vvt that I can't do anything with the timing. I will look at start up settings and pretend I know what I'm doing.
gorillazfan1023 is offline   Reply With Quote
Old 02-13-2012, 01:08 AM   #69
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

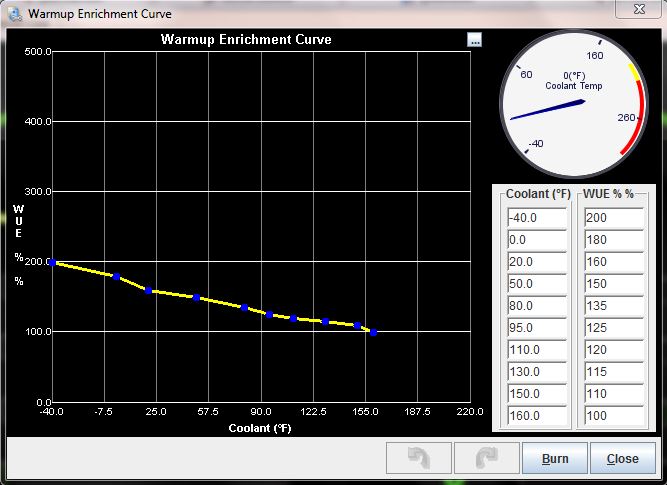

I think it has to do with this table right here:
It's in the start-up/idle tab...
Big noob cant get car started with MS2-warmup.jpg
thirdgen is offline   Reply With Quote
Old 02-13-2012, 01:14 AM   #70
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Hmm the one in the map rev sent me looks similar. I will try your settings tomorrow and see how that goes.
gorillazfan1023 is offline   Reply With Quote
Old 02-13-2012, 01:15 AM   #71
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

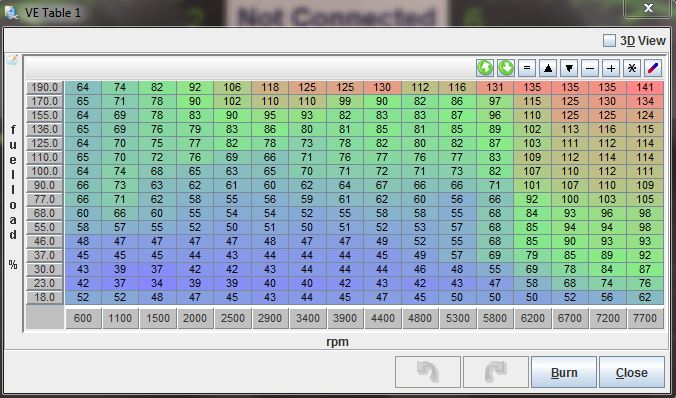

If your warmup looks like mine, then I'd actually adjust your fuel table.
It'll be under basic settings, fuel VE 1.
This:
Big noob cant get car started with MS2-fuel1.jpg
You'll see where it's idling at if you open the table while it's running. Click in the box where it's running at and lower the number a little bit and click burn. See if the fueling gets leaner then...
thirdgen is offline   Reply With Quote
Old 02-13-2012, 01:17 AM   #72
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Don't copy my fuel map, as your numbers will differ due to the required fueling. Just shave a little fueling off to idle leaner.
thirdgen is offline   Reply With Quote
Old 02-13-2012, 01:18 AM   #73
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Actually I'm entering your settings in now. And they are significantly different. Also the fuel table...my lowest cell is 41
gorillazfan1023 is offline   Reply With Quote
Old 02-13-2012, 01:28 AM   #74
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Quote:
Originally Posted by gorillazfan1023 View Post
Actually I'm entering your settings in now. And they are significantly different. Also the fuel table...my lowest cell is 41
If the values from Reverant were higher, then obviously it would add more fuel at warmup, were they higher than mine?
Fuel table...your lowest cell at 41 could be ok...like I said, it's dependent on your required fuel setting. I could use a stock miata injector required fuel setting for RX8 injectors, but my fuel table would be wayyyy different than it looks right now. What I'm trying to say is, I use 13.2 for required fuel for stock 99 miata injectors. When I ran rx7 junk 460 pnp's, I used 6.9. If I simply changed my required fuel, the table only needed very slight adjustments. I have never swapped in my RX8 pnp's, so I'm not sure if 7.45 is the correct required fuel...it might be off a little bit which would cause your fueling table to look a lot different than mine. Like, if my idle cells are in the low 40's, your idle cells might need to be in the mid 30's...ya dig?
thirdgen is offline   Reply With Quote
Old 02-13-2012, 01:41 PM   #75
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Makes sense. By different I mean slope of the graph is different. His was more curved but used similar WUE%'s Yours is much more linear but they end up in roughly the same place. So I think this would mean your values are actually higher then my current ones. Also for required fuel it's set at 6.2.
gorillazfan1023 is offline   Reply With Quote
Old 02-13-2012, 01:46 PM   #76
Slowest Progress Ever
iTrader: (26)

thirdgen's Avatar

Join Date: Oct 2007
Location: The coal ridden hills of Pennsylvania
Posts: 5,806
Total Cats: 183
Default

Change it to 7.45 and see if it makes it idle better. If it doesn't run better, just change it back.
thirdgen is offline   Reply With Quote
Old 02-13-2012, 01:52 PM   #77
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

I'll give it a shot right now
gorillazfan1023 is offline   Reply With Quote
Old 02-13-2012, 01:55 PM   #78
Supporting Vendor
iTrader: (10)

Reverant's Avatar

Join Date: Jun 2006
Location: Athens, Greece
Posts: 5,440
Total Cats: 198
Default

Quote:
Originally Posted by QWKDTSN View Post
Clever!

I've never heard of the CEL being used as a warning. Is there info on this somewhere?

I'm sure it involves brainy things using the Proto area and various transistors.
Actually, all of my ECUs have a second board inside it, with a different processor that takes many more inputs and outputs, and works together with the MS2 processor. This means more features that are not available to any "off the shelf" Megasquirt.
Reverant is offline   Reply With Quote
Old 02-13-2012, 01:59 PM   #79
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Its getting there. I tried 7.45 as required fuel it didn't seem to like that much. So with it changed to 6.2 and leaning it up it idled a lot better and longer. Its still pretty low though.
gorillazfan1023 is offline   Reply With Quote
Old 02-14-2012, 10:43 AM   #80
Senior Member
Thread Starter
iTrader: (1)

gorillazfan1023's Avatar

Join Date: May 2010
Location: Harrisburg, Pa
Posts: 582
Total Cats: 8
Default

Ok now I can't get the car to start at all unless I use the throttle while cranking it. I tried reloading my base map and even then it won't start. I'm confused..
gorillazfan1023 is offline   Reply With Quote
