Old 05-06-2013, 01:09 PM   #21
Elite Member
iTrader: (41)

Join Date: Jan 2006
Location: Seabrook, TX
Posts: 2,409
Total Cats: 19
Default

OEM part number for those looking for it: B01A-33-060
rharris19 is offline   Reply With Quote
Old 05-06-2013, 01:22 PM   #22
Junior Member

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

Quote:
Originally Posted by Erat View Post
You should have.

It's the hubs that are failing, not the bearings.
Correct. My hubs looked to be in good shape (I did examine them when they were out). I cant recall hearing anyone have a rear bearing failure either, but after seeing the condition of mine when they came out, I cant believe they hadnt failed.
cucamelsmd15 is offline   Reply With Quote
Old 05-06-2013, 01:27 PM   #23
Senior Member
iTrader: (22)

Join Date: Oct 2007
Location: bay area, ca
Posts: 551
Total Cats: 19
Default

Quote:
Originally Posted by Savington View Post
Three different hubs being discussed here:

1. OEM. Three known failures (myself, CoralDoc, and a Socal SM guy with a ton of hours on his car)
2. V8R 3/8" (old). Two known failures, possibly three. Keith and Mike, and potentially a third (not sure if he broke an old V8R hub or a rebroached OEM hub).
3. V8R 1/2", no known failures
Not to take away from the discussion of OEM hubs, but (2) has 6+ known failures if you count people outside of CA. IMHO, they are pretty much guaranteed to break in just a few track days.

For those considering aftermarket - OEM works and has far more testing than other pieces. I wouldn't jump to aftermarket unless your axle requires it.
orion4096 is offline   Reply With Quote
Old 05-06-2013, 02:14 PM   #24
Supporting Vendor
iTrader: (3)

Join Date: Jul 2006
Location: San Diego
Posts: 2,865
Total Cats: 493
Default

Andrew, holy crap dude, your hub couldn't have picked a much scarier place to let go than T8 of Big Willow. That was rough just watching it. For a second there it looked like you were going shiny side down. Really glad to see that you're ok, and the car is relatively undamaged.

I was speaking with Barry Hartzel (well known CA Spec Miata builder/racer) a few years ago about prepping a car for the track and he mentioned rear hubs specifically as a common failure point for early miatas - sounds like there are probably way more OEM rear hub failures than what you've got on that list Andrew, and all of those on lower powered miatas. I can't remember perfectly now, but I believe Barry said that the early hubs were either cast in a different manner, or made with a different composition of metal that made them weaker than later model rear hubs. Either way though, they can all fail with enough use.
-Ryan
ThePass is offline   Reply With Quote
Old 05-06-2013, 02:21 PM   #25
Junior Member

Join Date: Oct 2010
Location: Wake Forest, NC
Posts: 175
Total Cats: 0
Default

Quote:
Originally Posted by ThePass View Post
I was speaking with Barry Hartzel (well known CA Spec Miata builder/racer) a few years ago about prepping a car for the track and he mentioned rear hubs specifically as a common failure point for early miatas - sounds like there are probably way more OEM rear hub failures than what you've got on that list Andrew, and all of those on lower powered miatas. I can't remember perfectly now, but I believe Barry said that the early hubs were either cast in a different manner, or made with a different composition of metal that made them weaker than later model rear hubs. Either way though, they can all fail with enough use.
-Ryan
I wonder if this is why the 1.6 hubs were phased out?
cucamelsmd15 is offline   Reply With Quote
Old 05-06-2013, 02:28 PM   #26
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by rharris19 View Post
OEM part number for those looking for it: B01A-33-060
Interesting looking at Mazdacomp parts under 2004 miata

Rear hubs are $91.18 each

But they list two different bearings.
B455-33-047D BEARING $46.63
And
B455-33-047D-MV TAPER BEARING $27.37

What’s the difference? And why would they list two different options. Every Miata rear bearing I have seen has been ball type not a tapered roller. I have not had good luck with tapered rollers on any other cars.
bbundy is offline   Reply With Quote
Old 05-06-2013, 02:33 PM   #27
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Quote:
Originally Posted by ThePass View Post
I was speaking with Barry Hartzel (well known CA Spec Miata builder/racer) a few years ago about prepping a car for the track and he mentioned rear hubs specifically as a common failure point for early miatas - sounds like there are probably way more OEM rear hub failures than what you've got on that list Andrew, and all of those on lower powered miatas. I can't remember perfectly now, but I believe Barry said that the early hubs were either cast in a different manner, or made with a different composition of metal that made them weaker than later model rear hubs. Either way though, they can all fail with enough use.
-Ryan
Barry told me the 5 speed trannys were just as strong as the 6 speeds as well. I got a chuckle out of that statement. But it wouldnt suprize me if the hubs got stronger at some point during production. I forget when they changed the stud hole daimeters. FWIW Im still using the small studs front and rear.

Bob
bbundy is offline   Reply With Quote
Old 05-06-2013, 02:35 PM   #28
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,371
Total Cats: 1,332
Default

Quote:
Originally Posted by ThePass View Post
I can't remember perfectly now, but I believe Barry said that the early hubs were either cast in a different manner, or made with a different composition of metal that made them weaker than later model rear hubs. Either way though, they can all fail with enough use.
-Ryan
Interesting. Mazda lists one part number for 90-93 (B455-33-061) and one for 94-05 (B01A-33-060). Both parts are superceeded by B01A-33-060A. So Mazda made an upgrade, but the upgraded parts still fail with enough use.

edit: lol @ "5-speeds are just as strong as 6-speeds". That's some Spec Miata Wisdom(TM) right there.

Last edited by Savington; 05-06-2013 at 02:54 PM.
Savington is offline   Reply With Quote
Old 05-06-2013, 02:36 PM   #29
Junior Member
iTrader: (1)

Join Date: Oct 2012
Location: Eureka, Ca
Posts: 150
Total Cats: -21
Default

Glad to see your OK and the car is easily fixable. Thanks for the warning and info. You scared me appropriately into getting ready to order my rear hubs new.
old school is offline   Reply With Quote
Old 05-06-2013, 02:45 PM   #30
Tea of the Sea

StarletRick's Avatar

Join Date: Apr 2010
Location: Essex, UK
Posts: 113
Total Cats: 4
Default

I never want to drive another car again after watching those.
StarletRick is offline   Reply With Quote
Old 05-06-2013, 02:45 PM   #31
Senior Member
iTrader: (1)

Join Date: Dec 2005
Location: irvine, ca
Posts: 729
Total Cats: 0
Default

Emilio pointed me here.

I saw heat damage/stress on rear flange of my '99 NB. It made the drive from SOCAL to NC when we moved out here last summer. I had a local shop do the hub last summer and they warned me they had been seeing this failure. They replaced the parts and showed me the old one. They also checked the other side and told me it had been replaced by someone else (previous owner). This was a mostly stock NB the previous owner used for autocross around San Diego. It is also my wife's daily driver.
kung fu jesus is offline   Reply With Quote
Old 05-06-2013, 02:55 PM   #32
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

My car did indeed have the old 3/8" V8R parts. It was the first track day I'd done on them, as I'd just borrowed them from one of the other FM cars due to some QC problems with the parts I was planning to use. Their history before that includes a fair number of track days on typical 225 NT-01s, but not driven all that hard. I was running a set of 225 RA1s in the video. Before that, I had OE hubs.

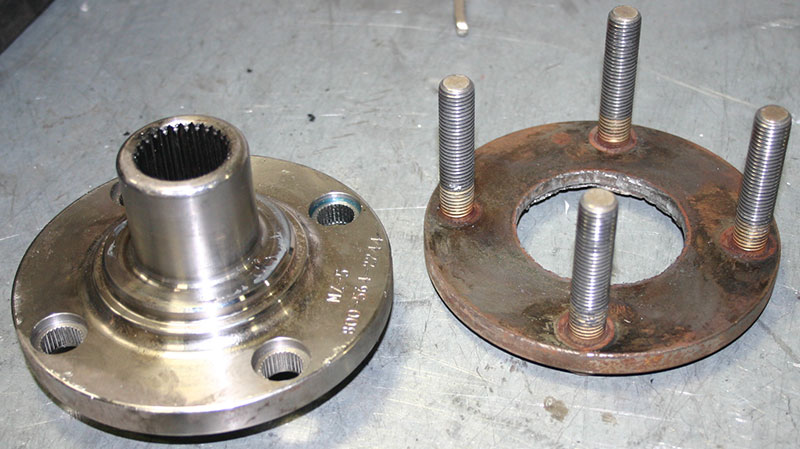

Here's my broken V8R 3/8" beside the current 1/2" design. It's my understanding that Dean Thomas' broken hub was also one of these 3/8" units. Anyone with older V8R hubs, please check to see what you have. I would strongly recommend the 3/8" ones go in the dumpster ASAP.

There's more to the new ones than just material, Shandelle at V8R says that the inner and outer radii were moved apart (axially, I assume) by 1/4" to create a better load path. Interestingly, Mazda OE hubs come in at 9mm, so they're thinner and stronger than the original V8R part.



Shandelle states he's broken two stock hubs in 12 years of racing Miatas. He says it always starts with cracks on the back side. There are currently 5 cars which are seeing 10-15 events a year on the new V8R hubs, not "babying around and giggling" in his words. Not as big a pool as I'd like to see, but the theory is good.

After my failure, I was having trouble deciding if I wanted to go to the 1/2" V8R or go to new Mazda pieces. Andrew's convinced me, I'm going to go to the beefier V8R.
Attached Thumbnails
When was the last time you changed your rear hubs?-img_2370.jpg
Keith@FM is offline   Reply With Quote
Old 05-06-2013, 03:42 PM   #33
Senior Member
iTrader: (1)

Join Date: Sep 2006
Posts: 738
Total Cats: 86
Default

Quote:
Originally Posted by Savington View Post
Interesting. Mazda lists one part number for 90-93 (B455-33-061) and one for 94-05 (B01A-33-060). Both parts are superceeded by B01A-33-060A. So Mazda made an upgrade, but the upgraded parts still fail with enough use.
The upgrade may not be in the hub design itself, but you probably know they went to a larger spline on the studs in 1994 and that certainly would have generated a new part number. Not sure what the 060A part is.

Last edited by [email protected]; 05-06-2013 at 04:56 PM.
Keith@FM is offline   Reply With Quote
Old 05-06-2013, 03:58 PM   #34
Senior Member

Join Date: Feb 2007
Location: Aliso Viejo, CA
Posts: 799
Total Cats: 175
Default

Sounds as though the every season replacement schedule is common with high end SMers.

I know we rib on them but there is a wealth of knowledge in the SM community that isn't shared as publicly.

Last edited by doward; 05-06-2013 at 04:10 PM.
doward is offline   Reply With Quote
Old 05-06-2013, 04:01 PM   #35
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,326
Total Cats: 1,345
Default

Quote:
Originally Posted by Savington View Post
.. Spec Miata Wisdom® right there.
emilio700 is offline   Reply With Quote
Old 05-06-2013, 04:45 PM   #36
Senior Member
iTrader: (4)

mr_hyde's Avatar

Join Date: Jul 2009
Location: Seattle
Posts: 799
Total Cats: 25
Default

Quote:
Originally Posted by bbundy View Post
Interesting looking at Mazdacomp parts under 2004 miata

Rear hubs are $91.18 each

But they list two different bearings.
B455-33-047D BEARING $46.63
And
B455-33-047D-MV TAPER BEARING $27.37

What’s the difference? And why would they list two different options. Every Miata rear bearing I have seen has been ball type not a tapered roller. I have not had good luck with tapered rollers on any other cars.
I see the same thing but B01A-33-061 appears to be the hub without studs for the same price. Is B01A-33-060 a complete assembly with the bearings already installed? Early in the thread Andrew said the inner seals were a PITA and mentioned a ballpark price with new ARP studs at around $100 (assuming MMD pricing).
mr_hyde is offline   Reply With Quote
Old 05-06-2013, 05:06 PM   #37
Junior Member

Join Date: Mar 2011
Location: Tallahassee, FL
Posts: 279
Total Cats: 3
Default

Wow. Glad to see you're okay. That could've been way worse...

Just one more thing to add to the list of "regular maitenance" items on a track car
spitefulcheerio is offline   Reply With Quote
Old 05-06-2013, 11:11 PM   #38
Elite Member
iTrader: (12)

GeneSplicer's Avatar

Join Date: Sep 2009
Location: Birmingham, AL
Posts: 2,006
Total Cats: 147
Default

Recall our discussion 2 weeks ago (more like rambling on my behalf) about when to replace rear hubs? Face it Andrew - I'm bad Karma and will have to stop doing business with you for your safety. Glad you came out of that relatively unscathed
GeneSplicer is offline   Reply With Quote
Old 05-06-2013, 11:23 PM   #39
Senior Member

Join Date: Dec 2007
Posts: 671
Total Cats: 2
Default

Quote:
Originally Posted by bbundy View Post
Interesting looking at Mazdacomp parts under 2004 miata

Rear hubs are $91.18 each

But they list two different bearings.
B455-33-047D BEARING $46.63
And
B455-33-047D-MV TAPER BEARING $27.37

What’s the difference? And why would they list two different options. Every Miata rear bearing I have seen has been ball type not a tapered roller. I have not had good luck with tapered rollers on any other cars.
The -MV part is the same form factor as the other one but of lower quality, thus the lower price. MV stands for Mazda Value quality. The other one is OEM quality. This is not just for the bearings but for any parts from the Mazda catalog. Guess what many shops use to fix unsuspecting people's cars ... lol

Speaking of bearings, is it possible old bearings have any effects on those hub failures related to high temperature or vibration?


j_man is offline   Reply With Quote
Old 05-06-2013, 11:36 PM   #40
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,687
Total Cats: 1,562
Default

I'm stunned watching those videos and am sincerely glad everyone is alright.
I can't believe these failures didn't result in a roll.
sixshooter is offline   Reply With Quote
