Old 03-03-2016, 02:11 PM   #181
Junior Member
iTrader: (2)

Join Date: Mar 2011
Posts: 276
Total Cats: -163
Default

Doorman rears are still the standard? Just be sure to get the China ones?
blkmkiii is offline   Reply With Quote
Old 03-03-2016, 02:32 PM   #182
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,479
Total Cats: 116
Default

Too all!!!!!!!!! Very Important Info!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

The Dorman ones that come with the black wheel studs which I think is all you can get now do not take either of the Miata sized wheel studs. They do take Mitsubishi sized wheel studs. The knurl diameter is slightly smaller than the larger of the two Miata sizes.
bbundy is offline   Reply With Quote
Old 03-03-2016, 05:55 PM   #183
Newb

Join Date: Jul 2014
Posts: 20
Total Cats: 0
Default

Quote:
Originally Posted by bbundy View Post
Too all!!!!!!!!! Very Important Info!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

The Dorman ones that come with the black wheel studs which I think is all you can get now do not take either of the Miata sized wheel studs. They do take Mitsubishi sized wheel studs. The knurl diameter is slightly smaller than the larger of the two Miata sizes.
Confirmed. My Dormans came from Amazon. I found this out the hard way two weeks ago while trying to press in some ARP 100-7720 studs. Ended up reusing my old 1990 hubs and pressed in some ARP 7719's instead.
wagnerov is offline   Reply With Quote
Old 03-08-2016, 02:28 PM   #184
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

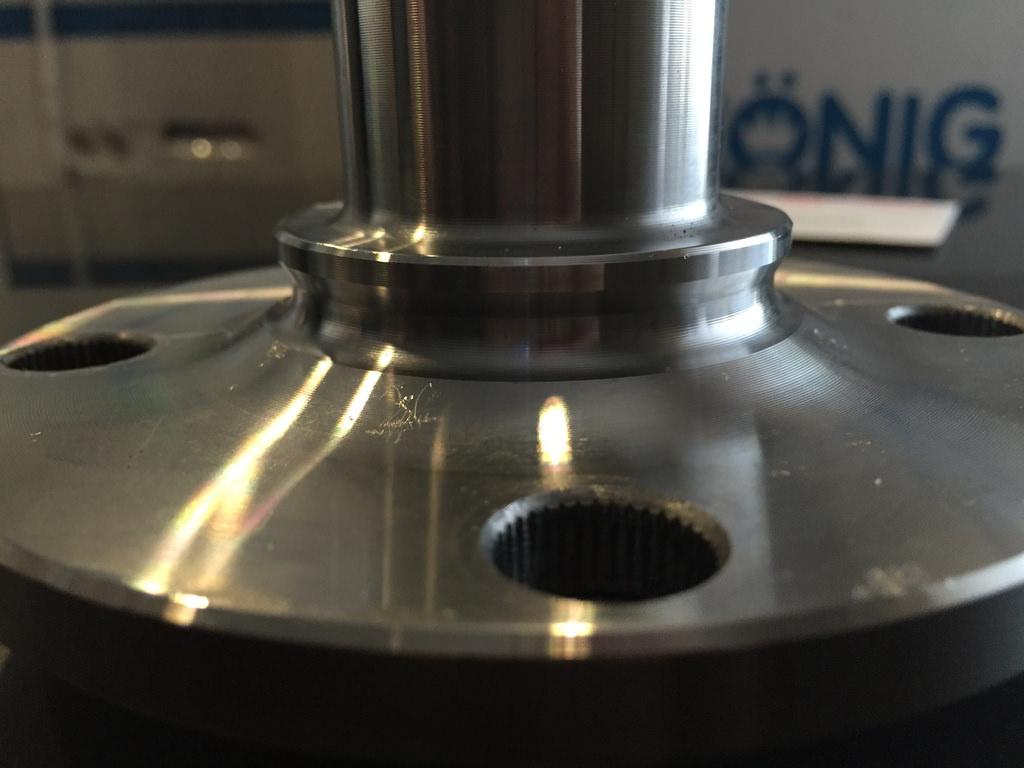

I'm finally getting around to doing my hubs this year. I pulled the rear hub flanges out of storage (bought them late 2014) and decided to check them after seeing bbundy's comment on the knurl size being off.

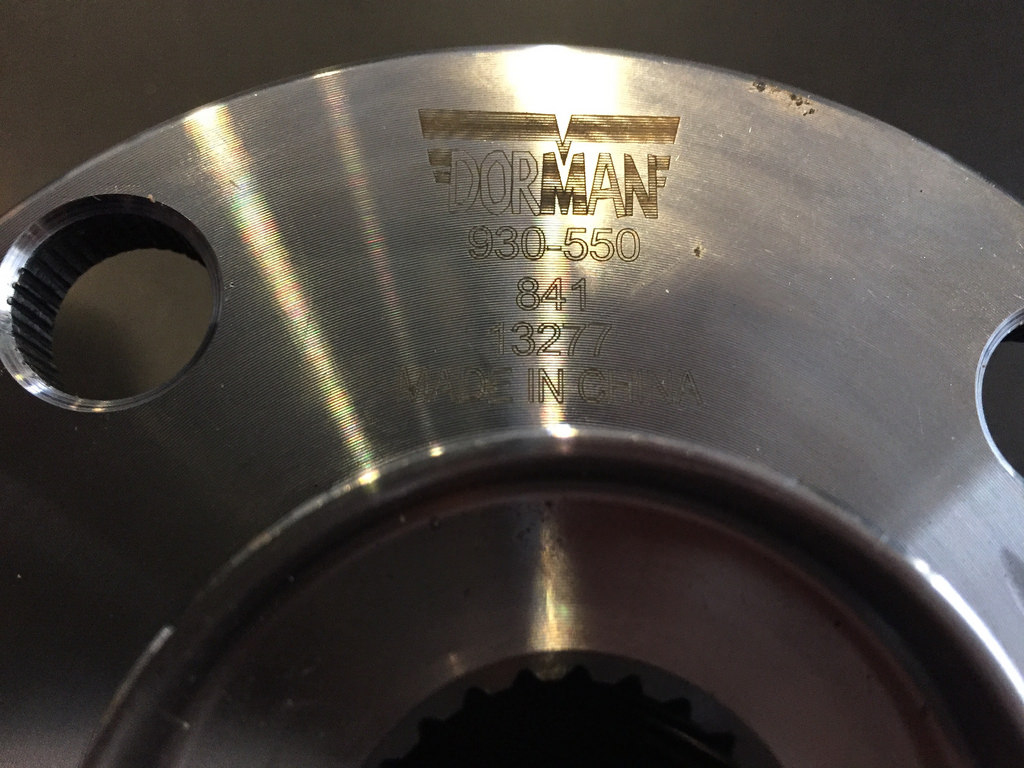

Hubs are Dorman 930-550 that I got off Amazon, the knurl diameter of the stud I removed is ~.560-562 and the diameter on the flange is ~.559.



Attached Thumbnails
When was the last time you changed your rear hubs?-24992442813_1ac819b260_b.jpg   When was the last time you changed your rear hubs?-25251612909_4f4d016608_b.jpg
Lincoln Logs is offline   Reply With Quote
Old 03-08-2016, 02:41 PM   #185
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

That seems very big. I measured the OEM hole last night at .501". And the ARP studs are .507". I just got F-body studs to try out, and those are .509"
aidandj is offline   Reply With Quote
Old 03-08-2016, 03:01 PM   #186
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,372
Total Cats: 1,334
Default

.560 is the Mitsubishi stud. OEM 90-93 is .501, but nobody should be putting original 90-93 hubs back on their car. All the replacements I've bought from Mazda have had ~.575 studs in them, which is the larger 94-05 size.
Savington is offline   Reply With Quote
Old 03-08-2016, 03:02 PM   #187
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

These are 96 hubs. Front. My mistake.

Last edited by aidandj; 03-08-2016 at 03:48 PM.
aidandj is offline   Reply With Quote
Old 03-08-2016, 03:41 PM   #188
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Ordered two Timken 510003 bearings off Amazon today. Are new seals and retaining clips required with these bearings?
Lincoln Logs is offline   Reply With Quote
Old 03-08-2016, 03:47 PM   #189
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

Yes

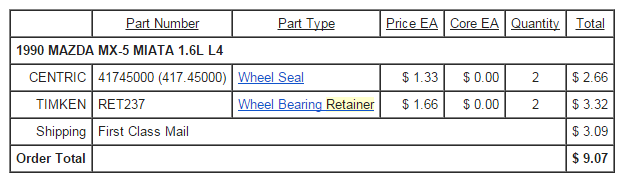

From rockauto:

Attached Thumbnails
When was the last time you changed your rear hubs?-e9cea23.png
aidandj is offline   Reply With Quote
Old 03-08-2016, 04:06 PM   #190
Supporting Vendor
iTrader: (1)

Join Date: May 2010
Location: San Diego
Posts: 491
Total Cats: 39
Default

Quote:
Originally Posted by aidandj View Post
Yes

From rockauto:
Thanks! I'm shocked RockAuto is cheaper than Amazon for these.
Lincoln Logs is offline   Reply With Quote
Old 03-08-2016, 04:07 PM   #191
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 17,999
Total Cats: 1,466
Default

I love rockauto. I replaced my upper ball joints and rear hubs, and rebuilt rear calipers, all for pretty cheap.
aidandj is offline   Reply With Quote
Old 06-07-2016, 03:08 PM   #192
Junior Member

Join Date: May 2005
Location: Tampa, FL
Posts: 150
Total Cats: -6
Default

Quote:
Originally Posted by MazDilla View Post
In light of recent events I proclaim May to be National Hub Awareness Month.
How appropriate that I came across this thread today! I replaced all four corners in the past month (May 2106) as part of the turbo build on my 243,000(+) mile NA chassis. It would be truly frightening to have this happen during vigorous street driving.
Hammerhead is offline   Reply With Quote
Old 06-07-2016, 03:16 PM   #193
Junior Member

Join Date: May 2005
Location: Tampa, FL
Posts: 150
Total Cats: -6
Default

Quote:
Originally Posted by bbundy View Post
Too all!!!!!!!!! Very Important Info!!!!!!!!!!!!!!!!!!!!!!!!!!!!!

The Dorman ones that come with the black wheel studs which I think is all you can get now do not take either of the Miata sized wheel studs. They do take Mitsubishi sized wheel studs. The knurl diameter is slightly smaller than the larger of the two Miata sizes.
I can confirm this and I wish I had seen this thread prior to buying the Dorman 930-550 hubs. I kept them around too long to return them, so I'll put them on my other 93LE. The ONLY reason this was an issue for me was because I went to the ARP extended lugs on all four corners.
Hammerhead is offline   Reply With Quote
Old 06-07-2016, 03:42 PM   #194
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Oh ****. I have new dorman rear hubs and the machine shop just pressed the ARP studs through. No mention if they where too tight. Scrap them or run them?
psyber_0ptix is offline   Reply With Quote
Old 03-07-2017, 05:09 PM   #195
Newb

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

+1 Don't be like me. Change your hubs.

supersuckers is offline   Reply With Quote
Old 03-07-2017, 05:14 PM   #196
Ich verstehe nur Bahnhof
iTrader: (3)

psyber_0ptix's Avatar

Join Date: Mar 2012
Location: Northern VA
Posts: 3,713
Total Cats: 320
Default

Oh my god. Glad you where ok.
psyber_0ptix is offline   Reply With Quote
Old 03-07-2017, 06:26 PM   #197
Elite Member
iTrader: (7)

Join Date: Jan 2008
Location: Knoxville, TN
Posts: 2,121
Total Cats: 44
Default

Dayum! Looks like you lucked out for sure.

Did poo come out?
flier129 is offline   Reply With Quote
Old 03-07-2017, 06:59 PM   #198
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,692
Total Cats: 1,562
Default

Quote:
Originally Posted by flier129 View Post
Dayum! Looks like you lucked out for sure.

Did poo come out?
Snot just came out. And whiskey.

Yeah, that's scary. Over 100mph and didn't tumble.
Kiss your wife, kids, dog, and cat.
If you have none of the above you should kiss someone else's. And call your mom. She misses you. And say a prayer of thanks. And pour one out for a homey who wasn't as fortunate. And ask that girl out you think is above your level. And take some time to just watch a sunset. And take a kid fishing that doesn't have a daddy. And bring something nice to an old widow who doesn't get many visitors. And adopt an older cat who doesn't have a chance. And feed some squirrels because they are bushy tailed rats.
sixshooter is online now   Reply With Quote
Old 03-07-2017, 09:59 PM   #199
Newb

Join Date: May 2011
Location: Gaithersburg, MD
Posts: 43
Total Cats: -3
Default

Quote:
Originally Posted by sixshooter View Post
Snot just came out. And whiskey.

Yeah, that's scary. Over 100mph and didn't tumble.
Kiss your wife, kids, dog, and cat.
If you have none of the above you should kiss someone else's. And call your mom. She misses you. And say a prayer of thanks. And pour one out for a homey who wasn't as fortunate. And ask that girl out you think is above your level. And take some time to just watch a sunset. And take a kid fishing that doesn't have a daddy. And bring something nice to an old widow who doesn't get many visitors. And adopt an older cat who doesn't have a chance. And feed some squirrels because they are bushy tailed rats.
Yeah, I've thanked my lucky stars every day for the last four months. Probably should start playing the lottery.
supersuckers is offline   Reply With Quote
Old 03-07-2017, 10:27 PM   #200
Elite Member
iTrader: (6)

Join Date: Feb 2013
Location: Staunton, Va
Posts: 2,407
Total Cats: 201
Default

Ok, now I'm freaked out. Is it the hub or a bearing failure? I have replaced the bearings on my 95, but not the actual hub.
ryansmoneypit is offline   Reply With Quote
