Old 02-27-2014, 12:43 PM   #161
Newb

Join Date: Oct 2013
Location: Raleigh, NC
Posts: 26
Total Cats: 1
Default

Is the stud you are measuring brand new or has it already been pressed in? The knurling on my dorman studs measured .563-.570 depending on where you measured but it was obviously crushed from being pressed in.
Pyr0monk3y is offline   Reply With Quote
Old 02-27-2014, 12:51 PM   #162
Junior Member

Join Date: Mar 2010
Location: Durham, NC
Posts: 406
Total Cats: 19
Default

It was one that was pressed in. The ARP stud was not going in. A 12 ton press got it about 30% in with significant amounts of metal collecting in front of the stud.
FatKao is offline   Reply With Quote
Old 02-27-2014, 02:41 PM   #163
Elite Member

codrus's Avatar

Join Date: Mar 2007
Location: Santa Clara, CA
Posts: 3,875
Total Cats: 344
Default

Quote:
Originally Posted by FatKao View Post
It was one that was pressed in. The ARP stud was not going in. A 12 ton press got it about 30% in with significant amounts of metal collecting in front of the stud.
A Les Schwab once pressed a too-big stud into one of my hubs. They must have had a more manly press than you do, because it went all the way in but deformed the hub outwards. That was the end of that track day.

--Ian
codrus is offline   Reply With Quote
Old 03-04-2014, 06:52 PM   #164
Senior Member
iTrader: (7)

Join Date: Nov 2009
Location: Mount Prospect, IL
Posts: 678
Total Cats: 3
Default

Quote:
Originally Posted by Erat View Post
You should have.

It's the hubs that are failing, not the bearings.


So what are people buying that aren't failing? New "redesigned" v8r hubs?

Read the thread an posted before i refreshed to see the one above me.

Edit2*
This is somewhat common, and has happened before on stock hubs, on spec miatas. Here is one for example. Pictures inside:
XceedSpeed

Hub Failure - YouTube

guys, that was my car... and a couple of things worth mentioning...

That was my 1st Spec miata. It had been a spec miata (100% original engine, trans and rear hubs when I bought it in 2007 after being a spec miata since early 2000 and over 38k miles including 2 10 hour enduro races before I ever saw it)

I had 3 left side crashes (1 per year) since owning it and although visually checked the hubs after the crashes, never saw any cracking and didn't think to change the rear hub and bearing (no play so why change what didn't appear broke?)

..so in summary, 3 left rear crashes, over 45k track miles with 89k on the odo probably overdue to change the left rear hub especially after the hits!

I did (just for piece of mind) change the right side hub after the fact so the 'new owner' shortly after this incident got all new hubs and bearings at all 4 corners!
chris101 is offline   Reply With Quote
Old 06-03-2014, 03:33 AM   #165
Junior Member
iTrader: (4)

Join Date: Sep 2010
Location: Australia
Posts: 168
Total Cats: 10
Default

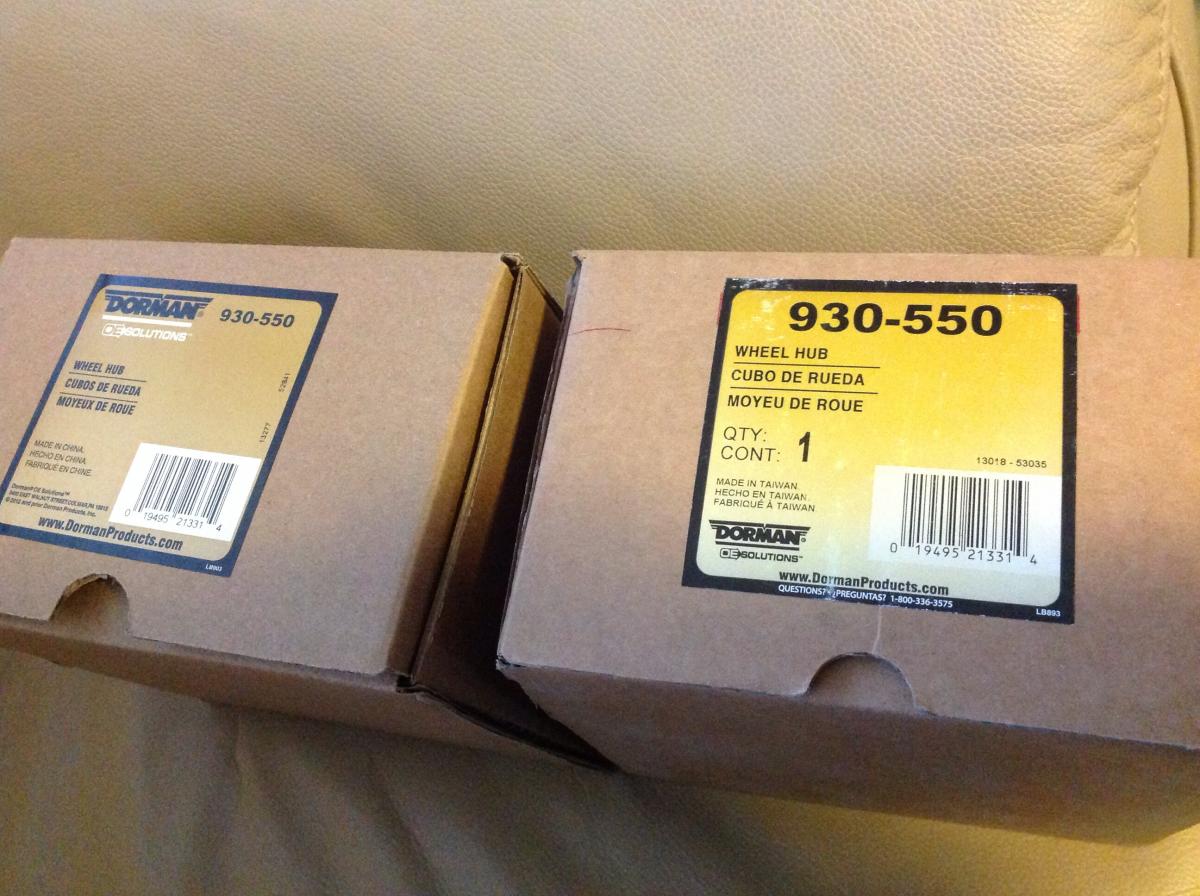

...and Rockauto fail, again. I also got one Taiwanese and one Chinese hub. WTF.

Can anyone out there offer any input on the apparent durability of the Dorman hubs under extended track use (so far)?
Attached Thumbnails
When was the last time you changed your rear hubs?-image.jpg
zossy1 is offline   Reply With Quote
Old 09-13-2015, 04:00 PM   #166
Junior Member

Join Date: Apr 2013
Location: toronto
Posts: 124
Total Cats: 7
Default

endura is offline   Reply With Quote
Old 09-13-2015, 09:38 PM   #167
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,653
Total Cats: 1,559
Default When was the last time you changed your rear hubs?

Wow! Just wow!
sixshooter is online now   Reply With Quote
Old 09-13-2015, 11:00 PM   #168
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 14,355
Total Cats: 1,322
Default

Whose rear hubs? OEM, old V8R, or new 0.500" V8R?
Savington is offline   Reply With Quote
Old 09-13-2015, 11:46 PM   #169
Junior Member

Join Date: Apr 2013
Location: toronto
Posts: 124
Total Cats: 7
Default

Quote:
Originally Posted by Savington View Post
Whose rear hubs? OEM, old V8R, or new 0.500" V8R?
OEM/new. he's guessing around 30 hours. 400whp/2700lb/NT01's.


Past month I changed out both rears. Halfway through a track day drivers side had developed a hellacious howl. Shop said the hub had cracked 3/4 around the flange and it fell apart during disassembly. Unknown mileage OEM hubs, I put on 60-70 additional hours on them. 200whp/2350lb/all on 200TW rubber except 6X20 min. W2W on SM6's.
endura is offline   Reply With Quote
Old 09-15-2015, 10:02 PM   #170
d k
Junior Member
iTrader: (4)

Join Date: Feb 2011
Posts: 257
Total Cats: -1
Default

Whi makes the best hubs out there?

Which ones are more prone to fail - front or rear?

D
d k is offline   Reply With Quote
Old 09-15-2015, 10:35 PM   #171
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,572
Total Cats: 11
Default

Wow.

I just ran LRP last week and started getting a high speed vibration that felt worse than just picking up some marbles on the tires. I'll be checking driveshaft, rear end, axles AND HUBS before driving it again. Best case its warped rotors/pad transfer from me throwing new DTC-60's on rotors that are almost to minimum
240_to_miata is offline   Reply With Quote
Old 09-16-2015, 09:41 AM   #172
Elite Member
iTrader: (2)

fooger03's Avatar

Join Date: Jan 2009
Location: Columbus, OH
Posts: 4,132
Total Cats: 187
Default

My rear hubs are at about 185,000 miles.

Front hubs probably at 25,000 miles.
fooger03 is offline   Reply With Quote
Old 09-17-2015, 07:21 AM   #173
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Quote:
Originally Posted by fooger03 View Post
My rear hubs are at about 185,000 miles.

Front hubs probably at 25,000 miles.
RIP Fooger
Mobius is offline   Reply With Quote
Old 02-21-2016, 09:55 PM   #174
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

BUUUMMMPPP!!!

Adding my name to the list.

Thank goodness, no video, but I do have pictures:







Both sides had circumfurential cracks all the way around. On the passenger side, the cracking was only evident on the outside. But on the driver's side, cracks had gone all the way through. I honestly have no idea why this didn't launch a wheel -- but I'd rather be lucky . . . .
hornetball is offline   Reply With Quote
Old 02-21-2016, 11:20 PM   #175
Junior Member

Join Date: May 2012
Posts: 68
Total Cats: -3
Default

Yuk.
compaddict is offline   Reply With Quote
Old 02-22-2016, 03:28 AM   #176
afm
Senior Member
iTrader: (3)

Join Date: Nov 2015
Location: Berkeley, CA
Posts: 583
Total Cats: 58
Default

Quote:
Originally Posted by hornetball View Post
Both sides had circumfurential cracks all the way around. On the passenger side, the cracking was only evident on the outside. But on the driver's side, cracks had gone all the way through. I honestly have no idea why this didn't launch a wheel -- but I'd rather be lucky . . . .
Scary stuff. This inspired me to put my blueprinted rear knuckles from my spares box onto my car.
afm is offline   Reply With Quote
Old 02-22-2016, 10:15 AM   #177
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Just thought I would add some info on my hubs for the database:

Original to the car Mazda OEM hubs.

92,000 miles on the chassis. 30,000 miles Auto-X/Track. This has been a dedicated Auto-X/HPDE/TT car for a number of years. No W2W. No crashes. Just track duty.

135 RWHP.

2400 pounds with fuel and driver.

949 BGK and R-Comps. Normal cornering G's around 1.2 to 1.3.

Also, in my case the cracks appeared first on the outside surface where it is easy to see once the brake disk is removed. The last time I did this was 1.5 years ago when I reverted back to OEM disks from a first gen Goodwin rear BBK. At that time, the hubs were wire brushed and no cracks were observed. From here on out, I'll be inspecting every time I change rear pads.
hornetball is offline   Reply With Quote
Old 02-23-2016, 04:26 PM   #178
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,176
Total Cats: 261
Default

Wow. Good catch. Regular inspections are now on the must-do list.

My 2.0 build is a 180k mile chassis, so new rear hubs are now on the happens-before-first-track-day list.
Mobius is offline   Reply With Quote
Old 02-23-2016, 05:01 PM   #179
Senior Member
iTrader: (6)

Join Date: Jun 2010
Location: San Rafael, CA
Posts: 1,124
Total Cats: 41
Default

I am gonna lump rear inspection in with fronts. Every 3 track days seems wise given the consequences.
k24madness is offline   Reply With Quote
Old 02-23-2016, 05:15 PM   #180
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

Quote:
Originally Posted by Mobius View Post
My 2.0 build is a 188k mile chassis, so new rear hubs are now on the happens-before-first-track-day list.
FTFY.
curly is offline   Reply With Quote
