When was the last time you changed your rear hubs?


Old 05-18-2013, 10:23 PM
  #81
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,949
Total Cats: 1,672
Default

Originally Posted by codrus View Post
Any thoughts on the useful lifetime of ARP wheel studs?

--Ian
We have never seen an ARP Miata wheel stud fail. We have a few ART studs fail so we stopped using them two years ago.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 05-19-2013, 01:10 AM
  #82
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 3,218
Total Cats: 113
Default

Originally Posted by Morshu View Post
My axle was stuck in my hub, and even after applying pb blaster daily for a week and a half, and taking it to 3 different shops that used their 20 ton presses on it, it still wouldn't budge. I had to buy a new knuckle/hub from a wrecked miata to complete my torsen swap.

You can try to separate them, but my advice would be to just buy another axle and knuckle, and a new hub and wheel bearing. Don't forget anti-seize on the axle splines.
That's how I ended up with Planet-Miata rebuilt rear spindles. Nothings would get the old half-shafts out.

Originally Posted by emilio700 View Post
We have never seen an ARP Miata wheel stud fail. We have a few ART studs fail so we stopped using them two years ago.
I'm confused.

ART states they use ARP studs (at least the ones ordered through Flyin' Miata) which is what currently resides on my track bitch.

Flyin' Miata : Chassis : Suspension components : Blueprinted front wheel hub

I apologize, I ordered my ART hubs with ARP studs. But you can order "stock" or "ARP studs" and I ordered mine with ARP.

So was it "stock" studs that broke on you?
z31maniac is offline
Old 05-19-2013, 03:01 AM
  #83
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,949
Total Cats: 1,672
Default

Originally Posted by z31maniac View Post
I'm confused.

ART states they use ARP studs (at least the ones ordered through Flyin' Miata) which is what currently resides on my track bitch.

I apologize, I ordered my ART hubs with ARP studs. But you can order "stock" or "ARP studs" and I ordered mine with ARP.

So was it "stock" studs that broke on you?
Black ART brand extended studs, not sourced or manufactured by ARP, not OEM. Year ago.

Maybe ART no longer offers their house brand studs? I have no idea as we tossed the installed and NIB spares we had and switched to ARP's after that race.

End of this video
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 05-19-2013, 04:40 AM
  #84
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,094
Total Cats: 1,876
Default

Originally Posted by codrus View Post
Any thoughts on the useful lifetime of ARP wheel studs?

--Ian
$104 for a set of 4. I'll change them once a year at that price.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Reply
Leave a poscat -1 Leave a negcat
Old 05-19-2013, 12:25 PM
  #85
Elite Member

Join Date: Oct 2011
Location: OKC, OK
Posts: 3,218
Total Cats: 113
Default

Hmm, interesting. I just went out and checked my car, the front studs from the ART hubs that are supposed to be "ARP studs" are black and shorter. The rear studs from my Planet-Miata rebuild spindles/hubs are also supposed to be ARP, but are gold and a bit longer.

Does ARP only sell gold studs? I'm kind of unhappy if didn't actually get ARP when that's what I thought I was paying for.
z31maniac is offline
Old 05-19-2013, 01:04 PM
  #86
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,094
Total Cats: 1,876
Default

ARPs are all gold plated AFAIK. The ART studs that I no longer use (I broke one last year as well) are black.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Reply
Leave a poscat -1 Leave a negcat
Old 05-21-2013, 12:06 PM
  #87
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,280
Total Cats: 178
Default

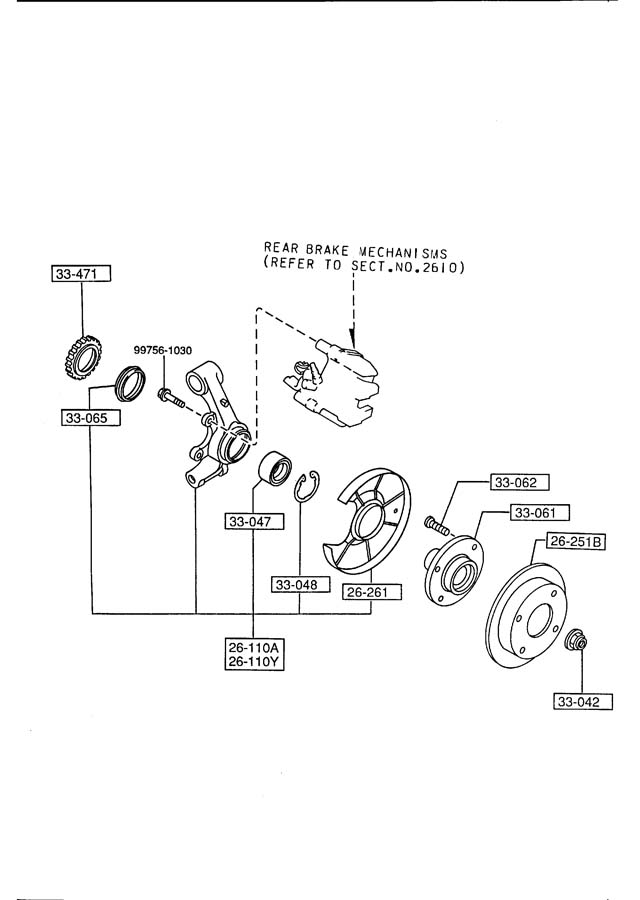

I'm trying to gather the parts for the rear hub swap in preparation of installing the TSE BBPK and need some clarification. I've already done the fronts, but have never done the rears on a Miata.

Help me with what parts I need to order to refresh the rear corners.



33-042
33-061 (includes 33-062)
33-048
33-047

?
Attached Thumbnails When was the last time you changed your rear hubs?-cn01991.jpg
Scrappy Jack is offline
Old 05-21-2013, 02:10 PM
  #88
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,094
Total Cats: 1,876
Default

33-065
33-047 (or FLAPS equivalent)
reuse 33-048
remove 26-261
replace 33-062 with ARP studs
33-061
33-042

Remember that ALL new hubs are the 94-05 style, so when you're ordering ARP studs for new hubs, order them for the 94-05 rears.

I just put several sets of ARP studs in stock and I'll get them on our website in a day or two - $104 per set of 4.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Reply
Leave a poscat -1 Leave a negcat
Old 05-21-2013, 05:03 PM
  #89
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 290
Total Cats: 5
Default

Are Dorman 930-550 replacements found at Napa and such worthy of track service? I can get them for $22 a side.
Sokool is offline
Old 05-21-2013, 07:42 PM
  #90
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,949
Total Cats: 1,672
Default

Posted wrong video before. The first one was two left front studs broken in 4hr enduro, spotted at fuel stop. We elected to limp around and just take it easy on the left turns. Next day we broke all 4 LR studs. Here's that video (at the end):

__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 05-21-2013, 08:12 PM
  #91
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,949
Total Cats: 1,672
Default

Originally Posted by Sokool View Post
Are Dorman 930-550 replacements found at Napa and such worthy of track service? I can get them for $22 a side.
That's what we have switched over to. Made in Taiwan. Radiused where the OEM's fail.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 05-21-2013, 08:16 PM
  #92
Junior Member
iTrader: (1)

Join Date: Jan 2009
Location: Bradenton, FL
Posts: 290
Total Cats: 5
Default

Good to know!
Sokool is offline
Old 05-22-2013, 09:41 AM
  #93
Elite Member
iTrader: (2)

Join Date: Sep 2008
Location: Central Florida
Posts: 3,280
Total Cats: 178
Question

Originally Posted by emilio700 View Post
That's what we have switched over to. Made in Taiwan. Radiused where the OEM's fail.
Is it safe to assume you are swapping out the included Dorman wheel studs with ARPs?
Scrappy Jack is offline
Old 05-22-2013, 02:23 PM
  #94
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,949
Total Cats: 1,672
Default

Originally Posted by Scrappy Jack View Post
Is it safe to assume you are swapping out the included Dorman wheel studs with ARPs?
I would assume that to be self evident. We never use OEM studs on the race cars. Our 95R street project car has OEM studs but those will be swapped when we install the Dorman rear flanges.
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 05-22-2013, 07:46 PM
  #95
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,381
Total Cats: 313
Default

Originally Posted by Sokool View Post
Are Dorman 930-550 replacements found at Napa and such worthy of track service? I can get them for $22 a side.
From where? I am showing $44 per at Napa.
Mobius is offline
Old 05-22-2013, 09:02 PM
  #96
Supporting Vendor
iTrader: (3)

emilio700's Avatar

Join Date: May 2005
Posts: 5,949
Total Cats: 1,672
Default

Originally Posted by Mobius View Post
From where? I am showing $44 per at Napa.
RockAuto Parts Catalog
__________________


www.facebook.com/SuperMiata

949RACING.COM Home of the 6UL wheel

.27 SNR
emilio700 is offline
Old 05-22-2013, 09:16 PM
  #97
Supporting Vendor
Thread Starter
iTrader: (31)

Savington's Avatar

Join Date: Nov 2006
Location: Sunnyvale, CA
Posts: 15,094
Total Cats: 1,876
Default

I have a Mazda hub floating around we were using for R&D. I'll try to post some photos of the Dorman part and the Mazda part together later this week.
__________________
Trackspeed Engineering
High-Performance Turbo Specialists - Sunnyvale, CA - 650-701-7223 - Email us!
Originally Posted by codrus View Post
Basically I've come over to the camp of "If something is a reliability problem on the track, just ask Andrew and do what he says".
Savington is offline
Reply
Leave a poscat -1 Leave a negcat
Old 05-22-2013, 11:16 PM
  #98
Elite Member
iTrader: (2)

Mobius's Avatar

Join Date: May 2008
Location: Portland, Oregon
Posts: 3,381
Total Cats: 313
Default

Originally Posted by emilio700 View Post
Derp. Thanks Emilio.
Mobius is offline
Old 05-23-2013, 11:58 AM
  #99
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: South Bay, CA
Posts: 351
Total Cats: -2
Default

Does Dorman have a solution for the front hubs that would save some coin too? Didn't see it on Rock Auto's site or NAPA for that matter.
comradefks is offline
Old 05-23-2013, 01:05 PM
  #100
Elite Member

Join Date: Jul 2005
Location: Anacortes, WA
Posts: 2,501
Total Cats: 125
Default

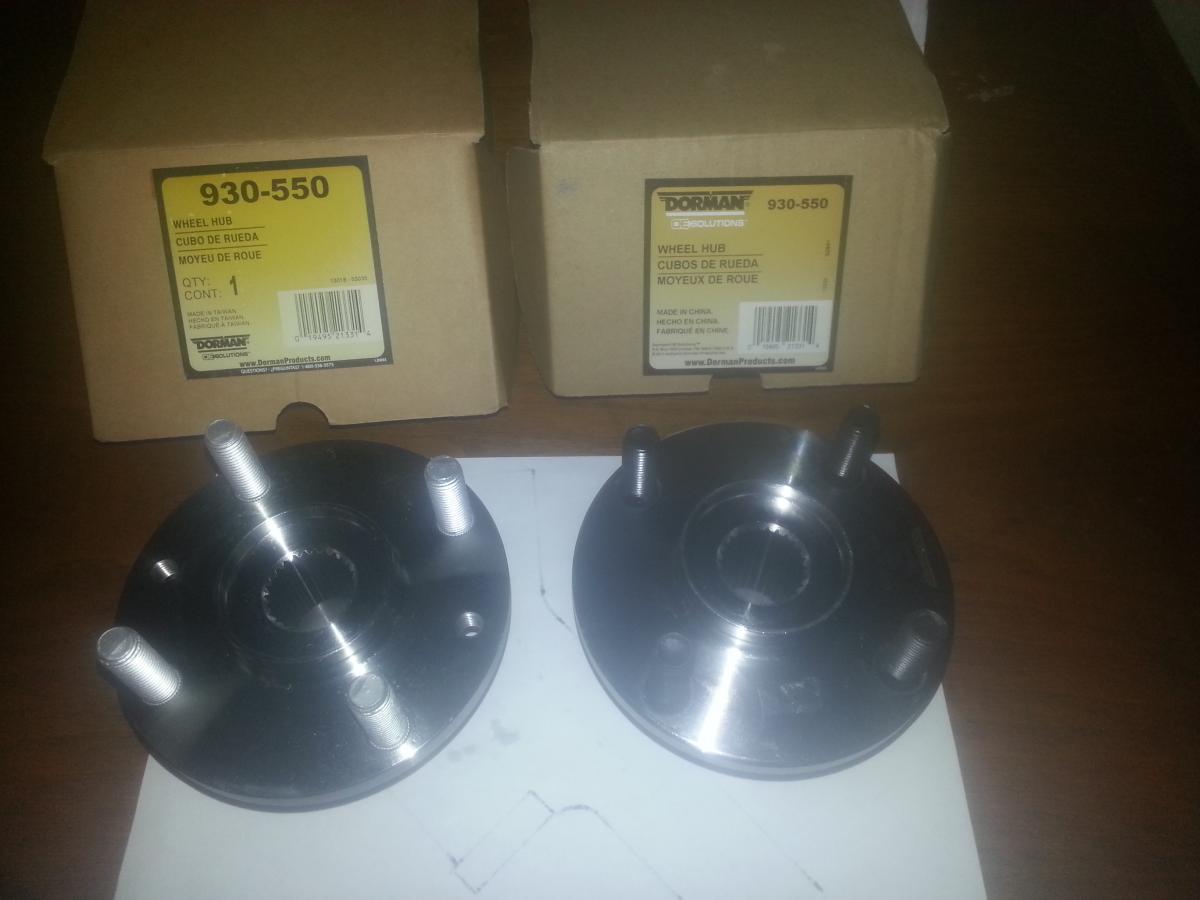

What hubs are people getting when they order the Dorman hubs?
I ordered two hubs at once from Amazon and here is what I got.

One on the left says made in Taiwan has OEM looking studs with 1990-1993 knurl diameter and two threaded holes in the flange.

One on the right says made in China has black studs with 1994+ knurl diameter and no threaded holes in the flange.

Attached Thumbnails When was the last time you changed your rear hubs?-20130523_071323.jpg
bbundy is offline
