Ford also made a manifold that I used on the ZETEC that had that full reversal of flow. The thing flowed great from 5000 R.P.M. but was a pig below that, I believe that was inhearent in the runner the design though. You could stick your hand in the mouth of those runners. (Yea I looked pretty funny with my arm in there just to try it.)That may be the best way to ensure even distribution though. The down side is T/B placement. I've been running my CosmosFlowWorks solver pretty heavy lately hunting for my optimal plenum design, I need more ram...
TravisR is offline   Reply With Quote
Old 11-24-2008, 12:53 AM   #182
Junior Member

Join Date: Apr 2008
Posts: 350
Total Cats: -2
Default

I was thinking about inverting the Cosworth Duratec design. Instead of Scott's 45-degree runners, make them straight, and maybe a little shorter. The throttle body would be above them in the stock location, and the plenum would wrap around downward. The exact implementation would depend on preserving access to oil filter, clutch slave, etc.

One European Audi tuner made a 1.8t manifold that was basically a straightened out turbine scroll, with the t/b feeding a chamber that tapered along its length, connected to the main plenum by a long slot. If done right, the flow through the slot would be uniformly distributed, and the charge would trade its velocity in the intercooler piping for pressure in the plenum very efficiently. That part of it might be something that would display very effectively using FlowWorks.

Summarizing my thinking of the afternoon, it makes sense to have low velocity in the plenum, and you want to do everything you can to keep the cylinders from screwing with each other.
SolarYellow510 is offline   Reply With Quote
Old 11-24-2008, 10:32 AM   #183
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,872
Total Cats: 1,790
Default

Quote:
Originally Posted by SolarYellow510 View Post
I was thinking about inverting the Cosworth Duratec design. Instead of Scott's 45-degree runners, make them straight, and maybe a little shorter. The throttle body would be above them in the stock location, and the plenum would wrap around downward. The exact implementation would depend on preserving access to oil filter, clutch slave, etc.

here you go:

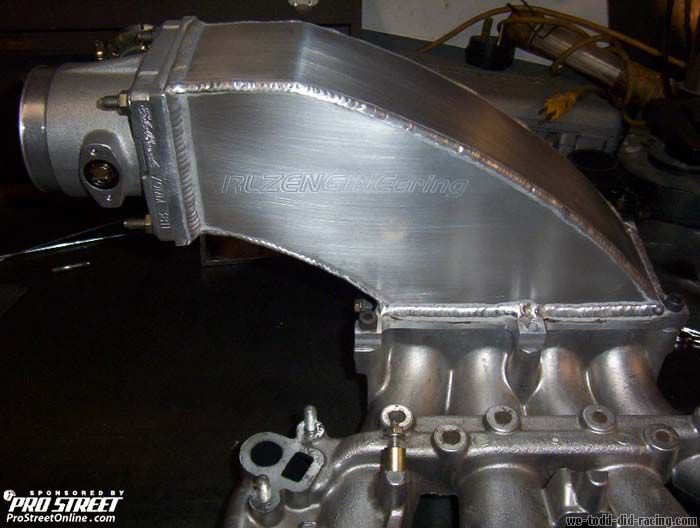

Name:  mymanifold2.jpg
Views: 5
Size:  45.7 KB




looks like the RSX-S has a similar design to what you're really talking about:

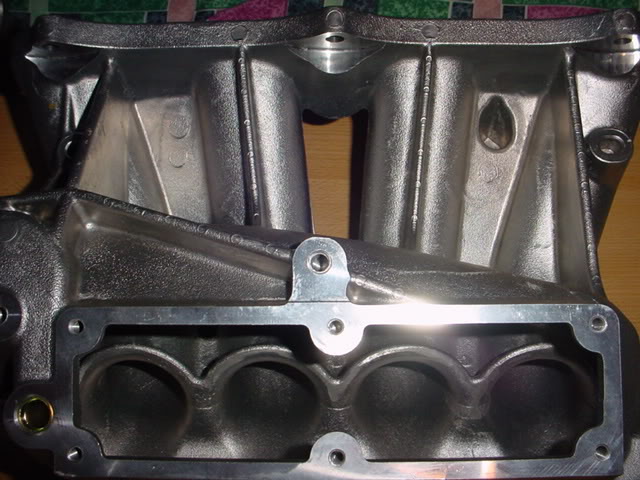

Name:  DSC01410.jpg
