Old 05-13-2014, 03:20 PM   #2421
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Quote:
Originally Posted by Jeffbucc View Post
Tempting, all cool cars as taught by the car mod gods of 2 fast 2 furious, shoot flames, but the OCD in me knows I'd melt my rear bumper, so no!
The OCD in me has to shoot flames. I think it has to do with my inner white trash that seems to surface at times.
ScottyP3821 is offline   Reply With Quote
Old 05-14-2014, 12:22 PM   #2422
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by ScottyP3821 View Post

The OCD in me has to shoot flames. I think it has to do with my inner white trash that seems to surface at times.
We all have our inner rednecks. Some worse than others.
Jeffbucc is offline   Reply With Quote
Old 05-14-2014, 12:53 PM   #2423
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Flame soot cleans up nicely with a clay bar. Don't fear the flames!
hornetball is offline   Reply With Quote
Old 05-14-2014, 01:13 PM   #2424
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

Yeah, I was a little overwhelmed by all this too. I had never really used a timing light before, but it's dead simple.
Harv is offline   Reply With Quote
Old 05-15-2014, 05:03 AM   #2425
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Hmm well I'm not sure if it is just the timing light or me that is messing up. After hooking up the light to Spark #1 wire and checking timing with it fixed in TS at 10 the light is still displaying 0.

The timing light displays the correct engine revs, but the timing shows zero. Eyeballing the timing mark though shows it is holding at 10, and TS displays 10 as well. I double checked the manual to make sure it was hooked up right so I know that isn't the issue.

In the manual it says connect positive and negative to the battery terminals, would connecting the negative to the engine ground help?

I know eyeballing is a crap shoot but it looks like it matches up. This car is so damn loud. When I turn it over it revs to 4k and then goes down to idle, surprises the hell out of me.
Jeffbucc is offline   Reply With Quote
Old 05-15-2014, 05:56 AM   #2426
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,443
Total Cats: 417
Default

Yes. Timing light has to be grounded to the block to work correctly, at least that's how mine is.
rleete is offline   Reply With Quote
Old 05-15-2014, 07:27 AM   #2427
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

Quote:
Originally Posted by Jeffbucc View Post
I know eyeballing is a crap shoot but it looks like it matches up. This car is so damn loud. When I turn it over it revs to 4k and then goes down to idle, surprises the hell out of me.
If the timing marks are o.k. I think you are fine - my timing light doesn't even have a display...

About the 4k rev - turn your "Idle cranking duty/steps" down - I think this has to do with your adjustment at the idle screw. Cut the duty at your actual ambient temperature down in 10% steps and see whats happening...
Zaphod is offline   Reply With Quote
Old 05-15-2014, 07:53 AM   #2428
Newb

Join Date: Jan 2014
Posts: 10
Total Cats: 0
Default

On a digital timing light you would use the arrow buttons to adjust the timing light until the timing mark on your crank is at TDC, then the number on your timing light display is your timing.
TheDentist is offline   Reply With Quote
Old 05-15-2014, 09:34 AM   #2429
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Are we really going down this long road on how to set base timing? Its easy. Hook up the ground clamp to the hoist hook that you used to pull the motor. Connect the positive to the blue clip thats next to the intake. then hook the trigger sensor to to the #1 cop harness. Then time the sucker. I dont use any fancy *** timing light and I have never had any issues.

Ninja edit. Dont trust your display trust your timing marks and the flashy light
ScottyP3821 is offline   Reply With Quote
Old 05-15-2014, 09:36 AM   #2430
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

I think this may be getting to the point where you need to post your tune
ScottyP3821 is offline   Reply With Quote
Old 05-15-2014, 11:43 AM   #2431
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,262
Total Cats: 870
Default

Quote:
Originally Posted by ScottyP3821 View Post
trust your timing marks and the flashy light
Came here to say this. It sounds like your timing light is far too complicated. You don't have a distributor so don't worry about the rest of the buttons on the timing light. Set it to zero and then follow one of the many many guides for setting your timing.

You can do this. srs.
EO2K is offline   Reply With Quote
Old 05-15-2014, 12:13 PM   #2432
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Thanks all. I only had about 30 minutes to mess with it the other night so I didn't have much time to look into it further. Headed down tonight to work on it again.

I'm not worried about not being able to do it, just ensuring I do it right. I'm looking at Leafy's guide for help.(https://www.miataturbo.net/megasquir...-timing-50030/)

Don't think I'm hopeless, I am just taking my time(the little I have these days).

I've posted the tune before Scotty but here is another link if you want to take a look.

https://www.dropbox.com/s/yd53lxkicq...0_18.17.19.msl
Jeffbucc is offline   Reply With Quote
Old 05-15-2014, 12:44 PM   #2433
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

Hat is a log, not the tune... ;-)
Zaphod is offline   Reply With Quote
Old 05-15-2014, 12:55 PM   #2434
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Zaphod View Post
Hat is a log, not the tune... ;-)
Woops, grabbed the wrong link.

https://www.dropbox.com/s/nvvx0tjnlo...ffbucc5-14.msq
Jeffbucc is offline   Reply With Quote
Old 05-17-2014, 04:42 PM   #2435
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Got some free time today and was able to confirm my base timing is correct. Zaphod recommended turning down my Idle cranking duty/steps a little which helped with the high rpm initial starting, but I still need to fine tune it a little.
Jeffbucc is offline   Reply With Quote
Old 05-17-2014, 05:57 PM   #2436
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Here is a log of it idling

https://www.dropbox.com/s/5lx9bvfgw7....07%20copy.msl

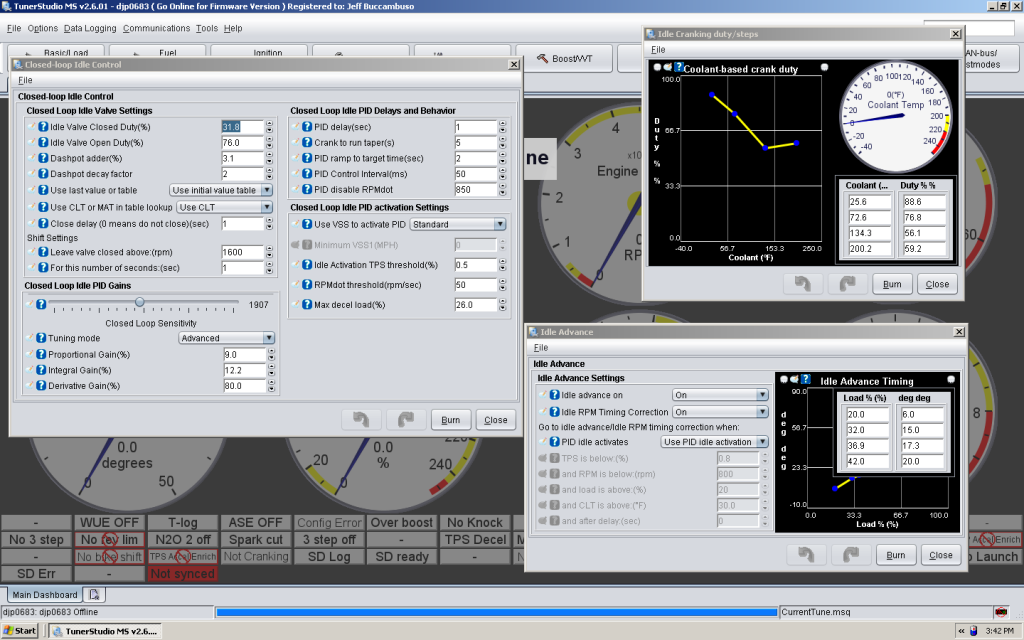

Picture of the closed loop idle settings



and a video of the slight oscillation in idle still. My TS gauge is still showing +.5-1 AFR higher than the AEM gauge. Still need to mess with the voltage calibration to get it more perfect.

I didn't apply throttle in the video since I'm not sure what setting is causing such a small throttle input to cause it to rev so high.. I see an area in TS where you can invert the TPS? Maybe the car is reading full throttle upon minor blips.

Excuse the video quality, battery in my camera is dead and used the cell phone.

Attached Thumbnails
93' Miata stolen and flipped build thread-parallelspicture6.png
Jeffbucc is offline   Reply With Quote
Old 05-19-2014, 03:32 PM   #2437
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

video no worky for me says its private.
ScottyP3821 is offline   Reply With Quote
Old 05-19-2014, 03:34 PM   #2438
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

I will say this your PID settings throw a red flag to me immediately

EDIT

Just looked through your log you should go back to open loop and tuned your idle better before entering closed loop.

So go to open loop and find your idle zone and make sure the ign timing is the same in the idle area. then go to your VE and do the same with your fuel so you can idle at 14.7 or close to it.
Also if your idle speed is still crazy high you will want to adjust your idle screw and then verify ign and fuel one more time so everything is nice and smooth. Now your ready for CL.

Go in and do and idle valve test in open loop this will give you settings for closed loop idle. What you want to do is set the test to 100 and work down until the idle begins to drop. Write that number down.

Then continue and till you reach the idle target. then write that number down.

Next you plug these settings in place of closed duty and open duty. Then you will be ready to tune PID.

This is shitty instructions cause im better at giving them in person then on paper but maybe this helps you idk. Rick has a great comment he made a while back on how to tune it perfectly but I cant find it. His comment was my Ah Ha moment and I should have framed it and put it on the wall.

Last edited by ScottyP3821; 05-19-2014 at 03:46 PM.
ScottyP3821 is offline   Reply With Quote
Old 05-19-2014, 03:49 PM   #2439
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

ScottyP3821 is offline   Reply With Quote
Old 05-19-2014, 05:10 PM   #2440
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by ScottyP3821 View Post
Thanks Scotty, as always. Took/am taking a couple days off working on it. Need to relax for a while. I'll try open tuning later.

Here's a working link

Also. Is that high of a derivative a bad thing? I remember reading you don't want to dampen it that much(80+%).
Jeffbucc is offline   Reply With Quote
