Old 05-05-2014, 11:48 AM   #2361
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,245
Total Cats: 864
Default

Quote:
Originally Posted by Braineack View Post
has an aftermarket ECU that controls the idle speed...

...manually ***** with the throttle bleed screw to set idle speed and throws all the CL/PID tuning and rpm targets to the wind.
+1
EO2K is offline   Reply With Quote
Old 05-05-2014, 12:23 PM   #2362
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Hey I at least was smart enough to write down the original position!
Jeffbucc is offline   Reply With Quote
Old 05-05-2014, 12:30 PM   #2363
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 11,892
Total Cats: 486
Default

It's almost like you're on 3 cylinders. That would explain the wet #4 and smoke.
curly is offline   Reply With Quote
Old 05-05-2014, 12:53 PM   #2364
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

+1 please verify that youget spark on all 4 cylinders...!
Zaphod is offline   Reply With Quote
Old 05-05-2014, 01:04 PM   #2365
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Sounds like 3 cylinders fo sho
vteckiller2000 is offline   Reply With Quote
Old 05-05-2014, 01:38 PM   #2366
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,678
Total Cats: 230
Default

Did you already verify base timing is synced with MS?
Fireindc is offline   Reply With Quote
Old 05-05-2014, 02:33 PM   #2367
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,511
Total Cats: 1,565
Default

I would unplug the FP relay, go into test mode, and test Spark A-D and Fuel A-D and see what's not firing.

Or use some archaic method like pulling and smelling spark plugs, and the use of voodoo dolls and tarot cards.
Braineack is offline   Reply With Quote
Old 05-06-2014, 09:54 AM   #2368
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Just go through and unplug each coil and see which one doesnt get spark. May be your harness, maybe a jumper(s) on your squirt. Also set your idle speed in open loop at the throttle body at your desired idle then go to CL and never touch the screw again and go into test mode to see your high/low idle steps etc etc theres several how to's around here and tune cl and never touch the screw again youll just "screw it up".(see what I did there)

Ninja Edit: Also make sure your idle VE cells are the same this helps keep idle stable and from wandering around
ScottyP3821 is offline   Reply With Quote
Old 05-07-2014, 01:53 AM   #2369
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

Zaphod is offline   Reply With Quote
Old 05-07-2014, 04:49 AM   #2370
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Haven't had a chance to check the COP harness to see if it is faulty. I'm hoping that is the issue, since it will be an easy fix if so.

I never have checked the timing. Mostly due to probably foolish hopes that I didn't need to as I never messed with it in the first place...I know, stupid. Need to read up on matching the base timing.

Training all my new employees and covering shifts and working about 12+ a day leaves me with not much energy to want to work on the car.

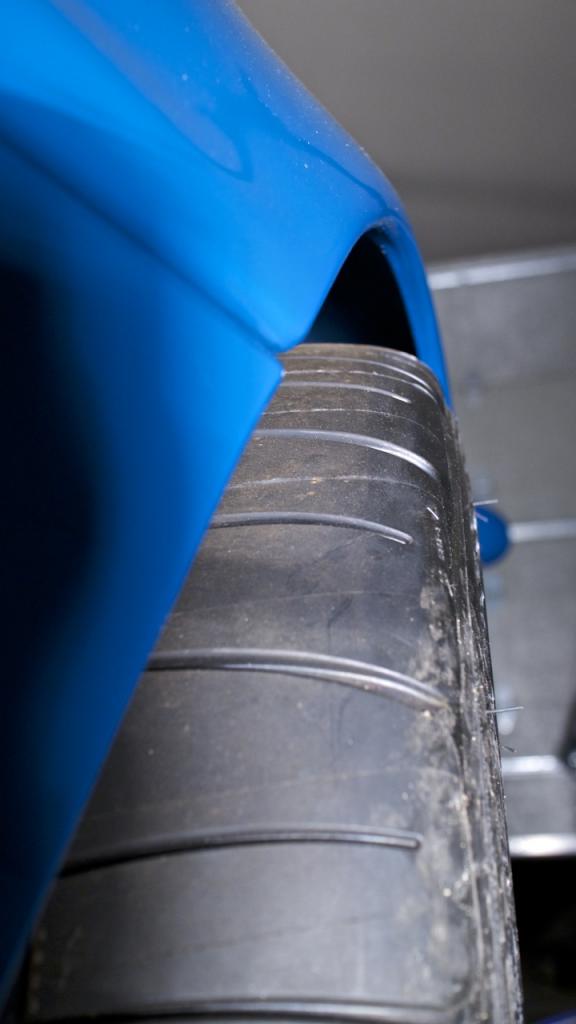

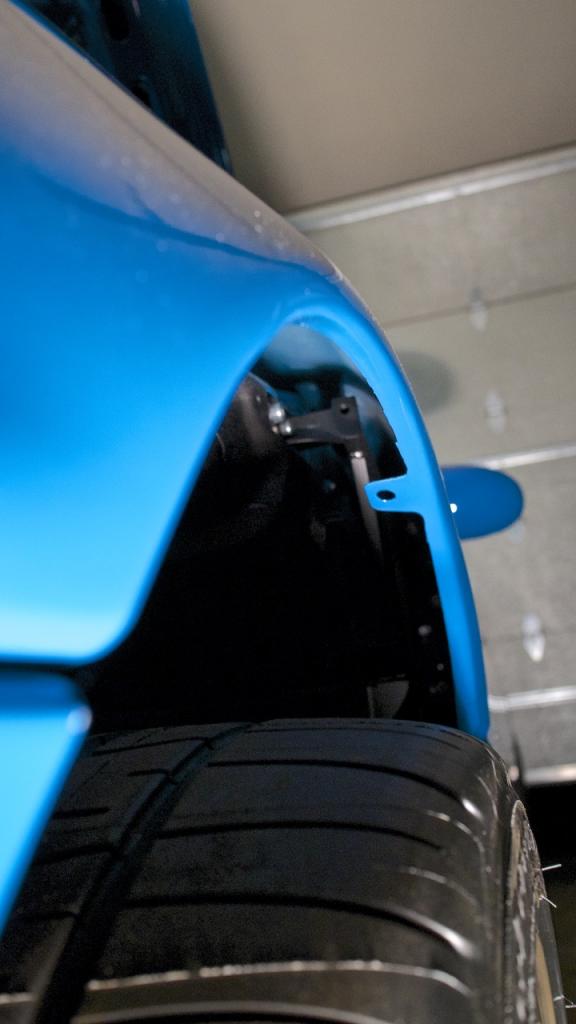

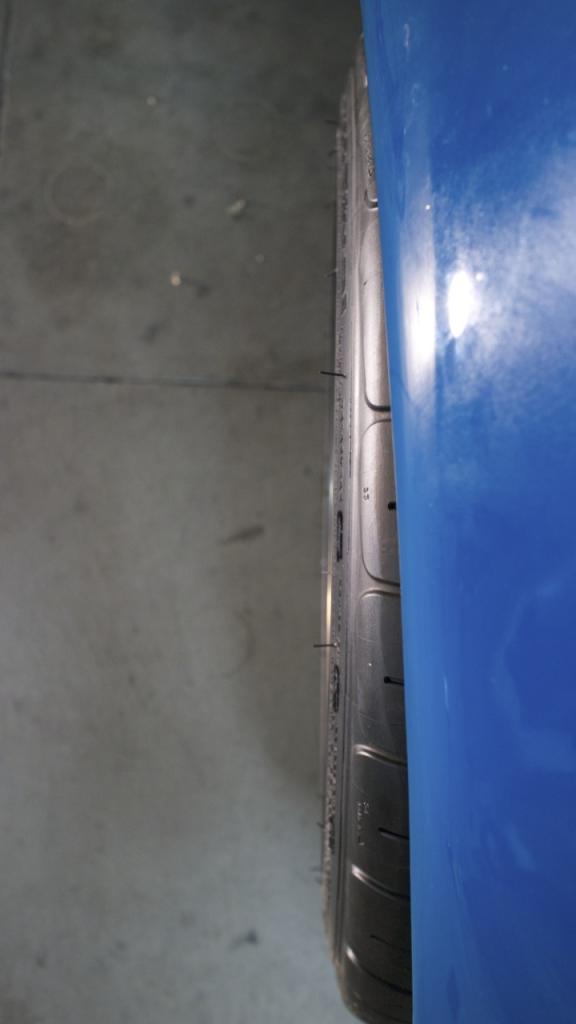

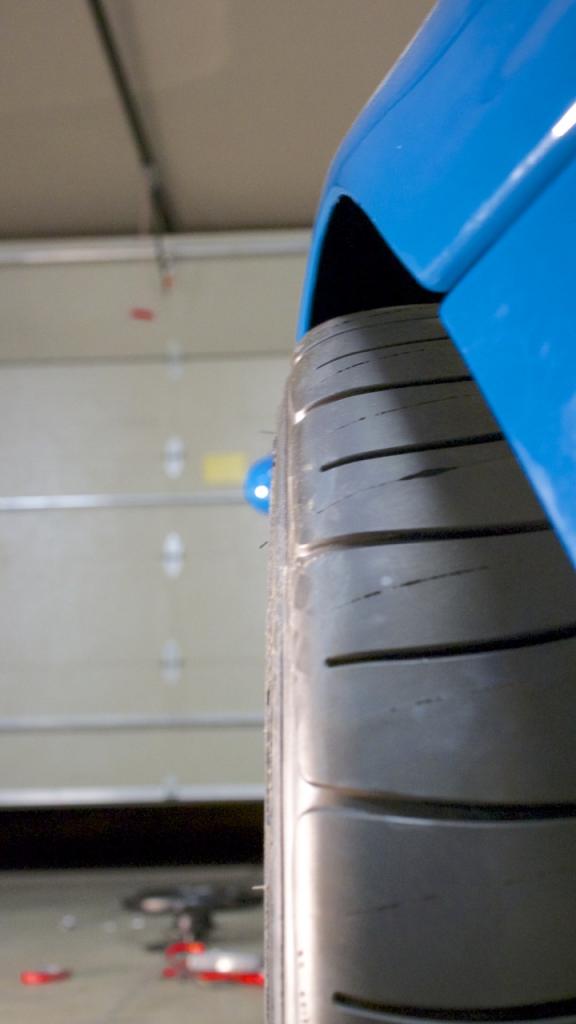

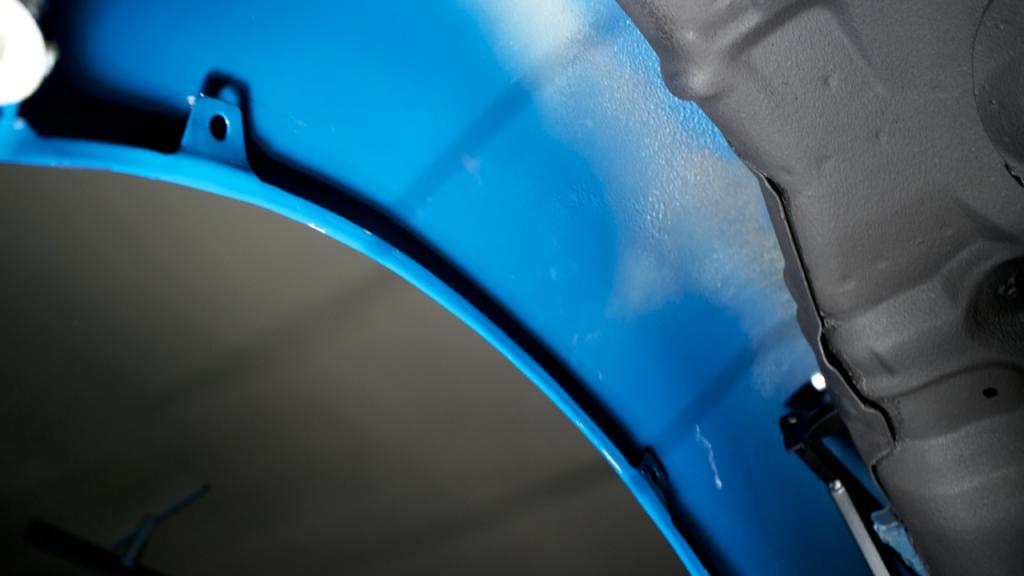

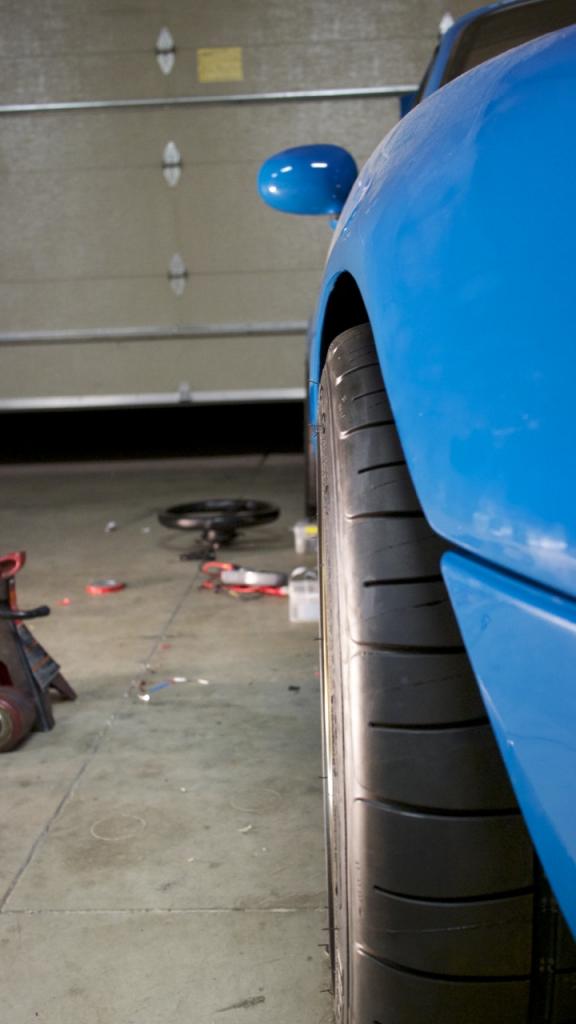

Saying that I did get one fender done. What a nightmare. It starts out easy and gets much harder to finesse' the curve perfectly. I have the first one roughly done but I still need to do small adjustments so the curve looks right

I'll admit to cracking the paint in a couple spots. Even with a heat gun if you get the curve a little too steep, it doesn't matter how hot the paint is, it'll crack.

If I'm not happy with it, it will at least be good enough to drive long enough to have a pro do it at a later point.

normal lip






How much I pulled it in



Still looks like I may need to pull the fenders. It looks worse in the pictures than it is IRL, but oh well, it is my first time doing this. Took me about an hour and a half to do one fender, mostly due to learning how the damn tool works properly and the best angle to bend it.





Attached Thumbnails
93' Miata stolen and flipped build thread-img_2754.jpg   93' Miata stolen and flipped build thread-img_2758.jpg   93' Miata stolen and flipped build thread-img_2749.jpg   93' Miata stolen and flipped build thread-img_2756.jpg   93' Miata stolen and flipped build thread-img_2757.jpg

93' Miata stolen and flipped build thread-img_2755.jpg
Jeffbucc is offline   Reply With Quote
Old 05-07-2014, 05:29 AM   #2371
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

That looks pretty darn perfect in my eyes...
Zaphod is offline   Reply With Quote
Old 05-07-2014, 08:00 AM   #2372
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

You just need some camber. It will help pull the tire in more than you think.
vteckiller2000 is offline   Reply With Quote
Old 05-07-2014, 09:20 AM   #2373
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Less talk about stance more about getting the car running correctly.
ScottyP3821 is offline   Reply With Quote
Old 05-07-2014, 09:31 AM   #2374
Elite Member
iTrader: (4)

Join Date: Dec 2008
Location: Kingston, Ontario
Posts: 2,667
Total Cats: 67
Default

couple the track change (gets skinnier with bump) and camber curve you will likely clear when driving straight.

might have issues with it once you lower and turn hard.
shlammed is offline   Reply With Quote
Old 05-07-2014, 10:33 AM   #2375
Junior Member

Join Date: Aug 2006
Location: Cedar City, UT
Posts: 228
Total Cats: 4
Default

Yeah, I cant wait to see you out driving it at some point, I need to toss the laptop back in mine and tune for the temp changes we are getting here in Cedar City now though
Dlaitini is offline   Reply With Quote
Old 05-07-2014, 11:10 AM   #2376
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

You can run 9s with 225s with the fender rolling and camber, no problem.
Harv is offline   Reply With Quote
Old 05-07-2014, 12:08 PM   #2377
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by vteckiller2000 View Post
You just need some camber. It will help pull the tire in more than you think.
Agreed, I also need to redo my tie-rod ball joints. With the wheels straight the passenger side wheel is not pointing straight! I thought I matched the length on both sides but apparently not well enough.

Quote:
Originally Posted by ScottyP3821 View Post
Less talk about stance more about getting the car running correctly.
I completely agree Scotty, but I only have 2 more days to use this fender roller otherwise I don't get my deposit back! It worked out to be cheaper than going to Vegas to do it.
Jeffbucc is offline   Reply With Quote
Old 05-07-2014, 01:03 PM   #2378
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

Get a complete alignment, especially from a company that does Miatae often, because others mostly tend to be confused by the number of alignment variables on this car (ask me how I know...)
Zaphod is offline   Reply With Quote
Old 05-07-2014, 04:35 PM   #2379
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by Zaphod View Post
Get a complete alignment, especially from a company that does Miatae often, because others mostly tend to be confused by the number of alignment variables on this car (ask me how I know...)
This ^^^^
vteckiller2000 is offline   Reply With Quote
Old 05-07-2014, 04:57 PM   #2380
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,245
Total Cats: 864
Default

Quote:
Originally Posted by Zaphod View Post
Get a complete alignment, especially from a company that does Miatae often, because others mostly tend to be confused by the number of alignment variables on this car (ask me how I know...)
Quote:
Originally Posted by vteckiller2000 View Post
This ^^^^
Seriously, what the hell is up with this? I've never seen so many alignment techs so consistently confused as I do with the Miata. Is it really that different or that much more complex?
EO2K is offline   Reply With Quote
