Old 02-17-2015, 11:33 PM   #3421
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Mobius View Post
I knew I should have left the hyphen in.

ED-DD.
Still pulling up a lot or erroneous abbreviations. Early development drug disorder? **** man, I'm usually good at these.

*edit* thank you. Jesus I'm slow.
Jeffbucc is offline   Reply With Quote
Old 02-18-2015, 02:38 AM   #3422
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,452
Total Cats: 473
Default

turbofan is offline   Reply With Quote
Old 02-18-2015, 02:40 AM   #3423
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Quote:
Originally Posted by Corifto View Post
Go on.
Its on CL, I want it sold lol.
aidandj is offline   Reply With Quote
Old 02-18-2015, 07:52 AM   #3424
Hug Life
iTrader: (3)

Monk's Avatar

Join Date: Apr 2014
Location: Huntington, Indiana
Posts: 2,634
Total Cats: 440
Default

Quote:
Originally Posted by aidandj View Post
Its on CL, I want it sold lol.
The selection and pricing of miatas in your area makes me a little weepy. It is very rare that a clean car pops up around here for less than 5k or so.
Monk is offline   Reply With Quote
Old 02-18-2015, 09:54 AM   #3425
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 386
Total Cats: 19
Default

Link?
Corifto is offline   Reply With Quote
Old 02-18-2015, 10:45 AM   #3426
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default


Last edited by curly; 02-18-2015 at 11:52 AM.
aidandj is offline   Reply With Quote
Old 02-18-2015, 11:30 AM   #3427
Junior Member
iTrader: (1)

Join Date: Jun 2010
Location: Bradenton, FL
Posts: 386
Total Cats: 19
Default

Not bad. I'd say good price for turbo and lowish miles. Hopefully it sells soon for you.
Corifto is offline   Reply With Quote
Old 02-23-2015, 02:04 PM   #3428
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

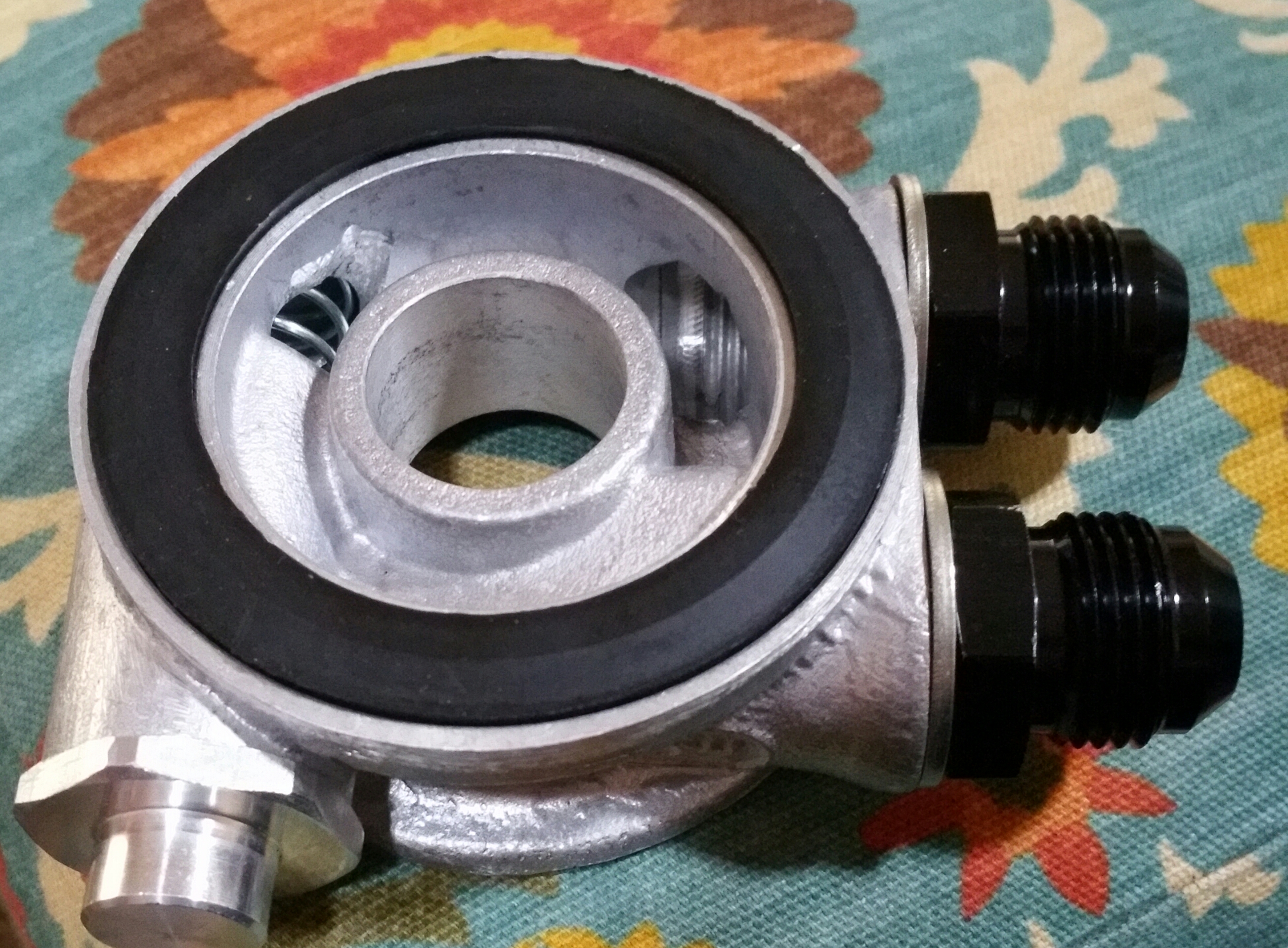

Before I get this done I figured I'd ask real quick. Do you foresee an issue with welding a 1/8NPT bung into the wall of the Mocal sandwich plate as an oil temp sensor source?

I hear the oil temp is slightly higher here rather than the pan, but considering the pan is on the engine, and in the car, it is rather hard to do it correctly(weld) rather than tapping & JB welding and hoping for no further issues down the road.

Seeing as the plate isn't installed yet, and the Setrab is f'n huge, a slightly higher oil temp reading doesn't warrant a danger flag to me.

Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 02:09 PM   #3429
FAB
Fab9Tuning.com
iTrader: (4)

FAB's Avatar

Join Date: Apr 2013
Posts: 935
Total Cats: 395
Default

It's an aluminum housing, I'd just tap it. Make sure you aren't obstructing anything else and run an NPT tap through it.
FAB is offline   Reply With Quote
Old 02-23-2015, 02:13 PM   #3430
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

What about something like this? Ran across it the other day doing research.
aidandj is offline   Reply With Quote
Old 02-23-2015, 02:16 PM   #3431
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by FAB View Post
It's an aluminum housing, I'd just tap it. Make sure you aren't obstructing anything else and run an NPT tap through it.
The guy who welded the aluminum oil cooler brackets could probably do it in 5 minutes, but maybe I'm just going overkill with a welded bung rather than a tapped thread.
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 02:17 PM   #3432
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Quote:
Originally Posted by Jeffbucc View Post
The guy who welded the aluminum oil cooler brackets could probably do it in 5 minutes, but maybe I'm just going overkill with a welded bung rather than a tapped thread.
Oh come on Jeff, nothing you ever do is overkill.
aidandj is offline   Reply With Quote
Old 02-23-2015, 02:20 PM   #3433
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by aidandj View Post

Oh come on Jeff, nothing you ever do is overkill.
I tend to do things at 10/10ths true, but some are justifiable and others I've had to stop myself before I create a monster of a situation(cutting my front core support for the airflows).
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 02:21 PM   #3434
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Another option to consider is depending on your oil temp gauge you can get a sensor that replaces the oil drain plug. Which would give you better temperature anyways.
aidandj is offline   Reply With Quote
Old 02-23-2015, 03:00 PM   #3435
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by aidandj View Post
What about something like this? Ran across it the other day doing research.
Do not want. Blocks oil flow. There's a reason we're going for -10 hose.

Quote:
Originally Posted by Jeffbucc View Post
The guy who welded the aluminum oil cooler brackets could probably do it in 5 minutes, but maybe I'm just going overkill with a welded bung rather than a tapped thread.
Drill, tap, screw in with thread sealant and move on. There's a lot of meat on that sandwich adapter. If you do decide to weld it, make sure to remove the rubber O-ring and thermostat with wax element. Otherwise they could get damaged.

Quote:
Originally Posted by aidandj View Post
Another option to consider is depending on your oil temp gauge you can get a sensor that replaces the oil drain plug. Which would give you better temperature anyways.
Sensing your temperature at the sandwich plate tells you the temperature of the oil being actively sucked-up and used by the engine. Sensing at the oil pan/oil drain plug is a convenient, "good-enough" substitute but will read cold. The "better" reading is at the sandwich plate, but either will do.
hornetball is offline   Reply With Quote
Old 02-23-2015, 03:02 PM   #3436
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Quote:
Originally Posted by hornetball View Post
Sensing your temperature at the sandwich plate tells you the temperature of the oil being actively sucked-up and used by the engine. Sensing at the oil pan/oil drain plug is a convenient, "good-enough" substitute but will read cold. The "better" reading is at the sandwich plate, but either will do.
Hmmm, opposite from what I have read in the past. I thought that the sandwich adapter read hot because it was pressurized oil, while the reading in the pan was the real temp of the oil.
aidandj is offline   Reply With Quote
Old 02-23-2015, 03:05 PM   #3437
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by hornetball View Post
Drill, tap, screw in with thread sealant and move on. There's a lot of meat on that sandwich adapter. If you do decide to weld it, make sure to remove the rubber O-ring and thermostat with wax element. Otherwise they could get damaged.
Sensing your temperature at the sandwich plate tells you the temperature of the oil being actively sucked-up and used by the engine. Sensing at the oil pan/oil drain plug is a convenient, "good-enough" substitute but will read cold. The "better" reading is at the sandwich plate, but either will do.
Props. Good info, thank you Mr. Encyclopedia of all things Miata.
Jeffbucc is offline   Reply With Quote
Old 02-23-2015, 03:15 PM   #3438
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,889
Total Cats: 566
Default

Quote:
Originally Posted by aidandj View Post
Hmmm, opposite from what I have read in the past. I thought that the sandwich adapter read hot because it was pressurized oil, while the reading in the pan was the real temp of the oil.
Uhhhh . . . .

Think about it. I know you'll come to the correct conclusion.

Hint #1 . . . our oil pans have fins for a reason.
Hint #2 . . . liquids like oil and water don't follow the ideal gas law -- they're considered "incompressible."
Hint #3 . . . even if the oil pump raised the temperature 1000F, that's still the temp going into your cooler/engine -- so wouldn't you like to know what it is?

That said, generally the difference will be on the order of 15F under light running and 30F under track conditions, so the oil pan is "good enough." Beyond absolute numbers, the main thing you want to catch on track is a bad trend (i.e., oil suddenly getting hotter for no apparent reason -- time to slow down and investigate).
hornetball is offline   Reply With Quote
Old 02-23-2015, 03:19 PM   #3439
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Makes sense to me, just had read before that the pan was the place to put it. Mine is going on a sandwich plate just for ease.
aidandj is offline   Reply With Quote
Old 02-23-2015, 03:21 PM   #3440
SADFab Destructive Testing Engineer
iTrader: (5)

aidandj's Avatar

Join Date: Apr 2014
Location: Beaverton, USA
Posts: 16,895
Total Cats: 1,270
Default

Where I got my incorrect oil-compression info, and also where it was correctly fixed.

https://www.miataturbo.net/engine-pe...acement-66980/
aidandj is offline   Reply With Quote
