Old 05-02-2014, 02:18 PM   #2341
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Does AEM have a WB software that comes with it to program the controller like the LC-1 Does? I know with my LC1 I went into the LM programmer software that comes with it and adjusted the settings to get TS and the gauge to read properly. Also Im sure its been mentioned but in TS go to Tools> Calibrate AFR> choose Custom> and manually input your settings instead of trying to use a predefined calibration.

Also how are you running the vtps aside from running a wire to 1L?

Edit Should be something like

5vref to 1N
TPS signal wire on 2L
the B ground from the main sensor ground point.
ScottyP3821 is offline   Reply With Quote
Old 05-02-2014, 03:34 PM   #2342
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

AEM comes with voltage values that you can plug into the AFR table calibration but that hasn't helped much. The ground on the gauge is run to 2A(MS3X ground). There is a lot of noise in the gauge, or that may be from the gauge & MS not matching.

Wired the connector to the stock 3 wires on the harness. I think it may be a faulty wire and I'm considering running new wires all the way back to the ECU rather than then tying them into the old wires.
Jeffbucc is offline   Reply With Quote
Old 05-02-2014, 04:38 PM   #2343
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,138
Total Cats: 70
Default

Quote:
Originally Posted by Jeffbucc View Post
AEM comes with voltage values that you can plug into the AFR table calibration but that hasn't helped much. The ground on the gauge is run to 2A(MS3X ground). There is a lot of noise in the gauge, or that may be from the gauge & MS not matching.

Wired the connector to the stock 3 wires on the harness. I think it may be a faulty wire and I'm considering running new wires all the way back to the ECU rather than then tying them into the old wires.
Are you running the wideband through the DB15 connector?
ScottyP3821 is offline   Reply With Quote
Old 05-02-2014, 04:49 PM   #2344
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by ScottyP3821 View Post

Are you running the wideband through the DB15 connector?
DB12 for my MS3x
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 01:51 AM   #2345
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

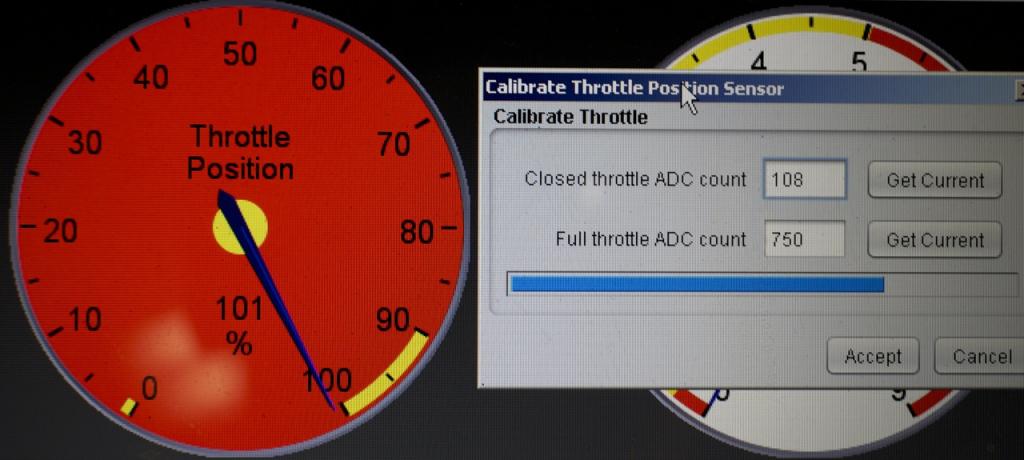

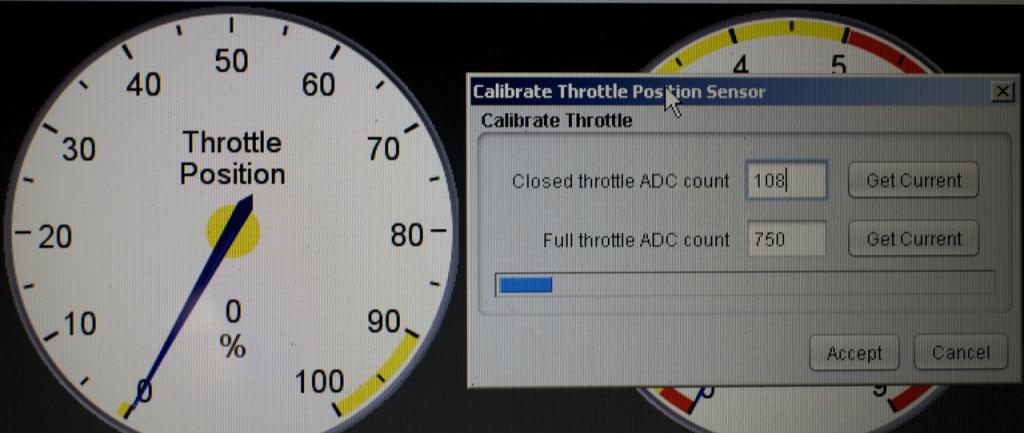

My reaction after rewiring the TPS



After calibrating it stayed at a constant 0% with no oscillation at all. Also after cycling the key off and on it stayed constant without further calibration.

So for those that have a 3 wire vtps the correct wiring is
5V to 1N
TPS to 4L
Ground to 4C or 4D



Attached Thumbnails
93' Miata stolen and flipped build thread-dr-cox-much-better-o.gif   93' Miata stolen and flipped build thread-img_2734.jpg   93' Miata stolen and flipped build thread-img_2735.jpg
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 01:59 AM   #2346
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,487
Total Cats: 79
Default

Perrrrrrfect!
Zaphod is offline   Reply With Quote
Old 05-04-2014, 02:01 AM   #2347
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Oh also! Think I found the source of my AEM AFR gauge and TS gauge being different.

Accidently wired the analog+ wire to 4L instead of 4N...not sure how I did that! Hopefully this was the issue at hand. Wiring going to my TPS instead of Lambda, you may now commence your /facepalm!
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 02:03 AM   #2348
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 34,444
Total Cats: 2,264
Default

very nice. we need 25+psi videos like....yesterday
18psi is offline   Reply With Quote
Old 05-04-2014, 02:08 AM   #2349
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

as long as my afr problems are gone I hope to.

I havent messed with the original tuning the P.O had on the car, so I'm hoping it will run ok.

*edit* Also getting my fender roller on Monday so it will be ready to drive, just need to get a safety inspection and an alignment.
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 10:24 AM   #2350
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

Quote:
Originally Posted by Jeffbucc View Post
I havent messed with the original tuning the P.O had on the car, so I'm hoping it will run ok.
Post a screenshot of the spark and fuel maps.
vteckiller2000 is offline   Reply With Quote
Old 05-04-2014, 04:57 PM   #2351
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by vteckiller2000 View Post
Post a screenshot of the spark and fuel maps.

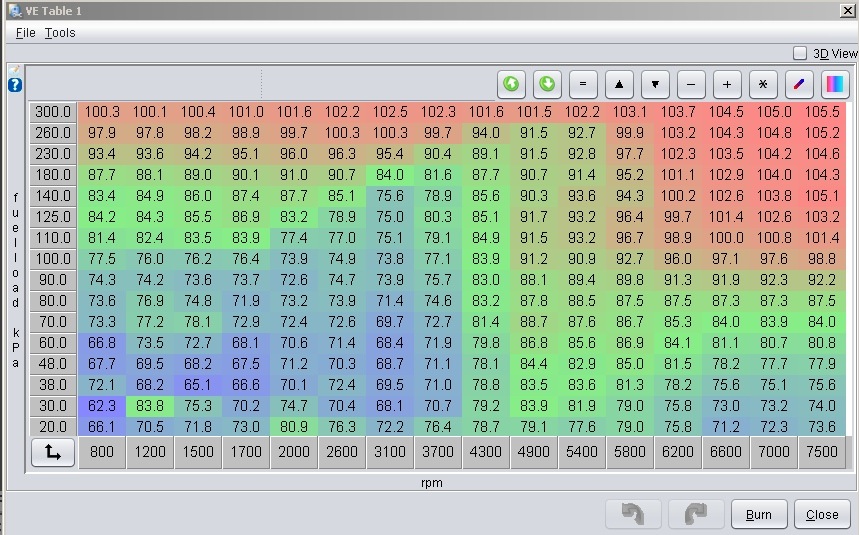

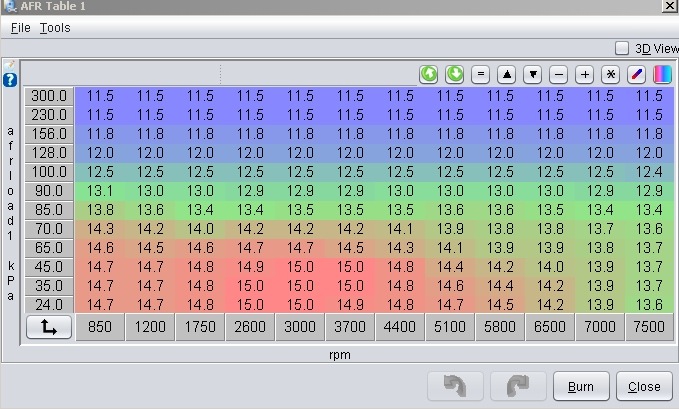

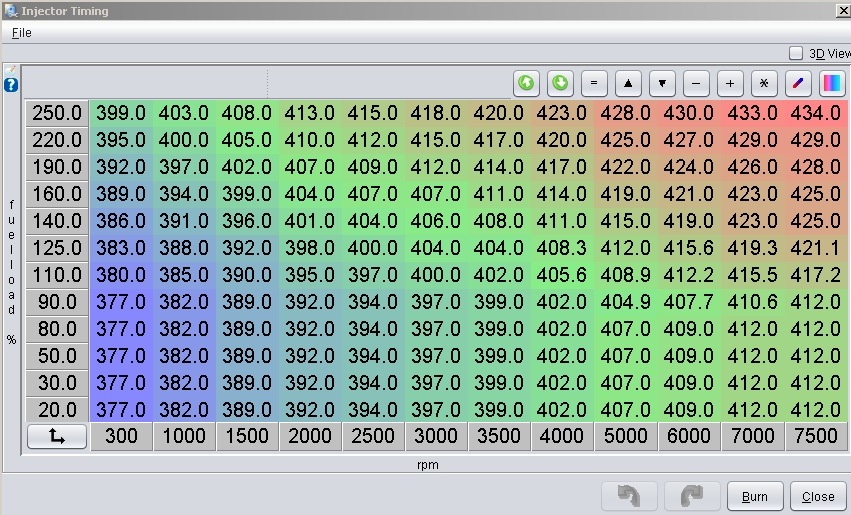

Here you are, let me know what you think.





Attached Thumbnails
93' Miata stolen and flipped build thread-parallelspicture1.jpg   93' Miata stolen and flipped build thread-parallelspicture2.jpg   93' Miata stolen and flipped build thread-parallelspicture3.jpg
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 05:55 PM   #2352
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

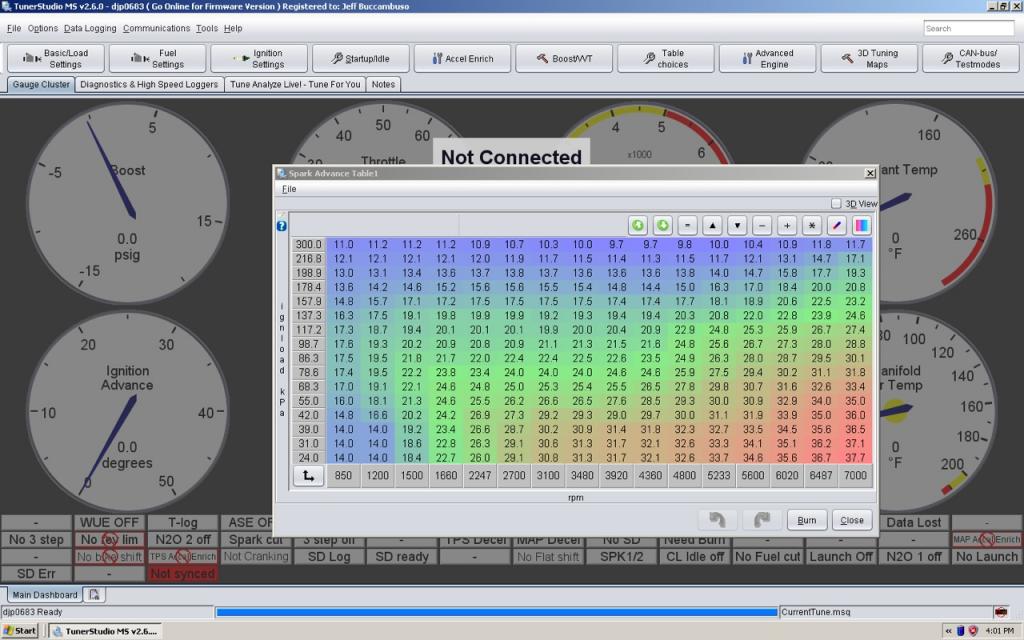

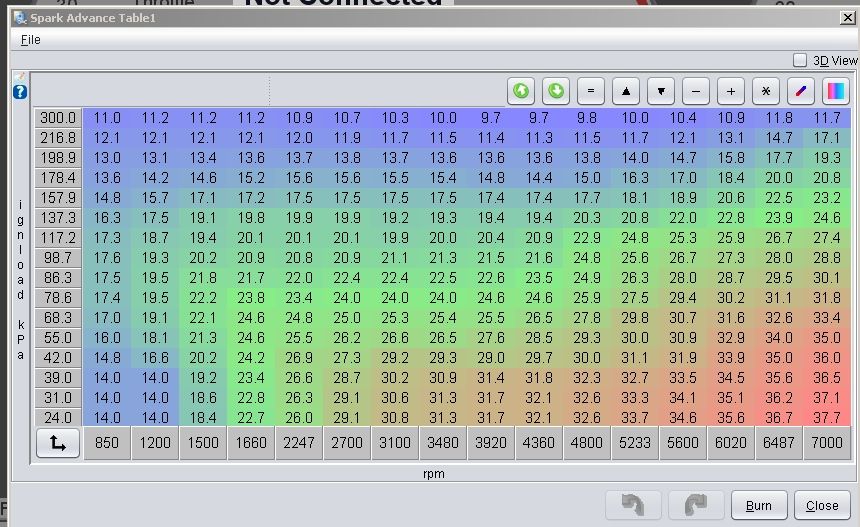

Can you post the ignition timing table as well?
vteckiller2000 is offline   Reply With Quote
Old 05-04-2014, 06:02 PM   #2353
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Attached Thumbnails
93' Miata stolen and flipped build thread-parallelspicture4.jpg   93' Miata stolen and flipped build thread-6.jpg
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 06:10 PM   #2354
Senior Member
iTrader: (4)

Join Date: May 2010
Location: Iowa City
Posts: 542
Total Cats: 15
Default

I don't like your VE table, otherwise everything else looks pretty decent to my eye.
vteckiller2000 is offline   Reply With Quote
Old 05-04-2014, 06:18 PM   #2355
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

here is a link to the tune if anyone wants to look at it. Considering I'm still trying to figure out what everything means I'm more than happy to have criticism applied

https://www.dropbox.com/s/32fhta65jhfhklb/Jeffbucc.msq

Also thanks for taking a look at the tables Vtec, much appreciated!
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 08:35 PM   #2356
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Uploading a video soonish(50 more minutes for a 1 minutes video...) to get what I'm talking about here but as soon as I blip the throttle it'll rev and hang, then suddenly it'll ramp up all the way to 3700 rpms. I'm guessing this is throttle tip in settings?

This is after WUE is over and it has entered closed loop idle. After adjusting the TB screw I have a consistent 1k idle

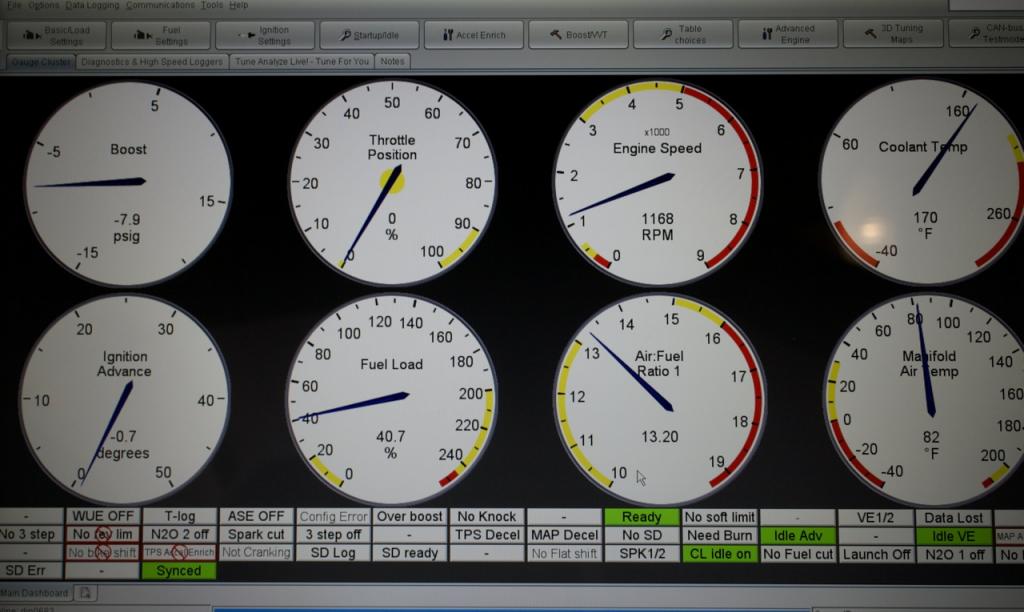

Here is what the gauges look like after WUE. Still some slight variation in the AEM/TS AFR gauges.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2737.jpg
Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 09:43 PM   #2357
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Video. Sorry its crappy. Last 20 seconds are the idle ramp up after about 5% throttle input. Light smoke coming out of exhaust and slight backfire when it ramps up the rpms

Jeffbucc is offline   Reply With Quote
Old 05-04-2014, 11:38 PM   #2358
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

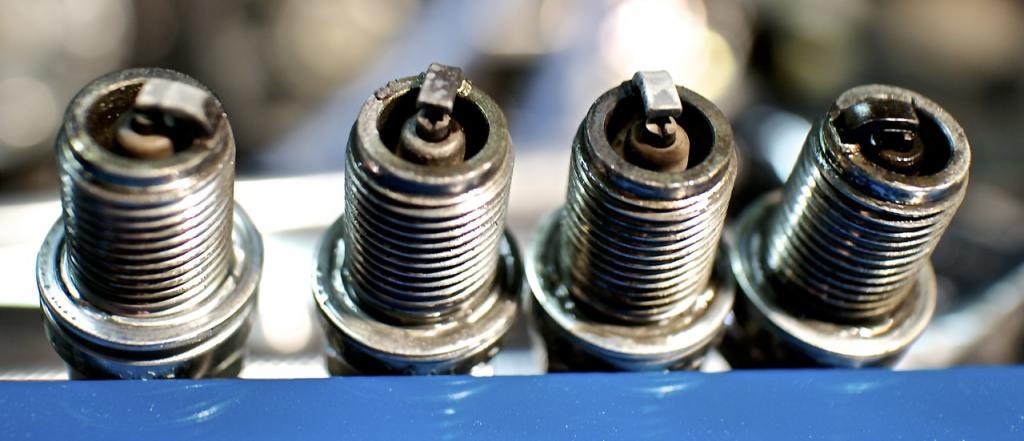

Pulled my plugs to see how they were doing and found some fouling on 2 and grey/whitish burn on the other 2.

Reason I pulled them was that I never adjusted the gap on them after the car was wrecked. They are all around .20 gap. I have 4 new plugs I have gapped to .40 ready to put in. After reading a fair amount it seems a good gap to start(correct me if I am wrong).

Attached Thumbnails
93' Miata stolen and flipped build thread-img_2740.jpg
Jeffbucc is offline   Reply With Quote
Old 05-05-2014, 11:07 AM   #2359
Senior Member
iTrader: (4)

Join Date: Jul 2006
Location: Shelton, CT
Posts: 672
Total Cats: 2
Default

You just reminded me I should probably do my plugs. Have some new ones sitting around.
Harv is offline   Reply With Quote
Old 05-05-2014, 11:14 AM   #2360
Boost Czar
iTrader: (60)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 71,525
Total Cats: 1,565
Default

Quote:
Originally Posted by Jeffbucc View Post
This is after WUE is over and it has entered closed loop idle. After adjusting the TB screw I have a consistent 1k idle


has an aftermarket ECU that controls the idle speed...




...manually ***** with the throttle bleed screw to set idle speed and throws all the CL/PID tuning and rpm targets to the wind.
Braineack is online now   Reply With Quote
