Old 02-17-2014, 09:31 PM   #1241
Hittin' Boost & Cones
iTrader: (2)

240_to_miata's Avatar

Join Date: May 2007
Location: Cromwell, Connecticut
Posts: 2,566
Total Cats: 11
Default

And I was amazed (and satisfied) with what POR15 degreaser did on my PPF.

That is unreal. I have no patience for such a task.
240_to_miata is offline   Reply With Quote
Old 02-17-2014, 09:40 PM   #1242
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by 240_to_miata View Post
And I was amazed (and satisfied) with what POR15 degreaser did on my PPF.

That is unreal. I have no patience for such a task.
That is the key thing. If you are satisfied with your project who cares what anyone else does. I went way overboard simply because I have time to, and some stupid drive that makes me do so. Trust me. It is a love/hate relationship I have with my OCD.

*edit* after reading what I wrote it may have come off as condescending or off putting, not my intention at all if so. I am pretty humble about stuff I do so hate it when I come off as an ***.

Last edited by Jeffbucc; 02-17-2014 at 10:35 PM.
Jeffbucc is offline   Reply With Quote
Old 02-18-2014, 10:39 AM   #1243
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 52
Default

That PPF.



This car is turning into something you would see at Barrett Jackson.
ScottyP3821 is offline   Reply With Quote
Old 02-18-2014, 10:44 AM   #1244
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

LOLOLOL. OMFG!!! A polished PPF!!! Over the top, even for you Jeff.

You go girl!! This is awesome.

You didn't come across as an ***. Not in the least.
hornetball is offline   Reply With Quote
Old 02-18-2014, 10:54 AM   #1245
Junior Member
iTrader: (3)

Join Date: Apr 2009
Location: Allen, TX
Posts: 88
Total Cats: 8
Default

That's it Jeff! You will not be allowed to drive the car now. It is a museum piece. You're going to need to park it on mirrors.
black roadster is offline   Reply With Quote
Old 02-18-2014, 11:18 AM   #1246
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

Take that PPF and mount it on the wall. It cannot go on a car. Any car.
revlimiter is offline   Reply With Quote
Old 02-18-2014, 11:19 AM   #1247
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

You polished both sides. Jesus Christ.
revlimiter is offline   Reply With Quote
Old 02-18-2014, 11:21 AM   #1248
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 35,756
Total Cats: 2,493
Default

n00b of the year award

seriously
18psi is offline   Reply With Quote
Old 02-18-2014, 12:06 PM   #1249
Elite Member

Chiburbian's Avatar

Join Date: Feb 2008
Location: Gilberts, IL
Posts: 2,125
Total Cats: 129
Default

You going to clear-coat that PPF?
Chiburbian is offline   Reply With Quote
Old 02-18-2014, 12:11 PM   #1250
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Yeah yeah, idiot Clubroadster award of the year goes to Jeff!

Here, how about some real work?

I installed the work of art 949Racing adjustable endlinks last night. While I was doing it I installed some zerk fittings in the frame bushings. I really love the zerk fittings in my VW for the sway bars so I wanted to do the same on the Miata.

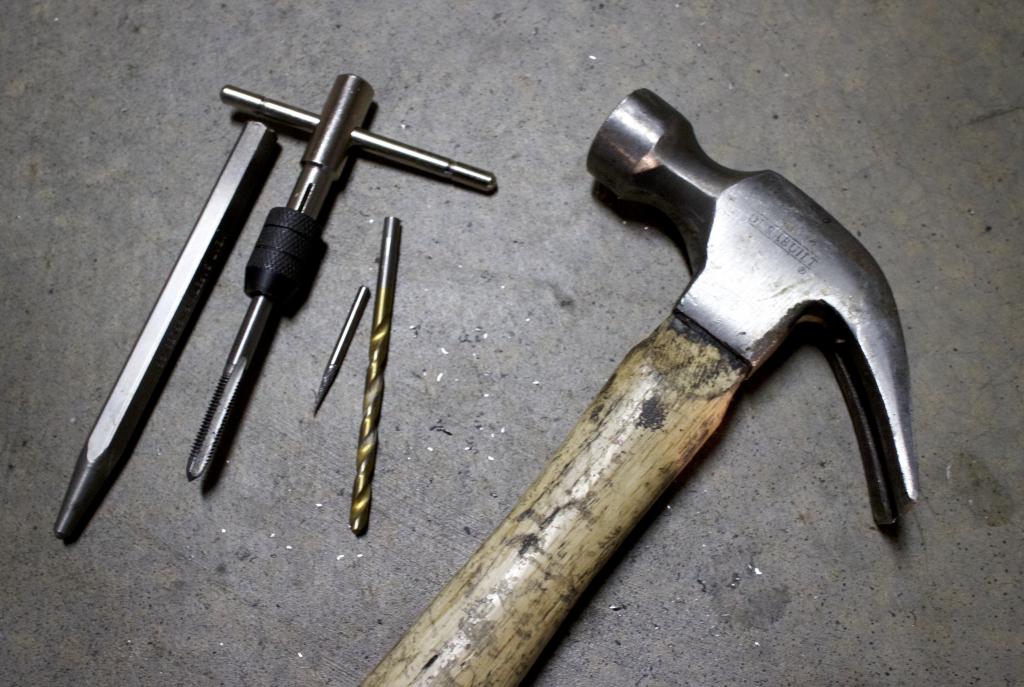

Get your tools all ready. Deburr bit, drill bit, center punch, and M6X1.0 Tap.

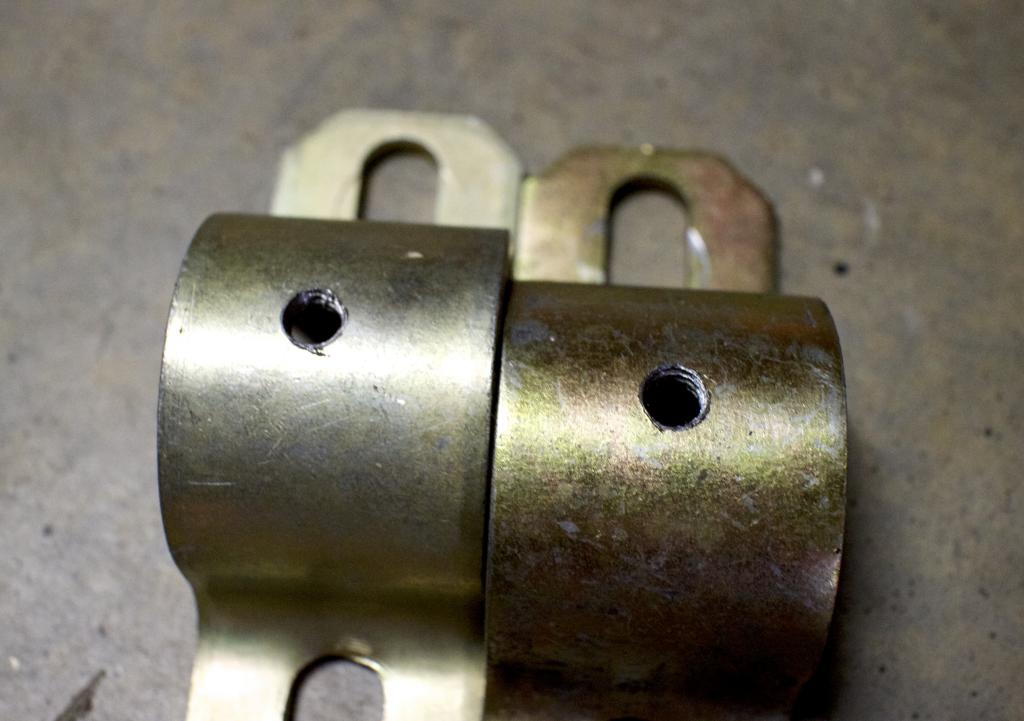

Drill and deburr the interior of the bracket, and then tap it.

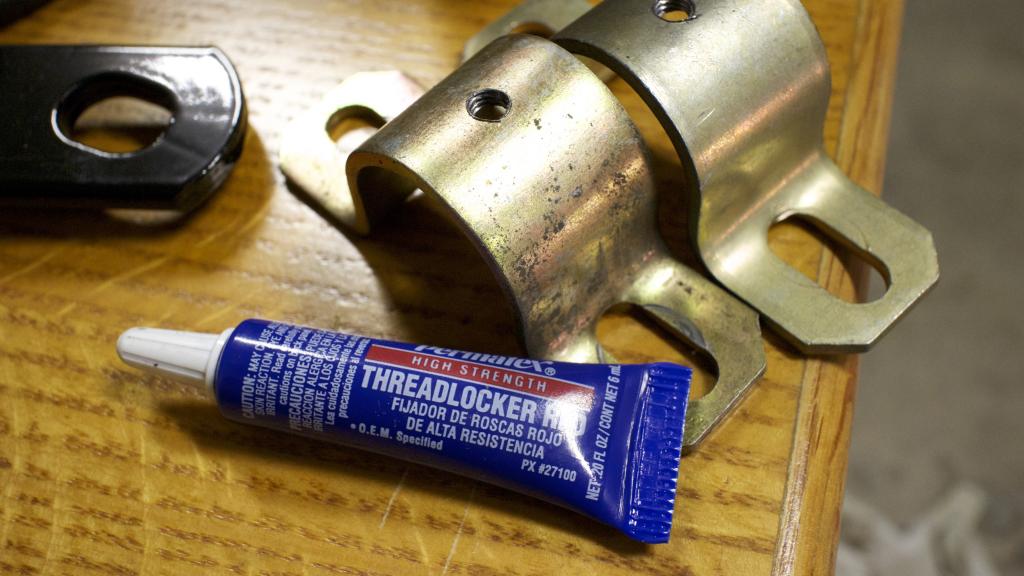

I used red threadlocker since I can't think of a reason why I'd remove them.

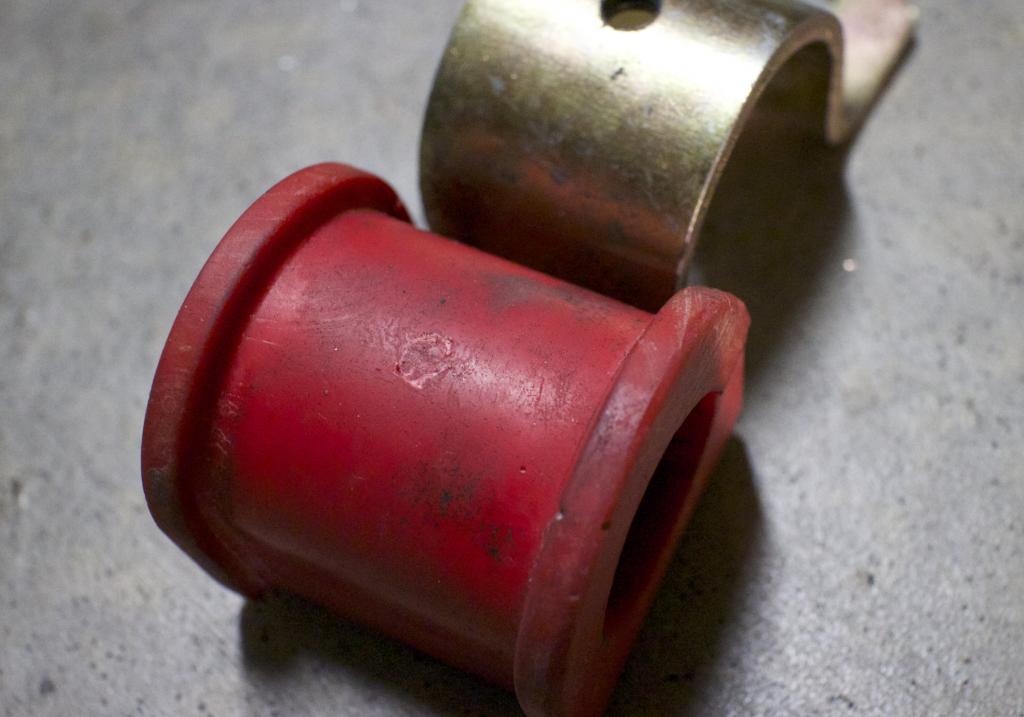

Mark the area where you will drill with a pin

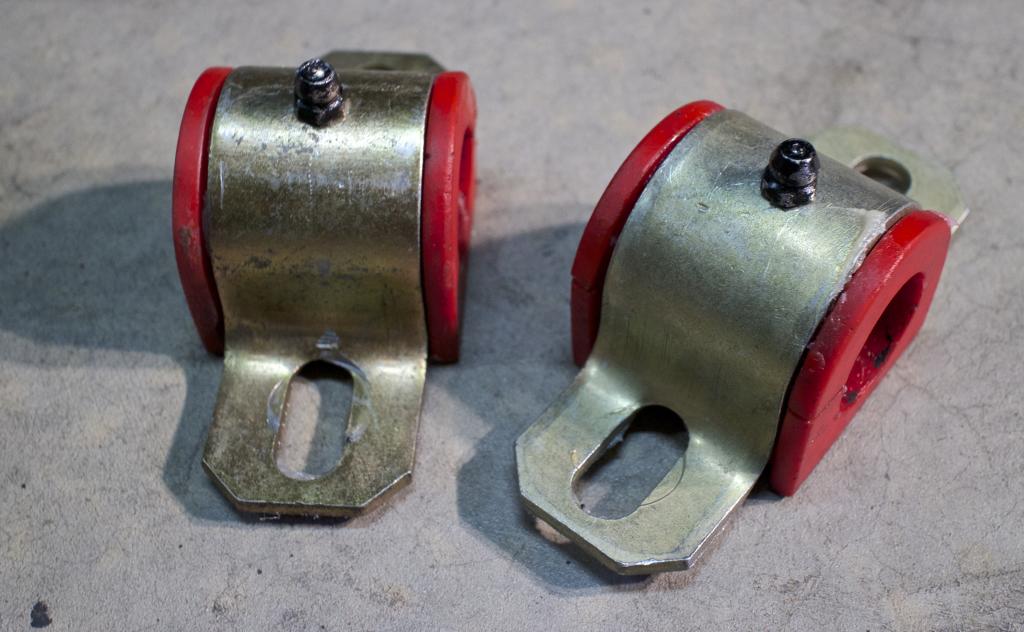

Install the zerk and test to make sure you have good grease penetration

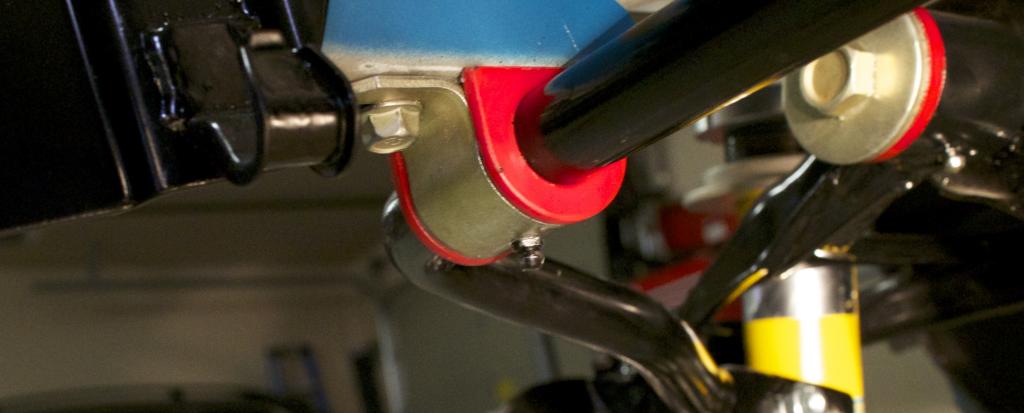

Installed

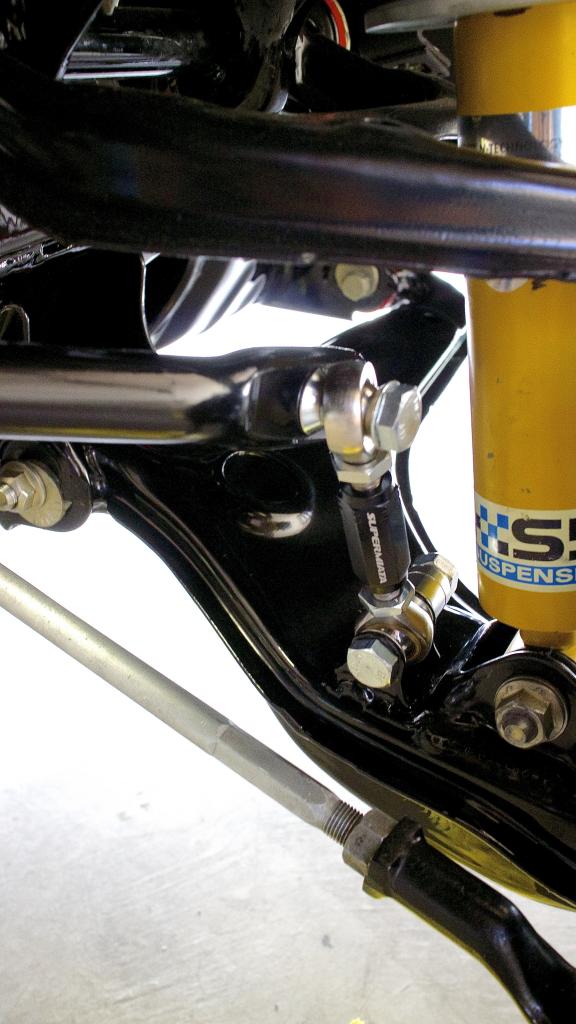

The purty endlinks. I'll adjust them perfectly when I get all the crap in the car for the final ride height.

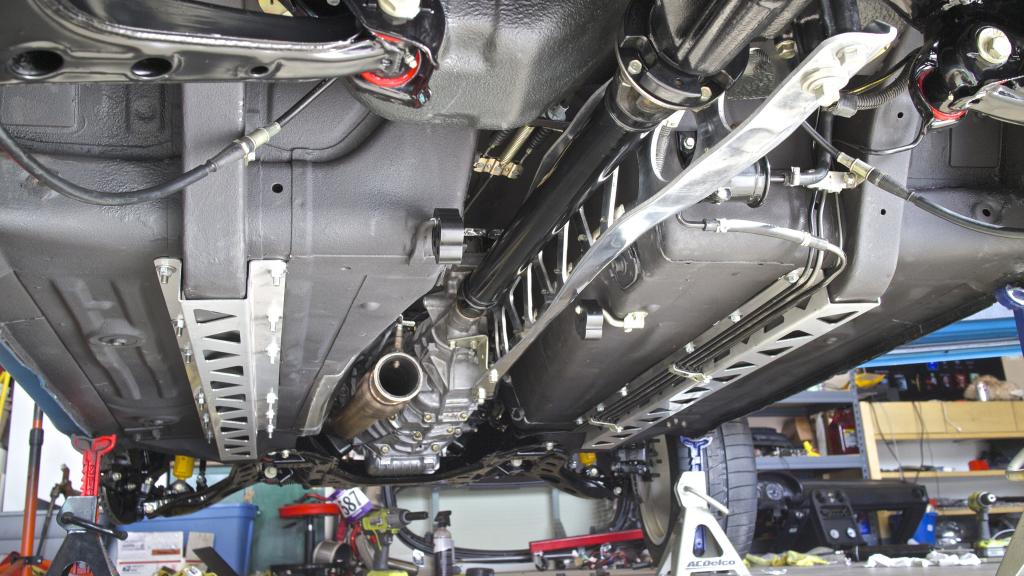

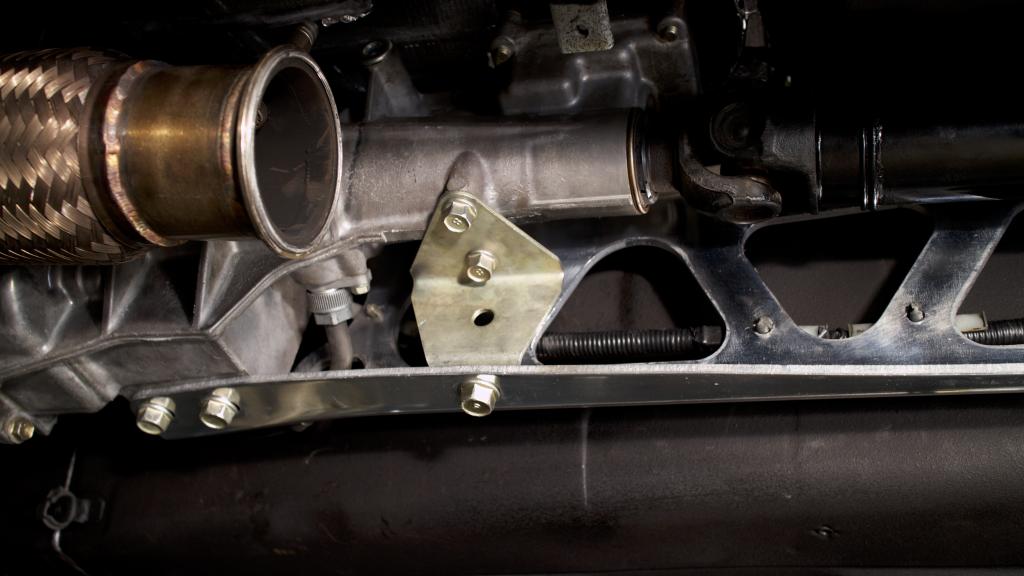

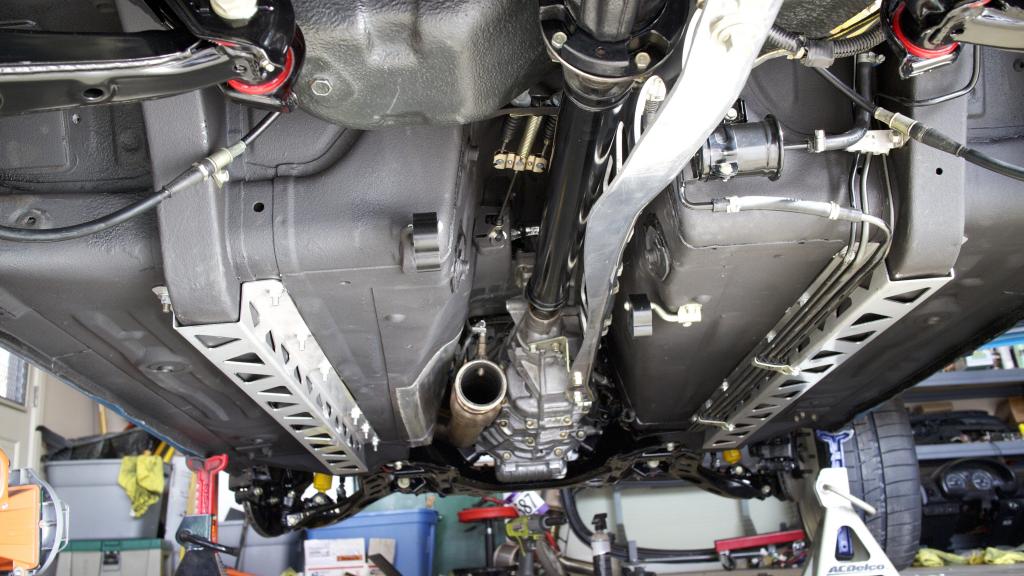

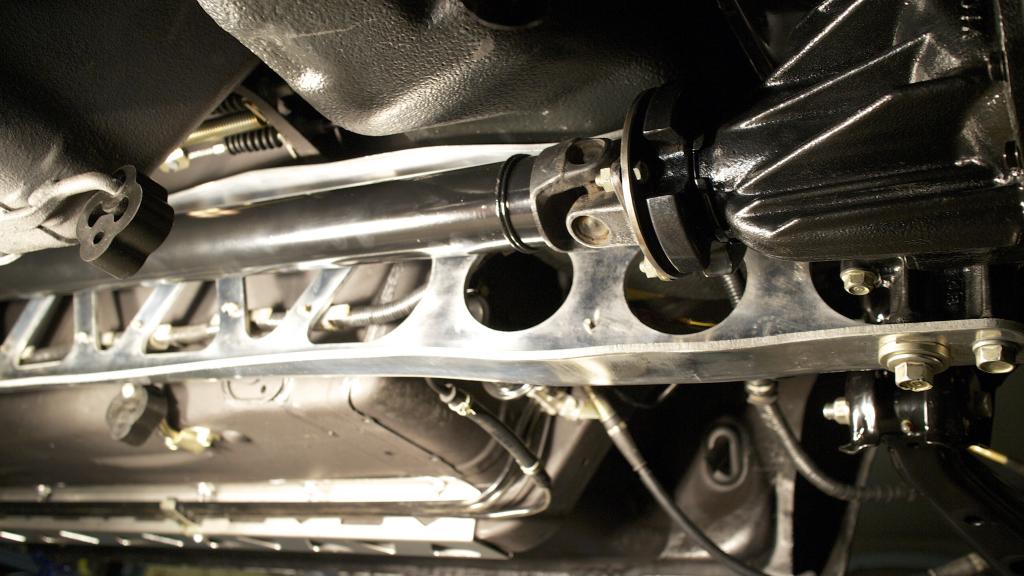

I also installed the PPF. Talk about a nightmare of a job. I never want to do that again. I just simply could not get the holes to sync up properly so it took a lot of swearing and muscle to get it all aligned. I will not admit how long it took me to install it.

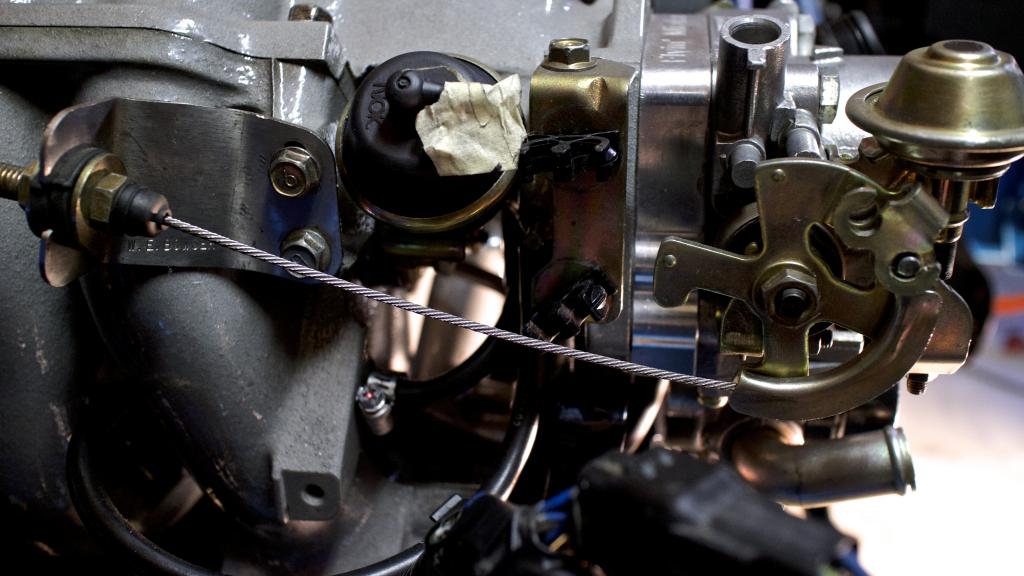

Throttle linkage installed

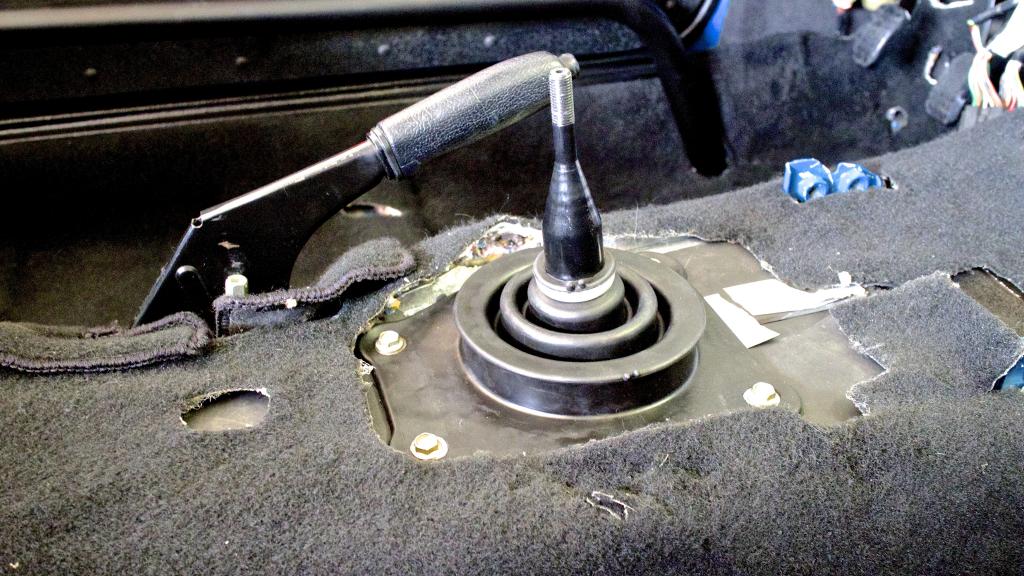

Deep cleaned the shift boot, removed all the old grease, and regreased the ball joint on it.



Anyone know where this giant ground cable goes? It has left my memory banks.



All in all it was a good night!
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1747.jpg   93' Miata stolen and flipped build thread-img_1748.jpg   93' Miata stolen and flipped build thread-img_1750.jpg   93' Miata stolen and flipped build thread-img_1749.jpg   93' Miata stolen and flipped build thread-img_1751.jpg

93' Miata stolen and flipped build thread-img_1753.jpg   93' Miata stolen and flipped build thread-img_1769.jpg   93' Miata stolen and flipped build thread-img_1759.jpg   93' Miata stolen and flipped build thread-img_1760.jpg   93' Miata stolen and flipped build thread-img_1766.jpg

93' Miata stolen and flipped build thread-img_1767.jpg   93' Miata stolen and flipped build thread-img_1758.jpg   93' Miata stolen and flipped build thread-img_1764.jpg
Jeffbucc is offline   Reply With Quote
Old 02-18-2014, 12:11 PM
Jeffbucc
This message has been deleted by curly. Reason: double post
Old 02-18-2014, 12:28 PM   #1251
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,007
Total Cats: 0
Default

I bet it took you longer to polish the ppf then it did to install it...
Efini~FC3S is offline   Reply With Quote
Old 02-18-2014, 12:28 PM   #1252
Senior Member
iTrader: (5)

Join Date: Jul 2011
Location: Sonora, Ca
Posts: 623
Total Cats: 73
Default

Today I used some touch up paint on my car and thought of this thread. I got more paint around the rock chips, than in the actual rock chips themselves. I'm okay with this.

Jeff would have stripped my car of paint, polished every panel, then repainted it.




That PPF. I don't even.. I cannot even..
bikersam717 is offline   Reply With Quote
Old 02-18-2014, 12:32 PM   #1253
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,499
Total Cats: 1,709
Default

when large images are posted, the system fails hardcore.


that ground doesn't look oem.
Braineack is offline   Reply With Quote
Old 02-18-2014, 12:35 PM   #1254
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

Grounding strap of some kind? Strange you had such trouble with the PPF, i've never had an issue and it falls right into place in about 5 minutes.
Fireindc is offline   Reply With Quote
Old 02-18-2014, 12:36 PM   #1255
Elite Member
iTrader: (21)

Join Date: Jun 2007
Location: Rochester, NY
Posts: 5,637
Total Cats: 529
Default

You can't possibly install that ground cable. The ends aren't polished yet. Get to work!
rleete is offline   Reply With Quote
Old 02-18-2014, 12:39 PM   #1256
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

There is a ground strap somewhere on the PPF, but I think its a braided cable with some cheap plastic covering, like the one you polished earlier in the thread.

Once you wrap your head around all the spacers, splined nuts, and sliding nuts, it goes in a lot easier. Mazda really took out all the stops for their PPF mounting solutions.

The front has two linked nuts that are captured on a plate that slides on some rivets. Then I think there is a sliding spacer that gets pushed up by the shouldered bolt? Although that could only be in the back.

The diff has splined nuts that lock into the PPF, the sliding spacer that gets pushed up with the shouldered bolt, and the removable spacer block that also locks into the diff. Most of which is a giant pain in the ***, until you hammer the splined nuts out of the top with the unshouldered bolt. Sav or Emilio taught me this trick, forget who, but it has saved my *** multiple times.
curly is offline   Reply With Quote
Old 02-18-2014, 12:48 PM   #1257
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Efini~FC3S View Post
I bet it took you longer to polish the ppf then it did to install it...
It did...

Quote:
Originally Posted by revlimiter View Post
You polished both sides. Jesus Christ.


Quote:
Originally Posted by Braineack View Post
when large images are posted, the system fails hardcore.
Apologies Brain, I was exporting my iphoto library to dropbox and forgot to change the export quality when I uploaded them to photobucket.

Quote:
Originally Posted by Fireindc View Post
Grounding strap of some kind? Strange you had such trouble with the PPF, i've never had an issue and it falls right into place in about 5 minutes.
Yeah the tolerances were CRAZY tight, I might have been using brawn over brain though.

Quote:
Originally Posted by curly View Post
Once you wrap your head around all the spacers, splined nuts, and sliding nuts, it goes in a lot easier. Mazda really took out all the stops for their PPF mounting solutions.

The front has two linked nuts that are captured on a plate that slides on some rivets. Then I think there is a sliding spacer that gets pushed up by the shouldered bolt? Although that could only be in the back.

The diff has splined nuts that lock into the PPF, the sliding spacer that gets pushed up with the shouldered bolt, and the removable spacer block that also locks into the diff. Most of which is a giant pain in the ***, until you hammer the splined nuts out of the top with the unshouldered bolt. Sav or Emilio taught me this trick, forget who, but it has saved my *** multiple times.
I just hope I put all the components on and I didn't forget anything! You made my brain explode with that last paragraph, complex subjects are a little beyond my tired brain at the moment.

Glad you guys enjoyed the PPF insanity. I was laughing my *** off, as I uploaded the pictures know you guys would just close the window browser in ludicrous disgust.

I definitely went plaid on the PPF.
Jeffbucc is offline   Reply With Quote
Old 02-18-2014, 01:00 PM   #1258
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Real quick though, I remember someone saying that there may be a spacer I'm missing on the rear swaybar bushing mounts. Does anyone know what this spacer looks like? I just want to make sure I do it right, before I bolt the rear swaybar on.
Jeffbucc is offline   Reply With Quote
Old 02-18-2014, 01:04 PM   #1259
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

No idea. But on a related topic, did you drill the sway bar bushing too? Currently your grease zerks are greasing the part of the bushing/bar that doesn't move...
curly is offline   Reply With Quote
Old 02-18-2014, 01:22 PM   #1260
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by curly View Post
No idea. But on a related topic, did you drill the sway bar bushing too? Currently your grease zerks are greasing the part of the bushing/bar that doesn't move...
Yeah I drilled through the poly bushing as well. See the part where I mentioned marking the bushing to drill through it.
Jeffbucc is offline   Reply With Quote
