Old 02-24-2014, 03:19 AM   #1361
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Whoops forgot I had to do this on the drivers side. I was missing the metal rod that connects the outside door lever to the door lock latch, and had no idea where it disappeared to.

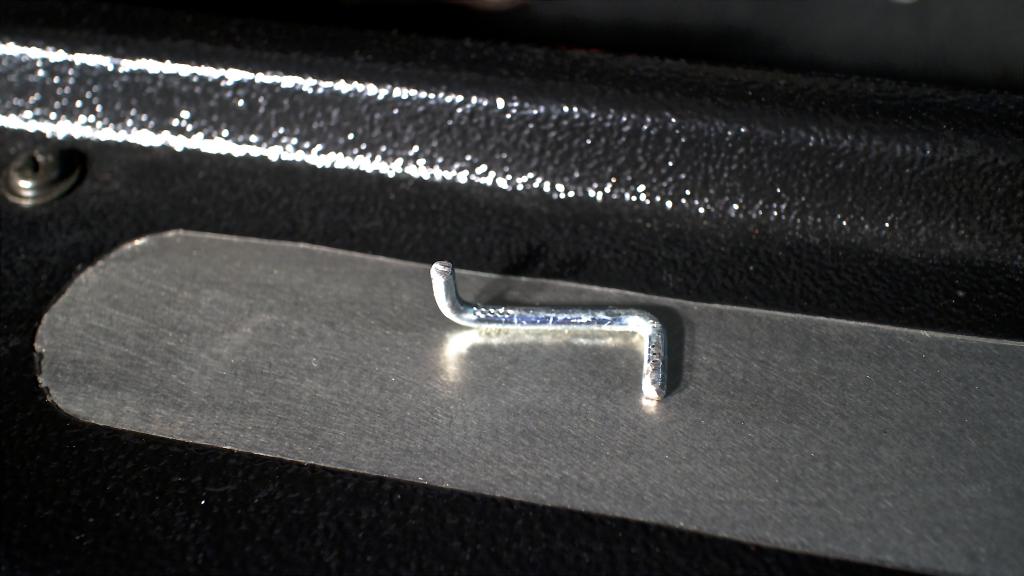

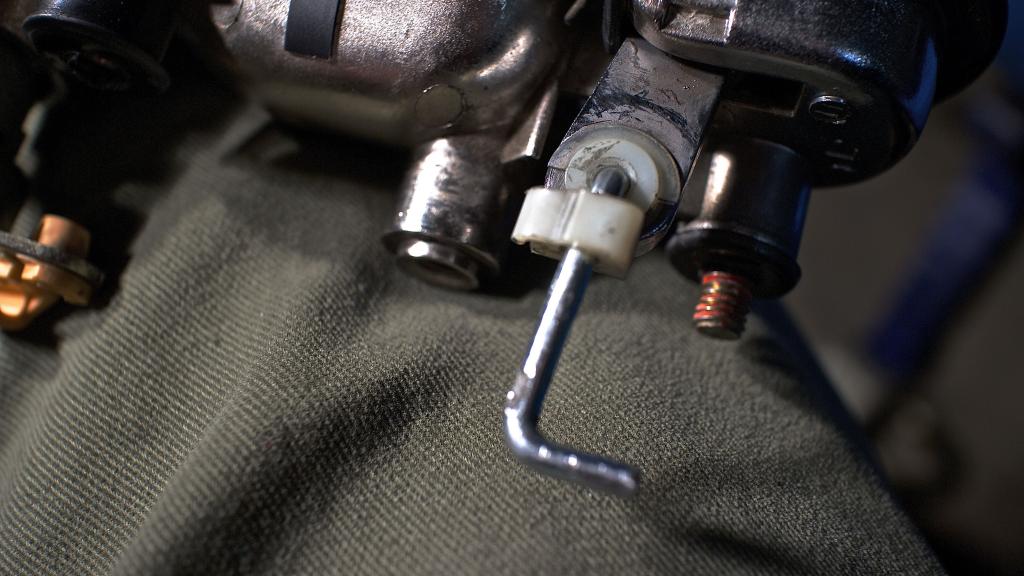

So after giving it a bit of thought I grabbed a metal coat hanger and it happened to be a perfect fit in the hole(1/8"). Super easy to do, especially with how soft the steel is in coat hangers. Easy fix.



Attached Thumbnails
93' Miata stolen and flipped build thread-img_1934.jpg   93' Miata stolen and flipped build thread-img_1935.jpg

Last edited by Jeffbucc; 02-24-2014 at 06:00 AM.
Jeffbucc is offline   Reply With Quote
Old 02-24-2014, 04:22 PM   #1362
Senior Member
iTrader: (3)

Join Date: May 2005
Location: Mass.
Posts: 816
Total Cats: 41
Default

I saw 91K thread views and thought "hmmmmm"

Yup, as I suspected: NA MX5 nut-and-bolt OCD rebuild | Build Threads

-Zach
thasac is offline   Reply With Quote
Old 02-24-2014, 06:21 PM   #1363
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by thasac View Post
I saw 91K thread views and thought "hmmmmm"

Yup, as I suspected: NA MX5 nut-and-bolt OCD rebuild | Build Threads

-Zach
Holy hell 91k? Well, think of it as free advertising for the site haha.

I don't take responsibility for any influx of the newbie section!
Jeffbucc is offline   Reply With Quote
Old 02-24-2014, 06:34 PM   #1364
Elite Member
iTrader: (2)

miata2fast's Avatar

Join Date: Aug 2009
Location: Dover, FL
Posts: 2,866
Total Cats: 104
Default

That is amazing. After looking at the site, there are some awesome builds. The fact that you made it among them is really saying something.
miata2fast is offline   Reply With Quote
Old 02-24-2014, 10:06 PM   #1365
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Finally done. That took forever! Turned out really great though. Glad I decided to cover the ABS plastic rather than leave it raw. Looks much more refined this way.

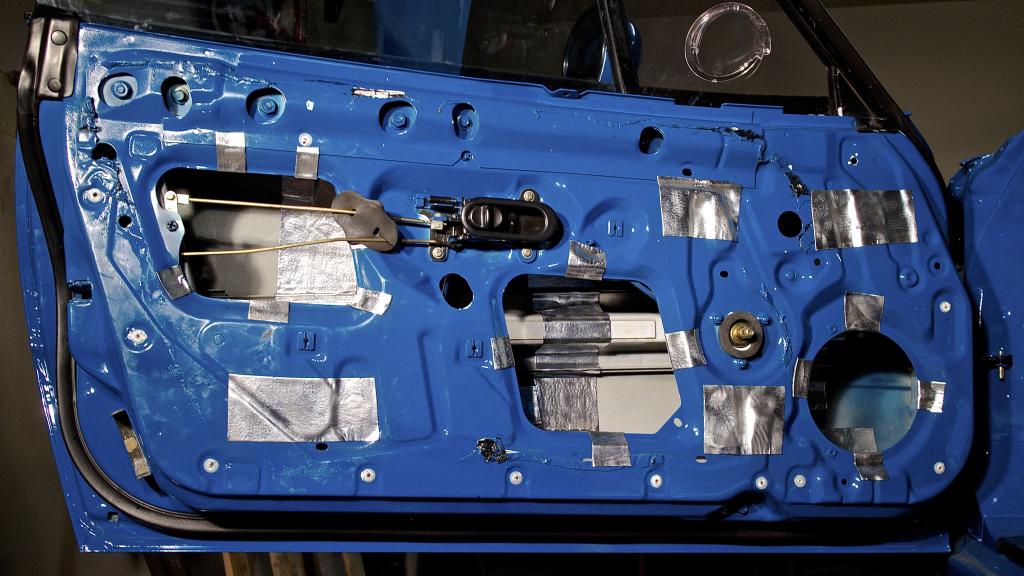

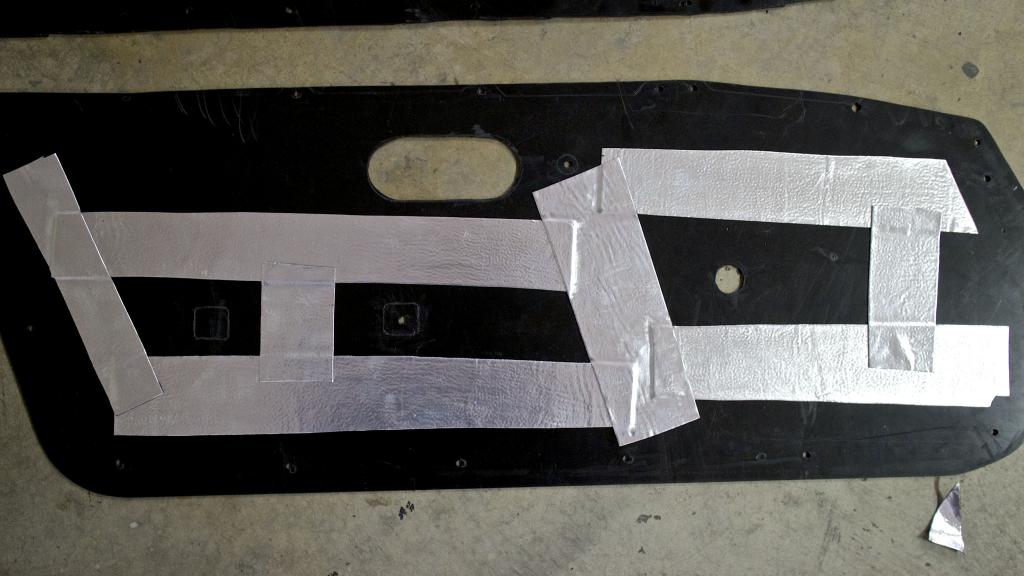

Finally read up on how to apply the vibration dampener properly. So I used a lot less this time around and placed it fairly strategically. I put an emphasis on fairly, who knows if it is effective placement or not.

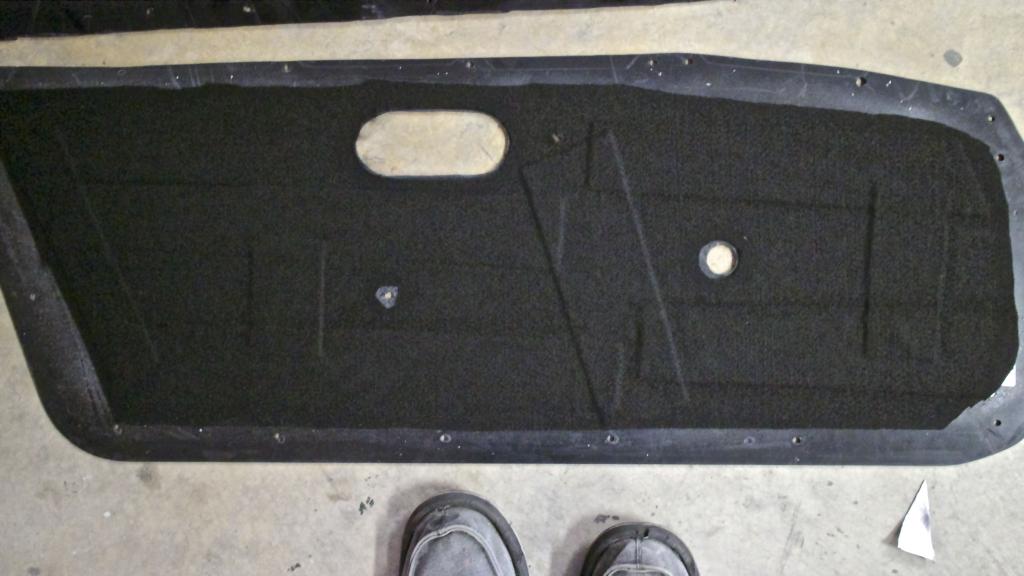

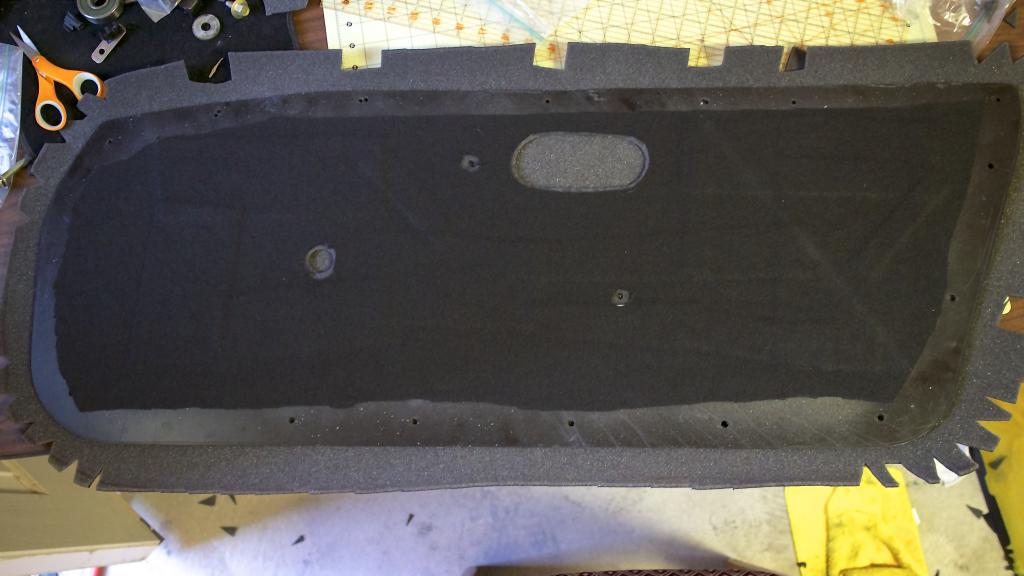

Put some felt on the back side of the ABS panels to help with noise a little. I just had some randomly lying around.



Cut the fabric to shape.

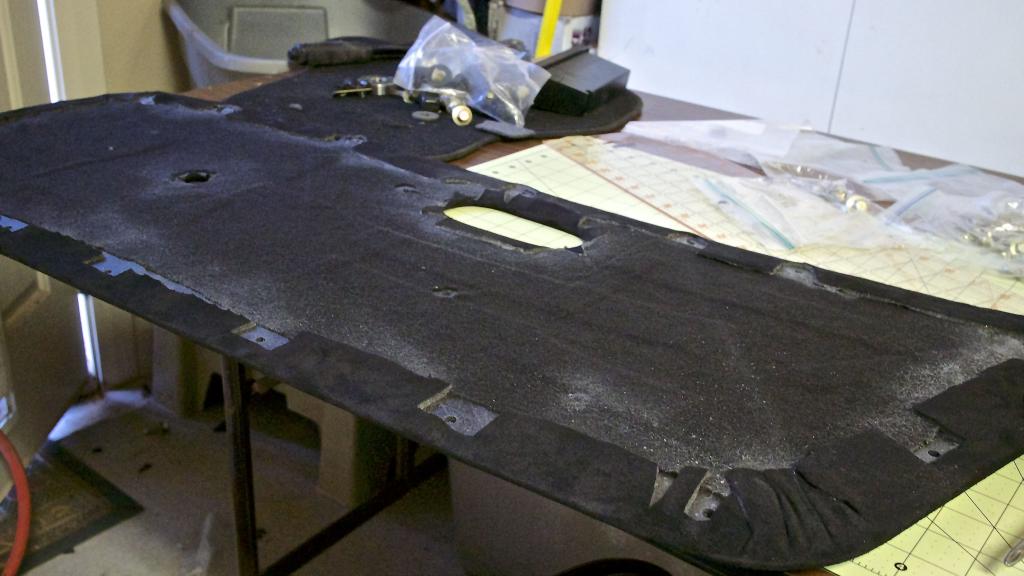

Apply adhesive to the edges and wrap it around nice and snug. I trimmed that bottom corner up so it would remain flush.

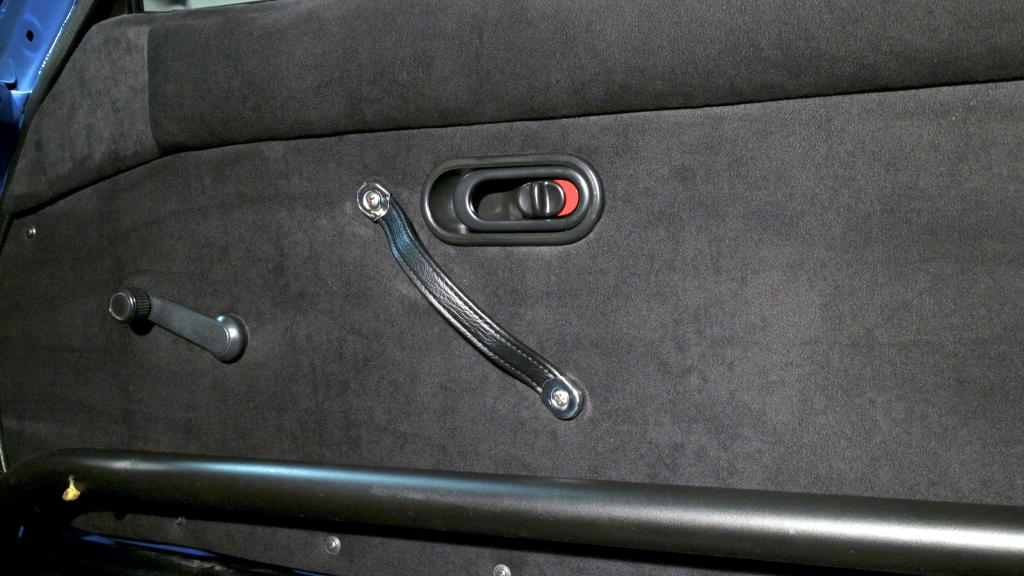

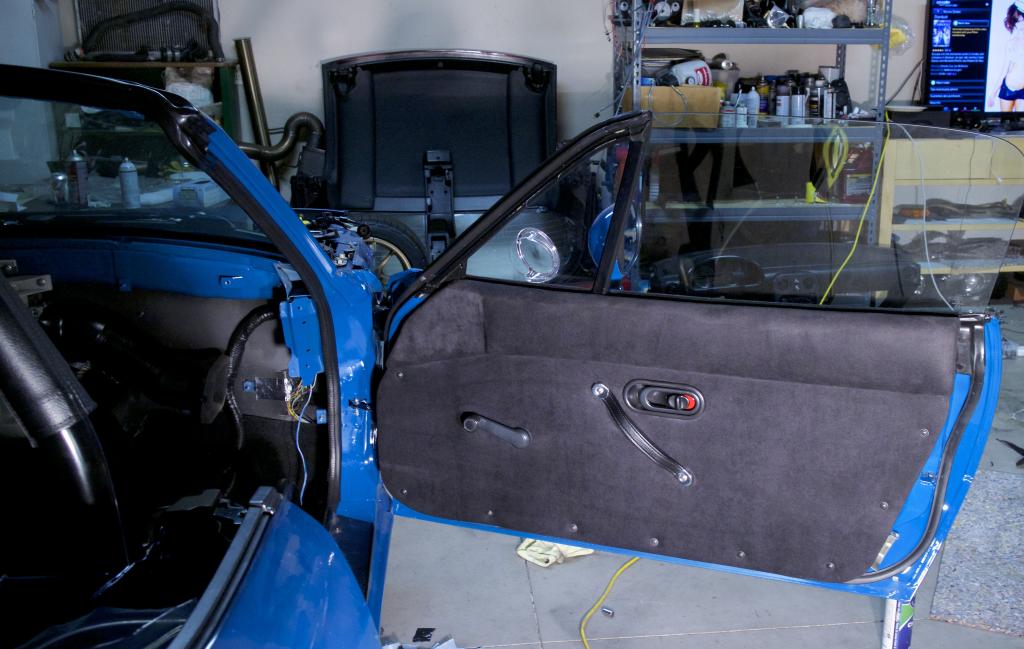

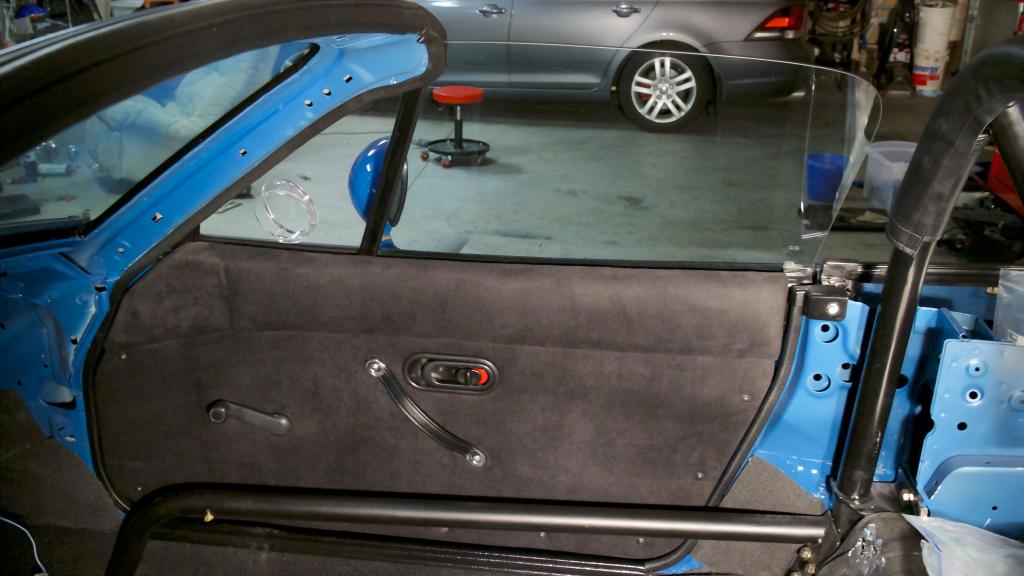

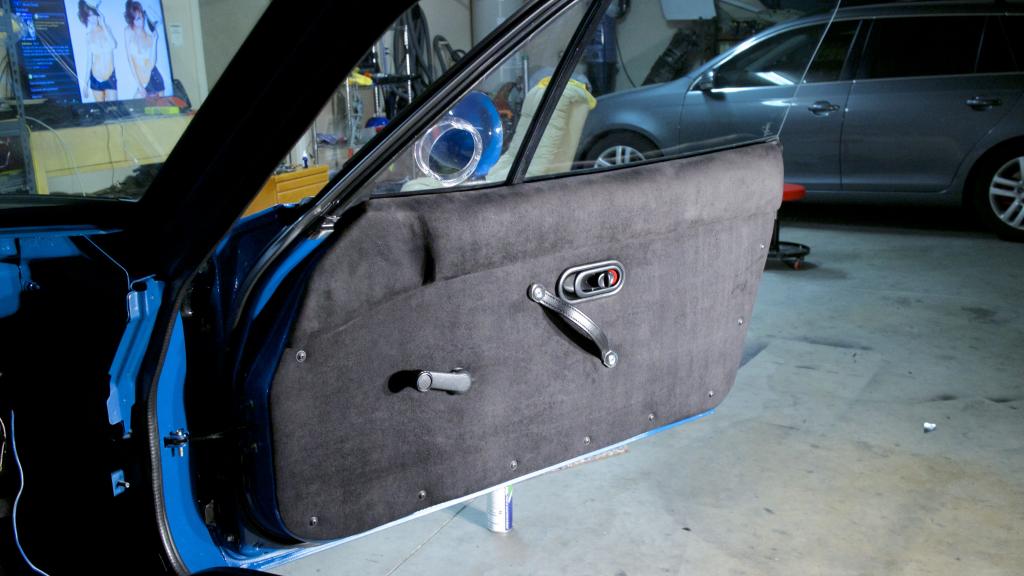

and installed! Really happy with it. The window levers were a bitch to get in since the padding was a little thicker than OEM I really had to press the door panel in hard to get it over the notch.

Thanks again Revlimiter for throwing in the door handles for me. They really look top notch.







Attached Thumbnails
93' Miata stolen and flipped build thread-img_1936.jpg   93' Miata stolen and flipped build thread-img_1941.jpg   93' Miata stolen and flipped build thread-img_1937.jpg   93' Miata stolen and flipped build thread-img_1938.jpg   93' Miata stolen and flipped build thread-img_1940.jpg

93' Miata stolen and flipped build thread-img_1943.jpg   93' Miata stolen and flipped build thread-img_1944.jpg   93' Miata stolen and flipped build thread-img_1945.jpg   93' Miata stolen and flipped build thread-img_1947.jpg
Jeffbucc is offline   Reply With Quote
Old 02-24-2014, 10:06 PM   #1366
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

...
Jeffbucc is offline   Reply With Quote
Old 02-24-2014, 10:38 PM   #1367
Elite Member
iTrader: (12)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,680
Total Cats: 232
Default

well **** me, that really is nice looking.
Fireindc is offline   Reply With Quote
Old 02-25-2014, 01:35 AM   #1368
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Fireindc View Post
well **** me, that really is nice looking.
You doubted me!

I was worried how it would turn out until I put the last screws on.

Sadly I forgot to put on the window sweeps on the upper door cards. So I need to tear it apart again.
Jeffbucc is offline   Reply With Quote
Old 02-25-2014, 09:12 AM   #1369
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

All this...for frikin' seat belts...

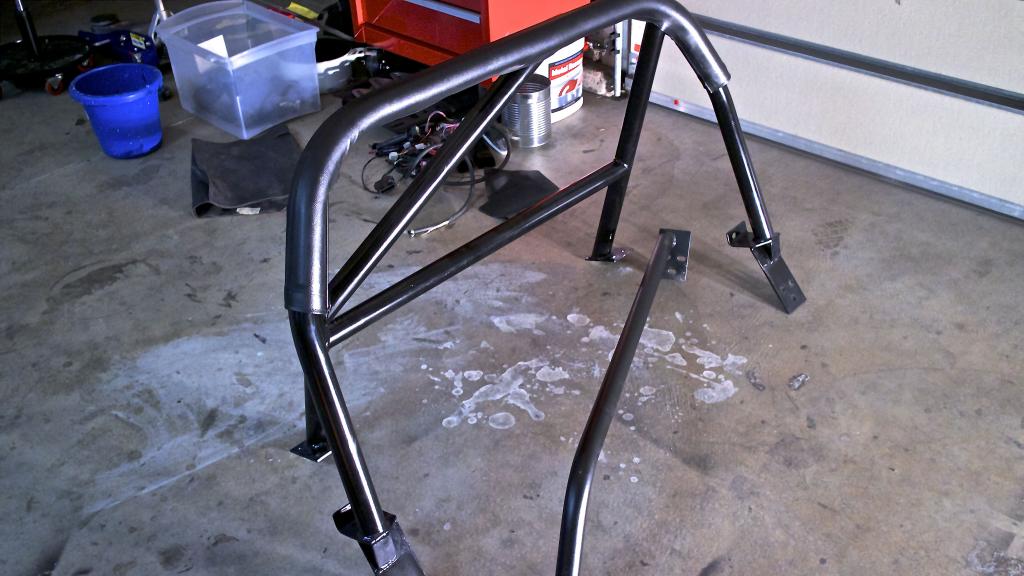

Roll bar/door bars out

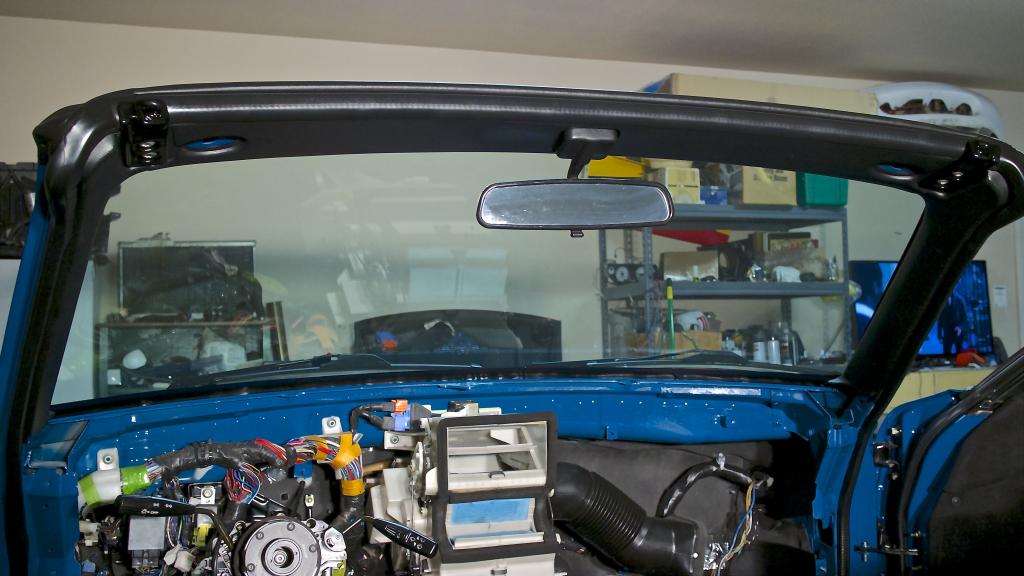

segued and installed the windshield trim and hard top strikers.

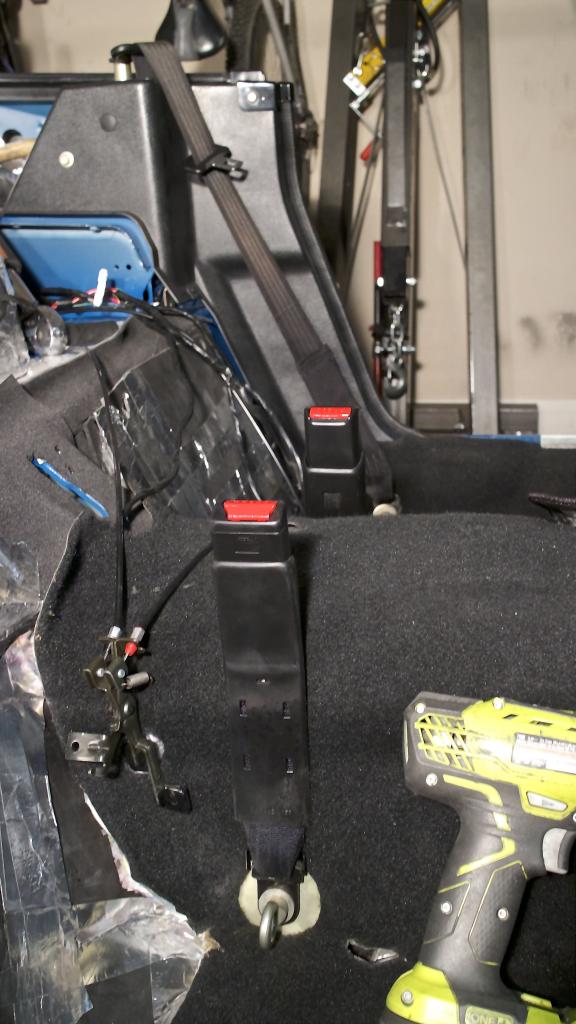

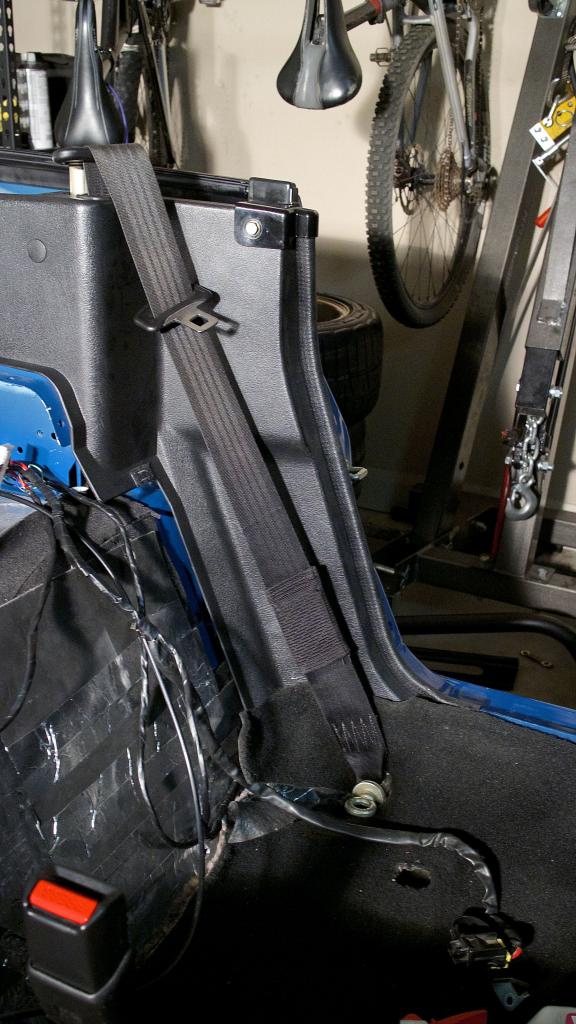

Seat belts in. Should the seat belt float freely or be locked hard in place? I torqued the bolts to 35 ft lbs.

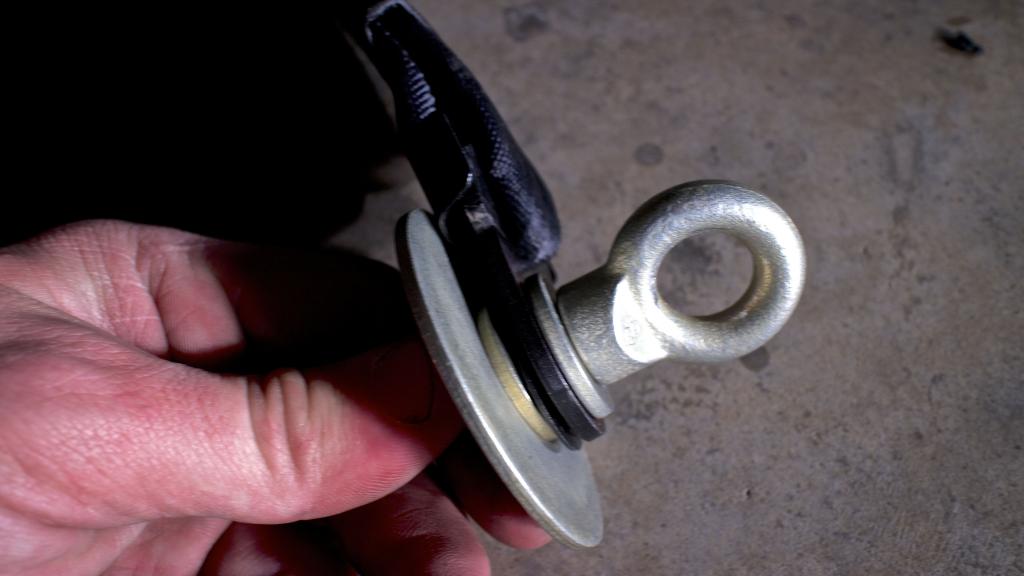

How I attached the eye-bolts for the 6 point harness. 2 thick washers and a large washer against the body to spread the load if there is an accident. Not sure if it was correct, but from reading up on it a little it is what a lot do. Question being, should I put a matching large washer on the underbody with a nut?





Attached Thumbnails
93' Miata stolen and flipped build thread-img_1948.jpg   93' Miata stolen and flipped build thread-img_1950.jpg   93' Miata stolen and flipped build thread-img_1951.jpg   93' Miata stolen and flipped build thread-img_1949.jpg   93' Miata stolen and flipped build thread-img_1952.jpg

93' Miata stolen and flipped build thread-img_1953.jpg
Jeffbucc is offline   Reply With Quote
Old 02-25-2014, 10:41 AM   #1370
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 5,981
Total Cats: 576
Default

You don't really need the big washer if you are using he OEM hardpoint. Big washers and large backing plates are used when securing the harness to sheet metal. OEM hardpoint is a better way to go -- designed and tested.

Harness manufacturers usually have free instructions on their websites. Worth a read. There's a link to Scroth instructions in my red car build thread.
hornetball is offline   Reply With Quote
Old 02-25-2014, 10:58 AM   #1371
Elite Member
iTrader: (12)

Join Date: Nov 2009
Location: Harpers Ferry WV
Posts: 1,521
Total Cats: 20
Default

What type of fabric is that on the door panels. It looks like sued but I imagine it is fake sued really interested. I would like to do something similar with mine.
Sean is offline   Reply With Quote
Old 02-25-2014, 11:36 AM   #1372
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 491
Total Cats: 6
Default

I might have missed it somewhere 200 or 300 pages ago (you are literally working faster than I have time to check in on the progress...), but are you planning on running race seats with these harnesses you want? or just stock seats?

If you are going with buckets you probably want to remove the plastic sleeve from the receiver side and route that and the seatbelt webbing through the bucket cutouts, so its not just draping over the top of the bolsters when you are using that belt around town.

If you plan to run stock seats, then just ignore me!
rigidbigelsworth is offline   Reply With Quote
Old 02-25-2014, 11:42 AM   #1373
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,071
Total Cats: 511
Default

The seat belt should pivot. However the roll bar stops it from pivoting as much as it should, so they usually don't retract easily. Therefore, you can pivot it up against the roll bar and tighten it down and be good to go.

Otherwise, you'll have to replicate the stock shouldered bolt somehow to allow it to pivot.
curly is offline   Reply With Quote
Old 02-25-2014, 05:38 PM   #1374
Senior Member
iTrader: (1)

revlimiter's Avatar

Join Date: Jan 2009
Location: ABQ, NM
Posts: 528
Total Cats: 92
Default

Awesome work on the center console. The bondo work is epic and the armrest came out fantastic.

Door tops - also fantastic.

Door panels: DAMN!!! Such a huge improvement from the bare ABS. Well done sir! And enjoy the door pulls.
revlimiter is offline   Reply With Quote
Old 02-25-2014, 08:31 PM   #1375
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by Sean View Post
What type of fabric is that on the door panels. It looks like sued but I imagine it is fake sued really interested. I would like to do something similar with mine.
It is called ultrasuede. It is a synthetic suede that is essentially alcantra, just without the price tag. Much higher wear than suede, and won't fade like suede does due to sun exposure.

Quote:
Originally Posted by hornetball View Post
You don't really need the big washer if you are using he OEM hardpoint. Big washers and large backing plates are used when securing the harness to sheet metal. OEM hardpoint is a better way to go -- designed and tested.
Thanks, I was unclear on using factory seat belt locations in regards to the washers.

Quote:
Originally Posted by rigidbigelsworth View Post
are you planning on running race seats with these harnesses you want? or just stock seats?

If you are going with buckets you probably want to remove the plastic sleeve from the receiver side and route that and the seatbelt webbing through the bucket cutouts, so its not just draping over the top of the bolsters when you are using that belt around town.
We'll see on the routing, this is how they were routed when I originally bought the car and there were no problems with the seatbelt locking or riding too high on my shoulder. I'm 5' 11" so there aren't any issues with that.

I'm running Buddy Club Racing seats, ain't putting no stock seats back in this car! They are one of the few seats that fit with door bars installed. Although, saying that, with the new door cards in place, I could remake the door bars to give me another 1-3" of side bolster space.

Quote:
Originally Posted by revlimiter View Post
Awesome work on the center console. The bondo work is epic and the armrest came out fantastic.
Door tops - also fantastic.
Door panels: DAMN!!! Such a huge improvement from the bare ABS. Well done sir! And enjoy the door pulls.
Thanks Adam, I didn't think this would be such a big project but to do it right, and make it look right, you really have to put some effort into it as you know all to well.

Quote:
Originally Posted by curly View Post
The seat belt should pivot. However the roll bar stops it from pivoting as much as it should, so they usually don't retract easily. Therefore, you can pivot it up against the roll bar and tighten it down and be good to go.
Otherwise, you'll have to replicate the stock shouldered bolt somehow to allow it to pivot.
Maybe I'll try using the stock seatbelt spacers that I still have from the CO car. Not a huge issue. I'll probably just clock the seat belt towers to 9 o' clock and call it good.
Jeffbucc is offline   Reply With Quote
Old 02-26-2014, 01:35 AM   #1376
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

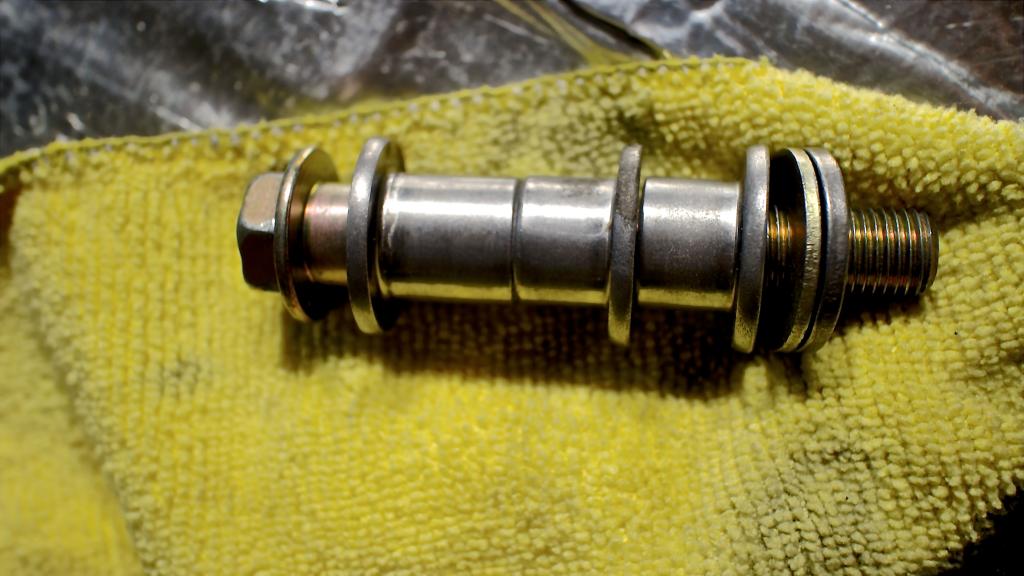

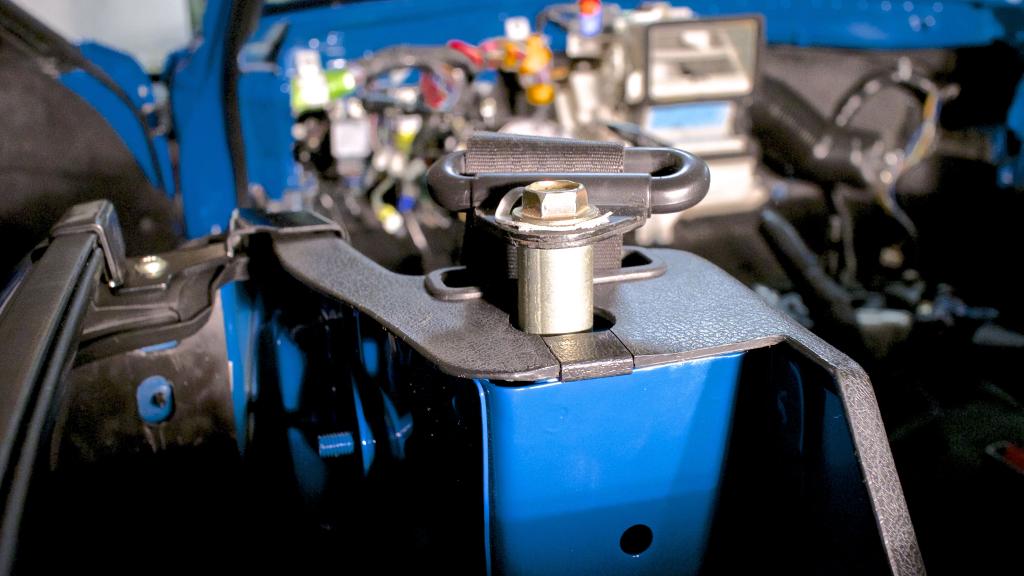

In case anyone is wondering what the seatbelt tower spacer arrangement is on 90-93 Miata, this is the correct layout.

Thick washer
Thin washer
3 stepped spacers and then the seat belt

Whene tightening make sure you pull the seat belt up flush against the bolt head so that it doesn't get torqued down onto the spacer.

Attached Thumbnails
93' Miata stolen and flipped build thread-img_1954.jpg
Jeffbucc is offline   Reply With Quote
Old 02-26-2014, 09:17 AM   #1377
Junior Member
iTrader: (3)

Join Date: Apr 2010
Location: Cary, NC
Posts: 491
Total Cats: 6
Default

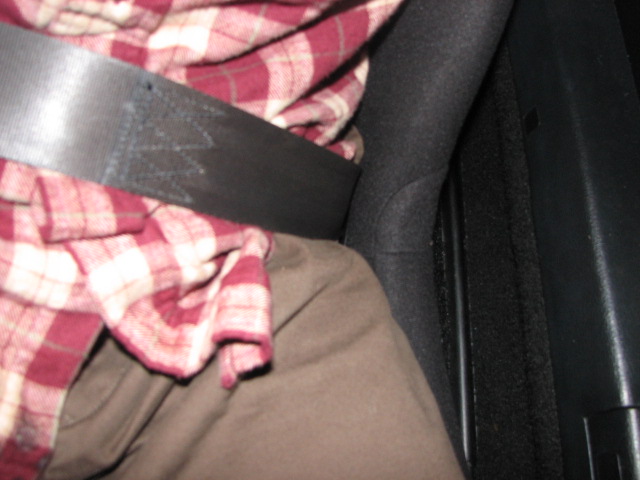

I was referring to the lower bolster cutout, not the shoulder ones. My first time installing buckets I forgot to route the strap through the cutout then bolt it to the body BEFORE I installed the seat, and after fighting with the trans tunnel with a big hammer, and finally getting everything to line up with my side mounts in a very tight space, I was not excited to have to remove it all to access the seat belt bolt to route it through the seat cutout at my hip.
Attached Thumbnails
93' Miata stolen and flipped build thread-seatbelt.jpg
rigidbigelsworth is offline   Reply With Quote
Old 02-26-2014, 09:58 AM   #1378
Senior Member
iTrader: (2)

Join Date: Jun 2012
Location: New Braunfels,TX
Posts: 1,141
Total Cats: 52
Default

Very Nice Jeff! Those doors look awesome and The amp handles look great too.
ScottyP3821 is offline   Reply With Quote
Old 02-26-2014, 09:58 AM   #1379
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Gotcha, thanks, should be easy to do when I put the seats in.

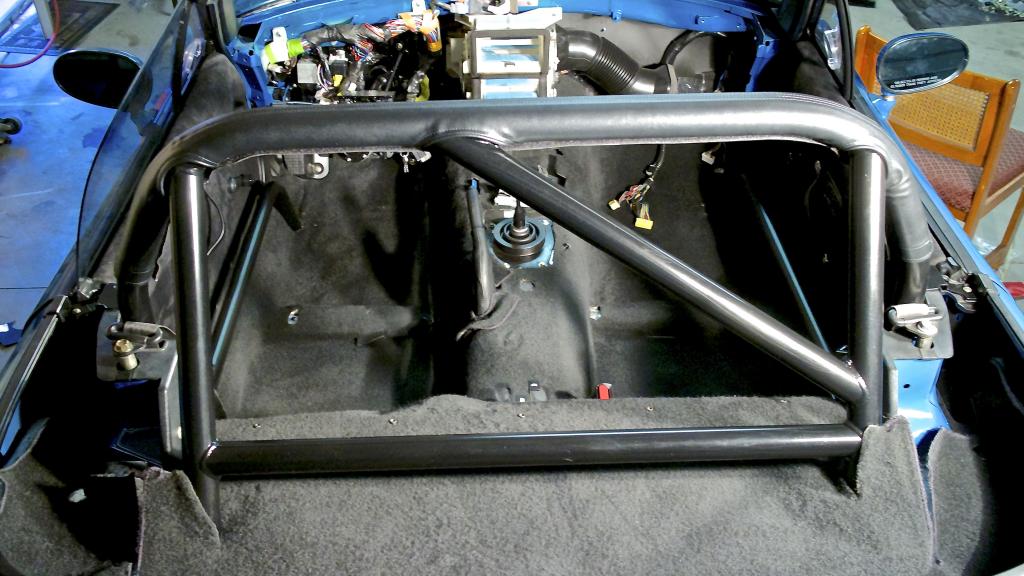

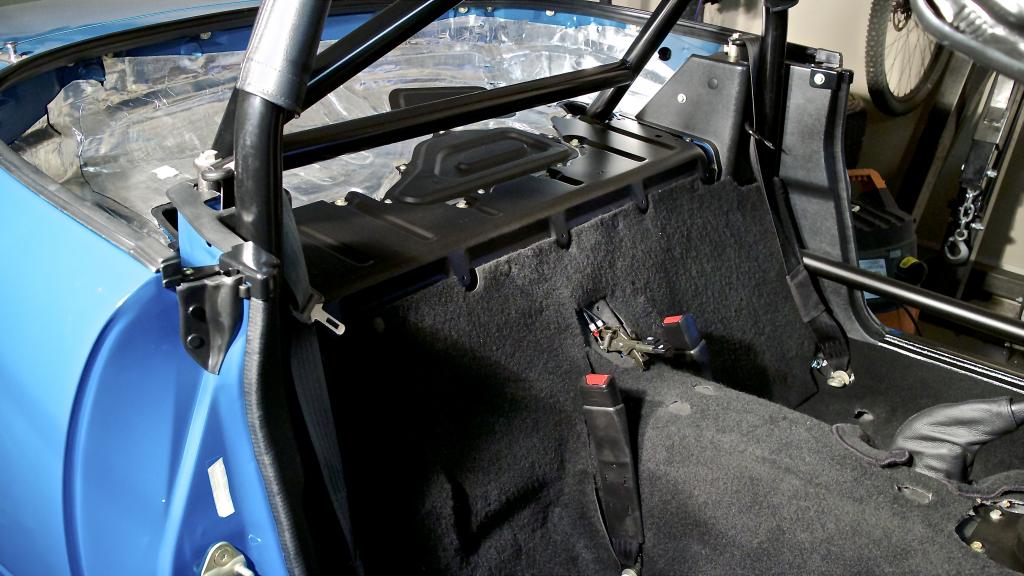

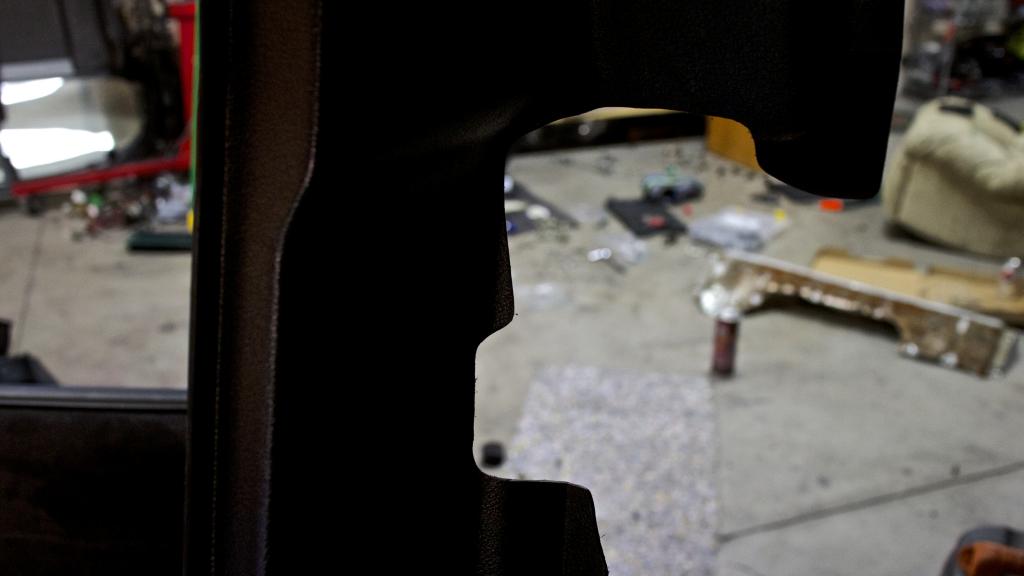

OK that was a long night. Got the roll bar back in and the door bars. First I sprayed some rubberized undercoating on the contact point with the body since I didn't the first time around. Mostly to protect where the paint got scraped off and the drill holes. MUCH easier the second time around. Only took me an hour to put it all together.

After that I got the seat belts sorted out and went to install the trim panels and....doh! they wouldn't fit for the life of me. So after researching what Bethania Garage suggests, I came up with my own solution. I didn't want to cut the panels in half like they suggested. It looked super tacky in all the photos that I saw.

So I took the long route and installed then removed it about 20 times until I traced a pattern that would allow me to slide it in-between the roll bar and the chassis. I cut off the fastener plastic off the back of it along with the 1" tabs that slide into the body. Then I carefully used a dremmel to carve the contact point off the plastic. After that it slid right in just perfectly! In my opinion it is a pain in the *** to do, but worth it for the final result.

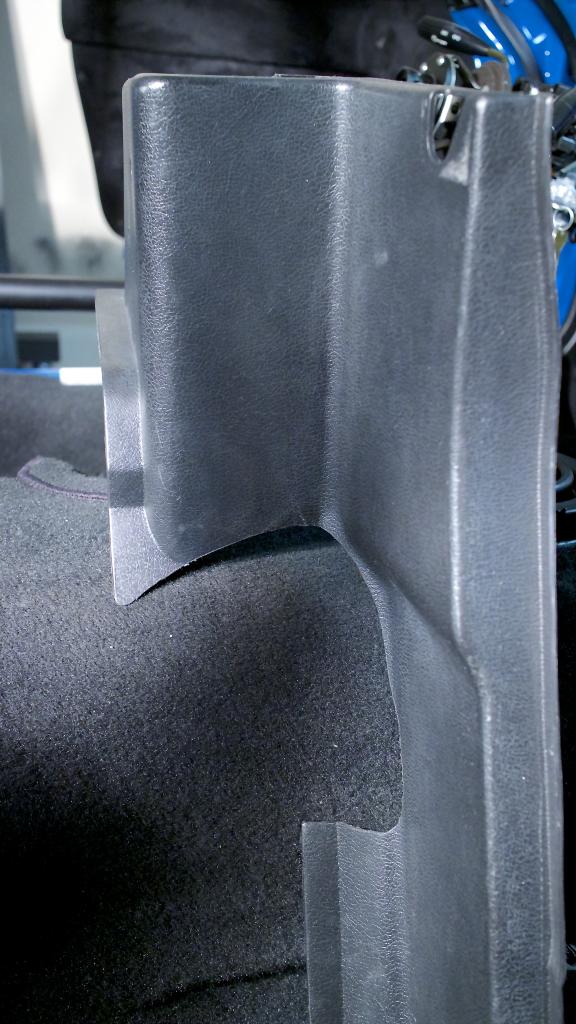

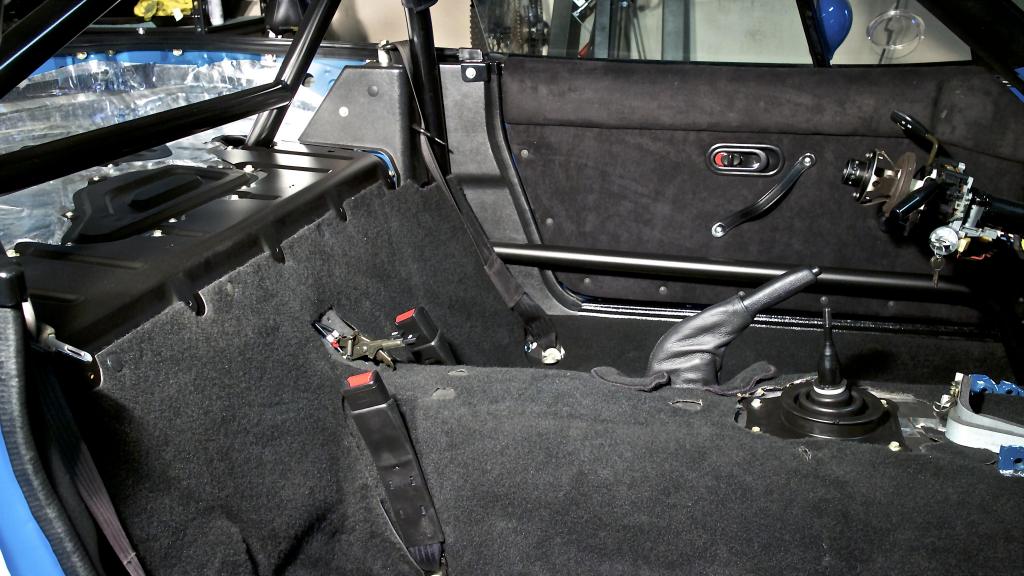

Passenger panel took a lot of attention to get it right.



Drivers side was much more compliant.

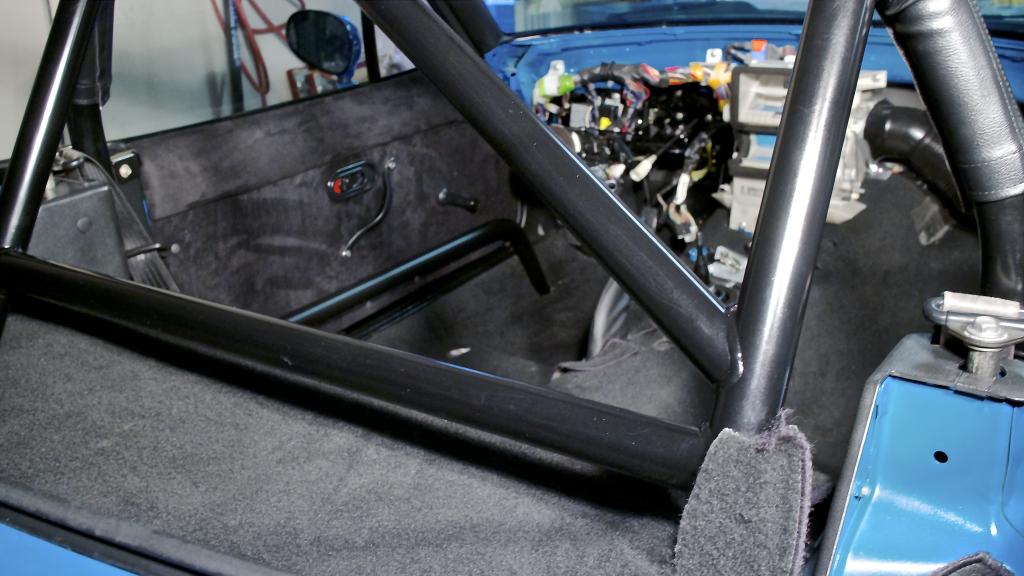

Then I installed the ground wires and put the rear finish panel on along with the carpet.





And the rear carpet just laid on until I can find a solution that I am happy with.





Glad that is over with.
Attached Thumbnails
93' Miata stolen and flipped build thread-img_1960.jpg   93' Miata stolen and flipped build thread-img_1961.jpg   93' Miata stolen and flipped build thread-img_1962.jpg   93' Miata stolen and flipped build thread-img_1966.jpg   93' Miata stolen and flipped build thread-img_1968.jpg

93' Miata stolen and flipped build thread-img_1970.jpg
Jeffbucc is offline   Reply With Quote
Old 02-26-2014, 12:23 PM   #1380
Elite Member

Join Date: Oct 2013
Location: Cedar City, UT
Posts: 2,769
Total Cats: 948
Default

Quote:
Originally Posted by ScottyP3821 View Post
Very Nice Jeff! Those doors look awesome and The amp handles look great too.
The handles are from Revlimiter(Adam), very cheap for how good they look. I'm so happy I went with the OEM door handle/locks inside, gives it a really clean look. The Porsche RS pull straps just didn't look as clean IMHO. Maybe if I could have found a good metal trim ring for the base of the strap, but that just costs more money!
Jeffbucc is offline   Reply With Quote
