Aidan's loose oily bunghole actually runs a track lap

Thread Tools

Search this Thread

Old Jun 5, 2015 | 04:47 PM
  #1361
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>We recently did the reroute and tried burping it as well as we could. Was 50/50, slowly turned into more and more water as the day went on.</p>
Old Jun 5, 2015 | 04:58 PM
  #1362
deezums's Avatar
Elite Member
iTrader: (3)

Joined: May 2014
Posts: 3,146
Total Cats: 206
From: Kansas
Default

I think OEM radiators clog and loose a lot of their heat transfer capability, I went through two used OEM ones before upgrading to a new one and I haven't had problems since.
Old Jun 5, 2015 | 05:02 PM
  #1363
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Brand new OEM</p>
Old Jun 5, 2015 | 05:06 PM
  #1364
deezums's Avatar
Elite Member
iTrader: (3)

Joined: May 2014
Posts: 3,146
Total Cats: 206
From: Kansas
Default

Does it have a auto tranny tank on it? My first one had one and it has to eat some volume?
Old Jun 5, 2015 | 05:09 PM
  #1365
EO2K's Avatar
Elite Member
iTrader: (37)

Joined: Apr 2010
Posts: 10,477
Total Cats: 1,924
From: Very NorCal
Default

I believe the auto tranny one is the one you want as far as OEM cores go. Its supposed to be more capable as to handle the additional heat from the trans.
Old Jun 5, 2015 | 05:09 PM
  #1366
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Yeah it does.</p>
Old Jun 5, 2015 | 05:10 PM
  #1367
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Current plan is CXracing radiator, ducting, ducting, ducting.</p><p>Also compression test.</p>
Old Jun 5, 2015 | 05:12 PM
  #1368
deezums's Avatar
Elite Member
iTrader: (3)

Joined: May 2014
Posts: 3,146
Total Cats: 206
From: Kansas
Default

Has anyone checked on that lately though? OEM auto tranny cars are supposed to be dual core, but my radiator wasn't a dual core and it still had tank nipples. I wouldn't be surprised if those were cheaped out on at some point.
Old Jun 5, 2015 | 05:48 PM
  #1369
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

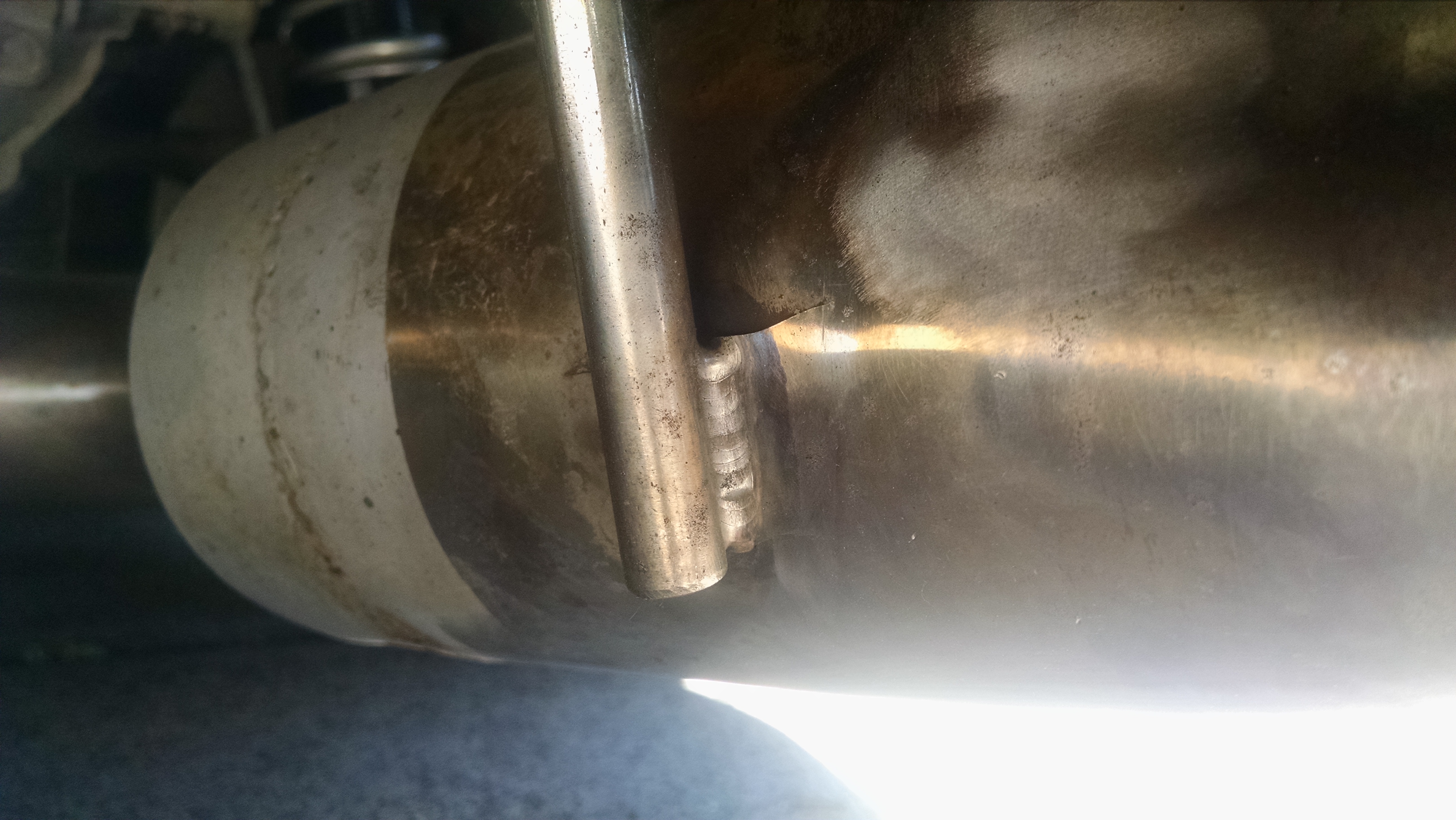

<p>After watching Luke's corksport muffler seperate itself from the hangar I checked mine:</p><p></p><p>Going to order a 5 inch band clamp, and build a new hangar.</p>
Attached Thumbnails Aidan's loose oily bunghole actually runs a track lap-io7gnx8.jpg
Old Jun 5, 2015 | 06:11 PM
  #1370
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

<p>Its looking like my next track day will be thunderhill double header in July. This gives me some time to figure a couple things out. Current to-do list.<br /><br /><br /><br />1. Pull manifold, relief cuts, and surface.<br /><br />2. Brakes. Start with pulling the pads. If they are tapered buy cobalt pads. If they aren't try bleeding the system. If that doesn't work replace master.<br /><br />3. Ducting. Need to seal my bottom ducting and build side ducting. Otherwise I'm happy with my cooling so far.<br /><br />4. Rebuild rear axles, find spare ABS 2 piece axle. And lots of axle nuts.<br /><br />5. Make GoPro not suck.<br /><br />6. Install new front coilover sleeves and get an alignment with 949 half and half alignment.<br /><br />7. Install adjustable endlinks up front.</p><p>8. Support Muffler<br /><br />9. Drive the **** out of it.</p>
Old Jun 5, 2015 | 07:05 PM
  #1371
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

I'm also in the market for an hy35 or hx30 or similar. Let me know if any of you guys know of any of these laying around.
Old Jun 6, 2015 | 12:32 AM
  #1372
hornetball's Avatar
Elite Member
iTrader: (4)

Joined: Mar 2008
Posts: 6,301
Total Cats: 697
From: Granbury, TX
Default

Originally Posted by aidandj
<p>Could use some help diagnosing my friends car.</p><p>Stock 1.6, no ducting, new oem radiator. Coolant reroute.</p><p>Yesterday I ran with only a top cooling panel and a panel between my bumper and radiator, under my intercooler. No side ducting no undertray. I have a CXRacing intercooler.&nbsp;I never peaked over like 190. He was boing coolant out all day. Had to skip the last session.</p><p>Is it just his radiator? Could there be a head gasket issue? On the second session his temps were fine, then right on the last lap his gauge started to fluctuate up and down. We pulled the radiator cap and he had lost a ton of coolant out of the overflow, but it didn't get really hot before that.</p>
I had these exact symptoms on the Silver car. It was the head gasket. There was a carbon trace from one of my cylinders to a water passage. It would go all day on the street no problem. On the track, it would pressurize and blow out the coolant. 1.6 is a composite head gasket. Not so good.
Old Jun 6, 2015 | 12:35 AM
  #1373
hornetball's Avatar
Elite Member
iTrader: (4)

Joined: Mar 2008
Posts: 6,301
Total Cats: 697
From: Granbury, TX
Default

Originally Posted by aidandj
<p>My 2 fails:</p>
You call those fails?

You need to step up your game bro! You can fail a lot harder than that if you try.
Old Jun 6, 2015 | 02:47 AM
  #1374
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Too many walls at PIR :(
<br />
<br />Remember my big fail last fall?

Last edited by aidandj; Jun 6, 2015 at 11:55 AM.
Old Jun 6, 2015 | 11:57 AM
  #1375
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

We will try head gasket, probably a new radiator too.
Old Jun 6, 2015 | 01:47 PM
  #1376
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Same buddies car, front main is leaking pretty bad, if we get all they way down there should we do water pump and everything? I've never done that yet.
Old Jun 6, 2015 | 01:52 PM
  #1377
williams805's Avatar
Senior Member
iTrader: (2)

Joined: Oct 2013
Posts: 520
Total Cats: 27
From: Goleta, Southern California
Default

If I'm it there, I do it all. I like Gates water pumps. Cast impeller and the back surfaces are machined correctly so the belt doesn't walk off to one side.

Edit: The timing belt doesn't walk off to one side. Never had a problem with the water pump/ alt belt even with improperly machined pumps.

Last edited by williams805; Jun 6, 2015 at 03:25 PM.
Old Jun 6, 2015 | 01:53 PM
  #1378
aidandj's Avatar
Thread Starter
SADFab Destructive Testing Engineer
iTrader: (5)

Joined: Apr 2014
Posts: 18,643
Total Cats: 1,870
From: Beaverton, USA
Default

Sweet, I'll do some more research and come up with a shopping list. Time to sign up for Mazda comp.
Old Jun 6, 2015 | 05:33 PM
  #1379
Mobius's Avatar
Elite Member
iTrader: (2)

Joined: May 2008
Posts: 3,469
Total Cats: 365
From: Portland, Oregon
Default

Originally Posted by hornetball
You call those fails?

You need to step up your game bro! You can fail a lot harder than that if you try.
Avoiding the Hard Fail is worthwhile.
Old Jun 6, 2015 | 07:05 PM
  #1380
turbofan's Avatar
Supporting Vendor
iTrader: (1)

Joined: Sep 2010
Posts: 8,146
Total Cats: 1,087
From: Lake Forest, CA
Default

^ I can also vouch for this.
__________________
Ed@949Racing/Supermiata
www.949racing.com
