Old 03-21-2013, 07:56 PM   #881
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

I really dig this project, man. It seems like every time I look in here I find something to nit pick, but I'm really impressed with what you're doing here.
vehicular is offline   Reply With Quote
Old 03-21-2013, 08:05 PM   #882
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

I've considered ballistic. Not quite ready for lipoly yet. Awesome stuff though.
miatauser123 is offline   Reply With Quote
Old 03-21-2013, 08:08 PM   #883
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

My car will be getting a 12 cell once I get everything sorted out. The trouble with them is terminals. If you put brass or steel terminal posts on them you increase the weight considerably (mainly because the damn thing is so light). I also dont want to hack off my stock terminals in case I ever need to throw in a normal battery.
Leafy is offline   Reply With Quote
Old 03-21-2013, 10:43 PM   #884
Elite Member
iTrader: (3)

Join Date: Feb 2008
Location: Huntsville, AL
Posts: 1,881
Total Cats: 45
Default

I gave mine the chop like it was nothing. Worst case scenario I'll pop the ring terminals over the studs on parts store battery terminals like these:

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-red_black_battery_terminal.jpg
vehicular is offline   Reply With Quote
Old 03-21-2013, 11:18 PM   #885
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by vehicular View Post
I gave mine the chop like it was nothing. Worst case scenario I'll pop the ring terminals over the studs on parts store battery terminals like these:

Thats a good idea.
Leafy is offline   Reply With Quote
Old 03-22-2013, 11:00 AM   #886
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

Quote:
Originally Posted by Dem768 View Post
Probably the same weight maybe a pound or two less.. I'm not doing this for weight though, if anything I could use some weight above the rear wheels. But I need something more reliable, high power fans, increased amperage spark system.. Looking for reliability.
The battery is pretty much just along for the ride once the car is started. The alternator is the important bit.
573 is offline   Reply With Quote
Old 03-22-2013, 01:49 PM   #887
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Quote:
Originally Posted by 573 View Post
The battery is pretty much just along for the ride once the car is started. The alternator is the important bit.
Meh - I ran a smaller battery in the past.. When My car sits at the track between sessions and is hot enough for the two fans to be running it had trouble starting.. Not worth the 6lbs of weight. Now I'm running a bigger battery and the fans don't run unless my ECU shows 300+ rpm.
miatauser123 is offline   Reply With Quote
Old 03-25-2013, 11:47 AM   #888
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Installed my Quik-Latches this weekend – And my new throw out bearing.

So I now have the FM level 2 clutch with a custom 6 puck ceramic sprung disc. While I was swapping the clutch in I decided to replace the throw out bearing. BIG MISTAKE. Turns out the FM level 2 comes with an upgraded bearing that is intended to take the abuse of the serious pressure plate that they include.

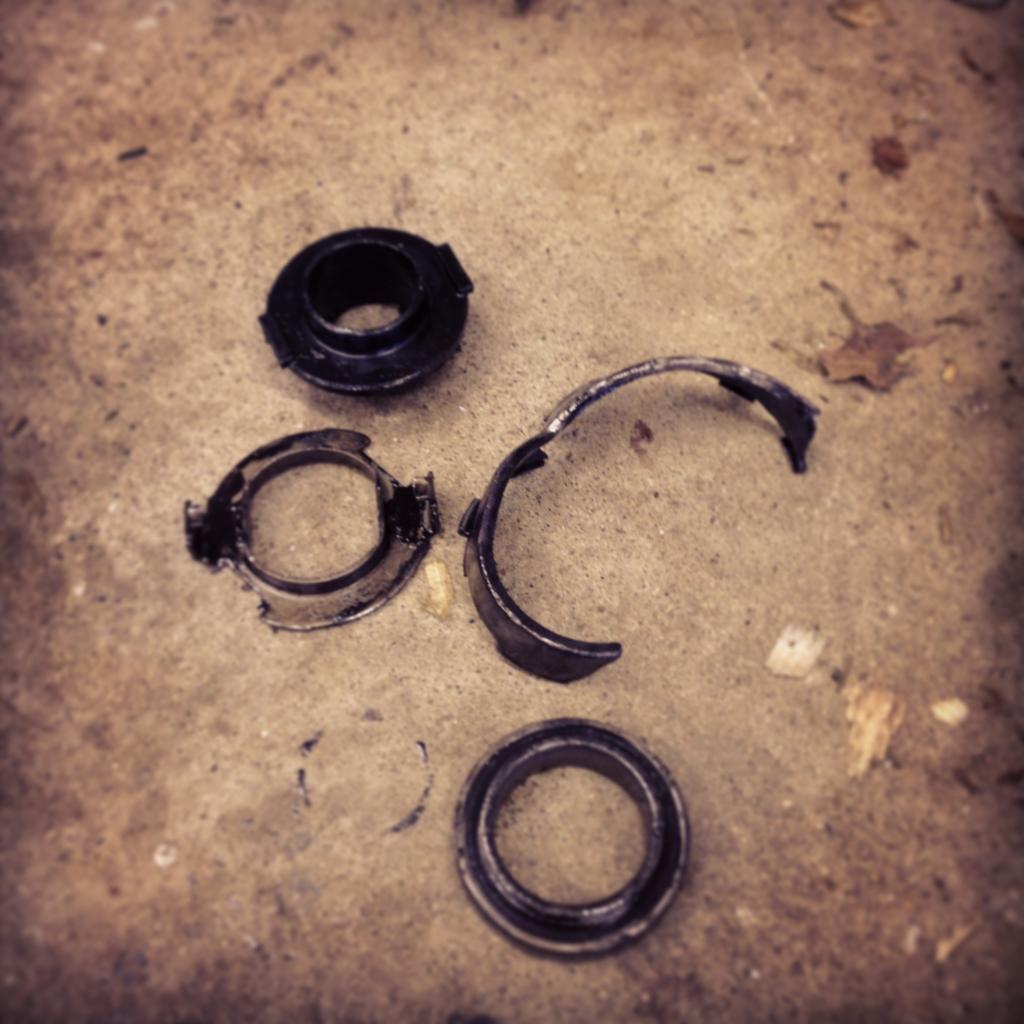

This was a brand new OE bearing after about 100 miles:

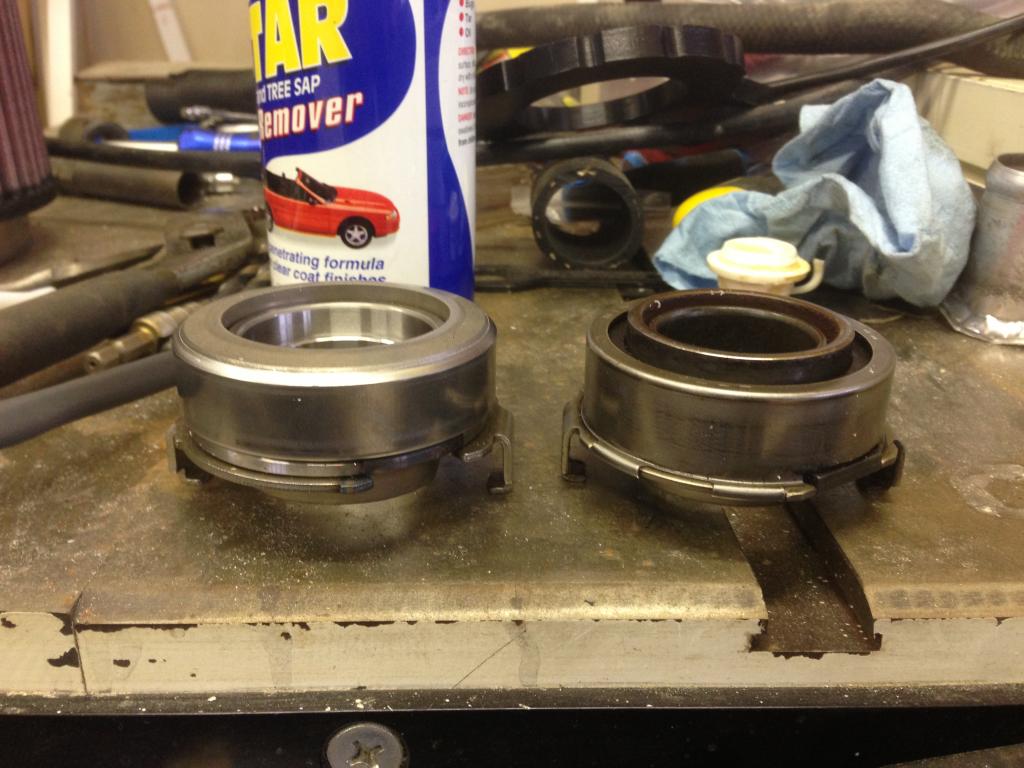

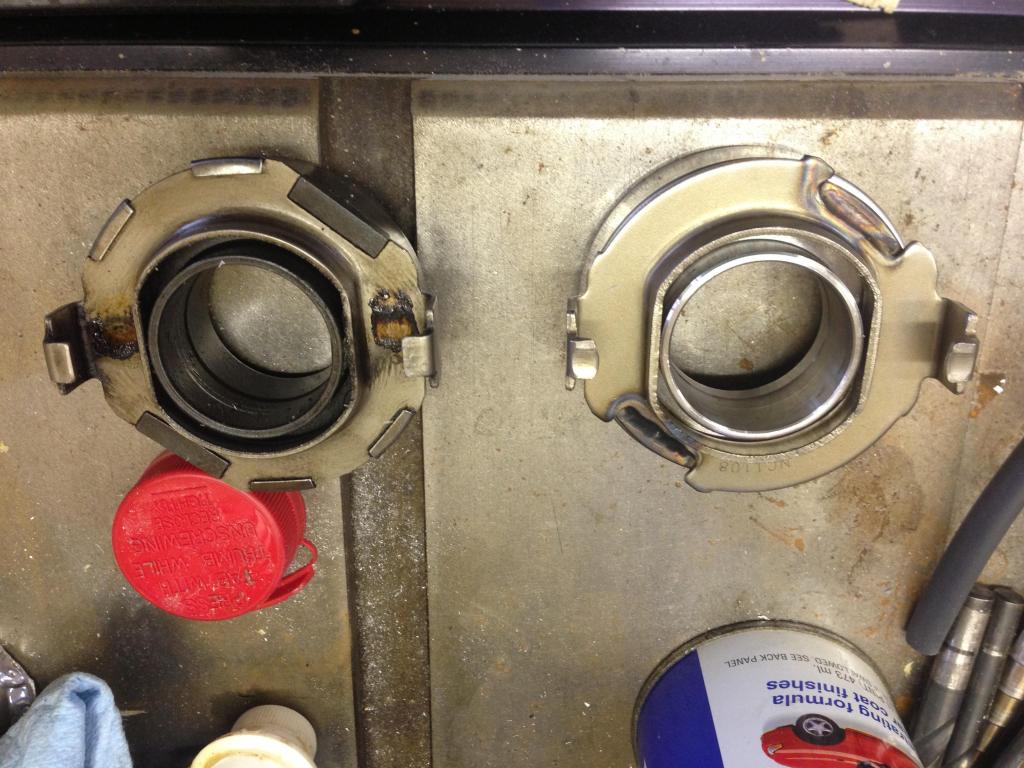

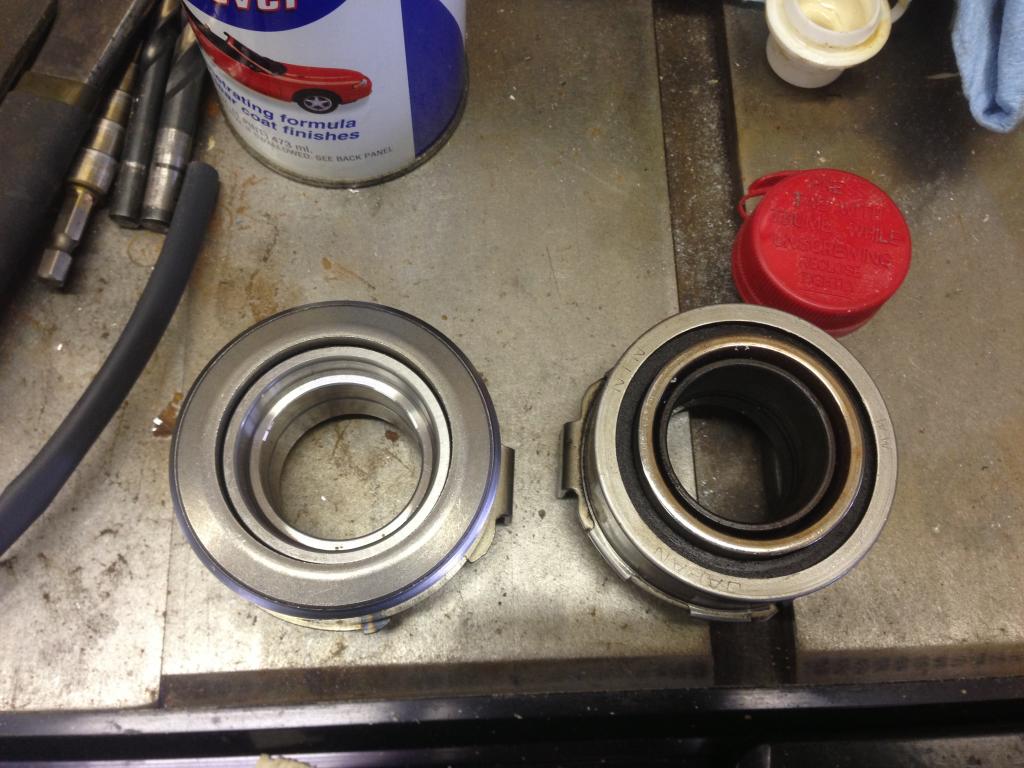

Thanks to the guys at Flyin Miata I finally tracked down a bearing and here is the difference.

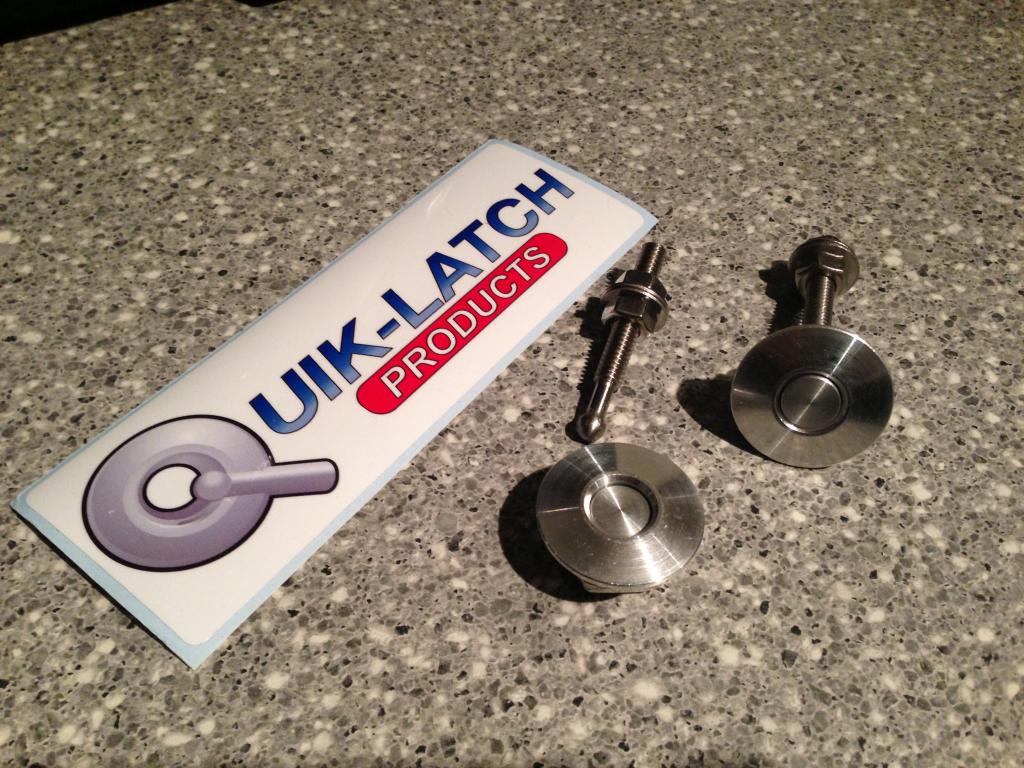

Tossed this guy in and decided to install my Quik Latches:

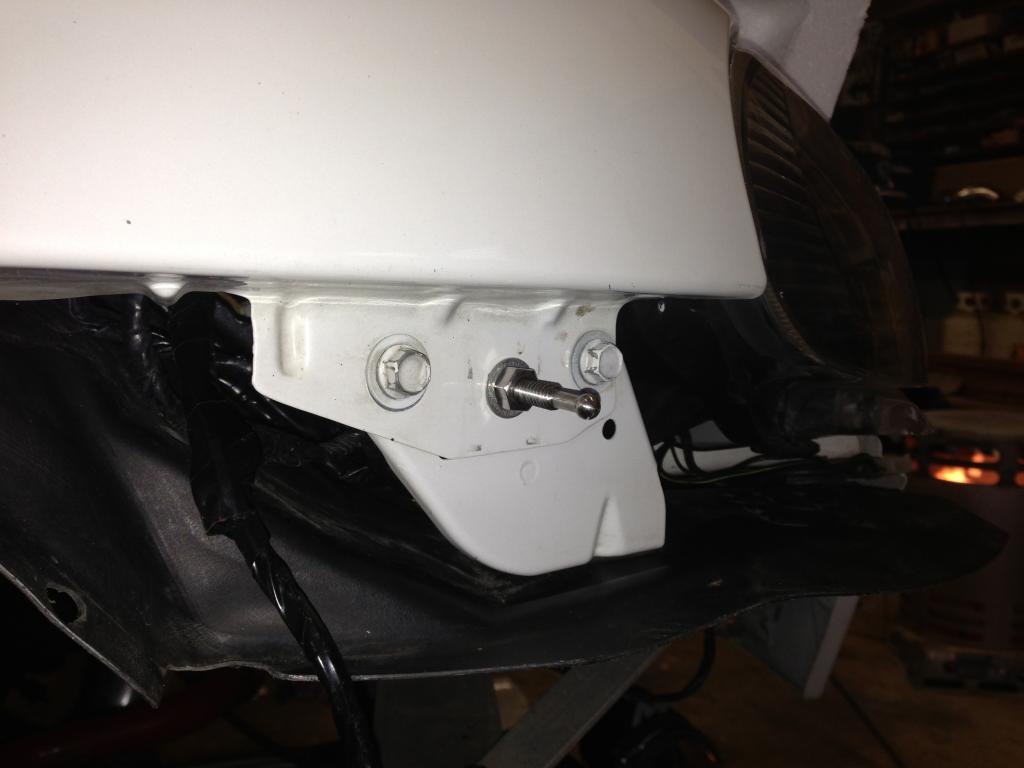

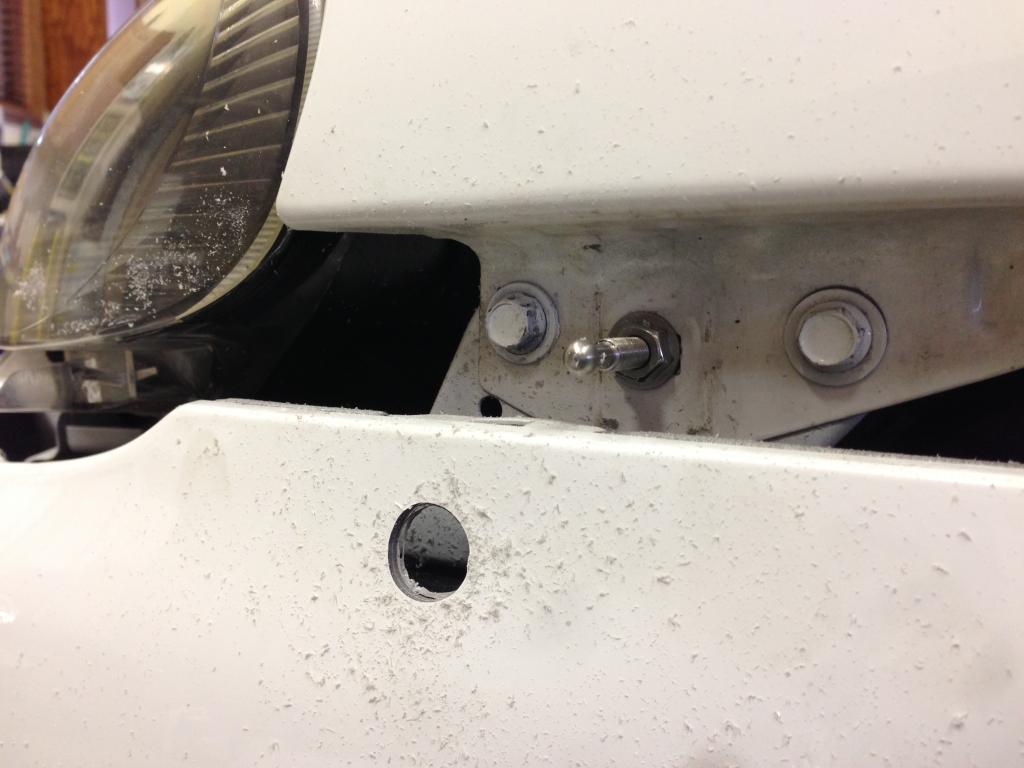

There was actually already a pretty good spot – Remove the plastic retainer and install the quik latch stud.

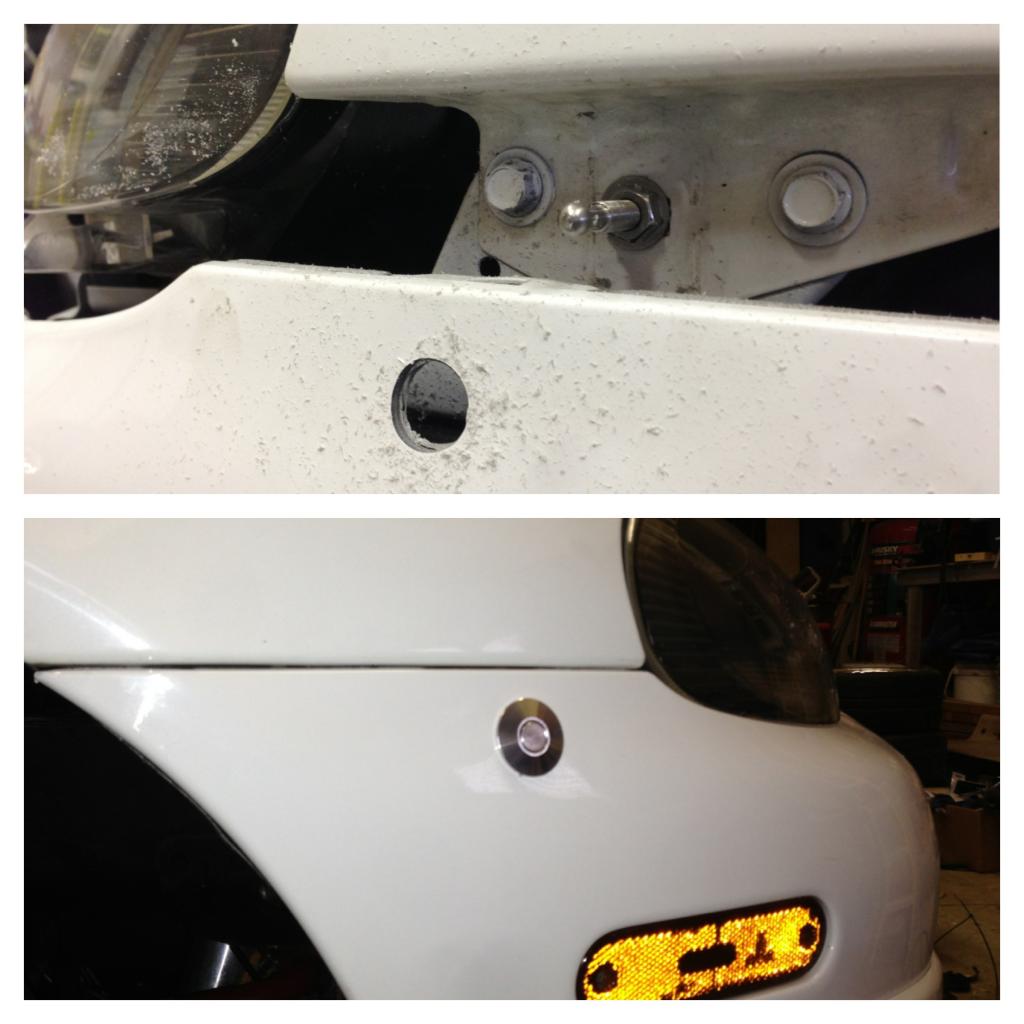

Drilled the holes and we were good to go.

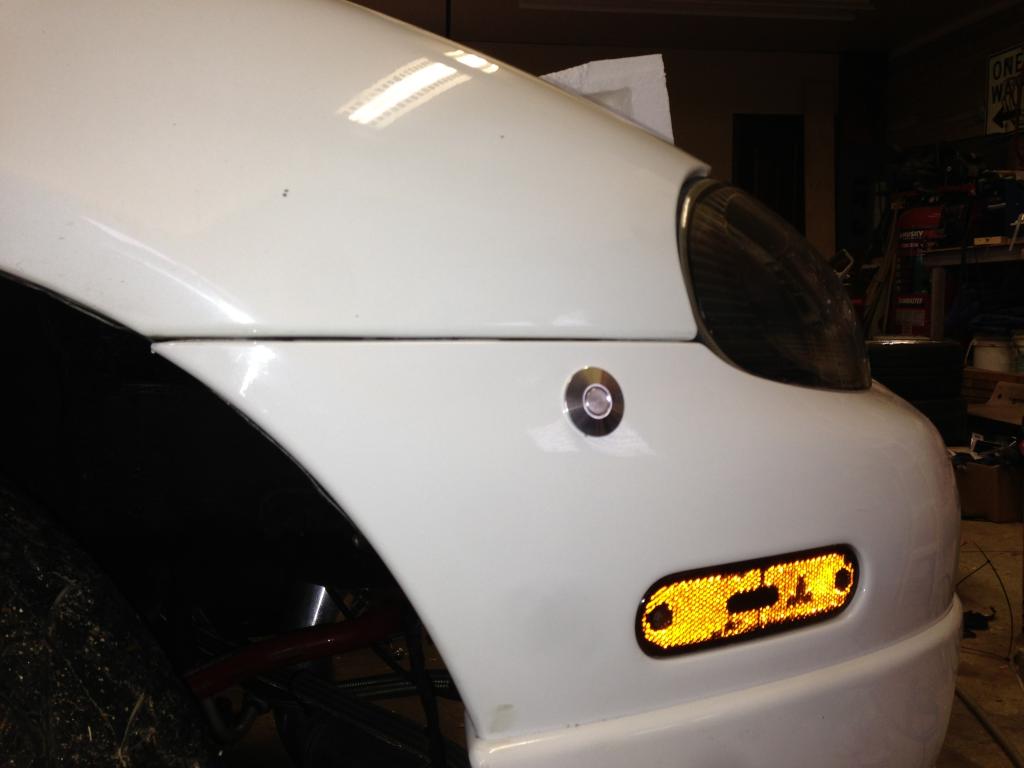

It now takes me about 30 seconds to remove my front clip…

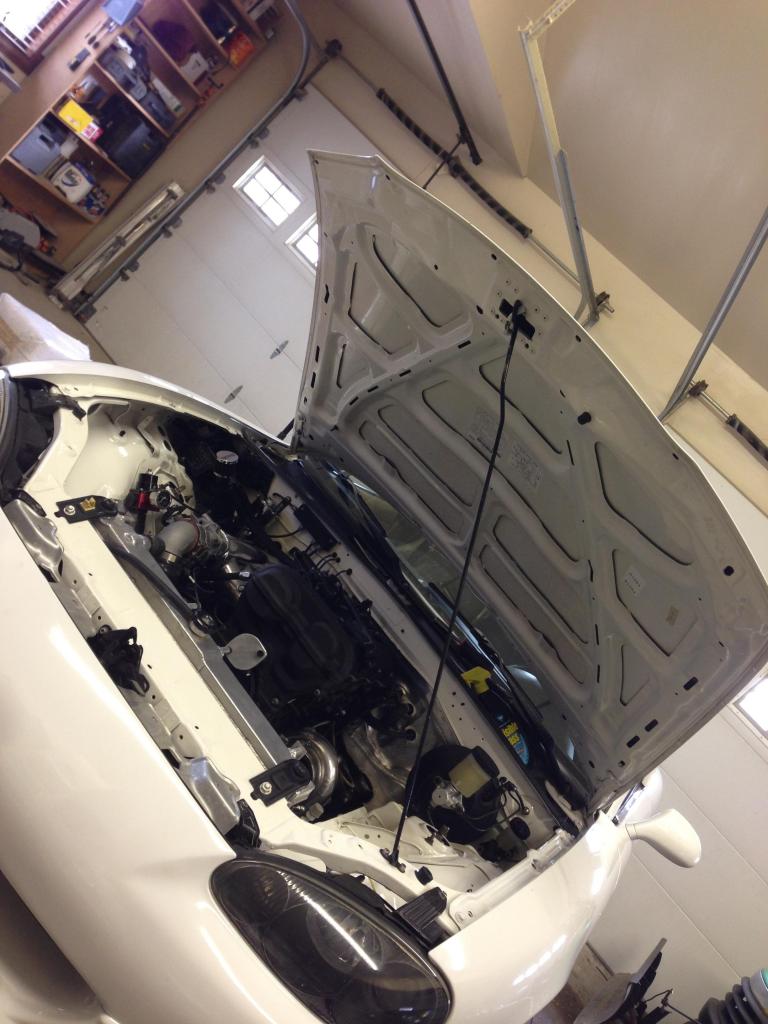

Since my manifold is out being coated at Dart I took the time to clean the under side of my hood..


Calling it a weekend.. I’ll keep you guys updated when the manifold shows up. Should be cool – Inside and outside ceramic blended coating.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture055_zpsb19e7d81.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture008_zps7c082007.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture007_zps9b9bf860.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture009_zps632c12a8.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture_zps8deb54fa.jpg

Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture001_zpsa60f0d8c.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture005_zpsc13331ec.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture003_zps5f6a8df1.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture014_zps2f29b140.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture011_zps27761229.jpg

miatauser123 is offline   Reply With Quote
Old 03-25-2013, 12:07 PM   #889
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,840
Total Cats: 1,786
Default

wow that TOB is much improved
Braineack is offline   Reply With Quote
Old 03-25-2013, 12:08 PM   #890
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Are you sure that clutch combo will be up to task at holding down 400whp+?

Methinks you need to go twin disk like a boss
18psi is offline   Reply With Quote
Old 03-26-2013, 02:50 PM   #891
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Just ordered 245.45.16 RE-11 for the summer/street rear tire.. anyone have any feedback on these?
miatauser123 is offline   Reply With Quote
Old 03-26-2013, 02:52 PM   #892
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

RE11 or RE11A? The A is supposed to be pretty outstanding and the underdog that no one is really talking about from the new crop of ST tires. The normal RE11 is kind of like the slightly less good at everything brother of the star spec.
Leafy is offline   Reply With Quote
Old 03-26-2013, 11:01 PM   #893
Hear me Meow
iTrader: (3)

skidude's Avatar

Join Date: Apr 2008
Location: Outside Portland Maine
Posts: 1,993
Total Cats: 13
Default

Quote:
Originally Posted by Leafy View Post
The normal RE11 is kind of like the slightly less good at everything brother of the star spec.
I thought it was supposed to be about the same performance-wise but totally not worth the extra cost... am I wrong?
skidude is offline   Reply With Quote
Old 03-26-2013, 11:04 PM   #894
Elite Member
iTrader: (1)

Leafy's Avatar

Join Date: Jun 2012
Location: NH
Posts: 9,091
Total Cats: 90
Default

Quote:
Originally Posted by skidude View Post
I thought it was supposed to be about the same performance-wise but totally not worth the extra cost... am I wrong?
Its about the same performance wise. But its louder on the street and IMO not as good on the street in the rain. But that is moot now since you cant get star specs any more and I doubt there are many normal RE11s left.
Leafy is offline   Reply With Quote
Old 03-27-2013, 12:22 AM   #895
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Ok well put it this way- last summer I was running through the KDW2's in a 225 so this should be an improvement yes?
miatauser123 is offline   Reply With Quote
Old 03-27-2013, 04:35 AM   #896
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

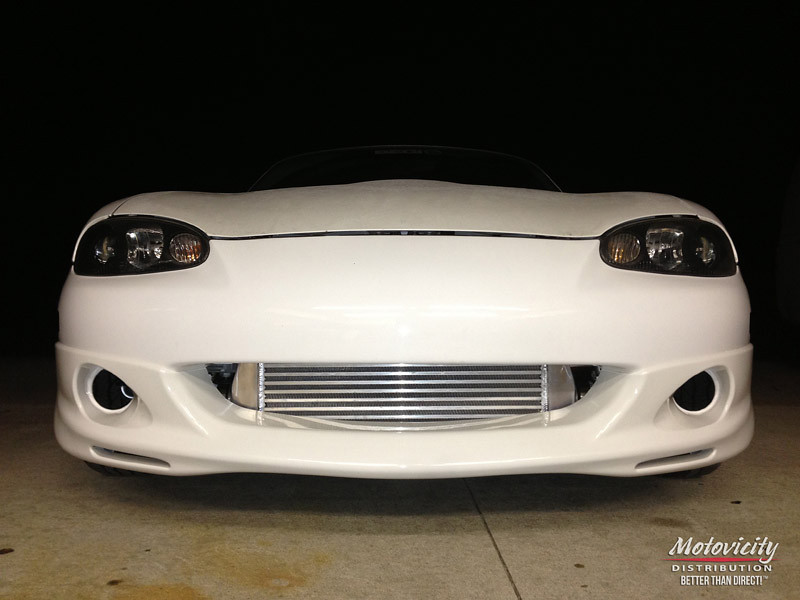

Look what I stumbled upon...

MotoBlog: Vibrant Intercooler Installation

I think I know this car...

Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-miata%2520ic%2520install-motoiq-12-l.jpg
Zaphod is offline   Reply With Quote
Old 03-27-2013, 12:35 PM   #897
Cpt. Slow
iTrader: (25)

curly's Avatar

Join Date: Oct 2005
Location: Oregon City, OR
Posts: 12,105
Total Cats: 518
Default

So I'm guessing that TOB can be ordered through FM, how much? Can it be used with any clutch?

With such a bitch to replace part, ebay units fail, etc, I'm surprised this is the first I'm hearing about it.
curly is offline   Reply With Quote
Old 03-27-2013, 01:38 PM   #898
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,174
Total Cats: 2,575
Default

Agreed: I've seen way too many ebay/chinese ones fail to run a non-oem or FM piece ever again.
18psi is offline   Reply With Quote
Old 03-27-2013, 02:05 PM   #899
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

I'm wondering if that's something that comes with the FM1 and FM2 clutches? I remember the TOB with my FM1 felt substantial, but I didn't take pics.
EO2K is offline   Reply With Quote
Old 03-27-2013, 06:33 PM   #900
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,192
Total Cats: 260
Default

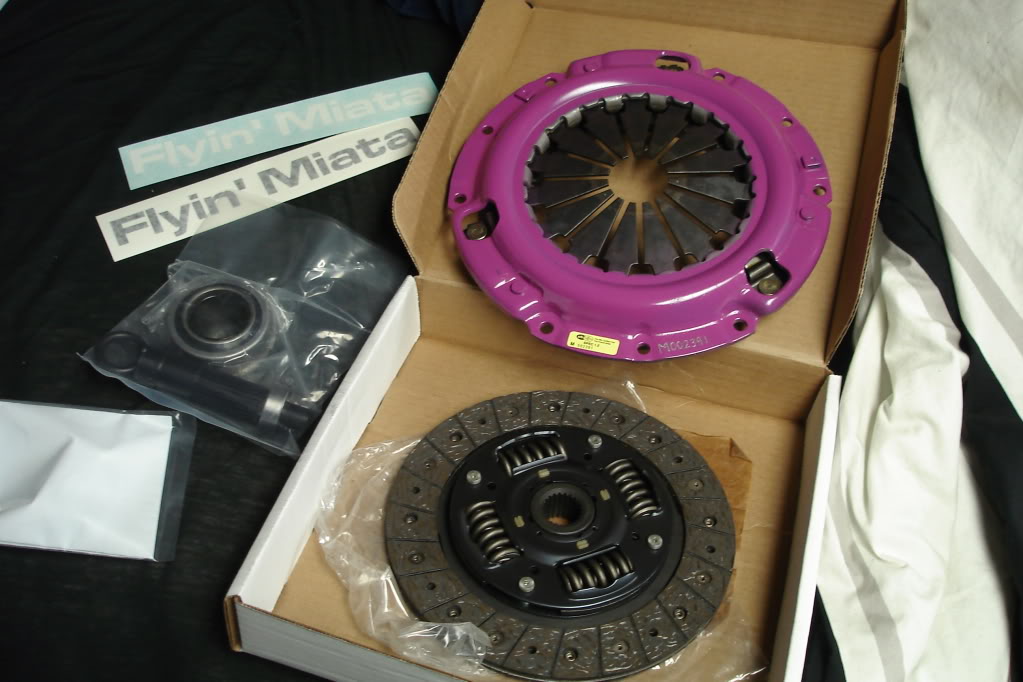

This is my FM level 1 clutch and TOB before i put it on.

Looks like the OEM one to me.
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-dsc04186.jpg
Erat is offline   Reply With Quote
