Old 04-13-2013, 08:19 PM   #961
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

details NAO!!
18psi is offline   Reply With Quote
Old 04-13-2013, 08:25 PM   #962
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,822
Total Cats: 1,781
Default

amirite!?
Braineack is online now   Reply With Quote
Old 04-13-2013, 09:02 PM   #963
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Dropped a valve at 400 wheel. Don't know any details over than I could not remove the spark plug. Then I promptly went to the bar.

Car made 400 at 23psi with a perfectly flat tq curve. I'm tired.
miatauser123 is offline   Reply With Quote
Old 04-13-2013, 09:14 PM   #964
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Disaster! So much sadness! Bar is probably the best stop after such an outing.

"Gentlemen, we can rebuild him. We have the technology... better...stronger...faster."



So, gonna share the plot with us?
EO2K is offline   Reply With Quote
Old 04-13-2013, 09:21 PM   #965
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

wow bummer man still looking forward to the plot though.
18psi is offline   Reply With Quote
Old 04-13-2013, 09:42 PM   #966
Senior Member
iTrader: (14)

Join Date: Oct 2006
Location: Las Cruces, NM
Posts: 1,401
Total Cats: 258
Default

**** man, sorry to hear that. Hopefully, no damage other than headwork.
99mx5 is offline   Reply With Quote
Old 04-13-2013, 10:01 PM   #967
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Don't want to think about it right now. Anyone have a VVT head?
miatauser123 is offline   Reply With Quote
Old 04-13-2013, 10:20 PM   #968
Destroyer of Inconel
iTrader: (37)

EO2K's Avatar

Join Date: Apr 2010
Location: In ur driveway, abusin' ur WPA
Posts: 9,642
Total Cats: 954
Default

Quote:
Originally Posted by Dem768 View Post
Don't want to think about it right now. Anyone have a VVT head?
Yes, actualy. I boxed it up last month as it was ready to ship to Bogus for some hard lovin' but then I decided to get married and now I'm broke as ****. As much as I WANT Vee Vee Tees, its going to be a looooong while until I get the scratch together to make it happen.

PM me if fro serio, I'll give you all the info I have on it and won't ask for a nickle more than I paid.
EO2K is offline   Reply With Quote
Old 04-13-2013, 10:45 PM   #969
Elite Member
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Fireindc is offline   Reply With Quote
Old 04-14-2013, 02:11 AM   #970
Elite Member
iTrader: (2)

Join Date: Aug 2012
Location: Indianapolis
Posts: 3,325
Total Cats: 235
Default

Eh, this is just a slight bump in the road. A dropped valve is child's play compared to this:

thenuge26 is offline   Reply With Quote
Old 04-14-2013, 02:50 AM   #971
I take big bites
iTrader: (1)

turbofan's Avatar

Join Date: Sep 2010
Location: Hurricane, UT
Posts: 6,924
Total Cats: 526
Default

Dang man. Even so, and even though you weren't expecting it, you'll build it bugger and faster and stronger.

You better not sell it either. My Miata account is not big enough to buy it.
turbofan is offline   Reply With Quote
Old 04-14-2013, 03:45 AM   #972
Senior Member

Join Date: Mar 2006
Location: Schwarzenberg, Germany
Posts: 1,497
Total Cats: 81
Default

Oh boy, sorry to hear that...

Get sober and get on... We all enjoy this build thread!
Zaphod is offline   Reply With Quote
Old 04-14-2013, 09:28 AM   #973
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Hate to ask, but was your head stock?

Not to hi-jack your thread, but what would cause a head to drop a valve? I assume it broke either where the stem is cut for retainers, or where it flares out for the head. Wondering what we can do to prevent this?

Dem, Thanks for the great build thread that has given us lots of great ideas and insight. No one here doubts you will be up and running like the **** you are very soon! And of course we expect pics.....Didn't you say you would have the GoPro going?
Amellrotts is offline   Reply With Quote
Old 04-14-2013, 10:27 AM   #974
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

Head was stock. This failure was probably caused by floating a valve. I did a couple of pulls and had some misfiring but assumed it was from being too rich or spark blowout. The valve springs couldn't return the valve quickly enough and they basically bounce or stay open and can make contact with the piston.

I do have the pull on video. Ill get it up soon.
miatauser123 is offline   Reply With Quote
Old 04-14-2013, 10:44 AM   #975
Senior Member
iTrader: (2)

Join Date: Oct 2011
Location: Hickory, NC
Posts: 683
Total Cats: 3
Default

Thank you!
How fast were you spinning her? What kind of boost? Have you had any decisions about what springs you will use? I chose the ST dual lite setup in hopes to never find out how you feel right now.
Amellrotts is offline   Reply With Quote
Old 04-14-2013, 11:54 AM   #976
573
Junior Member
iTrader: (2)

573's Avatar

Join Date: Nov 2011
Location: Troy, Michigan
Posts: 252
Total Cats: 16
Default

The best thing about part failures is that they can pave the way for bigger and better things. I imagine a built head with a nice porting would help immensely, making your power goals achievable with less boost.

Oh, and if you were on the Speed Industry dyno, that thing is notorious for reading low...even lower than other Mustang dynos. 400 on that guy is probably roughly equivalent to 450 most anywhere else.
573 is offline   Reply With Quote
Old 04-14-2013, 01:55 PM   #977
Elite Member

Join Date: Mar 2010
Location: Detroit
Posts: 1,524
Total Cats: 27
Default

What was failflora's? 350whp @ 30+psi? You sir are doing something right. I have the utmost faith in your skills to not only rebuild it correctly, but to blow those current #'s out of the water with a nice pnp vvt head.

On another note...does this mean I have the fastest, running Michigan miata now?
flounder is offline   Reply With Quote
Old 04-14-2013, 01:56 PM   #978
Boost Czar
iTrader: (61)

Braineack's Avatar

Join Date: May 2005
Location: Chantilly, VA
Posts: 72,822
Total Cats: 1,781
Default

you cant use anything Fae for a baseline other than for failure.
Braineack is online now   Reply With Quote
Old 04-14-2013, 04:54 PM   #979
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,168
Total Cats: 2,573
Default

Quote:
Originally Posted by Braineack View Post
you cant use anything Fae for a baseline other than for failure.
TRUTH.com
18psi is offline   Reply With Quote
Old 04-15-2013, 10:59 AM   #980
Senior Member
Thread Starter
iTrader: (7)

Join Date: Sep 2009
Location: Royal Oak Michigan
Posts: 756
Total Cats: 67
Default

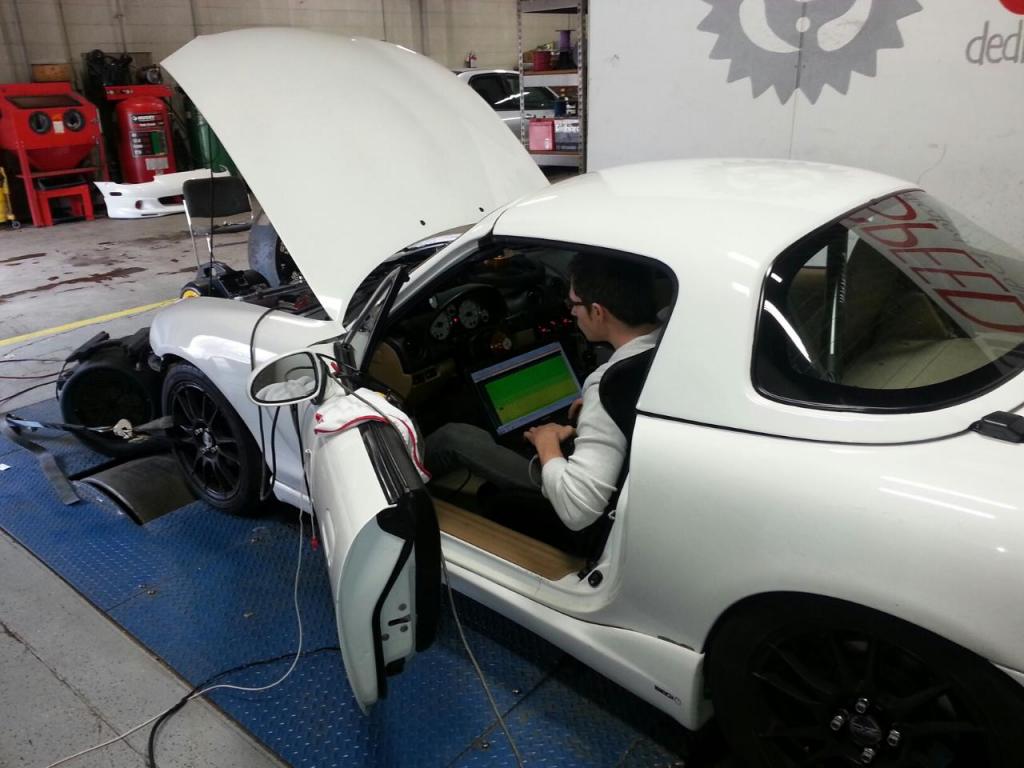

Started my day out with a nice coffee... Laptop was charged.. delicious steering wheel was awaiting the ride to the dyno..



I had my map setup as a hybrid boost comp table and things were going great - I unplugged the waste gate line and basically tuned it perfectly at 14 psi across the board. Then basically copied the cells all the way up and let boost comp take care of the rest. As I started to ramp up in boost things were going beautifully. Boost comp was doing it's thing and making my job easy.



As I got close to 20 psi the car started to make some really impressive numbers. 380 something at 20 psi. My torque curve was seriously impressive. Not a single bottle neck in the system holding me back. The BEGi manifold 100% solved my torque curve issues. It was basically making more power with RPM and didn't show signs of choking out at all.

Now getting near the 24 psi mark I started to notice a misfire at around 6500 so I checked my timing and added a little fuel. Ran it up a couple more times with the same problem.. The timing was looking pretty retarded for E85 so I gave it a degree or two more and it went away. Then I moved it up a notch and got one pull out of her before the failure in cyl 4. The pull itself was actually not awful, but just at redline I let off and you can hear a ticking noise all the way back down. The car shut down pretty quickly and would not fire back up.

Pushed the bitch off the dyno and headed to the bar.

Now I'm debating building a nice VVT head or going with a cammed out non-VVT built head...
Attached Thumbnails
Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture015_zpsf19aeac3.jpg   Building a blonde young beefcake wearing nothing but skimpy shorts named Rocky-picture018_zps59a68f34.jpg
miatauser123 is offline   Reply With Quote
