Old 10-11-2013, 12:35 PM   #421
Elite Member
iTrader: (5)

Erat's Avatar

Join Date: Oct 2011
Location: Detroit
Posts: 4,196
Total Cats: 260
Default

High RPM is nice, but things fall on their face after 8000rpm. - Says the butt dyno.
Erat is offline   Reply With Quote
Old 10-11-2013, 01:15 PM   #422
Elite Member
iTrader: (4)

Join Date: Sep 2006
Location: Charlotte, NC
Posts: 3,049
Total Cats: 5
Default

Quote:
Originally Posted by Fireindc View Post
i really miss the way my old 1.6 had topend pull. .
I vote BAN!

Where' Braineack

Efini~FC3S is offline   Reply With Quote
Old 10-11-2013, 01:28 PM   #423
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by Efini~FC3S View Post
I vote BAN!

Where' Braineack

I sure don't miss the 1.6 itself, **** that motor. Make no mistake the 1.8 is glorious, but also for future reference a sr20 2554 is too small for a 1.8. ESPECIALLY at 7,000+ feet where the turbo conks out below 200whp.
Fireindc is offline   Reply With Quote
Old 10-11-2013, 02:32 PM   #424
Moderator
iTrader: (11)

sixshooter's Avatar

Join Date: Nov 2008
Location: Tampa, Florida
Posts: 15,664
Total Cats: 1,560
Default

I forgot you have a 2554. There is no way I would have one of those on a 1.8. Even at sea level.
sixshooter is offline   Reply With Quote
Old 10-11-2013, 02:44 PM   #425
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by sixshooter View Post
I forgot you have a 2554. There is no way I would have one of those on a 1.8. Even at sea level.
Indeed. I got it for free though, and it IS still a fun car as it sits with ~190whp. Just needs more top end, bigger snail will come with my newly built engine
Fireindc is offline   Reply With Quote
Old 10-17-2013, 02:38 PM   #426
Senior Member
iTrader: (1)

Join Date: Oct 2008
Location: Trailer County
Posts: 530
Total Cats: -9
Default

How were you able to do such a clean return fitting on the aluminum pan?
mazpr is offline   Reply With Quote
Old 10-17-2013, 02:45 PM   #427
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Thanks for the compliment, it's quite easy to do it that clean when you have the pan off the car. I did your standard drill/tap, then lubed up the threads with a generous amount of JB weld and threaded it in. When it threaded in the jb weld puddled on the outside of the fitting, i wiped any JB weld off from the inside of the pan so it couldn't come loose or anything, then I let it dry.

Once dried i came in with a dremel and milled the fitting flush with the inside of the pan, so there was as much room as possible for drain-back from the turbo with the windage trey and pickup fitted. I'm happy with it so far, no leaks at all anywhere on the engine at this point and the JB is holding up fine.
Fireindc is offline   Reply With Quote
Old 10-18-2013, 01:45 AM   #428
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Alright guys, got my donor BP pulled apart. This was a 94/95 BP with ~100k miles on it, 3-4k on a tdo4 turbo. What do you think?

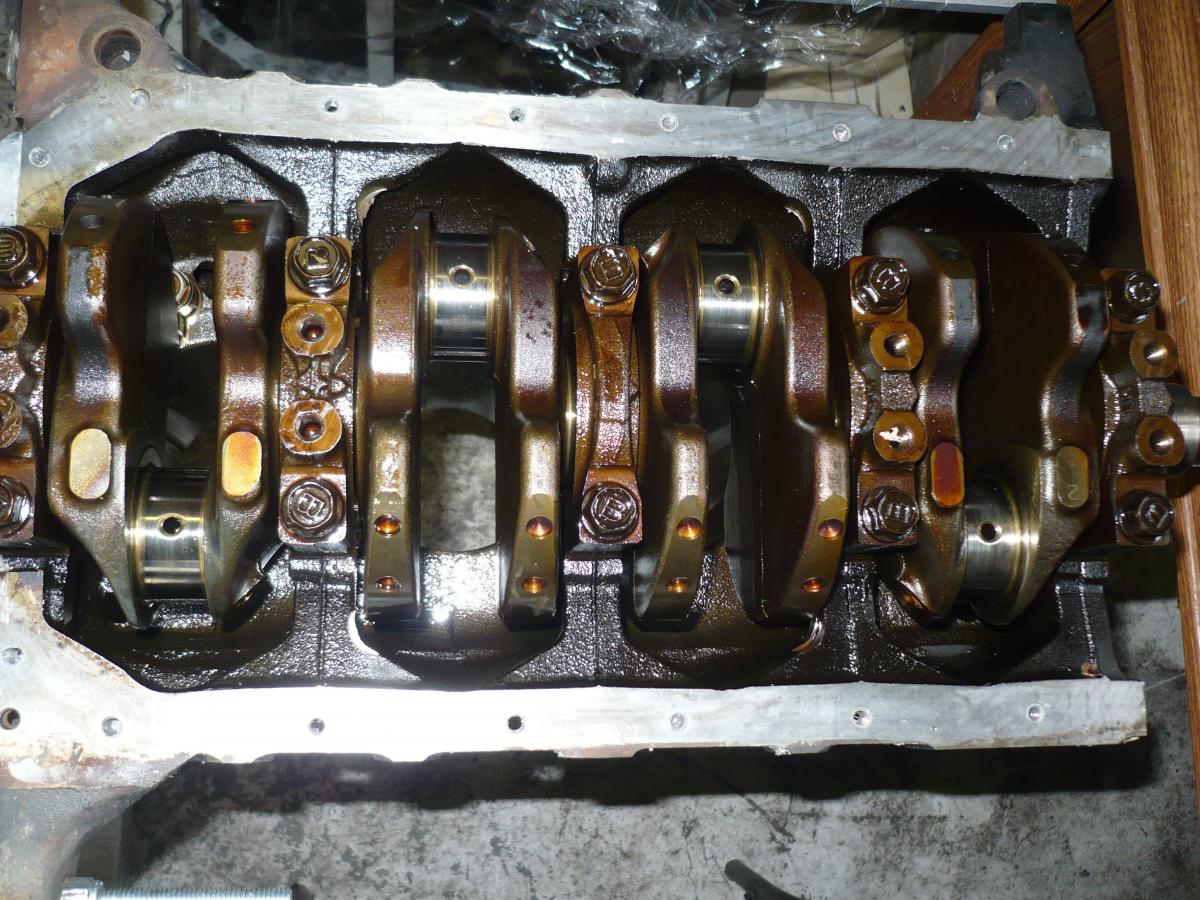

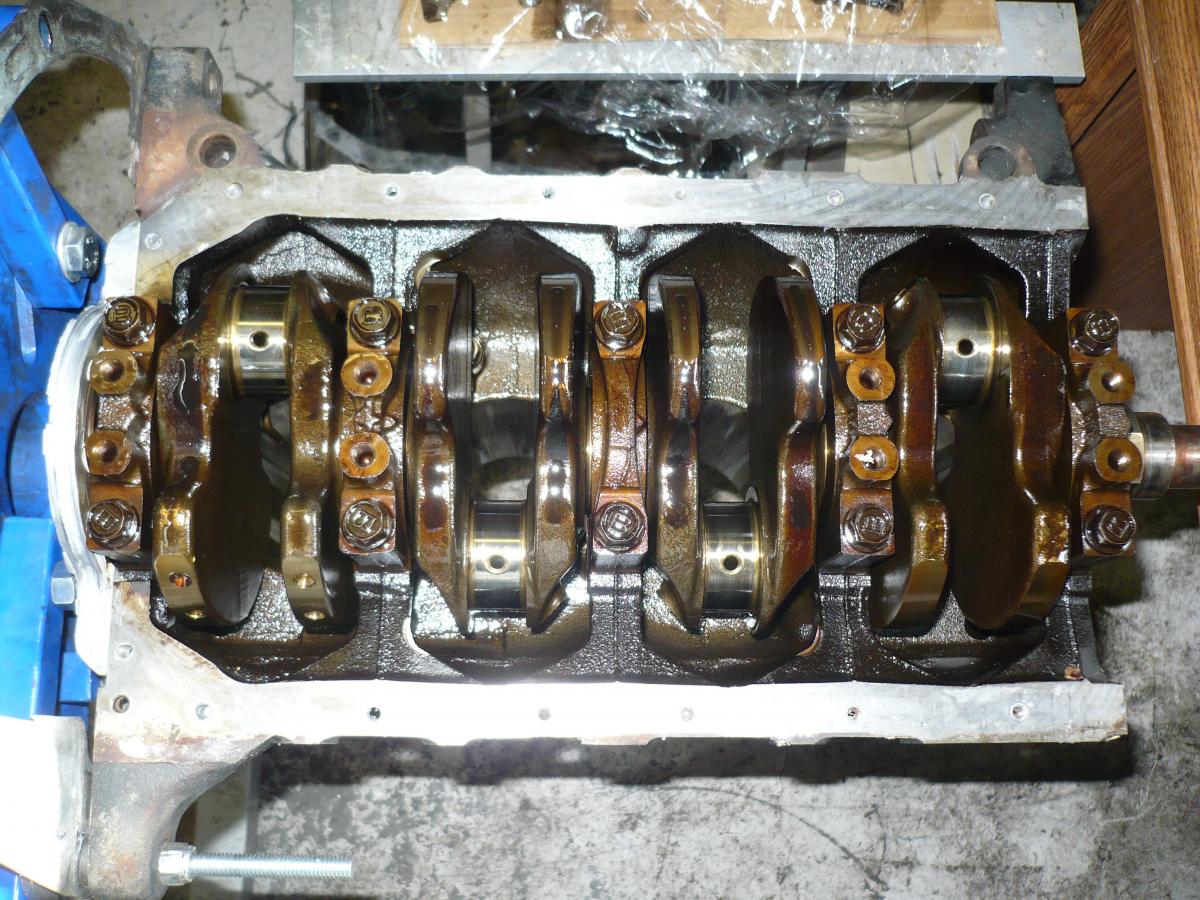

Let's start with the crank. This thing looks and feels pretty much perfect to me. There are some "lines" on it visible, but nothing deep enough to catch a nail on or anything.

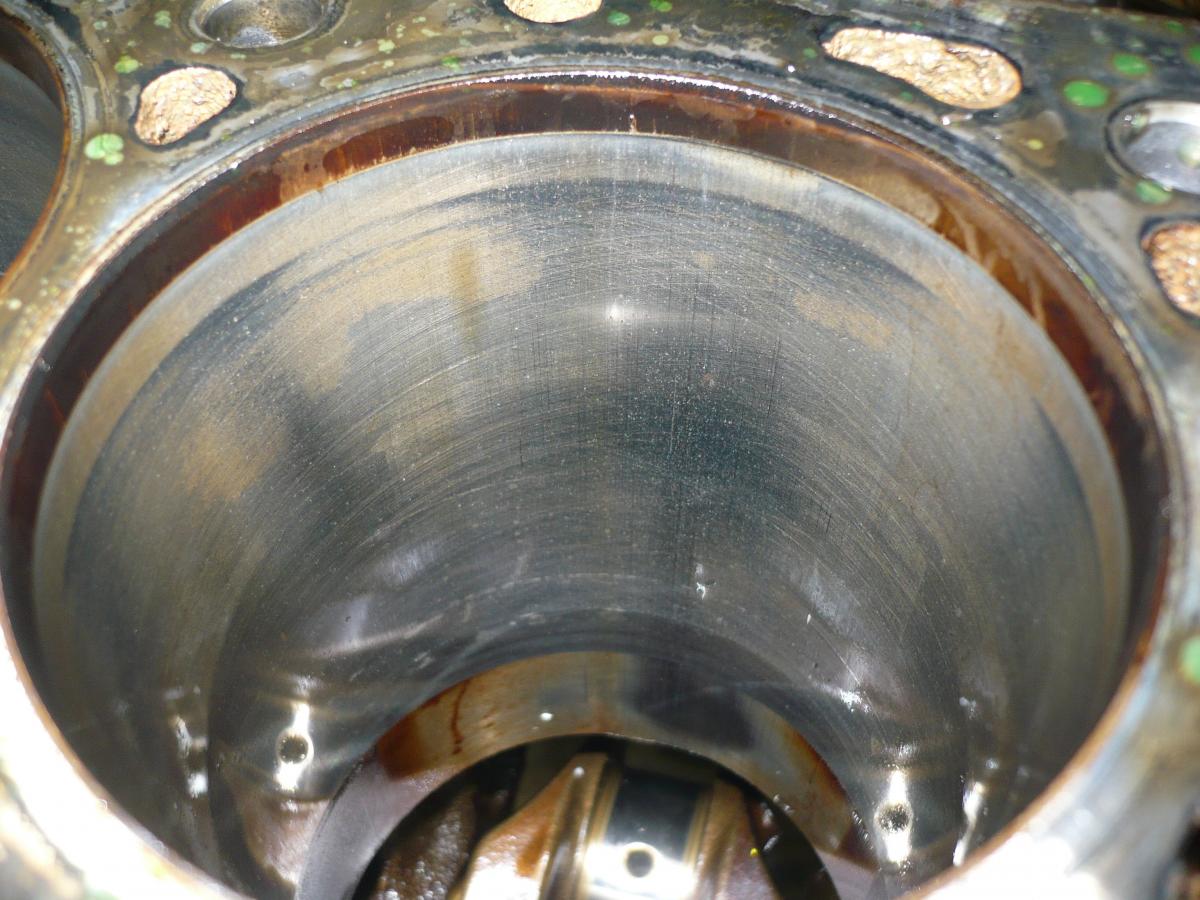

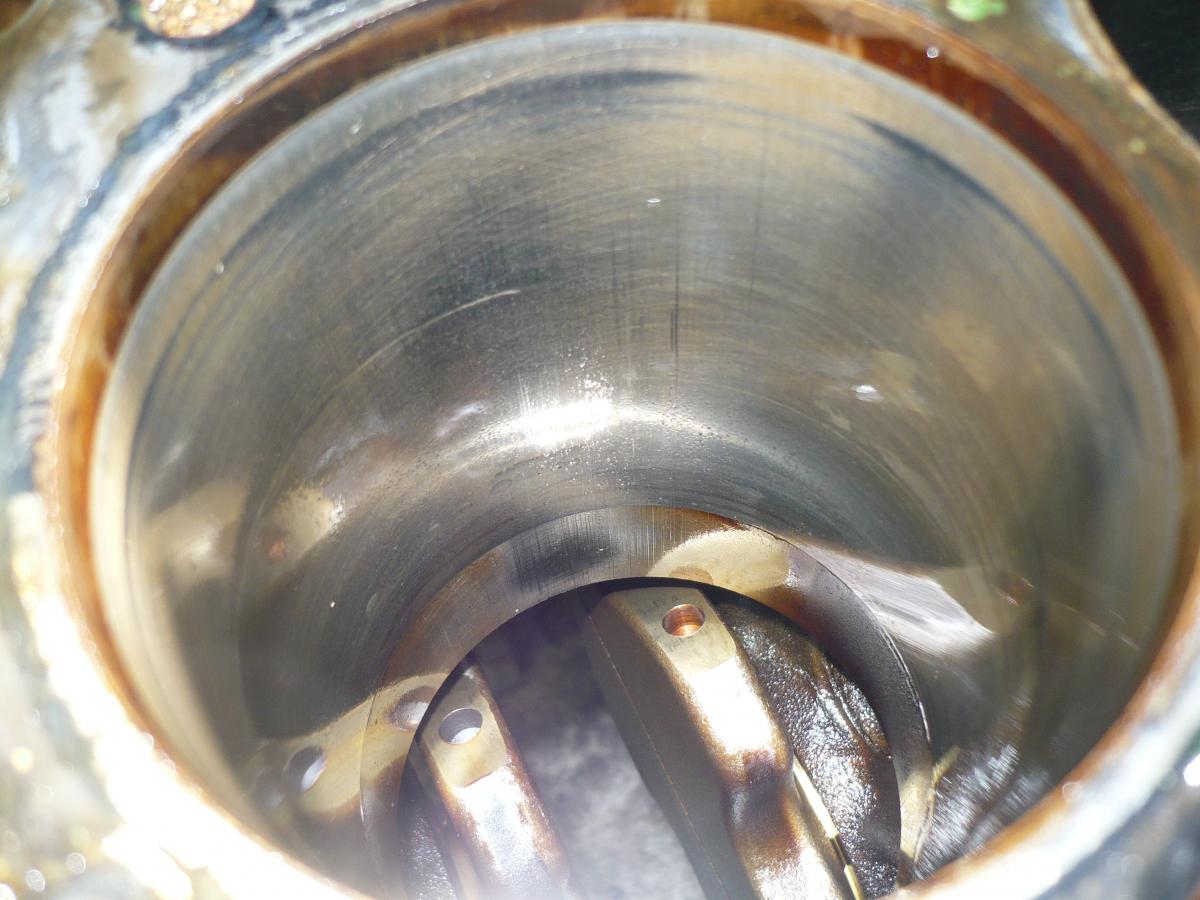

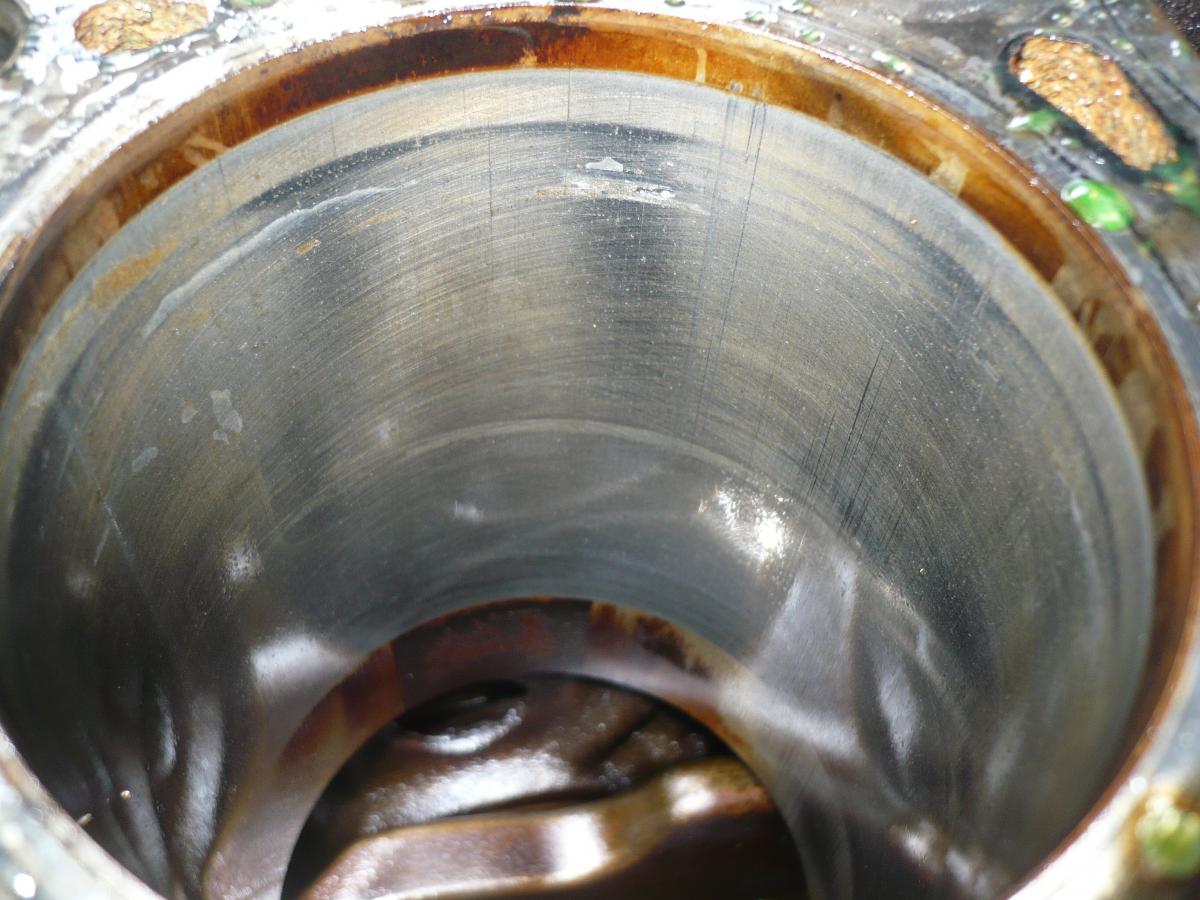

Now, as we move on to the cylinders note that I took pictures of any of the worse scratches I could find on each bore.

Cyl 1. The deepest vertical scratch in the middle you just can catch a nail on. Hopefully a good hone will smooth it out. The horizontal line you see is from corrosion where the piston sat there for a while before being pulled apart, it will easily hone out.


Cyl 2. Same deal, a few vertical scratches you could catch a nail on, but hopefully they will hone out pretty easily. Hard to tell just how deep they are though. horizontal line is same type of deal from where piston sat in the bore.


Cyl 3 was pretty much perfect:

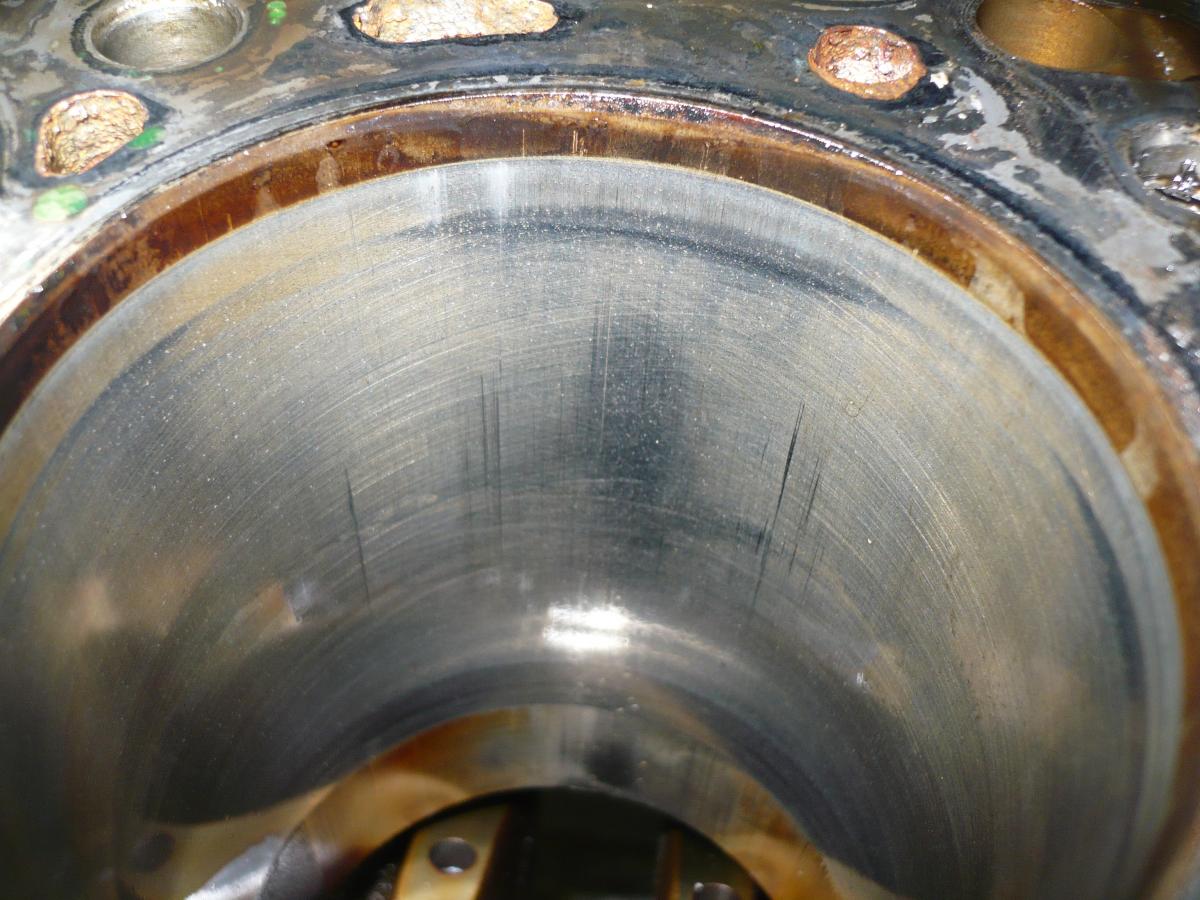

Cyl 4, one of those you could catch a nail on - the others were very shallow despite what pics say.
Attached Thumbnails
Fireindc's attempt to build a decent miata.  (the search for more torque).-qrv4iei.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-468rpce.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-mhwnf1w.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-uovvxnb.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-zaa5uwl.jpg

Fireindc's attempt to build a decent miata.  (the search for more torque).-5quqiej.jpg
Fireindc is offline   Reply With Quote
Old 10-18-2013, 02:09 AM   #429
Murderator
iTrader: (76)

18psi's Avatar

Join Date: Apr 2008
Posts: 36,181
Total Cats: 2,581
Default

overall looks dirty: like the oil wasn't changed on time.
crank looks good
cyl walls look not bad either, nothing a hone can't fix
18psi is offline   Reply With Quote
Old 10-18-2013, 02:17 AM   #430
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

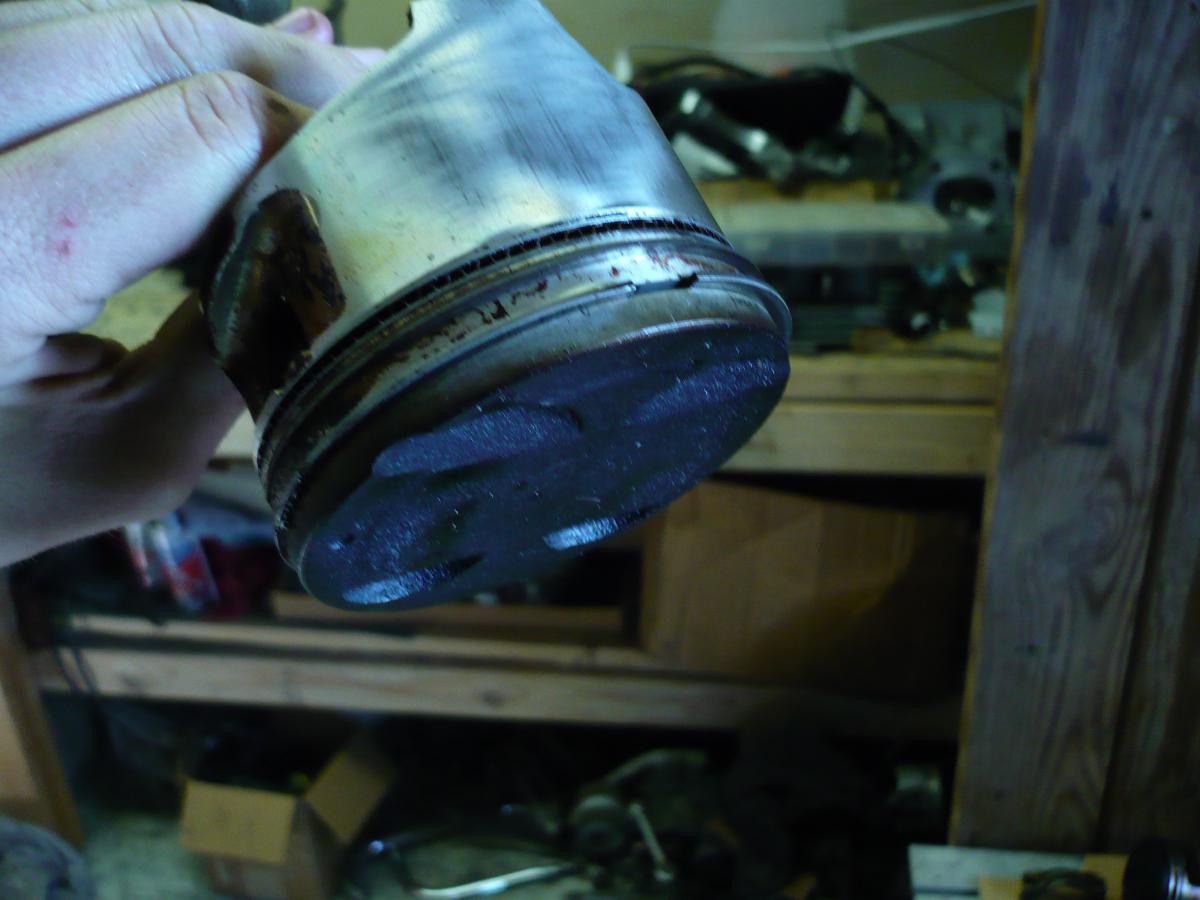

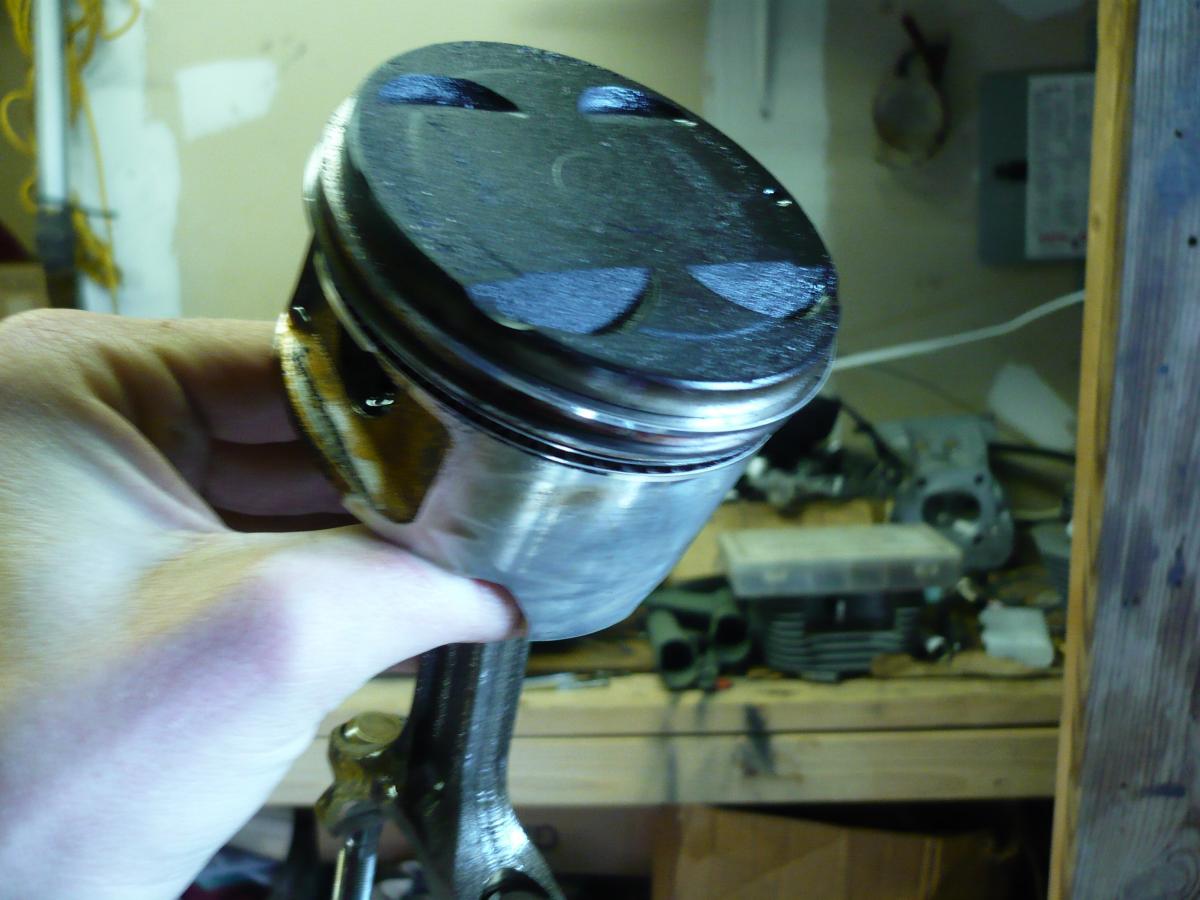

Some piston action. They all looked really damn good to me.

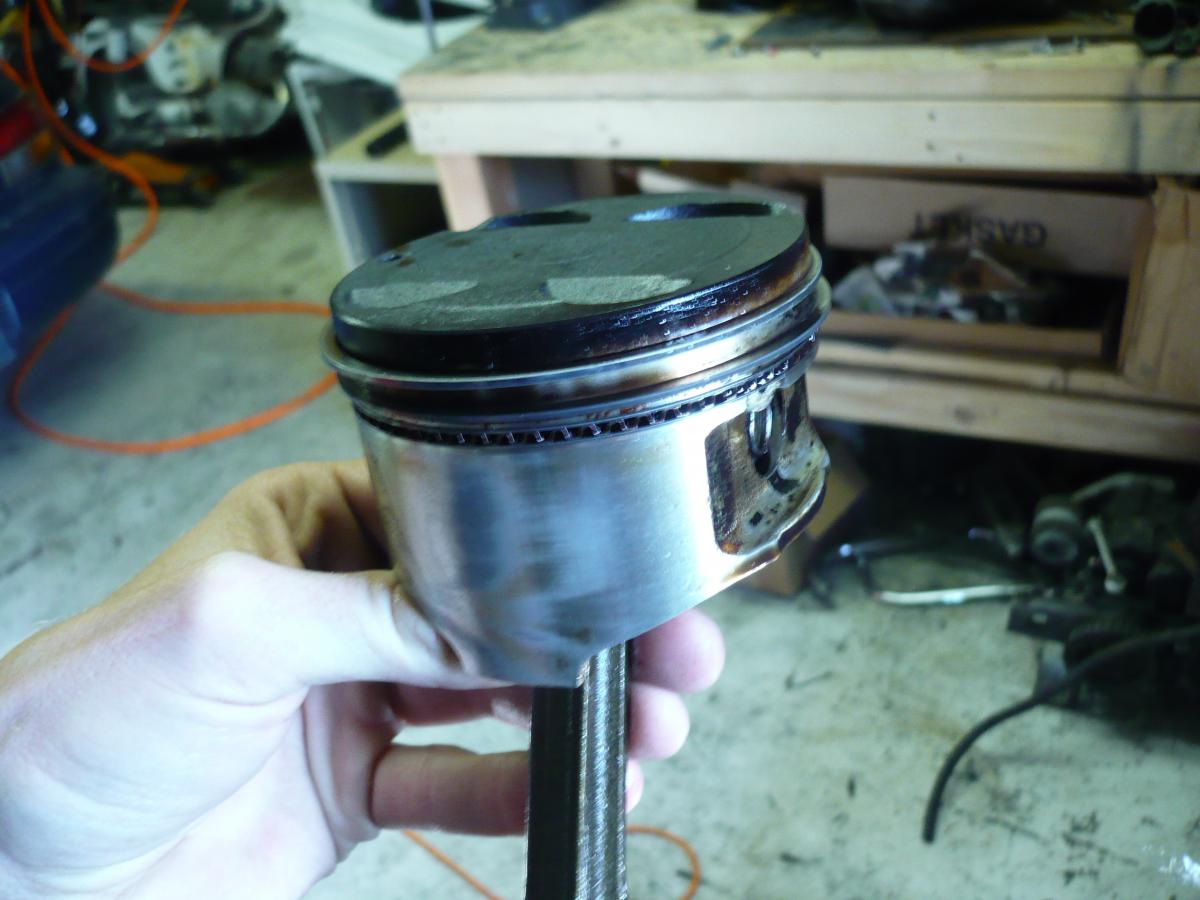

This one had the most scratches on the skirt out of all of them. Not deep enough to hand a fingernail on though.

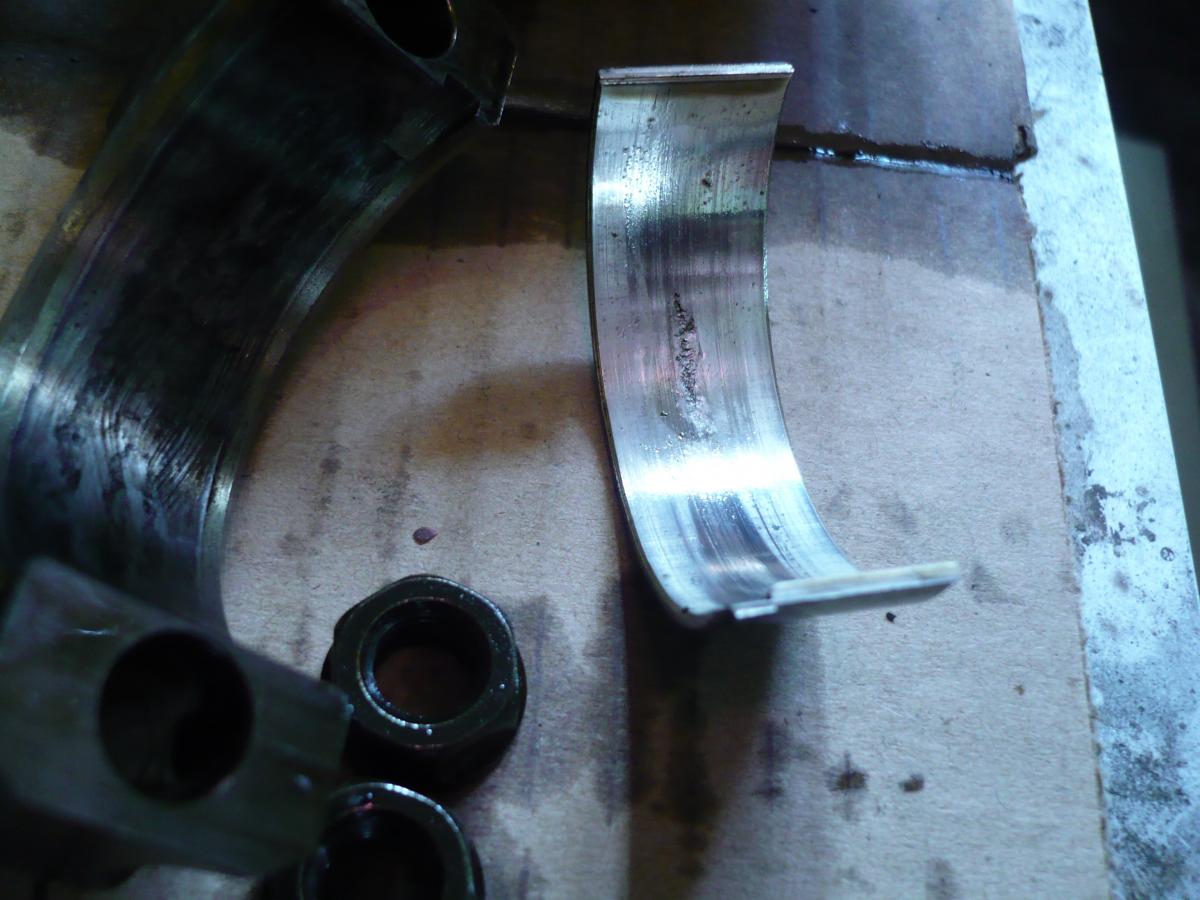

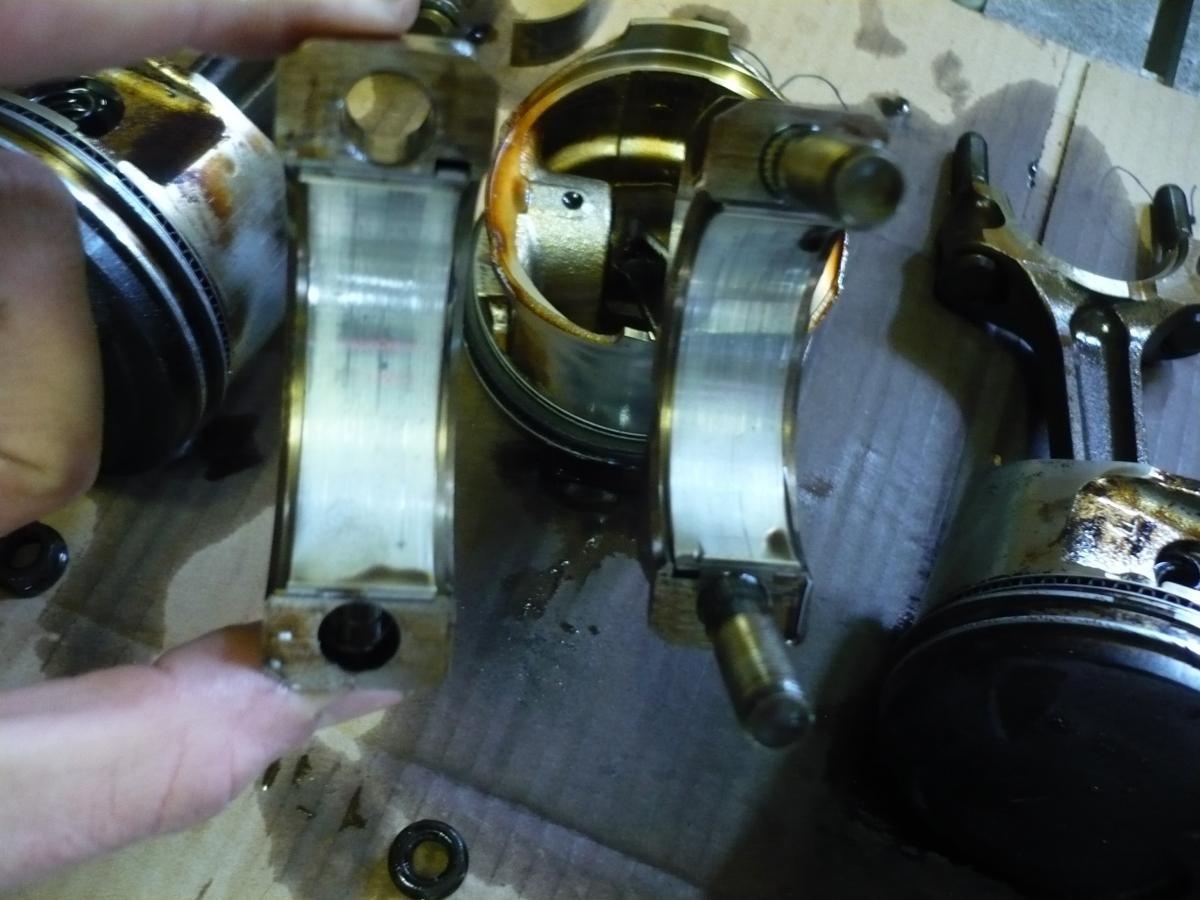

Bearing from cyl 1, was getting chewed up. No marks on the crank at all though thankfully!


Most of the other bearings looked more like this

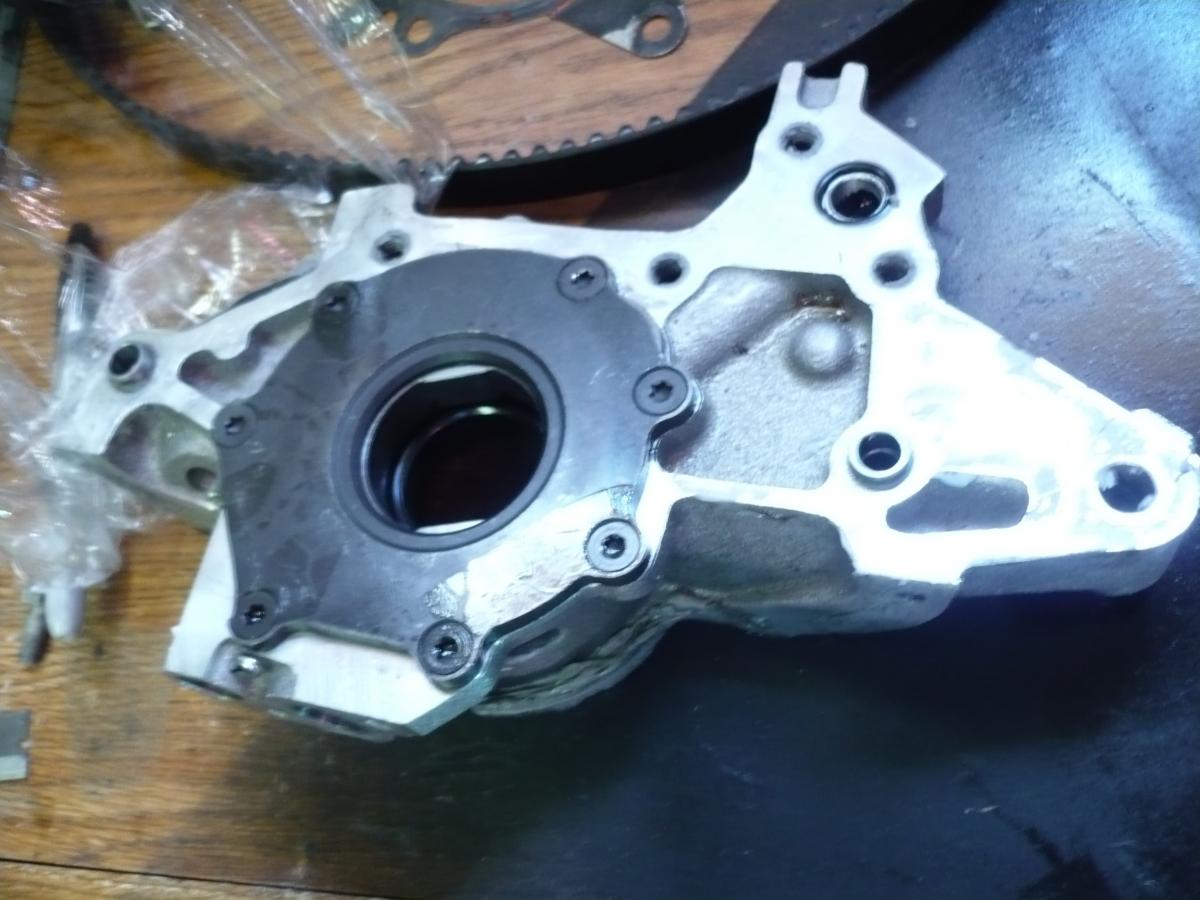

Didn't yank this oil pump apart, but the PO of this motor said it was a few thousand miles old. Wonder if i should tear it apart?

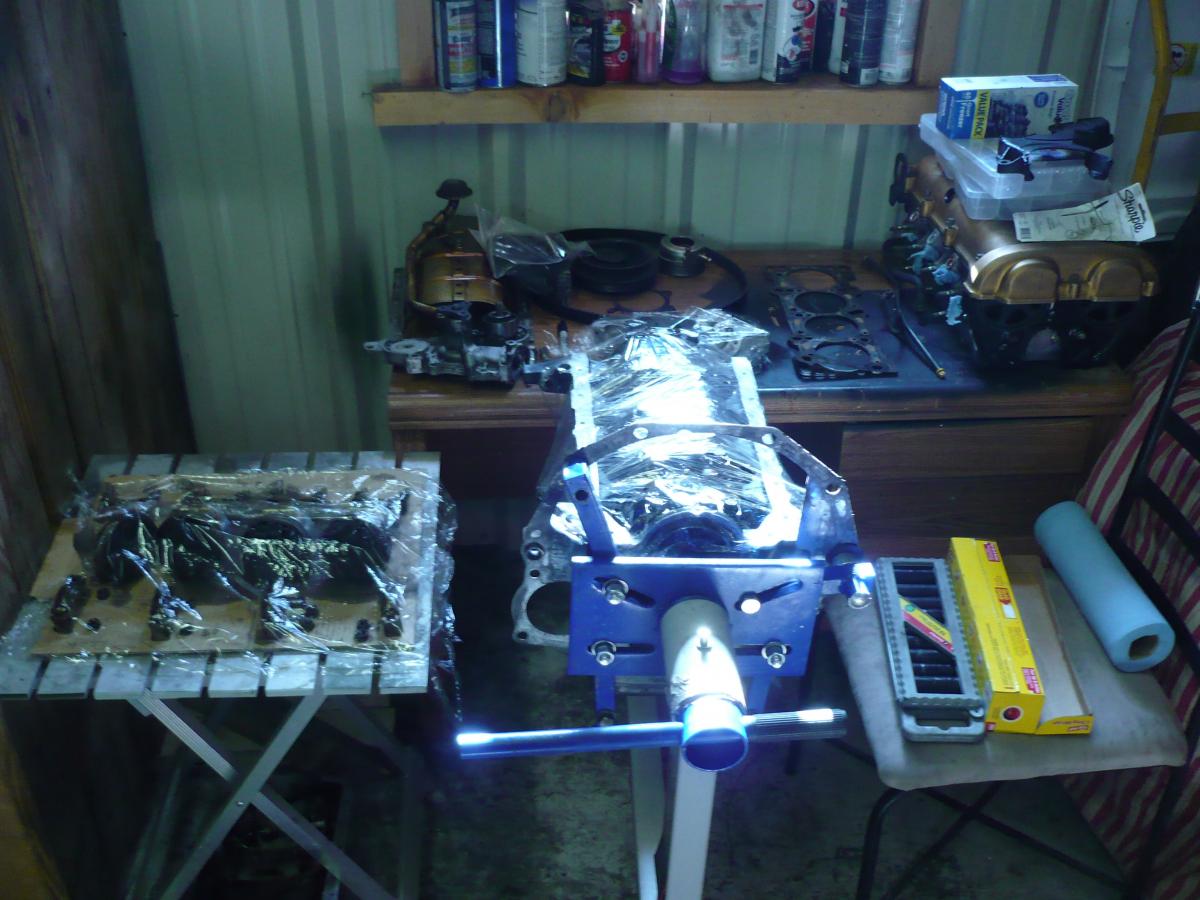

The workstation:
Attached Thumbnails
Fireindc's attempt to build a decent miata.  (the search for more torque).-fmzstt9.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-rzl6gon.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-c0yk53f.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-ltkdonx.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-9jt7pgb.jpg

Fireindc's attempt to build a decent miata.  (the search for more torque).-rzsvac1.jpg   Fireindc's attempt to build a decent miata.  (the search for more torque).-r7ywv7d.jpg
Fireindc is offline   Reply With Quote
Old 10-18-2013, 02:23 AM   #431
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by 18psi View Post
overall looks dirty: like the oil wasn't changed on time.
crank looks good
cyl walls look not bad either, nothing a hone can't fix
Thanks for looking Vlad. This was my line of thinking as well. Have not pulled the mains on the crank yet, but they are probably fine. Will pull them soon.

Cyl walls I'm going to hone out until there are no scratches left to hang a nail on. I figure you want a little bit looser bores on a turbo engine anyways, should be fine.

I might try to play with polishing out the crank and piston skirts, but i might just leave them. What do you guys think on that front?

Engine isn't perfect, but everything seems usable to me at least. Getting excited and about to order some parts.

Might have a 2860rs on the way too..
Fireindc is offline   Reply With Quote
Old 10-18-2013, 11:37 AM   #432
Elite Member
iTrader: (3)

Join Date: Mar 2008
Location: Granbury, TX
Posts: 6,009
Total Cats: 583
Default

Parts look good (except for that bearing -- but at least it took the damage instead of the crank journal). Nice to see OEM cross-hatching still there in the bores.

I'd put in a new oil pump. That's one of those things you just do when you rebuild IMHO.
hornetball is online now   Reply With Quote
Old 10-18-2013, 04:58 PM   #433
Junior Member
iTrader: (1)

Join Date: Feb 2013
Location: Windsor, Ontario
Posts: 404
Total Cats: 64
Default

Quote:
Originally Posted by Fireindc View Post
Might have a 2860rs on the way too..
BoostedSmurf is offline   Reply With Quote
Old 10-18-2013, 05:19 PM   #434
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,464
Total Cats: 782
Default

I'd only do bearings, oil pump, and a hone on that. **** the rest.
concealer404 is online now   Reply With Quote
Old 10-18-2013, 05:54 PM   #435
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by concealer404 View Post
I'd only do bearings, oil pump, and a hone on that. **** the rest.
No re-ring? Pretty much what I plan on doing though. Bearings, hone, re-ring, forged rods on my stock pistons. Oem gaskets. Button it up and boost it to the sky with my new gt2860rs.

Oh and a downpipe. I need a bigger one to go with the new turbo. Looking for a divorced wastegate and at least 2.75".

Let's see how this works out.
Fireindc is offline   Reply With Quote
Old 10-18-2013, 05:58 PM   #436
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,464
Total Cats: 782
Default

I'd never hone without a re-ring.

That said, i'm not even 100% positive i'd personally bother honing that, but i suppose most normal people would find it silly to not do it.
concealer404 is online now   Reply With Quote
Old 10-18-2013, 06:04 PM   #437
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by concealer404 View Post
I'd never hone without a re-ring.

That said, i'm not even 100% positive i'd personally bother honing that, but i suppose most normal people would find it silly to not do it.
lol, oh yeah? I did notice very visible cross hatching in all of the bores still. I'm going to do a light hone to get rid of the scratches you can feel and call it.

What kind of hone do you recommend? Ball hone, or the other cheaper kind?
Fireindc is offline   Reply With Quote
Old 10-18-2013, 06:05 PM   #438
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,464
Total Cats: 782
Default

I love *****.
concealer404 is online now   Reply With Quote
Old 10-18-2013, 06:18 PM   #439
Elite Member
Thread Starter
iTrader: (13)

Join Date: Dec 2006
Location: Taos, New mexico
Posts: 5,702
Total Cats: 237
Default

Quote:
Originally Posted by concealer404 View Post
I love *****.
Oh you, stop it

I've heard the ball hones are "better", yet I've seen a ton of people use the cheaper ones with great results too. Undecided on that right now, but **** I've got plenty of parts to order still.

As for oil pumps, would I be a moron to go with something like this?

1990 98 Mazda Ford Mercury 1 5L 1 6L 1 8L Engine Oil Pump | eBay

Or should I go OEM?
Fireindc is offline   Reply With Quote
Old 10-18-2013, 06:32 PM   #440
Elite Member
iTrader: (3)

concealer404's Avatar

Join Date: Aug 2011
Posts: 8,464
Total Cats: 782
Default

Dunno. I just bought an ITM oil pump for my daily driver for $65 shipped. In retrospect, i somewhat wish i had just gotten one of the super cheap $40 chinese ones because who cares?

My thoughts on this subject is that the aftermarket has had 20 some-odd years at this point to come up with a passable product, and it's unlikely that any of them will be much inferior to OEM. The flip side is that we're now talking about a motor that you're going to care about in the case of you car...

And in my case, a motor i can have out of my car in less than 2 hours working solo. I grenade a motor on the way to work in the morning, i can have it towed to my shop, and drive it home that night.

TL;DR: You'll find no answers here.
concealer404 is online now   Reply With Quote
